mec wood used for sale

pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x

pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive overload protection in ram:hydraulic ram adjustment:motoric tool changing unit:2 x

pressure:200 t stroke:30 - 160 mm no. of strokes:40 - 120 /min distance between columns:1500 mm distance between oil collecting pans:1300 mm distance table/ram, max. stroke up, adjustment up:860 mm hole in the table:550 x 300 mm table surface area:1250 x 1250 mm table height over floor:1000 mm column travel -side:600 x 530 mm ram surface:1250 x 1000 mm ram adjustment:125 mm Material width of feeder:30 - 500 mm Material thickness feeder:0,5 - 3,0 mm feeding length:0 - 999,9 mm power requirement:50,0 kW weight:34,0 t dimensions (WxDxH):4,0 x 1,7 x 5,2 m clutch-/ brake combination:pneumatisch, Ortlinghaus overload protection in ram:hydraulisch ram adjustment:automatisch stroke adjustment:automatisch ram counterbalance:pneumatisch roll feed:Weingarten, WE 60 Option: NEW electrical controls:Siemens S7-1500 F

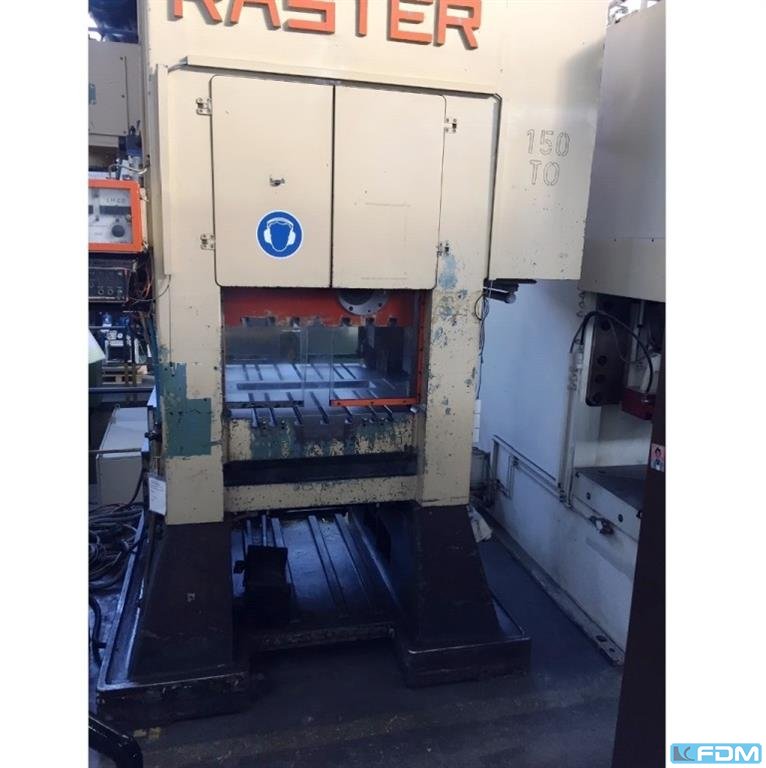

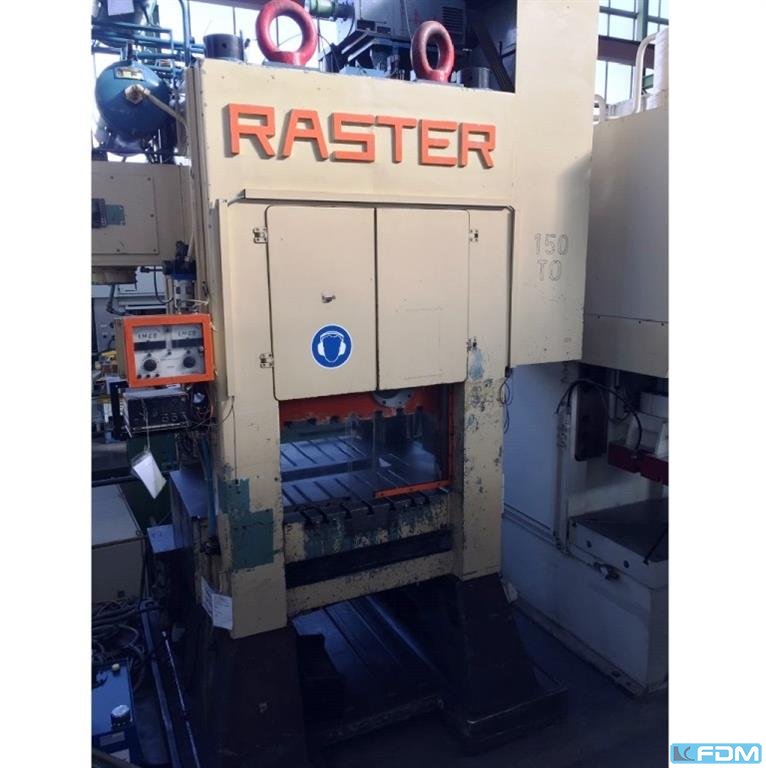

Pressure:150 t stroke:fix 80 mm no. of strokes:30 - 150 /min distance between columns:930 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:880x1300/1500x600 mm hole in the table:760 x 180 mm table height over floor:1270 mm column travel -side:650 mm ram surface:920x1000/1300x600 mm weight:27,5 t Dimensions (WxDxH):3,1 x 1,8 x 4,3 m WITHOUT feeder:can be offered optionally

Pressure:250 t stroke:30 mm no. of strokes:60 - 500 /min Distance between columns:1500 mm distance table/ram, max. stroke up, adjustment up:390 mm table surface area:1580 x 1100 mm hole in the table:1270 x 300 mm table height over floor:1470 mm side window:600 mm ram surface:1500 x 900 mm ram adjustment:100 mm material width:500 mm material thickness:0,5 - 1,5 mm coil weight:6,5 t coil internal diameter:420 - 560 mm coil external diameter:1500 mm power capacity:45,0 kW Weight:44,0 t Dimensions (WxDxH):3,3 x 1,8 x 4,5 m clutch:pneumatisch ram adjustment:motorisch double decoiler:LH 2-1,5-500 straightening machine:R 500 roll feed:mechanisch; Schuler, WK 8-500

pressure:500 t stroke:fix 300 mm no. of strokes:20 - 70 Hub/min distance between columns:3100 mm side window:1400 mm distance table/ram, max. stroke up, adjustment up:1000 mm Table area:2800 x 1600 mm ram surface:2800 x 1450 mm ram adjustment:100 mm power requirement:90,0 kW weight:100,0 t Dimensions (WxDxH):5,75 x 3,2 x 7,8 m height above floor:6,4 m height beneath floor:1,4 m clutch:pneumatic; Ortlinghaus ram adjustment:motoric overload protection in ram:hydraulic ram counterbalance:pneumatic

pressure:600 t distance between columns:3640 mm stroke:350 mm no. of strokes:11 - 44 /min Distance table/ram, max. stroke up, adjustment up:1550 mm table surface area:3600 x 2500 mm sliding table:3600 x 2500 mm ram surface:3600 x 2500 mm Side window:2200 mm ram adjustment:400 mm material width coil line:500 - 1950 mm Material thickness at 1200 mm material width:0,6 - 2,5 mm Material thickness at 1850 mm material width:0,6 - 2,0 mm Material thickness at 1950 mm material width:0,6 - 1,75 mm Coil weight:35,0 t coil internal diameter:610 mm coil external diameter:900 - 1900 mm no. of straightening rolls:13 straightening roll diameter:50 mm Stack height:400 mm stacking dimensions - station 1+2 (L x W):150-2000 x 250-2000 mm stations:2 power requirement:112,0 + 35,0 kW Weight:390,0 t Dimensions (WxDxH):7,3 x 5,1 x 15,0 m Height above floor:9,1 m Height below floor:5,9 m clutch-/ brake combinat ...
