measuring machine used for sale

Control UCC lite-2 Measuring range 700 x 450 x 350 mm Measuring heads (MH20i, PH1, PH6) Various touch probes

Steel tube arches in different degrees from 10 -45 in different lengths and wall thicknesses Price depending on length and wall

HEXAGON ROMER ABSOLUTE ARM RA-7525-3 coordinate measuring arm was built in 2014 in France by Hexagon Metrology. The device is used for the precise 3D measurement of complex parts, which are usually inspected on complex metrology devices. The process, thanks to the use of absolute encoders, is performed immediately. Simply switch on the arm and start measuring. What’s more, the universal mount allows the change of measuring probes at any time, without the need to recalibrate. The Zero G counterbalance minimises torque in the base of the device, increasing freedom in mounting options, i.e. lightweight tripods, magnetic and vacuum bases. This solution, combined with immediate acoustic and haptic feedback to the operator, allows the machine to be used in even the most demanding industrial environments. When the HEXAGON portable measuring arm is not in use, it can be locked safely in the ...

<b>Features:</b> Used roller conveyor Very stable design Feet to order separately Drive type: Gravity without motor Condition: fully functional with traces of usage Ideal for fast material transport Professionally dismantled and packaged <b>Technical data:<b> </b> Dimensions of the roller conveyor</b> Total length: 54,000mm Total width approx.: 740 mm Roll width: 650mm <b>Details of the role</b> Roll diameter 50 mm Axis distance: approx. 75 mm Material: steel, galvanized <b>Information on the framework</b> Frame: Aluminum Rolls: galvanized Frame: As good as new Frame height: 120mm Frame Width: 40mm <b>Roller conveyor</b> The roller conveyor is ideal in the picking zone for interlocking machines or workstations and optimising the internal process. During transport, the ...

The SIP Sirius 7 is a high-precision fixed-bridge Coordinate Measuring Machine (CMM) designed for dimensional inspection and quality control in manufacturing environments. Sirius 7 is known for its robust construction and hydrostatic bearing system, ensuring smooth and accurate measurements. Key Specifications • Measuring Range: 1,000 mm × 1,000 mm × 800 mm (X × Y × Z) • Accuracy: ±4 µm (micrometers) • Repeatability: ±2 µm • Guide System: Hydrostatic bearings • Temperature Compensation: Yes • Control Type: Manual (standard), with options for digital or CNC control systems • Probe System: Typically equipped with Renishaw or similar touch-trigger probes • Software Compatibility: Compatible with various metrology software platforms, including PC-DMIS and others

Measuring and control ring for control of three-point internal micrometers Diameter 50mm Diameter 100mm Diameter 150mm Diameter 200mm More available

GOM - ATOS III Rev.02.1 - 3D measuring device Condition: used, very good. Specifications: Camera system: 2 x 8,000,000 Camera pixels: 2048 x 2048 pixels (approx. 4 megapixels) Measuring field sizes XYZ: 150 x 150 x 100 mm to 2000 x 2000 x 2000 mm Measuring point distance: 0.075 mm to 1.0 mm Scanning time: about 2 seconds Measuring volume: 700 (incl. calibration plate) Blue Light Technology: Precise measurements regardless of ambient light. Including EDP and USB dongle Software version 2023 Incl. Tritop System (camera, 2x 1m scales, license) All in original cases With tripod, PC, rack, screen, small tools, reference points, 1x button Plug in and start working right away...

Inv. Num. : 5461 Type: PMM 12 10 6 Producer: Leitz Created: 1999 Parameters: Axes X/Y/Z: 1200/1000/600 mm Maximum table load: 1200 kg Machine height: 3800 mm Machine length: 3500 mm Machine width: 2400 cm Machine weight: 6 t equipment: Technical documentation Automatic change of the measuring keyboard (7 positions - including various touches)

Code 8499 Omschrijving Projektor Fabrikaat Hilger Type TT 288.311 Serienummer 55211 Vergrotingen 10x, 15x, 25x, 50x en 100x

Code 6398 Umschreibung CNC Bahngesteuerte Drei-Koordinaten Messmaschine Fabrikat DEA Typ IOTA 1102 Maschine Nummer 514 Baujahr 1989 Steuerung DEA CU / 01 Tischabmessung L x H x B 1800 x 1000 x 700 mm Längs X = 915 mm Quer Y = 610 mm Vertikal Z = 610 mm Nutzbare Messvolumen 0.34 m3 Gewicht 2050 kg Bemerkungen Maschine hat KEINE Messkopf ( wie Renishaw ) Maschine ist ohne Computer

Tensile testing machine Manufacturer: Karl Frank GmbH Type: 81559 Year of construction: 1980 Duck test: height: 1000mm, width: 400mm, depth ungraenzt Force ranges: 2000N, 1000N, 500N, 200N, 100N, 50N Original price at that time: 49.855,00 DM ATTENTION: The device has not been tested for functionality. All information without guarantee

max. wheel diameter: 1600 mm gear width: 250 mm max. module: 20 min. module: 1,5 base circle dia. - max.: 1450 mm base circle dia. - min.: 150 mm specimen weight from/to: 4000 kg feeler adjustment movement - parallel: 1400 mm max.helical angle: 0 - 90 ° wheel diameter with counterstay: 1000 mm feeler adjustment movement - parallel: 800 mm centre height: 1150 mm electrics - voltage/frequency: 400 / 50 V/Hz dimensions of the machine ca.: 2,8 x 2,4 x 2,3 m total power requirement: 2 kW weight of the machine ca.: 3 t Universal Involute and Helix Testing Machine - modernized 1995 Machine is suitable for measuring all individual tooth data on straight and helical spur gears, and shaping and shaving cutters. Following tooth data can be tested: Tooth flanks, Involute base circle dia. and pressure angle, Profile c ...

x-travel: unbek. mm y-travel: unbek. mm z-travel: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 0 mm gear width: 0 mm max. module: 40 min. module: 1 weight of the machine ca.: 0,05 t dimensions of the machine ca.: 0,5x0,3x0,3 m pitch and run-out tester unit for gear measuring machines. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 3-axis Wenzel LH 87 CMM machine was manufactured in 2014. It features a measuring range of 800 mm in X, 1000 mm in Y, and 700 mm in Z, with a maximum component weight capacity of 800 kg. The machine is equipped with an air-bearing system across all axes and a Renishaw PH10M Plus motorized indexing probe head. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 87 CMM machine we have for sale. Contact us for further details.

General: Granite slab 1,400 x 750 x 170 mm

Zoller V520B Magnum Setting and Gauge Manufacturer: Zoller Type: V 520 Magnum Year of construction 1998 Specifications: Voltage 230 V Compressed air 4-6 bar Weight 180kg Under table 140kg Maximum tool weights Manual focusing max. 1000 N Automatic focusing max. 200 N More items - new and used - can be found in our shop! International shipping costs on request!

working area:2500 mm Free moveable 6-axis measuring device - operating software - W-Lan - ball tracer

weight of the machine ca.:45 kg dimensions of the machine ca.:600 x 330 x 270 m

Coordinate Measuring Machine Brown&Sharpe Model: Microval 454 PFX YOM: 1996 Measuring range X-axis: 457 mm Measuring range Y-axis: 508 mm Measuring range Z-axis: 406 mm Max table loading: 225 kg Machine dimensions (LHW): 895x885x1575 mm

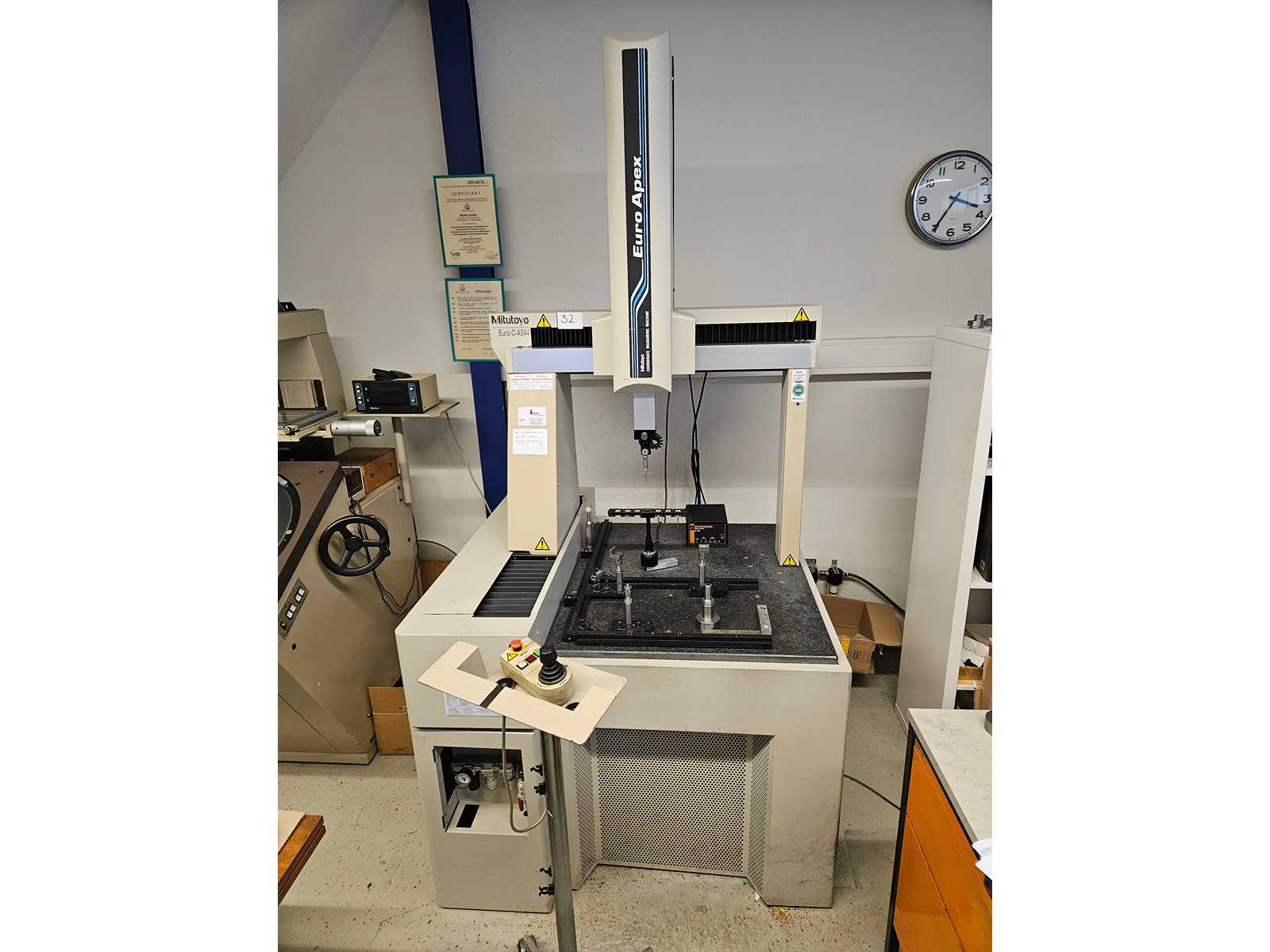

Mitutoyo, EURO-C 5400 CNC Measuring Machine

Mitutoyo, FN 905 S 3D Measuring Machine

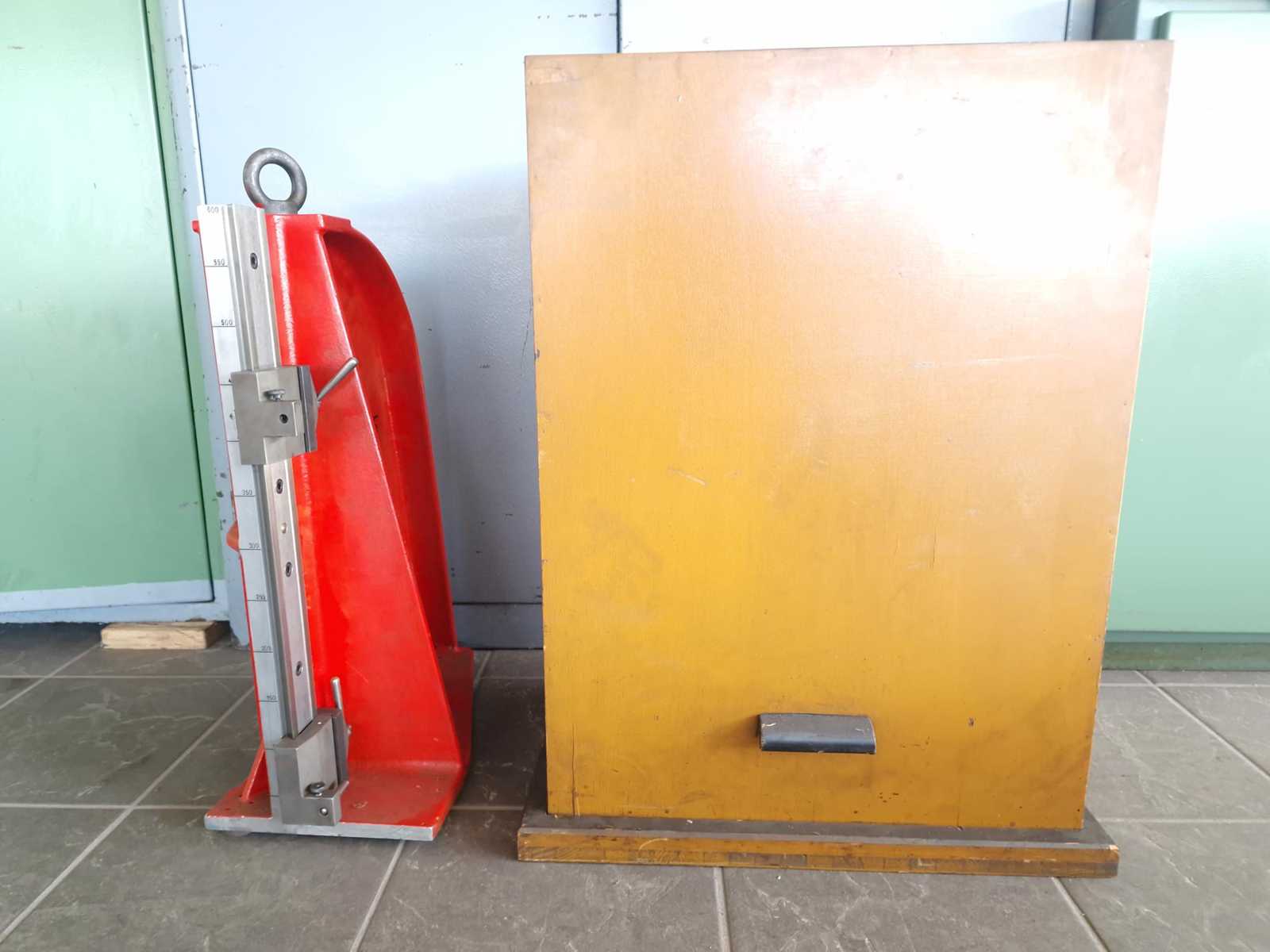

Height gauge (0 - 600 mm) + counter holder including wooden transport container

Serial number: 46270311 Travel X-axis: approx. 550 mm Travel Y-axis: approx. 500 mm Travel Z-axis: approx. 300 mm incl. granite measuring plate Plate dimensions: 880 x 830 x 160 mm incl. measuring rings and documentation Reference: Hercegfi - Lot 91

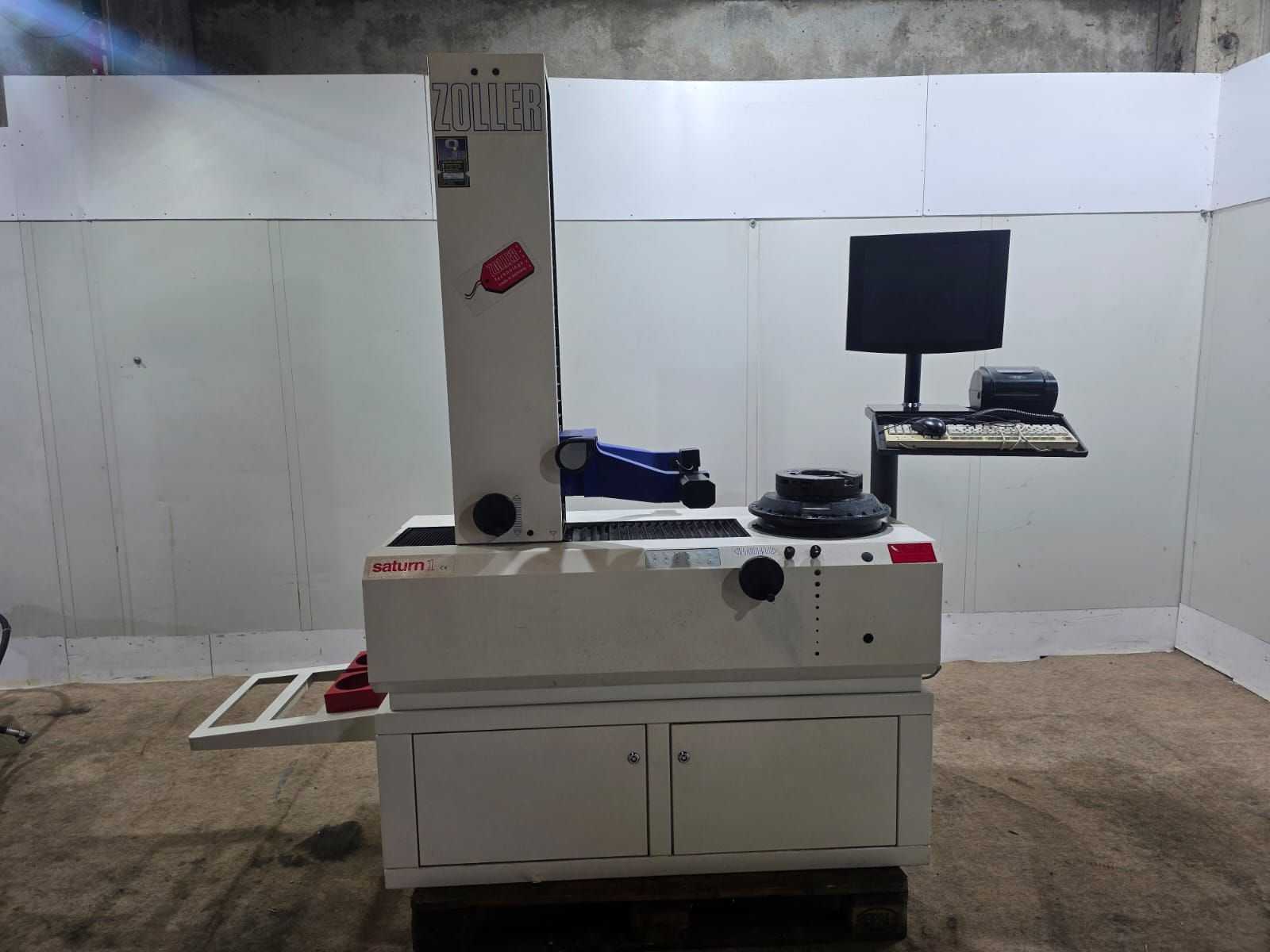

The ZOLLER Saturn is a precision tool presetting and measuring machine designed for use in CNC machining environments. It allows accurate measurement and presetting of cutting tools before they are installed in milling or turning machines, reducing setup time and improving machining accuracy.

amount: 36 STK. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DEA GLOBAL S 07.05.05 coordinate measuring machine was manufactured in Italy in 2004. The machine performs fast and highly accurate measurements of workpieces with complex shapes using the contact or non-contact method, represented as a set of coordinate points. The excellent quality and precision of the process is guaranteed thanks to the mounted in the DEA GLOBAL S 07 05 05 CMM machine an indexable RENISHAW PH10MQ measuring head with a RENISHAW SP25M scanning probe, performing measurements in the X,Y,Z axes with feeds of 700 mm (X axis), 500 mm (Y axis) and 500 mm (Z axis). The DEA GLOBAL Status 07.05.05 measuring machine is also equipped with the highly advanced metrology software PC-DMIS 2019 R1, performing detailed geometric measurements. Technical specifications of the DEA GLOBAL S 07.05.05 measuring machine - maximum permissible error of length measurement MPEe: ± 2.3 + 3L/10 ...

Ref. -No.: 10157 Manufacturer: CARL ZEISS Year of construction: 1997 Type of control: HP 9000 Serie 700 Control: Betriebsystem HP-UX.9.05 Storage location: Halberstadt Country of origin: Deutschland Turntable: 1000x2100 mm Machine weight: 4.800 kg Machine Height: 3050 mm Table height above the floor: 850 mm X-Axis: 850 mm Y-Axis: 1800 mm Z-Axis: 600 mm Further information: Three coordinate measuring machine Microcomputer control X-axis as a longitudinally movable portal Y-axis cross slide in the portal Z-axis as measuring head quill (vertical) Passage between the portal approx. 1,000 / 1080 mm Passage in height approx. 750 mm

Inv. Num. : 7182 Type: Crysta Plus M544 Producer: Mitutoyo Created: 2012 Parameters: Table dimensions: 860 x 638 mm Axis X: 505 mm Axis Y: 405 mm Z axis: 405 mm Max. workpiece weight: 180 kg Machine dimensions: 2185 x 1082 x 1078 mm Machine weight: 440 kg

Length 5000mm Web width 395mm

1. Roller conveyor - Length 6000mm - Web width 395mm 2. Roller conveyor - Length 4000mm - Web width 395mm

Control:Renishaw UCC 5.5 Accuracy of the measurement (4,5 + L/200) ?m Manual Probe Heads Renishaw MH20i Axis travel range: X 700 mm Y 700 mm Z 500 mm reference sphere included Erowa clamping system is available Made in Italy

Inv. Num. : 4368 Type: Comact Scan 2M Producer: ATOS Created: 2013 Parameters: Software: ATOS v7.5 Stack height: 1.8 mm Machine arm: 0.9 mm Swivel head: Foba Superball M-1 Notebook: Dell Precision M4700 Equipment: 1x Silver License Key 1x Remote Control 1x original notebook 1x bag with PC 1x Stand 2x Suitcase 3x Folders

Dear Ladies and Gentlemen, We are looking for a buyer for an image-guided 3D coordinate measuring machine, make Keyence, XM series. Date of purchase 2018, but virtually unused. License would have to be transferable, there doesn't seem to be any restriction of Keyence here. Please feel free to contact us if you need more information. We look forward to your offer.

Camera, hand button with display Max. gauge length 10000/3500/3500 mm Certified measuring range 3000/1500/1500 mm Triple camera Integrated probe camera Measurement accuracy ±(28 + 5 L/1000) μm Repeatability ±10 μm

Key data: 508 mm, 406 mm, 406 mm

Coordinate measuring machine X 508 mm Y 406.4 mm Z 406.4 mm Software: CMM Manager or Verisurf Probing System: Renishaw PH10T/TP20 Controller Type: Mitutoyo UCC200 All information without guarantee Attention: The measuring machine has PC damage, but otherwise the structure is perfect. Dongle is available Sold as a defect! New price was approx. 38,000.00 euros

Coordinate measuring machine MITUTOYO BH 305 measuring area: approx. 650 x 500 mm untested ! without measuring technology, computer, software, probe ! Dimensions: 1090 x 840 x 1900 mm

Mitutoyo QUICK VISION ACTIVE 202 Optical measuring machine (Vision Measuring Machine) from the manufacturer Mitutoyo Specifications (See pictures) High efficiency No constant supervision is required. The operator can carry out other tasks. Minimisation of error sources Automatic edge detection The automatic edge detection function enables high reproducibility of measurements, regardless of the reproducibility of measurements. Image autofocus The image autofocus function enables reliable height measurements at high speed. Continuous measurement of multiple workpieces Grinding function With this function, a large number of workpieces positioned on the large number of workpieces positioned on the device are on the device in a single operation. Automatic measurement can be started after be started after rough positioning Pattern search The pattern search function automat ...

2016 Hexagon OC 322 Measuring machine The machine is in perfect working condition. The 2016 Hexagon OPTIV CLASSIC 322 is a type of coordinate measuring machine (CMM) manufactured by Hexagon Manufacturing Intelligence. This machine is used for precision measurement and quality control in manufacturing processes. PRODUCT DESCRIPTION The Optiv Classic 322 combines optical and tactile measurement in one system (optional touch-trigger probe). The system supports multi-sensor measurements using the Vision sensor (CMOS colour camera, motorised CNC zoom) and the touch-trigger probe HP-TM. The Optiv Classic 322 provides easy pallet station integration with good accessibility to the measuring table from all sides. Measurement software is PC-DMIS. FIELDS OF APPLICATION • Shop floor and inspection room • Versatile geometry measurements and GD&T analysis DESIGN Design principle : Ben ...

Manufacturer: VICI Designation: Optical Measuring Machine Machine Type: M909 (MTL TECNO) Year of Construction: 2022 Weight: 237 kg Electrical Supply: 230 V / 50 Hz Phases: Three-phase Included Components: - Computer System: - Fully configured computer - Pre-installed software - Security dongle for licensed software access - Accessories: - Computer Cabinet: Organized and compact for clean operations - Center Point Set: Includes interchangeable inserts for versatile measurements - Three-Jaw Precision Manual Chuck: Model PHSF 100 for secure and precise part holding Find more here - / Contact us at -

Measuring range X,Y,Z 1200,1800,1000 mm Software calypso Measuring head 5 axis Vast XXT

Inv. Num. : 3483 Type: HELICHECK Producer: WALTER MASCHINENBAU Created: 2004 Parameters: The machine is in good technical condition and energized Accessories: Hydraulic clamps SK50

ADCOLE 1200 SH cylindrical coordinate measuring machine was built in 1990 in the United States by ADCOLE CORPORATION. The machine is used for measuring tight tolerances on camshafts, crankshafts and other cylindrical parts. The patented laser interferometer technology ensures the realisation of precise radial measurements with an accuracy of up to 0.5 μm. The ADCOLE Model 1200 coordinate measuring machine, including all components, weighs 5325 kg. Technical specifications of the ADCOLE 1200 SH crankshaft and camshaft measuring machine - machine dimensions (L x W x H): 1075 x 1195 x 2890 mm - peripheral table dimensions (L x W x H): 715 x 465 x 825 mm - control cabinet dimensions (L x W x H): 800 x 800 x 1800-2000 mm - machine weight: 3525 kg - total weight of the machine including all components: 5325 kg

x-travel: 5500 mm y-travel: 2750 mm z-travel: 1500 mm total power requirement: kW weight of the machine ca.: 20 t dimensions of the machine ca.: 8x4,5x4,2 m Measuring column, longitudinal movement, X Axis 5,500 mm Measuring slide, cross, as Y Axis (measuring head) 2,750 mm Measuring slide, vertical, as Z Axis (vertical) 1,000 mm Adjustment of measuring head, roll axis 360 ° Measuring table 5,000 x 2,500 x 350 mm Weight, approx. 20,000 kg Space required 8,000 x 4,500 x 4,200 mm Accessories / Special Features : o RENISHAW 3D probe head with rotating-tilting device, operating depending on orientation. o Universal 3D Measuring Software, CHOROS Version 5.2 with DEC Software, OPEN VMS Alpha ADL, Version 6.1 with various additional SEC Software, OVMS Base, NAS 150, Cluster, OPEN 3 D, Version 2.5, etc. for manual or automatic measuring of ruled geometry and freeform surfaces, ideally  ...

x-travel: 1800 mm y-travel: 800 mm z-travel: 1000 mm total power requirement: - kW weight of the machine ca.: 3000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 1160 mm table width: 710 mm daylight: 650 mm Control: WENZEL ME 5007 total power requirement: kW weight of the machine ca.: 800 kg dimensions of the machine ca.: m 3-D-coordinate measuring machine with METROLOG II-Software The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1000 mm y-travel: 1600 mm z-travel: 800 mm Control: WENZEL WPC 2040/FW31.351 total power requirement: kW weight of the machine ca.: 5500 kg dimensions of the machine ca.: m Coordinate measuring m/c, software QUARTIS R12/16, Renishaw PH10Mplus The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
