GENERAL
Project No.: 906048
Quantity: 1 pcs.
Manufacturer: MAIER
Type: ML 26 C5-Y2

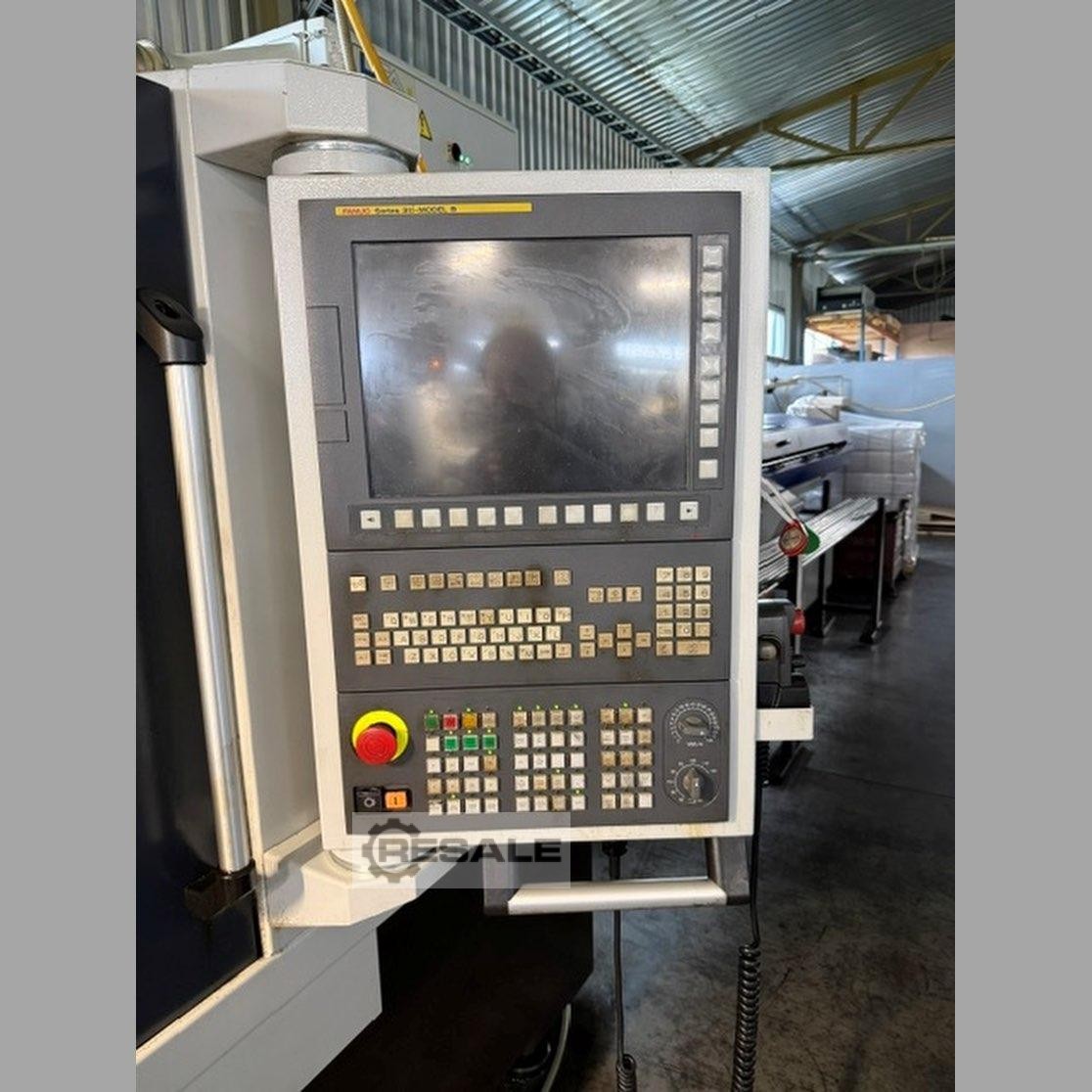

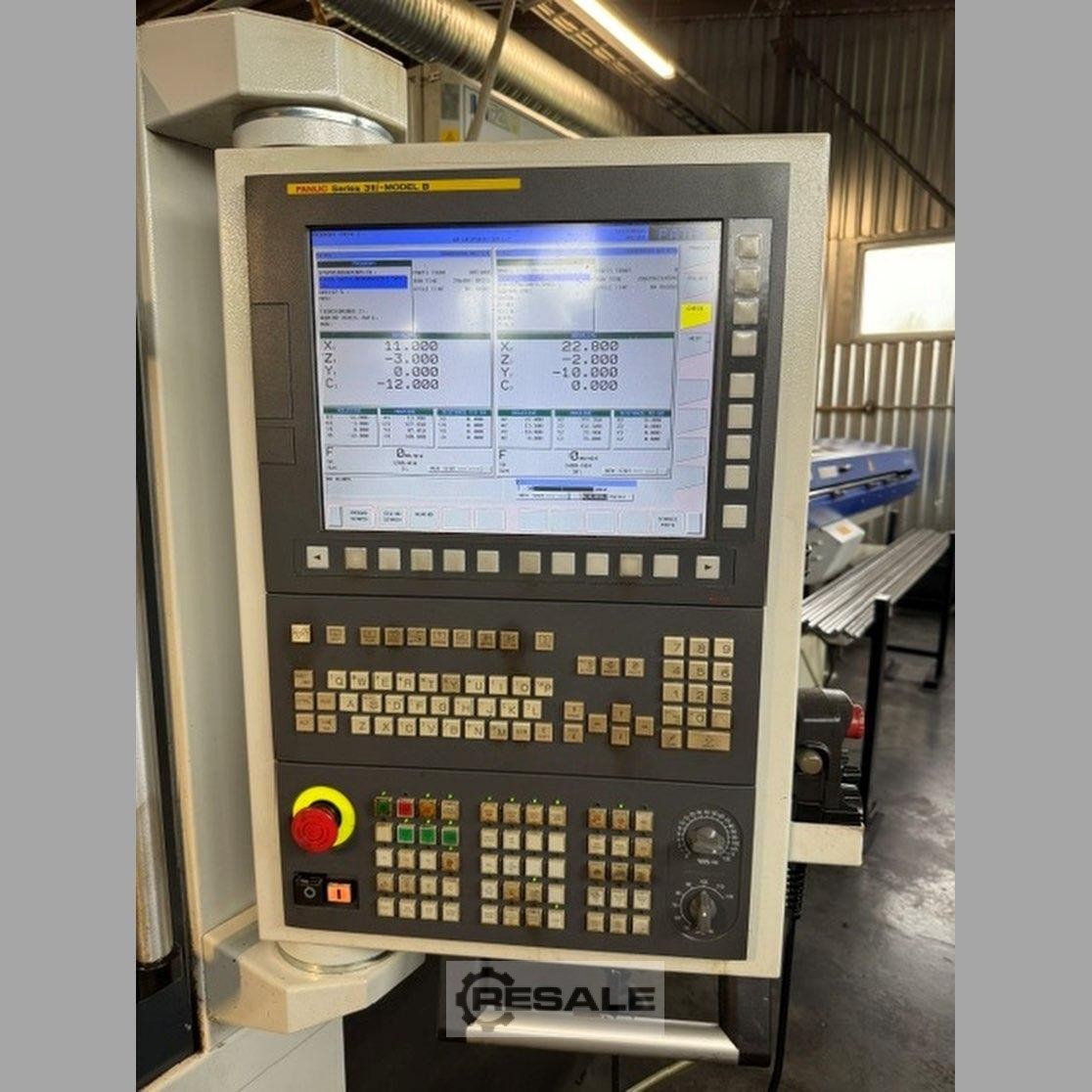

Control: Fanuc 31i B
Year of Make: 2019
Condition: Used machine
Approx. (hrs): 31850
Spindle Approx (hrs): 13519
Program run approx. (hrs.): 28672
DESCRIPTION
TURNING
Axles 7
Max. turning diameter 26 mm
Max. speed main spindle 8000 1/min
Max. power main spindle at ED 10-40/100% 5.5/3.7 kW
Spindle Passage Main Spindle 32 mm
Axes on the main spindle unit C (5° indexing)/Z
Workpiece spindle stroke main spindle 450 mm
Max. rapid traverse speed in X/Y/Z Main spindle unit 32 m/min
Partial hollow clamping cylinder on the main spindle
Max. speed sub-spindle 8000 1/min
Max. power sub-spindle at ED 10-40/100% 5.5/3.7 kW
Spindle pass-through sub-spindle 26 mm
Axes on the sub-spindle unit C (5° indexing)/Z/Y
Blowing air through the sub-spindle
Workpiece ejection through the sub-spindle
Workpiece ejector in the sub-spindle
OTHER EQUIPMENT
Tool life monitoring
Splash protection cladding with fully encapsulated working area
Lighting in the work area
Chip conveyor
Coolant Setup
High pressure pump 50 bar
Parts Discharge Belt
Precast removal device
Bar Feeder/Bar Loading Magazine FMB turbo 3-26/3200 "C""
Electronic handwheel
Machine condition light
Automatic central grease lubrication
GENERAL TECHNICAL DATA
Machine dimensions (LxWxH) approx. 2100x1600x2100 mm
Machine weight approx. 4200 kg
NOTE
We have described the named product with the greatest possible care.
However, since this does not come from our production, the data
mentioned and the equipment details may differ. We therefore ask you
to consider the description as non-binding and to check the data in
detail during a viewing.
