maho 800 cnc used for sale

Deckel Maho 64v linear CNC Machining Center X-640mm Y-600mm Z-500mm A-360 ° Spindle-12000rpm Displacement: X-70m / min Y-40m / min Z-40m / min New spindle installed 2018 CNC: HEIDENHAIN- ITNC 530 The machine is in operation, any check is possible. The machine comes with two creaks and a touch test.

travel: x-axis:1.200 mm y-axis.:..600 mm z-axis.:...600 mm NC- table for NC-axis:1.000 x 820 mm tool tape:.ISO 40 spindle motor power:5 kW spindle speed..:20-6.300 rpm max. workpiece weight.:1.000 kg tool changer:36 spindle power:15kW machine weight:11,5 ton CNC- controll.:PHILIPS 432 new in..:1993 incl. chip conveyor incl. electr. Hand wheel Milling head can be tilted in verical and horizontal position condition : very good

Maho MH 500 W3 - CNC tool milling machine - Maho CNC 332 CNC control - new LCD display - incl. instruction manual & documents - Built in 1989 Specification Workspace: - X-axis: 500 mm - Y-axis: 380 mm - Z-axis: 350 mm Workroom: - Clamping surface: 254 x 354 mm - Number of guide grooves: 1 Working spindle: - Tool holder: ISO40 - Quill stroke: 50 mm Speeds & Feeds: - Working spindle speeds infinitely variable: 20 - 5000 rpm - Feed range X, Y & Z axes: 1 - 2000 mm/min Rapid traverse: - X & Z axes: 4 m/min - Y-axis: 2 m/min Electrical equipment: - Voltage: 400 V - Total connected load: 19 kVA CNC Control: - Resolution of linear displacement measuring systems: 0.001 mm - Readings: Screen - Number of axes controlled at the same time: 2 - Number of sequentially controlled axes: 3 Weight & Space Requirements: - Dimensions WxHxD: 2235 x 1943 x 2375 mm - Weigh ...

Specifications: Adjustment of the cross support In the horizon. Longitudinal axis (X-axis): 700 mm in the vertical axis (Y-axis): 450 mm Adjustment of the headstock In the horizon. Transverse axis (Z-axis): 500 mm Tool holder: SK 40 Quill stroke: 100 mm Speeds: 20 - 3150 1/min Feeds in the axes X,Y,Z: 1 - 3000 mm/min Feed force in the axes X,Z: 8000 N Feed force in the Y axis: 24000 N Rapid traverse in the X,Y axes: 6 m/min Rapid traverse in axis Z: 11.4 m/min Connection: 400 V Motor power: 40 kVA Space requirement (LxWxH), approx.: 3250 x 3600 x 2200 mm

Key data: 780 mm, 560 mm, 560 mm

CNC Universal Milling & Drilling Machine DECKEL MAHO DMC 60 T With track control Heidenhain iTNC 530 Year of construction: 2008 Travels: X 780 Y 560 Z 560 Speed range: 0 – 18,000 rpm infinitely variable With the following accessories: NC rotary table with 2-fold pallet changer 630 mm x 500 mm Vertical tool changer with 60 magazine slots Controlled milling head ( B axis ) IKZ 40 bar Conveyor Integrated screw conveyor Rotoclear Electronic handwheel Mode 3 + 4 Chip Sweeping Gun Full protection cabin with interior lighting 3-Piece Height-Adjustable Machine Shoes Operating instructions

Inv. Num. : 4619 Type: GR 300C Producer: MAHO Graciano Generated: 1990-1993 Parameters: Control system: CNC 432 Philips Maximum turning length (travel in the Z axis): 620 mm Maximum turning diameter over bed: 370 mm Maximum turning diameter over support: 320 mm Maximum travel length in the X-axis: 250 mm Minimum main spindle speed: 1000 rpm Maximum main spindle speed: 5000 rpm Number of turret heads: 12 pieces Equipment: Tailstock

Description: machine no.: 5885F00081A operating voltage: 400 V frequency: 50/60 Hz , connected load: 30 kVA , nominal current: 50 A , read off operating hours: 20768 set-up operation of axes X, Y, Z: 2000 mm/min , path meaurement system indirect of axes X, Y, Z: 0,001 mm resolution permissible table load: 500 kg , max. tool length: 240 mm , number of T-slots: 4 x 14 mm , distance: 150 mm , spindle nose up to table: max. 650 mm , max. tool diameter: 80 mm , tool length ,from spindle nose: max. 300 mm , tool weight: max. 7 kg , magazine loading: max. 72 kg , Incl. tool holders from tool turret z-motion: 500 mm, x-motion: 630 mm, y-motion: 500 mm, control: GE FANUC SERIES 180i-B, table surface area l x w : 800 x 500 mm, taper: SK 40, toolchanger positions: 24, turning speed range: 10,000 rpm, feed range: 30,000 mm/mi ...

Description: Serial number: 11430000953 Spindle hours: 17445 Feed rate X-, Y-, Z-axis: 20 - 15000 mm/min Rapid traverse X-, Y-, Z-axis: 15 m/min Path measuring system: Resolution X-, Y-, Z-axis: 0.001 mm Position tolerance X-, Y-, Z-axis: 0.01 mm Travel: X-axis: 780 mm Y-axis: 560 mm Z-axis: 560 mm Work spindle: HSK-A63 Number of magazine slots: 60 Max. Tool diameter when all positions are occupied: 80 mm With free adjacent positions: 160 mm Max. Max. tool length from spindle nose: 315 mm Max. tool weight: 8 kg Tool weight: 8 kg Pallet changer: Number of pallets: 2 Permissible load of the pallet changer: One side: 400 kg Both sides: 800 kg With NC rotary table Clamping surface, pallet: 500 x 630 mm With T-slots Permissible load of the table: 400 kg Rotary feed: 7200°/min Max. table plate revolutions: 30 mm Rotations of the table top: 30 rpm Spindle speed: 12000 rpm The accessories or cl ...

Key data: 1250 mm, 1000 mm, 1000 mm

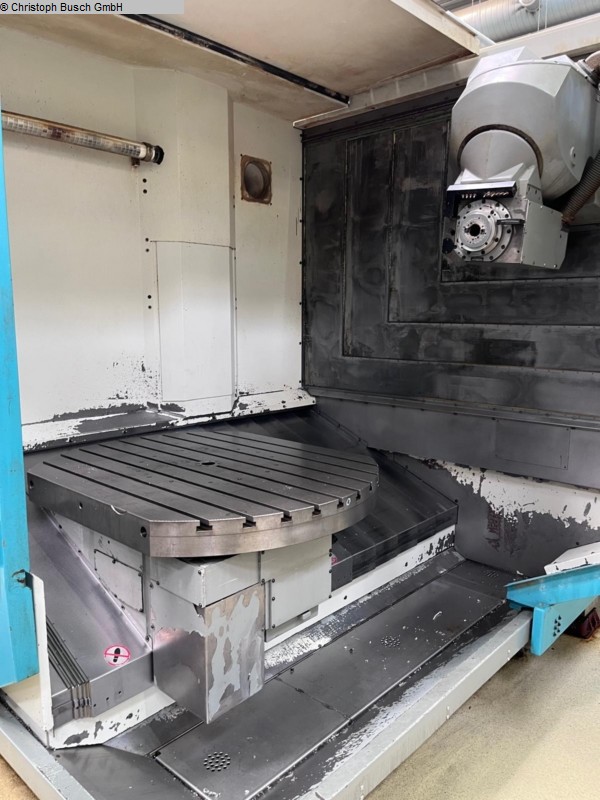

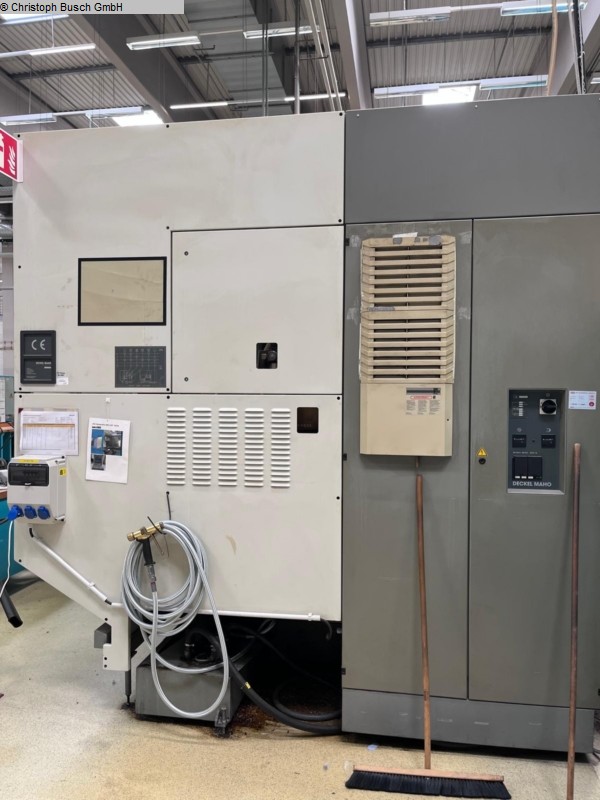

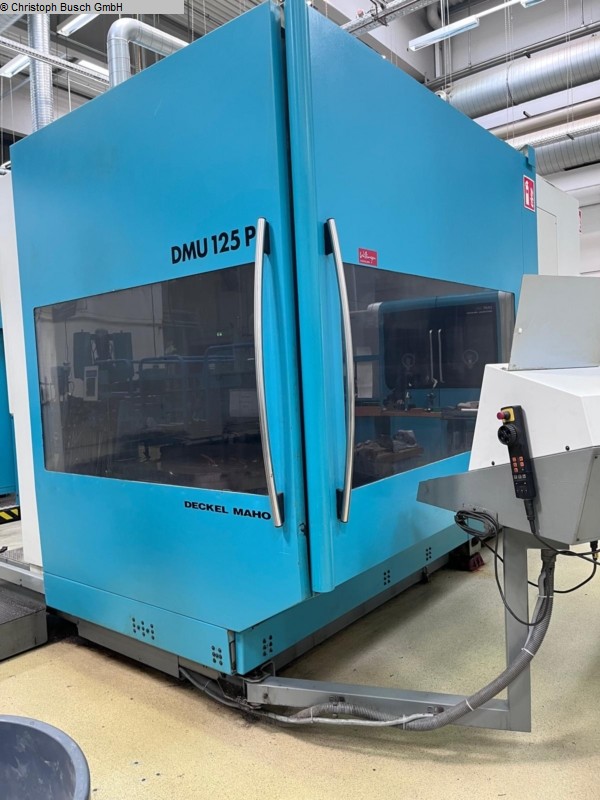

CNC Universal Milling & Drilling Machine DECKEL MAHO DMU 125 P duoBlock NEW DMG Design With track control Heidenhain iTNC 530 Year of construction: 2008 Travels: X 1250 Y 1000 Z 1000 Speed range: 0 - 18000 rpm ( HSK 63 ) With the following accessories: NC rotary table 1250 mm x 1000 mm clamping surface Universal milling head with controlled B axis Automatic swivel milling head 60 speed tool changer ( HSK 63 ) Full protection cabin with interior lighting Mode 3 + 4 3 D Probe Heidenhain TS 642 Electronic handwheel Spindle Oil Cooler IKZ 40 Bar Rotoclear Conveyor Oil mist extraction Coolant spray gun Control cabinet cooling unit (RITTAL) 3 Height-Adjustable Machine Shoes Operating instructions

Key data: 500 mm, 400 mm, 400 mm

Very good condition, regularly maintained Control: Heidenhain track control Axles: 3 Vertical and Horizontal Spindle X-axis travel : 500 mm Y-axis travel : 400 mm Z-axis travel: 400 mm Direct displacement measuring system Tool holder: ISO40 Hydromechanical tool clamping. Quill stroke vertical spindle:80 mm Spindle speed: 40-2,000 rpm Coolant basin and pump Chip pan Manual central lubrication Power supply : 380/50 V/Hz Total connection: 6.63 kW Weight approx.: 1900 kg Dimensions LxW approx.: 2360x2170 mm

Maho, 700C Control : Maho 432, Built in 1989, Adapter SK40, Tool changer Method : X-700, Y-450, Z-500, Quole The machine can no longer be viewed under power. Has lost parameters ! Would also sell spare parts, table, milling head, drives, control, ...

Maho, 700C Control : Maho 432, Built in 1989, Adapter SK40, Tool changer Method : X-700, Y-450, Z-500, Quole The machine can no longer be viewed under power. Has lost parameters ! Would also sell spare parts, table, milling head, drives, control, ...

X-travel: 800mm, y-travel: 800mm, z-travel: 800mm, max. rotational speed: 18,000/min, number of tool positions: 240, number of pallets: 45, rotary table dimensions: 900x700mm, control: Heidenhain iTNC 530, operating/spindle hours: 182,249/ 116. 336h, with tool storage, pallet automation, chip conveyor, handling robot, collision protection Branenkamp, loading crane, zero-point clamping system, accuracy package, automatic swivel milling head, horizontal tool changing device, double gripper, 240 magazine positions HSK 63, NC rotary table, coolant tank 900l, IKZ 80bar through spindle center (AD), chip conveyor, rotating inspection window, 3D path control, was regularly maintained by the manufacturer, on-site inspection is possible.

X-travel: 1000mm, y-travel: 600mm, z-travel: 800mm, rotational speed: 20-400/min, mounting: SK 50, number of mountings: 36, control: MAHO CNC 432 V603, connected load: 22kW, weight: 10.5-12t, operating hours: 51,669h, without tools, with NC rotary table, automatic swivel head, IKZ system, Hydac oil cooler for hydraulic system, Bader cooling unit for switch cabinet, chip conveyor, IFM 1000 mechanical air filter, Visiport viewing window, infrared measuring probe and documentation, was completely overhauled in 2003 and maintained regularly, on-site inspection is possible.

AS GOOD AS NEW ROUND TABLE NC F?R MAHO MH 800 E Durchme?er 630 mm

No. 1859: 1 gebr. Universal toolmilling machine Fabr. MAHO, type MH 800, Bauj. 1972 Arb.-Ber.: 700 x 450 x 450 mm, Accessories: Universal recessed round table 1050 x 627 mm, Pinole feed gearbox 0.02-0.2 mm/U. Other: Spindle ISO-40, speed range 32-1600 rpm, Feeds 5-500 mm/min, rapid speed 1.4 (0.7) m/min. Table cross shift by hand 225 mm, Rotational movement of the table top 360° Table swivel/tilt each +- 30°. Space requirement approx. 2 x 3 x 3 m, weight approx. 3.3 tons.

No. 2456: 1 gebr. Universal toolmilling machine Fabr. MAHO, type MH 800, Bauj. 1973 with 3-axis digital display Mitutojo Arb.-Ber.: 700 x 450 x 450 mm, drive power: 4 kW Accessories: Universal recessed round table 1050 x 627 mm Pinole feed gearbox 0.02 - 2 mm/U Other: Spindle ISO 40, speed range 32 - 1600 rpm, Feeds 5-500 mm/min, rapid speed 1.4 (0.7)m/min Table cross shift by hand 225 mm, Rotational movement of the table top 360° Table swivel/tilteach +- 30° Space requirement approx. 2 x 3 x 3 m, weight approx. 3.3 tons.

Description: With HEIDENHAIN TNC 121 path control, linear path control, spindle speed range 0 to 2000 rpm, feed speeds 0.02 to 0.2 mm, with rotary swivel table, see photos for details weight approx.: 4,000 kg, Approx. Onsite Dimension. (l x w x h): 2,300 x 1,800 x 2,300 mm

Including accessories.

X-travel: 800mm, y-travel: 450mm, z-travel: 500mm, quill stroke: 80mm, rotational speed: 63-3150/min, length: 4500mm, width: 3800mm, height: 2030mm, weight: 3.8t, operational hours counter: 2538h, including accessories and documentation, was maintained regularly.

x-travel: 700 mm y-travel: 350 mm z-travel: 450 mm table surface area: 940 x 510 mm spindle taper: SK 40 spindle turning speed range: 32 - 1600 U/min feed - longitudinal/cross: 8 - 400 mm/min feeds vertical: 4 - 200 mm/min total power requirement: 4,5 kW weight of the machine ca.: t dimensions of machine L x W x H: 1,85 x 1,62 x 1,83 m Accessories: vertical head with quill retraction, univ. table, counter bearing, hydr. vice, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, controller, converter, controller -Manufacturer: Indramat, AC servo controller from CNC milling machine MAHO MH 800C -Type: KDS 1.1-50-300-W1 MOD 4/1X108-091 -Quantity: 1x servo controller available -Dimension: 490/110/H390 mm -Weight: 15 kg

Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, controller, converter, controller -Manufacturer: Indramat, AC servo controller from CNC milling machine MAHO MH 800C -Type: KDA 2.1-150-300-A00-W1 KDA 02V3.5 -Quantity: 1x servo controller available -Dimension: 489/150/H390 mm -Weight: 17 kg

Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, controller, converter, controller, servo line former, drive control device, power supply -Manufacturer: Indramat, AC Servo Power Supply from CNC milling machine MAHO MH 800C -Type: KDV 2.1-100-220/300-W1-220 -Quantity: 1x servo controller available -Dimension: 485/105/H420 mm -Weight: 18 kg

Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, controller, converter, controller -Manufacturer: Indramat, AC servo controller from CNC milling machine MAHO MH 800C -Type: TDM 3.2-20-300-WO MOD 14/1X023-094 -Quantity: 3x servo controllers available -Dimension: 320/70/H390 mm -Weight: 7.7 kg

Control cabinet - cooling device, control cabinet air conditioner, distribution cabinet, heat exchanger, wall-mounted cooling device, control cabinet cooler -Manufacturer: Siemens, heat exchanger control cabinet cooling device from milling machine MAHO MH 800C -Type: 8ME 7874-DR -Voltage: 230V -Power consumption: 170W -Dimensions: 415/130/H725 mm -Weight: 14.2 kg

CNC control, card slot, control cards, plug-in cards, circuit boards, control rack -Manufacturer: Philips, control rack from CNC milling machine MAHO MH 800C -PCB: 4022 224 7062 -Card: 4022 224 3433 -Graphic Modem: 4022 224 3451 -Cent Proc: 4022 226 2331 -Drive Mod.: 4022 226 3645 / 4022 226 3690 -LS/LS board: 4022 226 3680 -Inp Outp Mod: 4022 226 3531 2 pieces -Power supply: 4022 226 2270 PE 1870/03 -Individual components: see photos -Price/sale: complete -Dimensions: 375/310/H340 mm -Weight: 13.4 kg

CNC control, control panel, control panel, control unit, card slot, control cards, MC3 control, plug-in cards, circuit boards, relay boards -Manufacturer: MAHO, relay board from CNC milling machine MH 800C -Type: 28A2 -IDENT NO.: 27.71 232 -Dimensions: 400/280/H75 mm -Weight: 1.5 kg

CNC control, control panel, control panel, control unit, card slot, control cards, MC3 control, plug-in cards, circuit boards, relay boards -Manufacturer: MAHO, relay board from CNC milling machine MH 800C -Type: 28A1 -IDENT NO.: 27.71 231 -Dimensions: 400/280/H75 mm -Weight: 1.6 kg

Control panel, touch screen, control panel, display, operator panel, PLC, Simatic Panel PC, touch screen, touch panel, Simatic Multi Panel, Touch Multi Panel, Touch Panel -Manufacturer: NFI Electronics, touch panel from CNC milling machine MAHO MH 800C -Type: 1435-18-22 -Total dimensions: 340/310/H30 mm -Weight: 0.8 kg

Clamping table, T-slot table, rotary table, milling machine table, NC rotary table -Manufacturer: MAHO, clamping table: milling machine table from CNC machining center MAHO MH 800C -Table surface: Ø 600 mm -T grooves: groove width 14 mm, groove spacing 64 mm -Dimensions: see photos -Total dimensions: Ø 630 x 555 mm -Weight: 365 kg

Pressure reducer, pressure regulator, bladder accumulator, high pressure bladder accumulator, hydraulic accumulator, pressure accumulator, membrane accumulator -Manufacturer: Hydac, pressure accumulator from CNC machining center MAHO MH 800C -Type: SBO140-1.4E1/112U-140FT080 -Operating pressure: max. 140 bar -Quantity: 2x pressure storage available -Price per piece -Dimensions: Ø 145 x 205 mm -Weight: 3.7 kg

Central lubrication, oil circulation system, single-line pump, central lubrication unit, grease lubrication pump, piston pump, lubrication pump, oil central lubrication pump -Manufacturer: Vogel, OIL central lubrication pump from CNC milling machine MAHO MH 800C -Type: 122 049 306 -Container content: 2.7 l -Flow rate: 0.1 l/min / 15 bar -Voltage: 110/220V -Dimensions: 240/140/H310 mm -Total weight: 5.7 kg

hydraulic unit, hydraulic pump, hydraulic pump, universal unit, hydraulic station, -Manufacturer: Vickers, hydraulic unit from CNC milling machine MAHO MH 800C -Hydraulic pump: Ident. No.: 93.000 212 -Motor: Electric 3.0 kW / 1415 rpm built in 05/11 -Filter: Purolator PI 1844/20-11 NBR -Hydraulic tank: with level indicator -Individual components: see photos -Dimensions: 495/350/H630 mm -Weight: 47 kg

x-travel:700 mm y-travel:450 mm z-travel:450 mm table surface area:620 x 1050 mm spindle taper ISO:40 milling spindle turning speeds:32 - 1600 U/min quill stroke vertical:125 feed speeds:0 - 500 mm/min total power requirement:7 kW weight of the machine ca.:3,5 t dimensions of the machine ca.:2,6 x 1,8 x 1,9 m with 3-axis digital readout HEIDENHAIN autom. tool clamping Horiz. and Vert. Milling Spindle Universal table turn-swivel and tiltable

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: MAHO CNC 432 Technical data Rotary table:diameter: 400 mm Longitudinal travel (X-axis): 400 mm cross travel (Z-axis): 350 mm vertical travel (Y-axis): 375 mm Table load max.: 160 kg Taper in spindle: 40 ISO Spindle speeds: stepless horizontal from: 20 rpm up to: 3150 rpm vertical from: 20 rpm up to: 3150 rpm Voltage 50 Hz 3x: 380 Volt Total power required: 9 kVA Machine´s weight about: 1600 kg Overall dimensions machine: Length: 1600 mm Width: 2200 mm Height: 1670 mm

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: MAHO 432 Operating hours: 7002 Technical data Table length: 900 mm Table width: 600 mm Longitudinal travel (X-axis): 800 mm cross travel (Z-axis): 550 mm vertical travel (Y-axis): 500 mm Table load max.: 450 kg Taper in spindle: 40 ISO Spindle speeds: stepless horizontal from: 20 rpm up to: 5000 rpm vertical from: 20 rpm up to: 5000 rpm Feeds: stepless longitudinal from: 1 mm/min up to: 4000 mm/min transversal from: 1 mm/min up to: 4000 mm/min vertical from: 1 mm/min up to: 4000 mm/min Rapid traverse:: 6 m/min Voltage 50 Hz 3x: 380 Volt Milling spindle motor: 10 kW Machine´s weight about: 5000 kg Overall dimensions machine: Length: 3000 mm Width: 2200 mm Height: 2100 mm Various accessories: Vice: width: 125 mm In ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Number of pallets: 0   CNC Brand: 0 CNC Model: 0 Control: PHILIPS 132 Technical data Table length: 740 mm Table width: 440 mm Longitudinal travel (X-axis): 500 mm Cross travel (z-axis): 300 mm vertical travel (Y-axis): 400 mm Taper in spindle: 40 ISO Spindle speeds: stepless horizontal from: 63 rpm up to: 4000 rpm vertical from: 63 rpm up to: 4000 rpm Feeds: stepless longitudinal from: 1.0 mm/min up to: 3000 mm/min transversal from: 1.0 mm/min up to: 3000 mm/min vertical from: 1.0 mm/min up to: 3000 mm/min Rapid traverse: long.: 5 m/min Rapid traverse: transversal: 5 m/min Rapid traverse: vertical: 5 m/min Voltage 50 Hz 3x: 380 Volt Spindle motor: 5 HP Machine´s weight about: 1700 kg Overall dimensions machine: Length: 1800 mm Width: 2200 mm Height: 1900 mm Various acc ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 700 mm Cross Y: 500 mm Vertical Z: 450 mm CNC Brand: _Unknown / Other Make: MAHO Type: MH700C Control: 432 YOP: 1989 NC Rotary table (B-Axis) 630 mm CNC 432 with handwheel Pinole 100 mm X – Travel:              700mm Y – Travel:              500mm Z – Travel:              450mm Table  Ø:                630mm Feed rate X-Axis:        6.000mm/min. Feed rate Y-Axis:        3.000mm/min. Feed rate Z-Axis:        11.400mm/min. Spindle Taper:           40ISO/Bt/Mk Speeds / ranges:         3150Rpm Number of controlled axis:3 + 1  Length:  &n ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 600 mm Cross Y: 700 mm Vertical Z: 550 mm Positions ATC: 0   Positions APC: 0   CNC Brand: Heidenhain MACH - ID 6309 Make: DECKEL MAHO Type: DMU 60 P Control: Heidenhain Mill Plus YOP: 1998 X – Travel    600 mm Y – Trave     l700 mm Z – Travel    550 mm A – Axis      120 ° B – Axis       360 ° Table load     350 kg Table Ø        630 mm Feed rate X-Axis      10.000 mm Feed rate Y-Axis      10.000 mm Feed rate Z-Axis      10.000 mm Spindle Taper            40 ISO/Bt/Mk Speeds / ranges          12000 Rpm ATC / revolver      &nbs ...

Table length: 700 mm Table width: 500 mm Longitudinal X: 500 mm Cross Y: 400 mm Vertical Z: 400 mm Positions ATC: 16   Positions APC: 0   CNC Brand: Siemens CNC Model: 840 D MACH - ID 6278 Make: DECKEL MAHO Type: DMU 50 Control: SIEMENS 840D YOP: 2005 Hours: 4836 X – Travel    500 mm Y – Travel    400 mm Z – Travel    400 mm Table Length    700 mm Table Width     500 mm Table load       200 kg Feed rate X-Axis     12,000 mm Feed rate Y-Axis     12,000 mm Feed rate Z-Axis     12,000 mm Spindle Taper          40 ISO/Bt/Mk Power on spindle     13 kW Speeds / ranges        10.000 Rpm ATC / revolver        &n ...

Table length: 700 mm Table width: 460 mm Longitudinal X: 400 mm Cross Y: 400 mm Vertical Z: 400 mm MACH-id    5459 MAKE        Deckel Maho TYPE          FP3A YOP            1991 SPECIFICATIONS X-Axis      400 mm Y-Axis      400 mm Z-Axis       400 mm Table Length       700 mm Table Width         460 mm Table load            400 Kg Spindle speeds      4000 Rpm DIMENSIONS Length       2600 mm Width         2400 mm Height        2100 mm Weight        2000 kg

Table length: 1000 mm Table width: 600 mm Longitudinal X: 630 mm Cross Y: 560 mm Vertical Z: 560 mm Positions ATC: 20   Positions APC: 0   CNC Brand: Heidenhain CNC Model: Mill Plus MACH-id   5307 MAKE        Deckel MAHO DMG TYPE          DMU 60 T YOP            2001 SPECIFICATIONS X - Travel       630 mm Y - Travel       560 mm Z - Travel        560 mm Table Length   1000 mm Table Width    600 mm Table load in kG       400 Kg Feed rate X-Axis       26.000 mm/min. Feed rate Y-Axis       26.000 mm/min. Feed rate Z-Axis       20.000 mm/min. Spindle Taper ISO/Bt/Mk       40 / 63 ISO/Bt/Mk kW power ...

Table length: 2600 mm Table width: 600 mm Longitudinal X: 2200 mm Cross Y: 560 mm Vertical Z: 720 mm Positions ATC: 30   Positions APC: 0   CNC Brand: Siemens CNC Model: 840 D MACH-id   5110 MAKE       DECKEL MAHO TYPE         DMF 220 linear YOP            2002 SPECIFICATIONS Spindle Taper ISO/Bt        BT 40 kW power on spindle          35 kW X - Travel         2200 mm bed / plano / portal / moving column         Moving column Control         SIEMENS 840D Y - Travel        560 mm Z - Travel        720 mm Table Length x Width         2600 x 600 mm Table load in kG        22 ...

Table length: 500 mm Table width: 500 mm Longitudinal X: 500 mm Cross Y: 450 mm Vertical Z: 400 mm Positions ATC: 32   Positions APC: 0   CNC Brand: Heidenhain CNC Model: 3D Mill Plus MACH-id    5060 MAKE        Deckel Maho TYPE          DMU 50 eVolution YOP             2003 SPECIFICATIONS Spindle Taper ISO/BtSk 40 kW power on spindle      35 kW X - Travel       500 mm Controll     Heidenhain 3D Mill Plus Y - Travel          450 mm Z - Travel          400 mm Table Length x Width      500 mm Table load in kG    200 Kg Spindle speeds / ranges       18000 Rpm ATC tool changer         32 Number off cont ...

Table length: 700 mm Table width: 500 mm Longitudinal X: 500 mm Cross Y: 400 mm Vertical Z: 400 mm Positions ATC: 16   Positions APC: 0   CNC Brand: Heidenhain CNC Model: 3D Mill Plus MACH-id    5022 MAKE         Deckel Maho TYPE           DMU 50 T YOP             2000 SPECIFICATIONS Controll     HeidenHain 3D Mill Plus bed / plano / portal / moving column       VMC Spindle Taper        SK 40 kW power on spindle      13 kW X - Travel        500 mm Y - Travel        400 mm Z - Travel        400 mm Table Length x Width        700 x 500 mm Table load in kG         200 Kg Number off control ...

Table length: 1000 mm Table width: 600 mm Longitudinal X: 630 mm Cross Y: 560 mm Vertical Z: 560 mm Positions ATC: 20   Positions APC: 0   CNC Brand: Heidenhain CNC Model: 3D Mill Plus MACH-id     5023 MAKE          Deckel Maho TYPE            DMU 60 T YOP              2000 SPECIFICATIONS Controll      HeidenHain 3D Mill Plus Spindle Taper         Sk 40 kW power on spindle       13 kW CNC Automatic milling head / Gr.-91 to + 12 Grad X - Travel        630 mm Y - Travel        560 mm Z - Travel        560 mm Table Length x Width        1000 x 600 mm Table load in kG       500 Kg Number off controll ...

Table length: 800 mm Table width: 480 mm Longitudinal X: 500 mm Cross Y: 420 mm Vertical Z: 380 mm Positions ATC: 32   Positions APC: 0   CNC Brand: Heidenhain CNC Model: 3D Mill Plus MACH-id   5024 MAKE        Deckel Maho TYPE          DMU 50 eVolution YOP            2000 SPECIFICATIONS Controll        HeidenHain 3D Mill Plus Spindle Taper       Sk 40 kW power on spindle       13 kW X - Travel        500 mm Y - Travel        420 mm Z - Travel         380 mm Table Length x Width      800 x 480 mm Table load in kG       180 Kg Number off controlled axis        3 ATC tool changer      ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 600 mm Cross Y: 700 mm Vertical Z: 600 mm Positions ATC: 120   Positions APC: 0   CNC Brand: Heidenhain CNC Model: TNC 430 MACH-id     4103 MAKE         DMG Deckel Maho TYPE           DMU 60 P Hi Dyn YEAR          2000 SPECIFICATIONS X - Travel    600 mm Y - Travel    700 mm Z - Travel     600 mm bed / plano / portal / moving column     5 Axis Controll      Heidenhain TNC 430 Table Length x Width       630 mm Table load in kG        600 Kg Spindle Taper      HSK 63 kW power on spindle     16 kW Spindle speeds / ranges       18000 Rpm ATC tool changer   ...

Table length: 1250 mm Table width: 600 mm Longitudinal X: 1040 mm Cross Y: 600 mm Vertical Z: 500 mm Positions ATC: 30   Distance between uprights: 0 mm CNC Brand: Heidenhain CNC Model: iTnc 530 MACH-id   3989 MAKE       Deckel Maho TYPE         DMC 104 V Linear YEAR        2007 SPECIFICATIONS X - Travel    1040 mm Y - Travel      600 mm Z - Travel      500 mm bed / plano / portal / moving column    Portal Controll     iTNC 530 Table Length x Width   1250 x 600 mm Table load in kG   800 Kg Spindle Taper    Sk 40 kW power on spindle   30 kW Spindle speeds / ranges    12000 Rpm ATC tool changer   30 Coolant true spindle / Bar    10 Bar Number off  ...
