Universal Tool-Milling Machines MACMON 100

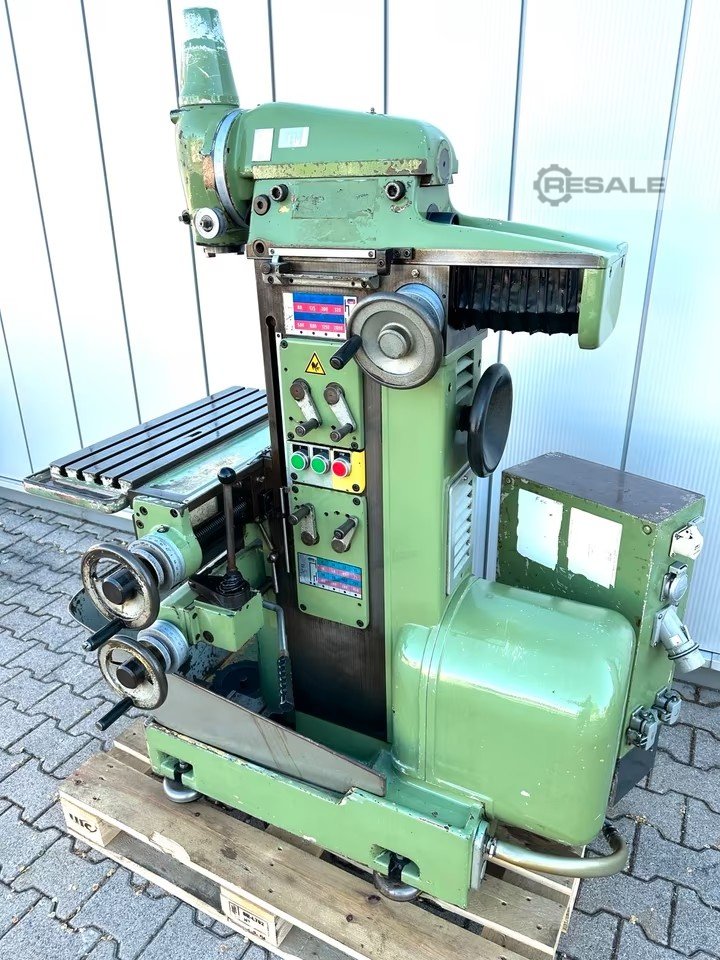

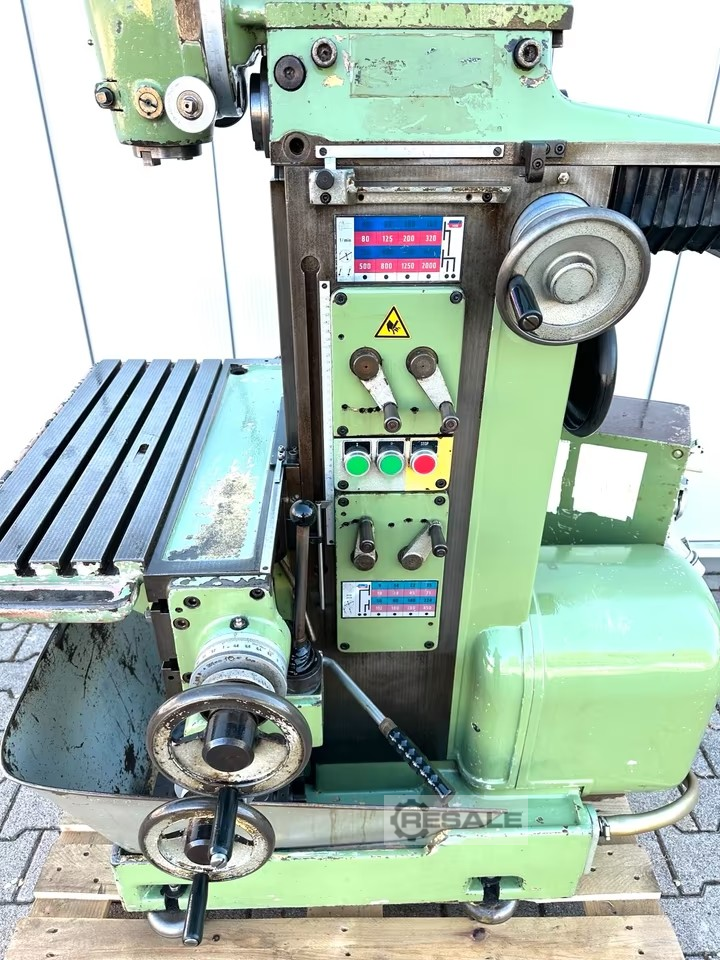

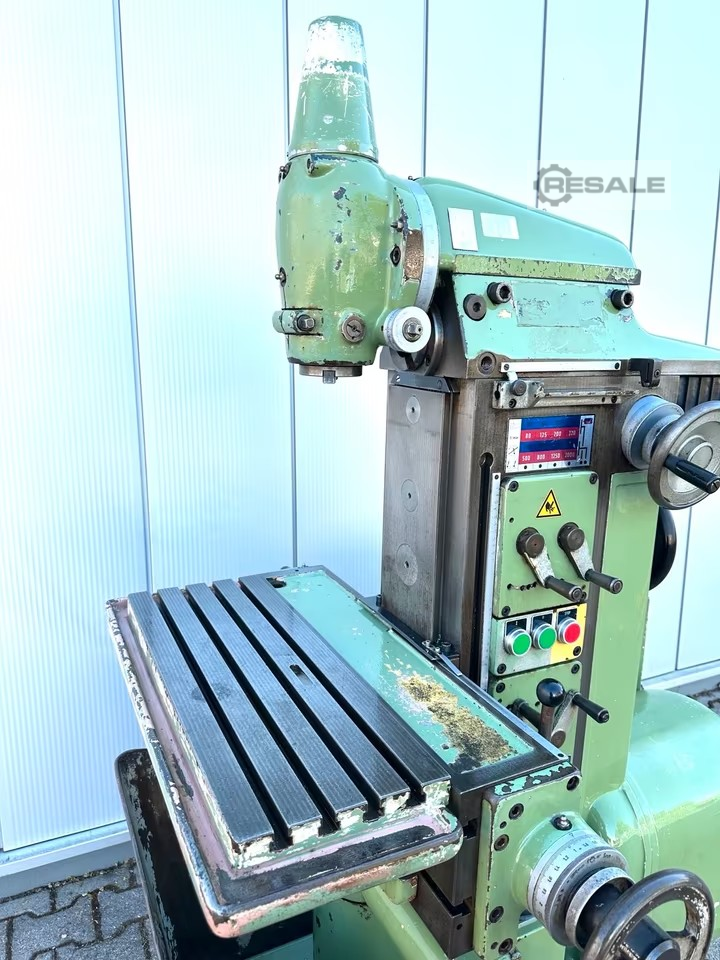

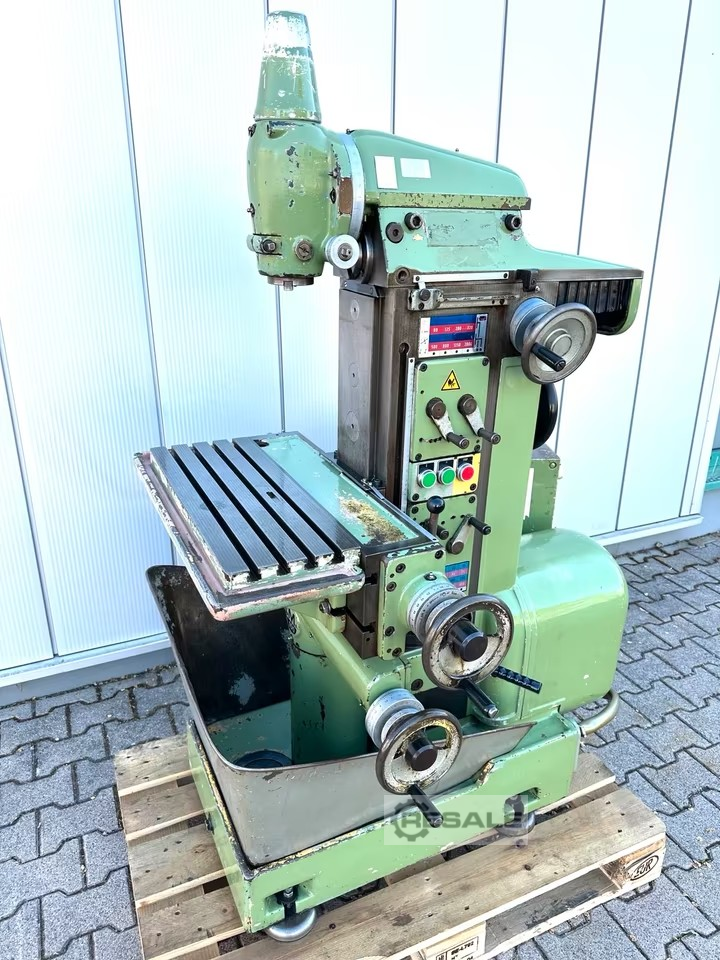

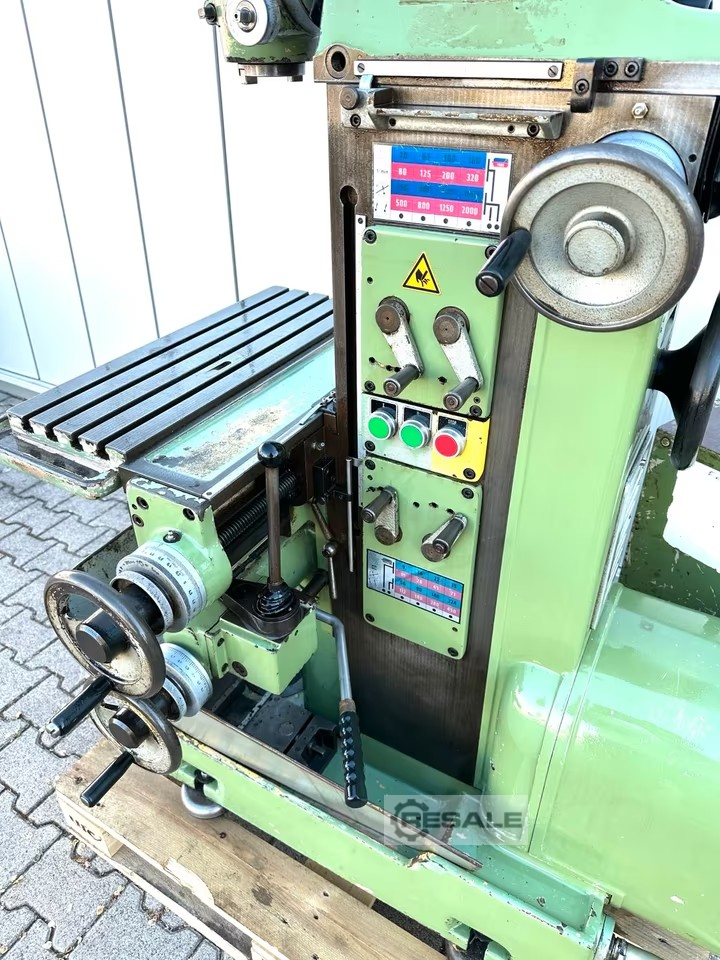

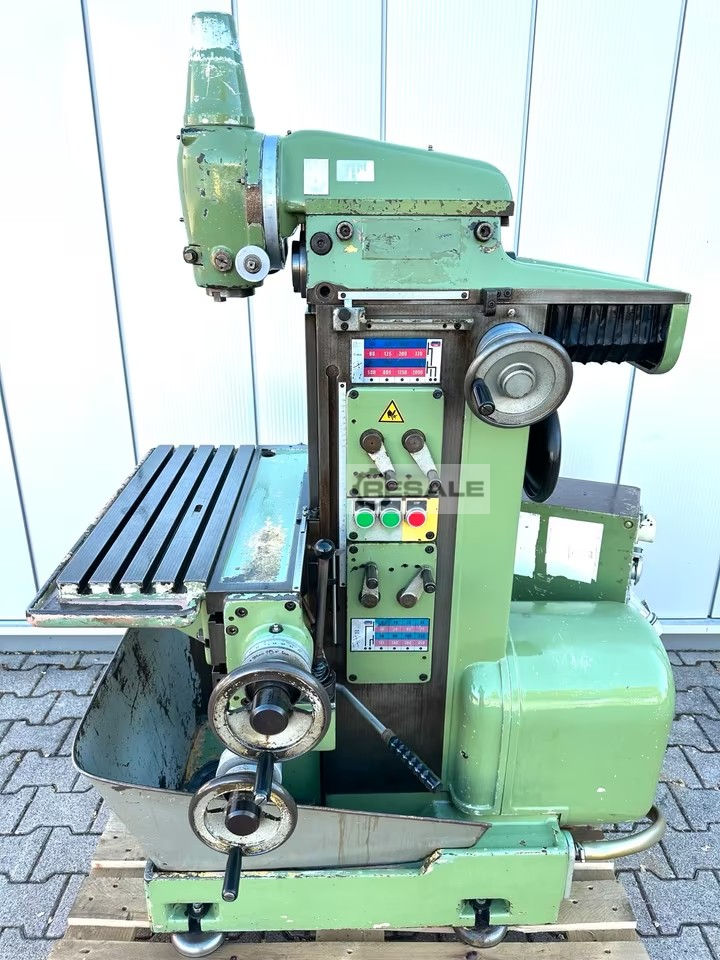

Macmon M100 Universal Milling Machine with Vertical Head

-Milling spindle
-Number of spindle speeds: 16
-Spindle speeds: 40, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 630, 800, 1000, 1250, 2000 rpm
-Spindle Inner Taper: ISO 40
-Collet bore up to: 25 mm Ø
-Spindle block
-Spindle block displacement by hand: 170 mm
-Vertical milling table
-Size of the clamping surface: 640 × 195 mm
-2 T-slots, width/spacing: 12 / 90 mm
-Longitudinal movement automatic/manual: 290 / 310 mm
-Vertical movement automatic/manual: 310 / 340 mm
-Feed gearbox
-Number of feeds: 16
- Feed size (mm/min): 9, 14, 18, 22.4, 28, 35.5, 45, 56, 71, 90, 112, 140, 180, 224, 280, 450
-Motion spindles
-Longitudinal movement of the table (1 turn): 5 mm
-Vertical movement of the table (1 turn): 2.5 mm
-Spindle block movement (1 turn): 2 mm
-1 graduation line (longitudinal and vertical): 0.02 mm
-1 Graduation Stroke (Landscape): 0.01 mm
-Drive motor
-Power: 1.3/1.8kw
-Speed: 700 / 1400 rpm
-Transmission elements
-2 V-belts DIN 2215: 13 × 8 × 1500 mm (inner length)

Dimensions:
LxWxH 1.0x1.0x1.3 meters / Weight 700Kg
seller offer No. resale 169438231
