machining used for sale

Machine is dismantled and stored (see photos). May show traces of storage Auction-ID: A1-50370-4

functionality not checked. The seller does not guarantee or warrant any of the condition or reliability of the machine. For loading, the seller provides a forklift truck with a lifting capacity of 7 t free of charge. All other lifting equipment required for loading must be organised by the buyer himself. A barrier-free loading ramp may be used. Auction-ID: A1-50380-2

X-axis: 3090 mm Y-axis: 2100 mm Z-axis: 85 mm Main spindle (3 axes): Powerful motor from 10 kW to 12 kW (depending on original options), rotation speed from 1,000 to 24,000 rpm. Tool clamping system: HSK-F63 taper. Tool magazine: 15-position linear automatic changer. Drilling head: DH 8 vertical drilling block (8 independent spindles) for drilling furniture or assembly lines. Auction-ID: A1-50215-102

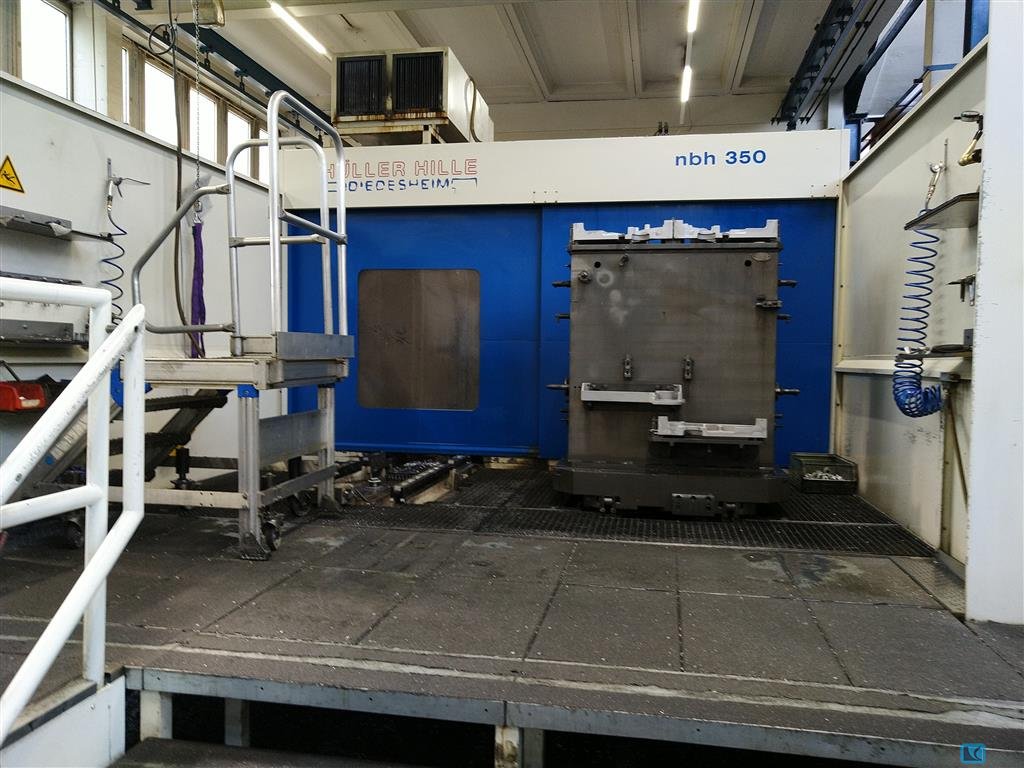

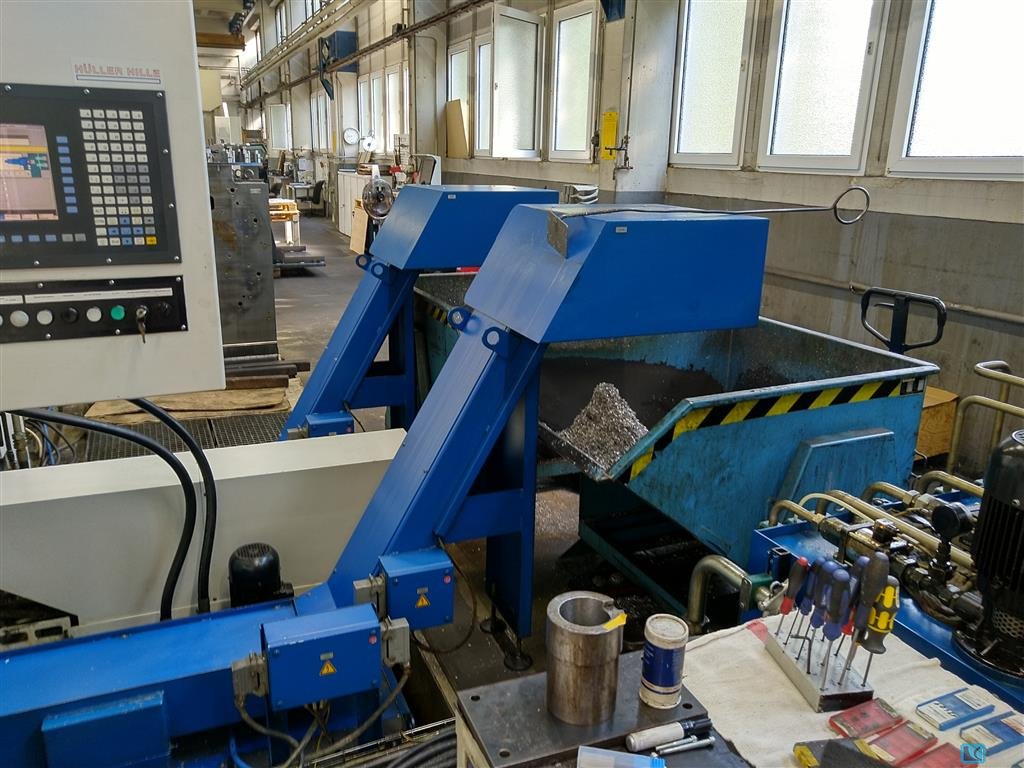

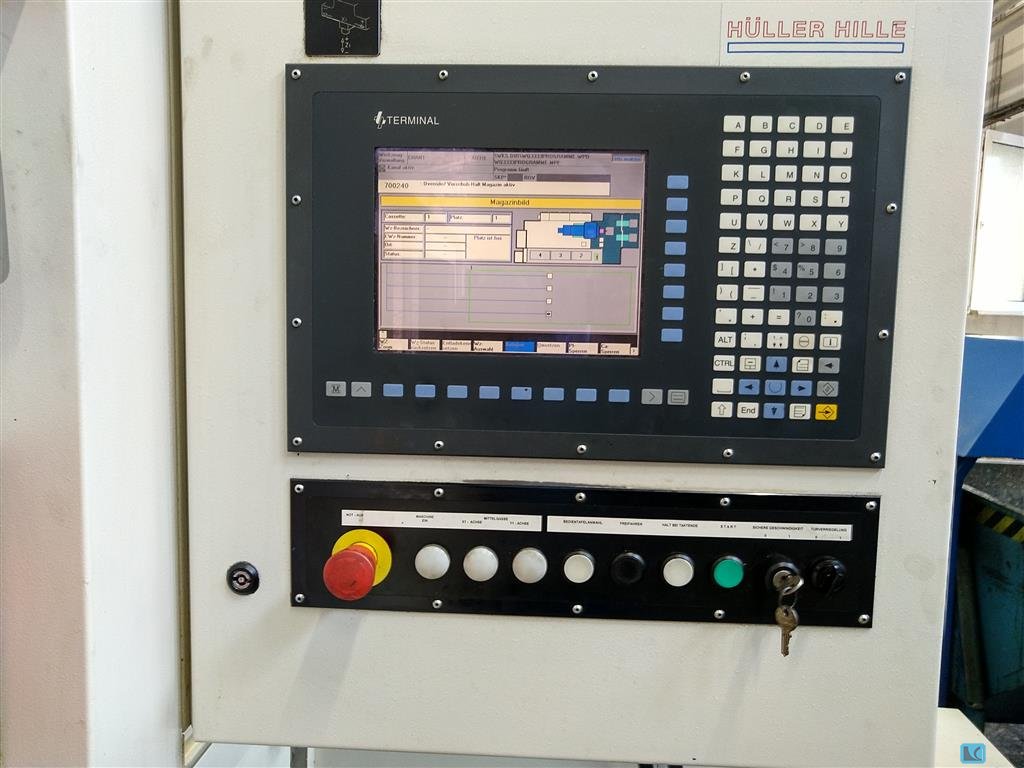

CNC horizontal machining center with horizontal Kessler motor spindle, automatic tool changer and pallet changing system for automated series and multi-sided machining. Manufacturer: Hüller Hille GmbH / MAG Industrial Automation Systems Type: BLUESTAR 5+ / nbh 5+ Year of Make: 2006 Machine No.: A.1002269.02 Spindle: Kessler LC200, horizontal Spindle speed: infinitely variable up to 10,000 rpm Tool holder: HSK 63 Tool magazine: 134 + 4 slots Max. tool Ø: 150 mm Max. tool length: 350 mm B-axis/rotary table: 360°, pitch 1° Rapid traverse X/Y/Z: up to 50,000 mm/min Feed force X/Y/Z: 5,000 N each X/Y/Z drives: Siemens, 3.77 kW / 3,000 rpm each Turntable drive: Siemens, 1.48 kW / 3,000 rpm Tool magazine drives: Siemens, 1.29 kW / 6,000 rpm each Hydraulics: ATB, 3 kW / 1,710 rpm Spindle cooling: Hydac, 0.37 kW / 1,380 rpm Chip auger: FAS, 0.37 kW / 1,380 rpm Pallet syst ...

A Maho 4-axis CNC machining center is offered for sale. X/Y/Z travel: 600mm/500mm/400mm, tool holder: ISO 40, max. spindle speed: 6000rpm, feed rate: 6m/min, rapid traverse: 13m/min, operating hours/power-on hours: approx. 58569h, control: Philips CNC 432. Equipped with through-spindle coolant supply with high-pressure pump, fully enclosed splash guard, automatic tool changer, 2-pallet changer and chip conveyor. The main spindle is defective and has already been removed from the machine. The machine is not operational. Documentation available. An on-site inspection is possible.

axis stroke (X,Y,Z): mm Number of spindle head vertical: St. Number of spindles head horizontal: St. Masterwood Project 455 CNC machining centre with tools ------------------------------------------------ Technical specifications to follow ------------------------------------------------ Price of the above machine on enquiry! ------------------------------------------------ (Technical specifications as per the manufacturer – subject to change!) All prices quoted are net, plus statutory VAT. Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0550 mm : 410 mm : 480 mm : 650x410 mm : BBT 40 : 10.000 U/min Motor Capacity: 7,5/11 kW max. table load: 500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0760 mm : 450 mm : 500 mm : 900x450 mm : BBT 40 : 10.000 U/min Motor Capacity: 7,5/11 kW max. table load: 850 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer HERMLE Model C40 U Dynamic Year 2006 CNC control HEIDENHAIN iTNC 530 Table Table surface Ø 800 mm. Tilting rotary table INCLUDED Maximum weight on table 1400 kg Table rotation (C-axis) 0.001º (±360º) Oscillation field (B-axis) +25 / -110 º Direct Measurement System INCLUDED Maximum part diameter 840 mm. Routes and advances Strokes (X/Y/Z) 850/700/500 mm X, Y, Z axis fast feed 60,000 mm/min Head Head speed 18,000 r.p.m. SK 40 Head Cone DIN 69871 Main motor power 15 W Main torque 130 Nm Equipment Automatic tool loader INCLUDED No. of positions in tool loader 38 Internal cooling 80 Bar INCLUDED Tank with paper filter 200 l. INCLUDED Active cooling control cabinet INCLUDED Infrared measurement probe part M&H INCLUDED Blum Laser Probe Measurement Tool INCLUDED Chip evacuator INCLUDED Cleaning gun with pump 2 bar 40 l/min INCLUDED 3D Quick ...

Manufacturer: MAZAK Model No.: Variaxis i-800 NEO Year 2023 Condition Used Stock number 9210 Mazatrol Smooth Ai control system Work table length 800 mm Work table width 630 mm Maximum table load (uniform) 1000 kg Maximum vertical spindle speed 18000 1/min X-axis travel 750 mm Y-axis travels 890 mm Travel Z axis 600 mm Taper HSK A100 Number of axles 5 pieces Number of Stacking Positions 80 Pieces Machine height 3497 mm Machine length 2695 mm Machine width 4890 mm Machine weight 18080 kg Equipment: Chip conveyor Handwheel Blowing air on the workpiece Air cooling through the spindle Workpiece rinsing Oil Mist Separator (Gx1000) Smooth Cam AI M Renishaw RMP600 Workpiece Probe High pressure unit (70 bar) Camera in the machine working room Coolant coolers Renishaw PRIMO LTS Tool Probe

Mikron HSM 800 – High-speed machining center built in 2007 | Heidenhain iTNC 530 | 24,000 rpm | High-precision CNC machining center from Mikron / GF AgieCharmilles, designed for demanding HSC machining in mold making, graphite and electrode areas as well as for flexible series production. Travel distances of X 800 mm / Y 600 mm / Z 500 mm with a pallet size of 800 x 600 mm. Equipped with a 3-fold pallet changer for efficient production processes. The machine has a high-speed spindle with up to 24,000 rpm, HSK-A63 adapter and a 50-fold tool changer. Extensive equipment including IKZ high-pressure system (18–70 bar) with belt filter, chip conveyor, minimum quantity lubrication, oil mist extraction, rotating viewing window and measurement technology (M&H). Additionally equipped with APS (Advanced Process System) and ITC (Intelligent Thermal Control) for maximum process reliabil ...

Manufacturer: SCM Model No.: Tech 99L Machine Type: CNC Machining Center Year of Make: 2000 Machine weight: approx. 2,600 kg Electrical connection: 400 V / 3 phases / 50 Hz / 35 A Working range X: 3,000 mm, expandable to 3,800 mm Working range Y: 979 mm drilling / 1,200 mm milling Max. panel thickness: 180 mm Vertical spindles: 10 Horizontal spindles: 1+1 in X / 1 in Y Spindle speed: 4,000 rpm Drilling unit: 2.2 kW Z-stroke: 200 mm Feed axes: X/Y/Z 67 / 67 / 22.5 m/min Milling unit: ISO 30, 6.6 kW Tool changer: 4-fold, for tools up to Ø 120 mm Grooving and sawing unit: Ø 200 mm, bore 30 mm, 2.2 kW, 6,000 rpm 6 workpiece supports: 1,030 mm Vacuum pump: 100 cbm/h Working range X: 3,800 mm with roller conveyor according to equipment 4 positioning aids for heavy workpieces Control: PC-NUM 1040 Additional features: 10. ...

CHIRON MODEL FZ18W MAGNUM 4 axis Vertical machining center with rotopallet and double 4th axis 20 TOOLS ISO 40 Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kW X = 625 Y = 400 Z = 400 Rapids 40m/min Table area: 2 x 900 x 470 - TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos. - original HAWE hydraulic unit - FANUC 0M 1995 Can be inspected under power in our warehouse Mimu machine tools (Italy), X: 625, Y: 400, Z: 600, 4th axis: Yes, (2x) Tsudakoma 360 000 pos.

x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"

x-travel:1100 mm y-travel:600 mm z-travel:510 mm control:Heidenhain iTNC 530 table-size:1050 x 600 mm table load:500 kg spindle taper:SK 40 turning speeds:10000 1/min power capacity at 100 % load:9 kW rapid travel x/y/z:24 m/min feed:24 m/min Tool changer:40 SK 40 dimensions of the machine ca.:4,3 x 2,6 x 2,25 m weight of the machine ca.:8,8 t POS mill 1100 vertical machining center in very good condition from 2009 Options: - parts measuring M&H receiver without probe - external hand wheel Heidenhain HR 410 - Air supply through spindle - air gun - paperfilter system with coolant through spindle 40 bar -

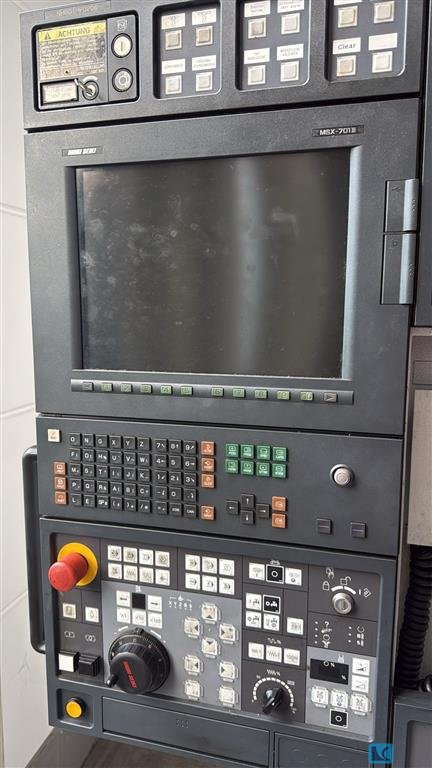

x-travel:1400 mm y-travel:1200 mm z-travel:1350 mm control:MSX- 701 Mapps III table surface area:800 x 800 mm rapid traverse:50 m/min table rotating:360.000 x 0,001 B-Achse ° table load:2,0 t numbers of pallets:2 turning speed range:8000 1/min power capacity - milling spindle:37 kW no. of tools in the magazine:60 Stück tool taper:HSK-A 100 weight:31 t dimensions:5,9 x 3,48 x 3,68 m Equipment: - Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping - Parts program memory 1 MB - Knoll 70 bar high pressure and filter system - Electrostatic oil dust collector LTA - elect. hand wheel - renishaw probe - abso- scale i X/Y/Z- axis - 5 free m- funktions - 48 extra off sets - dual ballscrews on X/Y/Z- axis

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

x-travel:630 mm y-travel:600 mm z-travel:650 mm control:MSC 502 (Fanuc 16) Spindle RPM:12000 1/min spindle drive:22 / 18,5 kW rapid travel x/y/z:32 m/min Pallet dimension:500x500 mm numbers of pallets:2 table load:0,5 t working diameter:max. 610 mm Number of tool station:60 BT40 max. tool length:360 mm max. tool weight:12 kg tool changing time:1,3 sec B-axis positioning (non continuous):1 total power requirement:50 kVA weight of the machine ca.:14 t dimensions of the machine ca.:3,3 x 5,8 x 3,2 m spindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options: ATC 60 tool stations, High pressure coolant trough spindle interface,

x-travel:630 mm y-travel:630 mm z-travel:630 mm control:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mm max. clampable workpiece diameter:720 - 850 mm spindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/min Spindle power:20 / 30 kW Spindle Torque:95/143 Nm tool magazin::80 SK 40 total power requirement:55 kW weight of the machine ca.:11 t Machine with Unipro 90 control for 5 axis - twin palette changer - tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels - full A & B-axis - chip conveyor

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:600 mm y-travel:770 mm z-travel:675 mm A-Axis travel:-180 ... +45 ° b-axis:360,000 ° spindle drive:40 / 52 (100% / 40% ED) kW spindle turning speed range:10000 U/min Tool bore:HSK-A63 numbers of tools in magazin:40 total power requirement:47 kW weight of the machine ca.:13 t including additional tool magazine ZM 182 1 spindle , 5 axes

x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Single-Spindle Mechanical processing cylinder head VR6

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

x-travel:2000 mm y-travel:1600 mm z-travel:1140 mm b-axis:0.0001° x 360° ° number of pallets:4 table surface area:1000 x 1450 mm max. table load:6.000 kg turning speed range:4 - 10000 U/min power capacity at 100 % load:40 kW kW tool taper:HSK100 DIN69893A machine weight ab.:63.000 kg space required L x W X H:12320 x 11000 x 4700 mm incl. 50 x HSK100 tool tapers

x-travel:760 mm y-travel:760 mm z-travel:760 mm b-axis:360.000 x 0.001 ° spindle drive:26 / 18,5 (40% / 100%) kW spindle turning speed range:50 - 15000 U/min Tool bore:KSK-A63 max. table loading capacity:500 kg total power requirement:43 kW weight of the machine ca.:11,5 t dimensions of the machine ca.:2,7 x 4,73 x 2,87 m

x-travel:450 mm y-travel:450 mm z-travel:450 mm b-axis:360.000 x 0.001 ° main spindle speeds::45-10000 1/min weight of the machine ca.:14 t dimensions of the machine ca.:7 x 2.45 x 3.4 m size of pallet:320 x 320 mm number of spindles:2 tool taper:HSK63 tool numbers:2 x 40 spindle drive motor:25/36 (100% / 40% ED) kW Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site  ...

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m

x-travel:1020 mm y-travel:510 mm z-travel:510 mm Table 1,200 x 530 mm Max. table load 800 kg Spindle mount ISO 40 Spindle speeds 10,000 rpm Drive power 14.5 kW Tool changer 20-position Coolant system External cooling Chip conveyor Yes The Y-cover is leaking (see photos)

x-travel:1300 mm y-travel:1100 mm z-travel:1000 mm spindle turning speed range:10 - 10000 U/min numbers of positions in the tool changer:80 spindle taper::MAS BT 50 size of pallet:800 x 800 mm number of pallets:2 total power requirement:65 kVA weight of the machine ca.:24 t The machine needs to be taken out of production at short notice: SPECIAL PRICE ?34,000 net EXW. The MAZAK FH8800 is a robust horizontal CNC machining centre designed for the precise and productive machining of large workpieces. The machine features travel ranges of 1,300 × 1,100 × 1,000 mm, two 800 × 800 mm pallets and a high-performance spindle running at 10,000 rpm. Technical specifications ·Travel ranges (X/Y/Z): 1,300 / 1,100 / 1,000 mm ·Pallet size: 800 × 800 mm ·Number of pallets: 2 ·Spindle speed: 10,000 rpm ·Control system: Mazatrol 640 M CNC ·Tool holder: BT50 ·Tool magazine: Chain magazine ·High ...

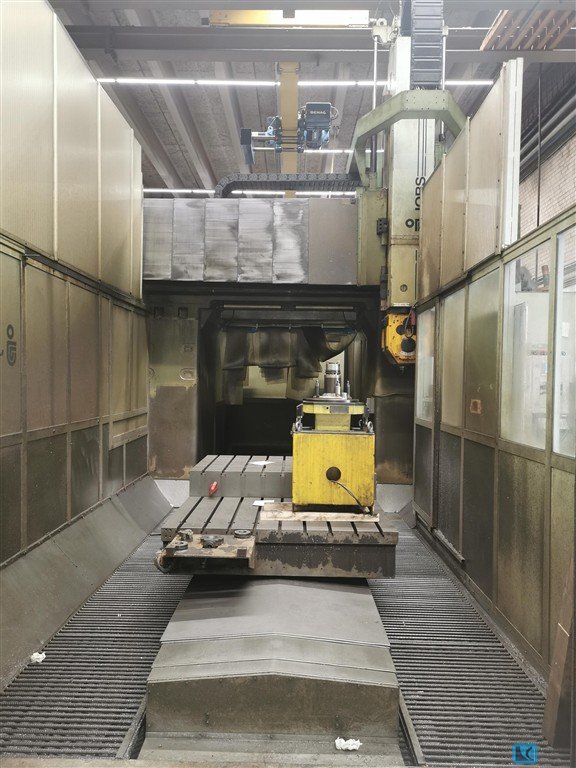

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm weight of the machine ca.:50 t JOBS JO?MACH 241 ? CNC gantry machining centre The JOBS JO?MACH 241 is a high-performance CNC gantry machining centre designed for the precise machining of large, heavy and complex workpieces. The robust design, featuring a fixed gantry and a movable worktable, ensures high rigidity and stable machining conditions. With travel ranges of 3,500 mm on the X-axis, 2,500 mm on the Y-axis and 1,250 mm on the Z-axis, the machine offers a generous working area. The clearance between the columns is approximately 2,200 mm. The worktable, measuring approximately 3,000 × 1,500 mm, is designed to accommodate workpieces weighing up to 12,000 kg. The two-axis, swivelling milling head enables the machining of complex contours and hard-to-reach surfaces in multiple spatial directions. This makes the JO?MACH 241 particularl ...

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel:2500 mm y-travel:1000 mm z-travel:750 mm table surface area:3220 x 1000 mm Workpiece weight approx.:3000 kg spindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/min feed speeds:1- 30000 mm/min rapid traverse:30 m/min total power requirement:40 kW dimensions of the machine ca.:6,9 x 4,1 x 3,7 m weight of the machine ca.:21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

x-travel:1250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min spindle taper ISO:50 table-size:1250 x 1000 mm max. workpiece weight:2000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 4,4 x 2,9 m 5-axes Machining Center with CNC SIEMENS 840 D A-axis 0,001°, C-axis 0,001° autom. toolchanger30-pockets NC table through spindle coolant 40 Bar , chip conveyor

x-travel:1800 mm y-travel:1600 mm z-travel:1400 mm B-axis (table):360° size of pallet:1000 x 1250 mm workpiece swing dia.:2100 mm workpiece weight:3500 kg spindle taper ISO:50 spindle drive motor:37 kW spindle turning speed range:25 - 10000 U/min feed range:40/50 m/min rapid power traverse circular:10 U/min total power requirement:90 kVA weight of the machine ca.:43 t dimensions of the machine ca.:11 x 9 x 4,5 m Machine with SIemens 840 D control for 4 axis - full B-axis - palette changer - tool changer for 150 tools - coolant device with coolant through spindle - chip conveyor

x-travel:630 mm y-travel:630 mm z-travel:630 mm pallet size::400 x 500 mm spindle taper::HSK 63 spindle turning speed - stepless:10 - 16000 U/min total power requirement:55 kW weight of the machine ca.:11 t Machine with SIEMENS 840 D control for 4 axis - digital drives - palette changer 4-fold - tool changer 160-fold - coolant device with coolant through spindle - full B-axis - chip conveyor - hydr. workpiece clamping
