machining center used for sale

Number of axes: 3, connected load: 30kVA, control: Hurco Ultimax 4, weight: approx. 10.5t, equipment: chip conveyor, full enclosure cabin, electronic handwheel/control panel, coolant system, tool magazine. The machine should be overhauled, electronic components such as the mainboard and hard drive have been replaced repeatedly. An on-site inspection is possible.

Type: C1050 3 Axis Machining Center Year of construction: 2010 Machine type: Machining center Condition: energized, ready for immediate use. Operating hours: approx. 29800h Spindle hours: approx. 9000h Control: iTNC 530. Spindle Rotation Number: 10,000rpm Tool magazine: 30 x-axis (mm) 1,050 Y-axis (mm) 530 z-axis (mm) 630. Spindle/Table Distance (mm) 85-715 Accessories: Documentation Chip conveyor Coolant Setup Tool changer 30 pos. incl. tool holder Linear scales in all axes X / Y / Z 3D Buttons electr. Handwheel . Note: without vice! Auction-ID: A7-47048-24

MTCut V110 4 Axis Machining Center (2012) Manufacturer: MTCut Type: V110 Year of Make: 2012 Condition: used, very good, in production. Switch-on hours: 14150h Spindle hours: 3710h Control: Itnc 530 Travel range. X x Y x Z = 1100 x 640 x 610mm – 30-fold tool changer ISO 40 – 4th axle Lehmann, 200mm lining with hydr. Workpiece clamping and 350mm face plate. – Internal coolant supply 50bar – Spindle cooling – Measuring Buttons – Dimensions approx. L x W x H 3.2 x 3.2 x 3.1m (Transport height 2.5m). Incl. tools in the tool turret Auction-ID: A7-47048-25

Mori Seiki DuraVertikal 5080 3Axis Machining Center (11/2006) Manufacturer: Mori Seiki Type: auto_awesome Source language: English 587 Table length 1350 mm Table width 600 mm Number of T-profiles 6 T-profile width 18 mm Max. table load 1000 kg Longitudinal travel (x-axis) 1050 mm Transverse travel (y-axis) 530 mm Travel (z-axis) 510 mm Max. tool diameter 125 mm tool weight 8 kg Spindle nose bt 40 Distance spindle nose table 150 - 660 mm By 0 rpm Until 10,000 rpm Voltage 50 Hz 3x 400 volts Spindle performance 22 kW Total power requirement 58 kVA Machine weight approx. 8,030 kg Length 2,500 mm Width 2,350 mm Height 2,700 mm Give feedback Translation results available Year of manufacture: 11/2006 Condition: used, good, in production I Auction-ID: A7-47048-26

A deposit of €4125.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Fast feed speed 42 m/min Cutting speed 1-8000 mm/min 30-position tool changer Max tool diameter 80-125 mm Max tool weight 8 kg X-axis positioning accuracy 0.015 mm Positioning accuracy Y/Z axes 0.010 mm X-axis repeatability 0.006 mm Y/Z axis repeatability 0.004 mm Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. It should be noted that the dismantling and loading operations of the machinery subject to sale must be carried out exclusively by a specialized ...

MORI SEIKI MH 40 FANUC horizontal machining centre X-axis travel: 560 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Pallet size: 400 x 400 mm Table Rotation (B-Axis): 360° (with minimum division 1° or 0.001°) Spindle Mount: BT-40 Spindle Speed: 6,000 rpm Tool Changer (ATC): 40 Total machine weight: approx. 9,500 - 10,500 kg Floor Dimensions (W x D): Approx. 2,300 x 4,200 mm Height 2350 mm Auction-ID: A7-47195-21

Selca 4045 PDH control X-axis (longitudinal): 1,650 mm Y-axis (Transverse): 600 mm Z-axis (Vertical): 640 mm Distance between Spindle Nose and Table: 120 – 760 mm Fast Feed (X/Y/Z): 60 / 60 / 60 m/min Spindle Specifications (Built-in) The system uses a direct drive electrospindle to eliminate thermal drift and vibrations typical of belt drives Maximum Speed: 12,000 rpm Power (S1 100% / S6 40%): 25 kW / 35 kW Maximum torque (S1 / S6): 110 Nm / 160 Nm Tool connection: ISO 40 - DIN Cooling: Liquid circuit with dedicated heat exchanger. Permissible Weights and Loads The fixed table allows high loads to be handled without affecting the dynamics of the axes. Table dimensions: 1,800 x 600 mm Maximum load allowed: 4,000 kg (distributed) T-slots: 18 mm (100 mm wheelbase) Floor space approx. 5,225 x 3,400 mm Maximum Height: 2,760 mm Worktop height: 900 mm (from the ground)  ...

CNC Bar Machining Center for Aluminum, Machine No. 1310031121, machining length max. approx. 7200 mm, tool turret 8-fold, spindle power max. approx. 5.5 KW, angle head saw unit, angle head drilling/milling horizontal 2 pieces, drilling/milling vertical 5 pieces, brackets 8 pieces, material tensioner 8 pieces, control Ferrocontrol (The article is in its condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! Attention: The Elumatec CNC bar machining center stands on a pedestal with a mesh floor. This area was the former ramp area. The mesh floor must not be driven on with a forklift. Important, bring drivable plates and tank roll ...

Table dimensions: 900 x 500 mm X-axis travel (longitudinal): 600 mm Y-axis travel (transverse): 430 mm Z-axis travel (vertical): 460 mm Spindle-table nose distance: 150 - 610 mm Maximum permissible load on the table: 500 kg Table configuration: 4 T-slots (18 mm x 100 mm center distance) Spindle attachment: BT 40 Maximum speed: 12,000 rpm Spindle motor power: 22 / 18.5 kW Front bearing inner diameter: 85 mm Number of tools in stock: 30 stations Attachment type: BT 40 Max. tool diameter (adjacent): 80 mm Max. tool diameter (non-adjacent): 125 mm Max. tool length: 300 mm Max. tool weight: 8 kg Tool change time (chip-to-chip): 3.2 seconds Fast feeds (X, Y, Z): 32,000 mm/min Maximum working feed: 16,000 mm/min Axis motor power (X/Y): 2.1 kW Z axis motor power: 4.4 kW Numerical Control: MORI-FANUC (Models MSC-518 / MSC-501) Memory: 320 meters Functions: Helical Interpolation, Cutting Force Con ...

CNC Bar Machining Center for Aluminum, Machine No. 6100013187, control Beckhoff C6140 renewed in 2020, infeed of extrusion profile magazine length max. approx. 6000 mm, machining units (drilling / milling: vertical top 1 piece / vertical bottom 4 pieces / horizontal front 1 piece / horizontal rear 1 piece) and (sawing 3 pieces: 45 / 90 / 45 degrees), outfeed belt max. approx. 2700 mm, chip conveyor belt (The article is in condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! Mediation of dismantling and loading possible. Contact: Dejan Ducic / dejan.ducic@surplex.com Auction-ID: A7-47228-14

Technical data Manufacturer: Hermle Type: C 1200 V Machine Type: 3-Axis CNC Vertical Machining Center Year of Make: 2002 Control: Heidenhain iTNC 530 Travels: X 1200 mm, Y 900 mm, Z 500 mm Table size: 1400 x 900 mm Tool holder: SK40 / HSK A63 Spindle speed: up to 24,000 rpm Tool magazine: 30 places Machine weight: approx. 12,000 kg Configuration - Full protection cabin - Automatic tool changer - Chip conveyors Knoll Type 400 K-1/100 - Documentation and operating instructions available Auction-ID: A7-46939-90

X-axis travel: 800 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Distance between table table top and spindle nose: 150 - 660 mm Table dimensions: 1,100 x 600 mm Maximum load capacity: 1,000 kg Configuration: 6 x 18 mm T-slots Rotational speed: 14,000 rpm Spindle attachment: MAS BT-40 (Taper 7/24 No. 40) Bearing inner diameter: 65 mm Motor power (30 min/cont.): 22 / 18.5 kW Cooling: Refrigerator for spindle cooling included Fast feeds: 42,000 mm/min Feed in JOG: 0 - 1,260 mm/min Positioning accuracy: 0.005 mm (over the entire stroke) Positioning repeatability: ± 0.001 mm Magazine capacity: 30 positions Attachment type: MAS BT-40 (90° tie rod shank) Maximum tool diameter: 80 mm (125 mm with empty adjacent slots) Maximum tool length: 300 mm Maximum tool weight: 8 kg Tool change time (chip-to-chip): 2.6 seconds (1.0 s tool-to-tool) CNC monitor: 10.4\" TFT colour active matrix Program mem ...

X-axis travel (table): 762 mm Y-axis stroke (slide): 460 mm (+100 mm for pallet change stroke) Z-axis travel (spindle head): 460 mm Distance between table and spindle attachment: 180 – 640 mm X-Y fast feeds: 40 m/min Fast feed rates Z: 32 m/min Max working feed: 32,000 mm/min Positioning accuracy (X-Y-Z): ± 0.004 mm (Std JIS) Repeatability (X-Y-Z): ± 0.0015 mm (Std JIS) Number of pallets: 2 (rotating) Pallet usable area: 760 x 460 mm Maximum permissible load per pallet: 400 kg Configuration: 3 x 18 mm T-slots (125 mm pitch) Pallet change time: 6.0 seconds Spindle connection: BT 40 Rotational speed: 15,000 rpm (Upgrade from standard 8,000) Max motor power: 22 / 18.5 kW Max torque at spindle: 199 Nm Systems included: TAS-S (Thermo-active stabilization of spindle expansion) Stock locations: 32 stations (Upgrade from the standard 20) Management Type: Random Tool chang ...

DMG DECKEL MAHO DMF 180 travelling column machining center, equipped with Heidenhain iTNC 530 control. Machine equipped with 40 bar through-spindle coolant (IKZ), 60-position tool magazine (chain type with double gripper), chip conveyor, electronic handwheel, air blast through spindle, M&H infrared probe and full enclosure. Table size approx. 2,100 x 700 mm. Operating hours: control ON approx. 63,700 h, machine ON approx. 22,500 h, cutting time approx. 7,750 h

Technical data Note: There was no original machine documentation. To the best of our knowledge, all the following technical data were partially read from the nameplate and taken from publicly accessible online sources. Manufacturer: CHIRON Type: FZ 08 B/W Year of Make: 2000 Machine Type: CNC Vertical Machining Center Control: Siemens Sinumerik Operating voltage: 3/N/PE 400 V Frequency: 50/60 Hz Control voltage: 230/24 V Connected load: approx. 21 kVA Rated current: approx. 35 A Configuration Double clamping system / pendulum operation 2 clamping stations NC sub-unit Peiseler AWUP 100 Automatic tool changer Cooling lubricant system Extraction system Full fairing Compact design for series production Auction-ID: A7-47277-9

Technical data Note: There was no original machine documentation. To the best of our knowledge, all the following technical data were partially read from the nameplate and taken from publicly accessible online sources. Manufacturer: SW (Swabian Machine Tools) / EMAG Type: BAS 03-12 Year of Make: 2008 Serial Number: 1820031 Machine Type: CNC Universal Machining Center Control: Siemens Sinumerik 840D Powerline Operating voltage: 3/PE 400 V, 50 Hz Rated current: 85 A Fuse: 125 A Pneumatic pressure: 6.0 bar Air consumption: approx. 0.3 Nm³ Machine weight: approx. 8,000 kg Configuration Siemens CNC control Double station / multi-sided machining Automatic tool changer Chip conveyor (KNOLL) Cooling lubricant and filter system (KNOLL) Full fairing Suitable for series production Auction-ID: A7-47277-6

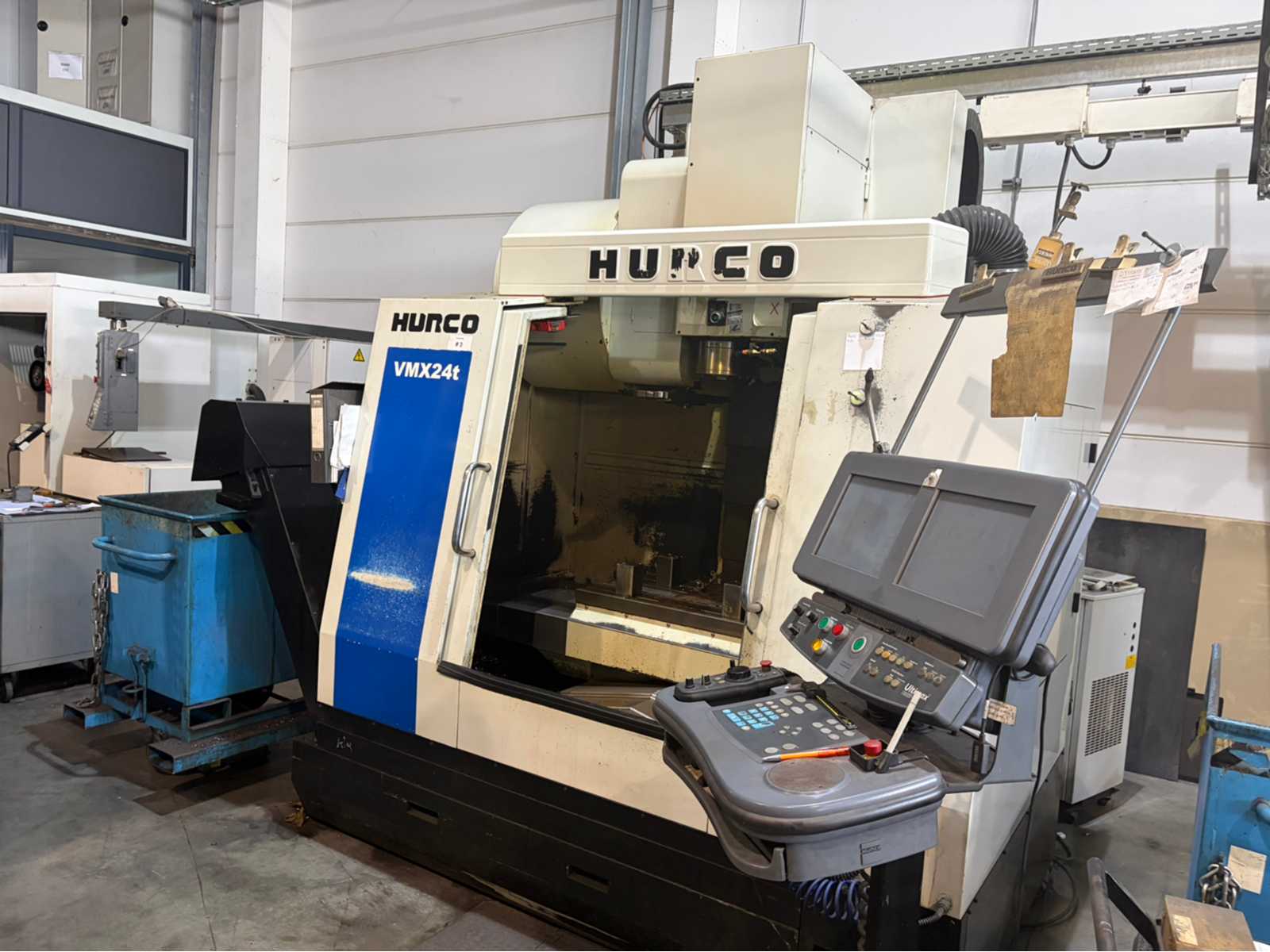

Technical data Manufacturer: Hurco Model: VMX24 Machine Type: Vertical CNC Machining Center Year of Make: 2001 Machine number: H20131 Control: Hurco Ultimax Operating hours: 42,221 h Configuration Vertical machining center T-slot work table Closed protective cabin Control panel with double screen Hand control unit (jog handwheel) Emergency stop available Interfaces: Port 1 / Port 2 / Coax / 10BASE-T Note The technical data was recorded exclusively on the basis of the visible nameplates and components of the machine. There was no additional machine documentation. Auction-ID: A7-47277-30

Technical data Manufacturer: Hurco Model: VMX40 Machine Type: Vertical CNC Machining Center Year of manufacture: 12/2000 Serial Number: M442-01219120AFC Machine Number: Q-6695 Control: Hurco Ultimax Operating hours: 37,207 h Voltage: 380 V Frequency: 50 Hz Connection: 63 A Configuration Vertical machining center T-slot work table Closed protective cabin Control panel with double screen Emergency stop available Network connection (10BASE-T) Interfaces: Port 1 / Port 2 / Coax Note The technical data was recorded exclusively on the basis of the visible nameplates and components of the machine. There was no additional machine documentation. Auction-ID: A7-47277-32

Technical data Note: There was no original machine documentation. To the best of our knowledge, all the following technical data were partially read from the nameplate and taken from publicly accessible online sources. Manufacturer: SW (Swabian Machine Tools) / EMAG Type: BAS 03-12 SC3 Year of Make: 2007 Serial Number: 1820027 Machine Type: CNC Universal Machining Center Control: Siemens Sinumerik 840D Powerline Operating voltage: 3/PE 400 V, 50 Hz Rated current: 85 A Fuse: 125 A Pneumatic pressure: 6.0 bar Air consumption: approx. 0.3 Nm³ Configuration Siemens CNC control Automatic tool changer Double station / multi-sided machining Chip conveyor Cooling lubricant system Full fairing Control cabinet Auction-ID: A7-47277-2

Technical data Note: There was no original machine documentation. To the best of our knowledge, all the following technical data were partially read from the nameplate and taken from publicly accessible online sources. Manufacturer: SW (Swabian Machine Tools) / EMAG Type: BAS 03-12 Year of Make: 2003 Serial number: 182.012 Machine Type: CNC Universal Machining Center Operating voltage: 3/PE AC 400 V / 50 Hz Spindle power: 14.5 kW Rated current: 85 A Connected load: 60 kVA Configuration Double station / multi-sided machining Automatic tool changer Chip conveyor / filter system Full fairing Integrated control cabinet Auction-ID: A7-47277-7

Machine: MASTERWOOD PROJECT DOORS Machining Center Year: 2001 Machining Range: X 2500 mm, Y 1360 mm, Z 100 mm (120 mm pass-through) Front Position: 2.2 kW horizontal unit, 8 kW ISO30 solenoid spindle, 8 pos. ISO30 Rear Position: 2.2 kW horizontal group, 14 inch rotating magazine. ISO30, manual tilting X/Y index head Table: belt-driven, vacuum pump 100 m³/h Belt: chip evacuation Order: Windows PC + SINCRO software Standards: EC Auction-ID: A1-46801-40

Project 323 (tubeless) with drill head Usable stroke in x 6000 mm Power supply 400v 50hz europower supply Position 1 ( forward ) Please choose the electrochuck Electrochuck 8 kw - ISO30 Tool magazine 8 pos. On the head iso30 8 kw frequency inverter Adapter support plate for index heads Tubeless table 8 supports 24 suction cups Positioning 8 bars + suction cups on display Table with 08 bars predisp. For vise locking (plus kit) CE safety standards for 6000 mm frame 40-core drill head Saw for longitudinal incisions Waste disposal belt 6000 mm Remote control (hold-start override) 100 m3/h std vacuum pump CN on external pc (pc included) 17\" tft display Auction-ID: A1-46801-95

Kaukan CNC machining center (L&W Machine Tools) model Cinch Mill30SB. Manufactured in 2006 and equipped with Fagor 8040-M CNC control. Technical characteristics: • Travels (X/Y/Z): 760 x 510 x 510 mm • Worktable: 900 x 510 mm • Maximum spindle speed: 6,000 rpm • ISO 40 Cone • High-precision linear guides • 18-tool autoloader • Power supply: 380 V • Installed power: 20 kVA • Machine weight: 4,800 kg The machine is supplied with various tool holders and accessories visible in the photographs. Very good general condition. Suitable for precision machining work and manufacturing of metal components. Sold in the condition it is in. Auction-ID: A7-47240-6

Machine: MASTERWOOD PROJECT DOORS Machining Center Year: 2001 Machining Range: X 2500 mm, Y 1360 mm, Z 100 mm (120 mm pass-through) Front Position: 2.2 kW horizontal unit, 8 kW ISO30 solenoid spindle, 8 pos. ISO30 Rear Position: 2.2 kW horizontal group, 14 inch rotating magazine. ISO30, manual tilting X/Y index head Table: belt with vacuum pump 100 m³/h Belt: chip evacuation Order: Windows PC + SINCRO software Standards: EC Auction-ID: A1-46801-39

Atlas machining center tubeless version X-axis stroke = 6000 mm Power supply 400V 50Hz Europower supply Anuba Group in CA Anuba Diam.13 sheet Vertical support for milling unit 0/90pn Upright position n.2 Milling unit 15HP Index HSK F63 Fixed head with 2 outlets blade holder D=220 + cutter holder - HSK 63 F Tool Holder 14 pos.side trolley HSK63 Front upright position Drill head Saw for longitudinal incisions 11 kW frequency inverter 8 suction cups 114X140MM - H 100 (to be confirmed) 12 suction cups 125x75MM - H 100 longitudinal (to be confirmed) 2 suction cups 114x140mm - H 75 for blocking. Template (to be confirmed) 3 additional vacuum devices for workpiece blocking 2 pneumatic vertical pressers supp. - 1 MVT. - 100 hours (to be confirmed) 2 horizontal pneumatic vices (to be confirmed) Positioning 10 bars + suction cups on display CE safety standards for atlas bati xl Atlas  ...

Machine number: 71401453 Operating voltage: 400 V Frequency: 50 Hz Rated current: 80 A Connection: 44 kVA Spindle hours read: 26350 Control: MILLPLUS Spindle speed: up to 12000 rpm Feed X/Y/Z axis: 20 - 15000 mm/min Rapid traverse X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Input gauge X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis: 0.010 mm Travel X-axis: 600 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Tool holder: SK 40 incl. 60-fold tool changer Max. tool diameter: 100 mm Max. tool length from spindle nose without tool breakage monitoring: 350 mm NC rotary table Clamping surface: 630 mm Diameter Distance between T-slots: 63 mm Number: 9 Centering bore: 50 mm Diameter Max. rotation of table top: 10.7 rpm Feed: 3600°/min Resolution of the measuring system: 0.001° incl. chip conveyor and cooling system Attention: the machine can be trans ...

Pinnacle LV-126 CNC Vertical Machining Center. Year of manufacture: 2008. Equipped with Fagor 8055i PLUS-M CNC control and 24-position automatic tool changer. Technical Specifications: • Travels (X/Y/Z): 1300 x 610 x 610 mm • Table dimensions: 1440 x 610 mm • Maximum spindle speed: 8,000 rpm • Taper: ISO 40 • Automatic tool changer: 24 positions • Maximum tool weight: 8 kg • 45 mm Class P precision linear guides • Ball screws Ø40 mm, C3 accuracy grade • Number of axles: 3 • Machine weight: 6,800 kg Suitable for precision machining and general metal transformation work. Sold in the \"as is\" condition and without subsequent warranties. Include accessories visible in the photographs. Auction-ID: A7-47240-1

Useful working area: X: 3200 mm Y: 1360 mm Z: 175 mm Configuration: 16-core drill head 14 kW electro-chuck – HSK 63 F C-axis – gear rotation Rotating tool magazine 8 front positions HSK 63 8-position tool magazine at carriage edge Fixed head with 1 blade holder outlet Ø 250 – HSK 63 F \"K\" head with 1 outlet -10° / 90° blade Ø 180 + milling cutter – HSK 63 F Fixed head with 2 milling cutter outlets – HSK 63 F Equipment: 14 kW frequency inverter Cooling unit for 19 kW unit Table with 2 suction cups per support 6-bar / 12-suction cup 2 suction cups 114 × 140 mm – h 100 mm per support 2 stops per bar 6-bar table pre-arranged for locking with vices (plus set) 2 horizontal pneumatic vices Vacuum pump 250 m³/h Chip belt Remote control (hold-start override) CNC on external PC (PC included) 17\" TFT displayPC and instructions in English Mastercabinet level 1 Power supply:  ...

Machine number: 711194 Operating voltage: 400 V Frequency: 50/60 Hz Connection: 40 kVA Control: FANUC SERIES 18-M Spindle speed: 45 to 4500 rpm Spindle holder: BT 50 Front bearing diameter: 100 mm Travel X-axis: 1100 mm Travel Y-axis: 600 mm Travel Z-axis: 630 mm Distance between spindle nose and table center: 218 - 848 mm Distance between spindle center and stand: 650 mm Table dimensions: 1200 x 600 mm Table load: max. 1200 kg Grooves: 5 Groove size: 18 mm Distance: 100 mm Rapid traverse X/Y/Z: 16/16/15 m/min Feed speed: 1 - 5000 mm/min Tool magazine: 24 places Max. tool dimensions: Diameter 125 x 350 mm Max. tool weight: 15 kg Tool holder: SK 50 incl. dividing head (4th and 5th axis) from the manufacturer NIKKEN, with a three-jaw chuck, Diameter: 250 mm Reference: Hercegfi - Lot 29 Auction-ID: A7-46763-211

winner machining center 3.2 Power supply 400v 50hz europower supply Position 1 (forward) Electrochuck 8 kw - ISO30 Position 3 ( rear ) Horizontal milling unit with 1 output 2.2kw 5-position side implement holder Tool holder on x trolley with 4 positions 8 kw frequency inverter Table with swivel suction cups with block. Locking narrow parts by discs 06 front stops + 2 additional side stops Trolley + swivel suction cup 160 x 60 mm supp. CE Winner 3.2 Safety Standards CN on external pc (pc not included) Instruction booklet in English Special execution Gruppo foratura speciale per Pannelli fonici con 15 punte ( 3 x 5 - interasse 40 mm )con sistema a molla per bloccare i pannelli quando salgono le punte Attenzione! Le battute anteriori devono essere montate sulle barre in alluminio come quelle posteriori Auction-ID: A1-46801-93

Usable working area: X: 4970 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head Electro-chuck 8 kW – ISO30 Frequency inverter 8 kW Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 8-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups Pneumatic locking table 2 stops per bar 8 × suction cups 114 × 140 mm – H 100 (to be confirmed) 8 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) 8 × suction cups 120 × 50 mm – H 100 longitudinal (to be confirmed) 8 front stops + 2 additional side stops Equipment: Vacuum pump 250 m³/h CN on external PC (PC included) 17\"PC TFT display and instructions in English Mastercabinet Level 1 Power supply: 400 V – 50 Hz Compliance: CE safety standards version L Dimensions: Estimated height: approx. 2400 mm (to  ...

Manufacturer: SCM Model: Record Year: 2009 Serial Number: AA2/001067 Power Supply: 400 V – 3F – 50 Hz Weight (kg): 5300 Equipment: Bar table and suction cups, automatic circular tool changer, multi-spindle head, vertical CNC milling unit, conveyors and automatic guides Control: CNC SCM with NEC display, keypad and mobile consoleAccessories: numerous tool holders and accessories visible on the rack System: independent vacuum pump and connected suction Dimensions (mm): 9000 × 5000 × 3500 Remarks: Industrial wood CNC machining center for milling, drilling and complex machining operations. + Laser Auction-ID: A1-46801-404

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle holder taper: ISO 40 Z-axis travel: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 m Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D touch probe Reference: Schönichen - Lot 23 Auction-ID: A7-46763-270

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 660 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance from table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vice shown in the photos! incl. the tool holders located in the tool changer as well as touch probe and 4th axis Ref ...

Machine number: 11790001067 Operating voltage: 400 V Frequency: 50/60 Hz Rated current: 100 A Connection: 40 kVA Control: SIEMENS SINUMERIK 840 D Spindle speed: 42,000 rpm Feed in X/Y/Z axis: up to 40,000 mm/min Input fineness X/Y/Z axis: 0.001 mm Rapid traverse in X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis with direct measuring system: 0.005 mm travel X-axis: 200 mm Travel Y-axis: 200 mm Travel Z-axis: 280 mm Tool holder: HSK-32 E incl. 24-fold tool changer Max. tool length from spindle nose: 200 mm Max. tool diameter: 40 mm Max. tool weight with automatic tool change: 1 kg with total tool weight in magazine: 24 kg NC rotary table with swivel axis C-axis Clamping surface: 190 mm diameter Rotation range: 360 ° rotation rotary table: 360 °rotation table: 150 rpm A-axis Swivel range: -5/+130° Loading: max. 10 kg in ...

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 k Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y-axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D Probe Reference: Schönichen - Lot 25 Auction-ID: A7-46763-272

Haas TM-2P vertical CNC machining center manufactured in 2020. Machine equipped with Haas CNC control, automatic tool changer and cooling system. Technical characteristics: • X/Y/Z travels: 1,016 x 406 x 406 mm • Spindle-table distance: 102 - 508 mm • Maximum spindle speed: 6,000 rpm • Spindle power: 5.6 kW • BT40 Cone • 10-position tool changing carousel • Maximum tool diameter: 89 mm (adjacent positions occupied) • Maximum tool weight: 5.4 kg • Worktable: 1,466 x 267 mm • Maximum load on table: 159 kg • Maximum feed speed on all three axes: 10.2 m/min • Power supply: 400 V three-phase Spindle operating hours: approximately 12,000 hours. Includes tool holders, tweezers and accessories visible in the photographs. Machine in good general condition. The sale includes only the elements visible in the images. Auction-ID: A7-47240-24

Machine: CNC machining center MASTERWOOD 4 WIN Year: 2010 Running axes: X 4960 mm, Y 1930 mm, Z 650 mm Digital axes: 4 + C-axis Electrospindle: 17 kW HSK63E with dimmer, dedicated cooling Tool Magazines: 10 pos. head, 16 pos. rear carriage, 18 pos. lateral Fixed heads: blade holder Ø220 + Ø350 mm HSK63F Table: 7 bar auto Belt: chip evacuation Order: Multilingual PC + Masterwindows software, mobile console, handheld remote control Security: EC Dimensions: 6800 x 2450 x 2450 mm Weight: 4300 kg Available from the beginning of November. Auction-ID: A1-46801-42

Machine: BIESSE CNC machining center Table: 3060 x 1260 x 150 mm Solenoid Spindle: 12 kW, ISO30 Cone Tool changer: 10 positions Vacuum pump: 100 m³/h Consoles: 6 with 3 ATS suction cups Drilling Head: 15 Vertical + 4 Horizontal Pins X Saw: Ø125 mm Accessories: 4-position flange, bevel gearbox, flange for aggregates Equipment: chip recovery belt, Biesse WORK software, B_NEST Auction-ID: A1-46801-23

Usable working area: X: 3248 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head Electro-chuck 8 kW – ISO30 Frequency inverter 8 kW Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 10-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups 2 stops per bar 6 × suction cups 114 × 140 mm – H 100 (to be confirmed) 6 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) Equipment: Vacuum pump 100 m³/h CN on external PC (PC included) 17\"PC TFT display and instructions in English Power supply: 400 V – 50 Hz Compliance: CE safety standards STANDARD version Dimensions (estimated): Length approx. 6,500 mm × Width approx. 4,100 mm × Height approx. 2,400 mm (to be confirmed) Weight (estimate): approx. 5,000 kg (to be confirmed) Auction-ID: A1-46801-70

Travis M-1500 SL CNC vertical machining center. Year of manufacture: 2014. Equipped with Fagor 8055 M CNC control and 24-position automatic tool changer. Technical Specifications: • Travels (X/Y/Z): 1500 x 610 x 610 mm • Table dimensions: 1600 x 610 mm • Maximum spindle speed: 8,000 rpm • Taper: ISO 40 • Automatic tool changer: 24 positions • Linear guides Suitable for precision machining and general metal transformation work. Sold in the \"as is\" condition and without subsequent warranties. Include accessories visible in the photographs. Auction-ID: A7-47240-2

Machining Center - Universal HURON KX 15 Bearing No. 1105-01908 Make Huron Type KX 15 Built in 2002 Condition Used machine Control CNC SIEMENS 840D POWERLINE Storage location FRANCE Country of origin Germany Delivery time immediately Freight base EX WORK Technical details x-way 800 mm y-way 1000 mm z-way 550 mm Spindle holder ISO SK 40 Spindle speeds 18000 rpm inner cash supply 30 bar b-axis +20/-100 c-axis 360 Control SIEMENS 840D POWERLINE Factory weight 500 kg Number of tools in the magazine 30 pieces Total power requirement 53 kW Description - 5 AXIS UNIVERSAL MACHINE CNC control SIEMENS 840D Tool changer 30 pcs SK 40 5 axes simultaneously C-axis 360 , A-axis +20/ - 100 " , TABLE BY 630 mm, 30 BARS IKZ additional, accessories SPAENEFOERDERER

X-AXIS STROKE MM 2,400 Y-AXIS STROKE MM 960 AXLE STROKE Z MM 800 TABLE SIZE MM 2600X900 ATTACK: BT50 SPEED ROTATION REVOLUTIONS/MIN 12,000 TOOLS N ° 30 FANUC 31I MODEL A CONTROL YEAR: 2012

X-AXIS STROKE: MM 1,600 Y-AXIS STROKE: MM 810 Z-AXIS STROKE: MM 630 TABLE SIZE MM 1,750 x 770 ATTACK: ISO40 SPEED ROTATION REVOLUTIONS/MIN 15,000 REFRIGERATION THROUGH THE SPINDLE TOOL N ° 50 CONTROL: SELCA YEAR: 2008

OKUMA MACHINING CENTER MODEL: MX-60HB TABLE: 630X630 mm X-AXIS STROKE: 1000 mm Y-AXIS STROKE: 810 mm Z-AXIS STROKE: 800 mm TOOL WAREHOUSE: 150 SEATS CONTROL: OSP-E100M

OKUMA MACHINING CENTER MODEL: MA-400HA TABLE: 400X400 mm Nr. PALLET: 2 X-AXIS STROKE: 560 mm Y-AXIS STROKE: 610 mm Z-AXIS STROKE: 625 mm ATTACK: HSS63 TOOL WAREHOUSE: 60 SEATS CONTROL: OSP-E100M

Key data: 500 , 520 , 380

Bearing number 1105-02750 Machine Type Machining Center - Universal Make DMG DECKEL-MAHO Type DMU 50 eV / 5 axes Built in 2001 Control type CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight base EX WORK Technical details x-way 500 mm y-way 420 mm z-way 380 mm Control HEIDENHAIN TNC 430 Spindle cone SK 40 Speeds 18,000 rpm Spindle motor 15 kW Rapid speed 50 m/min Table clamping area 500 per m. x 380 mm Feed range up to 20 000 mm/min Tool change device 32 fold Total power requirement 38 kVA Machine weight approx. 5.9 t Information - CNC - CONTROL of the display of HEIDENHAIN TNC 430 - 5-axis machine with B + C axis - Spindle on: 22 800 h - Current on: 38 000 h - Machine documents spaenefoerderer

CNC machining centers for drilling, staping, milling, wedge grooves. Working range: 4400 x 300 mm Max working width mm: 210 Max material thickness mm: 100

Machine details Location 1105-02917 Machine type Machining Center - Vertical Make DECKEL-MAHO DMG Type DMC 63 V Built 2001 Control type Cnc Location France Origin Germany Delivery JULY 2020 Freight base from stock, freely loaded Price On request Technical details x-Way 630 mm y-way 500 mm z-way 500 mm Table size 800 x 500 mm Spindle mount ISO 40 Range 0 - 8000 rpm Feeds - longitudinal/transverse/vertical 1 - 30000 mm/min Rapids - longitudinal/transverse/vertical 30 m/min Number of tool magazine slots 24 Tool diameter at full assembly 80 mm Tool diameter at 2 free spaces 140 mm Tool length max. 300 mm Tool weight max. 7 kg Table load 500 kg Spindle motor 9 / 13 kW Control Siemens 810 D Total performance requirements 30 kVA Machine weight approx. 4.2 t Information Tested machine ready for demonstration under current YEAR OF ...

Machine details 1105-02953 Machine type Machining Center - Vertical Make DECKEL-MAHO (DMG) Type DMC 64V Built 2002 Control type Cnc Location Haguenau Origin Germany Delivery Right away Freight base from stock Price On request Technical details x-Way 640 mm y-way 600 mm z-way 500 mm Control HEIDENHAIN TNC 530 Machine weight approx. 8 t Information 1 gebr. CNC vertical BAZ Fabr. DECKEL-MAHO Type DMC 64V linear, Y.O.M. 2002 1 used CNC Vertical Milling Center DECKEL-MAHO type DMC 64V linear, built 2002 WITH 2 AXIS PART APPARAT INCLU CNC Control HEIDENHAIN TNC 530 30-fah tool changer Conveyor 30-fold ATC chip conveyor Technical data / technical details: X-Way / X-travel 640 mm Y-way / Y-travel 600 mm Z-way / Z-travel 500 mm Spindle holder / spindle taper SK40 Speed range / spindle speed 0-12000 rpm Feed range X , Y , Z / feed range X , ...
