lines used for sale

This OGM 1.5 pellet production line is designed for processing straw, hay, alfalfa, miscanthus, compost,and other agricultural raw materials. The pellet press is also suitable for the production of wood pellets. The entire line has been dismantled and is ready for loading. Production Capacity - Maximum hourly output: up to 1300 kg per hour (material dependent) - Individual components such as the hammer mill can achieve higher hourly output Line Components - Pellet press 75 kW, year of manufacture 2013 - Elevator, year of manufacture 2013 - Pellet cooler with sieve, year of manufacture 2013 - Buffer tank with discharge for ground material, year of manufacture 2013 - 2 cyclones (centrifugal separators) with rotary valve, year of manufacture 2013 - 1 fan for radiator exhaust, year of manufacture 2013 - 1 new ring die and various used spare parts - 10 m feed table to bale unroller, year  ...

Unused renovation kit for an Alfa Laval CPM Constant-Pressure Modulating Valve (CPMI-2) pneumatic regulating valve. Genuine Parts Service Kit CPMI - 2/XPMO - 2 Upper NBR, Lower EPDM/PTFE, part no. 9611920218., Type of Machine: Constant-Pressure Modulating Valve, Art. no.: 9611920218

Fully reconditioned foil wrapping machine which can be used for packing products butter, lard, margarine, tvorog or cottage cheese into aluminium foil or parchment paper. This machine is general overhauled and in a as good as new condition with new controls with frequency converter (renewed in 2026). The format on the machine is 250 gram, 100 x 75 x ±35 mm, bottom folding. The butter is feed with an aluminium through with aluminium augers. Aluminium dosing station. The machine is equiped with a photocell on the paper infeed, to control the exact position of the print on the foil. If there is no foil in the cell, the machine will stop. The speed can be adjusted by a frequency converter between 40 - 90 packages per minute (depending on filling weight, product, product viscosity and quality packaging). Outfeed conveyor. On request we can do a dry test (without product) with your own foil o ...

Key data: 1550 mm, 3 mm, 120 1/min

Qty. 1 Second-hand rotary shear cut-to-length line – still in operation Mfc.: PACO E.N.G Built: 2010 Still in operation! Raw Material: CR, EGI, GI, STS, AL, COLOR COATING COILS Tensile Strength Max.: 60 kg/mm2 Strip Width: 300 ~ 1,550 mm Thickness: 0.2 ~ 3.0 mm Coil Weight: 20,000 kg Sheet Length No. 1 Piler: 300 - 2,500 mm No. 2 Piler: 300 ~ 2,500 mm Piling Weight No. 1 Piler: 5,000 kg No. 2 Piler: 5,000 kg Coil ID: ∅508 mm, ∅610 mm = RUBBER SLEEVE Coil OD: ∅800 mm ~ Max. ∅2,000 mm

The Mac Ewans Centrifugal pump is a pump for use in sanitary applications. Previous used in a Casein plant. Motor: 7,5 kW - 400 V - 50 Hz - 1.440 rpm - 14,2 A. Diameter of the impellor: 180 mm. Connections on the inlet: 70 mm. Connections on the outlet: 60 mm. Estimated capacity: ± 20.000 ltr/h., macewans.co.nz/, Type of Machine: Centrifugal pump, Stock Number: 1444, Diameter of the impellor: 180 mm, Motor: 7,5 kW - 400 V - 50 Hz - 1.440 rpm - 14,2 A, Estimated capacity: ± 20 m3/h

2 x 7.5m prepreg manufacture impregnation lines, working width 1300mm, speed 3-30m/min, total steam room 13.8m³, maximum drier temperature 200°C, solvent volume maximum 151Kg/hr, solvent type Acetone MEK - MCS, Thermal oil 280°C heating media each with Abus 500 Kg pillar jib crane, with Abus electric chain hoist and lifting frame and a Abus 1 Tonne pillar jib crane, with Abus electric chain hoist and lifting frame, Santex twin position unwind stand, year 2006, Santex twin position unwind stand, year 2006, ISRA Vison automated camera inspection system with four cameras, year 2010, combined steel framework fabricated over the five story steel mezzanine tower, associated PLC controls, cabinets and power distribution and Siemens Simak touch screen controls, including located outside 1 x Envirotech type EVR160_GV combustion chamber, gas burner type EKB-FS, 16,000 M³N/h, 150°C with exhaus ...

Margarine pilot plant with 1x high pressure pump, 3x crystalizer scrap surface heat exchangers (SSHE), 1x pin worker (1 - 2 and 3 liter), 1x phase inverter, 1x cooling unit (R22) and control panel. Working product pressure of the pilot plant up to 80 bar (8000 kPa). Capacity up to 90 kg per hour., - High Pressure Pump, High Pressure Pump for pumping the margarine emulsion through the margarine pilot plant. Gerstenberg & Agger A/S, type Labo Pump 2-22-4 , serial number 12.211, year 1990, product pressure max 80 bar, temperature max 100 °C, capacity max 200 kg/h, motor 415 V - 50 Hz - 1,1 kW. Control panel with Siemens S7-200 PLC., - Scraped Surface Heat Exchanger 01, Cooler., Pilot G&A Perfector - SSHE Cooler Perfector 57 is designed for lenient cooling of medium viscosity, pumpable food like margarine. Gerstenberg & Agger A/S, type Perfector Lab 1x57, serial number 12910, year 1993, dut ...

Tetra Pak Tetra Therm Aseptic Visco Line for pasteurisation / sterilization of concentrated beverage bases by a Tubular Heat Exchanger (THE) system. Capacity 2.600 up to 8.150 liter per hour. At the current plant the line is used for products up to 100 °C. The indirect heating temperature is up to a maximum of 135 °C. Holding time set at 0 / 5 / 10 seconds. CIP Cleanable., In the Tetra Therm Aseptic Visco system, heating and cooling will take place in Tetra Spiraflo MTC tubular heat exchangers. Modules with a narrow ring section are used for heating and cooling to ensure optimal heat transfer. The product is pre-heated in stages within the Spiraflo tubular heat exchangers. The Spiraflo tubular heat exchanger is equipped with a sliding O-ring system. This means that the product and the outer tubes are not welded together. This prevents stress corrosion cracking and minimizes maintenance ...

The Waukesha Cherry-Burrell 015 is a rotary positive displacement pump which can handle dairy products (e.g., yoghurt, quark, curd and butter), solids (e.g., cherries and olives), slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure to, so output is relatively constant and continuous. Duo - twin wing stainless steel lobes. Nominal displacement: 0,054 liter per revolution. Maximum nominal capacity: 2,0 m3/h. Inlet / Outlet connection: 1-1/2. Maximum product pressure: 13,8 bar. Maximum pump speed: 700 rpm. The pump is used in a ice cream factory for product pumping. The current motor with this pump is 0,75 kW - 1,395 rpm - 380/420 ...

Tebel OST-IV Closed cheese vat of 8.000 ltr. Double jacketed for injection of steam or hot water so the temperature of the milk inside the vat can be indirectly adjusted. Stirring, cutting tools, welded to a horizontal shaft. This is driven by a drive unit with frequency converter. During cutting the tools rotate in the opposite direction as during stirring. The coagulum is cut by sharp radial knives of stainless steel. Whey can be drawn off through a perforated pipe (whey suction device). This pipe is lowered into the whey until it is only just immersed. The curd is discharged through the bottom valve. The vat is inclined (4%) toward the bottom valve to facilitate emptying. After a production run the vat is cleaned by four rotating CIP nozzles located in the top. All parts are made of stainless steel AISI 304 except the drive unit. Stainless steel MCC panel at the backside, close to the ...

Tebel OST-IV Closed cheese vat of 8.000 ltr. Double jacketed for injection of steam or hot water so the temperature of the milk inside the vat can be indirectly adjusted. Stirring, cutting tools, welded to a horizontal shaft. This is driven by a drive unit with frequency converter. During cutting the tools rotate in the opposite direction as during stirring. The coagulum is cut by sharp radial knives of stainless steel. Whey can be drawn off through a perforated pipe (whey suction device). This pipe is lowered into the whey until it is only just immersed. The curd is discharged through the bottom valve. The vat is inclined (4%) toward the bottom valve to facilitate emptying. After a production run the vat is cleaned by four rotating CIP nozzles located in the top. All parts are made of stainless steel AISI 304 except the drive unit. Stainless steel MCC panel at the backside, close to the ...

Complete falling film vacuum evaporator, previously used for skimmed milk or sweetened whole milk, consisting of a 4 effect TVR Evaporator. Still mounted in the cheese plant in Spain till end of April 2026. The product feed rates in the installation are ± 14 t/h with a comparative temperature between 73 and 50°C from the 1st to the 4th effect., Processing rates used by the current plant for skimmed milk:, - Infeed flow: 14.000 kg/h @ 9% DM, - Infeed temperature: 5 °C, - Water Evaporation: 11.375 kg/h, - Outfeed flow: 2.625 kg/h @ 48% DM, - Steam consumption: 2.050 kg/h, Processing rates used by the current plant for sweetened whole milk:, - Infeed flow: 14.000 kg/h @ 25% DM, - Infeed temperature: 5 °C, - Water Evaporation: 7.637 kg/h, - Outfeed flow: 6.363 kg/h @ 55% DM, - Steam consumption: 1.375 kg/h, Approximately operating temperatures:, - First effect (steam side): 73 °C, - Fir ...

, from the manufacturer (built in 2002) are available for sale, each with a . , totaling approx. 3,534 hl. The tanks are insulated, clad and have three frame cooling zones and cone cooling for precise temperature control. Each tank is designed for a maximum overpressure of 2 bar and can be used at operating temperatures of -10 to 50 °C. The total cooling area is 13.3 m². With a robust stainless steel construction and upright positioning, the tanks are ideal for breweries or beverage manufacturers that require temperature-controlled fermentation and storage processes. Individual sale possible. Our team at VBW Asset Trade will be happy to answer your questions., Additional title: vertical, coolable stainless steel tanks, Gross volume: 58890 l, Max. overpressure: 2 bar, Operating temperature: -10 to 50 °C, Total cooling area: 13,3 m², Length: 3370 mm, Width: 3370 mm, Height:  ...

Lot concerns container including approximately 2500 meters of ship mooring lines Auction-ID: A1-40134-337

IMA P10K Automatic Butter Roll – Round – Log – portion wrapping machine in aluminium foil / parchment paper., The machine is included with the following pack format sets:, - Logs (or) Rolls (or) Round (or) Cylinder – ± 43 mm x 110 mm = 125 gram (complete), - Logs (or) Rolls (or) Round (or) Cylinder – ± 48 mm x 160 mm = 250 gram (complete including extra mouldset of ± 45 mm to reach ± 230 gram)., - Rectangular Blocks (or) Portions – 100 mm x 75 mm x 35 mm = 250 gram (filling nozzle and 1x guide for the bricks when they are upside down are missing)., - Rectangular Blocks (or) Portions – 160 mm x 105 mm x 65 mm = 1.000 gram (Guiding plate upside down, side guides and support level missing)., Product is fed through the hopper which includes a butter screw feeder., Maximum Speed: up to 60 packs per minute (Varies depending on the portion size), Products that can be packed: B ...

Automatic foil wrapping machine which can be used for packing products like margarine or butter into aluminium foil. The machine is in a good as condition with main control panel with Siemens S7-200 PLC and frequency converter and operation panel with Siemens TD200 Operator Interface. Previously used in a margarine factory. The machine is equiped with a rotating forming drum with 4x rectangular molding chambers. The format on the machine is 250 gram, 98 x 65 x ± 41 mm. SIG folding principle (folding flap on the side, for less foil usage). The margarine is feed with a direct connection with compensator and return line. The machine is equiped with a photocell on the paper infeed, to control the exact position of the print on the foil. The speed can be adjusted by a frequency converter between 30 - 120 packages per minute (depending on product, packaging material and surrounding conditions ...

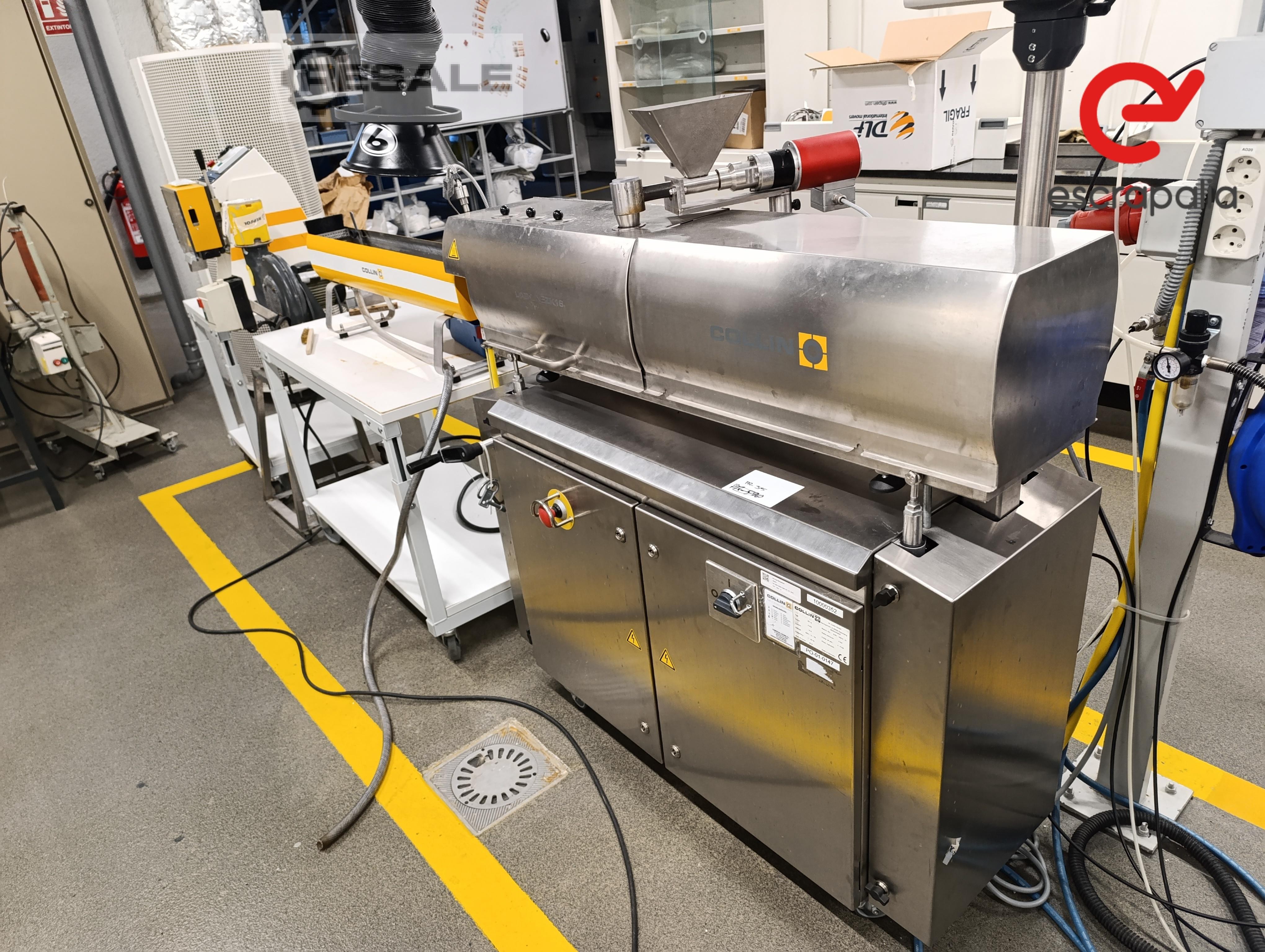

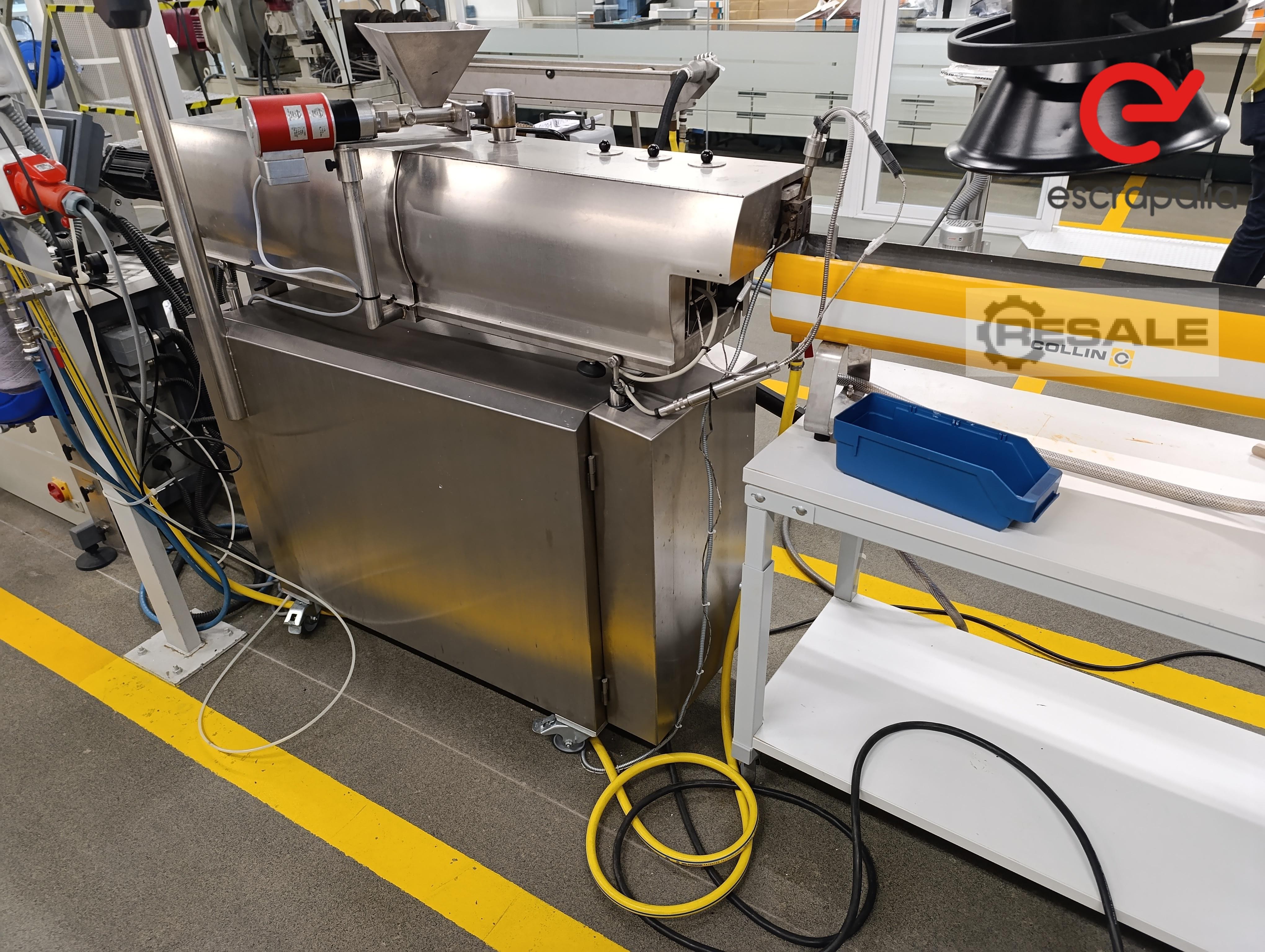

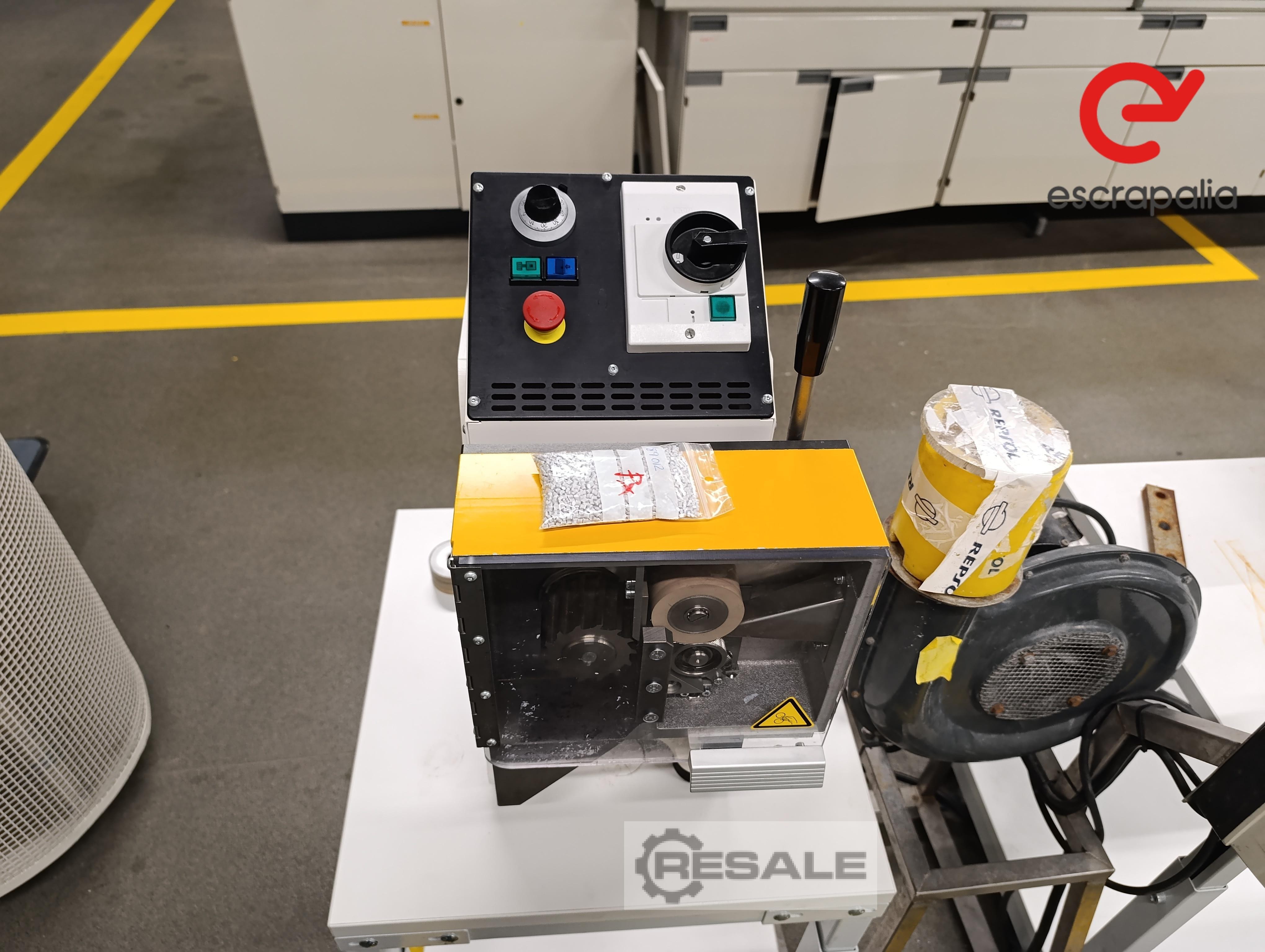

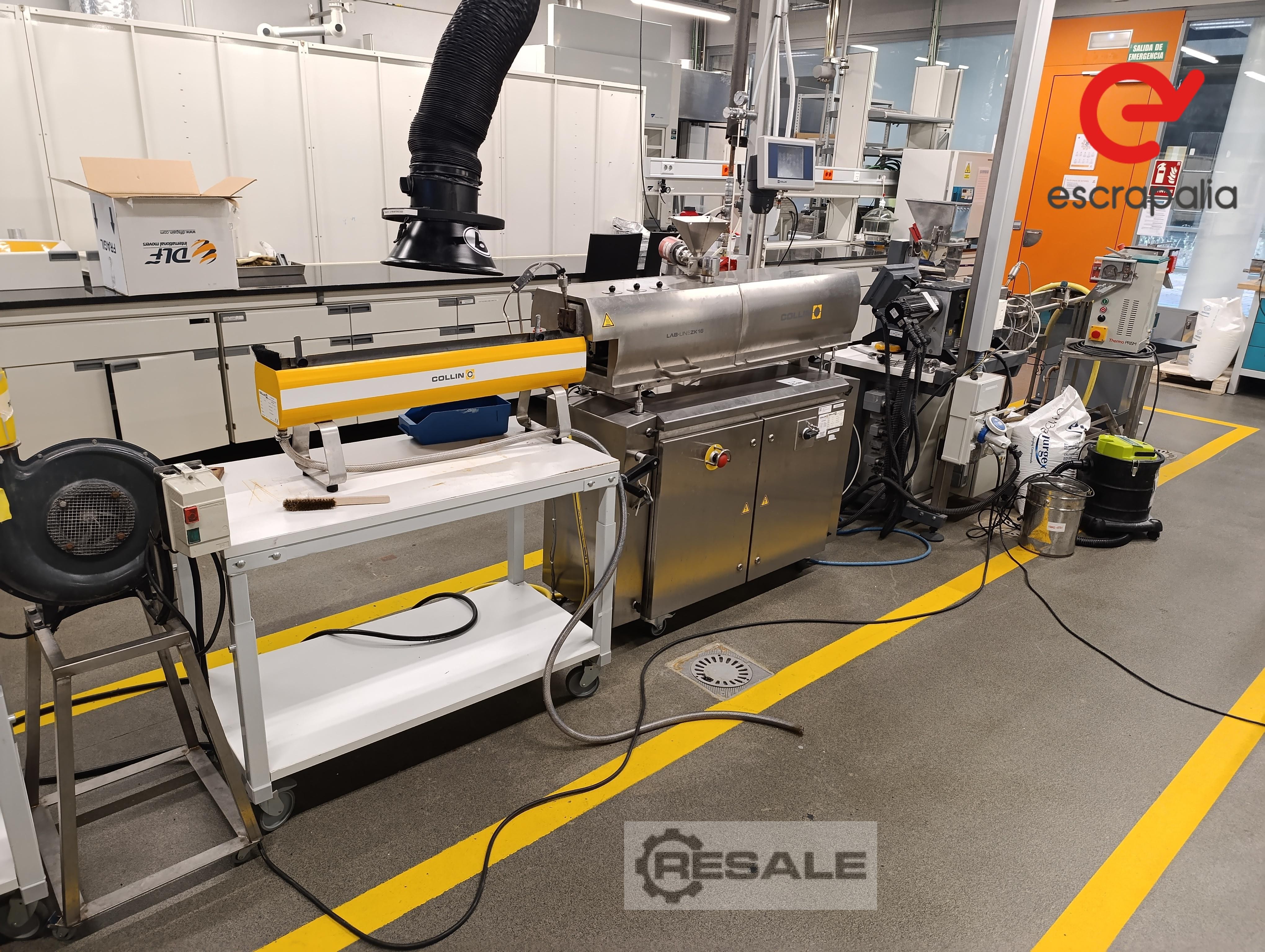

2018 Dr. Collin ZK 16 Twin-Screw Lab/Pilot Polymer Extrusion Line Overview Excellent opportunity to acquire a complete, high-quality laboratory/pilot extrusion line manufactured by Dr. Collin GmbH, an industry leader in R&D and polymer processing equipment. Built in 2018, this co-rotating twin-screw extrusion line (ZK 16 model) is specifically designed for processing plastic materials in small batches, making it ideal for research and development, testing, compounding, and new formulation development. Key Technical Specifications Manufacturer: Dr. Collin GmbH – Lab & Pilot Solutions Model: ZK 16 (Twin-Screw Extruder) Year of Manufacture: 2018 Condition: Used (Dismantled and ready for transport) Screw Diameter: ~16 mm (Co-rotating twin-screw) Power: 8 kW Voltage/Current: 400 V + N + PE / 15 A / 3~ 50 Hz Operating Pressures: Water: 4 bar / Compressed Air: 4 ...
