line for juice used for sale

material width:300 mm coil weight:2 x 1,25 t material thickness:0,4 - 1,2 mm coil internal diameter:320 - 420 mm coil external diameter:1300 mm no. of straightening rolls:9 straightening roll diameter:30 mm number of draw-in rolls:2 roll diameter:30 mm speed:3 - 30 m/min feed length:0 - 9999,9 mm power requirement:3,0 + 2,5 kW weight of decoiler:0,7 t dimensions decoiler (WxDxH):2,1 x 1,4 x 1,5 mm weight of straightening machine:0,45 t dimensions straightener (WxDxH):1,5 x 0,8 x 1,1 mm weight of the feeder:0,4 t dimensions feeder (WxDxH):1,2 x 0,8 x 1,1 mm universal straightening machine:SC 12-FQ double decoiler:2352 B-FPS expansion:hydraulic lag brake:pneumatic electronic roll feed:WAV-RDS-2Z, Modell 1082 B intermittant lifting:pneumatic control:Siemens S 5

material width:600 mm coil weight:5,0 t material thickness: - 5,0 mm coil internal diameter:360 - 660 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:80 mm number of draw-in rolls:2 material cross-cut:1600 mm² weight of feeeder-straightener:2,5 t weight of decoiler:1,5 t dimensions feeder-straightener (WxDxH):1,7 x 1,7 x 2,6 mm dimensions decoiler (WxDxH):1,8 x 2,0 x 2,3 mm feeder-straightener:VCRL 650, Bj. 1994, GR 2001 height adjustment:motorisch alligator opening:hydraulisch decoiler:SHR 5000, Bj. 2000 expansion:hydraulisch

material width coil line:600 mm coil weight:2 x 3,5 t coil internal diameter:460 - 530 mm coil external diameter:1500 mm material thickness coil line:0,5 - 3,0 mm no. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mm feed length:0 - 500 mm power requirement:10,0 kW weight:10,0 t dimensions of the coil line:8,8 x 4,0 x 2,55 m straightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed

material width:500 mm coil weight:3,0 t material thickness:0,2 - 2,5 mm coil internal diameter:470 - 530 mm coil external diameter:1400 mm no. of straightening rolls:9 straightening roll diameter:40 mm number of inlet and outlet rolls:4 material cross-cut:1200 mm² speed:1,5 - 30 m/min dimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 m weight decoiler:1,1 t dimensions straightener (WxDxH):3,3 x 1,3 x 2,7 m weight straightener:3,0 t straightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic

CNC HORIZONTAL MACHINING CENTER Inv. No. 12.178MM Make TOYODA Model LINEAM III Control MELDAS M650 Year 2004 TABLE Pallet size 450 x 450 mm Max. load on pallet 400 kg Table indexing increment 0.001 degrees STROKE X-Axis stroke 630 mm Y-Axis stroke 630 mm Z-Axis stroke 700 mm Distance from spindle center to top of pallet 50 – 680 mm Distance spindle nose /center rotary index table 50 – 680 mm FEED RATE Rapid feed rate X,Y 120 m/min Rapid feed rate Z 60 m/min Rapid feed rate B 120 m/min Cutting feed rate X,Y,Z 0,1 – 60 m/min SPINDLE RPM spindle 300 – 20,000 min-1 Spindle taper HSK-A63 Coolant Through spindle ATC Tool holder Special HSK-A63 2 Face contact tool Tool magazine storage 40 pcs Tool change time 2.5 sec. DRIVE MOTOR Spindle drive motor Ac 45/30 kW MACHINE WEIGHT & POWER REQUIREMENTS Machine weight 15.000 kg Power requirement 96 kVA ACCESSORIES: Spindle linear mo ...

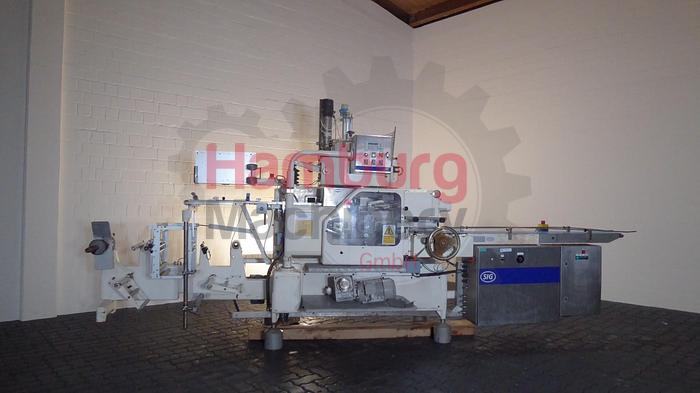

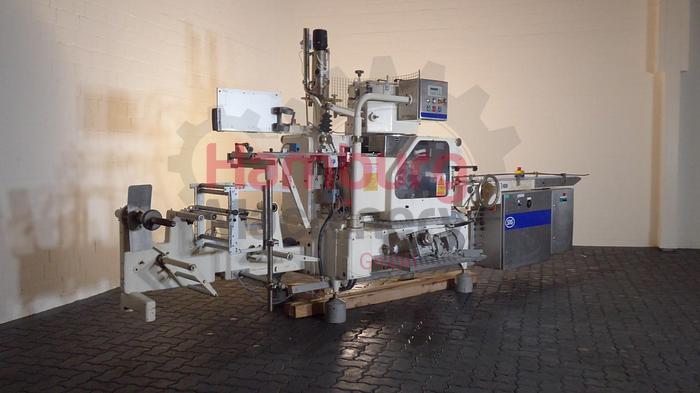

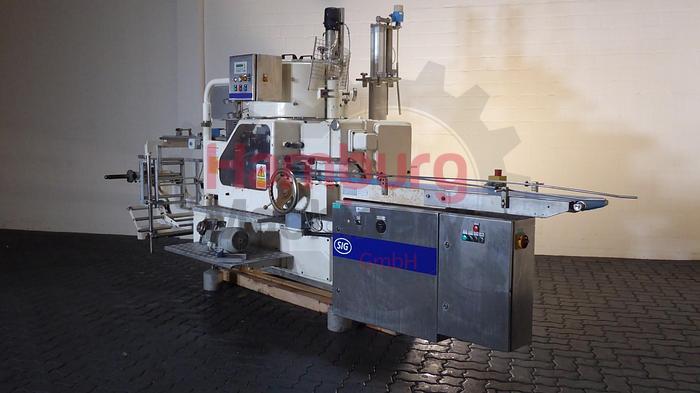

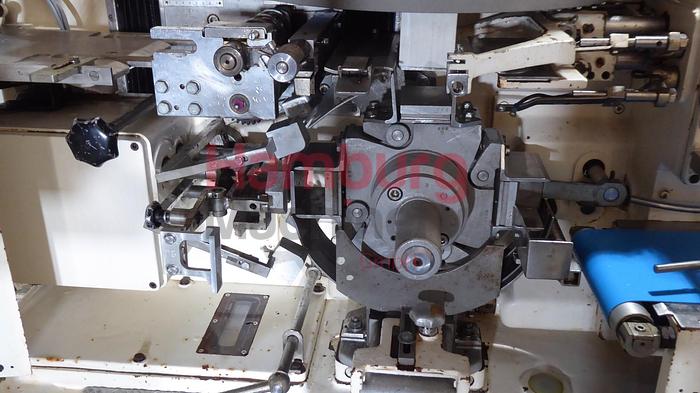

Automatic foil wrapping machine which can be used for packing products like margarine or butter into aluminium foil. The machine is in a good as condition with main control panel with Siemens S7-200 PLC and frequency converter and operation panel with Siemens TD200 Operator Interface. Previously used in a margarine factory. The machine is equiped with a rotating forming drum with 4x rectangular molding chambers. The format on the machine is 250 gram, 98 x 65 x ± 41 mm. SIG folding principle (folding flap on the side, for less foil usage). The margarine is feed with a direct connection with compensator and return line. The machine is equiped with a photocell on the paper infeed, to control the exact position of the print on the foil. The speed can be adjusted by a frequency converter between 30 - 120 packages per minute (depending on product, packaging material and surrounding conditions ...

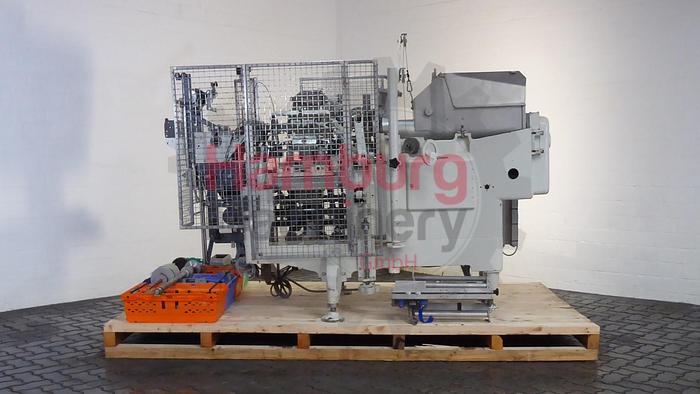

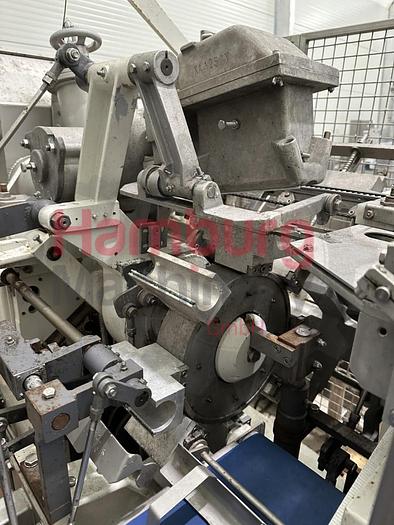

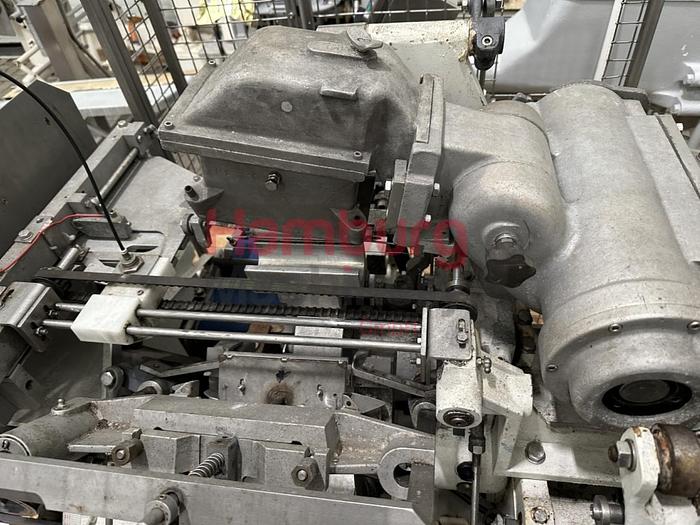

IMA P10K Automatic Butter Roll – Round – Log – portion wrapping machine in aluminium foil / parchment paper., The machine is included with the following pack format sets:, - Logs (or) Rolls (or) Round (or) Cylinder – ± 43 mm x 110 mm = 125 gram (complete), - Logs (or) Rolls (or) Round (or) Cylinder – ± 48 mm x 160 mm = 250 gram (complete including extra mouldset of ± 45 mm to reach ± 230 gram)., - Rectangular Blocks (or) Portions – 100 mm x 75 mm x 35 mm = 250 gram (filling nozzle and 1x guide for the bricks when they are upside down are missing)., - Rectangular Blocks (or) Portions – 160 mm x 105 mm x 65 mm = 1.000 gram (Guiding plate upside down, side guides and support level missing)., Product is fed through the hopper which includes a butter screw feeder., Maximum Speed: up to 60 packs per minute (Varies depending on the portion size), Products that can be packed: B ...

Overview The filling line for glass bottles (non-refillable and refillable) was in operation at a small brewery in Germany until recently. The line is set up for 0.33l longneck bottles and can fill up to 2,500 bph. The machine is still in operation and can be inspected at any time after consultation. The bottle washer and the unpacker can also be purchased separately.  Technical details  Capacity: 2.500 bph Formats: set up for 0.33l longneck  Filling temperature: 6°C  Packaging:  0,33l Longneck in 24er folding box  0,33l Longneck in 24er modular box Individual machines / line components  New glass lifter | Füllmeister | - | 2016 Filler + capper | H&K | VVF 14/3 | 1966 2016 general overhaul (with pre-evacuation - new rotary ball connection - new stainless steel table - new electrics - new valve control cabinet in stainless steel design - 0.33 liter guide set - Sihi vacuum pump.) ...

Overview This complete filling line for beverage cans was manufactured 2017 by the german manufacturer KHS.  The line is designed for beverage production, handling up to 40,000 b/h and is in a good condition.    Technical Data Capacity: 40,000 bph  Filling product: carbonated soft drinks and beer Bottle Formats: 500ml 211/202 Cap Formats: 211/202 Packaging formats: tray with foil Application: CSD + beer condition: good technical condition, dismantled   Scope of Delivery Bulk can depalletizer | LINKER | DPG-500 | 2012 Can inspection | TransTech | Hysek CanCheck | 2012 Can conveyor | LINKER / KHS | Conveyor RC | 2012 Rinser | LINKER / KHS | Triplex Rinser TR | 2012 Flash pasteurizer | KHS | Innopro 140/14/85 | 2012 Filler | KHS | Innofill Can DVD | 2017 Seamer | Ferrum | F08 | 2012 Lid feeder | NSM | Lidserver A30 | 2017 Conveyor | KHS | Innoline BTR | 2012 Filling height control | KH ...

Wood production line manufactured in 2020. This HYMMEN JUPITER JPT C 680/548 mit OFS 850 features a maximum printing width of 548 mm, with a system speed ranging from 8 to 65 m/min. It is designed for high-speed surface finishing of large panels, ideal for the flooring and furniture industries. If you are looking to get high-quality printing capabilities, consider the HYMMEN JUPITER JPT C 680/548 mit OFS 850 machine we have for sale. Contact us for further details.
