Key data: 318 t, 318

Parotec Face Plate Pallet PowerGrip 160 Stitch Partool Zero Point Clamping System Face plate custom-made by a sister company von Schunk. Such a face plate for the Parotec is not available for sale. Very good used condition. Various milling on the top, see pictures the dimensions can be found in the pictures. Weight approx. 50kg. There are other Parotec accessories in stock Other used interchangeable plates, a steel groove plate, You will receive an invoice in paper form. For this item, VAT (19 percent) is shown on the invoice.

Key data: 318 t, 318

Parotec Slot Plate Pallet Power Grip 160 Stitch Partool Zero Point Clamping System Very good used condition. the dimensions can be found in the pictures. Weight approx. 30kg. There are other Parotec accessories in stock More used interchangeable plates, one face plate D.52cm You will receive an invoice in paper form. For this item, VAT (19 percent) is shown on the invoice.

spindle diameter: 102 mm x-travel: 1600 mm y-travel: 1210 mm z-axis: 1475 mm spindle travel: 710 mm B-axis (table): 360 ° Table dimensions: 1250x1400 mm Table load: 3500 kg T-slots: 22H7 T-slot - distance: 125 mm spindle turning speed range: 4-1600 U/min spindle drive: 16,5 kW Control: total power requirement: 47 kW weight of the machine ca.: 9,25 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 100 mm travel -x axis: 2000 mm travel -y axis: 1200 mm travel -z axis: 1000 mm spindle stroke - max.: 500 mm table surface area: 1250 x 1250 mm table rotating: 360 ° max. table load: 8000 kg spindle taper ISO: 50 spindle turning speed range: 30 - 1300 U/min feeds: 2 - 1000 mm/min rapid traverse: 6 m/min drive capacity - spindle motor: 14 kW coolant: voltage: 380 V control: Bosch1-OSA One direction thrust bearing: total power requirement: 15,0 kW weight of the machine ca.: t dimensions of the machine ca.: 4,20 x 3,00 x 3,00 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 80 mm x-travel: 1200 mm y-travel: 1000 mm z-travel: 815 mm Spindle travel: 450 mm spindle taper ISO: 40 Radial face slide diameter: 498 mm table surface area: 1000x800 mm digital readout: coolant: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications Table diameter 3,400 mm Total height approx. 1,230 mm Centering bore Ø 250H7X 25 mm Permissible transport load 20,000 kg Holding torque of the table clamping 2,400 daNm Table speed 0.002 – 2 min Net weight approx. 22,000 kg Operating voltage 380 V, 50 Hz. 3 phases Control voltage 24V Positioning accuracy (without control errors) ± 1" Plan accuracy 0.02 mm Axial running accuracy 0.01 mm Concentricity deviation of the centering bore 0.01 mm Resolution of the displacement measuring systems 0.0001°

Prepared for CNC control Siemens 840 DSL Precision turntable make EIMELDINGEN with aerostatic axial bearings Specifications Table diameter 5,600 mm Total height approx. 1,230 mm Centering bore Ø 250H7X 25 mm Permissible transport load 30,000 kg Holding torque of the table clamping 2,400 daNm Table speed 0.002 – 2 min Net weight approx. 30,000 kg Operating voltage 380 V, 50 Hz. 3 phases Control voltage 24V Positioning accuracy (without control errors) ± 1" Plan accuracy 0.02 mm Axial running accuracy 0.01 mm Concentricity deviation of the centering bore 0.01 mm Resolution of the displacement measuring systems 0.0001°

Specifications: - Load capacity (vertical) 100 kg - Face plate diameter 400 mm - Passage opening 60 mm - Face plate manually infinitely tiltable 0 - 135 ° - Rotational movement infinitely variable mot. Adjustable 0.05 - 5 m/min - E.- Footswitch for start - stop - Table height in horizontal position without castors approx. 750 mm - 3 cheek chuck - Drive 220 V - Space requirement approx. W 450 x H 850 x D 650 mm - Weight approx. 60 kg

spindle diameter: 100 mm x-travel: 2000 mm y-travel: 1200 mm z-travel: 1000 mm w-axis: 500 mm control: Heidenhain type: TNC 155 turning speeds: 20-2000 U/min spindle taper ISO: 50 table surface area: 1100x1300 mm angular milling head: Feed: 0-5000 mm/min Rapid movement: 8000 mm/min workpiece weight: 3000 kg spindle motor: 15 kW total power requirement: 27 kW weight of the machine ca.: 14 t dimensions of the machine ca.: 5,3x2,9x3,1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table dimensions: 1000x1000 mm number of T-slots: 8 flute distance: 45 ° T-slots: 18M16 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 6000 mm table width: 1000 mm height: 900 mm T-slot - width: 28 mm T-slot - distance: 150 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Rail guide table, linear unit with drive REXROTH THK LM GUIDE ACTUATOR KR stroke approx. 500 mm table: 105 x 55 mm top table: 90 x 80 x 35 mm Drive: REXROTH INDRAMAT MKD041B-144-KG0-KN New !' Dimensions: 1010 x 120 x 90 mm

Rail guide table, linear unit BAHR EL60 stroke approx. 960 mm table: 152 x 67 mm used, tested ! Dimensions: 1250 x 170 x 80 mm

Rotary table, rotatable and swivelling WMW Ø 450 mm swivel 360° x 90° groove width: 14 / 25 mm Foot size: 400 x 500 mm used ! Dimensions: 860 x 800 x 400 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design, with dial gauge ! used, tested !' Dimensions: 210 x 270 x 420 mm

Measuring table, measuring plate with measuring column and dial gauge holder PAGUS measuring range: 180 mm working surface: 125 x 125 mm working height: 54 mm projection: 140 mm in wooden box New ! still preserved ! Dimensions: 310 x 250 x 160 mm

Rotary table DSZ MKA 250 Ø 250 mm table height: 115 mm groove width: 14 / 20 mm Dimensions: 340 x 410 x 150 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design ! with dial gauge and second work surface ! used, tested ! Dimensions: 210 x 270 x 420 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design, with dial gauge ! used, tested ! Dimensions: 210 x 270 x 420 mm

Welding table, straightening table, straightening plate, work table, clamping table measuring table FEINMESSZEUGFABRIK SUHL measuring range: 160 mm projection: 100 mm working surface: Ø 100 mm working height: 125 mm solid design !' with dial gauge and lighting ! used, tested !' Dimensions: 210 x 270 x 420 mm

Magnetic clamping table, electric ELECTROMAGNET ELSTERWERDA C400 TGL10272 Outer diameter: Ø 400 mm Power consumption: 125 W Operating voltage: 115 V DC Current consumption: 1,15 A Flange diameter: Ø 250 mm Bolt circle diameter: Ø 315 mm 4x Threaded hole: M12 x 1.75, Depth: 15 mm used, tested ! Dimensions: 400 x 400 x 90 mm

Rotary table with 4 jaw chucks PAGUS diameter: Ø 160 mm table height: 160 mm lathe chuck 360° rotatable ( manual, without gearbox ) with 15° detent ( small lever ) two levers for clamping the lathe chuck used, tested ! Dimensions: 390 x 330 x 160 mm

Machine vise STANKO / BZSP (Made in USSR) jaw width: 300 mm span: 20 - 275 mm on rotary table with graduation solid design ! Dimensions: 550 x 370 x 225 mm

Machine vise PAGUS jaw width: 125 mm jaw height: 50 mm span: 0...110 mm rotatable on rotary table with graduation 360° dimensions: 350 x 200 x 140 mm

Tilting table, clamping table PAGUS Clamping surface: 285 x 260 mm 90° Tiltable 360° rotatable 3 grooves Groove width: 14 / 25 mm Dimensions: 370 x 300 x 175 mm

Centering vise PAGUS jaw height: 50 mm span: 0...95 mm on table with graduation 360° rotatable Dimensions: 330 x 255 x 160 mm

Round Sectioning Table, Rotary Table WMW (SEMPUCO Greiz) RmM 315 - 3007 Ø 315 mm Table height: 155 mm Groove size: 14 / 24 mm Dimensions: 625 x 490 x 155 mm

Machine vise PAGUS jaw width: 110 mm jaw height: 35 mm span: 0...80 mm on rotary table with graduation 360° rotatable Dimensions: 330 x 255 x 120 mm

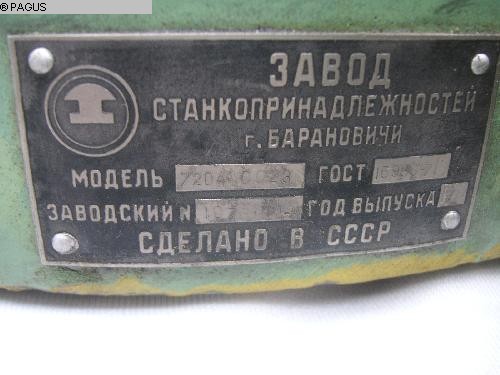

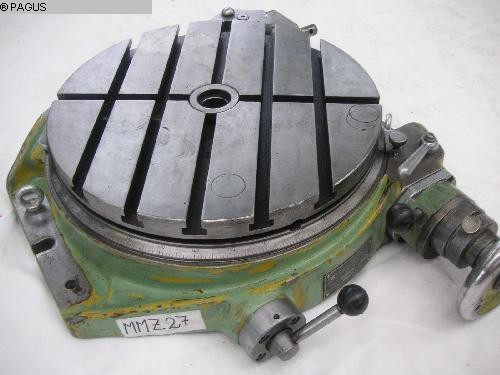

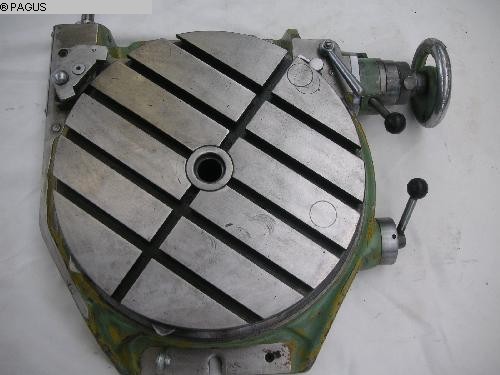

Rotary table STANKO 720440023 Ø 400 mm Table height: 160 mm used, tested ! Dimensions: 500 x 600 x 160 mm

Machine vise PAGUS jaw width: 125 mm jaw height: 40 mm span: 80 mm on graduation table 360° rotatable 90° tiltable Dimensions: 320 x 250 x 185 mm

Rotary table PAGUS Ø 300mm used, tested ! Dimensions: 60 x 60 x 25 cm

Machine vise PAGUS jaw width: 160 mm jaw height: 50 mm span: 0...320 mm (3 stages: 120, 220, 320 mm) pneumatic clamping force reinforcement ! on rotary table with graduation 360° rotatable Dimensions: 550 x 350 x 170 mm

Machine table PAGUS base plate 250 x 270 mm table: 260 x 100 mm Fahrberich 100 mm Dimensions: 530 x 400 x 170 mm

Machine vise STANKO / BZSP (Made in USSR) Model: 7200-0221 jaw width: 200 mm jaw height: 65 mm Span: 0...260 mm on rotary table with graduation 360° rotatable solid design !' Dimensions: 600 x 370 x 185 mm

Machine table PAGUS base plate 320 x 250 mm table: 310 x 100 mm Fahrberich 150 mm Crank foldable Dimensions: 700 x 400 x 170 mm

Clamping table PAGUS Clamping surface: 800 x 800 mm 8 grooves Groove width: 18 x 31 mm Center groove: 28 x 9 mm Bore: 32 mm 32 mm deep (not rotatable, counterpart missing) used, tested ! Dimensions: 800 x 800 x 220 mm

Machine table PAGUS base plate 260 x 210 mm table: 220 (410) x 200 mm travel area: 200 mm with scaling ! Dimensions: 540 x 260 x 115 mm

Tilting table, clamping table PAGUS clamping surface: 460 x 315 mm approx. 45° tiltable Dimensions: 460 x 380 x 100 mm

Clamping table, clamping plate, machine table SCHAUBLIN clamping table 1100 x 250 mm groove width: 24 / 14 mm spare part for milling machine Schaublin 53 ! Dimensions: 1100 x 280 x 100 mm

Universal clamping table, swivel, tilt and swivel table PAGUS clamping surface: 700 x 240 mm 5 grooves groove width: 12 / 20 mm can be rotated horizontally to the right and left 40 degrees can be tilted 30 degrees to the right and left 40 degrees Dimensions: 800 x 300 x 250 mm

Clamping table, machine table PAGUS Clamping surface: 1000 x 800 mm groove width: 22 / 39 mm with clamping claws ! Dimensions: 1160 x 970 x 505 mm

Universal clamping table, tilting and swivel table, height-adjustable PAGUS clamping surface: 570 x 460 mm 3 grooves groove width: 14 / 24 mm swivel 45° used, tested ! Dimensions: 660 x 460 x 280 mm

Work table with earthing system 1500 x 750 x 760 mm weight: 50 kg

Circular Divide Table, Round Table, Rotary Table RECORD Ø 300 mm Table height: 122 mm Groove width: 16 / 27 mm used, tested ! Dimensions: 500 x 470 x 160 mm

Work table, straightening plate, welding table PAGUS 920 x 550 mm Panel thickness: approx. 9 mm height-adjustable ! height: 810 mm used ! Dimensions: 920 x 550 x 810 mm

Centering Vise, Centric Clamp PAGUS Jaw Width: 100 mm Jaw Height: 55 mm Wingspan e: 0...70 mm can be rotated on carriage with millimeter scale - 70 - + 70 mm on a rotary table with graduation: - 90° - + 90° 360° rotatable ! used, tested ! Dimensions: 270 x 270 x 140 mm

Centering vise, centrifugal clamp PAGUS jaw width: 200 mm jaw height: 50 mm span: 0...200 mm on rotary table with graduation 360° rotatable used, tested ! Dimensions: 500 x 300 x 180 mm

Rotary table PAGUS Ø 800 mm Table height: 160 mm 4 grooves: 50 mm Dimensions: Drm. 930 x 470 mm

Machine vise PAGUS jaw width: 125 mm jaw height: 40 mm span: 0 mm... 80 mm on table with graduation 360° rotatable 90° tiltable used, tested ! Dimensions: 320 x 250 x 190 mm

Clamping table, clamping plate, machine table STANKO clamping table 1100 x 250 mm groove width: 25 / 14 mm groove depth: 25 mm spare part for milling machine STANKO 6N81G ! used, tested ! Dimensions: 1100 x 280 x 100 mm
