ZUCKERMAN CHALLENGER- auto copy lathe and sander, capacity - ( mills 10" dia.by a max. of 120" long) hopper feed mills using cup cutters- followed by (1) sanding station, unit has hopper feeder, mills & sands one part at a time, does parts like: boat oars, shovel handles, gunstocks, chair legs, ect. Price-$10,900

Reichenbacker copy lathe mills/ turns (6) concentric or non concentric pieces at a time (1) station for your model/sample (models may be wood or metal) complete set up for duck decoys various sizes - items like Queen Ann legs, ect (photos available) (6) milling /working stations

Hemco hydraulic tracing lathe Hopper feed very good condition...$7,900 obo Contact Fred (716) 433 4224 (12:00 noon is best time to call)

Reinbacker- rope turning lathe chuck up your part- twin routers transverse your material as lathe slowly rotates your material several passes give you a straight or tapered spiral like a rope turning or straight or spiral flutes

AUTOMATIC SPINNING LATHE DENN RPE-290 Denn Mod.RPE-290 Automatic Spinning Lathe- Spindle Speeds 615/1060/1825 RPM. More information on request.

Specifications The Lattuada TL13C is a reliable and robust vertical edge processing machine with 13 spindles, designed for intensive industrial use. This machine delivers consistent quality when grinding and polishing glass edges and is suitable for both small series and continuous production. Key features 13 spindles for high-quality edge finishing Suitable for surface grinding and polishing Constant and stable glass passage Solid Italian build quality Simple operation and low-maintenance design Ideal for glass thicknesses of approx. 3–40 mm (depending on configuration) Compact footprint for efficient placement in the workshop Technical advantages High accuracy due to solid frame construction Reliable water cooling for optimal grinding results Automatic glass feed with adjustable speed Suitable for continuous production in glass companies Long service life of grin ...

This 600 Lathes Multiturn 2000 was manufactured in 2004. A robust horizontal turning machine featuring a turning diameter above bed of 400 mm, and a length of 1250 mm. It operates at a spindle speed of 2700 rpm with an 8-position turret. Tailstock taper is Morse 5. If you are looking to get high quality turning capabilities consider the 600 Lathes Multiturn 2000 machine we have for sale. Contact us for more information.

Polish Lathe / Polishing Machine Between points: 1500 mm Centre height: 180 mm Spindle CM3 Spindle speed driven by speed variator Pneumatic tailstock Equipped with a vaccum system (only air hose to plug in) Machine was used to polish axes Voltage: 220 V mono Dimensions (L x W x H): 3200 x 1000 x 1900 mm Weight: 1,2 T

Lmacchia Barley twist lathe- model012/FE Spiral/rope turning lathe Barley twist with automatic indexing 67" max. length 8" max. working diameter as new condition...$9,500 obo Contact Fred (716) 433 4224 (12:00 noon is best time to call)

Double head lathe for milling and turning tubes Automatic (un)loading of workpieces nbsp;

I got it from a collectors engineer which he did't have used it either. It is latest development from Myford, and founding a clean example like this is very difficult, Including high quality Jaws and Tool post as below: 3 jaw chuck, Cam Lock 4 jaw chuck, Cam Lock Dickson Quick Change Tool post, Face plate , Myford Cabinet with doors and key

3-speed 380V, 2-stage motor, runs smoothly! Forward and reverse rotation. Geared spindle drive, gears run in oil. 16 spindle speeds adjustable from 40 to 2000 RPM. Automatic feed in longitudinal and cross directions. Norton gearbox for easy thread cutting, change gears included. MT3 tailstock taper. Coolant pump. Foot brakes. Splash guard. Chuck safety guard. Quick-change tool post with 3 holders. D1-3 Camlock main spindle taper. Made in Great Britain! Includes accessories as shown in the pictures. Center distance: 750 mm Center height: 165 mm Spindle bore: 33 mm Overall dimensions: 160 x 80 x 130 cm Shipping available throughout Europe!

Lathe, flange lathe, heavy lathe, lathe, lathe, flange and fitting surface lathe, slewing ring lathe, flange lathe, mobile lathe, transportable lathe -Manufacturer: Matra, lathe for facing flanges and mating surfaces (slewing ring) -Type: D 57.3 -Turning diameter: 400 - 1600 mm -Travel: X 180 mm / Z 60 mm -Drive motor: 1.1 kW -Accessories: incl.transport and assembly frame, individual components see photos -Dimensions: 1930/1280/H1000 mm -Weight: 730 kg

Lathe, flange lathe, heavy lathe, lathe, lathe, flange and fitting surface lathe, slewing ring lathe, flange lathe, mobile lathe, transportable lathe -Manufacturer: Matra, lathe for facing flanges and mating surfaces (slewing ring) -Type: D 56.4 -Turning diameter: up to approx. 900 mm -Travel: X 110 mm / Z mm -Drive motor: 0.55 kW -Dimensions: 1660/1700/H470 mm -Weight: 224 kg

Heavy-duty lathe, lathe, lathe, lead and tension spindle lathe, lead and tension spindle lathe, automatic lathe -Manufacturer: WMW, automatic lathe type DRT 50m -Turning length: 550 mm -Turning Ø over bed: 530 mm -Spindle bore: Ø 63 mm -Spindle speeds: 9 - 450 rpm -Three jaw chuck: Ø 200 mm -Turret: with accessories, see photos -Drive motor: 5.3 / 6.8 kW -Dimensions: 2420/1040 / H1460 mm -Weight: 2200 kg

PROMA SPF-1000PH universal lathe was manufactured in 2019 in the Czech Republic. The machine is designed for precision machining of internal and external cylindrical, conical and end faces, as well as grooving, bar turning, drilling and threading with adjustable thread stroke size. The optimum rotation speed scale and high-quality cast iron construction, allows the use of high-speed steel and carbide-tipped tools. Workpieces with a maximum length of 1000 mm are machined in a fully illuminated workspace using a powerful spindle with 12 speed stages ranging between 25 and 1800 rpm. Among the extensive equipment of the conventional lathe are a SINO SDS6-3V digital readout and a 3-jaw universal chuck. The total weight of the PROMA SPF 1000PH machine is 2635 kg. Technical specifications of the PROMA SPF-1000PH lathe - maximum turning length: 1000 mm - maximum turning diameter (above t ...

Heavy-duty lathe, cycle-controlled lathe, lathe, center- and feed-screw lathe, center- and feed-screw lathe, CNC lathe -Control: Monforts Control System MTC K -Machine bed: hardened -Turning length: 1100 mm -Turning Ø over bed: 560 mm -Turning Ø over support: 300 mm -Spindle bore: Ø 60 mm -Spindle speeds: 2 - 2800 rpm -Key bar chuck: Schunk Ø 250 mm -Tailstock mount: MK5 -Drive: 16 kW -Accessories: Multifix tool holder, tools see photos -Dimensions: 1600/2860/H1830 mm -Weight: 3300 kg

Heavy-duty lathe, lathe, lead screw lathe, lead screw lathe -Manufacturer: Meuser, lead screw and feed screw lathe type M3A -Turning length: 1400 mm -Turning diameter over bed: 550 mm -Turning diameter without bed: 800 mm -Turning diameter over support: 300 mm -Spindle bore: Ø 58 mm -Spindle speeds: 15 - 810 rpm -Three-jaw chuck: Röhm Ø 250 mm -Faceplate: 500 mm -Accessories: incl. tool holder/tools (see photos) -Tailstock mount: MK5 -Dimensions: 2770/1160/H1310 mm

Heavy lathe, turning machine, lathe, center and feed screw lathe, center and feed screw lathe -Manufacturer: Weisser, lead screw lathe type PF200 -Turning length: 1340 mm -Turning Ø over bed: 420 mm -Turning Ø over support: 240 mm -Spindle bore: Ø 41 mm -Spindle speeds: 31.5 - 1400 rpm -Three-jaw chuck: Röhm Ø 250 mm -Accessories: incl., see photos -Tailstock mount: MK4 -Drive motor: 2.5/3.5 kW -Dimensions: 2670/1000/H1230 mm -Weight: 1450 kg

Heavy-duty lathe, lathe, lead screw lathe, lead screw lathe -Condition of machine bed: very good -Machine bed: hardened -Manufacturer: Martin, lead screw and feed screw lathe type DLZ 502 -Turning length: 2200 mm -Turning diameter over bed: 580 mm -Turning diameter over support: 300 mm -Spindle bore: Ø 65 mm -Spindle speeds: 22.4 - 1000 rpm -Wedge bar chuck: Forkardt Ø 320 mm -Tailstock mount: MK5 -Drive: 7.5 kW -Accessories: 4x bezels, tool holder, tools (see photos) -Dimensions: 1260/3720/H1260 mm -Weight: 2510 kg

Heavy-duty lathe, lathe, lead screw lathe, lead screw lathe -Manufacturer: Strunguri Arad, lead screw and feed screw lathe type SNA560x2000 -Turning length: 2140 mm -Turning diameter over bed: 600 mm -Turning diameter over support: 330 mm -Spindle bore: Ø 65 mm -Spindle speeds: 16 - 1600 rpm -Three-jaw chuck: Ø 310 mm -Tailstock mount: MK5 -Drive motor: 11 kW -Accessories included, see photos -Dimensions: 3700/1050/H1400 mm -Weight: 3600 kg

Precision lathe, lathe, lead screw lathe, lead screw lathe -Manufacturer: OPTIMUM, Lead screw and feed screw lathe type D320X920 -Machine bed: hardened -Turning length: 930 mm -Turning diameter over bed: 320 mm -Turning diameter without bed: 500 mm -Turning diameter over support: 180 mm -Spindle bore: Ø 40 mm -Spindle speeds: 65 - 1800 rpm -Three-jaw chuck: Ø 160 mm -Tailstock mount: MK3 -Drive: 1.5 kW -Accessories: 2x bezels, Multifix tool holder, see photos -Dimensions: 730/1590/H1310 mm -Weight: 525 kg

: neu : ca. 4 Monate ab Auftragse : Bulgarien : 79430 € : 1501.23 € : 600 mm : 1500 mm : 300 mm : 80 mm : 400 mm : 400 mm : 8 : 90 MK : 3 : 20 - 100, 80 - 400, 400 - U/Min : max. 8 m/min : max. 8 m/min : 290 mm : 90 mm : 5 MK : 225 mm : 11 kW : 3,5 / 22 kW/Nm : 1,75 / 11 kW/Nm : 120 Nm : 1250 daN : 1050 daN Fast and simple communication between the operator and the lathe. Simple workpieces are machined in the same way as on the universal lathe, but more efficient. Complicated workpieces are machined in the same way as on the universal lathe, but faster. Complicated workpieces are machined in the same way as on the CNC lathe, but easier. Based on the controller Schneider Magelis the intelligent, self-developed ZMM Sliven software leads the operator also without programming skills simple and fast to the finished workpiece. The interface is simple and with large icons, which is convenie ...

COLCHESTER MASTIFF V/S 1800 universal lathe was built in Great Britain in 1998. The machine allows machining a workpiece with a maximum length of 2000 mm and a diameter of 560 mm (above the bed) or 370 mm (above the support). The 11 kW spindle of the lathe with reading rotates at 1800 rpm. The lathe is equipped with a MITSUBISHI Freqrol A200 inverter and a SONY LH52 digital display. Total weight of the machine is 3250 kg. Technical data of the lathe COLCHESTER MASTIFF V/S 1800 - turning length: 2000 mm - turning diameter above the bed: 560 mm - turning diameter over support: 370 mm - inverter: MITSUBISHI Freqrol A200 - digital display: SONY LH52 - spindle speed: 1800 rpm - spindle bore diameter: 90 mm - spindle power: 11 kW - MASTIFF VS 1800 machine dimensions: (L x W x H): 3750 x 1700 x 2100 mm - total weight: 3250 kg

Lathe, turning machine, lead screw lathe, lead screw lathe -Handover: in the current condition as viewed -Condition: Gearbox makes noise (video) -Manufacturer: Colchester, Leadscrew and Feedscrew Lathe Type Triumph 2000 -Turning length: 1300 mm -Turning Ø over bed: 390 mm -Turning Ø over support: 240 mm -Spindle bore: Ø 55 mm -Spindle speeds: 22 - 2000 rpm -Three-jaw chuck: Ø 250 mm -Accessories: Tool holder/tools see photos -Tailstock mount: MK4 -Dimensions: 960/2435/H1640 mm -Weight: 1327 kg

A Weiler Primus precision lathe with milling device is offered and extensive accessories in very good condition. A large part of the accessories are unused. Specifications: Center height 120 mm Distance between centers 420 mm Swing diameter over bed 245 mm Spindle bore 23 mm Spindle speeds 18 Speed range 60 - 3000 rpm Motor power 1.1 / 1.5 kW Motor spindle brake Large feed protection - chip protection hood External dimensions approx. Length 120cm Depth 750mm Height 170cm Weight approx. 500 kg Accessories: Multifix A - 5 steel brackets 3-jaw chuck Ø 125 mm 4-jaw chuck Ø 125 mm Various interchangeable jaws Thumper CGN-1969 Eccentric lathe chuck 80mm (unused) Face plate Carrier for rotary heart Standing bezel Moving bezel Collets for internal and external clamping Various moving bezels Extensive accessories for milling equipment such as clamping screws, cl ...

Stop for lathe support, longitudinal stop, lathe, support stop -Clamping tool: stop for lathe support -Bore: Ø 45 mm -Dimensions: see photo techn. drawing -Total dimensions: 134/100/H186 mm -Total weight: 9 kg

Rotary table for lathe chuck PAGUS diameter lathe chuck: max. Ø 200 mm bolt circle lathe chuck: 140 - 180 mm flange: Ø 130 mm table height: 70 mm 360° rotatable base plate: 290 x 220 mm used, tested ! Dimensions: 350 x 300 x 80 mm

Excellent Complete Myford Super 7 Metric Lathe Gearbox & Power Cross The lathe also comes with various extras which i will list out below. I may miss some but will do my best 5" 4 jaw self centering chuck (Pratt Burnerd) 3" 4 jaw self centering chuck (Pratt Burnerd) 6" 4 jaw independant chuck (Pratt Burnerd) 3" 3 jaw Self centering chuck (Pratt Burnerd) 4" 3 jaw self centering chuck (Pratt Burnerd) Many of the chucks got internal and external jaws 6 jaw swiss chuck with internal and external jaws Albrecht 0-3mm chuck with morse taper no1 Albrecht 0-6.5mm chuck with morse taper no1 Jacobs 0-3/8" chuck with morse taper no1 9" face plate 7" face plate x 2 6" face plate Jacobs 1/2" tailstock chuck Jacobs 3/8" tailstock chuck Jacobs 3/8" tailsock chuck Jacobs 1/4" tailstock chuck German 1/4" tailstock chuck Myford vertical slide swivel type with dials fitted Myford  ...

ECONOMOS IP 4000 Seal Jet CNC lathe for seal production was built in 2000 in Austria by ECONOMOS AUSTRIA Gesellschaft m.b.H. The machine is designed for the production of technical gaskets and sealing elements of various dimensions and profiles. The advanced SEAL-JET technology enables the rapid production of both single parts and short series with high dimensional accuracy and repeatability. The ECONOMOS ECONOM IP 4000 Seal Jet lathe for gasket production is distinguished by its sturdy, welded design with integrated chip trough. Machining is performed by a main spindle rotating at a maximum speed of 3000 rpm. The spindle, guided in precision bearings and encased in a rigid grey cast iron body, ensures high machining stability even under heavy loads. The integrated cooling system effectively dissipates the heat generated during machining, maintaining optimum working conditions through ...

Hydraulic copying device SAUTER type KMC 8001Copier turning device, copying turning device for lathesThe copying device comes from a lathe.Connections for oil supply and oil returnCopying stroke: approx. 140 mmRadial travel at 60 Construction: 120 mmRequired operating pressure: approx. 25 barOil volume flow: max. 7 litres/min. Drive power of the lathe: max. approx. 15 kWSpan cross-section: max. 3.5 mm²Copy carriage stroke: approx. 125 mmDistance of lathe chisel to the stylus: 800 mmDead weight Copier: approx. 100 kggoods

tool changer for lathe, tool disc turret, turret system, disc turret for lathe -Manufacturer: Sauter, tool changer type 0.5.675.112 from vertical lathe Scherer VDZ 80 DS -Tool turret: Type 0.5.901.012 for max. 12 tools -Servo motor: Siemens type 1FK7063-2AC74-1SB0 -Individual components: see photos -Dimensions: 560/450/H300 mm -Weight: 117 kg

RAFAMET KCH 360/450 vertical turret lathe was built in 1987 in Poland by Fabryka Obrabiarek RAFAMET. The machine is used for precise machining of large and heavy workpieces whose size does not allow effective machining with standard machines. RAFAMET KCH 360/450 is distinguished by its stable design, equipped with two vertical supports and one side support. Machining is performed on a work table with a diameter of 3600 mm by means of a reliable vertical spindle. The work table offers 20-position speed adjustment in the range of 0.6 to 50 rpm, enabling precise adjustment of the parameters to the production requirements. The position of the head in all linear axes is continuously monitored by state-of-the-art SONY digital readout, which ensures high precision measurement. All this makes the offered KCH 360/450 vertical turret lathe an excellent choice for, among others, the energy, ship ...

A defective spare parts donor of a Hitachi Seiki lathe including an IEMCA bar feeder is available. 1) CNC lathe Hitachi Seiki GT 20 S II, travel X/Z: 200mm/400mm, max. turning diameter: 210mm, max. swing diameter over bed: 380mm, max. bar diameter: 51mm, spindle bore: 59mm, speed: 5000rpm, tool stations: 10, rapid traverse: 20m/min. Machine dimensions X/Y/Z: approx. 2350mm/1950mm/1850mm, weight: approx. 4100kg. The capacitors for the power connection are defective. 2) Hydraulic bar feeder IEMCA TAL/AUTO 65/32, max. bar diameter: 65mm, max. bar length: 3200mm, machine dimensions X/Y/Z: approx. 4200mm/800mm/1200mm, weight: approx. 800kg. The lathe is sold exclusively as a defective spare parts donor. An on-site inspection is possible.

Key data: 510 mm, 1500 mm, 300 U/min

Hello, I get this lathe at the beginning of August. With a lot of accessories: steady rest, lathe chuck – clamping jaws, quick-change holder and.. Heidenreich & Harbeck Type Hanseat 480 Year of manufacture 1980 Center height 255 mm Turning diameter over support 300 mm Center width 1500 mm 24 speeds from 23.6 to 2500 n1/min Tailstock MK 4 Chuck F 250 Motor 380 Volt 11 kW Transport dimensions: Length 3200 mm Width 1200 mm Height 1550 mm Weight 2.5 to. Lathe Hanseat 480 incl. accessories St Description 1 instruction manual 1 Lynette small 1 Lynette large 1 4- Jaw chuck small 1 4- Jaw chuck large 15 quick-change tool holders Set designation 2 jaws for 4-jaw chuck 38 jaws for 3-jaw chuck

General Description Conventional vertical turning lathe manufactured by POLYMETA C LTD in Sofia, Bulgaria. Model SEDIN 1512 , designed for machining large cylindrical workpieces, rings, flanges, wheels and similar rotational parts. The machine layout matches the SEDIN 1512 family. Technical Details Manufacturer: POLYMETA C LTD Model: SEDIN 1512 Type: Vertical Turning Lathe (VTL) / vertical turret lathe Year of refurbishing: 2001 Factory No.: 3524 Control: Conventional (manual) Condition: Used Condition Good industrial used condition. The machine appears complete and installed in production. Ways and machined surfaces look clean, handwheels and graduations show limited wear, and fresh lubrication is visible. The tool slide appears in good condition, with no obvious crash damage. Normal cosmetic paint wear and age-related wear are visible. Spindle accuracy and gearbox condi ...

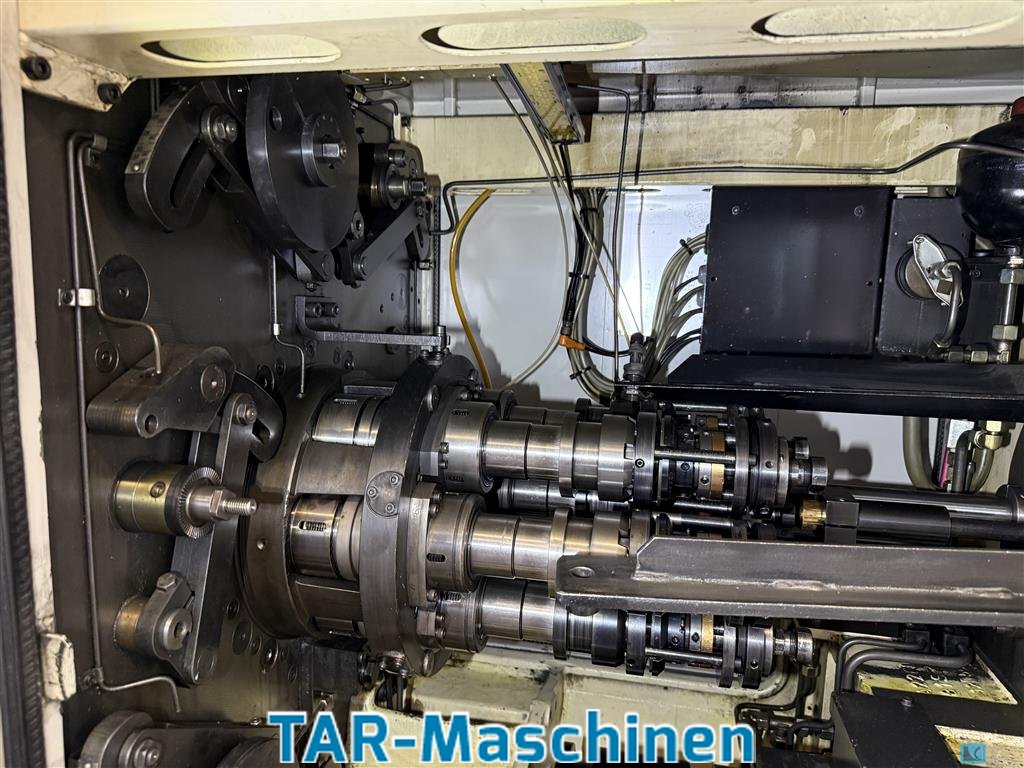

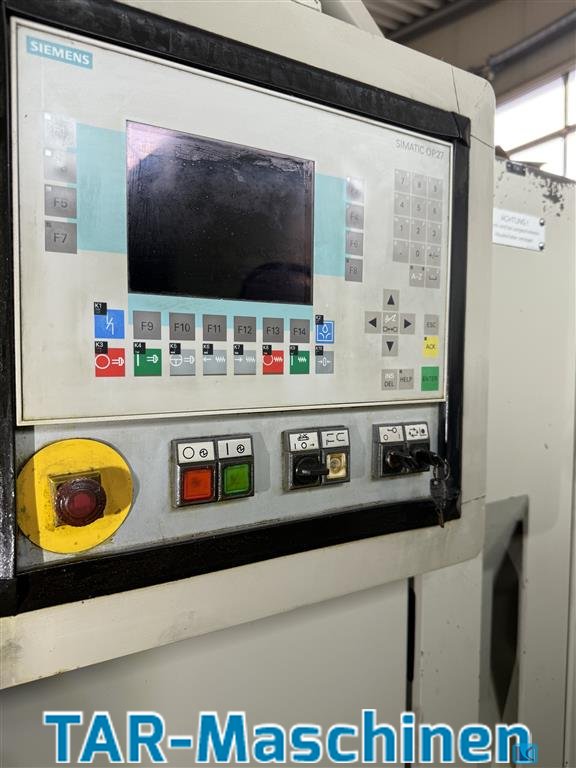

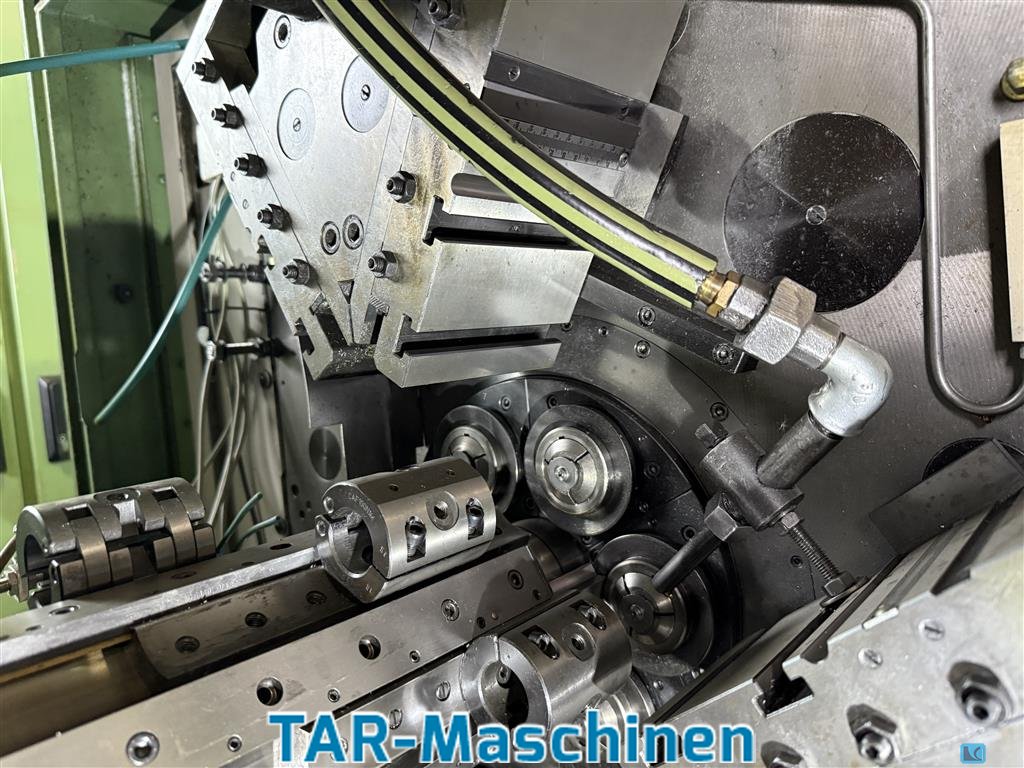

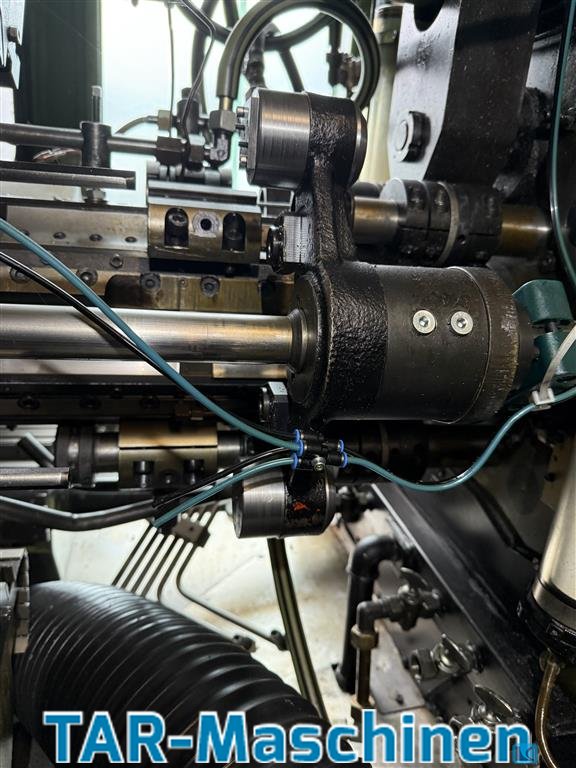

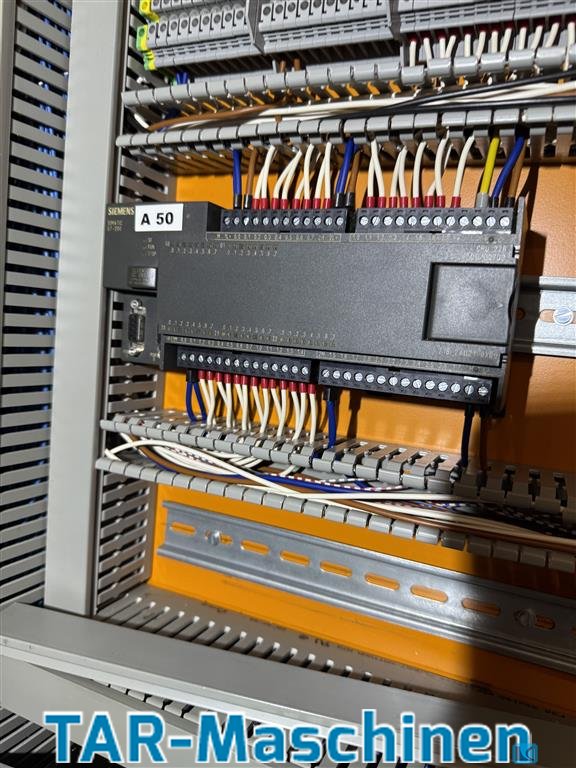

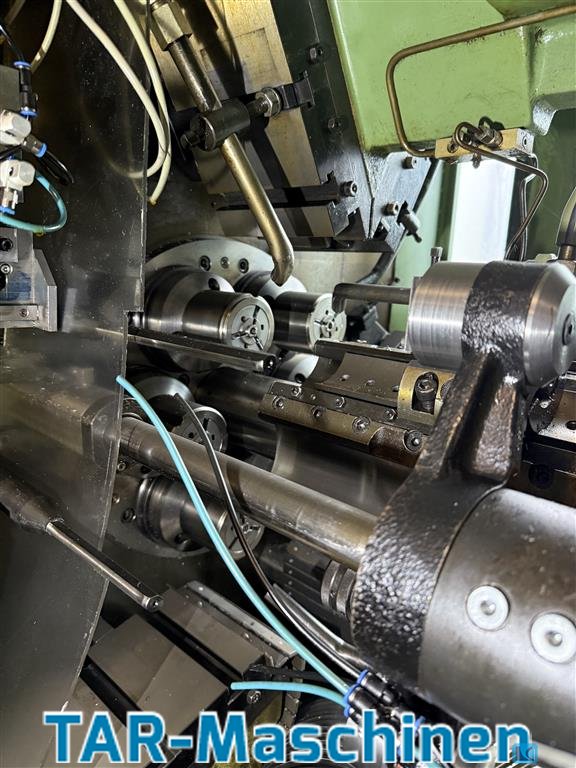

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

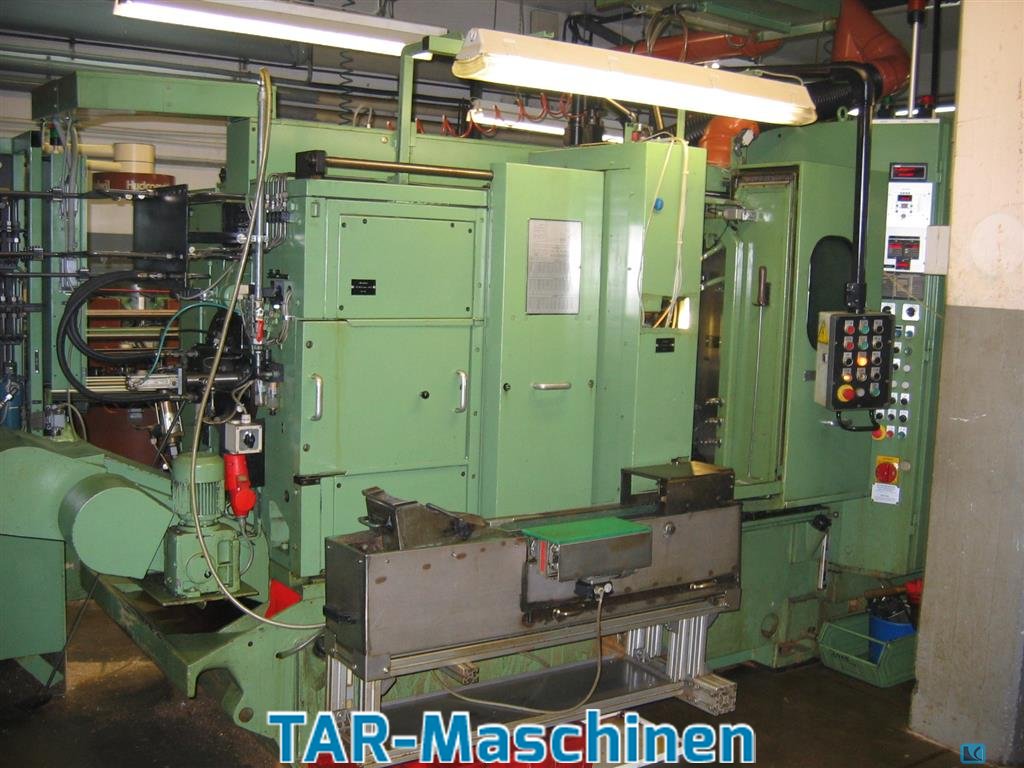

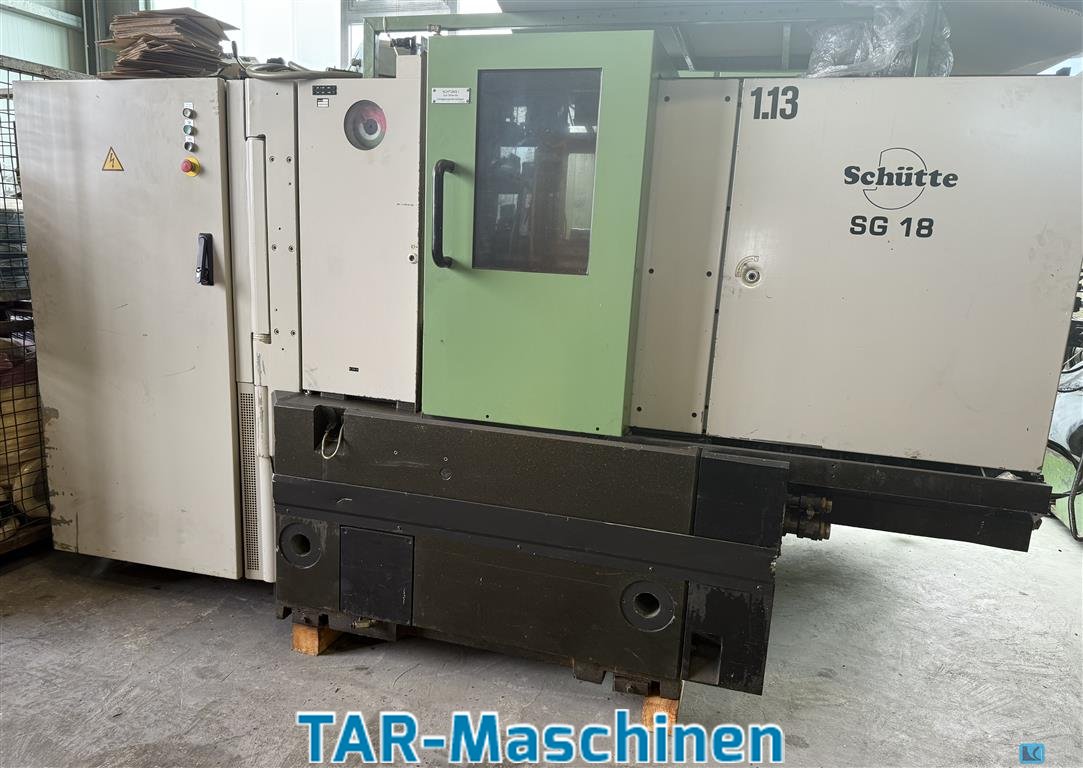

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

turning length: 450 mm turning diameter over bed: 245 mm turning diameter over slide rest: 135 mm spindle bore: 23.0 mm tool adaptor: DIN 55021-4 quill:: 2 MK quill travel: 80.0 mm turning speeds: 60 - 3000 U/min bed width: 155 mm total power requirement: 1.2 / 1.5 kW voltage: 380 V weight of the machine ca.: 340 kg. range L-W-H: 1200 x 650 x 1330 mm from a vocational school (!) particularly suitable for precision turned parts The Primus series is the most compact precision sliding headstock and sliding headstock lathe (LZ) from WEILER. It is used in toolmaking, laboratories and training workshops as an absolute machine for precise work in the tightest of spaces. The machine is built for extremely tight tolerances. The hardened and ground machine bed ensures maximum for maximum vibration damping and durability. Features: - Robust lead/traction spindle lathe - 2-axis digital readout D60 ...

turning length: 450 mm turning diameter over bed: 245 mm turning diameter over slide rest: 135 mm spindle bore: 23.0 mm tool adaptor: DIN 55021-4 quill:: 2 MK quill travel: 80.0 mm turning speeds: 60 - 3000 U/min bed width: 155 mm total power requirement: 1.2 / 1.5 kW voltage: 380 V weight of the machine ca.: 340 kg. range L-W-H: 1200 x 650 x 1330 mm from a vocational school (!) particularly suitable for precision turned parts The Primus series is the most compact precision sliding headstock and sliding headstock lathe(LZ) from WEILER. It is used in toolmaking, laboratories and training workshops as an absolute machine for precise work in the tightest of spaces. The machine is built for extremely tight tolerances. The hardened and ground machine bed ensures maximum for maximum vibration damping and durability. Features: - Robust lead/traction spindle lathe - 2-axis digital readout D60- ...

Lattice boom crane Manufacturer: Gottwald Type: AK 70 Load capacity: 70 tons Year of construction: 1961 The lattice boom crane is operational, but heavily in need of renovation.

Lattice boom crane Manufacturer: Italgru Type: 80 tons Load capacity: 80 tons The lattice boom crane is fully functional and is still in operation! Can be visited at any time!

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

turning diameter over bed: 460 mm turning diameter over slide rest: 274 mm turning length: 1000 mm spindle bore: 58 mm spindle turning speed range: 25 - 2000 U/min turning dia. in gap: 690 mm metric threading: 41 / 0,1 - 14 mm thread - inch: 60 / 2 - 112 inch. thread - module: 34 / 0,1 - 7 mm Whitworth-thread: 60 / 2 - 112 TPI adjustment of the upper slide: 140 mm dia. of quill: 60 mm quill stroke: 120 mm total power requirement: 5,5 kW weight of the machine ca.: 1,7 / 2,0 t dimensions of the machine ca.: 2,2 x 1,0 x 1,3 m A comprehensive range of quality centre lathes characterised by wide versatility,high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout fitted as standard and a variable speed option is available. Huvema lathes fully conform to CE regulations. Also available in: 1,5m 3 ja ...

turning diameter over bed: 460 mm turning diameter over slide rest: 274 mm turning length: 1500 mm spindle bore: 58 mm spindle turning speed range: 25 - 2000 U/min turning dia. in gap: 690 mm metric threading: 41 / 0,1 - 14 mm thread - inch: 60 / 2 - 112 inch. thread - module: 34 / 0,1 - 7 mm Whitworth-thread: 60 / 2 - 112 TPI adjustment of the upper slide: 140 mm dia. of quill: 60 mm quill stroke: 120 mm total power requirement: 5,5 kW weight of the machine ca.: 1,7 / 2,0 t dimensions of the machine ca.: 2,2 x 1,0 x 1,3 m A comprehensive range of quality centre lathes characterised by wide versatility,high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout fitted as standard and a variable speed option is available. Huvema lathes fully conform to CE regulations. Also available in: 1,5m 3 ja ...

turning diameter over bed: 460 mm turning diameter over slide rest: 274 mm turning length: 2000 mm spindle bore: 58 mm spindle turning speed range: 25 - 2000 U/min turning dia. in gap: 690 mm metric threading: 41 / 0,1 - 14 mm thread - inch: 60 / 2 - 112 inch. thread - module: 34 / 0,1 - 7 mm Whitworth-thread: 60 / 2 - 112 TPI adjustment of the upper slide: 140 mm dia. of quill: 60 mm quill stroke: 120 mm total power requirement: 5,5 kW weight of the machine ca.: 1,7 / 2,0 t dimensions of the machine ca.: 2,2 x 1,0 x 1,3 m A comprehensive range of quality centre lathes characterised by wide versatility,high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout fitted as standard and a variable speed option is available. Huvema lathes fully conform to CE regulations. Also available in: 1,5m 3 ja ...

turning diameter over bed: 560 mm turning diameter over slide rest: 355 mm turning length: 1500 mm spindle bore: 80 mm spindle turning speed range: 25 - 1600 U/min turning dia. in gap: 785 mm metric threading: 0,2 - 14 mm thread - inch: 2 - 112 inch. thread - module: 34 / 0,1 - 7 mm Whitworth-thread: 60 / 2 - 112 TPI adjustment of the upper slide: 140 mm dia. of quill: 130 mm quill stroke: 120 mm total power requirement: 7,5 kW weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2,8 x 1,20 x 1,5 m A comprehensive range of quality centre lathes characterised by wide versatility,high accuracy and extremely rigid construction. The machines are well equipped with a multi-fix quick change tool post and 2-axis Newall digital readout fitted as standard and a variable speed option is available. Huvema lathes fully conform to CE regulations. Also available in: 1,5m 3 jaw chuck 4 jaw  ...

Key data: 3200 mm, 2500 mm, 14000 mm

The lathe model 1682A is designed for roughing and finishing work on cast iron or steel parts weighing up to 170 tons. Production year 60’ and complete retrofited in 2011 The largest workpiece dimension above the support is 2500 mm. Parts can be machined using both high-speed steel and carbide-tipped cutters. The machine can be used for turning external surfaces, boring, facing and parting, and turning various cones, radii, and chamfers. The machine is equipped with a Balt-System NC-310/3 CNC system and separate drives for the Z, R, X, U, W, and Q coordinates, enabling the machining of complex surfaces (fill Based on the technical documentation provided, here is a translation and summary of the 1682A Heavy-Duty Lathespecifications, organized by category for better clarity: 1. General Machine Dimensions & Capacity This is a massive industrial lathe designed for exceptionally la ...

Manufacturer UNIVERSAL LATHE POTISJE EXCELLENT CONDITION, USED ONLY FOR SUPERFINISH AFTER GRINDING Model PA-45 Year Condition used Location Slovenia Price 26.500,00 € Category Lathe Subcategories Stock Number Serial Number Max turning lenght 3000mm Turning over bed 600 mm, Spindle bore 140 mm, Turning in cranking 1.200 mm Face plate 800 mm

Disc lathe Lathe for plates, bowls, rings, wheels, etc. Manufacturer: Hempel Model: ERSP / ER/Sp 4 Workpiece diameter: max. 400 mm Workpiece thickness: max. 80 mm
