large lathe used for sale

CNC Control: SIEMENS 840 D Number of axes: 2 Max. turning diameter: 420 mm Max. turning length: 1000 mm X/Z axis strokes: 200 / 1000 mm Spindle bore: 82 mm Spindle speed: 0 – 3,000 rpm Spindle motor power: 14.5 kW Turret: VDI 40, 12 stations Chuck: Autoblok Ø 250 mm Tailstock: Chip Conveyor: Present Remarks: Machine in good working order. Weight (kg): approx. 5500 Year & Manufacturer: 2001 – MENTI Auction-ID: A1-50714-4025

Numerical Control: HAAS X /Y/Z Axis Travels: 750 × 410 × 500 mm Max. Spindle Speed: 10,000 rpm 4th Axis: HAAS-compatible (presence shown) Spindle Hours: Approx. 19,678 h (meter reading) User documentation: present Weight (kg): Approx. 5600 Year & Manufacturer: 2000 – HAAS Auction-ID: A1-50714-4050

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC Auction-ID: A1-50714-4049

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-50714-4045

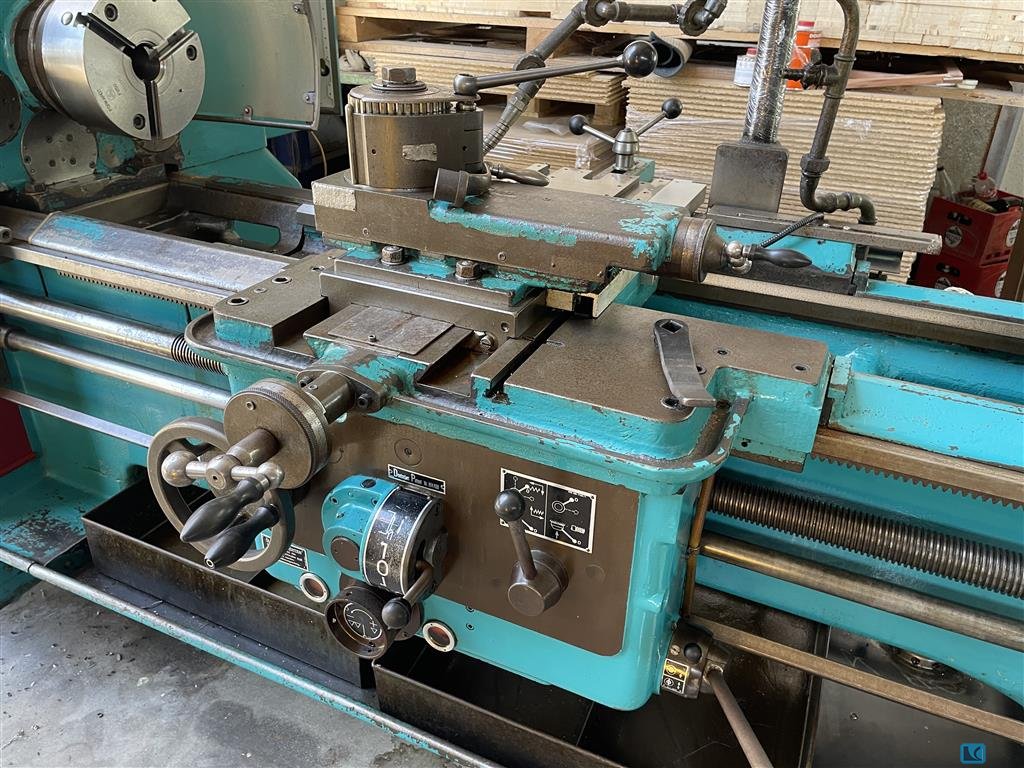

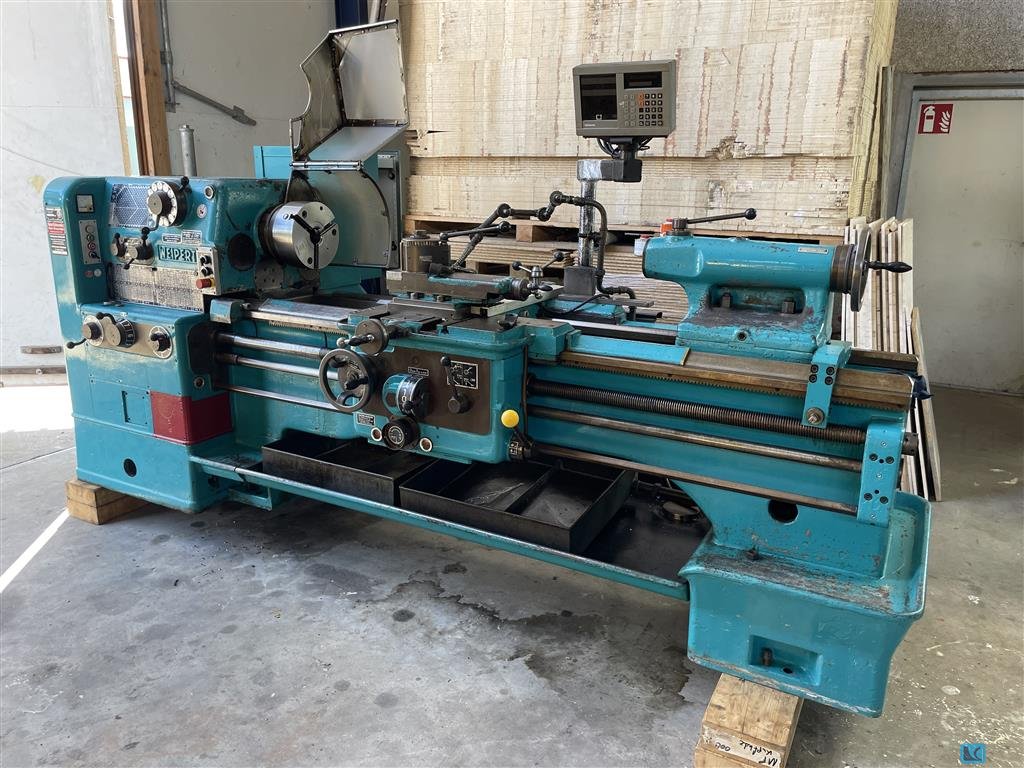

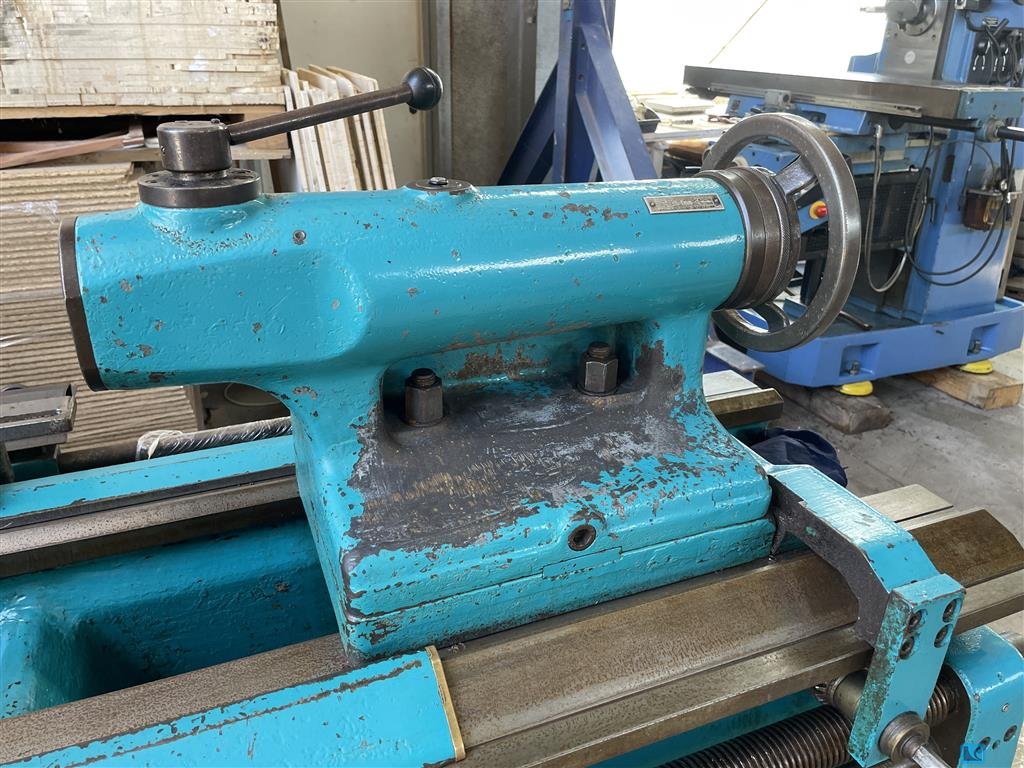

General Description Conventional geared engine lathe designed for precision turning, facing, boring, drilling and threading of cylindrical metal workpieces. The machine is equipped with a geared headstock, manual carriage and tailstock for general machining applications. Technical Details Machine type: Geared engine lathe 3-jaw chuck Tailstock Drill chuck mounted in tailstock 4-way toolpost Threading gearbox Feed gearbox Working carriage assembly Condition Used industrial condition. The machine appears complete with chuck, tailstock, toolpost, carriage and gearbox assemblies. Operational status, spindle condition and machining accuracy have not been tested. Auction-ID: A7-50745-30

AC power supply 220 V, 3PH, 50/60 Hz; control voltage AC 110 V / DC 24 V; rated current 75 A; installed power 35 kVA; spindle speed up to 6000 rpm; spindle nose ASA A2#5; spindle passage 53 mm; turret 12 VDI tools; tool dimensions 25 x 25 mm; boring bar Ø 40 mm; strokes X 242 mm / Z 440 mm; fast feeds X 20 m/min, Z 25 m/min; spindle motor 11 kW; axle motors X 1.4 kW / Z 2.8 kW; lubricating tank capacity 100 L; Max turning Ø 350 mm; Max turning length 425 mm Auction-ID: A1-50714-4033

Working parameters: Max. turning diameter 325 mm Max. turning length 400 mm Spindle speed 30 – 4,500 rpm X-axis strokes 215 mm / Z-axis 420 mm Included equipment: 12-station turret VDI 40 Hydraulic chuck 3 jaws Ø 204 mm Tailstock CM4 Tool holder with motorized tools Coolant Bar loader Year & Manufacturer: Year 2000 Manufacturer HYUNDAI Auction-ID: A1-50714-4051

General Description Slant-bed CNC turning center manufactured by AFM , designed for precision turning, facing, drilling, boring and threading of cylindrical components. The machine is equipped with a hydraulic indexing turret, programmable hydraulic tailstock and enclosed machining area for automated production. Technical Details Manufacturer: AFM Model: Not identified Machine type: CNC slant-bed turning center Year: Not confirmed Hydraulic indexing turret (approx. 8 stations) Hydraulic programmable tailstock Spindle nose (chuck removed) Approximate spindle bore: 55–60 mm Integrated hydraulic unit Electrical control cabinet Coolant and lubrication system Condition Used industrial condition. The machine appears mechanically complete with turret, tailstock, hydraulic system and electrical cabinet installed. The chuck is not fitted. Normal cosmetic wear, oil staining a ...

Technical details Type: CNC turning center Control system: ZIT Sistema 500T Configuration: - Horizontal CNC lathe - Semi-enclosed machining area - Hydraulic power chuck - 6-station hydraulic indexing turret - CNC-controlled longitudinal and cross axes - Electrical control cabinet - Hydraulic unit - Coolant enclosure Application: - CNC turning - Facing - Boring - Thread cutting - Precision machining of rotational components Construction: - Heavy-duty cast-iron machine bed - Early-generation CNC control system - Automatic turret indexing Dimensions: - Length: Approx. 3200 mm - Width: Approx. 1800 mm - Height: Approx. 2000 mm Weight: Approx. 3800 kg Condition: Used Observed condition: - Machine appears mechanically complete - Hydraulic chuck and 6-station turret installed - CNC electronics and electrical cabinet present - Hydraulic unit installed - Heavy du ...

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe. Auction-ID: A1-50714-4053

Manufacturer: YAMAZAKI MAZAK Year: 1994 Type: CNC lathe Numerical control: Mazatrol T32-2 Axes: 2 axes (X, Z) Max. diameter above the bed: Ø 560 mm Max. turning diameter: Ø 410 mm Max. turning length: 1500 mm Spindle: 35–3500 rpm – main motor 22 kW – spindle nose A2-8 – bore 76 mm Turret: 12 positions Equipment: programmable tailstock, complete enclosure Weight: approx. 6900 kg Origin: Japan Condition: used Auction-ID: A1-50714-4027

Manufacturer: HARDINGE Year: 2005 Type: CNC Motorized Tool Lathe with C-Axis Numerical Control: FANUC 21i-TB Bar Capacity: Ø 51 mm Max. Turning Circle: Ø 310 mm Max. Turning Length: 470 mm Chuck: Ø 200 mm (8\") Bed Inclination: 45° Spindle: 50–5,000 rpm – 18.5 kW (max) / 11 kW (continuous) Turret: 12 stations, all motorable positions Motorized implements: 4,000–5,000 rpm – 3.7 kW Fast feeds: X/Z 19 / 24 m/min Accuracy: ±0.005 mm Included equipment: Programmable C-axis (0.001°), IEMCA Boss 545 bar feeder Weight (kg): approx. 4200 Auction-ID: A1-50714-4029

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Counter-spindle power: 3.7 / 5.5 kW Counter-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Serial No.: 1105-02957 Auction-ID: A1-50714-4047

CNC Control: FANUC Series 18-T Number of axes: 3 (including C-axis) Maximum machining diameter: 200 mm Distance between tips: 300 mm Max. spindle speed: 3,000 rpm Spindle power: approx. 17.5 kW Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm Spindle: direct collet mounting possible Weight (kg): approx. 4200 Year & Manufacturer: 1993 – HARDINGE Auction-ID: A1-50714-4031

Turning diameter above carriage 220mm, equipped with transverse and longitudinal feed, chuck diameter 200mm. Auction-ID: A1-50393-191

ul> Distance between heads: 3000 mm Diameter above the bench: 800 mm Lathe equipped with a fixed bezel Digital visualization MINILEXPRO 3-jaw chuck Manual tailstock Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-50714-4074

CNC Control: GE FANUC Series 16i-T Number of axes: 2 (with sub-spindle) Main spindle: ASA 5 nose, max. bar passage 42 mm, power 11 kW, max. speed 6,000 rpm Max. rotation diameter: 519.2 mm Max. turning diameter: 308 mm X/Z axis strokes: 189.2 / 406 mm Turret: VDI 30 bidirectional, 16 positions (16 motorized) Sub-spindle: ASA 5 nose, max. bar passage 42 mm, power 7.5 kW, max. speed 6,000 rpm Included equipment: parts catcher, motorized tools and stationary tools (depending on seller) Weight (kg): 5071 Year & Manufacturer: 2001 – HARDINGE Auction-ID: A1-50714-4021

CNC lathe for metal part turning operations. Numerical control: Fanuc 18T Axes: 3 axes Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm (possibility of mounting clamps in the spindle) Distance between tips: 350 mm Spindle speed: 4,000 rpm Spindle passage: 51 mm Auction-ID: A1-50714-4037

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI Auction-ID: A1-50714-4041

Manufacturer: DMG GILDEMEISTER Year: 2008 Type: CNC lathe with motorized tools with C and Y axes Numerical control: Heidenhain iT Plus Max. turning diameter: 400 mm Max. turning length: 600 mm Distance between tips: 615 mm Main spindle: 20–6,000 rpm – 16 kW – max. torque 155 Nm Bar capacity: Ø 52 mm – spindle bore 61 mm C-axis: 0.001° resolution Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW) Strokes: X 160 mm / Z 450 mm / Y ±32 mm Fast feeds: X 60 m/min – Z 45 m/min Attachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic system Dimensions (mm): 8000 × 3000 × 2700 Weight (kg): approx. 4500 Remarks: Machine in good condition, powered on. Serial number included in the description. Auction-ID: A1-50714-4002

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-50714-4043

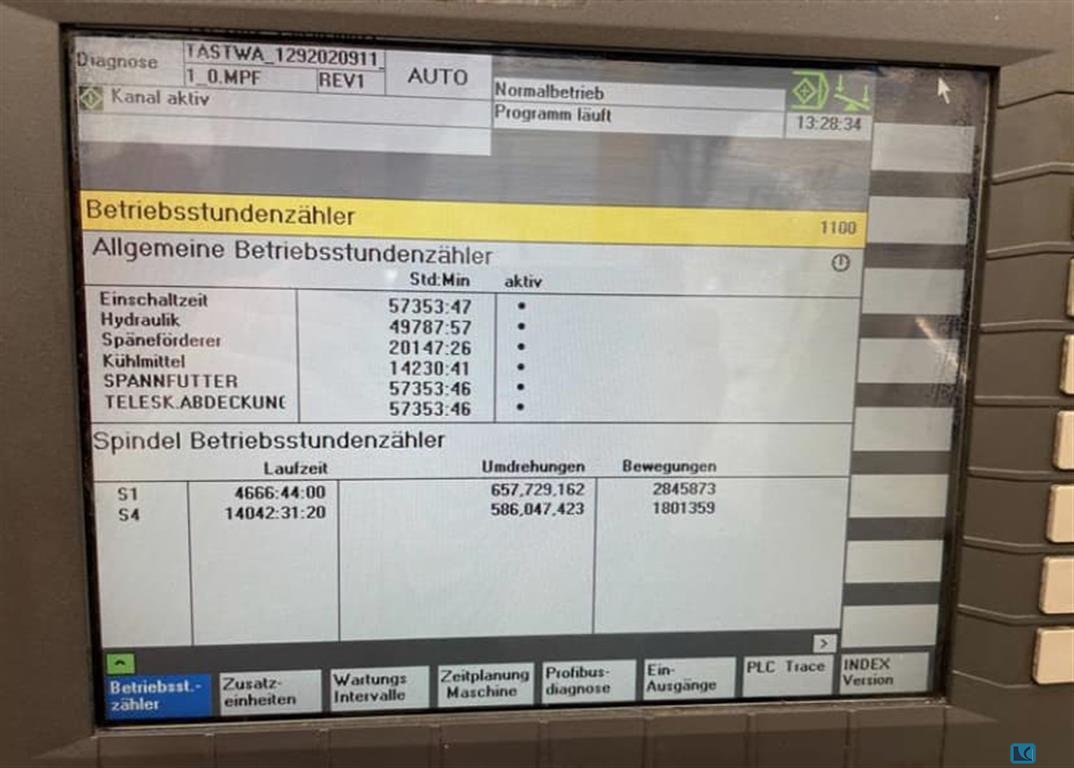

Manufacturer: INDEX Year: 2005 Type: Moving spindle CNC lathe with motorized tools and C-axis Numerical control: Siemens Sinumerik 840D Powerline Chuck: Ø 160 mm Max. rotation diameter: Ø 180 mm Strokes: X-axis 520 mm / Z-axis 200 mm Fast feeds: X/Z 40 / 30 m/min Moving spindle: 5,000 rpm – 13 kW (100%) / 20 kW (40% ED) – max. torque 105 Nm C-axis: 0.001° resolution Turret: 12 positions – all motorable stations – VDI 30 Motorized tools: up to 6,000 rpm – 8.5 kW Power supply: 400 V / 50 Hz / 3 phases – installed power approx. 25 kW Weight (kg): approx. 4500 Auction-ID: A1-50714-4039

Year of manufacture: 1998 Serial No.: 93742 Numerical control: Fanuc 18-T Turrets: 2.6 positions per turret Maximum turning diameter: 125 mm Diameter above the bed: 200 mm Turning length: approx. 300 mm Tailstock: no Power supply: 400 V three-phase – 50 Hz Control circuit: 110 V Weight: approx. 2,600 kg Auction-ID: A1-50714-4064

Doosan Lynx 220A CNC Lathe – 2 X/Z Axis – Year 2007 DOOSAN Infracore Co., Ltd. CNC lathe LYNX 220A , manufactured in South Korea in July 2007. This used machine is configured in 2 X and Z axes and equipped with a tool turret. It is suitable for CNC turning operations, general mechanics, and CNC machine tool part production. Sales category: CNC lathe/CNC lathe. Technical data checked: X-axis stroke: 175 mm; Z-axis stroke: 330 mm; maximum spindle speed: 6,000 rpm; power supply: AC 200/220 V, three-phase 3Ø, PE, 50/60 Hz; rated capacity: 23.68 kVA; maximum load indicated on the manufacturer's plate: 11.0 kW; full load current: 62.15 A; breaking current: 17000 A. Machine identification: manufacturer DOOSAN Infracore Co., Ltd.; model LYNX 220A; serial number L2202101; year 2007; manufacturer marking \"MADE IN KOREA\". Connection diagram reference: L22H01CA01. The machine has a ful ...

General Description Centre lathe manufactured by TOS Trenčín , model SV18 RA . Designed for precision turning, facing, boring and threading of shafts and other cylindrical workpieces in toolrooms and general machining workshops. Technical Details Manufacturer: TOS Trenčín Model: SV18 RA Machine type: Centre lathe Serial number: 687 Power: 5.0 kW Power supply: 380 V, 3-phase Control voltage: 220 V Rated current: 13.8 A 4-way toolpost Tailstock Quick-change threading and feed gearbox Leadscrew and feed rod Metric, inch and module threading capability Interchangeable change gears included Chip tray and work light Condition Used industrial condition. The machine appears mechanically complete with headstock, tailstock, four-way toolpost, threading gearbox, leadscrew and change gears installed. Cosmetic paint deterioration, oil staining and surface corrosion are vis ...

General Description Universal horizontal centre lathe manufactured by TOS , model E3N . Designed for precision turning, facing, boring, drilling and threading of cylindrical metal workpieces in toolrooms, maintenance workshops and general machining applications. Technical Details Manufacturer: TOS Model: E3N Machine type: Universal horizontal centre lathe 3-jaw self-centering chuck installed Tailstock Four-way toolpost Leadscrew Quick-change threading gearbox Flexible coolant nozzle Condition Used industrial condition. The machine appears complete with chuck, tailstock, four-way toolpost, leadscrew, quick-change gearbox and coolant system. Operational status, spindle condition and machining accuracy have not been tested. Auction-ID: A7-50745-33

CNC Vertical Machining Center Order: Heidenhain TNC 426 Axes: 3 Table (mm): 1100 × 600 X/Y/Z strokes (mm): 1000 × 600 × 800 Spindle: ISO 40, max. 8,000 rpm Tool magazine: 40 positions Equipment: Chip conveyor Serial number: Remarks: Used machine, Auction-ID: A1-50714-4030

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

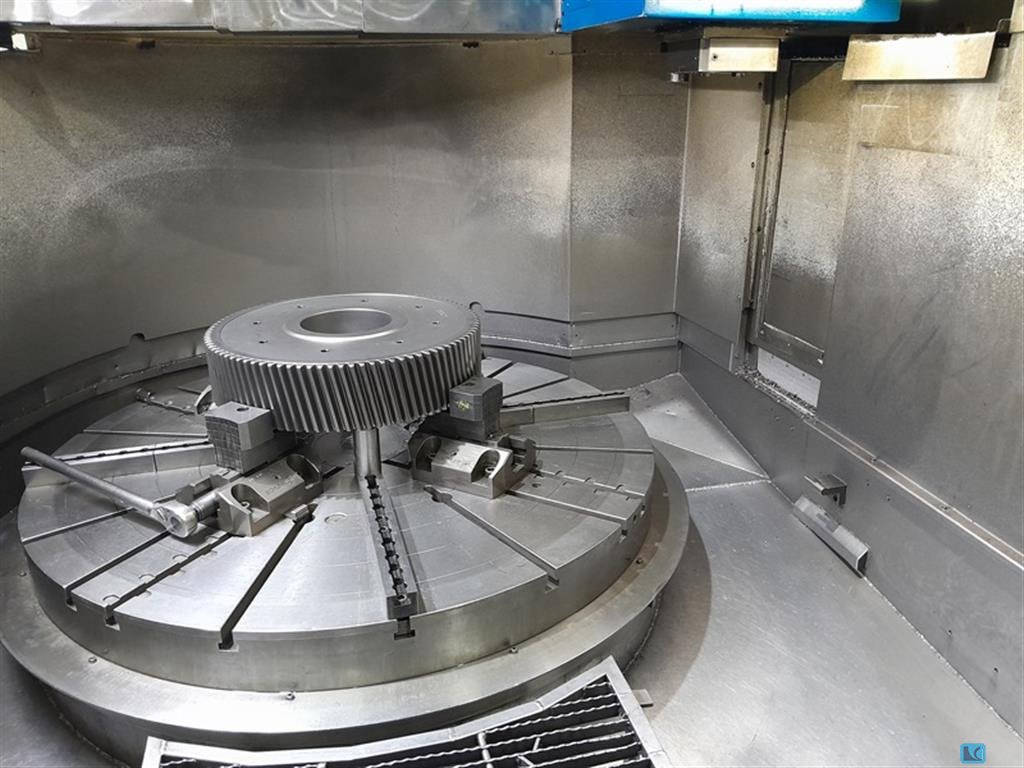

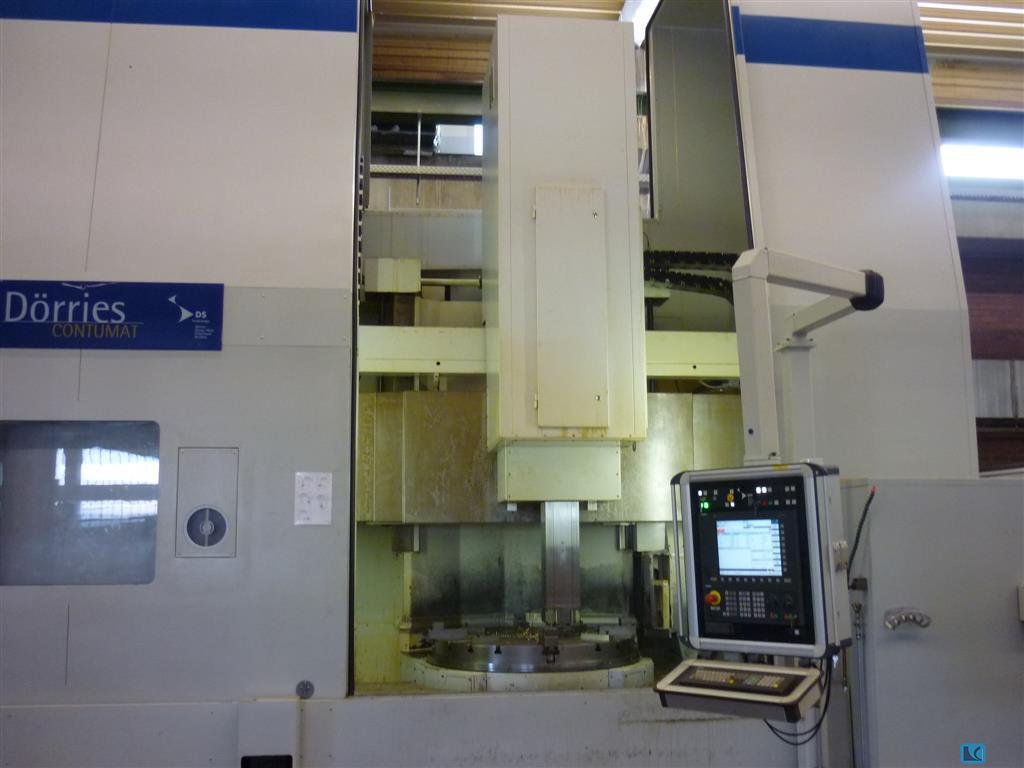

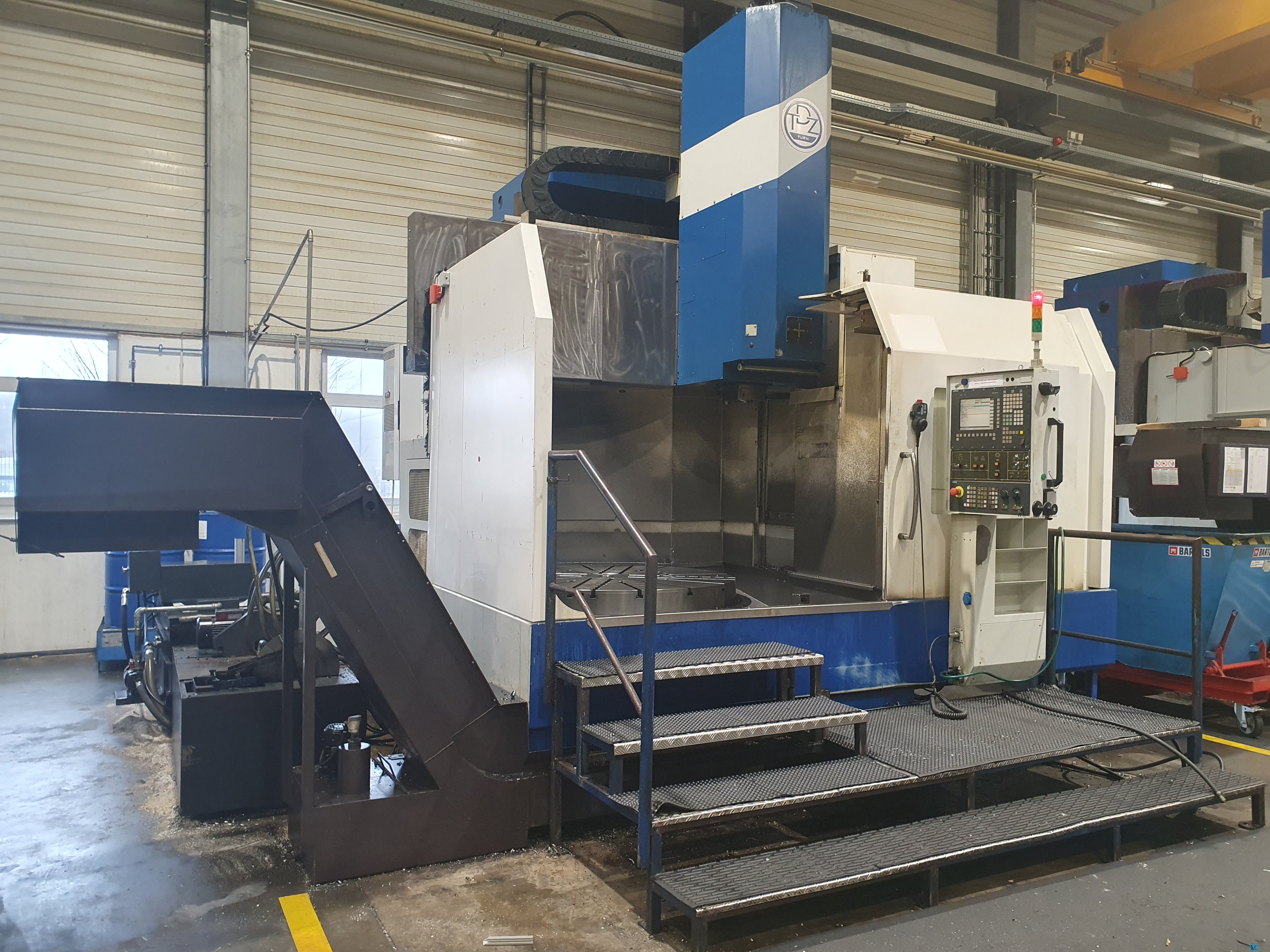

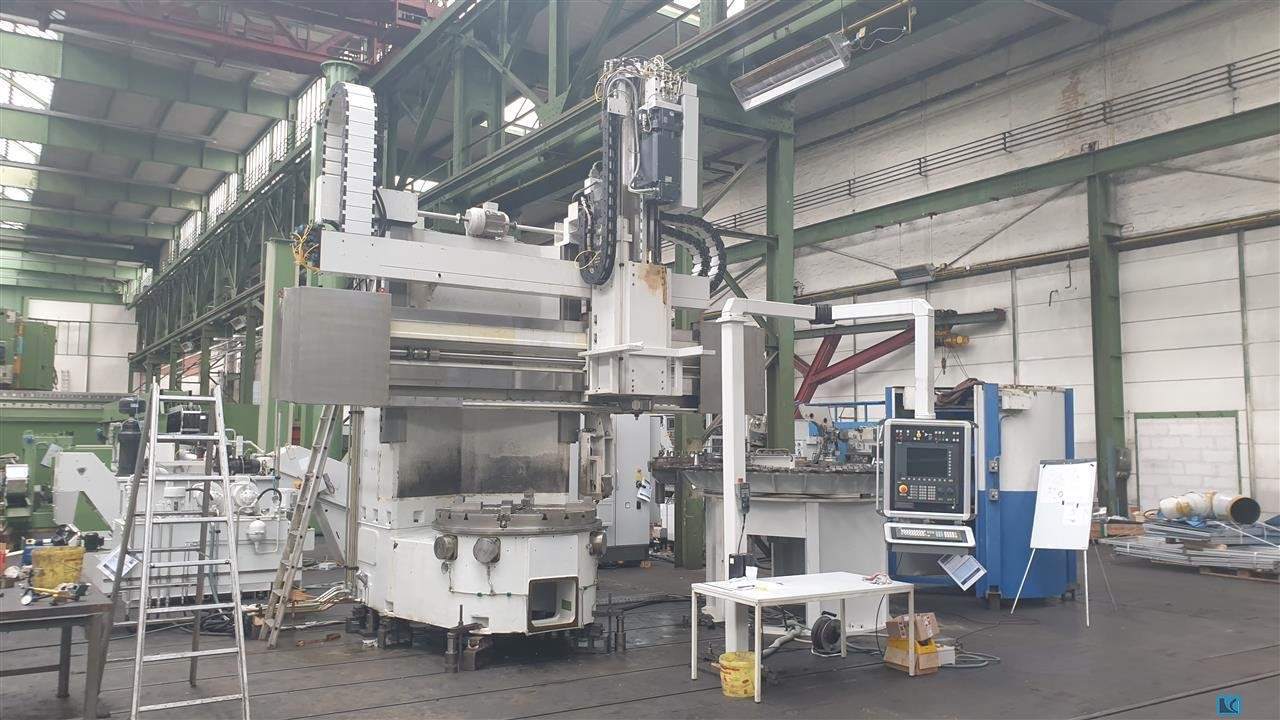

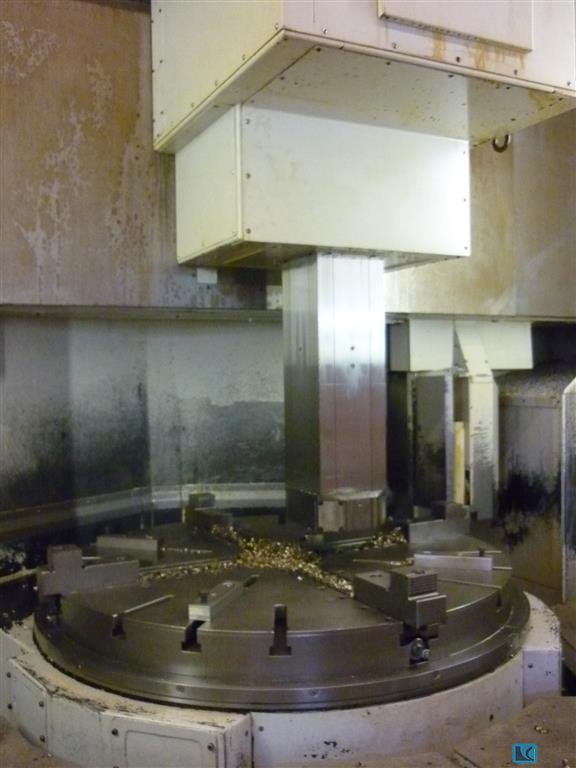

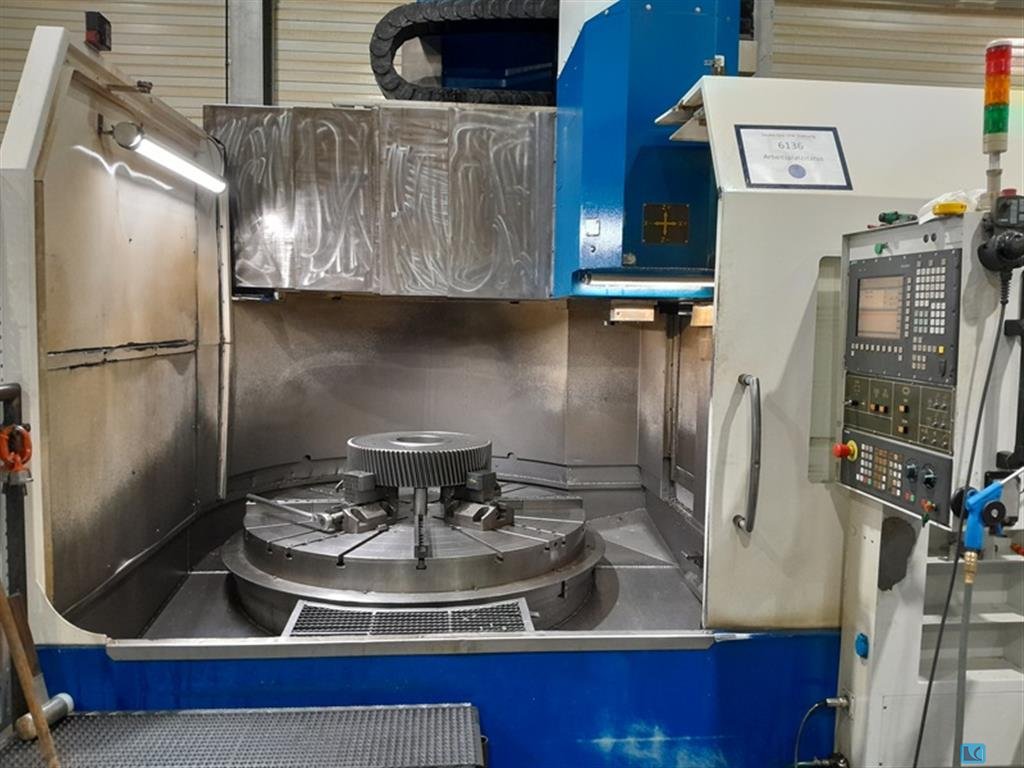

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

SCHAUBLIN 102 VM – Precision mechanical lathe SCHAUBLIN 102 VM mechanical lathe, a machine tool for machining operations and in particular for turning metal parts. This model is suitable for precision mechanical work and can be used in particular in workshops, laboratories and production environments requiring precise and regular turning operations. Features: Brand: SCHAUBLIN Model: 102 VM Type: precision mechanical lathe Application: Turning and machining of metal parts Use: professional and industrial Dimensions (L x W x H): 200 x 77 x 155 cm Weight: 400 kg Equipment sold as is. Auction-ID: A1-50714-4067

CNC control: MSX-850 III Number of axes: 2 Strokes: X = 260 mm, Z = 590 mm Spindle speed: 50 – 5000 rpm Power: 15 kW Bar capacity: Ø 65 mm Spindle bore: 73 mm Turret : 12 stations (BMT) Max turning diameter: 356 mm Max turning length: 510 mm Chip conveyor: yes 235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-50714-4004

turning diameter over bed:2600 mm turning diameter over slide rest:2200 mm turning length:5000 mm faceplate:2050 mm number of spindle speeds:0,7 - 70 rpm total power requirement:ca. 22 kw Height of centres: 1350 mm Distance between centres: 5000 mm Swing over cross slide: 2600 mm Spindle power: 30 HP Spindle speed: 0,7 - 70 rpm Longitudinal swift Control on the carriage Chuck: diam. 2050 mm

turning diameter:570 mm turning length:1000 mm dimensions of the machine ca.:3,25 x 2,03 x 1,95 m Tool disc turret for 8 tools with VDI 30. Not for power tools machine manual, technical documentation; Accessories: 3-jaw chuck, various tool holders Video is available

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER Auction-ID: A1-50714-4019

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25. No socket for powered tools!

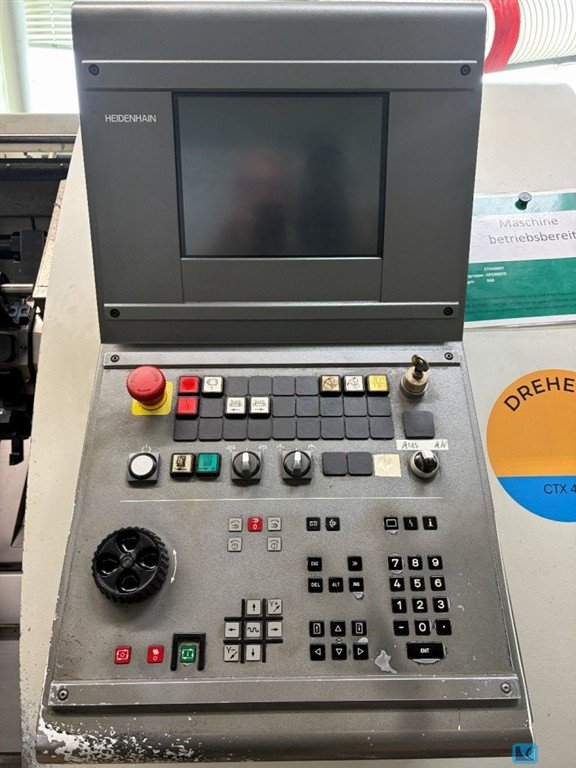

Manufacturer: GILDEMEISTER Model: CTX 400 Series 2 Year: 1998 German-made 2-axis CNC lathe, robust and precise, suitable for turning single parts and small to medium series. CNC : HEIDENHAIN TURN PLUS Axes: 2 axes (X, Z) Turning capacities: Diameter above bed: Ø 570 mm Diameter above carriage: Ø 420 mm X-axis stroke: 220 mm Z-axis stroke: 635 mm Spindle: Bore: 79 mm Chuck diameter: Ø 250 mm Spindle speed: 25 – 5000 rpm Motor power: 21 kW Fast feeds: X-axis: 20 m/min Z-axis: 24 m/min Turret: 12 positions VDI 30 Equipment: automatic tailstock (Ø 80 mm), chip conveyor, parts collector Country of origin: Germany Condition: used Auction-ID: A1-50714-4035

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter over bed:350 mm turning diameter over slide rest:240 mm turning length:800 mm Spindle RPM:40 - 2000 in 8 Stufen 1/min total power requirement:3 kW Spindle bore:26 mm tailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 m weight of the machine ca.:1,9 t Very well maintened center lathe with accessories - 3-jaw, 4-jaw chuck - tailstock with center - 1 boring head - RAPID quick tool change device with 3 holder - saddle mounted steady rest - collant device - set of collets appr. 75% size B 32

turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:570 mm turning length:- mm control:- Diameter of rotation above the bed slide:360 mm Maximum width:2.000 mm revolutions per minute:max. 2500 U/min :11 kW max. longitudinal feed:7,5 m/min max. transverse feed:7,5 m/min rapid traverse longitudinal:12 m/min rapid traverse cross:15 m/min Pinole diameter:95 mm Pinolenhub:220 mm Pinolen intake: MK 5 weight of the machine ca.:2,97 t dimensions of the machine ca.:3,8m x 1,3m x 2m m Technical description: - Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc - Machine bed - made of perlite casting GG-26 - high stiffness due to strong ribbing - Bed slides - guideways hardened and ground - automatic lubrication of the bed rail - Reitstock - manual - Quick clamp - Operator station - two movable handwheels on the operator panel - a movable handwheel - Control - "Siemens 828 D" CNC control - Siemens "Comfort" (in ...

turning diameter:500 mm turning length:1500 mm Technical Specifications: ·Turning diameter over cross slide: 290 mm ·Spindle bore: 71 mm ·Speed range: 3?2,800 rpm ·Rapid traverse speed: 10 / 5 m/min ·Feed rate: 1?2,000 mm/min ·Total power requirement: 22 kW ·Machine weight: approx. 3.2 t ·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach with live tooling:6 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t swing diameter max. over bed cover:570 mm spindle bore:79 mm chuck diameter:200/250 mm rapid power traverse in X-and Z direction:20/24 m/min numbers of tools:12 C-axis
