Complete non-returnable glass bottling line for hot fill and cold fill
Krones / KHS
Capacity: up to 33.000 bph by 500 ml glass bottles
(the capacity depends on the product, the product temperature and CO2
content)
Products:
juices like orange juice, apple juice, tomato juice, etc. but also
cold fill products like CSD with CO2
Bottle sizes: 250 ml - 1000 ml
Capping type:
28 mm aluminium
33 mm aluminium twist-off cap
43 mm aluminium twist-off cap
(the twist-off capping machine is included in the scope of supply)
Labelling:
paper labels with cold glue on the bottle
Packaging:
wrap around packaging (full carton) or tray packaging but without foil
shrinking station
Depalletizing and palletizing:
full automatically
Year of manufacturing: 1999 - 2007
This line was in production until end of 2025 in a German fruit juice
and CSD company. It is still installed
but out of production in North East of Germany. With this line you are
fully flexibel because of hot fill, cold fill with and without CO2
content and it is consist of industry-leading brands like KHS, Krones,
Meypack, Logopack, etc.
consisting of:

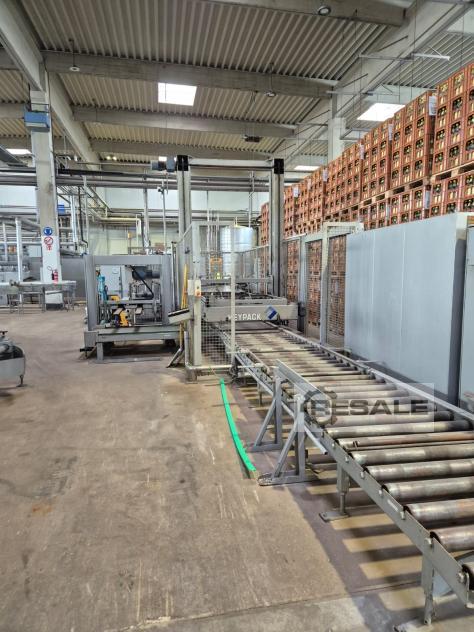

Depalletizer Meypack type DL 71, full automatic machine,
incl. pallet conveyor and pallet magazine
low level depalletizing system
Linear rinser Niko
Year of manufacturing: 1999
PLC Siemens S7
Multi flexible linear system
when hot filling products will be filled, you have to heat up the
bottle to prevent bottle bursting in the filler. This is why the Niko
rinser heats up the bottle with hot water incl.
heat recovering system incl. steam heat exchangers

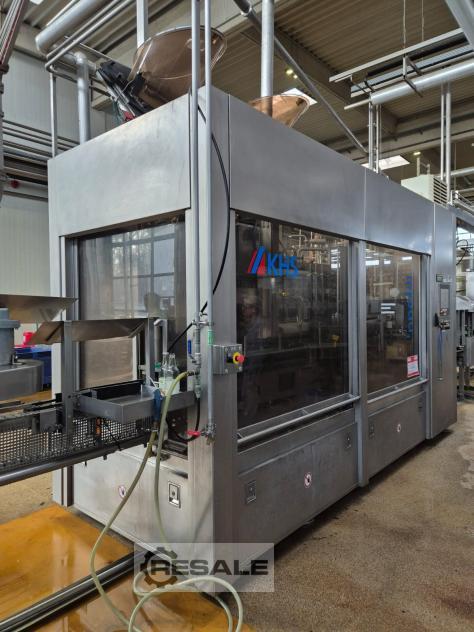

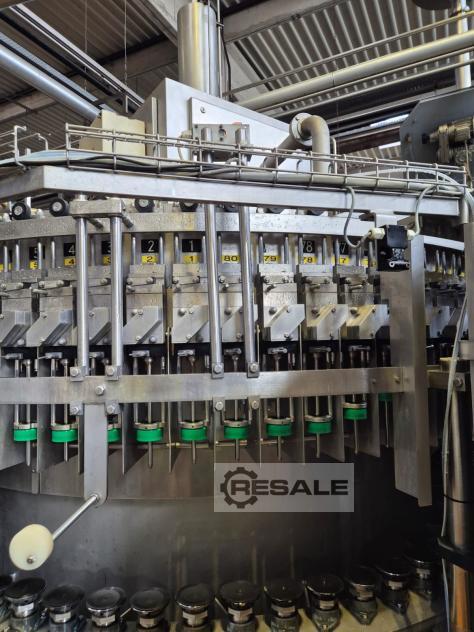

Filler KHS Innofill DNR 80
with 80 filling valves and 15head aluminium
screw Capper
Year of manufacturing: 1999
PLC Siemens S7 (HMI renewed in 2015)
Temperature range: 10°C to 104°C
incl. product recirculation system
Twist-Off capping machine
Italmeccania/Crown Model: S4BLH
PLC Siemens S7
for 2 types of twist-off caps 33 mm and 43 mm
Steam-heated system
Automatic closure sorting unit and closure feeding system
Cooling tunnel Tuchenhagen / Göbel
type K1-135, machine with 7 zones to cool down the hot fill bottles
K6134134 from approx. 100°C to approx. 25° C
Europool bottle drying station
year of manufacturing: 2007
to dry the bottles with air flow before labelling

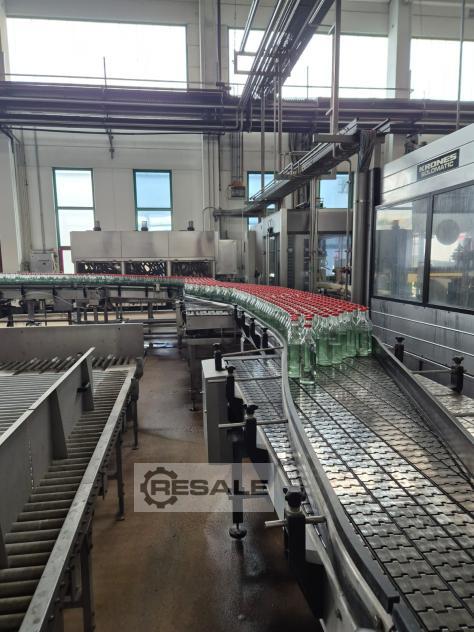

Labelling machine Krones Starmatic
PLC Siemens S5
to label pre-cutted paper labels with cold glue, either
by body and neck or around the bottle

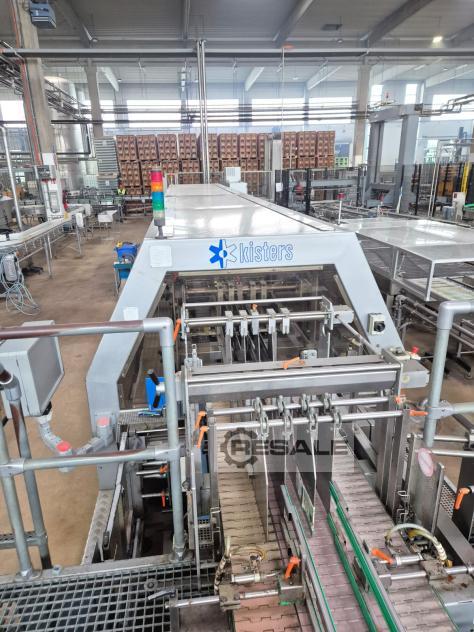

Packaging machine KHS wrap-around packaging machine type Kisters
320/50
year of manufacturing: 1999
capacity: up to 50 tacts / Min.
tray packaging or wrap-around carton possible
with Nordson hot melt system

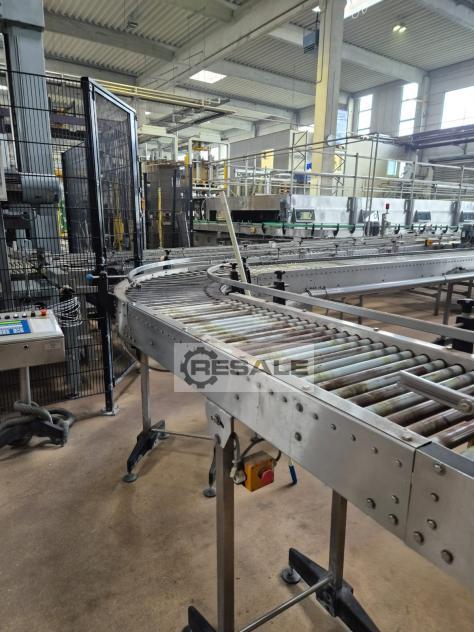

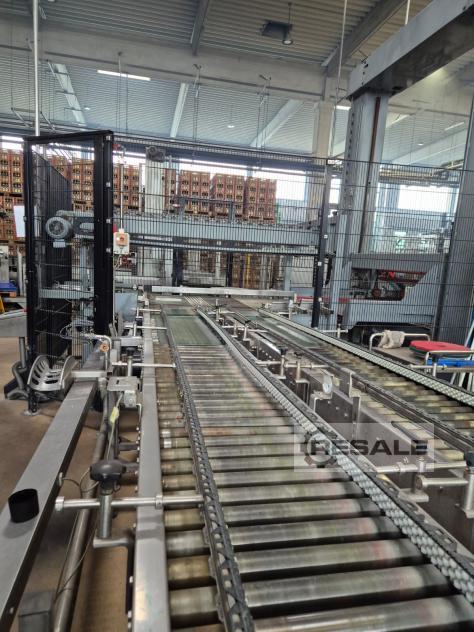

Complete bottle and pack conveyor system
KHS and Krones
Palletizer KHS
type 1BSN2
Year of manufacturing: 1999
PLC Siemens S7
incl. pre-grouping station,
incl. pallet labellling machine Logopack
Pallet formats: Düsseldorf, Euro, Industrial
Reverse Osmosis System MWT
Capacity: 800 l/h
Specifications:
High-quality filtration
Suitable for beverage production water treatment
Germany
