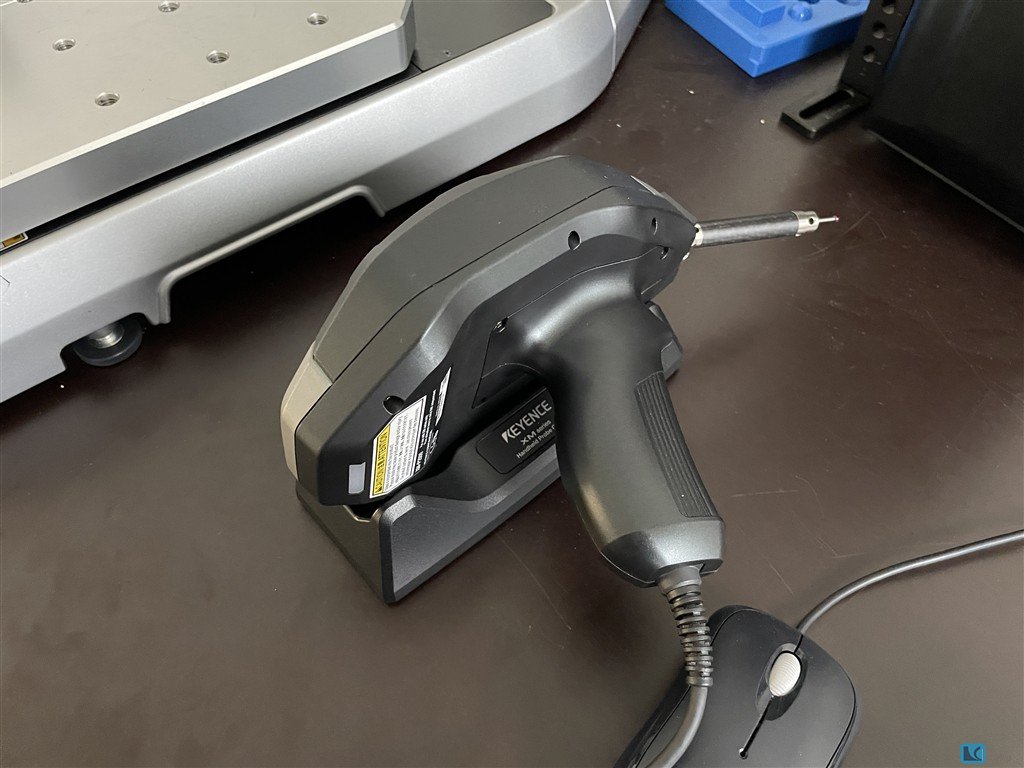

Keyence Digital Measuring Projector ? Model
XM-1600
General:
Digital measuring projector with a high
resolution image measurement system and very easy operation. Place the
part on the stage and measure by pressing a button. Supports automated
measurements of up to 300 dimensions within seconds.
Measuring
Head / Control Unit:
·Sensor: Monochrome CMOS 1 inch, 20
megapixels
·Display: 12.1 inch LCD monitor (WXGA 1280 x
800)
·Lens: Double telecentric lens
Measuring Field and
Measuring Range:
·Standard measuring field: approx. 100 mm
diameter
·Precision mode measuring field: approx. 25 x 25
mm
Measurement Accuracy and Repeatability:
·Display
resolution: 0.1 micrometer
·Repeatability (standard, without
stage movement): approx. plus minus 1 micrometer
·Precision mode
(without stage movement): approx. plus minus 0.5 micrometer
Stage
/ Travel Axes:
·XY measuring stage: motorized
·Z axis:
approx. 75 mm, motorized
·Maximum stage load: approx. 7.5
kg
Illumination and Additional Functions:
·Telecentric
transmitted and reflected light illumination
·Programmable or
segmented ring lighting
·Monitor connection: DVI-D
·USB
interfaces and LAN (for example RJ45)
·Built-in hard drive for
data storage
Electrical Data and Environmental
Conditions:
·Power supply: 100 to 240 V AC, 50 or 60
Hz
·Maximum power consumption: approx. 430 VA
·Operating
temperature: approx. 10 to 35 degrees Celsius
·Relative humidity:
20 to 80 percent, non condensing
Special Features:
·Easy and
operator independent measurement using automatic focus and
illumination adjustment
·Supports automatic inspection report
generation
