119,631 used machines on RESALE, but how to find them? Machine Search
used

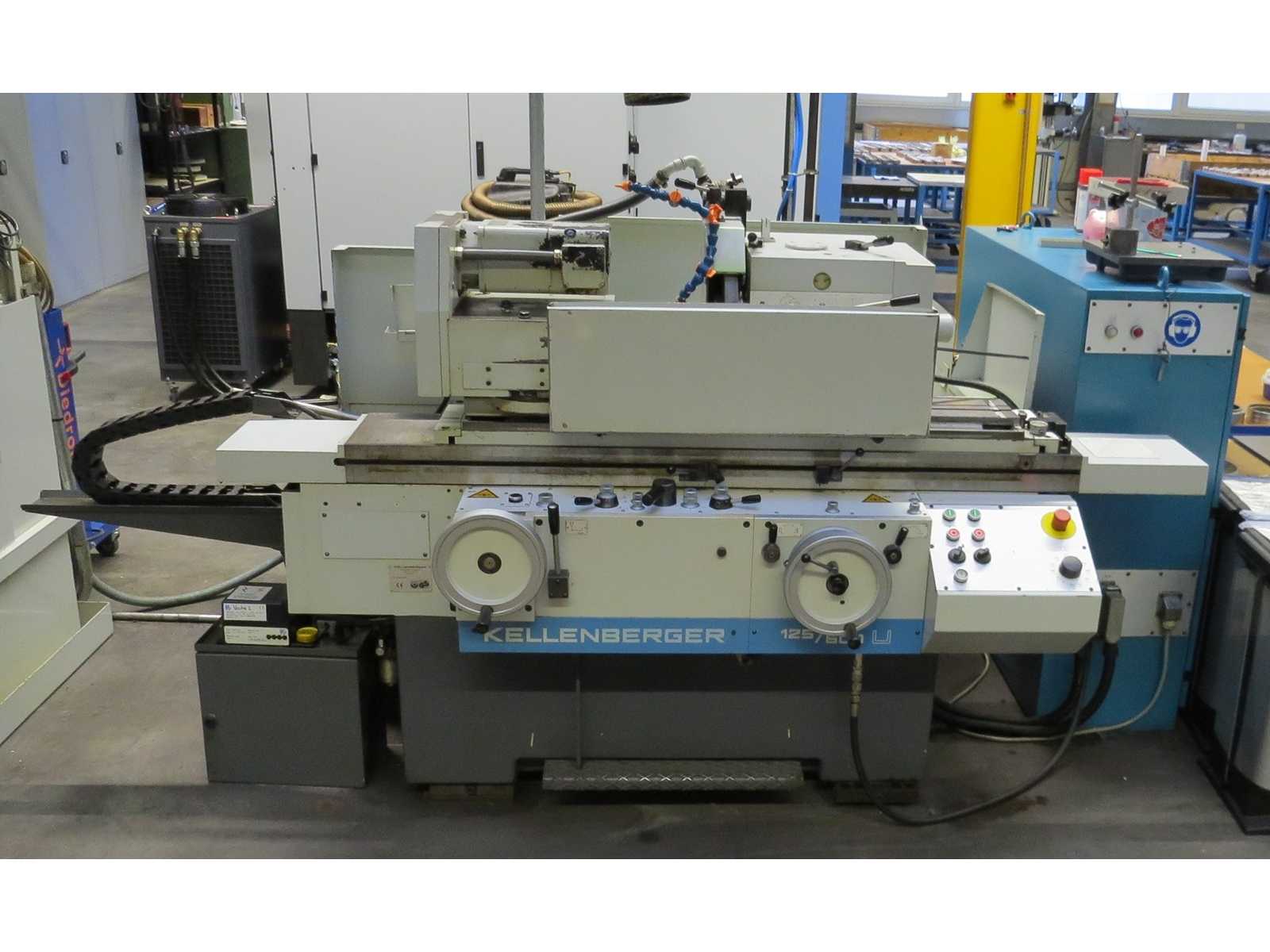

grinding diameter: 350 mm grinding length: 600 mm centre height: 175 mm grinding wheel diameter: 400 mm grinding wheel width: 50 mm bore: 127 mm : MK5 work piece spindle speed: 20-400 U/min workpiece spindle - bore: mm grinding head swivelling: 360 ° grinding spindle head - swivable: 180 + - ° grinding spindle speed: 1500,1700,2200 U/min : 0-9,99 mm/Ø : 0-9,99 mm/Ø : ±10 ° longitudinal feed of the table: 1100 mm table speeds: 0,02-6 m/min : 130 kg cross travel: max. 270 mm : 130 inkl. Spannung kg : mm grinding depth: mm : 80 mm tailstock quill taper MT: 3 quill travel: 30 mm total power requirement: 6,5 kW weight of the machine ca.: 3,05 t dimensions of the machine ca.: 4 x 2 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service ...
used
General: Year of construction 1998 Control Kellenberger Kel-Varia Grinding length 600 mm Grinding diameter 350 mm Center height 175 mm Weight 6.000 kg
used
We offer a complete set of original Kellenberger documents , for increasing the tip height by 50 mm. These are ground to a height. The overall picture shows the condition of the documents before post-processing
used
grinding diameter: 350/500 mm grinding length: 1000 mm centre height: 175,250 mm grinding wheel diameter: 400 mm grinding wheel width: 50 mm bore: 127 mm : MK5 work piece spindle speed: 6-600 U/min workpiece spindle - bore: mm grinding head swivelling: 360 ° grinding spindle head - swivable: 180 + - ° grinding spindle speed: 1500,1700,2200 U/min : 0,001-0,030 mm/Ø : 0-0,95 mm/Ø : ±9 ° longitudinal feed of the table: 1300 mm table speeds: 0,02-6 m/min : 130 kg : 130 inkl. Spannugkg kg : mm grinding depth: mm : 70 mm total power requirement: 6,5 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 4,2 x 2,0 m Nahezu neuwertige Maschine mit original CE. Vor Auslieferung erhält sie eine große Wartung und eine neue Geometrie nach Kellenberger Abnahmeprotokoll. Gewährleistung wie 12 Monate ab Lieferung. 2-Achs Digitalanzeige Heidenhain zusätzlichen Optionen wie: -Spritz ...
used
CYLINDRICAL GRINDING Good condition Control type Heidenhain X axis travel 320 mm Z axis stroke 1150 mm Distance between centers 1000 mm Center height 175 mm Right grinding wheel dimensions Ø 400 x 50 mm Grinding wheel head movements -210°/+30° Rotational speed 8-800 rpm Spindle type CM5
used
Ref. -No.: 10159 Manufacturer: KELLENBERGER Year of construction: 1974 Storage location: Halberstadt Country of origin: Schweiz Grinding Length: 1000 mm Grinding Diameter: 250 mm
used
grinding diameter: 350 mm grinding length: 1500 mm centre height: 175 mm total power requirement: kW weight of the machine ca.: 3 t dimensions of the machine ca.: m Overhauled and modernized machine -DRO in x and z-axis -New BEMA tailstock with 0,1mm cylinder compensation -Park position for the tailstock -New automatic switch off when diameter is reached -Automatic switching from rough to finish grinding -Finish grinding feed electrical infinitely variable from 0-100% -Modernized infeed handwheel like on the new machines -swiveling operator panel -Splash doors -coverd x-axis with possibility to set an exhauster on top -New internal grinding device like on the new model -new hydraulic aggregate -New electric cabinet -Scontrol voltage 24V instead of 220V Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrS ...
used
Maximum Swing: 350 mm Maximum Distance Between Centers: 1000 mm Maximum Grinding Capacity: 350 mm Height of Centers: 175 mm Power Requirements: 13.4HP Z-Axis Travel: 1115 mm Table Swivel: 300 mm X-Axis Travel: 260 mm Max Grinding Wheel (Left): 400 x62.5 x125 mm Max Grinding Wheel (Right): 225 x20 x76 mm Wheelhead Motor Output: 5.9HP Wheelhead Swivel: 200° Internal Spindle Carrier: 80 mm Workhead Swivel: -30° / +120° Spindle Speeds: 5-500 RPM Internal Taper of Spindle: #5MT Workhead Motor Output: 3.2HP Tailstock Taper: #4MT Tailstock Sleeve Retraction: 30 mm
used
Control ? Heidenhain Grinding lenght 1000 mm Gentre height 175 mm Dimension grinding wheel 400 mm Speed of grinding spindle 2000 rpm internal grinding attachment with rotation speed 20000 rpm, with grinding flange, measuring probe taster, machine has s
used
Control ? Heidenhain Grinding lenght 1000 mm Gentre height 175 mm Dimension grinding wheel 400 mm Speed of grinding spindle 2000 rpm internal grinding attachment with rotation speed 20000 rpm, with grinding flange, measuring probe taster, machine has s
used
grinding diameter: 350 mm grinding length: 1000 mm centre height: 175 mm total power requirement: kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: m Machine completely overhauled with 12 months warranty Mechanically and optically like new Photo from Kellenberger brochure Fanuc 21i control -Grinding head UR 1-2-3 external/internal/plan -Axis automatic 1° Hirth serration -Active longitudinal positioning KEL-POS Movomatic -Semi-automatic balancing device KEL-BALANCE -Grinding wheel equipment left 400mm diameter -Grinding wheel equipment right 300mm diameter -Internal grinding unit with belt drive -Tailstock with micro-adjustment -fine adjustment upper table -Paper belt filter SBP4 240l The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
grinding diameter: 350 mm grinding length: 1000 mm centre height: 175 mm Control: KELCO 90 total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
grinding diameter: 350 mm grinding length: 1500 mm centre height: 175 mm grinding wheel diameter: 400 mm grinding wheel width: 50 mm bore: 127 mm : MK5 work piece spindle speed: 20-600 U/min workpiece spindle - bore: mm grinding head swivelling: 360 ° grinding spindle head - swivable: 180 + - ° grinding spindle speed: 1500,1700,2200 U/min : 0,001-0,030 mm/Ø : 0-0,95 mm/Ø : ± 6 ° longitudinal feed of the table: 1750 mm table speeds: 0,02-6 m/min : 130 kg : 130 inkl. Spannugkg kg : mm grinding depth: mm : 80 mm total power requirement: 6,5 kW weight of the machine ca.: 2,9 t immediately available Series 61 built from 1994 untill 2012 Partially overhauled with a warranty period of 6 months after delivery in Germany and neighboring states. with internal grinding attachment - digital display in x-axis – 0,5µ - digital display in z-axis Options available for a surcharge: - rotar ...
used
Description: Year of construction: presumably 1986 Center distance: 600 mm Travel: max. 900 mm Cross slide: Travel, with feed handwheel in fine or coarse gear: 245 mm Travel per handwheel rotation, coarse/fine: 8/1 mm/diameter Rapid feed and return, hydraulic: 40 mm Grinding headstock: Grinding wheel for external cylindrical grinding: 400 x 50 x 127 mm Grinding wheel for right spindle end: 225 x 20 x 76.2 mm Grinding spindle speeds: 1500/1700/2200 rpm Swivel range of the sanding headstock: 270° With indexing every 90 Internal grinding spindle mounting hole: 70 (80) mm diameter Workpiece headstock: Swivel range: 340° For further technical data see pictures Center height: 125 mm Workpiece diameter: max. 249 mm With accessories as shown in the pictures, e.g. collets, grinding wheels and other grinding tools and accessories for the cylindrical grinding machine weight approx.: 3,000 kg, App ...
used
Case packer für 10 and 6 packs of 330 ml disposable bottles. Inclusive videojet printer dating machine construction year 2016. The line is controlled via a S7 Touchpad., Voltage: 400 V, Compressed air: 6 bar, Base construction: on feet, Features: Inkjet Dating machine construction year 2016, hot glue unit
used
centre height: 175 mm centre distance: 600 mm grinding wheel dia. x width: 450x50 mm grinding wheel hole diameter: 127 mm grinding wheel dia. x width: 225x20 mm grinding wheel hole diameter: 76,2 mm speeds: 1350-2200 U/min grinding head swivelling (right/left): 180 Grad weight of the machine ca.: 2,4 t dimensions of the machine ca.: 2,4x1,6x1,7 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Description: KELLENBERGER 1000 U circular grinding machine The machine comes from a university training workshop. The machine is equipped with: - Internal grinding device with internal grinding spindle - Extensive accessories, some of which have been little or not used (see photos) Further technical data can be found in the photo on the manufacturer's brochure page! grinding diameter: 250 mm, grinding length: 1,000 mm, weight approx.: 3,100 kg, Approx. Onsite Dimension. (l x w x h): 2,900 x 1,700 x 1,700 mm
used
grinding diameter: 500 mm grinding length: 1000 mm centre height: 250 mm Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Photo of machine already delivered in similar scope: -major maintenance -New table geometry -partial painting of the interior grinding wheel equipment LEFT 400x63x127mm (standard) grinding wheel equipment RIGHT 300x40x127mm Internal grinding unit Ø120mm for HF spindles CNC control KELCO 120 C-axis for non-circular grinding. Kel-Poly B-AXIS: CNC-controlled B-axis KELCO 120: v constant 35m/s or 45m/s High-frequency internal grinding spindle Operating unit for MFV and MFZ spindles Hydraulic quill retraction for the tailstock NO micro-adjustment on the tailstock Spring-loaded quill insert Top table cooling Standard workpiece headstock MK 5 DIN 55026 size 5 Micro-adjustment for the standard workhead Dressing device ...
used
grinding diameter: 250,350,450 mm grinding length: 1000 mm centre height: 125,175,225 mm grinding wheel diameter: 400 mm grinding wheel width: 50 mm bore: 127 mm : MK5 work piece spindle speed: 20-400 U/min workpiece spindle - bore: mm grinding head swivelling: 360 ° grinding spindle head - swivable: 180 + - ° grinding spindle speed: 1500,1700,2200 U/min : 0,001-0,030 mm/Ø : 0-0,95 mm/Ø : ±8 ° longitudinal feed of the table: 1300 mm table speeds: 0,02-6 m/min : 130 kg : 130 inkl. Spannugkg kg : mm grinding depth: mm : 70 mm total power requirement: 6,5 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your machines.Version R: Maschine hat Zentral ...
used
Technische Daten Technical Data Center height 175 mm Grinding length 600 mm Speed Spindle / Spindle Speed 1500 rpm Grinding wheel 400x50x127 mm If you are interested in this machine, please contact us, we will be happy to send you a detailed offer If you are interested in this machine, please contact us and we will be pleased to send you a detailed offer
used
centre height: 200 mm centre distance: 600 mm grinding wheel dia. x width: 450x50 mm grinding wheel dia. x width: 225x20 mm weight of the machine ca.: 2.4 t dimensions of the machine ca.: 2.4 x 1.6 x 1.7 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Universal Cylindrical Grinding Machine Kellenberger 1500 U Serial Number : 1109/449LK Manufactured in 1979 Retrofitted in 2024 Machine characteristics : Centre height : 125 mm + heights of 125 mm Distance between centres : 1500 mm Automatic retreat after the piece is finished Angular displacement : 270 ° Work piece spindle head: from 20 rpm up to 400 rpm Table angular displacement : 6 ° Table speed: stepless up to 6.0 m/min External Grinding wheel motor : 4.0 Kw Internal Grinding spindle: 15000 rpm Workhead spindle motor : 2.2 Kw Machine's weight about : 3500 kg Overall dimensions machine: Length : 4860 mm Width : 1680 mm Height : 1670 mm The machine is fully retrofitted and it includes: - New electric cabinet and new electric diagram - New motor and frequency variator for the workhead - 2 axis DRO - Cooling tank - Geometry made according to t ...
used
CONTROLS digital read out HEIDENHAIN WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 349 mm WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 250 mm grinding length: 1000 mm ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 4000 mm space requirements -front/back-: 2000 mm total height: 1500 mm total weight approx.: 2500 kg ATTACHMENTS (GRINDING) Flange of grinding wheel: yes coolant unit: yes
used
The machine is equipped with controlled B-axis smallest delivery 0.001, swivel range 340, controlled workpiece spindle stick (C-axis)smallest delivery 0.05, max. 42 rpm, equipped with an external grinding spindle (left and right spindle end), 1 internal grinding spindle. For an additional charge, a second internal grinding spindle can be delivered. Z-way 680 mm, X-way 255 mm, smallest delivery of the axles 0.001 mm. Tip height 175 mm, W.-stock MK 5, step. adjustable 1 - 1200 rpm, external grinding spindle 1000 - 3000 rpm, max. grinding wheel perm. 300 mm. The machine is suitable for ideal for the processing of carbide and technical ceramics (SIC and Al 2). Intermediate sale:reservations Delivery time:4-6 months
used
Center distance: 0 mm Grinding head Z-axis: 0 mm Center height: 0 mm CNC Brand: 0 CNC Model: 0 Control: GE FANUC Series 16-MB Technical data Number of axis total: 6 Grinding-wheel diameter: max 125 mm Axial motion: Crosswise: 200 mm Longitudinal: 190 mm Vertical: 150 mm Smallest travel: 0.0001 mm Rotary and swivel axes: Smallest travel: 0.0001 ° U axis Workpiece holder head: 360 ° V-axis Swivel movement of the workpiece spindle: 184 ° W axis Inclination of the grinding spindle carrier: -20 / +15 ° Turret slide: Number of positions: 4 Workpiece chuck speeds: 0 - 1500 rpm Grinding spindle speeds: stepless from: 0 rpm up to: 13000 rpm Hydraulic system: 10 / 40 bar Voltage 50 Hz 3x: 400 Volt Grinding spindle motor: 3.7 kW Total power required: 10 kVA Machine´s weight about: 3500 kg Overall dimensions machine: Length: 2200 mm Width: 1810 mm Height: 2600 mm Various accessories: 3D m ...
used
Center distance: 0 mm Grinding head Z-axis: 0 mm Center height: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Grinding-wheel diameter: 100 mm Longitudinal way of table: 100 mm Transversal way of the table: 120 mm Vertical: 50 mm Tête de rectifiage vertical: Collet attachment: 20 W horizontal: +/-45 ° axe rotatif table tournante: 360 ° Workpiece chuck speeds: 60-800 rpm Grinding spindle speeds: stepless from: 2000 rpm up to: 8000 rpm Voltage 50 Hz 3x: 400 Volt Grinding spindle motor: 0.37 kW Machine´s weight about: 460 kg Overall dimensions machine: Length: 950 mm Width: 750 mm Height: 1350 mm Various accessories: Drive to dividing attachment Dust extraction Lamp Optical microscope Digital readout number of axis:: 2 Microscopeholder Microscopeholder from top Work piece spindle head Digital readout number of axis:: 2 Projector:
used
Clamping tongs recording: MK 5 / B-20 with forcing nut
used
Manufacturer Strausak Model U-Grind Year 2018 Machine is in very good condition
used
Complete wheel sets for the production and subsequent sharpening of HSS and carbide tools. Single diamond and CBN discs. for the manufacturing and Resharpening. Grinding wheel shots short and long run. Spacer discs for grinding wheel flanges.
used
KELLENBERGER UR 175-1000 Yes it is a machine that we are using in Exact. We replace it because a new Studer will arrive next week and we have no more space in the company. The machine works very well and has just been overhauled by us, replacing many electrical and mechanical parts. KELLENBERGER UR 175-1000 Hardinge
used
Diameter: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Work capacity:max. diameter: 35 mm max. module: 1.00 Workpiece length max.: 22 mm Gear hob: max. diameter: 24 mm Milling cutter speeds: stepless from: 850 rpm up to: 5200 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 600 kg Overall dimensions machine: Length: 800 mm Width: 800 mm Height: 1450 mm Various accessories: Automatic loader Lamp
used
Diameter: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Work capacity:max. diameter: 35 mm max. module: 1.00 Workpiece length max.: 22 mm Gear hob: max. diameter: 24 mm Milling cutter speeds: stepless from: 850 rpm up to: 5200 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 600 kg Overall dimensions machine: Length: 800 mm Width: 800 mm Height: 1450 mm
used
In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.
used
Key data: 355 mm, 600 mm, 120 mm
TACCELLA (Italy) Universal – Cylindrical Grinding Machine Type 612 UA (comparable to KELLENBERGER, STUDER, TSCHUDIN) Year: unkant, ca. 1998 Condition: very good Center width: 600 mm Center height: 120 mm Longitudinal travel: 600 mm Transverse travel: 250 mm Max. grinding diameter: 200 mm Max. internal grinding diameter: 10 – 270 mm Max. internal grinding depth: approx. 440 mm Table: Tischub: 4-600 mm Table speed: 100 – 7,000 mm/min. Table Swivel: +/- 45 Grinding headstock: Spindle power: approx. 4 kW Spindle speeds: 1640/1900 rpm. Grinding wheel dimensions max. 355 x 70 mm x 127 mm bore Workpiece headstock: Speed: 22 – 580 rpm infinitely variable Swivel: +/- 45° Tailstock: Quillendiam. 20 mm Quill stroke: 20 mm Cone: MK 3 Internal grinding device: ...
