Extruders KAUTEX KCC30

machines for plastic / extruders / Extruders

Manufacturer: KAUTEX

Model:KCC30

Type of machine: Extruders

item-No.: 169461194

Quantity: 1

Date: 07.05.2026

Year of manufacture: 2012

Operating hours: 33000

Location: Land-fr France 01100 GROISSIAT

Price:


Seller-item-No.:BM103

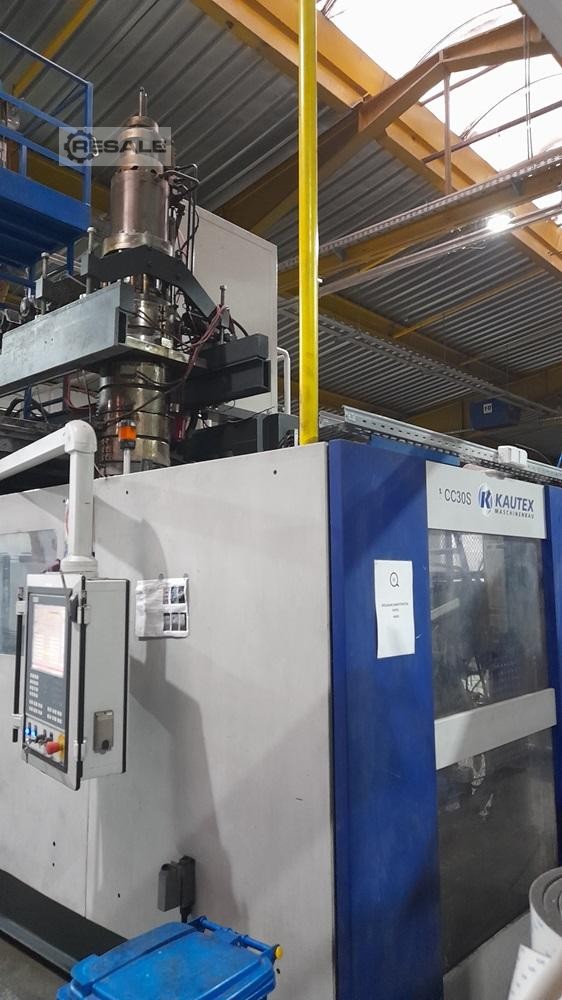

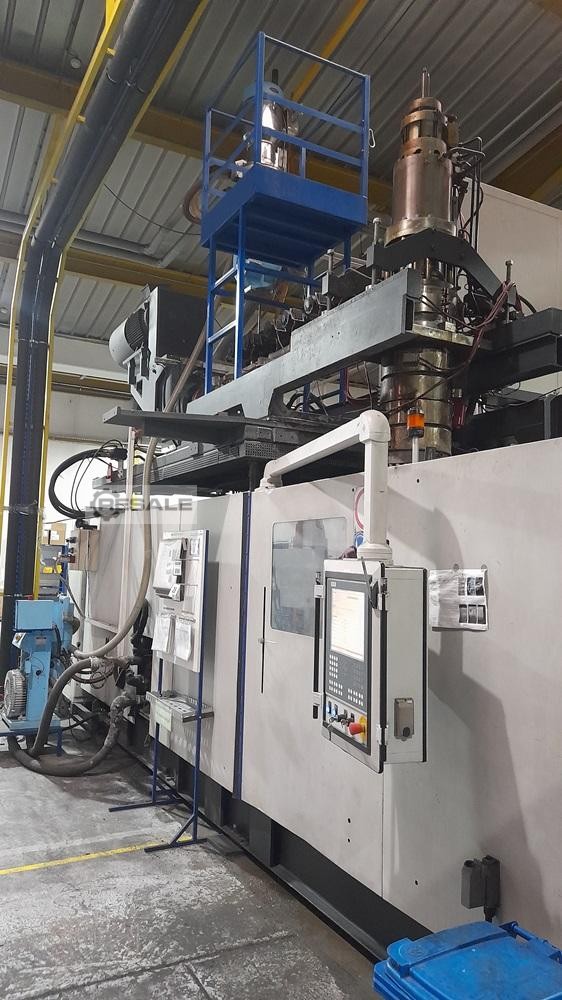

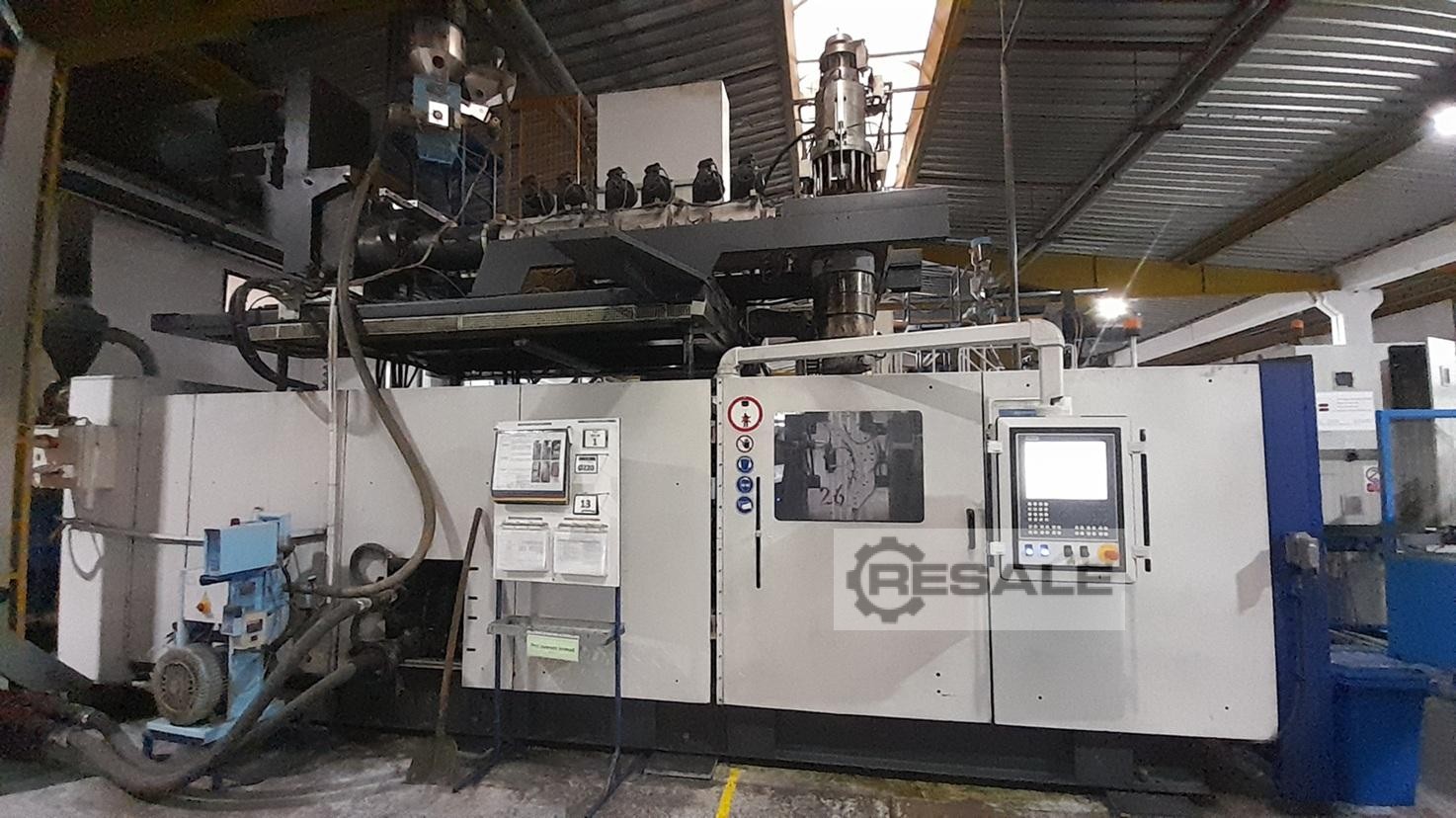

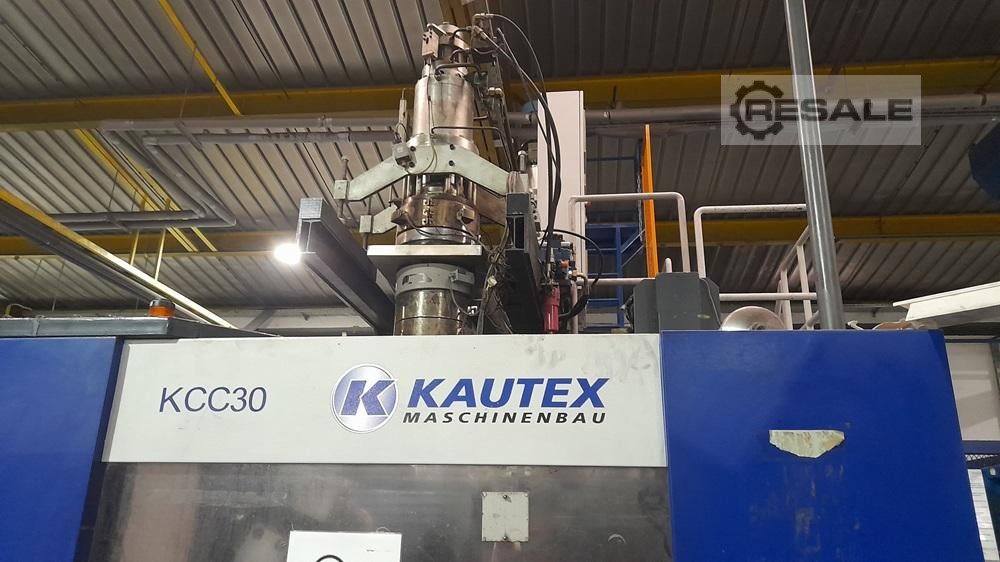

KAUTEX KCC30 Extrusion Blow Molding Machine
Year: 2012
Operating hours: 33,000 h
1 station
Clamping force: 300 KN
Screw diameter: 90 mm
4 kg accumulation head (HDPE)Platen Dimensions : 530 x 700 mm
Distance between plates 1000 mm
Maximum mold dimensions: 870 x 650 x 765 mm

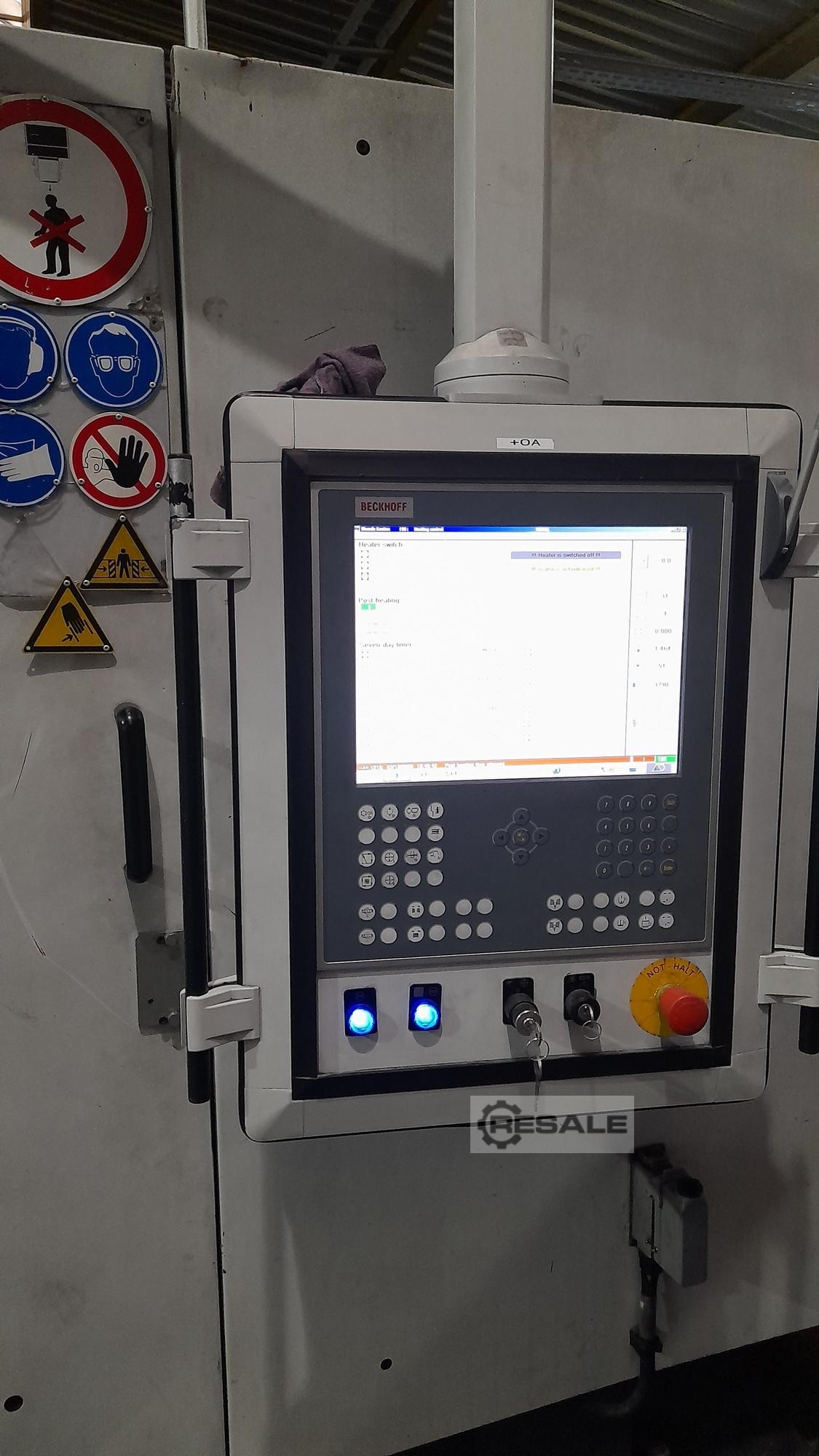

Control system Blow command
Head type: Vertical head with hydraulic accumulator
Maximum container volume: 30 liters
Die diameters: 90, 150, 170, 190 or 220 mm
Maximum pressure: 220 bar
Air consumption: 95 m3/h
Pressure air: 6 - 10 bars
Installed power: 20 KW
Number of temperature zones: 5
