2-vessel brewhouse with stainless steel brewing vessels, mounted on a
brewing block. The brewing block consists of the following components:
1. Mash and wort kettle, steam-heated (bottom heating zone with
perforated weld + internal boiler), insulated, with a gross volume of
15 hl. The kettle is equipped with a continuously adjustable,
top-driven agitator. The boiling vapours are extracted by a kettle fan
into a vapour condensation pipe fitted with Lechler nozzles. The
kettle also features a CIP spray head and a digital thermometer. 2.
Mashing and lauter tun, insulated, with a continuously adjustable
rake, inlets and outlets for wort and thick mash, spent grain flap,
lauter floor (designed as a slotted screen floor), mash/wort pump and
digital thermometer. Cleaning nozzles are fitted for internal cleaning
and rinsing. For hot trub separation, the vessel also features a
tangentially fed whirlpool nozzle. 3. Control cabinet with control
panel 4. Various pipework, valves and sensors. The system is equipped

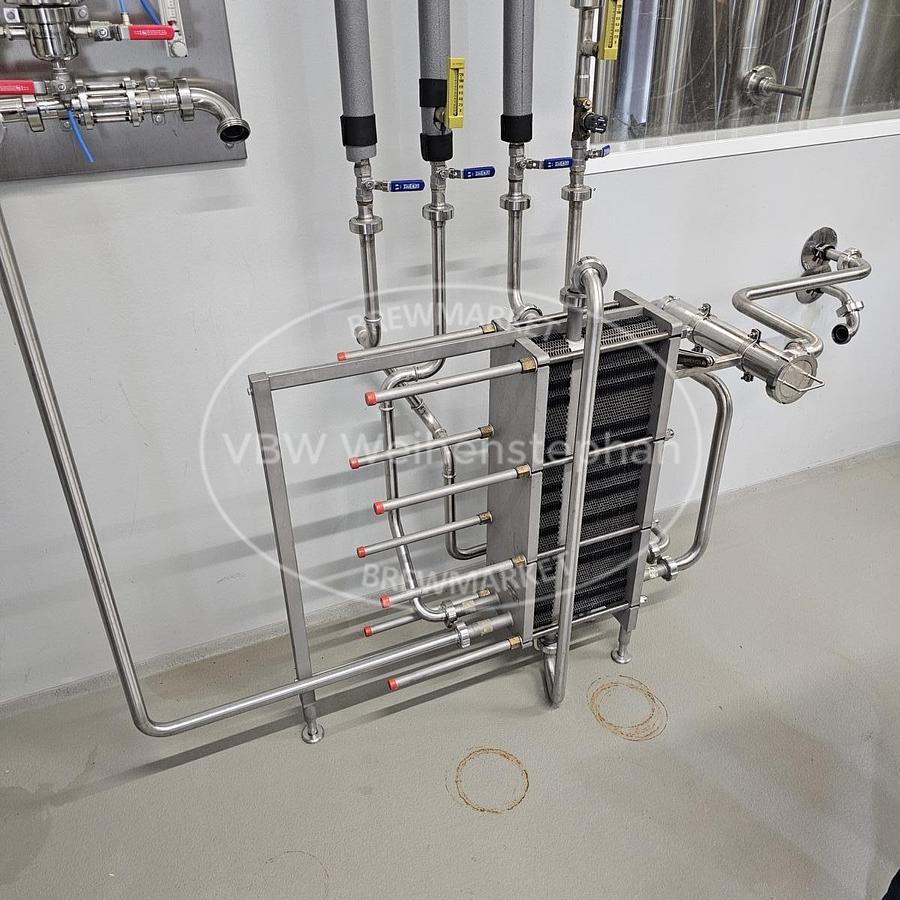

with a two-stage plate heat exchanger for wort cooling at 1,000 l/h

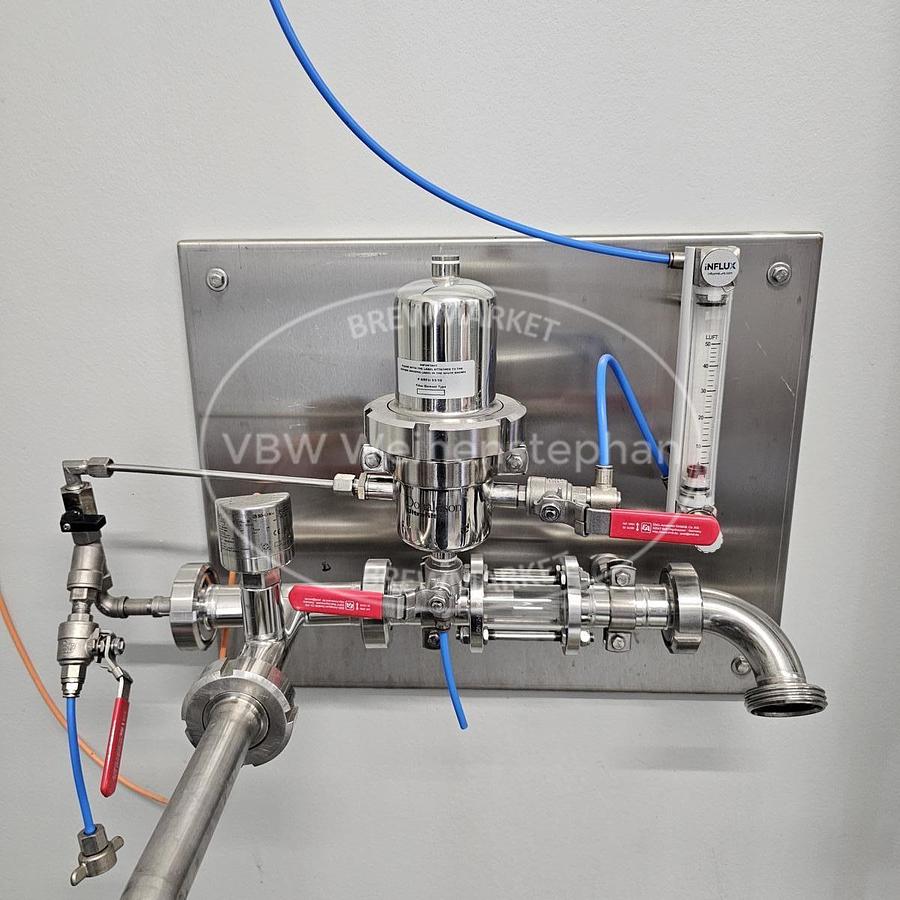

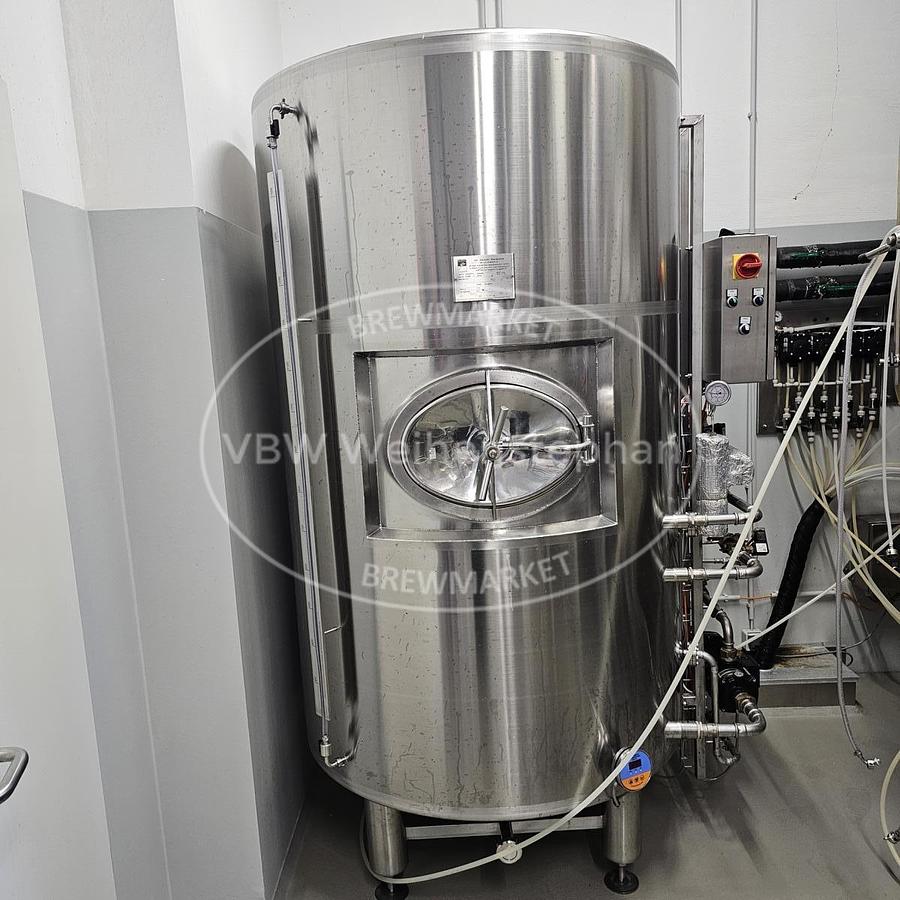

and a wort aeration device. In addition, a 20-hectolitre insulated
stainless-steel tank with a heating jacket and a booster pump is
available for use as a hot-water storage tank., Additional title:
brewing block with stainless steel brew vessels, Mash and wort pan net
capacity approx.: 1000 L hot wort, Mash and wort kettle inner diameter
approx.: 1000 mm, Mash and lauter tun inner diameter approx.: 1250 mm,
Height up to hood door approx.: 1 m, Power: 4 kW, Voltage: 400 V,
Frequency: 50 Hz, Operation / Control: Braupilot” HMI control via
touch screen, Material: Stainless steel 1.4301, Base construction:
Thanks to its modular design, the entire brewhouse is very compact and
can be integrated individually and space-savingly into the guest
area., Features: Mash and wort kettle with bottom heating and internal
cooker, mash and lauter tun with whirlpool nozzle (combination
vessel), hot water tank, wort cooling, wort areation, fittings, pumps,
pipes
