injection mold for used for sale

Key data: 2000 kN

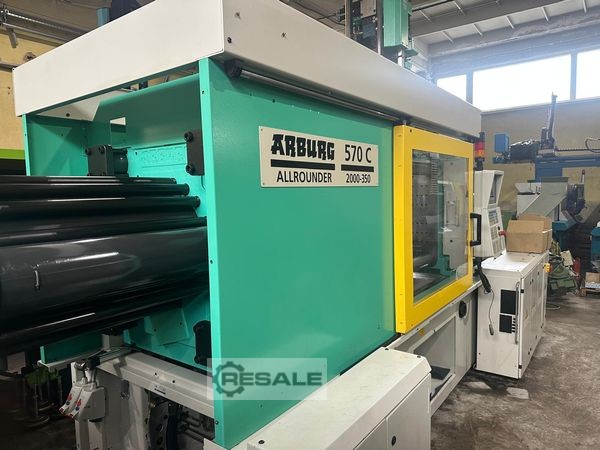

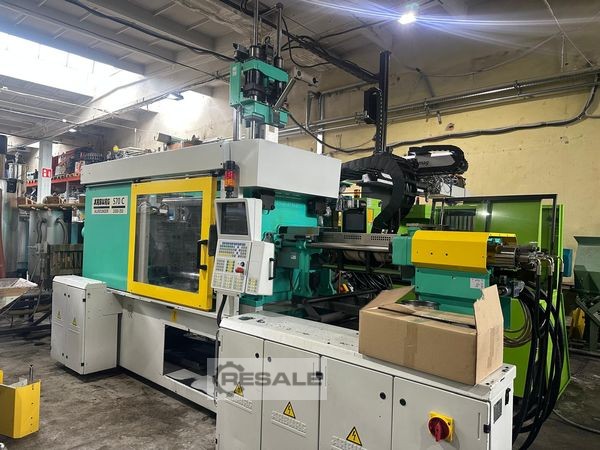

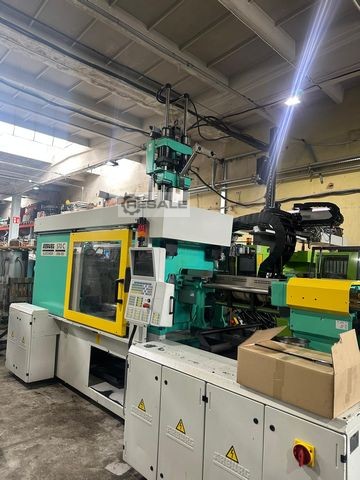

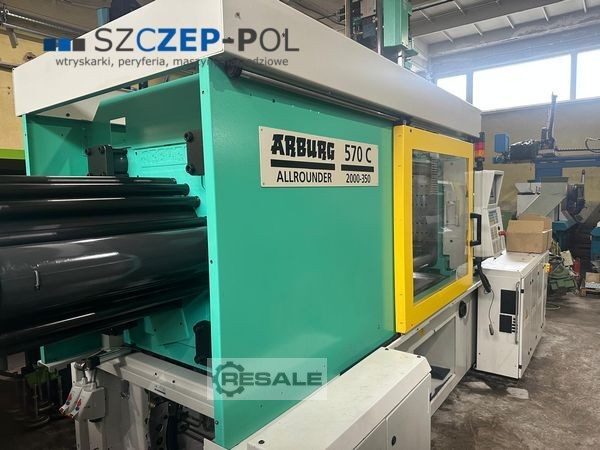

Arburg 570C 2000-350/150 / Production line with the Arburg Multilift side robot / 2K machine Year of Make: 2003 Injection unit: Screw diameter: 40 mm Injection weight: 153 g Spray pressure: 2120 bar Dosing volume: 182 ccm Clamping unit: Clamping force: 200 t Handlebar spacing: 570x570 mm Size of the clamping plates: 795x795 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA Additional equipment: Production line with the Arburg Multilift side robot 2K Machine Air Valve x 1 Hydraulic core pull x 5 Control with hot runners Reinforced Injection Units – Bimetal Proportional valves on sprinkler units - precise spraying The vertical injection unit - screw diameter: ⌀25 mm - 49 g/hp It is possible to buy a turntable for an extra charge Dimensions: Weight: 7300 kg All offered machines are started by our service technicians before they ar ...

Key data: 2200 kN

Arburg 570S 2200-290/100/100 / Production line with the Wittmann W823 robot / Operating hours: 20,499 h in automatic mode Year of Make: 2016 Injection unit: Screw diameter: 35 mm Injection weight: 132 g Spray pressure: 2000 bar Dosing volume: 144 ccm Clamping unit: Clamping force: 220 t Handlebar spacing: 570x570 mm Size of the clamping plates: 795x795 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: 3-component injection moulding machine, high-speed Very good technical condition Operating hours: 20,499 h in automatic mode Euromap 67 Robot interface Air Valve x 6 Hydraulic, needle-core pull, controlled by a proportional valve x 4 Control with hot runners Hardened injection unit - Bimetal Proportional valve on the injection unit – precise injection Machine with two cylinders / battery with compressed ...

a KM-200-1000 machine with removal robot built in 2006 for sale. The machine is in neat condition and serviced by Krauss Maffei.

Brand & Model: SANDRETTO Serie NS - 230 T Reference: NS 860/2300 Condition: Very good Technical Specifications: Clamping force: 230 T / 2300 KN Tie bar spacing: 585 x 585 mm Platen dimensions: 860 x 860 mm Mold thickness (Min/Max): 210 - 630 mm Opening stroke: 580 mm Injection volume: 475 cm³ Injection pressure: 1876 bar Screw diameter: 50 mm L/D ratio: 20 Dimensions & Weight: Weight: 10 500 kg

Key data: 2200 kN

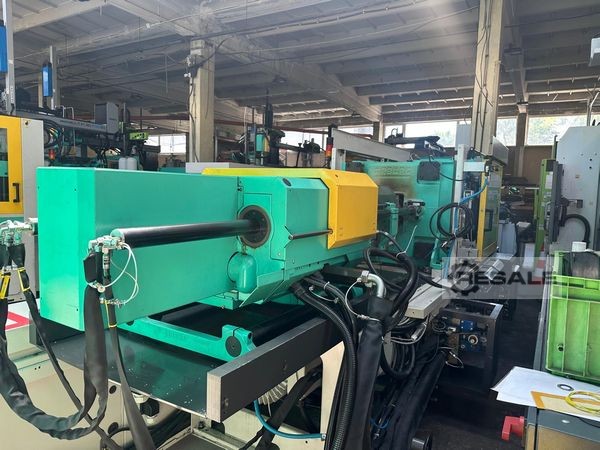

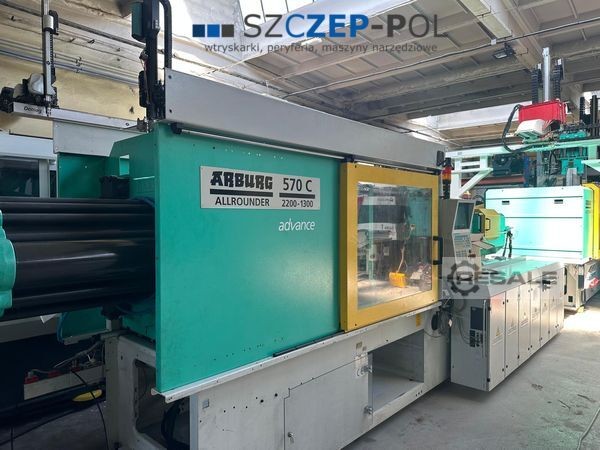

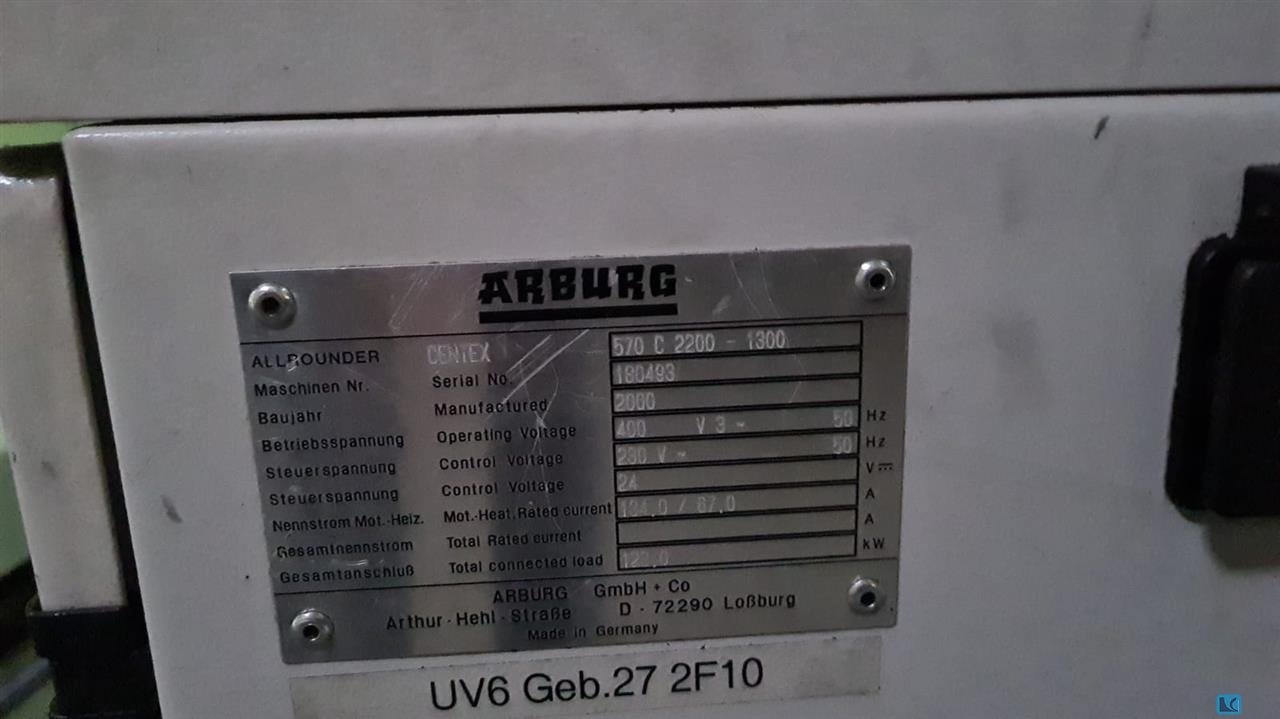

Arburg 570C 2200-1300 / Hybrid machine Year of manufacture: 07.2006 Injection unit: Screw diameter: 55 mm Injection weight: 469 g Spray pressure: 2380 bar Dosing volume: 558 ccm Clamping unit: Clamping force: 220 t Handlebar spacing: 570x570 mm Size of the clamping plates: 795x795 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA Additional equipment: Hybrid machine: high-speed, energy-saving and very quiet Euromap 67 Robot interface Air Valve x 4 Hydraulic core pull x 2 Control with hot runners x 8 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving The injection unit is driven by the servo motor, which is controlled by an inverter Dimensions: Weight: 9300 kg Length/Width/Height: 5.16x2.06x2.39 m All offered machines are started by our service technicians before they are sold ...

SANDRETTO serie 8 790/240 Clamping force : 200 T Distance between tie bar : 570 x 570 mm Platen dimensions : 860 x 860 mm Mould thickness min / max : 210 - 730 mm Opening strocke : 630 mm Injectable volume : 546 cm3 Pressure on material : 1450 bars Screw diameter : 55 mm Weight : 11 500 kg Dimensions : 7,68 x 2,35 x 1,78 m

Sandretto serie 8 MEGA T 1000 année 1996 Force de fermeture : 1000 T Diamètre vis d'injection : 150 mm Volume injectable : 11296 cm3 Epaisseur moule min/max : 450mm/1350 mm Course plateau mobile : 1350 mm Dimensions des plateaux : 1820 x 1820 mm Passage entre les colonnes : 1230 x 1230 mm Diamètre des colonnes : 220 mm Quantité d'huile contenue : 1500 L Dimensions : 15,1 x 3,15 x 2,81 m

SANDRETTO serie 8 430/95 Clamping force : 95 T Distance between tie bar : 370 X 370 mm Platen dimensions : 560x 560 mm Mould thickness min / max : 100 - 460 mm Opening stroke : 410 mm Injectable volume : 286 cm3 Pressure on material : 1500 bars Screw diameter : 45 mm Weight : 5 400 kg Dimensions : 5,67 x 2,03 x 1,32 m

Key data: 2500 kN

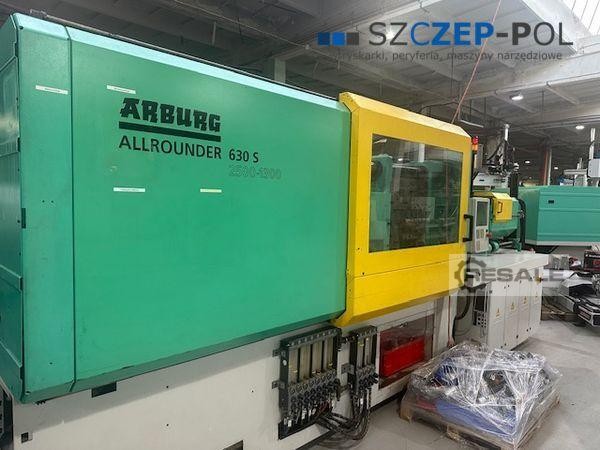

Arburg 630S 2500-1300 ECO / Production line with the Sepro Industrial Robot SDR 22S Year of Make: 2008 Injection unit: Screw diameter: 55 mm Injection weight: 521 g Spray pressure: 2380 bar Dosing volume: 570 ccm Clamping unit: Clamping force: 250 t Tiebar spacing: 630x630 mm Size of the clamping plates: 900x900 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 4 Hydraulic core pull x 2 Control with hot runners x 15 Hardened injection unit - Bimetal Machine with cylinder / battery with compressed nitrogen (extra charge for fast working) ECO – the machine has a system for adjusting the minimum tool height Robot - Sepro Industrial Robot SDR 22S Year of Make: 2016 4-axis robot: 3 axes are driven by servo motors (electric); Axis C - pneumatic Traversing in axes: X- ...

Key data: 3200 kN

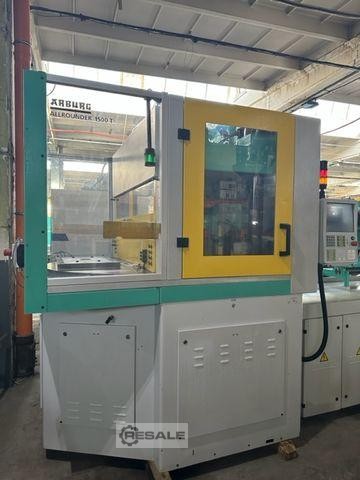

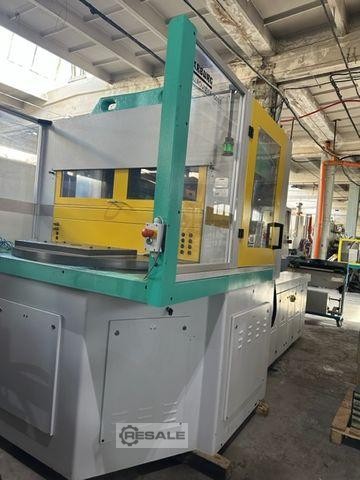

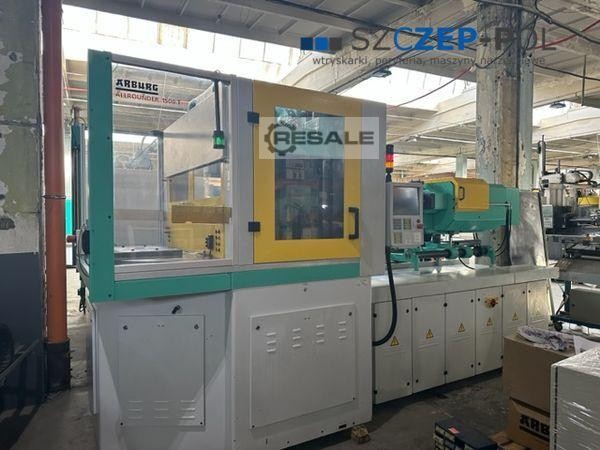

Arburg 1500T 3200-1300 e² / Hybrid machine with a turntable Year of Make: 2011 Injection unit: Screw diameter: 60 mm Injection weight: 607 g Spray pressure: 2000 bar Dosing volume: 664 ccm Clamping unit: Clamping force: 320 t Spar spacing: 0x0 mm Size of the clamping plates: 1510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: high-speed, energy-saving and very quiet Operating hours: approx. 30,000 in automatic mode Euromap 67 Robot interface Control with air valve Hydraulic core pull x 3 Control with hot runners x 13 Hardened injection unit - Bimetal Main motor of the machine – servo motor driven by inverter Very precise rotary table, driven by a servo motor, controlled by an inverter Rotary table diameter: 1500 mm Horizontal injection unit with automatic injection height adjustm ...

Ref. no.: 18586 Manufacturer: KRAUSS MAFFEI Year of construction: 2011 Clamping unit Clamping force: 180 ton Opening stroke: 1050 mm Distance between tie bars: 560 × 510 mm Mould height min.: 200 mm Mould height max.: 600 mm Platen size (h x v): 790 × 740 mm Injection unit Screw diameter: 50 mm Injection volume: 393 cm³ Shot weight: 357 g Injection pressure: 1892 bar Measurements and weight Dimensions: 6,07 x 1,92 x 2,01 m Machine weight: 6500 kg Further information: Fully electric machine offering maximum precision, lowest energy consumption and highest process stability his machine belongs to the proven AX series from KraussMaffei, known for its robust design, high performance, and reliability in industrial production. With a clamping force of 180 tons, the machine is ideally suited for a wide range of technical plastic applications, including automotive, packaging, and general ind ...

Key data: 800 kN

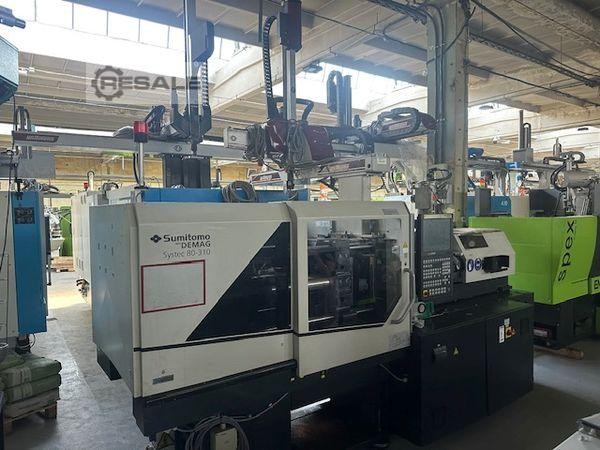

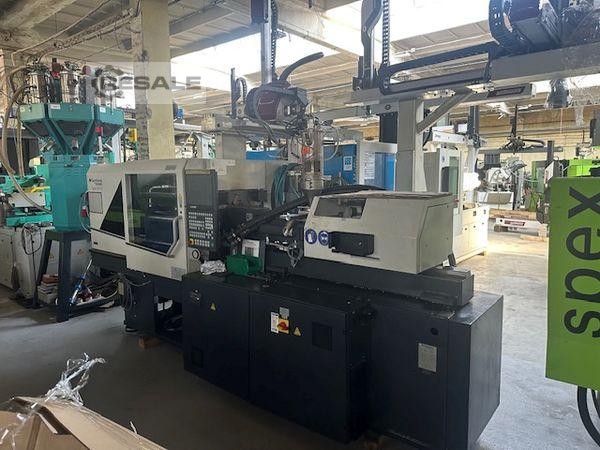

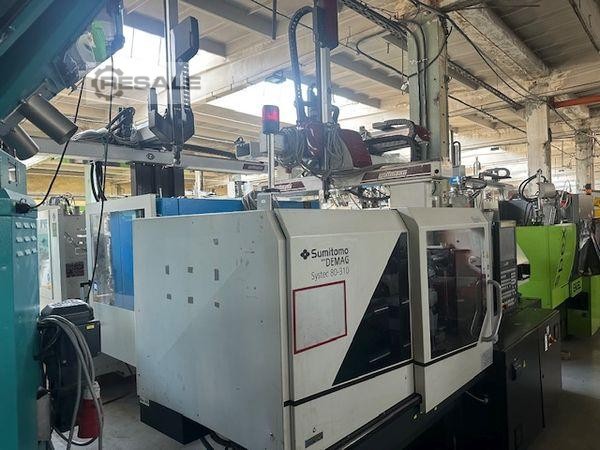

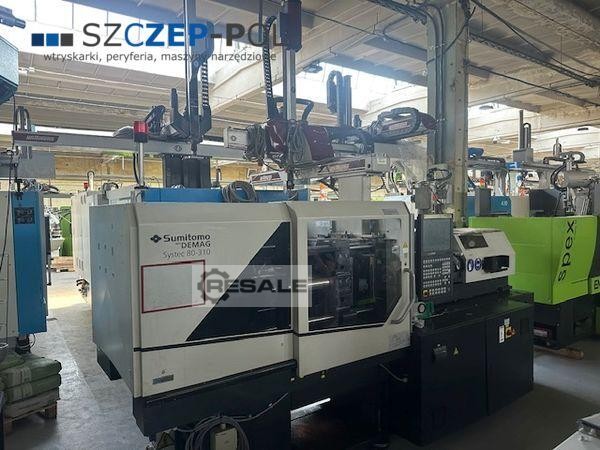

Sumitomo Demag Systec 80/420-310 with the Wittmann W818 robot Year of Make: 2015 Injection unit: Screw diameter: 30 mm Injection weight: 103 g Spray pressure: 2755 bar Dosing volume: 115 ccm Clamping unit: Clamping force: 80 t Spar spacing: 420x420 mm Size of the clamping plates: 600x600 mm Ejector: hydraulic Clamping unit: hydraulic Control: NC5 Additional equipment: Euromap 67 Robot interface Hydraulic core pull x 2 Control with hot runners x 12 Hardened injection unit - Bimetal Parallel movements Built-in printer Robot Wittmann W818 Year of Make: 2013 4-axis robot: 3 axes are driven by servo motors (electric); Axis C - pneumatic Traversing in axes: X-420, Y-1000, Z-1500 Touch control panel The safety package for robots Robot with adapter Purchase of the robot at an additional cost Dimensions: Weight: 4000 kg Length/Width/Height: 4.10x ...

Key data: 1100 , 40

Machine de moulage par injection ENGEL VC330 -110T Référence : VC 330 /110 Force de fermeture : 110 T Année de fabrication : 2004 Nombre d'heures de travail : 84000 heures Diamètre de la vis : 40 mm Volume injectable maximum : 251 cm3 Epaisseur du moule : mini : 300 mm Poids : 7300 kg Dimensions : 4,36m x 1,48m x 2,04m 4,36 m x 1,48 m x 2,04 m

BILLION 200 T série HERCULE H 780/200 Force de serrage : 200 T - 2000 KN Groupe d'injection : H 780 Diamètre vis. : 50 mm Distance entre colonnes : 500 x 500 mm Dimensions des plateaux : 760 x 760 mm Epaisseur mini/maxi du moule : 280 - 580 mm Course d'ouverture : 560 mm Volume injecté : 422 cm3 Pression matière : 1843 bars Dimensions : 7,1x 2,1 x 2,6 m Poids : 14 000 kg

Injection moulding machine Sumitomo Demag IntElect 210/580-1000, built in 2009 (without the handling / temperature control units / material supply [hopper, conveyor]). Sumitomo Demag IntElect 210/580-1000 Operating hours: 27,297 25,717 Cycle counter 3,450,308

Injection molding machine Krauss Maffei KM 800-4300 MX BJ 2006

Key data: 1100 kN, 254 g/PS, 45 mm

Used Ferromatic K110D-S plastic injection moulding machine. New 2000. Technical specifications of the machine: · Manufacturer: FERROMATIK MIALACRON. · Model: K110D-S. · New: 2000. · Clamping force: 1100 kN. · Injection volume: 254 cm3. · Screw diameter: 45 mm. · Maximum distance between plates: 800 mm. · Control: IQT44. · Machine weight: 5500 kg. Technical documentation. The machine is regularly serviced, fully functional and ready for use.

Key data: 1100 kN, 99 g/PS, 30 mm

Used Ferromatic K110D-S plastic injection moulding machine. New 2000. Technical specifications of the machine · Manufacturer: FERROMATIK MIALACRON. · Model: K110D-S. · New: 2000. · Clamping force: 1100 kN. · Injection volume: 99 cm3. · Screw diameter: 30 mm. · Maximum distance between plates: 620 mm. · Control: IQT33. · Machine weight: 5500 kg. Technical documentation. The machine is regularly serviced, fully functional and ready for operation.

Injection molding machine Krauss Maffei KM 650-4300 CX BJ 2010

Key data: 2000 kN, 562 g/PS, 55 mm

Specification Injection Moulding Machine Engel VC 1350/200 Tech General data Clamping force: 200 t Year of Make: 2007 Injection unit weight: 562 g Injection Unit .../1350 Screw diameter: 55 mm Specific injection pressure: 2183 bar Injection volume: 618 cm³ Injection unit weight: 562 g Tool clamping unit 200/... Clamping force: 200 t Dimensions of the tool plates: 860 x 570 mm Output force: 80 kN Tool height: 400 mm Opening travel: 750 mm Maximum panel spacing: 1150 mm Discharge stroke: 180 mm Other Specifications Weight: 14200 kg Dimensions (L x W x H): 6.3 x 1.9 x 2.3 m Year of Make: 2007 Equipment 2 x hydraulic core on the moving plate Pneumatic valve Integrated robot 8 zones for hot runners Rotameter 8-fold

CLAMPING FORCE: 150TON PLATEN SIZES: 1295 X 990 DBTB: ROTARY TABLE 1520 MIN MOULD HEIGHT: 300 MOULD OPENING STROKE: 400MM MAX DAYLIGHT: 700MM SCREW DIAMETER: 40MM INJECTION PRESSURE: 2678BAR STROKE VOLUME: 283CM3 SHOT WEIGHT (P/S): 257GR CONTROLS: UNILOG B6 MOTOR: 22KW HEATING CAPACITY: 12.1KW SCREW DRIVE: HYDRAULIC CORE PULLING: 4 AIR VALVES: 1 HOT RUNNER: 8 ZONE INTERGRATED ADDITIONAL: HORIZONAL INJECTION VERTICAL CLAMP

ENGEL ES 1350/350 HL injection moulding machine was built in 1995 in Austria by ENGEL AUSTRIA GmbH. The machine, which is designed for the economical production of plastic parts, is distinguished by the use of many components with excellent technical parameters. These parts are produced using the reliable injection moulding method, which involves feeding plasticised plastic into a mould and then clamping it with high press force. A precision mould clamping system, operating at a maximum force of 350 tonnes, guarantees high repeatability and quality of the manufactured parts. Once the production process is complete, the robot automatically transfers the finished products from the workspace to a conveyor belt. The ES 1350/350 HL injection moulding machine weighs 5000 kg. Technical specifications of the ENGEL ES 1350/350 HL injection moulding machine - CNC controller: ENGEL - maximum m ...

Key data: 600 kN, 132 g/PS, 35 mm

Arburg 320C-600-250 Injection Moulding Machine (241) Ability to work vertically Number: 241 Availability: in stock Year of production: 2008 Producer: Arburg Condition of Injection Molding Machine: Used Screw diameter [mm]: 35 Injection weight [g]: 132 Injection pressure [bar]: 1820 Clamping force [kN]: 600 Gap spacing [mm]: 320×320 Panel size [mm]: 446 x 446 Min. mould height [mm]: 200 Control Type: Selogica Tongue: German Installed power [kW]: 23.9 Working hours [h]: 74753 Weight [kg]: 2330 Dimensions [mm]: 3500×1500 Feed hopper: NO Robot Socket: Yes Core String: 1x

Key data: 220 kN

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 22M injection moulding machine. Any machines awaiting refurbishment (or undergoing refurbishment) with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and addi ...

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 55A injection moulding machine, fitted with the Procan CT Controller. Any machines awaiting refurbishment (or undergoing refurbishment) with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on reques ...

4 x Demag injection moulding machines Demag 80 to BJ 2005 Demag 420 to BJ 2003 Demag 420 to BJ 2005 Demag 420 to BJ 2008

Presse à injecter ENGEL VC 200/80 Année : 2005 Nombre d’heures : 79 000 h Force de fermeture : 80 T Course d'ouverture : 450 mm Epaisseur moule min : 250 mm Dimensions des plateaux : 670 x 600 mm Diamètre bagues de centrage : 125 mm diamètre de la vis : 35 mm Volume injectable : 154 cm3 COMMANDE : CC200 1 noyau hydraulique interface robot : Euromap 67 DONNÉES GÉNÉRALES : Puissance de chauffage installée : 6,8 kW Puissance d'entraînement de la pompe : 15 kW Puissance totale connectée : moteur + chauffage Poids total : 5.200 kg Dimensions totales L x l x H : 4,0 x 1,4 x 2,0 m

Key data: 5500 , 80

Presse à injecter ENGEL 550 T Type ES1800 Année : 1998 E parfait état de fonctionnement

Key data: 3000 , 702 , 60

Presse à injecter ENGEL 300 T Type : VICTORY 1800 / 300 POWER Année de fabrication : 2008 En bon état de fonctionnement Force de fermeture : 3000 KN / 300 T Diamètre vis : 60 mm Volume injectable : 763 cm3 Poids de l’injection en PS : 702 gr Pression d’injection : 1960 bars Vitesse d’injection : 284 cm3/s Course ouverture moule max : 900 mm Epaisseur min moule : 400 mm Dimensions des plateaux : 1100 x 1100 mm Nombre de litres d’huile : 870 L Dimensions : 7,2 x 2,0 x 2,50 m Poids machine : 20 000 kg

Presse à injecter ENGEL 180 T Type : VICTORY 500/180 POWER Force de fermeture : 1800 KN - 180 T Année : 2008 Diamètre de la vis : 45 mm Volume d'injection : 318 cm³ Pression d’injection : 2040 bars Épaisseur min/max moule : 300 750 mm Distance entre colonnes : 860 x 830 mm

screw size:45 mm injection shot weight in Polysterol:149 g/PS closing pressure:100 kN

closing pressure:6600 kN weight of the machine ca.:45,5 t

screw size:60 mm closing pressure:3500 kN total power requirement:193 kW weight of the machine ca.:25,5 t dimensions of the machine ca.:7,65 x 3,65 x 3,95 m

Key data: 1500 , 220 , 40

Presse à injecter ENGEL 150 T type ES 500/150HL Année de fabrication : 2001 En bon état de fonctionnement Force de fermeture : 1500 KN / 150 T Diamètre vis : 40 mm Volume injectable : 251 cm3 Pression d’injection : 1300 bars Rapport L/D. : 20 Nombre de zones de chauffe : 4 Ouverture max des plateaux : 950 mm Course d’ouverture : 700 mm Course de l’ejection. : 150 mm Epaisseur min moule : 250 mm Dimensions des plateaux : 820 x 750 mm Dimensions : 5,45 x 1,60 x 2,40 m Poids : 13 000 kg

Ref. no.: 18565 Manufacturer: DEMAG Year of construction: 2005 Clamping unit Clamping force: 150 ton Opening stroke: 500 mm Distance between tie bars: 500 x 500 mm Mould height min.: 250 mm Opening width: 750 mm Platen size (h x v): 750 x 750 mm Injection unit Screw diameter: 45 mm Injection volume: 323 cm³ Shot weight: 290 g Injection pressure: 1973 bar Measurements and weight Dimensions: 5.45 x 1.63 x 2.1 m Machine weight: 7500 kg Robot Producer: Wittmann Type: W721-0231 Year: 2005 Further information: The Demag Ergotech System series hydraulic injection moulding machine is a suitable plastic injection moulding machine for technical plastic parts and automated serial production applications. Thanks to its hydraulic operating principle, the machine offers powerful and stable injection performance, while the Demag NC4 control system ensures precise process control. The machine is equip ...

Key data: 900 , 183 , 40

Presse à injecter ENGEL 90T type ES 330/90 HL Année de fabrication : 1995 En bon état de fonctionnement Force de fermeture : 900 KN / 90 T Diamètre vis : 40 mm Volume injectable : 201 cm3 Poids de l'injection en PS : 183 gr Pression d’injection : 1300 bars Nombre de zones de chauffe : 4 Ouverture max des plateaux : 950 mm Course d’ouverture : 500 mm Epaisseur min moule : 250 mm Dimensions des plateaux : 710 x 420 mm Dimensions : 4,22 x 1,42 x 2,00 m Poids : 5 900 kg

Injection moulding machine Stork N-2500-1400 Injection unit: Spray pressure (max.) 2100 bar Spray volume (max.) 595 cc Injection weight hp (max.) 565 g Spraying speed (max) 299 cc/s Nozzle (immersion depth) Clamping unit: Clamping force 250 tons Locking force 275 tons Size of the clamping plate (hor. + vert.) 920 X 920 Opening stroke (max.) 575 mm Max. tool weight Tool height (min./max.) 200-685 Clear width between the bars 585-585 mm Discharge stroke (max.) 175 mm Ejector diameter max.80 mm Centering ring (DS-AWS) 160 mm Max. clear width between clamping p. Options: Core pull (time limit switch) Freely programmable Ejector plate (end position control)  ...

Presse à injecter ARBURG 100 T type 420C 1000-250 Année de fabrication : 1999 En bon état de fonctionnement Pompe neuve Force de fermeture : 1000 KN / 100 T Diamètre vis : 40 mm Volume injectable : 188 cm3 Pression d’injection : 1530 bars Rapport L/D : 18 Ouverture max des plateaux : 750 mm Epaisseur min moule : 250 mm Dimensions des plateaux : 570 x 570 mm Entre colonnes : 420 x 420 mm Dimensions : 4,15 x 1,60 x 2,02 m

Key data: 4000 , 1464 , 80

Screw diameter: 80 mm Injectable volume: 1678 cm3 Injectable weight: 1464 g Injection pressure: 1856 bar Column passage: 800 x 800 mm Opening stroke: 1020 mm

B&A REF:  9213 TON: 60 SCREW DIAMETER:  25MM SHOT WEIGHT: 45 STROKE VOLUME:  49CM3 INJECTION PRESSURE:  2240AR PLATEN SIZES:  446 x 446MM DBTB: 320 X 320MM MIN MOULD HEIGHT:  200MM MOULD OPENING STROKE:  350MM MAX DAYLIGHT:  550MM EJECTOR STROKE:  125MM CONTROLS: SELOGICA CORE PULLING: 1 MOTOR: 15 HEATING CAPACITY: 8.9KW SCREW DRIVE:   HYDRAULIC

B&A REF:  9222 TON: 85 SCREW DIAMETER:  35MM SHOT WEIGHT: 155 STROKE VOLUME:  170CM3 INJECTION PRESSURE:  1700AR PLATEN SIZES:  590 X 570MM DBTB: 400 X 360MM MIN MOULD HEIGHT:  150MM MAX MOULD HEIGHT: 450MM MOULD OPENING STROKE:  360MM MAX DAYLIGHT:  810MM EJECTOR STROKE:  125MM CONTROLS: DIMI EL 2000 CORE PULLING: 1 AIR VALVES: 2  MOTOR: 11 HEATING CAPACITY: 7.5KW ROBOT INTERFACE: EUROMAP 12 SCREW DRIVE:   HYDRAULIC

Brand Ferromatik Milacron GmbH Type eQ-280 - 2290 Bj Ud Dvsw Ebpweycjlp Year of manufacturing 2023 Machine hours 50 hours Clamping Force 2.800 kN Screw ø 60 Mm Injection Pressure 2.238 bar Shotvolume max. 905 cm3 Max. distance between holms 710 x 660 mm Min. mould height 250 mm Distance between plates max. 1.400 mm Dimensions (LxWxH) 8.500 x 2.100 x 2.500 mm Weight 18.400 kG

Clamping Force: 300 ton // Shot Weight (Max): 476 g

Clamping Force: 200 ton

Clamping Force: 350 ton // Shot Weight (Max): 694 g

Clamping Force: 420 ton // Shot Weight (Max): 1555 g

Clamping Force: 1000 ton // Shot Weight (Max): 6995 g

Clamping Force: 220 ton // Shot Weight (Max): 625 g

Key data: 4 kN, 70 mm

Injection Molding Machine Injection Molding Machine Manufacturer: Krauss Maffei Type: KM350 /1900 C2 Year of Make: 2005 Clamping force: 3,500 kN Tool opening force: 220 kN Driving Force Moving Plate: open: 105 kN close: 95 kN Clamping plate (h x v): 1,060 x 1,095 mm Clear width (h x v): 710 x 710 mm Tool opening travel: 920 mm Tool installation height min.: 380 mm Opening width: 1,300 mm Ejector stroke: 250 mm Ejector force forward/backward: 95 / 48 kN Pump motor: 75 kW Installed heating capacity: 30 kW Cylinder heating control zones: 6 Dry run rate: 1,550 1/h Oil filling: 720 ltr. Dimensions and weights: Net weight with control cabinet: approx. 16.0 to L/W/H: 6,510 x 2,040 x 2,380 mm Tool weight max.: 4,780 kg Injection unit: Working capacity: 1900 Screw diameter: 70 mm Spray pressure: 1,778 bar Displacement: 1,047 cm3 Shot weight for PS: 953 g I ...
