index cnc lathe used for sale

Ref. -No.: 10229 Manufacturer: GÖPPINGER Year of construction: 1953 Type of control: Konventionell Control: N/a Storage location: Halberstadt Country of origin: Deutschland Machine length: 4700 mm Machine width: 1450 mm Machine Height: 1300 mm Weight Of The Machine Ca.: 3,1 t Supply voltage: 380 V Turning Length: 3000 mm Turning Diameter Over Bed: 530 mm Centre Distance: 3050 mm Swing Diameter Over Bed Slide: 305 mm Spindle Bore: 58 mm Total Power Requirement: 5,5 kW Circulation in the crank: 720 mm

Thread-cutting gears, number of teeth: 30, 57, 60, 105, 120, 127, equipment: lead screw for thread cutting, separate feed system, automatic longitudinal and cross feed, change gear for feed and thread gearbox, back gear in the headstock, three-jaw chuck, cross slide and compound slide, four-way tool post, tailstock, an on-site inspection is possible.

turning diameter: 430 mm turning length: 1500 mm swing diameter over bed slide: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Auction-ID: A1-44050-225

Auction-ID: A1-40982-131

Control Rexroth System 200 BTV30 Circulation diameter over bed: 160 mm Circulation diameter over face carriage 250 mm Chuck diameter 160 mm Turning length 300 mm Spindle speed 8000 min-1 12-speed revolver with attached Competition. Workpiece conveyor belt Conveyor Various tool holders

chuck diameter, mm 7100 (8000) Max. work piece diameter, mm 8000 Max. work piece height, mm 3200 Max. work piece weight, kg 125000 Chuck speed, rpm 0,22...20,1 Max. ram movement of vertical support, mm 2000 Max. movement of vertical, mm 4275 Support feed range, mm/min 0,0352...285 Support rapid feed, mm/min 2500 Supports possible work angle, deg. -15...+40 Jaws, units 4 Machine overall dimensions, mm 8615 x 17600 x 9800 Machine weight, kg app. 247300

Auction-ID: A7-50403-121

Parallel Lathe WMW NILES type DLZ 500 IV L 1000 Between points: 1000 mm Maxi Ø on bench: 500 mm Maxi Ø over saddle: 300 mm Spindle diameter: Ø 50 mm Spindle speed: from 28 to 1400 RPM 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock CM4 Auto Feeds transverse + longitudinal + rapid Lubricant pump Voltage: 380 V Dimensions (L x W x H): 3000 x 1400 x 1500 mm Weight: approx 2,5 T

Auction-ID: A1-50076-525

Description Hoesch MFD CNC Heavy Duty Lathe with Siemens Control Details Face plate Ø 2,006 mm Center height 1,499 mm Reversible saddle Ø 2,235 mm Circulation diameter over bed Ø 2,997 mm Turning length 12,192 mm min/max workpiece held in chuck Ø 457 mm/1,600 mm Maximum workpiece weight 110 tons Speed range 0.5-140rpm (300hp engine) Feed range 0.0118-7.08"/rpm Permanent capacity Ø 356-902 mm Copy depth 508 mm inductive Maximum cutting force 30,000 Nm Double drum with constant capacity Ø 356-902 mm 50 Ton Capacity, Roll Type

Stock No.: 4028 CNC LATHE SWISS TYPE Manufacturer: Maier, Type: ML 32D Proline Serial No.: 06-503, Year of manufacture: 2006 Specifications: Size Diameter 32 Main spindle speeds 6000 Main Spindle 5.5 effect Sub-spindle 3.7 kw Gengen Spindle 6000 C Axis Headspindle 5 C acshen sub-spindle 5 X-1 axis                            X2 Ashes                          X3 Ash                          Z1 Ash                           Z2-Acshe                           Z3 Ash                           Y-axis                            Rapid traverse 32 Control system MAIER PRO - FANUC 31iTA Axis Controlled 9 Opreation time 36749 Cutting time 9315 Tool holder 1 5 pc. 16x16 mm - 4 pc. Red. Tool  ...

turning diameter:1390 mm turning length:14000 mm weight of the machine ca.:13 t More information can be found in the Appendix.

number of spindles:8

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:4,5 t spindle drive motor:11 kW

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:8,6 t spindle drive motor:11 kW

turning diameter over bed:100 mm turning diameter over slide rest:70 mm turning length:80 mm total power requirement:1,0 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,7 x 0,6 x 1,2 m facing lathe with manual feed, various accessories

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

turning diameter:650 mm turning length:1.500 mm chucking diameter:400 mm Spindle diameter at the front bearing: 180 mm Spindle bore: 132 mm Max. speed: 1,800 rpm Fixed Lynette Operating hours: 38,500 Approx. spindle hours: 1/3 of operating hours

Parallel Lathe MULLER & PESANT Between points: 2500 mm Maxi Ø on bench: 520 mm Maxi Ø over saddle: 280 mm Maxi diameter in brocken bed: 700 mm Spindle diameter: Ø 56 mm Spindle speed: from 12,5 to 1000 RPM TRIPAN Turret 3-jaws chuck Ø 250 mm Tailstock CM4 Auto feeds longitudinal + transversal Lubricant pump Voltage: 380 V Dimensions (L x W x H): 4000 x 1500 x 1600 mm Weight: approx 3,5 T

turning diameter over bed:340 mm turning diameter over slide rest:190 mm turning length:700 mm spindle bore:50 mm shaving-spindle speed range:40 - 3.000 U/min dimensions of the machine ca.:2 x 1 x 1,6 m total power requirement:6 kW weight of the machine ca.:1,2 t

turning length:800 mm total power requirement:380 V weight of the machine ca.:1400 kg dimensions of the machine ca.:2200 x 1200 x 1300 m centre height:160 mm chucking diameter:150 mm

turning diameter over slide rest:280 mm turning length:4000 mm total power requirement:7,8 kW weight of the machine ca.:6 t dimensions of the machine ca.:5,9 x 1,9 x 1,40 m

weight of the machine ca.:3 t

turning diameter over bed:340 mm turning diameter over slide rest:190 mm turning length:700 mm spindle bore:50 mm spindle turning speed range:40 - 3000 U/min total power requirement:6 kW weight of the machine ca.:1,0 t dimensions of the machine ca.:2 x 1 x 1,6 m

Hand chuck three-jaw chuck FORKARDT, Type:315 Supplied with / without clamping flange Flange for milling or drilling table (option 150,00€) Three-jaw lining: cyl. Flange mount ø 300 mm, Bore diameter approx. 80 mm Included in delivery: short, modified FORKARDT base jaws FGB-315 with reversible top jaws. The mounting flange can be fixed on the milling or drilling table. Other DIN flanges on request The lining is cleaned and tested. Jaw guide, spindle and scenery stones are in good condition. Countertop jaws with clear signs of wear. Other clamping jaws are available on request. ( Option) Due to the weight, freight forwarding is required. Price within Germany incl. packaging approx. 100,00€

turning diameter over bed:930 mm turning diameter over slide rest:630 mm turning length:6000 mm turning dia. in gap:1250 mm spindle bore:95 mm turning speed range:8 - 800 U/min total power requirement:25 kW dimensions of the machine ca.:9 x 2 x 1,9 m faceplate 2 steadies coolant attachment taper turning attachment

turning diameter over bed:3800 mm turning diameter over slide rest:3200 mm turning length:12000 mm faceplate turning speed range -stepless-:2 - 200 U/min max. workpiece weight:90.000 kg bed width:4000 mm 2 steadies

Article: Programme-controlled automatic lathe Manufacturer: Traub Type: TF60 / 140 Yob: 1978 Bar automat Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Weibert DB 460XL Vario Lathe Diameter max. 305mm Center Size x Height: 460 x 155mm Spindle head thread M33 x 3.5 MK2 3 speeds: 650-1430, 1240-2790, 1600-3800 rpm Electronically variable Rotating grain tip Four-pronged driver Swivel steel support 150mm, 300mm Clamping washer 145mm Quill adjustment: 55mm Motor 550W 230V 50Hz Dimensions (LxWxH): 900 x 340 x 410mm Net weight approx. 38kg G&STÜ-5920462

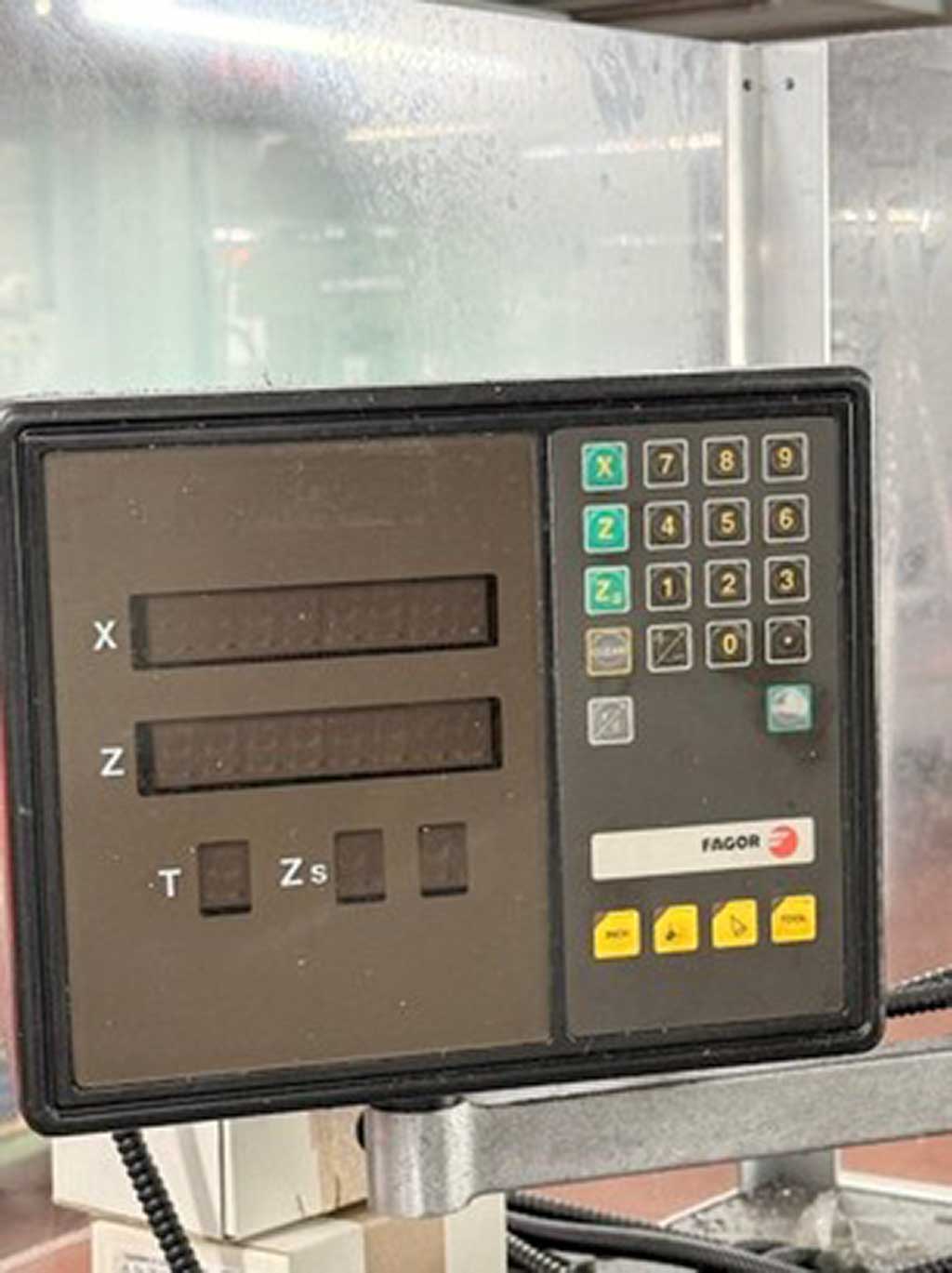

A center lathe with 2-axis digital readout is offered. Tool holder, coolant supply and transparent guard. Inspection possible by prior arrangement.

Control: manual Max.turning length: 1500 mm Max swing diametr over bed: 500 mm Quick Change Toolposts:1 Coolant tank:50l 2006 Made in Slovakia

Control: SIEMENS / MTC K Max.turning length: 1000 mm Max swing diametr over bed: 500 mm Quick Change Toolposts:1 Coolant tank:100l Made in Germany

Max.turning length: 600 mm Max swing diameter over bed: 250 mm Quick Change Toolposts:1 Coolant tank:50l Made in Germany Control: manual

Gurutzpe Super AT lathe. Distance between centers: 4000mm. Swing: 1020mm. Swing over carriage: 710mm. Swing in gap: 1320mm. Bore: 76,5mm. Motorized carriage. 4 independent jaws chuck. DRO Heidenhain.

Mobile milling machine for attachment, e.g. a lathe. As good as new, almost unused condition More data according to photos

Specifications: Maximum turning length 90 mm Circulation diameter over bed 220 mm Circulation diameter over support 110 mm Center width 160 mm Bore 23 mm 3 speeds 350 / 700 / 1400 rpm

Tip distance approx.                                                    400 mm Tip height above bed 130 mm 12 speeds from 125 – 2800 rpm Space requirements, length x width 1.2 x 0.6 m Weight estimated approx.                                          400 kg

Center height 110 mm Center width 160 mm Spindle bore 23 mm Motor power 1.7 kW . Speeds : 700 - 1400 - 2800 rpm .

Tip distance approx.                                                    500 mm Tip height above bed 125 mm 16 speeds from 120 – 1800 rpm Space requirements, length x width 1.2 x 0.6 m Weight estimated approx.                                          450 kg

Tip distance approx.                                                    500 mm Tip height above bed 125 mm 8 speeds from 220 – 1800 rpm Space requirements, length x width 1.2 x 0.6 m Weight estimated approx.                                          400 kg

Specifications: Center height 110 mm Center width 160 mm Spindle bore 23 mm Motor power 1.7 kW in each case rotational speed via potentiometer To be set from approx. 100 – 2,300 rpm 3 preset speeds or 3 switching stages

turning diameter over bed: 250 mm turning diameter over slide rest: 140 mm turning length: 550 mm turning speeds: 50 - 2000 U/min centre height: 125 mm spindle bore: 26 mm tailstock quill taper MT: 2 MK tailstock quill stroke: 65 mm connected load frequency: 230 V total power requirement: 1,1 kW weight of the machine ca.: 0,15 t dimensions of the machine ca.: 1,3 x 0,6 x 0,65 m Benchtop lathe with base cabinet 3-axis LCD digital display system fully assembled. Longitudinal feed. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. Clamping plate. 4-way steel holder. Clock for thread cutting. Drip tray Hardened bed tracks. Emergency stop switch. Forage protection Set of wheels. Appropriate tools. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 280 mm

Year of construction 2015 Center height: 165 mm Center width: 650 mm Turning diameter over bed: 280 mm Face slide: 180 mm Spindle speed: 30 - 4000 rpm (infinitely variable) Spindle bore: 43 mm Feeds: 0.025 - 0.9 mm/rev Thread pitch: 0.2 - 7 mm Spindle head DIN 55027: Size 5 Bed sledge travel: 610 mm Sledge travel: 165 mm Upper slide travel: 115 mm Inner cone tailstock quill DIN 228: MK3 Quill stroke: 82 mm Dimensions: 1600 x 860 x 1450 mm Weight: 1000 kg Total power requirement: 18kVA Accessories: 3-jaw chuck, Multifix quick-change steel bracket with cassettes, bezel, coolant device, lighting, chip protection

Key data: 560 mm, 1200 mm, 380 mm

Lathe Core Three-jaw chuck Multifix B 2 Holder Spindle bore 52 mm Speeds 38 - 1900 rpm Steels Chuck Sharpen 380 V 25 A Length 2.80 m Width 1.00 m Height 1.60 m

TRAUB Sonim TND 200 CNC Lathe YOM 1994 CNC Lathe – Inclined Bed Type TRAUB TX8F CNC control Turning diameter 350 mm Turning length 200 mm Total power requirement 20 kW Turning diameter over bed slide 200 mm X-axis 180 mm Z-axis 300 mm Spindle bore 42 mm Spindle motor 12 kW Spindle turning speed range 10 – 5000 rpm Feed speed X:155, Z:250 mm/min Rapid Travel Speed X-Axis 15 m/min Rapid Travel Speed Z-Axis 25 m/min Weight of the machine ca. 4 t Dimensions of the machine ca. 6.5 × 1.5 × 1.75 m 12-fold revolving head Traub Bar loader 3-fold power chuck Chip conveyer

Control: Siemens 840 C Max. turning diameter: 1300 mm Max: Circulation diameter: 1400 mm Axle stroke: Z-1000 mm X-1500 mm Dimensions to top edge of spindle: 940 mm Bearing Ø in front bearing: 710 mm Max. speed: 500 rpm Max. torque: 30 000 Nm Main spindle motor AC max.: 100/40% ED 76/115 kW Chip diameter: 1600 mm Feed intake/centeringØ: 790 mm Max. feed force Z/X axis: 25000 N Axis speed Z-X-axis: 0.01 – 14000 mm/min Z-X-Axis Displacement Measuring System: Angle Position Sensor/Linear Measuring System Tool carrier: Disc turret with B-axis Tool holders: Modular system UTS 50 Machine weight: 30 000 kg The machine is still energized. Viewing possible at any time by arrangement.

SECOND-HAND OLEO PNEUMATIC LATHE FOR TURNING AND SANDING OF SMALL WOODEN ELEMENTS LOCATELLI MOD. OMK 300 - control panel - automatic loader - Maximum working length 300 mm - min / max working diameter 8/80 mm - working stations: automatic loader turning with n. 2 gouges (roughing + finishing) 1° shaped knife 2° shaped knife unloading

Key data: 178 mm, 485 mm, 100 mm

Turning length: 485 mm Rotation diameter: 178 mm above bed / 100 mm over cross slide Spindle Passage: 15.5 mm Spindle speeds: 25 - 2,150 rpm. Tool Container: Tripan Container Equipped with: - Rohm 3-jaw chuck with different jaws - Zahrade Set - Collet set -Operating instructions Country of origin: UK Machine LxWxH: 1180 x 700 x 1200 mm Machine weight: 170 kg
