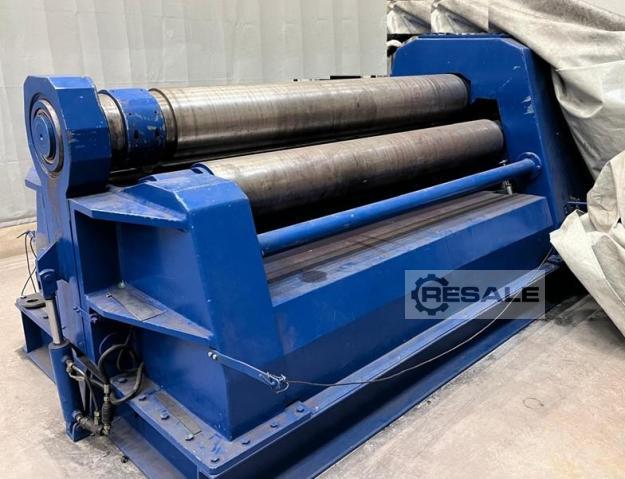

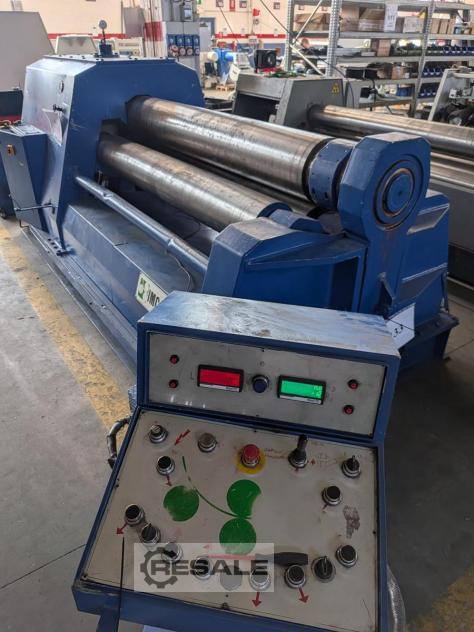

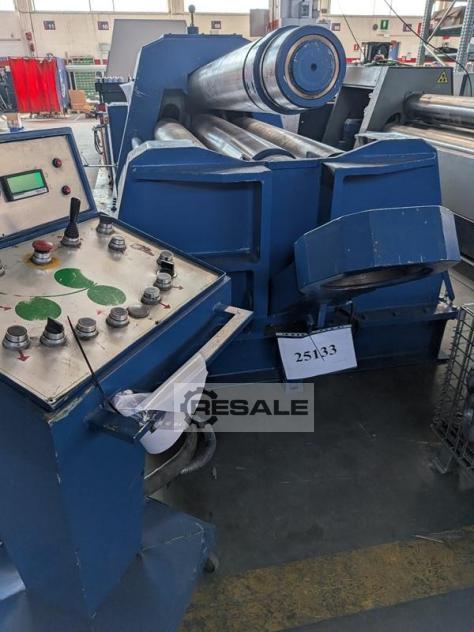

Sheet Metal Bending Machines IMCAR 2000x23/18 mm 4roll plate bend

Sheet width: 2000 mm Plate thickness: 23 mm Pre-bending: 18 mm
4-roll plate bending machine Imcar-Italy capacity 2000 x18/23 mm
year 1995, model 4RH12/3 ,

TECHNICAL DATA:
Capacity plate width 2000 mm
Plate thickness max 23 mm
Prebend 18 mm

Upper roll 300 mm
Lower roll 300 mm
Surface useful on rolls 2050 mm

Electric 380/50
motor 11 Kw on centralized hydraulic unit

Weight 10 Ton
Machine dimension 4100x 1750 x H 1550 mm

Configuration:
Hardened rolls very high surface resistance
Conical bending attachment
Digital position readout

Hydraulic rolls power driven with planetary gear unit
Hydraulic side rolls on linear guideways plate prebend
Open front drop-end hydraulic to unload the closed shell
Safety and emergency installed

seller offer No. resale 4roll 2000x23 mm bending roll
