hydraulic press brake used for sale

big Hydraulic Press Lechner ST USTIA große Hydraulische Presse - big Hydraulic Press Lechner ST USTIA Baujahr / Year 1980 - Serial-No. 1438 1 Pressplatte / 1 pressure plate Size with max. 800 x 800mm Stapelhöhe / Stack height max. 800mm Druck stufenlos regelbar / Pressure steppless

The SANDT Type 410 is for DIE-Cutting of difficult materials, particularly in the leather goods and printing industries, leather goods, cardboards and plastic. Schwenkarmstanze / hydraulic Clicking Press SANDT Typ 410 Serial-No. 760044 Stanzkraft / Pressure 22000kgs Stanzfläche / Die Cutting area max. 650 x 650mm Tischfläche / Cuttig Surface max. 550 x 900mm Hub 0 - 60mm Abmessungen / machine dimension 900 x 870 x 1400mm Gewicht / weight 840kg

Control: Simatic HMI Touch Operating Modes Setup and Single Stroke 2 side tables Support surface 850x500mm with hydraulic ball bars for heavy workpieces Auction-ID: A7-50158-3

CONTROLS   PLC SIEMENS SIMATIC OP 27 PRESS DESIGN   table cushion: yes PRESS FORCES   total force (nominal): 300 to PRESS TABLE   table surface (left-right): 1800 mm   table surface (front-back): 1000 mm SLIDE   stroke: 600 mm SLIDE (HYDR. PRESS)   return force: 38 to DIE CUSHION (TABLE CUSHION)   stroke: 200 mm TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 1000 mm DIMENSIONS / WEIGHTS   total weight approx.: 43000 kg

CONTROLS   PLC SIEMENS S7 PRESS DESIGN   drive system: hydraulic   quick die change system: yes   feedstock transport direction: right to left SLIDE   total force (nominal): 400 to   stroke: 200 mm COUNTER RAM   nominal force: 100 to   stroke: 30 mm V-RING   nominal force: 200 to   stroke: 30 mm TOOL DIMENSIONS   lower table (left-right): 650 mm   lower table (front-back): 650 mm   shut height max.: 420 mm   passline opening (free passage in side columns): 420 mm OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 500 mm   sheet thickness max.: 12 mm   feed velocity max.: 30 m/min   feedstock transport direction: right to left LEVELLER UNIT   sheet width max.: 500 mm   sheet width (min): 60 mm   sheet thickness max.: 12 mm   sheet thickness min.: 1 mm   integrated feed function: yes STRIP-FEEDER   sheet width max.: 400 mm   sheet  ...

• Presumably used for punching pipes. • Passage diameter: approx. 450 mm

Specially designed for stamping, die cutting, and forming work. Model CM-50NC Power 50 TN Motor power 5.5 KW Throat depth 265 mm Working speed 9.9 mm/s Approach speed 50 mm/s Return speed 66 mm/s Maximum pressure 320 bar Piston stroke 250 mm Lower table 700 x 450 mm Upper table 550 x 300 mm Maximum vertical light 400 mm Working height 850 mm Total front 1.160 mm Total lateral 1.290 mm Total height 2.085 mm Weight 1.750 kg STRUCTURE AND TABLES The CM/NC series hydraulic presses consist of an electro-welded structure made exclusively of S355JR steel. It is stabilized and machined at the end of the welding process to ensure perfect parallelism and precision. Calculated and designed with finite element software. With all this, we always guarantee our high standards of precision and quality. They are equipped with an upper table and a lower table made of C45E ste ...

Nuts, and so on; Includes 7 plastic stacking crates with dimensions 400 x 600 mm Auction-ID: A1-49785-374

Reductions, and so on; In 17 cardboard boxes Auction-ID: A1-49785-375

General Description Hydraulic workshop press manufactured by OMCN , model 204/RE . Designed for heavy-duty pressing, straightening, assembling and disassembling operations in industrial workshops and maintenance facilities. The press features an H-frame welded steel construction with an adjustable work table. Technical Details Manufacturer: OMCN Model: 204/RE Machine type: Hydraulic press Year: 2003 Press capacity: 150 t Operation: Hydraulic with electric motor and manual valve control Bed size: Approx. 850 × 650 mm Adjustable bed with multiple height positions Frame: H-frame welded steel construction Hydraulic pressure gauge: WIKA, 0–600 bar Condition Used industrial condition. Complete hydraulic press with adjustable bed, hydraulic pressure gauge and manual control valves. Operational status has not been tested. Dimensions Overall dimensions and weight: Not co ...

Auction-ID: A1-40982-89

pressure: 4000 t stroke: 380 mm dayligth: 1050 mm distance between columns: 1580 mm table-size: 1520 x 1600 mm dimension of ram: 1470 x 1500 mm ram adjustment: 15 mm strokes of ram per min.: 50 ejector path: 31 / 70 mm main drive: 200 kW height over floor: 7520 mm total power requirement: ca. 250 kW weight of the machine ca.: 245 t dimensions of the machine ca.: 4,4 x 4,6 x 7,5 m complete forging line includes an - Smeral Hot Forging Press - induction heater - Manyo 460-millimeter forging roll - manipulator with forging roll link - SMERAL 500-ton trimming press The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MODEL SL-150 Power t 150 Motor power kw 4 Piston stroke mm 250 Working speed mm/s 3.1 Return speed mm/s 4 Head displacement mm 1,000 Front light mm 1,500 Side light mm 340 Max. vertical span mm 955 Bed light mm 405 Total front mm 2,150 Total side mm 1.180 Total height mm 2.805 Weight kg 2.350 STANDARD DESCRIPTION: The S-series hydraulic presses are specially designed for extraction, casing and straightening work. They work with a hydraulic pressure of less than 320 bar, which guarantees greater durability of the entire hydraulic system. STRUCTURE: They consist of an electro-welded structure with four uprights with open sides. They are equipped with a movable bed that allows it to be positioned at different heights. The fixing is done by means of two pins located at the bottom of the bed. The raising and lowering system is carried out by means of cha ...

The machine is in good technical condition; it can be tested by prior arrangement.

The machine is in good technical condition; it can be tested by prior arrangement.

STANDARD FEATURES: Power 50 t Motor power 1.5 kw Working speed 2.25 mm/s Return speed 4.50 mm/s Maximum pressure 500 bar Piston stroke 150 mm Spindle stroke 120 mm Front light 800 mm Side light 160 mm Max. vertical span 1,020 mm Bed light 205 mm Total front 1,090mm Total side 900 mm Total height 2,000 mm Weight 295 Kg. Specially designed for extraction, bushing, straightening, etc. The hydraulic presses of the S series consist of a four-pillar electro-welded structure with open sides. They have a movable base that allows it to be positioned at different heights. The fixing is by means of two pins located at the bottom of the bed. The raising and lowering system is by means of chains driven by the cylinder of the press. SD Models: are fixed head. Double-acting cylinder with chrome-plated plunger and anti-wear guides. It is equipped with a removab ...

TJF-GARNET SPECIAL HYDRAULIC PRESS: Hydraulic press with double upright equipped with two side cylinders joined by a plate for the pre-pressing and pressing of rotors and stators, and a central cylinder for the extraction of the mandrel and stalling of the rotor shaft, as well as the extraction of shafts in case of repair. It has a removable table for the stacking and handling of rotors and stators. MAIN CYLINDERS 150 TN.  2 hydraulic cylinders of 75 Tn. of power each, with a stroke of 1200 mm joined by a grooved plate, with a central bore of 250 mm in diameter.  Maximum useful height cylinder plate of 1550 mm.  Minimum useful height cylinder plate of 350 mm. ABSTRACTION CYLINDER  1 central cylinder of 80 Tn of power with 1200 mm stroke.  Prepared to adapt abstraction clamp, end of threaded stem to M 35,150 x 40 in length.  Maximum useful height ...

Key data: 1250 t

Manufacturer: Dieffenbacher Model: PO-F 1250 A Year: 1979 Condition: Used Stock number: 9543 Control system: Siemens Simatic HMI Compressive force: 1250 t Table length: 1250 mm Table width: 1250 mm Stroke: 630 mm The general overhaul was carried out in 2015.

Table passage diameter [mm] 1060 Auction-ID: A1-40982-138

Auction-ID: A1-40982-50

Auction-ID: A1-40982-40

Equipped with height adjustment and various accessories Auction-ID: A1-50251-599

Key data: 400 t

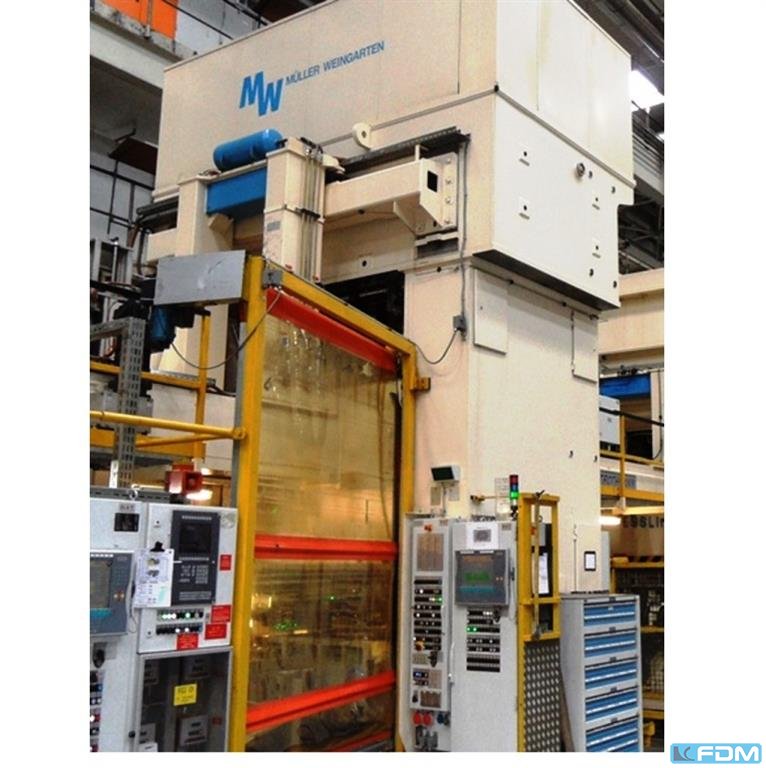

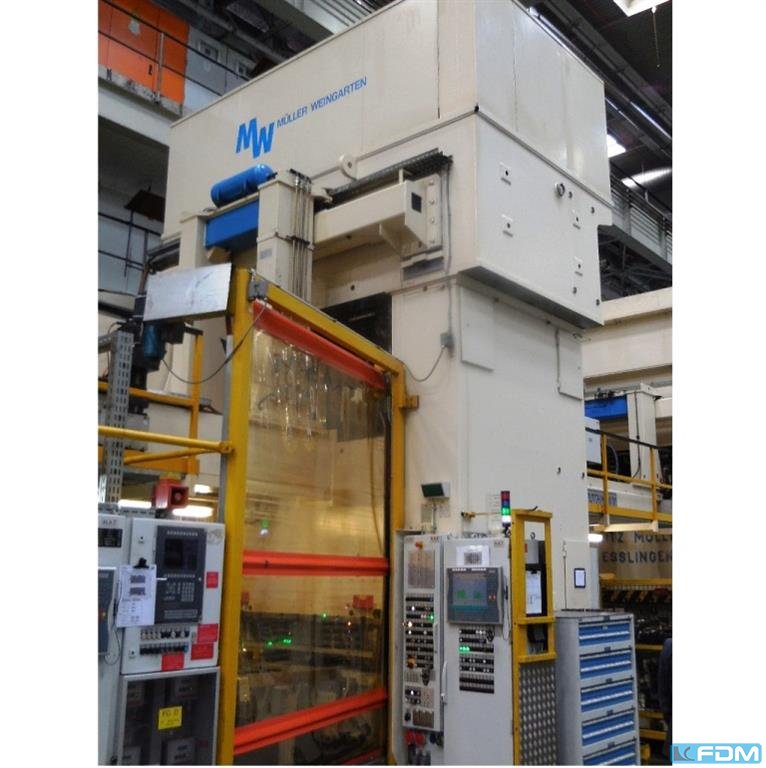

The following machines are involved: Müller-Weingarten ZE 400-16.19, 400 t double column press, approx. 1,600 × 1,300 × 1,400 mm, year of construction 1963, conversion 1991. Müller-Weingarten ZE 400-20.13.2, 400 t double column press, approx. 2,000 × 1,300 × 1,200 mm, year of construction 1977, conversion 1991.

Frame press, CE certified according to the latest guidelines. - can be moved sideways with manual hydraulics - 2 pcs. press block 200x250x40mm / 200x70x40mm, max. 30t with M16 threaded holes and some M16 threaded bolts - 8 pcs. press bolts, 10 - 30mm, with quick-change adapter, max. 20t - 2 press pads pressure 20 t stroke 180 mm clear width between stands 540 x 100 mm installation height max. 990 mm cylinder diameter 72 mm piston diameter 48 mm machine weight approx. 0.12 t space requirement approx. 0.8 x 0.7 x 1.8 m Condition: never used / new (5) Auction-ID: A7-50523-787

This frame press is CE certified according to the latest guidelines - with manual hydraulics - Cylinder to be moved sideways - 2 pcs. press block 200x250x40mm / 200x70x40mm, max. 30t with M16 threaded holes and some M16 threaded bolts - 8 pcs. press bolts, 10 - 30mm, with quick-change adapter, max. 20t - 2 press pads pressure 10 t stroke 180 mm clear width between uprights 335 x 115 mm installation height max. 340 mm cylinder diameter 56 mm piston diameter 40 mm Machine weight approx. 0.05 t Dimensions approx. 0.75 x 0.53 x 1.6 m Auction-ID: A7-50523-737

Distance between the front columns 2100 mm and distance between the side columns 1100 mm. Additional table size 1820 × 1500 mm. Cylinder diameter 250 mm. Main table size 2600 x 1800 mm. Including REGLOPLAS 300LD temperature controller Auction-ID: A7-50524-927

Press for hydraulic lines. Incl Table Stored in working order Auction-ID: A3-46129-32

Built on a metal base of 130x51x87. With extra accessories (see photo). Auction-ID: A3-46129-21203

fully functional ejectors on the table need to be checked; they haven't used by the Seller. The press operates without the need for immediate investment. Auction-ID: A7-50633-3

Equipped with 10 crimp sets; unused Auction-ID: A1-47362-93

crimping range 15-63mm; max opening 75mm; pressure 53.5 Mpa; force 500 T; 3000W; 380V; 5585 Auction-ID: A1-50534-346

crimping range 15-63mm; max opening 75mm; pressure 53.5 Mpa; force 500 T; 3000W; 380V; 5585 Auction-ID: A1-50534-347

CONTROLS   PLC PRESS DESIGN   quick die change system: yes SLIDE   total force (nominal): 630 to   stroke: 125 mm V-RING   nominal force: 320 to TOOL DIMENSIONS   lower table (left-right): 800 mm   lower table (front-back): 800 mm   shut height max.: 420 mm STRIP-FEEDER   band lubrication system: yes ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6800 mm   space requirements -front/back-: 3300 mm   total height: 3730 mm   height above floor level: 3005 mm   height under floor level: 725 mm   total weight approx.: 26000 kg ATTACHMENTS -FINEBLANKING PRESS-   autom. tool clamping device: yes   light barrier: yes   decoiler: yes   leveller unit: yes Strip levelling machine SCHMID HR12H (YoM 1995) including belt system

CONTROLS   PLC SIEMENS SIMATIC HMI SLIDE   total force (nominal): 320 to   stroke: 200 mm COUNTER RAM   nominal force: 63 to V-RING   nominal force: 100 to TOOL DIMENSIONS   shut height max.: 360 mm DIMENSIONS / WEIGHTS   total weight approx.: 18000 kg The system was fitted with a new control unit approximately 1.5 years ago including belt system Inkl. Decoiler Schmid HR10

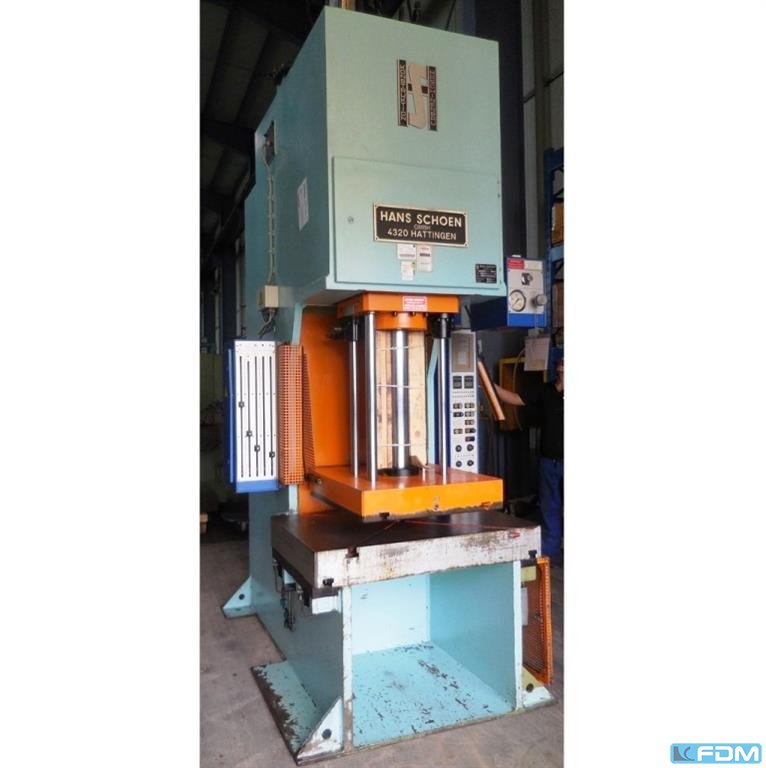

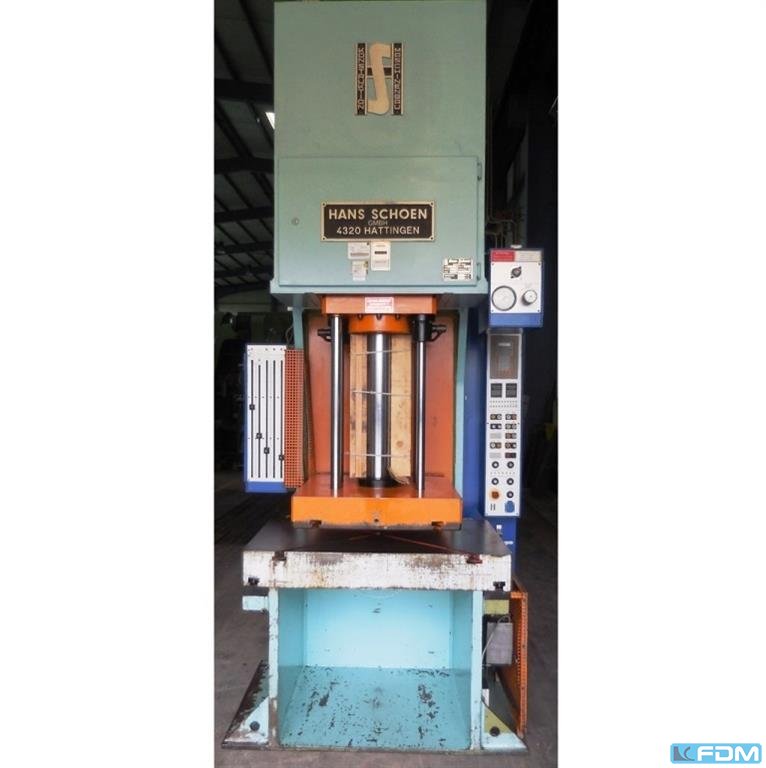

Hydraulic press, two-column press, oil hydraulic press, hydraulic press, high-speed press, high-speed hydraulic press -Manufacturer: Hans Schoen, Hydraulic press type SH 100 -Pressing force: 160 tons -Motor: 22 kW -Clamping table: 810 x 870 mm -Max. insertion height: 500 mm -Max. stroke: 250 mm -Hole: Ø 50 mm -Documents: Operating instructions/circuit diagram -Dimensions: 1900/1800/H4200 mm -Weight: kg

Vatan Otomasyon / VEEOS U.P.H.K.P. 010 Four-Column Hydraulic Press Four-column hydraulic press for controlled compression and forming operations. Manufacturer: Vatan Otomasyon / VEEOS Model: U.P.H.K.P. 010 Year: 2018 Serial number: U.P.H.K.P. 0985 Capacity: 10 t Power: 4 kW Electrical supply: 380 V Configuration: Four-column hydraulic press with hydraulic power unit, reservoir, motor, pressure gauges and control system Condition: Used Operational status: Untested Approximate dimensions: 1,400 × 1,200 × 2,300 mm Weight: 1,640 kg All descriptions are indicative only. Auction-ID: A1-50546-11

Uğursan U.P.H.K.P. 030 Four-Column Hydraulic Press Industrial four-column hydraulic press for controlled compression and forming operations. Manufacturer: Uğursan Model: U.P.H.K.P. 030 Year: 2020 Rated capacity: 30 t Power: 7.5 kW Electrical supply: 380 V, three-phase, 50 Hz Rated current: 110 A Maximum main fuse: 125 A Configuration: Hydraulic upper ram, guided moving platen, T-slotted working table, separate hydraulic power pack with reservoir, valve block and pressure gauges, safety guarding and operator control/HMI Control system: Gani Otomasyon, project no. 14276177 Working table: Approx. 880 × 800 mm Hydraulic oil: Shell Tellus S2 MX 46 Condition: Used Operational status: Untested Approximate dimensions: 1,500 × 1,300 × 2,400 mm Approximate weight: 3,000 kg All descriptions are indicative only. Auction-ID: A1-50546-13

Uğursan U.P.H.K.P. 030 Four-Column Hydraulic Rubber Press Four-column hydraulic rubber press for controlled compression and forming operations. Manufacturer: Uğursan Model: U.P.H.K.P. 030 Year: 2022 Serial number: U.P.H.K.P. 1750 Capacity: 30 t Power: 7.5 kW Electrical supply: 380 V, three-phase, 50 Hz Rated current: 125 A Maximum main fuse: 125 A Electrical control supplies: 380 V AC / 220 V AC / 24 V DC Configuration: Four-column construction with hydraulic power unit, guarded working area and control cabinet Control system: Gani Otomasyon, project no. 16465453 Condition: Used Operational status: Untested Approximate dimensions: 1,700 × 1,500 × 2,700 mm Approximate weight: 3,200 kg All descriptions are indicative only. Auction-ID: A1-50546-15

Uğursan U.P.H.K.P. 010 Four-Column Hydraulic Rubber Press Four-column hydraulic press for rubber processing and controlled compression operations. Manufacturer: Uğursan Model: U.P.H.K.P. 010 Year: 2018 Serial number: U.P.H.K.P. 0985 Rated capacity: 10 t Power: 4 kW Electrical supply: 380 V Configuration: Upper hydraulic ram, guided moving platen, T-slotted lower working table, hydraulic power pack with reservoir, valves and pressure gauges, safety guarding, HMI/operator controls and stack light Control system: Vatan Otomasyon / VEEOS Hydraulic oil: Shell Tellus S2 MX 46 Condition: Used Operational status: Untested Approximate dimensions: 1,400 × 1,100 × 2,200 mm Weight: 1,640 kg All descriptions are indicative only. Auction-ID: A1-50546-12

Uğursan U.P.H.K.P. 030 Four-Column Hydraulic Rubber Press Four-column hydraulic rubber press for controlled compression and forming operations. Manufacturer: Uğursan Model: U.P.H.K.P. 030 Year: 2020 Serial number: U.P.H.K.P. 1010 Capacity: 30 t Power: 7.5 kW Electrical supply: 380 V, three-phase, 50 Hz Rated current: 110 A Maximum main fuse: 125 A Configuration: Hydraulic power unit, heated upper and lower platens, HMI operator control, safety guarding and hydraulic oil system Control system: Gani Otomasyon, project no. 14276033 Hydraulic oil: Tellus S2 MX 46 Condition: Used Operational status: Untested Approximate dimensions: 1,700 × 1,500 × 2,700 mm Approximate weight: 3,000 kg All descriptions are indicative only. Auction-ID: A1-50546-14

Vatan Otomasyon U.P.H.K.P. 010 Four-Column Hydraulic Press Industrial four-column hydraulic press for controlled compression and forming operations. Manufacturer: Vatan Otomasyon / VEEOS Model: U.P.H.K.P. 010 Press capacity: 10 t Electrical supply: 380 V Configuration: Upper moving platen, lower tool table, hydraulic power unit, pressure gauges, safety guarding, HMI/operator control panel and stack signal light Approximate tool/table width: 600 mm Condition: Used Operational status: Untested Approximate dimensions: 1,400 × 1,100 × 2,200 mm Approximate weight: 1,500 kg All descriptions are indicative only. Auction-ID: A1-50546-10

Uğursan HKP 200 Hydraulic Heated Rubber Press Hydraulic rubber press for heated compression moulding and pressing of rubber products, with large heated upper and lower platens, hydraulic power unit, touchscreen operator control and safety light barriers. Manufacturer: Uğursan Model: HKP 200 Year: 2022 Serial number: UP.HKP.3028 Pressing force: 200 t Operating pressure: 210 bar Total power: 51 kW Motor power: 15 kW Resistance heating: 36 kW Electrical supply: 380 V Configuration: Four-column construction, heated upper and lower platens, hydraulic power unit, touchscreen control, automatic heating controls and safety light barriers Condition: Used Approximate dimensions: 2,300 × 1,800 × 3,900 mm Approximate weight: 13,600 kg All descriptions are indicative only. Auction-ID: A1-50546-50

Uğursan Heated Hydraulic Rubber Press Four-column hydraulic rubber press with electrically heated upper and lower platens, hydraulic power unit and Delta touchscreen control system. Manufacturer: Uğursan Hidrolik Pres İmalatı Model: Kauçuk Pres Year: 2020 Motor power: 15 kW Electrical supply: 3 × 380 V + N + PE, 50 Hz Control system: Delta touchscreen HMI Control functions: Upper and lower platen temperature, curing time, platen position and pressure/set-weight parameters Automation system: Gani Otomasyon, project no. 14313565, rated current 109 A, maximum main fuse 125 A Configuration: Four-column frame, heated upper and lower platens and hydraulic power unit Condition: Used Approximate dimensions: 1,800 × 1,500 × 3,500 mm Approximate weight: 6,000 kg All descriptions are indicative only. Auction-ID: A1-50546-49

Key data: 63 t

Press force: 63 t, with drawing cushion and separate hydraulic power unit

The machine is in good technical condition; testing is possible by prior arrangement. WORK TABLE (MM) 900 x 700 mm UPPER PLATEN (MM) STROKE (MM) 550 x 400 mm 600 mm DAYLIGHT (MM) RAM CYLINDER DIAMETER 900 mm 135 mm / 1 pc AUXILIARY CYLINDER DIAMETER 3550 mm / 2 pcs RAM CYLINDER DOWNWARD SPEED (MM/S) 250 mm/s RAM CYLINDER RETURN SPEED (MM/S) 250 mm/s RAM CYLINDER WORKING SPEED (MM/S) 10 - 40 mm/s MOTOR PUMP 18.5 kW 45 cc OIL TANK (LITERS) OIL (LITERS) 345 l 67 l

pressure:160 t throat:370 mm stroke:150 mm total power requirement:45 kW weight of the machine ca.:22 t dimensions of the machine ca.:2,75 x 1,85 x x 4,80 m rules for accident prevention:Vorhanden work table::1500 x 700 mm Documents:vorhanden

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:51,0 kW weight:33,0 t dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:52,0 kW weight:33,0 t Dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:250 t distance between columns:930 mm stroke:200 mm Distance table/ram, stroke up:600 mm table surface area:900 x 860 mm die cushion capacity:100 t die cushion stroke:50 mm die cushion area:350 x 400 mm table height over floor:950 mm side window:380 x 380 mm ram surface:850 x 700 mm feed down:400 mm/s feed up:400 mm/s working feed:30 mm/s oil volume:350 l power capacity:45,0 kW weight:11,5 t Dimensions (WxDxH):2,0 x 1,2 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic depth stop:mechanical foundation pit:not necessary
