hot press used for sale

pressure:315 t distance between columns:2350 mm distance table/ram, max. stroke up, adjustment up:1200 mm distance between cutting impact cushioning:1600 mm Distance table/ram, stroke up:1200 mm stroke:800 mm table surface area:2060 x 1260 mm table height over floor:750 mm Die cushion pressure in table:100 t Die cushion stroke in table:400 mm die cushion area:1250 x 1000 mm side window:780 mm ram surface:2200 x 1500 mm Capacity of ejector in ram:63 t speed down:500 mm/s speed up:310 / 410 mm/s working speed:20 - 73 mm/s quantity of oil:3900 l power requirement:80,0 + 45,0 kW weight:55,0 t Dimensions (WxDxH):4,6 x 2,7 x 7,2 m Height above floor:6,0 m Height below floor:1,2 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 die cushion in table:hydraulic ejector in ram:hydraulic ram interlocking:hydraulic cutting impact absorption:hydraulic

pressure:160 t throat:450 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:580 mm table surface area:1000 x 1000 mm die cushion capacity:20 t die cushion stroke:300 mm ram surface:700 x 750 mm feed down:400 mm/s feed up:400 mm/s table height over floor:1350 mm die cushion area:Ø 350 mm power capacity:55 + 11 kW weight:19,5 t Dimensions (WxDxH):1,5 x 3,5 x 4,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulisch depth stop:mechanisch

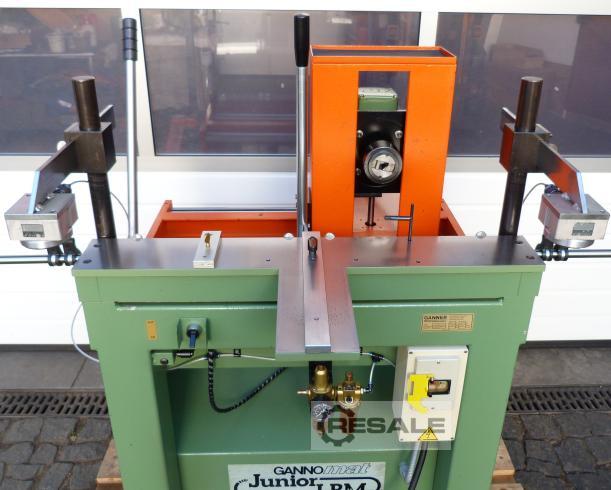

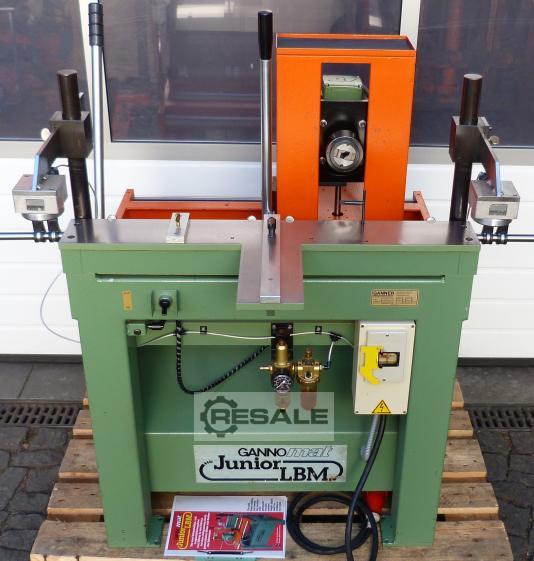

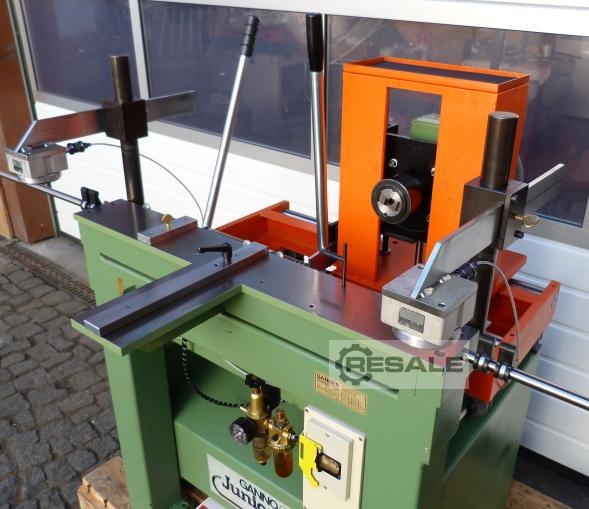

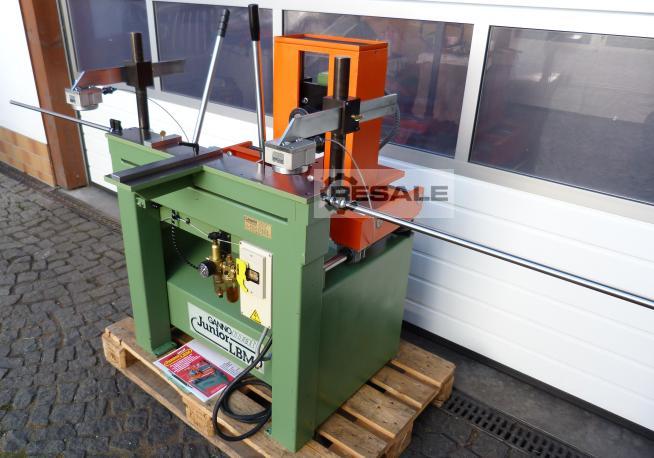

Dowel and slotted hole drilling machine GANNER JUNIOR 320 LBM very good condition, as good as new, the machine comes from a small carpenter's shop and was used there very little This allows slotted holes to be milled and dowel holes to be drilled in 2 planes without reclamping 380V, 1500W Speed: 2800 rpm Year of Make: 1990 with the machine you can mill slotted holes for e.g. lock cases and similar things or make all kinds of frame and dowel connections, at right angles, blunt and mitred ideal for the production of dowel joints in timber frame construction, furniture, doors, windows and stairs construction and for similar things by drilling on 2 levels, by the grids and stops and by the construction of the machine, dowel connections are made in the shortest possible time, which makes the machine very economical the machine requires a compressed air connection of 6bar (the air  ...
