horizontal milling center used for sale

max. workpiece diameter:29 mm min. workpiece diameter:26 mm workpiece length:66 mm the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm Total length will probably be almost 400 mm possible with a few conversions. Also dependent on tool lengths, machining lengths on the component, etc. Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3 Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing th ...

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

Machine type: CNC Vertical Machining Center Manufacturer: Tongtai Model: TMV-720A Control: Heidenhain CNC control Year: n/a Serial number: n/a Working hours: n/a Table size: approx. 900 x 400 mm Spindle: Vertical spindle Tool holder: SK40 (visual assumption) Tool changer: Yes, side-mounted tool rack Number of tool holders: approx. 20+ pcs included Coolant system: Yes, internal coolant nozzles Chip management: Chip conveyor installed Coolant unit: External filtration unit (Granch Filtration) Control panel: Heidenhain with manual pulse generator (MPG) Emergency stop: Yes Status light: Yes Accessories: Tool holders, coolant system, filtration unit Remarks: Machine in used condition, signs of wear and coolant residues visible. Control boots and initializes. Includes multiple tool holders and external coolant filtration system. Own mass: approx. 5 ...

Make: Big-Plus (Taiwan) Type: CNC Vertical Machining Center Model: 850 VMC Serial number: BM110CE01 Control: FANUC Series 0i-MD Technical data: - X / Y / Z travel: approx. 850 mm / 500 mm / 500 mm - Table size: approx. 1000 x 500 mm - Spindle speed: 10,000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: approx. 6–8 kg/cm² Equipment: - Vertical spindle (Big-Plus spindle system) - Tool changer (carousel type) - Coolant system - Enclosed working area with sliding door - Manual pulse generator (handwheel) Control panel: - FANUC interface with display and full keyboard - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-49

turning diameter over bed:350 mm turning diameter over slide rest:240 mm turning length:800 mm Spindle RPM:40 - 2000 in 8 Stufen 1/min total power requirement:3 kW Spindle bore:26 mm tailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 m weight of the machine ca.:1,9 t Very well maintened center lathe with accessories - 3-jaw, 4-jaw chuck - tailstock with center - 1 boring head - RAPID quick tool change device with 3 holder - saddle mounted steady rest - collant device - set of collets appr. 75% size B 32

Make: Dahlih Type: Vertical Machining Center (VMC) Model: DL-MCV1200 Year: 2010 Control: Heidenhain CNC control Technical data: - X-axis travel: approx. 1,200 mm - Y-axis travel: approx. 600 mm - Z-axis travel: approx. 600 mm - Table size: approx. 1,300 x 600 mm - Spindle speed: up to approx. 8,000–10,000 rpm (typical for model) - Power: 12 kVA (according to plate) Equipment: - Fully enclosed machining cabin with double doors - Heidenhain control panel with screen & keyboard - Electronic handwheel - Tool holders rack (side mounted) - Chip conveyor - Coolant system - Working light Application: - CNC milling and machining of metal components - Toolmaking and precision part production Condition: Used Auction-ID: A7-45993-42

Make: Dugard Type: CNC Vertical Machining Center Model: Eagle 1000 VMC Serial number: MC97BF06 Control: FANUC Series 0i-MC Technical data: - X / Y / Z travel: approx. 1000 mm / 500 mm / 500 mm (typical for model class) - Spindle speed: 8000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: 5–6 kg/cm² Equipment: - Vertical spindle - Tool holders included (side mounted rack) - Coolant system - Manual pulse generator (handwheel) - Enclosed working area with sliding door Control panel: - Full FANUC keyboard and display - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-48

Type: CNC Vertical Machining Center Brand: EMSIL Techtrans Model: DMC2100H Control: FANUC Series 18i-MB Machine Type: Super Vertical Machining Center Axes: 3-axis (X / Y / Z) Equipment: - Enclosed working area with sliding doors - Large T-slot worktable - Automatic tool interface (tool holder included) - CNC control panel with screen and full keypad - Emergency stop - Coolant system with adjustable nozzles - Electrical cabinet integrated - Status signal tower (stack light) Displayed Data (at time of inspection): Run time: approx. 19,568 h Part count: 84,933 Condition: Used Remarks: Alarm displayed (pressure low); machine not tested; sold as seen Auction-ID: A7-45993-78

turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

Make: Dahlih Type: Vertical Machining Center (VMC) Model: DL-MCV720 (720MCV) Year: 2006 Control: Heidenhain CNC control Technical data: - X-axis travel: approx. 720 mm - Y-axis travel: approx. 400 mm - Z-axis travel: approx. 450 mm - Table size: approx. 900 x 400 mm - Spindle speed: up to 15,000 rpm (according to plate) Equipment: - Enclosed working area with sliding door - CNC control panel with keyboard & display - Coolant system - Chip conveyor - Work light Application: - CNC milling operations for metal parts - Precision machining in toolmaking and production Condition: Used Auction-ID: A7-45993-41

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2.000 mm feed per revolution:0,06 - 58/ 0,03 -28 mm spindle turning speed range:11,2 - 2.240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW dimensions of the machine ca.:4,5 x 1,5 x 1,4 m weight of the machine ca.:4,8 t

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:600 mm y-travel:410 mm z-travel:520 mm tool change unit:16 turning speeds:8000 1/min control:SIEMENS 810 shopmill table surface area:840 x 420 mm rapid traverse X- and Y-axis:36 m/min rapid traverse Z-axis:20 m/min taper ISO:SK 40 spindle drive:15 kW weight of the machine ca.:2,5 t space requirements approx. LxWxH:2,2 x 2,3 x 2,3 m vertical machining center, el. handwheel, no chipconveyor, known defect: control starts not 100% special price

x-travel:1270 mm y-travel:660 mm z-travel:610 mm table surface area:1500 x 660 mm table load:1,3 t control:ULTIMAX 4 turning speeds:10000 1/min spindle:15 kW Tool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/min tool change unit:24 Pos. total power requirement:30 kVA weight of the machine ca.:9,5 t dimensions of the machine ca.:4,8 x 4,56 x 2,95 m vertical machining center, el. handwheel, chipconveyor,

x-travel:1.500 mm y-travel:700 mm z-travel:610 mm control:HEIDENHAIN iTNC 530 table-size:1.400 x 700 mm tool taper:SK 40 numbers of positions in the tool changer:48 fach spindle turning speed - stepless:15000 1/min rapid traverse:36 m/min table load capacity:700 kg spindle drive:25 kW total power requirement:30 kVA weight of the machine ca.:9,1 t dimensions of the machine ca.:3,7 x 2,65 x 2,9 m vertical machining center, 20 bar internal coolant supply with paper filter, 3D-touchprobe, chipconveyor, el. handwheel meter readings: approx. 43.600 h "machine on", approx. 20.000 h "spindle on",

x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:HEIDENHAIN iTNC 530 table load capacity:800 kg tool taper:HSK 63 turning speeds:16.000 1/min spindle:35 / 25 kW table-size:770 mm max. torque on the spindle:160 / 223 Nm tool change unit:120 (2x60) Pos. weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 5-axis simultaneously machining center with controlled swivel-rotary table (A/B-axis), milling head horizontal, internal coolant device (10-80bar), oilmist-suction, electromech. tool-length measuring device GROB, chipconveyor, 3D touch probe, KINEMATICOPT, BLUM laser, el. handwheel, hour meter: approx. 82.000 h "machine on", approx. 48.800 h "spindle on"

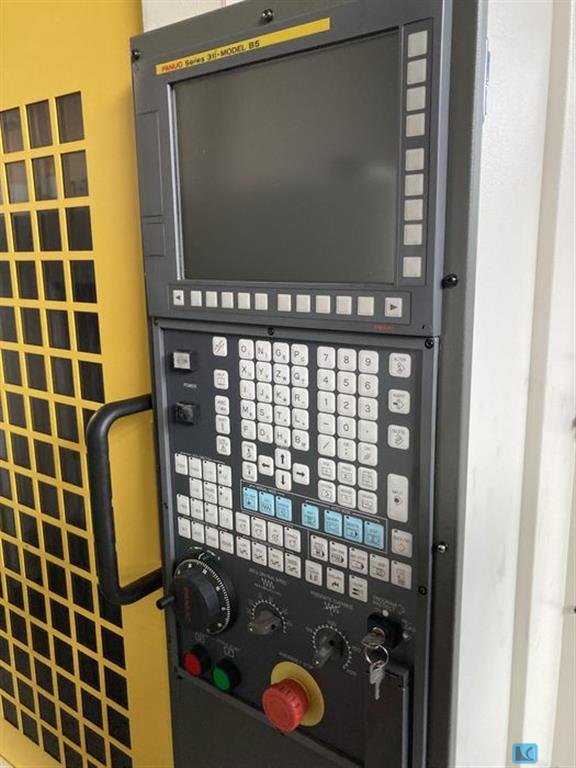

x-travel:500 mm y-travel:400 mm z-travel:330 mm control:FANUC 31i B5 tool change unit:21 fach rapid traverse in x-y-z axis:54 m/min taper ISO:BT 30 turning speed range::10.000 1 / min spindle drive:11 / 3,7 kW max. table load:300 kg surface area:600x 400 mm Dimensions (L/W/H):1,6 x 2,1 x 2,25 m rapid traverse:48 m/min total power requirement:11 kVA weight of the machine ca.:2,1 t vertical CNC-milling-drilling machining center, Infrared Touch probe, el. handwheel, autom. door on right side, no internal Coolant Supply, Approx. 65.500 hours "machine on", approx. 8.200 hours "machine run"

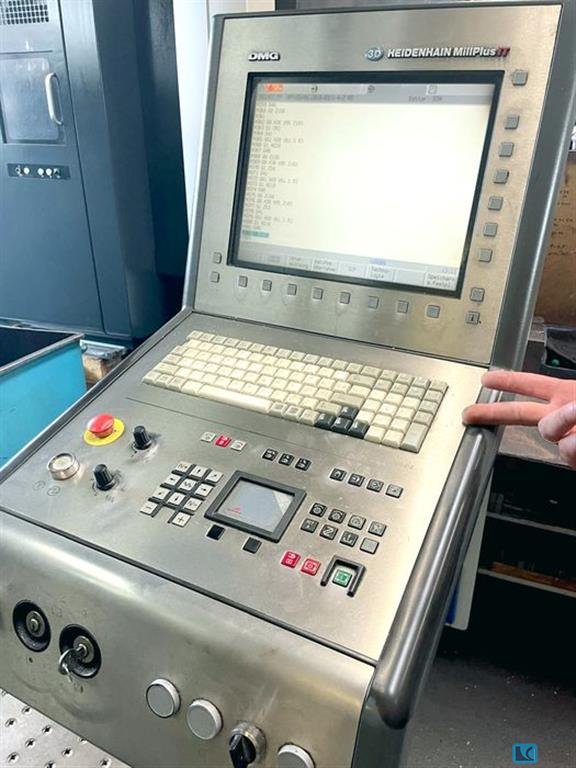

x-travel:1.250 mm y-travel:710 mm z-travel:710 mm table surface area:1500 x 800 mm table load capacity:800 kg turning speeds:12000 1/min spindle drive:15 / 10 kW control:MILLPLUS iT HEIDENHAIN spindle taper:SK 40 tool change unit:60 Pos. capacity:44 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:3,5 x 2,65 x 2,65 m 5 axis simultaneously machining center, B-axis (-120° / +30°), NC-rotary-table integrated in rigid table, direct measuring system, 3D probe infrared, HEIDENHAIN TS 640, internal coolant supply 40 bar, 600l, flushgun, chipconveyor, mode 4, 3D quickset software (no hardware), Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"

x-travel:410 mm y-travel:610 mm z-travel:500 mm turning speeds:15000 1/min tool adaptor:SK 40 control:iTNC 530 HEIDENHAIN smart NC table::320 x 320 mm table load:100 kg tool change unit:48 Pos. total power requirement:35 kVA weight of the machine ca.:7,4 t dimensions of the machine ca.:4,15 x 3,8 x 3,28 m 5-axis simultaneously machining center, NC-round-swivelling table, C-axis 360°, B-axis +30/-120°, chipconveyor, 3D touchprobe, internal coolant supply 20bar, el. handwheel, kinematicsopt, meter readings: approx. 9.600h "machine on", approx.3.500h "spindle on"

x-travel:2300 mm y-travel:1200 mm z-travel:600 mm turning speeds:30-10.000 1/min max. torque on the spindle:254 / 159 Nm control:HEIDENHAIN TNC 430 tool taper:SK 40 tool change unit:60 Pos. spindle:40 / 25 kW fixed working table:surface area:1.100 x 1.100 mm rotary table:1.100 x 1.100 mm rapid traverse:30 m/min total power requirement:69 kVA weight of the machine ca.:20 t universal machining center with indexing head (2,5°), NC-rotary table, max. table load 1.500kg, internal coolant supply 30 bar, paper filter, el. handwheel, chipconveyor, automatic doors, flush gun, no touch probe available, approx. 81.400 h main swich on approx. 72.200 h control on approx. 26.700 h program running on machine under power , for functional testing

x-travel:1000 mm y-travel:610 mm z-travel:600 mm table-size:1150 x 600 mm table load capacity:1000 kg rapid traverse X- and Y-axis:24 m/min rapid traverse Z-axis:24 m/min spindle taper::SK 40 spindle turning speed range:10.000 1/min spindle drive:15/22,5 kW tool change unit:30 Pos. CNC-control:SIEMENS 828D operate shopmill distance spindle nose and table:110 / 710 mm weight of the machine ca.:7 t dimensions of the machine ca.:3,2 x 2,2 x 2,7 m vertical machining center, - internal coolant supply 30 bar - chipconveyor - cartridge filter - flat tracks - el. handwheel - prepared for 4th axis - 3D touchprobe RENISHAW OMP 60 - indirect measuring system - accessories (approx. 30 pcs. SK 40 toolholders incl. 2 racks, chip tray) approx. 6.000h "spindle on"

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)

x-travel:8500 mm y-travel:2000 mm z-travel:1500 mm rapid travel x/y/z:25 m/min table-size:10.000 x 1.350 mm table load:max. 5 t/qm universal head:orthogonal 1° x 1° tool taper:SK 50 milling head speed:4.000 1/min power capacity:37 kW max. torque on the spindle:900 Nm internal coolant system feed:15 bar control:HEIDENHAIN iTNC 530 Tool changer:60 Pos. total power requirement:75 KW dimensions of the machine ca.:12,7 x 5,2 x 4,6 m weight of the machine ca.:35 t universal travelling column - universal machining center, orthogonal milling head, water-cooled, with 1° indexing in 2 axis (360 pos. in rear layer, 270 pos. in front layer) 3D touch probe M&H 20.41, dividing wall for 2 table machining, internal air blast, 15bar high pressure pump, prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel, chipconveyor, handwheel HR 410, controlled security fence, miscella ...

x-travel:750 mm y-travel:600 mm z-travel:520 mm table surface area:D 700 x 500 mm turning speeds:30000 1/min tool taper:HSK E50 control:HEIDENHAIN iTNC 530 tool change unit:60 pos. rapid traverse:50 m/min table load capacity - central/maximum:350 kg total power requirement:50 kVA weight of the machine ca.:9 t dimensions of the machine ca.:3,2 x 2,65 x 2,8 m 5-axis simultaneously HSC-machining center, NC-round-swivelling table B-axis 180°, C-axis 360°, chip conveyor, prepared for 3D touchprobe HEIDENHAIN TS 641 (without touchprobe), mode 4, spindle chiller, no internal coolant supply, approx. 124.200 hours "machine on", approx. 60.600 hours "spindle on" in total

x-travel:2500 mm y-travel:1000 mm z-travel:750 mm table surface area:3220 x 1000 mm Workpiece weight approx.:3000 kg spindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/min feed speeds:1- 30000 mm/min rapid traverse:30 m/min total power requirement:40 kW dimensions of the machine ca.:6,9 x 4,1 x 3,7 m weight of the machine ca.:21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2000 mm feed per revolution:0,06 - 58 / 0,03 - 28 mm spindle turning speed range:11,2 - 2240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW weight of the machine ca.:4,8 t dimensions of the machine ca.:4,5 x 1,5 x 1,4 m with digital readout HEIDENHAIN rapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachment diverse toolholders, diverse jaws

turning diameter over bed:1450 mm turning diameter over slide rest:1000 mm turning length:8000 mm spindle bore:160 mm turning speed range:2,8 - 560 U/min bed width:850 mm faceplate diameter max.:1400 mm turning diameter in the gap:1800 mm length of gap:600 mm dimensions of the machine ca.:12 x 2 x 2,5 m with Digital Readout 2 fixed steadies dia 1070 mm chip conveyor

turning diameter over bed:400 mm turning diameter over slide rest:250 mm turning length:1000 mm max swing over gap:520 mm Height of centres:200 mm crossed path:230 mm bed width:218 mm main spindle bore:52 mm spindle size:MK 6 speeds::55-2000 U/min turning angle of tool post:90 grad tail stock:50 mm taper in tailstock:MK 4 threading metric:0,4-7 mm threading WHITWORTH:4-60 TPI total power requirement:2,2 kW dimensions of the machine ca.:1940 x 820 x 1545 mm weight of the machine ca.:750 kg tailstock quill:110 mm tapping modul:0,4-3 mm tapping diametral:8-84 Gang/Zoll

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders.

Machine number: 11790001067 Operating voltage: 400 V Frequency: 50/60 Hz Rated current: 100 A Connection: 40 kVA Control: SIEMENS SINUMERIK 840 D Spindle speed: 42,000 rpm Feed in X/Y/Z axis: up to 40,000 mm/min Input fineness X/Y/Z axis: 0.001 mm Rapid traverse in X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis with direct measuring system: 0.005 mm travel X-axis: 200 mm Travel Y-axis: 200 mm Travel Z-axis: 280 mm Tool holder: HSK-32 E incl. 24-fold tool changer Max. tool length from spindle nose: 200 mm Max. tool diameter: 40 mm Max. tool weight with automatic tool change: 1 kg with total tool weight in magazine: 24 kg NC rotary table with swivel axis C-axis Clamping surface: 190 mm diameter Rotation range: 360 ° rotation rotary table: 360 °rotation table: 150 rpm A-axis Swivel range: -5/+130° Loading: max. 10 kg in ...

Manufacturer: VICTOR Year: 1996 Type: CNC Vertical Machining Center Numerical Control: FANUC Series O-M Strokes: X 800 mm / Y 500 mm / Z 510 mm Table: 1100 × 500 mm – max. load 600 kg Guides: Prismatic slides with Turcite-B coating Spindle: 60–6,000 rpm – BT40 / SK40 taper – 7.5 kW (continuous) / 11 kW (30 min) Tool changer: 24 tools – exchanger arm – 2.5 s tool-tool – max. tool Ø 80 mm Weight (kg): approx. 6000 Notes: Mehanite heavy construction machining centre. Good working condition.

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 660 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance from table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vice shown in the photos! incl. the tool holders located in the tool changer as well as touch probe and 4th axis Ref ...

Machine number: 711194 Operating voltage: 400 V Frequency: 50/60 Hz Connection: 40 kVA Control: FANUC SERIES 18-M Spindle speed: 45 to 4500 rpm Spindle holder: BT 50 Front bearing diameter: 100 mm Travel X-axis: 1100 mm Travel Y-axis: 600 mm Travel Z-axis: 630 mm Distance between spindle nose and table center: 218 - 848 mm Distance between spindle center and stand: 650 mm Table dimensions: 1200 x 600 mm Table load: max. 1200 kg Grooves: 5 Groove size: 18 mm Distance: 100 mm Rapid traverse X/Y/Z: 16/16/15 m/min Feed speed: 1 - 5000 mm/min Tool magazine: 24 places Max. tool dimensions: Diameter 125 x 350 mm Max. tool weight: 15 kg Tool holder: SK 50 incl. dividing head (4th and 5th axis) from the manufacturer NIKKEN, with a three-jaw chuck, Diameter: 250 mm Reference: Hercegfi - Lot 29

Labeling machine for sale with optical centering 6000 bphTechnical Specifications & Performance DataThis P.E. Labellers rotary adhesive labeler with optical centering is engineered for precision bottle decoration within a used bottling line or new installations. Built for consistent, high-quality labeling across beverage production environments, it balances speed with accuracy and repeatability.Manufacturer / Model: P.E. Labellers – 8T 4S 4E adhesive SL GlueYear of manufacture: 2007Production speed: up to 6,500 bottles per hour (bph)Stations / Plates: 4 adhesive stations; 8 motorized plates with dedicated photocellsOptical centering: Advanced system for precise label alignment on decorated, embossed, or irregular bottlesLabeling applications: Body, back, neck and optional L-/U-seal for caps (via dedicated adhesive unit on trolley)Container types: PET and glass bottles; adaptable for ...
