horizontal milling center used for sale

Machine number: 711194 Operating voltage: 400 V Frequency: 50/60 Hz Connection: 40 kVA Control: FANUC SERIES 18-M Spindle speed: 45 to 4500 rpm Spindle holder: BT 50 Front bearing diameter: 100 mm Travel X-axis: 1100 mm Travel Y-axis: 600 mm Travel Z-axis: 630 mm Distance between spindle nose and table center: 218 - 848 mm Distance between spindle center and stand: 650 mm Table dimensions: 1200 x 600 mm Table load: max. 1200 kg Grooves: 5 Groove size: 18 mm Distance: 100 mm Rapid traverse X/Y/Z: 16/16/15 m/min Feed speed: 1 - 5000 mm/min Tool magazine: 24 places Max. tool dimensions: Diameter 125 x 350 mm Max. tool weight: 15 kg Tool holder: SK 50 incl. dividing head (4th and 5th axis) from the manufacturer NIKKEN, with a three-jaw chuck, Diameter: 250 mm Reference: Hercegfi - Lot 29 Auction-ID: A7-46763-211

Manufacturer: DOOSAN Year: 2008 Type: CNC Vertical Machining Center Numerical Control: FANUC 0i-M Series Strokes: X 1020 mm / Y 510 mm / Z 525 mm Fast Feeds: X/Y 36 m/min – Z 30 m/min Spindle: 12,000 rpm – 11 kW (continuous) Tool magazine: 30 tools Table: 1200 × 500 mm – max. load 799 kg Accuracy: ±0.005 mm – repeatability±0.003 mm Dimensions (mm): 2795 × 2850 × 2275 Weight (kg): 6500 Auction-ID: A1-46647-211

Working range 5100x1300, tool changer, drilling unit, pantograph, horizontal milling motor, suction cups / vices, vacuum pump 150 sqm / 3 becker Auction-ID: A1-45879-7

Machine number: 822441 Travel X-axis: 1,020 mm Travel Y-axis: 510 mm Travel Z-axis: 600 mm Control model: HEIDENHAIN TNC 410 PA Spindle speed (max.): 6,000 rpm Drive power: 13 kW Spindle holder: BT 40 Number of tool positions in tool changer: 22 Rapid traverse X and Y axis: 40 m/min Rapid traverse Z-axis: 30 m/min Work table Length: 1,150 mm,Width: 490 mm EQUIPMENT Note: The machine vices mounted on the work table as well as the tool holders installed in the tool magazine and in the spindle, including the tool, are not included in the sales and scope of delivery. The oil mist extraction, which may be seen in the photos, is not included in the sales and scope of delivery. Reference: Zabyx - Lot 52 Auction-ID: A7-46763-340

Usable working area: X: 4970 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head Electro-chuck 8 kW – ISO30 Frequency inverter 8 kW Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 8-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups Pneumatic locking table 2 stops per bar 8 × suction cups 114 × 140 mm – H 100 (to be confirmed) 8 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) 8 × suction cups 120 × 50 mm – H 100 longitudinal (to be confirmed) 8 front stops + 2 additional side stops Equipment: Vacuum pump 250 m³/h CN on external PC (PC included) 17\" PC TFT displayMastercabinet Level 1 Power supply: 400 V – 50 Hz Compliance: CE safety standards version L Dimensions: Estimated height: approx. 2400 mm (to be confirmed) Auction-ID: A1 ...

CNC Vertical Machining Center Manufacturer: HEAD Model: CUV-10 Year: 2001 Order: FANUC OMD Strokes: X 1,020 mm / Y 510 mm / Z 635 mm Spindle: up to 7,500 rpm 2-speed transmission Construction: shrouded machine, integrated coolant Condition: Used machine Auction-ID: A1-46647-234

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle holder taper: ISO 40 Z-axis travel: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 m Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D touch probe Reference: Schönichen - Lot 23 Auction-ID: A7-46763-270

Machine: SCM MULTIFLEX Angular Center Year: 1990 Saw: Ø400 mm Tenon Shaft: L 320 mm, bore 50 mm Profiling Shaft: L 320 mm, bore 50 mm Glazing bead recovery shaft: Ø200 mm blade Pointing: Pneumatic Stop: revolver Grooved axle: 320 mm Max. working circle: 320 mm Spindle Profiling: 320 mm Max. working length: 2800 mm Workpiece width: min. 30 mm / max. 140 mm Splinter height: max. 115 mm Engine power: 4 PS Speeds: 3000 rpm cut-off saw, 3250 rpm slotted spindle Split spindle stroke: 265 mm Slotted spindle Ø: 50 mm Ø Grooving tools: 350 mm Suction: Ø120 mm x2 Feed speeds: 1.5 - 16 m/min Auction-ID: A1-46801-10

Machine: BIESSE ROVER A 1332 ATS 5-axis machining center Year: 2012 Field of work: X 3280 mm, Y 1320 mm, Z 170 mm (H48 modules) Running axes: X 3722 mm, Y 1993 mm, Z 324 mm Table: ATS (Advanced Table Setting), Auto Boom Lifts, Multiple Zones Stops: Front , Rear, Side Electrospindle: HSD 17.7 HP, HSK63F Cone Tool Changer: Rotary 12 POS. Boring Head: BH17L, Quick Change Units: 10 vertical pins (7X, 3Y), 3 horizontal (2X, 1Y), Ø120 mm blade Lubrication: Automatic Order: XP600, Windows XP PC, 19'' screen Vacuum Pump: Becker Software: B-Solid included Auction-ID: A1-46801-36

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 660 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance from table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vice shown in the photos! incl. the tool holders located in the tool changer as well as touch probe and 4th axis Ref ...

Manufacturer: HURON Year: 2001 Type: 4-axis CNC vertical machining center Numerical control: Siemens Sinumerik 840D Strokes: X 700 mm / Y 600 mm / Z 450 mm Table: 800 × 600 mm – max. load 500 kg 4th axis: Integrated rotary table Spindle: HSK63-A – SKF – 24,000 rpm – 18 kW (spindle overhauled in 2024, approx. 1,000 h) Tool magazine: 20 stations Dimensions (mm): 3000 × 2100 × 3300 Weight (kg): 8000 Remarks: High-speed machining center with 4th axis. Machine used, functional. Auction-ID: A1-46647-215

Machine number: 11790001067 Operating voltage: 400 V Frequency: 50/60 Hz Rated current: 100 A Connection: 40 kVA Control: SIEMENS SINUMERIK 840 D Spindle speed: 42,000 rpm Feed in X/Y/Z axis: up to 40,000 mm/min Input fineness X/Y/Z axis: 0.001 mm Rapid traverse in X/Y/Z axis: 40 m/min Displacement measuring system Resolution X/Y/Z axis: 0.001 mm Position tolerance in X/Y/Z axis with direct measuring system: 0.005 mm travel X-axis: 200 mm Travel Y-axis: 200 mm Travel Z-axis: 280 mm Tool holder: HSK-32 E incl. 24-fold tool changer Max. tool length from spindle nose: 200 mm Max. tool diameter: 40 mm Max. tool weight with automatic tool change: 1 kg with total tool weight in magazine: 24 kg NC rotary table with swivel axis C-axis Clamping surface: 190 mm diameter Rotation range: 360 ° rotation rotary table: 360 °rotation table: 150 rpm A-axis Swivel range: -5/+130° Loading: max. 10 kg in ...

CNC vertical machining center for machining metal parts. Numerical control: Heidenhain TNC 426 (3D) Strokes: X 1,000 mm / Y 600 mm / Z 600 mm Table: 1,250 ×,800 mm Tool changer: 30 positions Spindle taper: SK 40 (DIN) Spindle speed: up to 15,000 rpm Spindle motor power: 18 / 15 kW IKZ / CTS: 40 bar Equipment: Chip conveyor, air blowing, closed cab Auction-ID: A1-46647-243

Manufacturer: HARTFORD Year: 1999 Type: CNC Vertical Machining Center Numerical Control: FANUC O-M Axes: 3 Axes (X, Y, Z) Strokes: X 1000 mm / Y 500 mm / Z 550 mm Spindle: BT40 – 8000 rpm Equipment: Chip Conveyor, Full Documentation (Operator's Manual, Electrical Diagrams, FANUC Documentation) Condition: Machine in working order, loaded on truck (LOADED) Condition: used Auction-ID: A1-46647-229

X / Y / Z axis strokes: 1020 × 510 × 550 mm Spindle power: 11 kW Max. spindle speed: 6,000 rpm Spindle taper: BT 40 Tool magazine: 22 positions Weight (kg): approx. 6000 Year & Manufacturer: 1993 – FONG LEE Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-251

Manufacturer: HERMLE Year: 1999 Type: Universal CNC machining center Numerical control: Heidenhain TNC 430 PA Axes: 5 axes (3 linear axes + 2 rotary axes in positioning) Strokes: X 800 mm / Y 500 mm / Z 500 mm Table: integrated roto-pallet table – max. load 250 kg Spindle: ISO 40 – 20 to 15,000 rpm Tool magazine: 30 tools SK40 Equipment: remote crank, external coolant, external blowingWeight: approx. 8,500 kg Notes: Robust and precise CNC universal machining center, functional machine. Auction-ID: A1-46647-224

Year: 1998 Serial No.: 458-66 Type/Function: 4-Axis Vertical CNC Machining Center Configuration: 2 Pallets, 2 × 4th Axis Tsudakoma Numerical Control: SIEMENS Included Equipment: KNOLL Filter Unit, Chip Conveyor Auction-ID: A1-46647-270

CNC Control: SIEMENS 810 D X/Y/Z axis strokes: 1020 × 510 × 510 mm Table dimensions: 1200 × 500 mm Permissible load on table: 800 kg Max. spindle speed: 10,000 rpm Spindle power: 10 kW Spindle taper: ISO 40 Tool changer: 20 positions Weight (kg): 5800 Year & Manufacturer: 2000 – HURON Auction-ID: A1-46647-250

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-203

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 k Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y-axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D Probe Reference: Schönichen - Lot 25 Auction-ID: A7-46763-272

Serial number: 498-56 Important note: A new spindle has recently been installed Travel paths: X: 800 mm Y: 500+50 mm Z: 550 mm Spindle speed: 12000 rpm Tool holder: SK 40 Number of tool positions: 40 Control: SIEMENS SINUMERIK 840 D incl. chip conveyor from KNOLL, paper belt filter system from KNOLL, zero-point clamping system from SCHUNK Type: SDE 138 Table dimensions: 850 x 350 mm incl. the tool holders and tools on the tool changer incl. touch probe as shown in the pictures A truck with a width of 3000 mm is required for transport Reference: Wittner - Lot 11 Auction-ID: A7-46763-369

CNC Control: FANUC series O-M Axis strokes: X 600 mm / Y 420 mm / Z 450 mm Table: 750 × 400 mm Spindle speed: 6000 rpm Spindle power: 13 kW Spindle taper: ISO 40 Tool changer: 30 positions Included equipment: NIKKEN 4th axis divider Ø 250 mm Year: 1989 Manufacturer: SIGMA Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-267

CNC vertical machining center for machining metal parts. Axes: 3-axis Strokes: 610 x 410 x 450 mm Numerical Control: Fanuc OT Equipment: Chip Conveyor Manufacturer: Yang Iron Works Co., Ltd.Country of Manufacture: Taiwan Serial No.: Z00321 Auction-ID: A1-46647-239

CNC vertical machining center for machining metal parts. Numerical control: Hurco WinMax Axes: 4 axes (including 1 rotary axis) Strokes: X 660 mm / Y 355 mm / Z 457 mm Table: 762 × 355 mm Maximum load table: 500 kg Spindle taper: ISO 40 Spindle speed: 10,000 rpm Spindle power: 11 kW Tool changer: 24 tools (RANDOM type) Equipment: 1-axis divider with tailstock Auction-ID: A1-46647-245

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER Auction-ID: A1-46647-252

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-202

Manufacturer: VICTOR Year: 1996 Type: CNC Vertical Machining Center Numerical Control: FANUC Series O-M Strokes: X 800 mm / Y 500 mm / Z 510 mm Table: 1100 × 500 mm – max. load 600 kg Guides: Prismatic slides with Turcite-B coating Spindle: 60–6,000 rpm – BT40 / SK40 taper – 7.5 kW (continuous) / 11 kW (30 min) Tool changer: 24 tools – exchanger arm – 2.5 s tool-tool – max. tool Ø 80 mm Weight (kg): approx. 6000 Notes: Mehanite heavy construction machining centre. Good working condition. Auction-ID: A1-46647-213

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-221

CNC vertical machining center for machining metal parts. CNC control: Fanuc 0M Strokes: X 850 mm / Y 440 mm / Z 630 mm Table: 940 × 400 mm Max. table load: 250 kg Spindle taper: BT 40 Spindle speed: 45 – 8,000 rpm Spindle motor power: 7.7 / 5.5 kW Tool changer: 22 positions Projection: 380 mm Total power: 10 kVA Voltage: 380 V Auction-ID: A1-46647-240

CNC Control: FANUC 0M (original manual) Number of axes: 3 Axis strokes: X 1100 mm / Y 650 mm / Z 800 mm Maximum spindle speed: 8000 rpm Cooling: with coolant Spindle taper: BT40 Tool changer: automatic, 30 stations Year: 1994 Manufacturer: SUPERMAX Auction-ID: A1-46647-269

Machine: CNC machining center MASTERWOOD 4 WIN Year: 2010 Running axes: X 4960 mm, Y 1930 mm, Z 650 mm Digital axes: 4 + C-axis Electrospindle: 17 kW HSK63E with dimmer, dedicated cooling Tool Magazines: 10 pos. head, 16 pos. rear carriage, 18 pos. lateral Fixed heads: blade holder Ø220 + Ø350 mm HSK63F Table: 7 bar auto Belt: chip evacuation Order: Multilingual PC + Masterwindows software, mobile console, handheld remote control Security: EC Dimensions: 6800 x 2450 x 2450 mm Weight: 4300 kg Available from the beginning of November. Auction-ID: A1-46801-42

Machine: BIESSE CNC machining center Table: 3060 x 1260 x 150 mm Solenoid Spindle: 12 kW, ISO30 Cone Tool changer: 10 positions Vacuum pump: 100 m³/h Consoles: 6 with 3 ATS suction cups Drilling Head: 15 Vertical + 4 Horizontal Pins X Saw: Ø125 mm Accessories: 4-position flange, bevel gearbox, flange for aggregates Equipment: chip recovery belt, Biesse WORK software, B_NEST Auction-ID: A1-46801-23

Usable working area: X: 3248 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head 8 kW electro-chuck – ISO30 8 kW frequency inverter Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 10-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups 2 stops per bar 6 × suction cups 114 × 140 mm – H 100 (to be confirmed) 6 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) Equipment: Vacuum pump 100 m³/h CN on external PC (PC included) 17\"PC TFT display and instructions in English Power supply: 400 V – 50 Hz Compliance: CE safety standards STANDARD version Dimensions (estimated): Length approx. 6,500 mm × Width approx. 4,100 mm × Height approx. 2,400 mm (to be confirmed) Weight (estimate): approx. 5,000 kg (to be confirmed) Auction-ID: A1-46801-70

CNC vertical machining center for machining metal parts. CNC control: Heidenhain TNC 410 Axes: 3 axes Strokes: X 1,020 mm / Y 610 mm / Z 560 mm Table: 1,400 ×,650 mm Maximum load table: 2,000 kg Spindle taper: BT 40 Spindle speed: 10,000 rpm Spindle power: 15 kW Tool changer: 40 positions High-pressure coolant: 20 bar through spindle Equipment: Chip conveyor, 2 augers, spindle cooling, closed cab, machine lighting Auction-ID: A1-46647-247

x-travel:1530 mm y-travel:530 mm z-travel:465 mm side by side, right side fixed table X =:925 mm side by side left side 2 axis table X =:780 mm control:Heidenhain TNC 640 tool magazin::122 SK 40 spindle turning speed - stepless:12.000 1/min Spindle Torque:120 Nm power capacity:22 kW Fixed Table Dimensions:920 x 540 mm Table load fixed table:2000 kg Max. parts size on fixed table:900 x 500 x 400 mm Diameter of integrated 2-axis rotary table:650 mm Table load rotary table:500 kg B-axis swivel angle:-90°/+110° ° / deg Max. parts size on rotary table:600 x 500 x 400 mm Max. Parts size over both tables:1500 x 500 x 400 mm internal coolant system feed:70 bar bar weight of the machine ca.:10,5 t dimensions of the machine ca.:3,65 x 2,53 x 2,81 m pendant hand wheel:HR 510 FS Measuring probe for work piece:Blum TC 52 The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new ...

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:Sinumerik 840D sl MDynamics Operate turning speeds:10.000 1/min Spindle power:26/20 kW max. torque on the spindle:340/262 Nm tool taper:HSK-A 100 tool change unit:120 (2x60) Pos. Pallet changer 2x:630 x 630 mm table load capacity:800 kg weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don?t accumulate on pallet, they can fall free into the chip conveyor CNC controlled U-axis enables radial movement of tool for variable spindling diamenter. twin pallet changer 630 x 630 mm 6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis special hydraulic pump for fixture coolant through spindle  ...

workpiece diameter:5-125 mm grinding depth:50-1000 mm clamping length:1000 mm total power requirement:1.9 KVA weight of the machine ca.:630 kg max. workpiece weight:100 kg Center Hole Grinding Machine. Workpiece must be rotated by machine during grinding

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:600 mm y-travel:770 mm z-travel:675 mm total power requirement:47 kW weight of the machine ca.:13 t Tool bore:HSK-A63 numbers of tools in magazin:40 including additional tool magazine ZM 182 1 spindle , 5 axes Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

max. workpiece diameter:29 mm min. workpiece diameter:26 mm workpiece length:66 mm the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm Total length will probably be almost 400 mm possible with a few conversions. Also dependent on tool lengths, machining lengths on the component, etc. Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3 Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing th ...

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

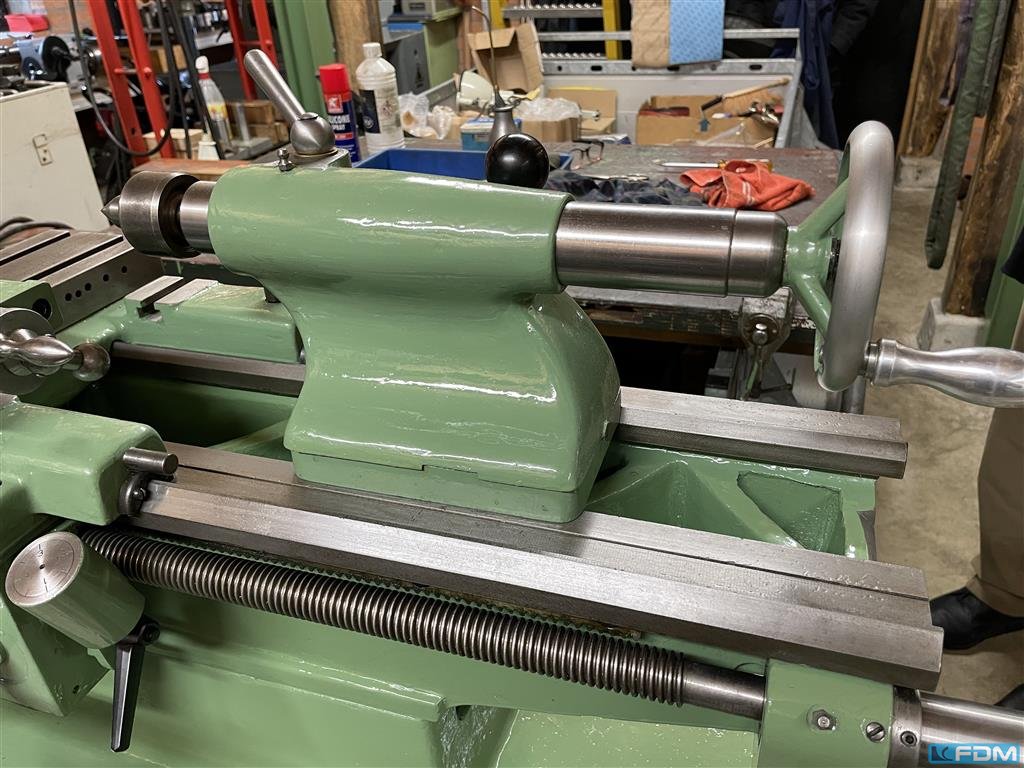

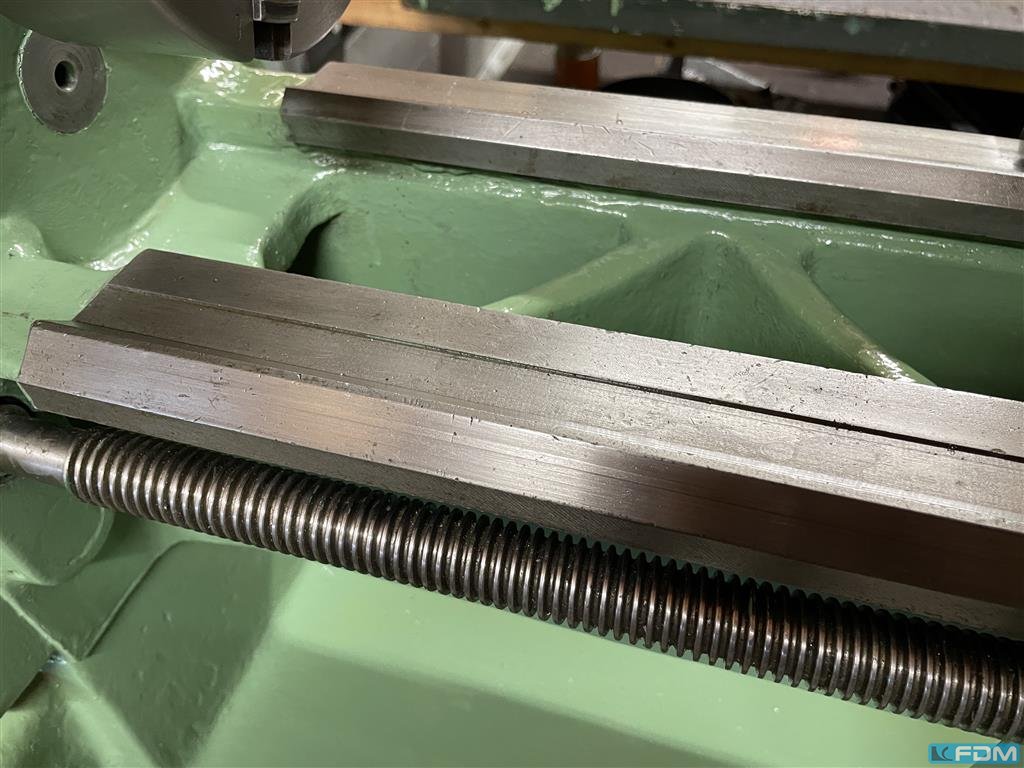

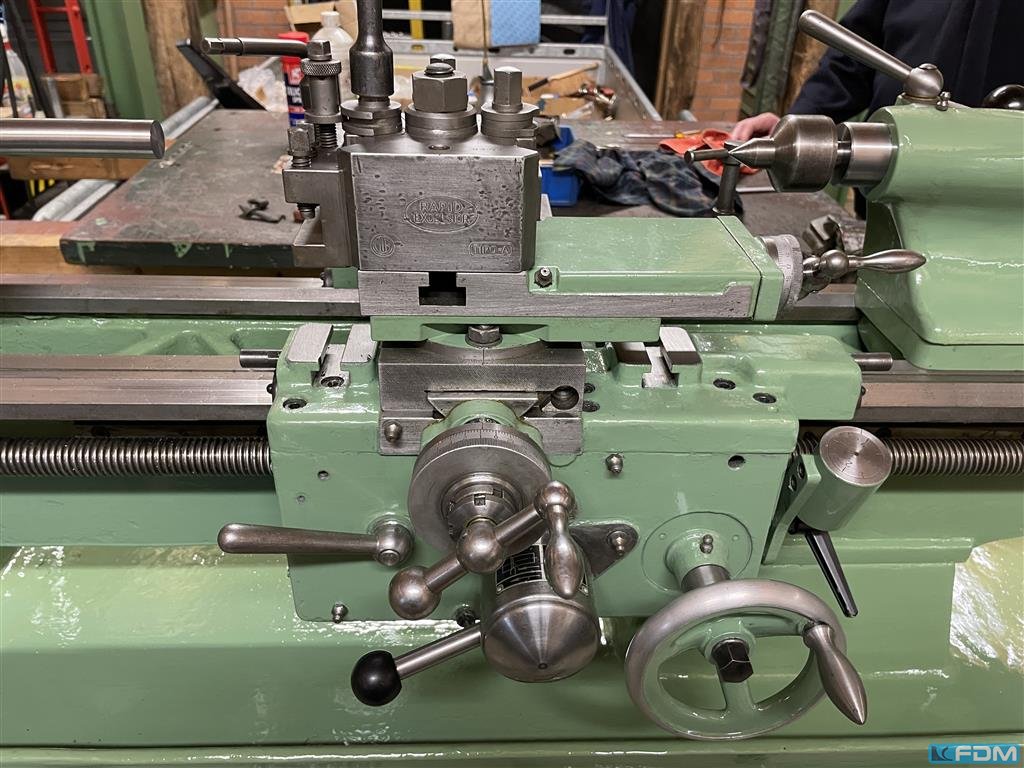

turning diameter over bed:350 mm turning diameter over slide rest:240 mm turning length:800 mm Spindle RPM:40 - 2000 in 8 Stufen 1/min total power requirement:3 kW Spindle bore:26 mm tailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 m weight of the machine ca.:1,9 t Very well maintened center lathe with accessories - 3-jaw, 4-jaw chuck - tailstock with center - 1 boring head - RAPID quick tool change device with 3 holder - saddle mounted steady rest - collant device - set of collets appr. 75% size B 32

turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

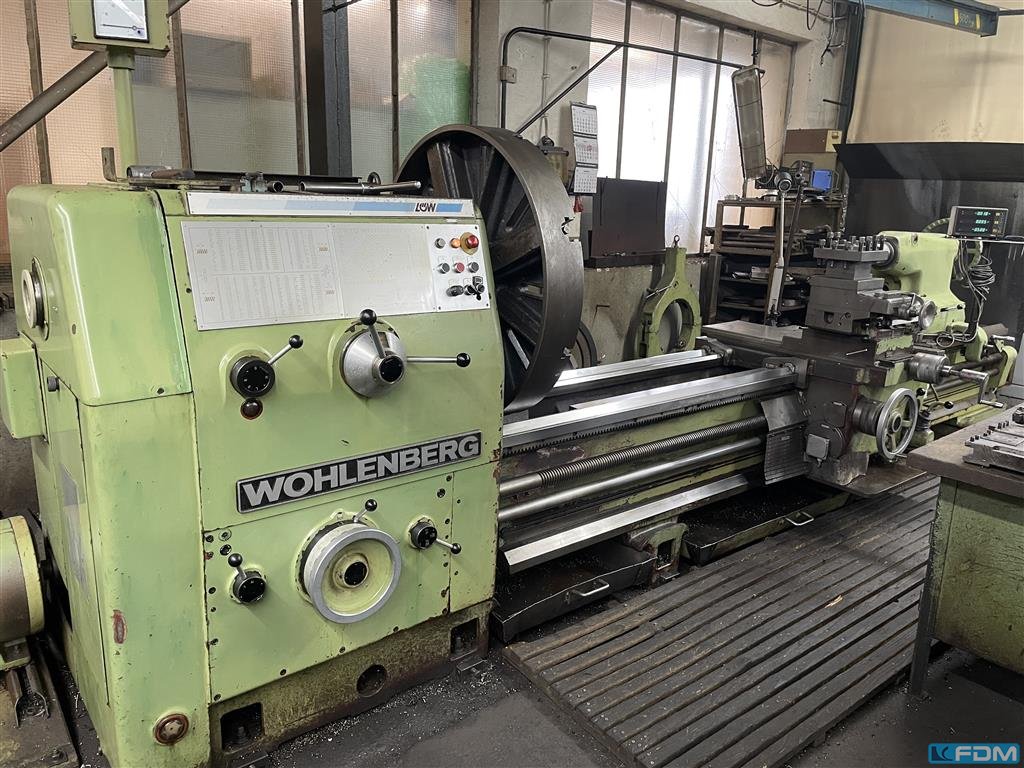

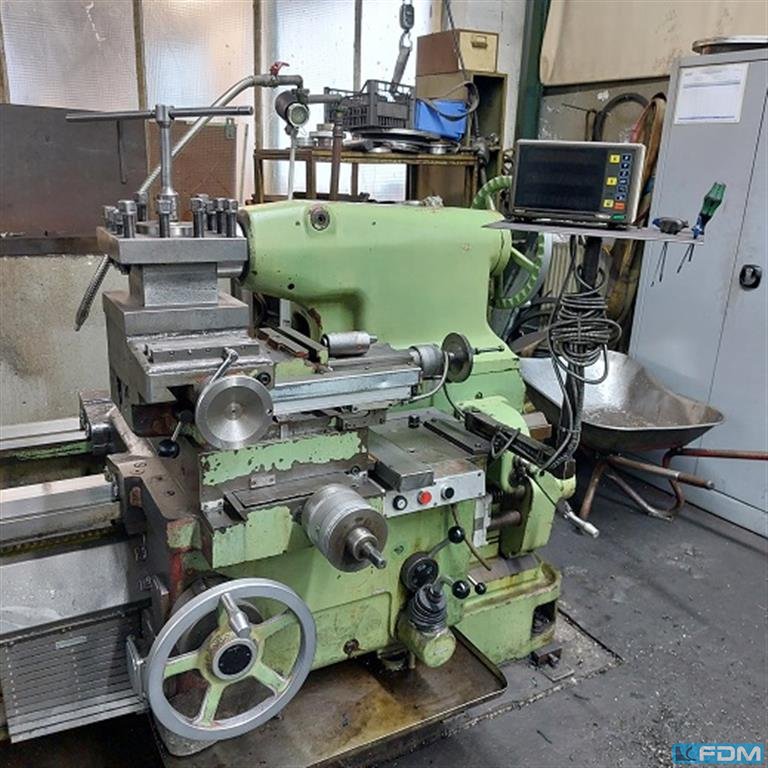

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m
