horizontal boring milling used for sale

Diameter 80 mm/ length A 350 mm/ in wooden box/ unused and in original packaging Auction-ID: A1-46698-32

This 3-axis MASTERWOOD Ks 21.31 wood boring machine was manufactured in 2019. It features an impressive XYZ working dimension of 3100 x 2150 x 100 mm and a tool magazine with a maximum capacity of 12 tools. The machine is equipped with an automatic loading and unloading system using suction cups and has a 360-degree rotation axis. If you are looking to get high-quality boring capabilities, consider the MASTERWOOD Ks 21.31 machine we have for sale. Contact us for further details.

Set includes 6 precision boring / reaming tools Manufacturer: MAPAL. Includes modular storage rack system Auction-ID: A7-46756-244

This 5-axis MSC Chemnitz BFT90/5 MSC boring machine was manufactured in 2009. It features a substantial table size of 1000 x 1120 mm with a maximum table load of 2.5 t. The machine offers impressive feed rates of 4000 mm/min and a spindle speed range of 4 – 1600 rpm. If you are looking to get high-quality boring capabilities, consider the MSC Chemnitz BFT90/5 MSC machine we have for sale. Contact us for further details.

Technical data: X-axis 2,000 mm Y-axis 2,500 mm Z-axis 1,250 mm W-axis 800 mm Spindle power 37 kW Spindle speed 1.6 – 1,500 rpm. Tool holder SK 50 Control CNC HEIDENHAIN TNC415 Table dimensions 1,800 x 1,600 mm max. table load 8 to B-axis 360° Weight approx. 30,000 kg Motor fan new Simodrive modules new 2024 November SK 50 Cone Reground 2024 New cover X axis in 2024 Y scale 2023 overtaken by Heidenhain

CNC unit for routing and boring Brand: Atemag Type: Function Line Soft Touch One With surface copying function with fix spindle ER25 and fix bell Max. drive speed 18,000 R.P.M. Max. tool spindle speed 18,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 10Nm Tool interface: fix ER25 Adjustment distance: 70mm

Mixed industrial lot. Includes heavy-duty holders, internal boring bars, and turning tools. Auction-ID: A7-46756-218

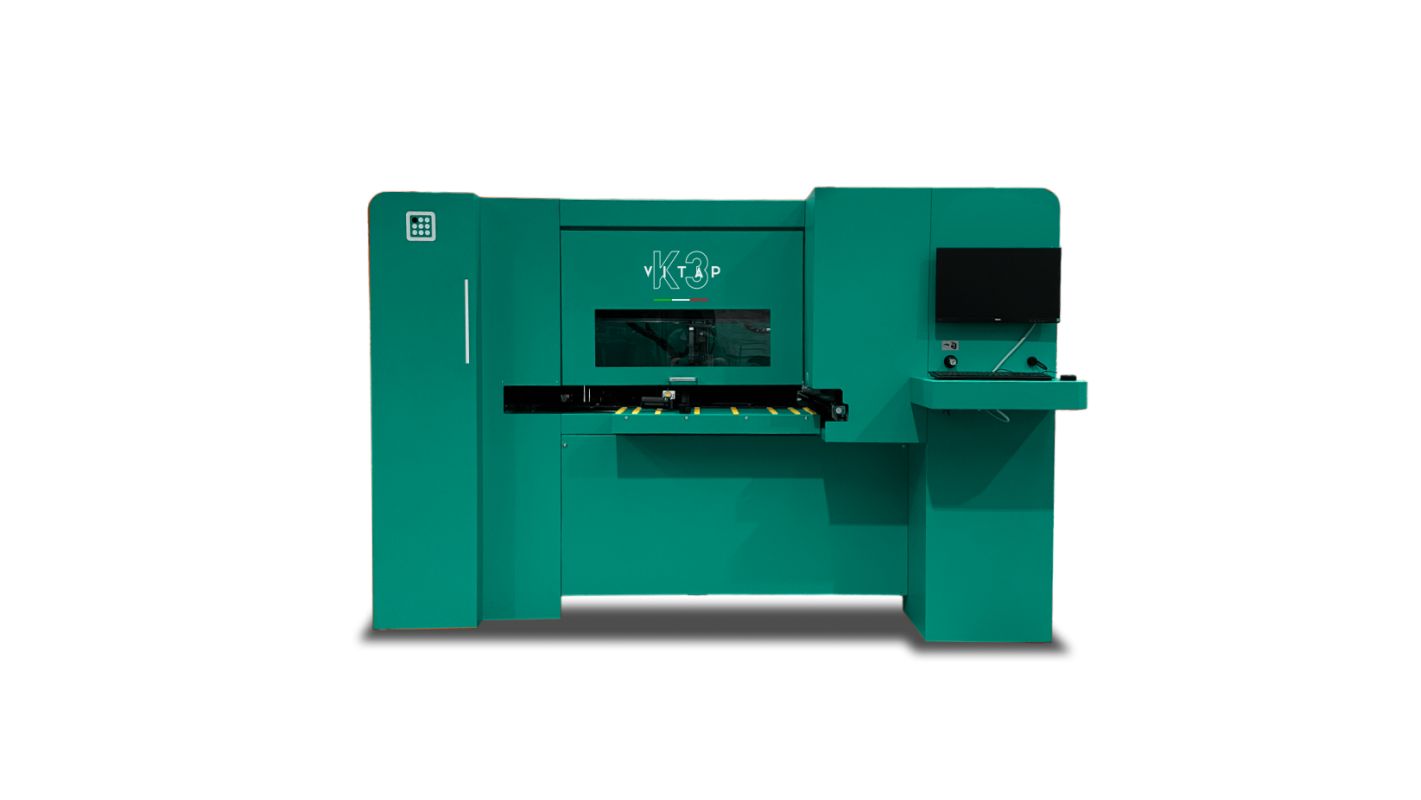

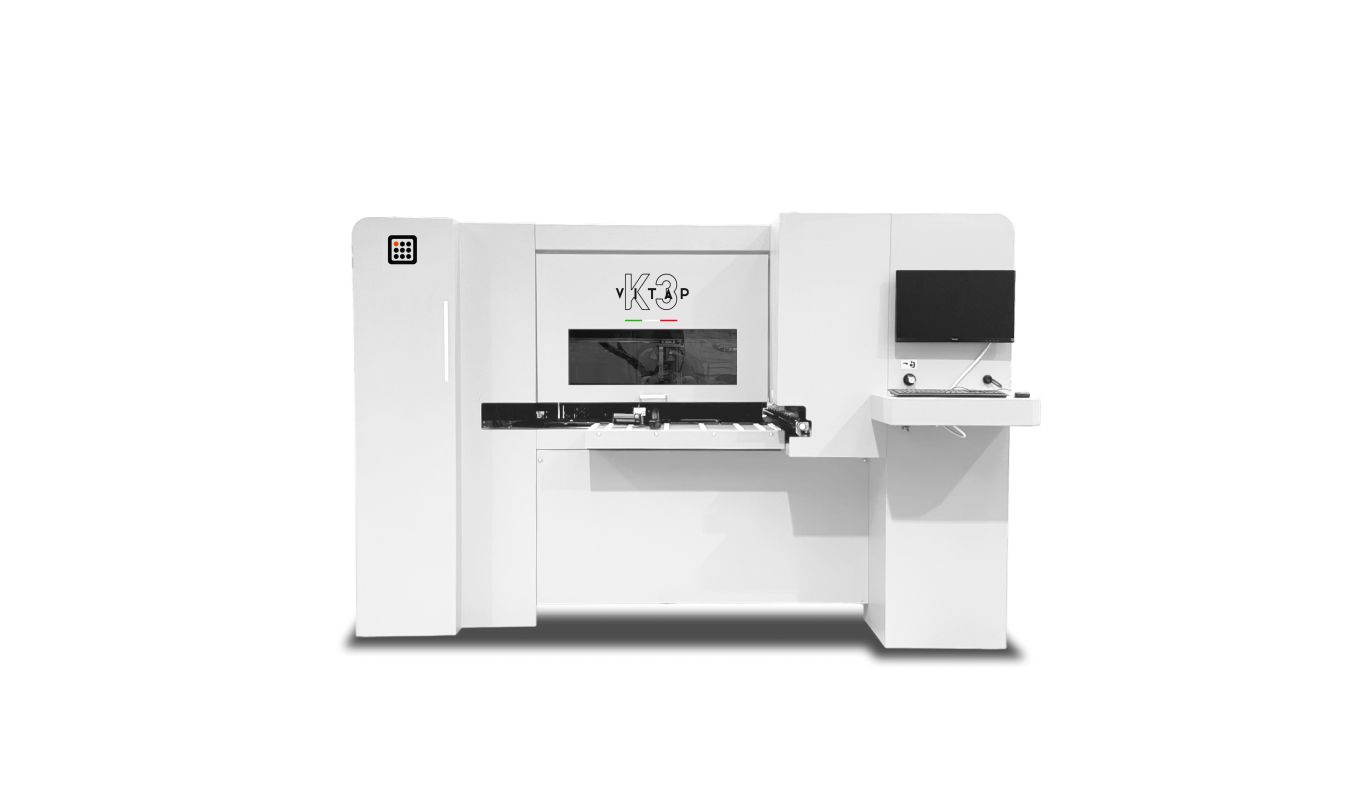

CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...

Auction-ID: A7-46756-240

CONTROLS   CNC controls NUM 1060 WORKING RANGE TURNING   swing diameter (max): 2000 mm   workpiece weight max.: 25000 kg CROSS BEAM SLIDE   - rotation speeds (min): 2 /min   - rotation speeds (max): 450 /min ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4100 mm   space requirements -front/back-: 3500 mm   total height: 5600 mm

Mixed lot of indexable lathe tool holders Auction-ID: A7-46756-216

This 4-axis NORDEST HYDRA MP 110 boring machine was manufactured in 2005. Ideal for precision boring tasks, it offers robust construction and reliable performance. If you are looking to get high-quality boring capabilities, consider the NORDEST HYDRA MP 110 machine we have for sale. Contact us for more information.

Tool holder: SK40 including 4 parts in different designs as good as new condition Reference: Large Auction-ID: A7-46763-388

boring spindle diameter: 130 mm taper: ISO 50-7388/1 milling spindle diameter: 200 mm direct current motor: 22 kW : 10-1600 U/l rapid traverse: der Achsen 6000 m/min z-axis: 800 mm y-axis: 2100 mm x-axis: 3000 mm w-axis: 1500 mm Size of table plate: 1250 x 1500 mm table movement: max. 10000 KG kW : im Eilgang 3,5 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 4-axis LOLA BH 110 CNC was manufactured in 2005. It features a generous X-axis travel of 1750 mm, Y-axis travel of 1650 mm, and Z-axis travel of 630 mm. The working table measures 1550 x 1250 mm and can support a load of up to 4500 kg. If you are looking to get high-quality boring capabilities, consider the LOLA BH 110 CNC boring machine we have for sale. Contact us for further information.

Auction-ID: A7-47109-13

Also from Werkö, stock 10/12/16/20/25mm, all unused Auction-ID: A7-47109-91

Indexable inserts (120 pieces) are suitable Auction-ID: A7-47109-70

To give away two atonement units as shown. Loading facilities available. Approx. 200kg.

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

diameter:300 mm tool adaptor:40 Weight:5 kg Taper ISO 40 Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

diameter:200 mm Weight:4 kg Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

Horizontal Milling Machine DIXI, Type 350 Mach. No. 350-16 Control: Dixi CNC 4400 Table dimensions: 810 x 810 mm table load: 2000 kg X/Y/Z: 1000 / 1000/1000 mm B-axis rotating table C-axis vertical round rotating table RPM: 10-3000 U / min Power: 18 kWh Table with 7 T-slots: 18 mm rapid traverse: 20-10000 mm / min taper ISO 50 Weight: 17 tons Accessories: Vertical milling head, vertical round table, angle rack, holders, etc.

Qty.1 Second-hand milling (scalping) line Mfc.: Torrington Type: 30" Slap Miller Speed: 500 rpm – 18 fpm Capacity: 1,9 m/dk

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralHorizontal 5-axis universal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal850 mmCross900 mmVertical1150 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDrive CNC swivel rotary table direct drive C-axis with pallet carrier Permissible load: 800 kg / 1,760 lbs C-axis: 80 min-1 direct drive A-axis: 15 min-1 single drive Rotation C axis: endlessly turning Swivel range A axis: +120°/-120° (replacement of base machKi ...

Table length: 10.800 mm Table width: 1.000 mm Table height: 200 mm Load capacity: 10 t/m Power motor spindle: 22 Kw Max. speed of turning: 1.700 rpm X Axis travel: 7.000 mm Vertical axis travel: 2.000 mm RAM travel: 1.000 mm Total installed power: 60 Kw Rapid feed rate: 15 mt/min CNC ECS 4801 Chip conveyor

Max diam 250 , max lenght 2000, 3 x heads , change gears

Horizontal milling machine Reckermann EW 900 Pony TNC 135 380 V 32 A 12,35 KW X 720 mm Y 370 mm Z 350 mm ISO 40 Weight 4 tons Vogel central lubrication Grooves 18 mm Speed range 40 - 2000 rpm Feed in all axes Data

HAAS EC-1600ZT CNC machining center was built in 2020 in the United States by the renowned brand HAAS AUTOMATION INC. Designed for machining of heavy workpieces weighing up to 4536 kg, the machine is the ideal combination of functionality, productivity and precision. In order to meet this challenge, the machine is equipped with a wide range of equipment such as a rotary table (4th axis), a two-stage spindle and a capacious magazine with automatic tool changer. The HAAS EC 1600ZT CNC horizontal machining center weight approximately 13472 kg. Technical specifications of the HAAS EC-1600ZT milling center - feed in the X/Y/Z axis: 1626/1270/1016 mm - feed in the B axis: 360° - rapid traverse in the X,Y,Z axis: 15.2 m/min - work table surface (L x W): 1626 x 914 mm - clamping plate diameter (rotary table): 762 mm - maximum workpiece weight: 4536 kg - maximum spindle rotational spee ...

GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal700 mmCross700 mmVertical700 mmMiscellaneousClamping SystemHSK-A 63 CabineFull protection cabinMain driveDrive power (100% DC) 20 kWDrive power (40% DC) 20 kWSpeed range - 12000 rpmSpindle taper HSK-A 63NC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 5Spindle taper HSK-A 63Spindle taper for HSK-A 63 to DIN 69893 (incl. adaptation working spindle, tool changer and tool magazine)4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmTool magazine, cha ...

GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal700 mmCross700 mmVertical700 mmMiscellaneousClamping SystemHSK-A 63 CabineFull protection cabinMain driveDrive power (100% DC) 20 kWDrive power (40% DC) 20 kWSpeed range - 12000 rpmSpindle taper HSK-A 63NC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 5Spindle taper HSK-A 63Spindle taper for HSK-A 63 to DIN 69893 (incl. adaptation working spindle, tool changer and tool magazine)4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmTool magazine, cha ...

GeneralHorizontal machining centre - Horizontal milling head; Control: CELOS with Siemens 840D sl Operate Technical DataRapid traverse longitudinal/transverse/vertical60/60/70 m/minFeed rate longitudinal/transverse/vertical60000/60000/70000 mm/minWorking area 1Longitudinal800 mmCross1050 mmVertical900 mmCabineFull protection cabinDirect measuring systemDirect path measuring systemNC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 630 x 630 mmRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmNumber of Slots 5Slot width 14 mmMaximum load (table centre) 900 KgCentre bore 50 mm4. Axes (swivelling range) 360 x 0,001 degreePackage recirculation ballscrew spindlePackage recirculating ballscrew spindle X-,Z-axis:max. feed speed: 60.000 mm/min Y-axis: max. feed speed: 70.000 mm/min (basic machine without linear drive X-, Y-, Z-axis)Motor ...

GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Working area 1Longitudinal560 mmVertical600 mmCross600 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minMiscellaneousClamping SystemDIN ISO 7388 CabineFull protection cabinNC rotary table with pallet carrierNC rotary table with pallet carrier permissible load 500 kg / 1,100 lbs (no indexing table 360 x 1° in basic machine)Table surface 400 x 400 mmMaximum load (table centre) 500 Kg4. Axes (swivelling range) 360 x 0,001 degreeTool magazine, chain Vert., 60 pocketsTool magazine Vertical chain magazine with 60 tool pockets SK 40 or optional chosen spindle tapersMotor spindle SK 40 18,000 rpmMain drive: Integrated motor spindle SK 40 Spindle speed max. 18,000 rpmDrive power (100% DC) 28 kWDrive power (40% DC) 34 kWSpi ...

Thread milling and hobbing machine Wanderer 31 NU Machining length 3000 mm With accessories

Gear hobbing machine horizontal Pfauter P160 With accessories

x-travel: 450 mm y-travel: 400 mm z-travel: 400 mm : control: Heidenhain 355 cooling: total power requirement: 4 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MAX DIAM 250 X 2000

OKUMA MA-50 HB CNC horizontal machining center was built in 2000 by the Japanese corporation OKUMA. The machine, designed for advanced machining of workpieces with a maximum weight of 800 kg, is distinguished by its high reliability, efficiency and precision. The machining process is performed fully automatically by means of a high-speed spindle and cutting tools taken from a 40-position magazine. What’s more, the automatic pallet exchange system allows for simultaneous loading and unloading of workpieces during the machining process, reducing machine downtime to a minimum. The MA-50 HB CNC machining center is offered with extensive equipment, including among others a rotary table and an advanced CNC control with an intuitive interface. The total weight of the machine is 21000 kg. Technical specifications of the OKUMA MA-50 HB CNC milling machine - feed in the X/Y/Z axis: 700/800/7 ...

MITSUI SEIKI HR6A CNC machining center was built in 1984 in Japan by MITSUI SEIKI KOGYO CO., LTD. The machine is designed for precision milling, threading and boring of oversized workpieces with a maximum weight of 2 tonnes. All these machining processes are performed fully automatically, thanks to the use of an automatic pallet exchange system. This system allows workpieces to be loaded and unloaded simultaneously during machining, thus increasing production efficiency and significantly reducing machine downtime. The pallets are transported by a stable cast iron saddle on bed’s hardened and ground guideways. Movement of the X,Y,Z axes is performed on hardened and ground slideways. These ensure that the geometry of the axes remains constant, even when moving to end of their travels. All moving components, in turn, have Turcite B coated bearings, which ensure low friction and high vi ...

Key data: 800 mm

Technical details are on picture. Parts shown by hand not come.

A horizontal boring and milling machine Scharmann is available. Spindle sleeve diameter: 120mm, travel X/Y/W: 1600mm/1600mm/600mm, speed: 1000rpm, table dimensions X/Y/Z: approx. 1200mm/1400mm, max. table load: 6000kg, column diameter: 220mm, table rotation: 360°, rapid traverse: 380mm/min, feed: 2400mm/min. Machine dimensions X/Y/Z: approx. 4500mm/2600mm/3000mm, weight: approx. 17000kg. Dokumentation vorhanden. An on-site inspection is possible.

x-travel: 4500 mm y-travel: 2000 mm z-travel: 1200 mm spindle taper: ISO 50 Cube: 2 weight of the machine ca.: 20.000 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 10500 mm y-travel: 1200 mm z-travel: 1600 mm control: Heidenhain TNC 426-CA taper ISO: 50 P.D.B. Table dimensions: 1100 x 12000 mm spindle speeds: 20 - 2000 mm voltage: 380 V total power requirement: 22 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

HELLER H 2000 CNC horizontal machining center was built in 2022 by Heller Maschinenfabrik GmbH. The machine represents the fourth generation of the H series, specially designed for use in demanding production conditions. It is distinguished by its extensive equipment and the use of a number of state-of-the-art technical solutions that ensure reliable operation throughout its service life. The HELLER H 2000 is used for precise, 4-axis machining of workpieces with a maximum weight of 800 kg. The design of the machine provides the foundation for high productivity and machining accuracy. All structural components made of cast iron have been carefully topology optimised to ensure the highest stability and excellent force damping. Kinematics in all 4 axes, in turn, allows precise positioning of the tool in relation to the workpiece. Movement in the X-axis is carried out by a column, which s ...

It is a BIESSE Rover A1232 5-axis horizontal milling machine and a BIESSE Skill 15.36 G FT 3-axis horizontal milling machine.

Offered is a horizontal knee-type milling machine: Table clamping surface X/Y: 300mm/1250mm, travel X/Y/Z: 800mm/275mm/400mm, table load: approx. 250-300kg, T-slots: 3pieces/18mm width/63mm spacing, spindle mount: ISO40 (steep taper40), spindle speeds: 12steps, speed range: 45-2000rpm, feed range (longitudinal/transverse): 14-900mm/min, feed range (vertical): 4-250mm/min, machine weight max.: approx. 2400kg, machine dimensions X/Y/Z: approx. 2000mm/1700mm/1700mm. Inspection possible by appointment.

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmGeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate CabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

380 V 16 A Speeds 100 - 1250 rpm Length 1 m Width 0.8 m Height 1.40 m Table converted to pneumatic control.

380 V 16 A 63- 800 rpm Length 1 m Width 0.8 m Height 1.40 m Color: Green Machine is overhauled.
