x-travel: 350 mm y-travel: 210 mm z-travel: . mm digital readout: ja table surface area: 800x 240 mm turning speeds: 115-1750 U/min feed: . m/min throat: . mm spindle stroke: . mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 775 mm y-travel: 250 mm z-travel: 425 mm table-size: 1100 x 240 mm control: konventionell tool adaptor: SK40 turning speed range: 40 - 1250 U/min quill stroke: mm total power requirement: 2,2 kW weight of the machine ca.: 1,2 t dimensions: 1,4 x 21, x 2,0 m Equipment: - Heidenhain digital readout - Coolant system - Adjustable chip guard The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 500 mm y-travel: 300 mm z-travel: 380 mm table surface area: 800 x 420 mm table load capacity: 400 kg tool taper: ISO 40 spindle turning speed range: 40 - 2000 U/min feeds longditudinal/cross/vertical: 10 - 500 mm/min rapid traverse: 1500 mm/min main drive: 3 kW weight of the machine ca.: 1,3 t dimensions of the machine ca.: m 3-axis digital readout (Heidenhain) Adjustable vertical milling head with quill adjustment Additional horizontal spindle REPAR 2 safety device (www.repar2.com) Machine light Anti-vibration mounts The machine is sold without a vise or tooling. Transport dimensions: The machine is loaded onto a heavy-duty pallet, Dimensions: 1800 x 1100 x 2100 mm (length x width x height) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 400 mm y-travel: 390 mm z-travel: 350 mm Control: DIALOG4/CONTOUR 3 tool taper: SK 40 spindle turning speed range: 31 - 3150 U/min feed range: 10 - 2000 mm/min total power requirement: kW weight of the machine ca.: 1,7 t dimensions of the machine ca.: 1.600 x 2.500 x 2.000 mm CNC control DIALOG4/CONTOUR 3 Table: 700 x 480 mm rigid angle table Swivel-type vertical milling head Coolant tank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 290/300 mm y-travel: 150/160 mm z-travel: 330/340 mm total power requirement: kW weight of the machine ca.: 675 kg dimensions of the machine ca.: 2700 x 2500 mm The machine was overhauled by the company Harich in 2017. Machine number: 57330/08 Technical data: Table longitudinal movement (motorized/manual): 290/300 mm Spindle head transverse movement (motorized/manual): 150/160 mm Support vertical movement (motorized/manual): 330/340 mm Angle table clamping surface: 600 x 210 mm Spindle speeds: 40 – 2000 rpm Tool holder: Standard taper 40 Motor power: 1.5/1.9 kW Feed rate range (infinitely variable): 5 – 500 mm/min Rapid traverse: 1200 mm Equipment: 3-axis digital readout (Heidenhain) Vertical milling spindle with quill adjustment Additional horizontal spindle REPAR 2 safety device (www.repar2.com) Operating manual The machine will be loaded onto a Euro-pallet, total height: ...
x-travel: 620 mm y-travel: 420 mm z-travel: 400 mm Control: Heidenhain TNC 410M table surface area: 800 x 400 mm tool taper: ISO 40 spindle turning speed - stepless: 50 - 4000 U/min main drive motor: 5,5 kW total power requirement: kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: m CNC control HEIDENHAIN TNC 410M Coolant equipment Machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 300 mm y-travel: 160 mm z-travel: 290 mm table surface area: 210 x 600 mm tool taper: SK 40 spindle turning speed range: (16) 40 - 2000 U/min feeds -stepless-: 5 - 500 mm/min rapid traverse: 1,2 m/min spindle motor: 1,5 / 1,9 kW total power requirement: 9,5 kVA weight of the machine ca.: 730 kg dimensions of the machine ca.: 2000 x 2200 x 1655 mm The machine comes from a training center. Equipment: 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel (diameter): 25 mm x-travel: 500 mm y-travel: 260 mm cross-moving table: 880x320mm spindle turning speed - stepless: 100-9000 U/min control: HEIDENHAIN TNC310 vertical movement: 480 mm quill stroke: 160 mm weight of the machine ca.: 2.2 t Misc accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel (diameter): / mm x-travel: 1750 mm y-travel: 1250 mm z-axis: 1250 mm total power requirement: kW weight of the machine ca.: 13 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Technical details & equipment: Speed range: 20 – 5,000 rpm Table dimensions: 800 x 400 mm X-axis travel range: 600 mm Y-axis travel range: 350 mm Z-axis travel range: 600 mm Table load: 300 kg Tool Changer: Equipped with two tool turrets, each with 12 places. Accessories: Chip conveyor included. Company history: The machine ran in gentle single-shift operation. Condition: The machine has been dry and protected in a closed room for 15 years. Due to the long service life, damage to the stand cannot be ruled out. Known defect: The position detection of the tool turrets is currently without function and needs to be repaired (presumably repair of the corresponding card required). With manageable effort, the machine can be restored to a very good operating condition. Important notes: The sale is made as a used machine to self-collectors. All information has been ...
Pehu CNC-besturing 5500 mm invoerrolband met CNC-positionering Admission in spindle (cone x): Mk4 Max drillingdepth: 180 mm Max drillingcapacity: dia 32 mm THROAT DEPTH DRILLING-SPINDLE: 550 mm Speeds: 55 > 5000 rpm Digital read-out: Pehu CNC positioning Motor power: 3 kW
spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides
bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel
spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg
x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...
spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways
spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply
spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster
spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment
spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment
automatic CUTTING BORING and MOULDING machine BACCI TTF1 2TM . second hand machine working conditions : Excellent hydraulic drive of all the movements volt. 380/50 CE mark : YES Machine suitable for assembling part of chairs, tables, frames, furniture, wheelchair frames, etc. The BACCI TTF1 2TM performs the operations of cutting , milling and drilling at the end of the piece, either singularly or differently combined . the milling unit is composed of n.02 spindle moulders ( anti-splinter system ) machine composed by 3 working units : 1- Cutting unit : circular saw max.diam. mm.400 motor power Hp 3 2- Boring unit : boring head with 5 mandrins motor power Hp 3 3- Moulding unit . with automatic movement of the carriage on recirculating ball bearings n.02 spindle moulders (anti-splinter) motor power Hp 7,5 spindle diam. mm.35 hydraulic unit motor power Hp 2
AUTOMATIC BORING machine 35 spindles SCM TOP 35 second hand machine electric movement of boring head 0° / 90° technical details : n. 35 spindles center distance between spindles mm 32 center distance between first and last spindle of the drill head mm.1088 max. stroke of boring unit mm. 140 n.02 motors Hp 3 each one operating pressure atm 6-8 weight kg.800 volt. 380/50
Spindle speed continuously variable electronically 40-4000 RPM Thread cutting capacity max M8 Thread-cutting depth digital depth display digital speed display digital drill depth indicator Drilling depth stop on stop ring Feed / hand Table height with rack and pinion Duration / standard ALB ear performance steel Ã? 13 mm / 15 mm Depth 60 mm Projection 225 mm Column diameter 60 mm Usable table area (B x L) 330 x 250 mm Machine dimensions (W x D x H) 420 x 450 x 860 mm Engine dimensions (with VP) (W x D x H) 452 x 700 x 1130 mm Weight 62 kg max distance spindle/table/stand 300/ 360 mm Motor alternating current with frequency inverter 230 V, 0,54 kW Warranty: 3 years Free House including packaging (Germany only)
Standard equipment Robust, high-quality and inclined rotation hood for easy reading of the speed LED lighting Easily adjustable and ergonomic drill depth stop Infinitely variable speed control Connection cable with plug (1,2 m) Undervoltage release Drill protection with Electr. Hedging Thermal overload protection Emergency off pushbutton Weight in kg: 30 Engine kW: 0.45 Rotary / alternating current: alternating current in V: 230V Speed 1/min: 250-3000 Drill capacity mm: 10/12 Thread cutting capacity: Max M6 -Steel Ã? 12 mm -Aluminum Ã? 20 mm -Softwood Ã? 40 mm -Drilling depth 50 mm -Throat depth 180 mm -Column diameter 50 mm -Usable table area (B x L) 180 x 260 mm -T - slot size number 2, distance 100 mm Dimensions width 12/20 mm Spindle B-16 Digital speed display Drilling depth indicator scale Drilling depth stop adjustable stop ring fast Feed by hand Steel &At ...
Number of boring units // Diameter boring units (mm) 9x 3.0 5x 3.5 1x 4.0 3x 4.5 6x 5.0 9x 5.5 31x 6.0 2x 6.5 19x 7.0 18x 8.0 1x 8.5 9x 9.0 5x 10.0 9x 11.0 2x 13.0 3x 14.0 1x 15.0 1x 16.0 2x 18.0 1x 19.0
CNC Double column Coordinate Boring Machine with Deep Hole Drilling Support Kolb KBN G 120 Year of manufacture 1984 / Retrofitted with Heidenhain TNC 426 in 2006 Table size 4250 x 2200 mm Table load max. 14 t Table longitudinal travel X 3000 mm Main spindle cross travel Y 2180 mm Deep hole drilling support cross travel A - 2000 mm Spindle vertical travel Z 500 mm Distance between the columns 2640 mm; Spindle to table 100 - 1300 mm; Spindle diameter 224 mm Spindle drive motor rating 46 KW Spindle speeds 14 - 1400 rpm Spindle taper ISO 50 Drilling in steel ST60 : 100 mm diameter; Boring to 300 mm; Threading to M 125 x 3; Milling capacity 730 cm³/min.; Second support for Deep Hole Drilling Spindle speeds for BTA and ELB boring 315 - 3150 rpm High pressure cutting oil delivery to spindle Chip- and oil collection and separation via Centrifuge. Very good condition P ...

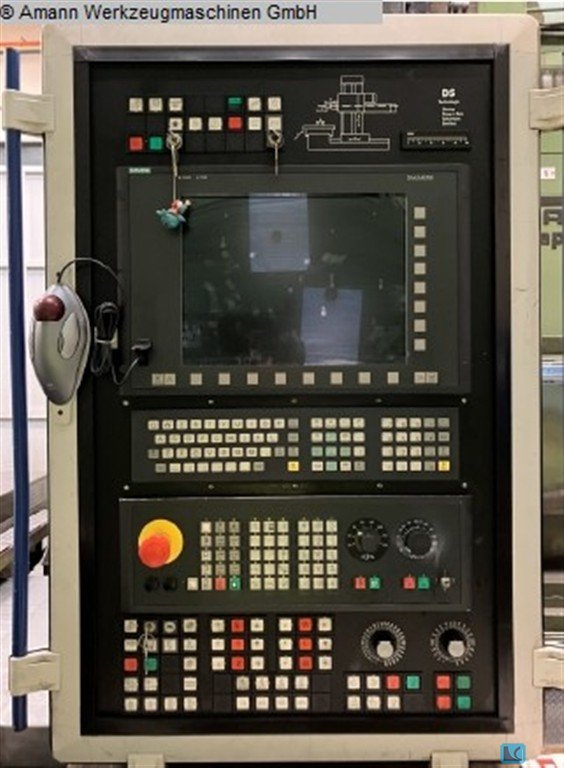

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...
AUTOMATIC CUTTING , BORING and MOULDING machine type PADE 1000 N Machine suitable for assembling part of chairs, tables, frames, small furniture, wheelchair frames, etc. The PADE 1000 N performs the operations of Cutting , milling and drilling at the end of the piece, either singularly or differently combined. All movements of the machine are controlled by pneumatic devices. composed by 3 working units : 1- Cutting unit circular saw diam. mm.350 motor power hp 3 2- Boring unit boring head with 5 / 7 mandrins motor power Hp 3 max. working stroke of boring unit mm. 130 3- Moulding unit vertical spindle for moulder motor power Hp 5,5 spindle diam. mm.30 pneumatic sliding carriage volt. 380/50
Condition: Very good condition Available: Immediately
Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition
CNC vertical jig boring machine WMW MIKROMAT Type BKoZ 900x1400/5NC Travel X 1120 mm Travel Y 710 mm Spindle travel Z 315 mm Travel W 630 mm Numerical Command CNC NUM 1060 Spindle Ø 125 mm Cone SA40 Rotation from 36 to 2240 RPM Table size 1400 x 900 mm Distance between colums 1080 mm Maxi distance spindle nose/table from 0 to 900 mm max Maxi eligible load on table 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage 380 V Dimensions (L x W x H) 4000 x 2460 x 3030 mm Weight approx. 9 T MACHINE IN OUR STOCK IN FRANCE.
Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap
Number of vertical independent spindles: 9 Number of horizontal spindles on axis X : (2+2) Number of horizontal spindle on axis Y: (1+1) N° 1 saw blade unit: (ø 100 mm) Router head 3,6 Kw ISO 30 - 12000/24000 rpm Max. thickness of the panel: 50 mm Control: Full Parametric Max weight of the panel: Kg 25 Max panel size: X ,Y 1100, Z 50 mm Min panel size: X 270,Y 150 (70 op.), Z 12mm Number of controlled axes: 3 Panel feeding speed: 25m/min Spindles speed rotation: 3600 rpm Saw blade speed rotation: 7000 rpm Air pressure: 7 bar Diameter of the dust extraction: ø 140 mm Exhaust air consuntion: (2000 mc/ora) - (30 m/s) Max drilling depth in horiz. on X and Y axis: 30 mm Max drilling depth in vertical: 45 mm Max horizontal diameter of the tools: 12 mm Max vertical diameter of the tools: 35 mm Motor power: 1,5 kw Max air consumption: 60 Nlt./min. Total power : 6,4 Kw ...
Paper boring machine Dürselen Corta PB 04; Cleaned and tested; 4 drill heads (up to 6 stick.usable); Drill cooling and lubrication; Sliding table; Endless drilling tape; Inlay depth behind the holes 65mm; Max. Stack height 50mm; Sliding table size before the drills 300mm; Max. Drilling distance over sliding table 420mm. Paper drilling machine Dürselen Corta PB 04; The cleaned and checked; Four heads (up to 6 heads); Driller cooling and lubrication; Sliding table; endless drilling band; size behind drillers 65mm; Max.pile hight 50mm; Seft of table in front of the drillers 300mm; max.drilling distance over the table 420mm.
Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg

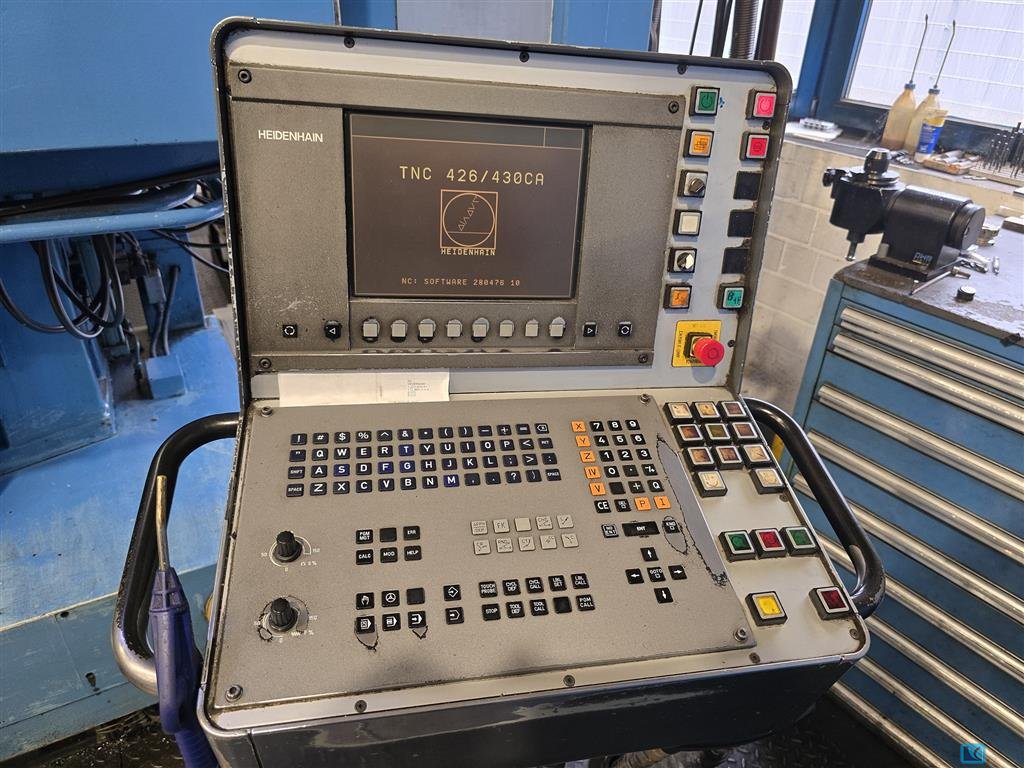

TOS WHN 130 MC used machine Specifications System Heidenhain TNC 426 Working range Spindle diameter 140 [mm] Taper in the spindle ISO 50 Table transverse adjustment (X) 3000 [mm] Vertical headstock adjustment (Y) 2000 [mm] Vertical travel (Z) 1250 [mm] Spindle stroke (W) 560 [mm] 2X Clamping surface 1800 x 1600 [mm] Speed range 10 - 2500 [rpm] Main motor output 37,0 [kW] Max. workpiece weightƒ 8000 [kg] Accessories Tool changer for 60pcs Tool cooling Chip conveyor
Technical data Spindle dia 125mm ISA 50 taper stroke of the spindle 800 mm cross travel of table X 1200 mm vert. travel of headstock Y 1400 mm longit. ztravel of the table Z 1620 mm spindle speed infinitely variable 3,5-700 rpm table size 1200 x 1400 mm table load 6000 kg main motor DC 19 kw total input 22,79 kW spindle feed inf. variable 0 - 1,25 mm/rot working feeds inf. variable 0,3 - 1700 mm/min rapid traverse 2250 mm/min fine feed 3mm/min dimension LxWxH 7,4 x 4,8 x 3,6 m weight of the machine 21000 kg DRO Heidenhain
Skoda W 160 H/NR CNC Travel x= 14.500mm (bed is for the travel 18,500mm) Travel Y= 3.150mm Travel Z= 1.600mm Travel W= 1.250mm Spindle diameter 160mm Machine with ball screw Many accessories available: CNC control Siemens SINUMERIC 850 Rotary table ISO 16 2.200 x 2.200mm, capacity 16 ton included Chip conweyor : 19.000 mm + 12.000 mm Floor plates
SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently
W 200G with Siemens AC main motor. modernized the main drive by instalation of Siemens AC motor with SIMODRIVE 611. Original built ISO 60 taper and 630 rpm Main data: X=8000 mm Y=4150 mm Z =1600 mm W=2000 mm Spindle dia 200mm ISO 60 spindle speed max 800 rpm Accessories: DRO Philips available as original rotary table E 20 extra cost milling head IFH 1 and IV25, IFW 1, IFW2 IFW 3 NO floor plates
