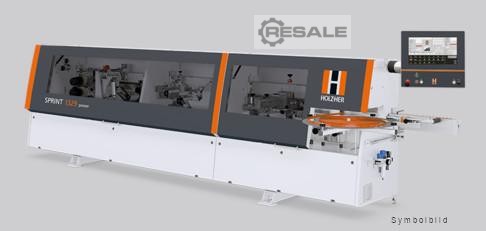

Edge gluing machines HOLZ HER Sprint 1329 Power

Blade Her Sprint 1329 Power
Heavy version - edge thickness 0.4 - 8 mm (15 mm with tool change)

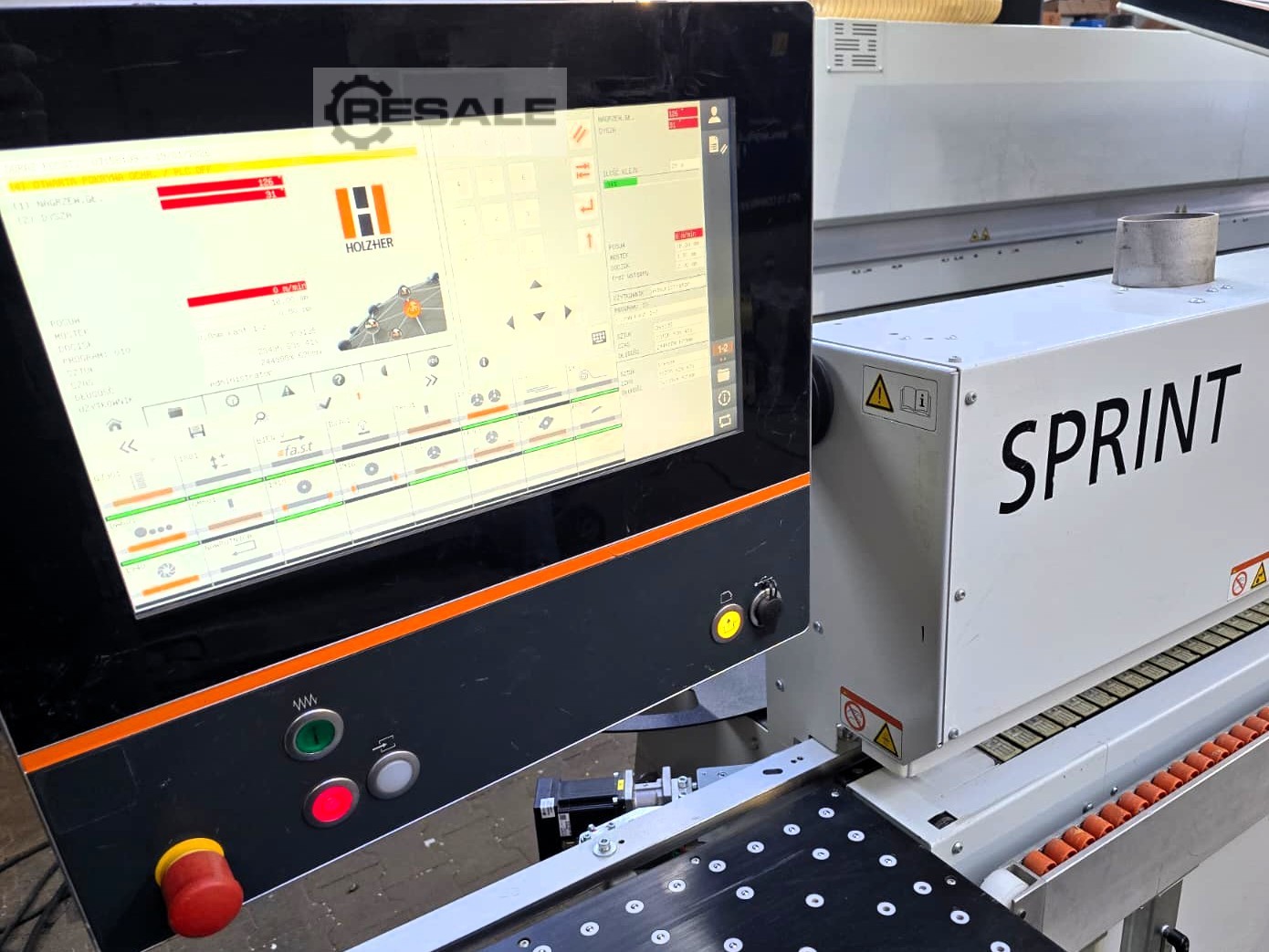

21.5" PPC 332 touchscreen control
fa.s.t. setting technology "Setting up in the gap"
Motorized, positioning-controlled bridge height adjustment
Fully automatic edge magazine for roll and strip goods MOT
Pre-milling unit for attaching in front of the gluing station

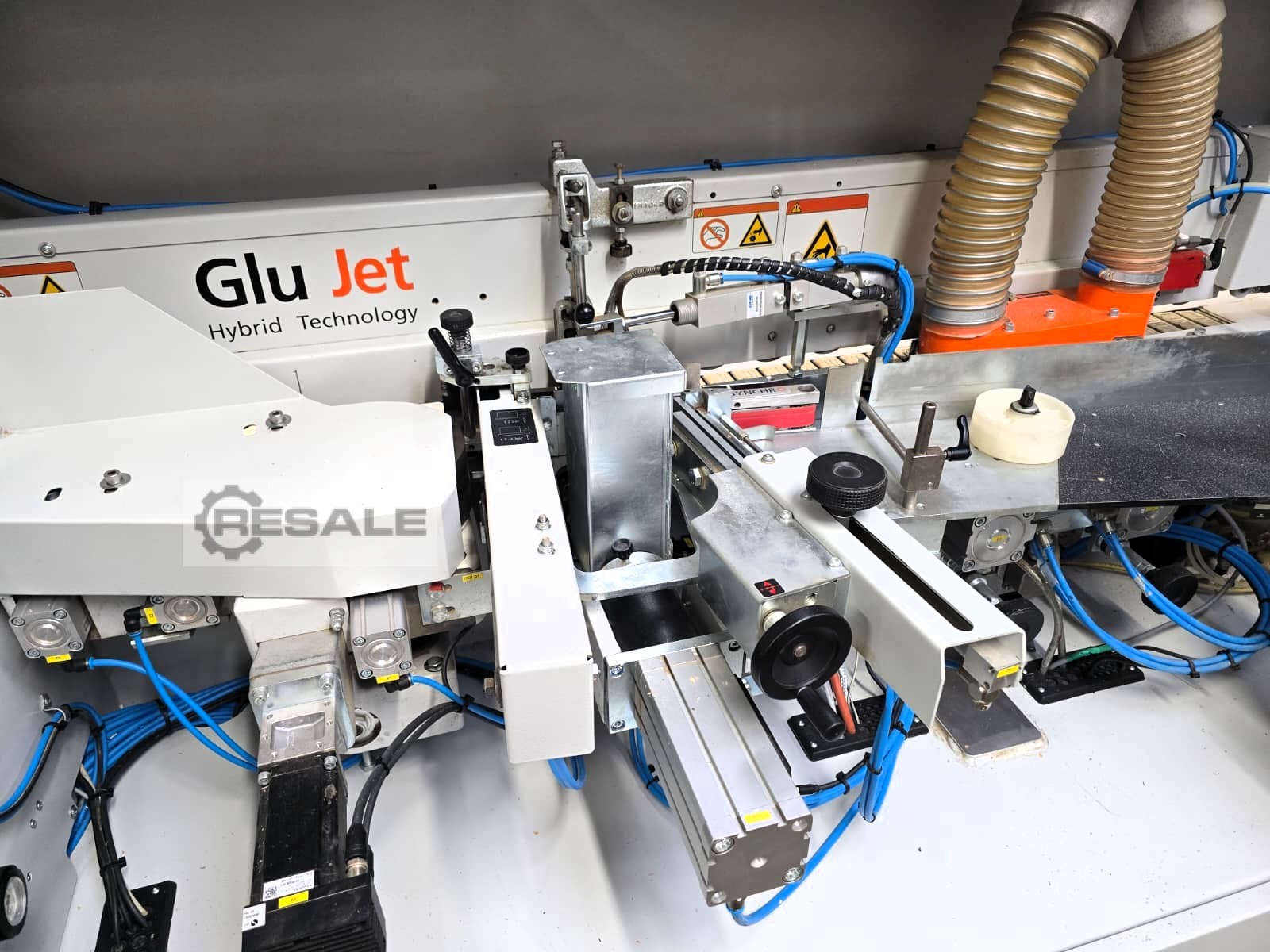

GLU-JET Cartridge Glue Application Station - Granu + PU Gluing, Thin Film Technology
Edge height max. 60 mm
Glue height adjustment / tactile nozzle
Printed work 1913 mot. Motor-pneumatic NC servo axis
Cross-cut unit for roll and strip goods up to 15 mm edge thickness
with electro-pneumatic conversion of 0-10° bevel of the cross-cut saws
Multifunction milling unit MOT6 – 6 NC control axes:
Flush milling 8 mm (15 mm)
Radius milling
Bevel milling 0 - 15° pneum.
Copy milling unit MOT 4, corner copying, postforming corners with 4 NC control axes, for milling the upper and lower longitudinal edge and copying the front and rear front, vertical edge, working height 60 mm with shelf program
Scraper unit MOT4
Surface scraper unit – finish with pre- and post-probing
Buffing unit S6357171 for re-cleaning and S6357171 edge polishing with 2 textile discs, swivelling 5°
Spraying device for inlet and outlet area as well as antistatic agent for printing unit
Inlet area electronically controlled release agent sprayer
Printing unit electronically controlled antistatic spray device
Outlet area electronically controlled detergent sprayer with detergent
Air cushion table at the inlet / L = 1800 mm, W = 600 mm
First delivery 2022
Machine is WORKSHOP TESTED in TOP CONDITION
From stock Lieboch
seller offer No. resale 168731457
