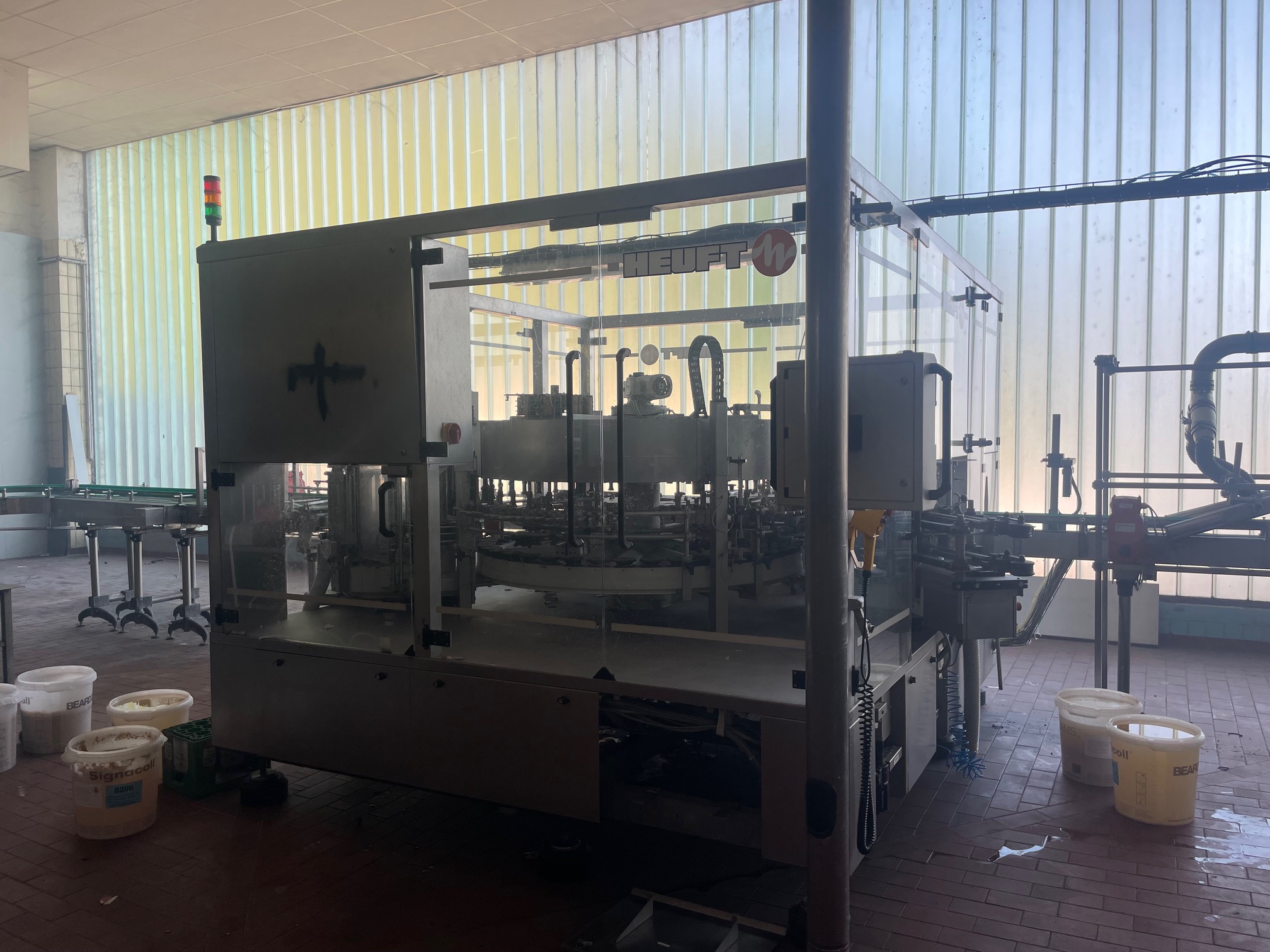

Overview This cold glue labelling machine was manufactured in 2005
by German company HEUFT. The machine is no longer in production use
and is now available for sale. It includes two integrated laser coders
for date marking and supports a wide range of bottle formats. Ideal
for high-speed beverage production environments. Technical data
Capacity: Up to 60,000 bottles per hour Formats: Supports 11 bottle
formats From 0,3l - 0,66l Steini, NRW, Longneck Container types:
Glass, not transparent, non-contoured Container diameter: 60.4 –
69.1 mm Container height: 174 – 270 mm Label positions: Front (up to
2 labels) Back (up to 1 label) Label size range: Width: 70 – 111 mm
Height: 33 – 100 mm Band height: 1100 mm Max. ambient temperature:
40°C Power connection: 400 V Machine design: Straight version, size L
(approx. 3360 mm wide) Bottle carousel diameter: 1610 mm Number of
bottle plates: 42 Bottle rotation in carousel: Mechanical Guide star
diameter: 690 mm Labelling stations: 2 x Cold glue labelling stations
8 glue pallets 9 gripper positions Automatic magazine feeding Scope of
Delivery 1 x Labelling Machine | HEUFT | TORNADO | 2005 Including: 2
x Integrated Laser Coders | Bluhm Complete labelling setup with format
parts for 11 bottle formats Cold glue stations, glue pallets, gripper
arms, and automatic magazine Technical documentation
Germany
