heller machining center used for sale

x-travel: 560 mm y-travel: 450 mm z-travel: 450 mm rotary table dia.: 270 mm rotary table tiltable: 0 - 24 ° spindle taper ISO: 30 spindle turning speed range: 31,5 - 7100 U/min feed speeds: 1 - 10.000 mm/min control: SINUMERIK System 8 no. of tools in magazin: 40 wotkpiece diameter with 2 vacant positions: 100 mm workpiece length: 255 mm weight of tools max.: 6 kg total power requirement: 32 kW weight of the machine ca.: 11,6 t dimensions of the machine ca.: m = 5 axis machining centre Accessories: various tool fixtures, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 630 mm y-travel: 700 mm z-travel: 630 mm Control: Meldas M650 tool adaptor: HSK-A63 Table dimensions: 450x450 mm Table load: 400 kg number of spindle speeds: 300 - 20.000 min-1 total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m FEED RATE Rapid feed rate X,Y 120 m/min Rapid feed rate Z 60 m/min Rapid feed rate B 120 m/min Cutting feed rate X,Y,Z 0,1 – 60 m/min SPINDLE RPM spindle 300 – 20.000 min-1 Spindle taper HSK-A63 Coolant Through spindle ATC Tool holder Special HSK-A63 2 Face contact tool Tool magazine storage 40 pcs Tool change time 2,5 sec. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of construction 2003 Control Heidenhain iTNC 530 Table size 280mm Table load 200kg A-axis +/- 110 degrees B-axis 360 degrees X-axis displacement 700mm Y-axis displacement 590mm Z-axis displacement 480mm Spindle 15000 rpm Rapid passage 32m / min Automatic tool changer Yes, Big Plus spindle system Number of tools32 Tool length 280 mm Tool diameter 88 mm or 125 mm with adjacent pocket area Tool weight 7 kg Input400 / 3 / 50hz 33kW Equipment gap conveyors, coolant, handwheel, oil cooler Features Fully enclosed guarding Length 4000 mm Width 3000mm Height 3000 mm Net weight actually 9,490 kg. / 9.4 tons.

HURCO VM10 Vertical Machining Centre. Hurco WINMax Control Year of construction: 2010 Manufacturer: Hurco Model: VM10 Control: Hurco WINMAX Spindle Speed: 10000rpm Table size: 762 x 356 mm Tool change capacity: 20 Tool size: DIN40 Traverses XYZ: 560 x 356 x 457mm

max. workpiece length: 4500,6000 mm profile spindle: 3 Stück main drive: 24 kW Control: Siemens 840d Working Process Logos Life Evo XS 2345 ------------------------------- Vollautomatisches CNC-Fensterfertigungsanlage mit automatischer Be- und Entladung. 2 Portale mit 3 Frässpindeln mit 4- und 5-Achstechnologie CNC-gesteuerter Manipulator für Werkstückpositionierung mit 16 Stück Doppelzangen 8 Stück komplett unabhängige Werkstückspanner für höchste Felxibilität und Produktivität 128 Werkzeugplätze NEU: Working Process baut nun auch 1-spindlige Anlagen mit bewährter Technologie für kleinere Betriebe! Nebenstehend finde Sie aktuelle Videos dieser Baureihe. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

axis stroke (X,Y,Z): 3950,2145,555 mm Number of spindle head vertical: 13 St. Number of spindles head horizontal: 6 St. Number of tools: 22 St. Number of milling agregates: 1 St. working dimensions: 3200x2000x200 mm Motor output: 12 kW Control: Beckhoff CNC Number of axles: 5 St. Masterwood Project 385 CNC-Bearbeitungszentrum --------------------------------------------- 5-Achs CNC-Bearbeitungszentrum in Auslegerbauweise (dadurch sehr große PLatten auflegbar) für Innenausbau, Plattenbearbeitungen aller Art. Kurze Zusammenfassung: --------------------------------------------- Verfahrwege X = 3950 mm, Y = 2145 mm, Z = 555 mm Arbeitsbereich: X = 3200 mm, Y = 2000 mm, Z = 200 mm 1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme 1 Stk. fest installierter Bohrkopf mit 19 Spindeln mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung mit 6 einzeln abrufbaren Vertikalbohrspin ...

max. workpiece length: - mm profile spindle: - Stück main drive: - kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. workpiece length: 3200,5100 mm profile spindle: 1 Stück main drive: 12 kW Control: Beckhoff CNC Number of axles: 5 St. Masterwood Project 385 CNC-Bearbeitungszentrum --------------------------------------------- 5-Achs CNC-Bearbeitungszentrum in Portalbauweise zum Einsatz für Rundbogenfenster, Türen, Pfosten-Riegel, Innenausbau, Treppen Kurze Zusammenfassung: --------------------------------------------- Arbeitsbereich: X = 3200 mm (Optional 5100 mm) , Y = 1500 mm, Z = 200 mm 1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme 1 Stk. fest installierter Bohrkopf mit 19 Spindeln mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung mit 6 einzeln abrufbaren Vertikalbohrspindeln Y-Richtung mit 2 doppelten Horizontalbohrspindeln X-Richtung und 1 doppelte Horizontalbohrspindel in Y-Richtung Sägeaggregat in Bohrkopf integriert 27 Werkzeugwechselplätze: Karussellwerkzeu ...

x-travel: 1000 mm y-travel: 508 mm z-travel: 460 mm size of pallet: 1240 x 550 mm numbers of pallets: 2 workpiece weight: 800 kg spindle taper ISO: 40 spindle motor: 5,5 kW turning speed range: 28 - 4000 U/min no. of tools in magazin: 30 control: MAZATROL M 1 total power requirement: kW weight of the machine ca.: 5,6 t dimensions of the machine ca.: 4,50 x 3,00 x 2,65 m acc.: chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MORI SEIKI SH-400 Horizontal Machining Center was manufactured in 2000 in Japan by Mori Seiki CO., LTD. The CNC milling machine is equipped with Mori Seiki MSC-501 numerical control. The price of the machine includes various types of frames. Technical data of the MORI SEIKI SH-400 CNC milling machine - CNC control: MORI SEIKI MSC-501 - machine weight: 10100 kg

x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm table surface area: 1250 x 700 mm NC-rotary table: integriert, 700 mmø spindle taper: SK 40 spindle taper: DIN 69871 spindle turning speed - stepless: 20 - 12.000 U/min control: HEIDENHAIN control: TNC 430 feeds x/y/z -stepless: 20 - 15.000 mm/min rapid traverse: 30 m/min ATC: 32 (2 x 16) Pos tool diameter: 80 / 130 mm workpiece length: 315 mm weight of tools max.: 8 kg NC-rotary table - speed -: max. 15 U/min table load: 600 / 500 kg total power requirement: 60 kW weight of the machine ca.: 9,6 t = 5-axis machining center, table clamping surface 1250 x 700 mm with integrated NC-rotary table (=4th axis), movement of milling head via control (=5th axis) Accessories: electron. handwheel, chip conveyor (snailconveyor), coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 700 mm y-travel: 400 mm z-travel: 330 mm Control: FANUC 31iB5 table-size: 850 x 410 mm : 21 fach turning speeds: 10.000 U/min Internal cooling system: 20 bar total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 450 mm z-travel: 35 mm Control: Heidenhein TNC 530 table weight: 200 Kg : Random 36 fach tool adaptor: HSK E40 turning speeds: 30.000 U/min total power requirement: kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 400 mm z-travel: 330 mm Control: FANUC 31i-B5 Tools changer: 14 pos. table-size: 850 x 410 mm number of spindle speeds: 24.000 U/min/rpm rapid traverse feeds: 48 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Ref. -No.: 10370 Manufacturer: FANUC Year of construction: 1997 Type of control: CNC Control: FANUC Series 16-M Storage location: Halberstadt Country of origin: Irland X-Travel: 500 mm Y-Travel: 380 mm Z-Travel: 300 mm Machine length: 1560 mm Machine width: 2060 mm Machine Height: 2218 mm Rotary Table (Lxw): 650 x 380 mm Table Load: 200 kg Max. Tool Weight: 2 kg Max. Tool Length: 120 - 200 mm Max. Tool Diameter: 65 mm Tool change time: 1 s Tool Taper: MAS BT30, MAS P30T-1 (45°) Numbers Of Tools In Magazin: 10 Tool changer: Revolvertyp (Spindel unabhängig vom Revolver) Turning Speed Range - Stepless: 1-15000 mm / min Rapid Traverse X-Axis: 48 m / min Rapid Travel Y-Axis: 48 m / min Rapid Traverse Z-Axis: 48 m / min Weight Of The Machine Ca.: 1,7 t Max spindle speed: 8000 min⁻¹ Positioning accuracy in one direction (1): 0,006 / 300 mm Positioning repeatability (2): +/- 0,002 mm ...

Ref. -No.: 10357 Manufacturer: STARRAG HECKERT Year of construction: 2007 Type of control: CNC Steuerung Control: Sinumerik 840D Country of origin: Schweiz X-Travel: 1200 mm Y-Travel: 950 mm Z-Travel: 1200 mm Work spindle drive power (25% ED): 67 kW Work spindle torque (25% ED): 1508 Nm Tool Taper: HSK-A100 Workpiece interference circle diameter: 1250 mm Tool Piece Magazine With: 80 Pcs./pcs. Tool changer: Werkzeugkettenmagazin Max. Workpiece height: 1200 mm Feed Speeds X/Y/Z Axis: 60000 mm / min Feed Capacities X/Y/Z: 22/18/22 N Speed range - main spindle: 20 - 6000 RPM Numbers Of Pallets: 2 Max pallet load: 1500 kg Size Of Pallet: 800 x 630 mm pallet change time: 14 s Pallet clamping area (lxw): 800 x 630 mm Weight Of The Machine Ca.: 25 t

MEPAL ATLANTIS C3SR profile machining center was built in 2018 in Italy by MEPAL Italia s.r.l (RobTech). The machine is new, stocked after purchase and has never been in operation. MEPAL ATLANTIS C3SR is an advanced CNC machining center designed for precision machining of aluminium and PVC profiles from three sides. It is designed to perform such operations, i.e. drilling and milling of workpieces with a maximum wall thickness of 2.5 mm and lengths in excess of 3 metres. All these processes are performed fully automatically in three numerically controlled axes (X,Y,Z). Inside the large work area there is a rotary work table, which is pneumatically rotatable within the range of -90°, 0° and +90°. This solution allows workpieces to be machined from different sides without having to refit the workpiece. The spindle, driven by a powerful 4.5 kW motor, reaches a speed of as much as 1800 ...

BRETON Contourbreton NC 260 K23 stone machining center was built in 2010 in Italy by Breton S.p.A.. The machine is used for the efficient machining of natural stone slabs and blocks with a maximum weight of 4000 kg. It enables a number of advanced operations to be performed, such as milling, profiling, bevelling and hole drilling. All these machining processes are performed fully automatically, while maintaining the high repeatability and quality of the manufactured parts. The reliable spindle, operating at a maximum speed of 9000 rpm, moves in three numerically-controlled axes. This enables precise positioning of the tool relative to the workpiece during the machining. All axes, driven by powerful motors, achieve a high feed rate and dynamics, which in turn translates into increased production efficiency. All of this makes the offered Contourbreton NC 260 K23 CNC machining center for ma ...

Ref. -No.: 10356 Manufacturer: AGIE CHARMILLES Year of construction: 2007 Type of control: CNC Control: iTNC530 Country of origin: Schweiz X-Travel: 800 mm Y-Travel: 500 mm Z-Travel: 540 mm Main spindle speed range: 16000 RPM Table Dimensions (Lengthxwidth): 910x500 mm Table Load: Vmax = 500kg, 5m/min = 1100kg kg Number of T-slots: 5 Tool change time (chip-to-chip): 8 s Max. Tool Weight: 6 kg Max. Tool Length: 305 mm Max. Tool Diameter: 77 mm Tool change time: 6 s T - slot spacing: 100 mm Numbers Of Tools In Magazin: 24 Tool changer: Doppelarm, seitlich montiert Rapid Traverse X-Axis: 24 m / min Rapid Travel Y-Axis: 24 m / min Rapid Traverse Z-Axis: 20 m / min Further information: Addition: probe

Ref. -No.: 10342 Manufacturer: STARRAG HECKERT Year of construction: 2015 Type of control: CNC Control: Fanuc Series 16i Storage location: Halberstadt Country of origin: Schweiz Serial no.: 12217 X-Travel: 1000 mm Y-Travel: 910 mm Z-Travel: 835 mm Distance spindle center - table: 100 mm Table Dimensions (Lengthxwidth): 630 x 800 mm Table Load: 1250 kg Max. Tool Length: 600 mm Max. Tool Diameter: 500 mm Tool Taper: HSK-A 100 Numbers Of Tools In Magazin: 240 Spindle Speed: 20 - 6000 RPM Feed Capacities X/Y/Z: 20.000 N Rapid Traverse: 40 m / min Internal cooling: 30/40/50 bar External cooling: 2 bar

Ref. -No.: 10339 Manufacturer: AGIE CHARMILLES Year of construction: 2008 Type of control: CNC Control: Heidenhain iTNC 530 (2P) Storage location: Halberstadt Country of origin: Schweiz serial number: 107.20.00.040 X-Travel: 650 mm Y-Travel: 600 mm Z-Travel: 500 mm Main spindle drive power: 30/39 kW Main spindle speed range: 20.000 RPM Table Dimensions (Lengthxwidth): 800 x 600 mm Table Load: 500 kg Max. Workpiece Weight: 6,5 kg Tool change time (chip-to-chip): 7 s Max. Tool Length: 300 mm Max. Tool Diameter: 130 mm Tool change time: 1,5 s Workpiece Diameter At Full Load: 80 mm Workpiece Diameter With 2 Vacant Positions: 130 mm T - groove width: 14 mm T - slot spacing: 63 mm Tool Taper: HSK-A63 Numbers Of Tools In Magazin: 60 Tool changer: CT-60 Feed Speeds X/Y/Z Axis: 40/40/30 mm / min Feed Capacities X/Y/Z: 4/4/6 N Further information: Laser tool measuring system Type = BLUM laser syst ...

Ref. -No.: 10335 Manufacturer: HÜLLER HILLE Year of construction: 2008 Type of control: CNC Control: Sinumerik 840D pl Storage location: Halberstadt Country of origin: Germany X-Travel: 1000 mm Y-Travel: 800 mm Z-Travel: 800 mm B-Axis: 360 ° Machine length: 9500 mm Machine width: 4500 mm Machine Height: 3500 mm Distance spindle center - table: 150 mm Table Dimensions (Lengthxwidth): 500 x 630 mm Table Load: 800 kg Max. Workpiece Weight: 40 kg Max. Tool Length: 650 mm Max. Tool Diameter: 325 mm Workpiece Diameter At Full Load: 100 mm Tool Taper: HSK - 100 Spindle Speed: 0 - 12000 RPM Rapid Traverse: 60 m / min Further information: Coolant system = 1250 l

Ref. -No.: 10304 Manufacturer: SPINNER Year of construction: 2007 Type of control: CNC Control: Siemens 840 D with SHOP Mill Storage location: Halberstadt Country of origin: Germany X-Travel: 1100 mm Y-Travel: 610 mm Z-Travel: 610 mm B-Axis: 0.001 prepared for 4 th axis ° Main spindle drive power: 25 kW Main spindle speed range: 6000 RPM Table surface: 1200 x 600 mm Table Load: 1000 kg Tool Taper: SK 50 Numbers Of Tools In Magazin: 24 axes: 4 Rapid Traverse X-Axis: 18 m / min Rapid Travel Y-Axis: 18 m / min Rapid Traverse Z-Axis: 15 m / min Main Drive: 25 kW Weight Of The Machine Ca.: 8 t Further information: - additional 4 axis (Dividing head)

Ref. -No.: 10286 Manufacturer: STARRAG HECKERT Year of construction: 2007 Type of control: CNC Control: Siemens Sinumerik 840 D Storage location: Halberstadt Country of origin: Schweiz Machine-No.: 24139 X-Travel: 2800 mm Y-Travel: 2100 mm Z-Travel: 1900 mm Table Dimensions (Lengthxwidth): 2 x 1.250 x 1.600 mm Max. Tool Weight: 35 kg Workpiece Diameter At Full Load: 110 mm Tool Piece Magazine With: 60 Pcs./pcs. Tool dimensions (with occupied adjacent spaces): 125 mm Numbers Of Pallets: 2 Operating hours: 26180 H spindle running time: 26180h 43m 46s h/m/s automatic mode: 28559 H on time: 120 H pallet change time: 60 s Further information: internal coolant supply

Ref. -No.: 10201 Manufacturer: AXA Year of construction: 2007 Type of control: CNC Control: Siemens 840D Storage location: Halberstadt Country of origin: Deutschland X-Travel: 5000 mm Y-Travel: 600 mm Z-Travel: 800 mm Machine length: 9400 mm Machine width: 3500 mm Machine Height: 3300 mm Table Dimensions (Lengthxwidth): 6325 x 1050 mm Swivelling: +/-90 ° Numbers Of Tools In Magazin: 120 Turning Speeds: 30-9000 RPM Tool changer: SK 50 Drive Capacity - Spindle Motor: 45 kW Weight Of The Machine Ca.: 23 t Tool change time: 6 s Vertical working height: 0-740 mm Working height horizontal: 250-1050 mm Space requirement (LxWxH): 11000 x 5090 x 3300 mm Feed rate: X/Y/Z: 40 m / min

Ref. -No.: 10144 Manufacturer: DECKEL Year of construction: 2001 Type of control: CNC Control: Heidenhain Mill Plus Storage location: Halberstadt Country of origin: Deutschland Machine-No.: 11130000713 X-Travel: 880 mm Y-Travel: 630 mm Z-Travel: 630 mm Machine length: 3600 mm Machine width: 2700 mm Machine Height: 2500 mm Table Dimensions (Lengthxwidth): 1250 x 700 mm Table Load: 1000 kg Max. Workpiece Weight: 8 kg Tool Taper: SK 40 Tool Piece Magazine With: 32 Pcs./pcs. Spindle Speed: 18.000 RPM Rapid Traverse: 30 m / min Total connected load max.: 37 kVA Weight Of The Machine Ca.: 9 t Operating hours: 42.340 H Further information: Additional information: • Table: swivel milling head

Ref. -No.: 10362 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens - Heidenhain - Fanuc (configurable) Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Spindle Speed Max.: 3500 RPM Pallet diameter: 1600 mm Max. machining diameter: 2000 mm Number of claw boxes: 4 pc Clamping force per claw box: 55 kN Number of radial T-slots: 8 Max. speed for turning: 140 min-1 Max. speed for milling: 5 min-1 Max. torque for turning: 27000 Nm Max holding power: 36 kN positioning speed: 3000 mm Adjustment from center to right: 850 mm Shift from center to right (head and tool change): 2750 mm Adjustment from center to left: 850 mm Max feed rate: 2000 mm / min Max rapid traverse speed: 20000 mm / min Max. Feed force: 30 kN cross-section: 280 x 240 mm Max. cutting force when turning: 36 kN Max Spindle Torque: 1200 Nm Pressure: 6 bar Air requ ...

x-travel:1000 mm y-travel:800 mm z-travel:800 mm weight of the machine ca.:24000 t dimensions of the machine ca.:ca. 7,8 x 6,1 x 3,4 m m

x-travel:800 mm y-travel:460 mm z-travel:510 mm total power requirement:20 kW weight of the machine ca.:8 t Vertical Processing Centre 20kW is the nominal value. The spindle only needs 7.5kW. It looks like 15kW will be enough.

x-travel:560 mm y-travel:450 mm z-travel:450 mm table surface area:760 x 410 mm turning speed range:8.000 U/min total power requirement:20 kW Vertical Processing Centre

x-travel:600 mm y-travel:770 mm z-travel:675 mm total power requirement:47 kW weight of the machine ca.:13 t Tool bore:HSK-A63 numbers of tools in magazin:40 including additional tool magazine ZM 182 1 spindle , 5 axes

x-travel:600 mm y-travel:700 mm z-travel:60 mm tool taper:SK40 magazine place:30 Stück table surface area:630 mm 5axis-CNC-Milling Machine Make: DMG Type: DMU 60 P YOM: 2004

x-travel:760 mm y-travel:760 mm z-travel:760 mm total power requirement:43 kW weight of the machine ca.:11,5 t dimensions of the machine ca.:2,7 x 4,73 x 2,87 m max. table loading capacity:500 kg

x-travel:700 mm y-travel:550 mm z-travel:500 mm tool taper:SK40 spindle speed max.:12.000 U/min Tool changer:30 fach electronic handwheel chip conveyor

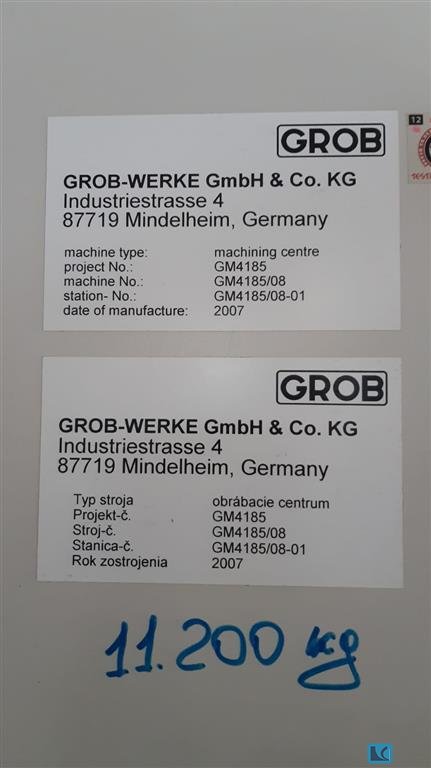

weight of the machine ca.:11,2 t one spindle

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Manufacturer: HERMLE Year: 1999 Type: Universal CNC machining center Numerical control: Heidenhain TNC 430 PA Axes: 5 axes (3 linear axes + 2 rotary axes in positioning) Strokes: X 800 mm / Y 500 mm / Z 500 mm Table: integrated roto-pallet table – max. load 250 kg Spindle: ISO 40 – 20 to 15,000 rpm Tool magazine: 30 tools SK40 Equipment: remote crank, external coolant, external blowingWeight: approx. 8,500 kg Notes: Robust and precise CNC universal machining center, functional machine.

CNC Control: SIEMENS 810 D X/Y/Z axis strokes: 1020 × 510 × 510 mm Table dimensions: 1200 × 500 mm Permissible load on table: 800 kg Max. spindle speed: 10,000 rpm Spindle power: 10 kW Spindle taper: ISO 40 Tool changer: 20 positions Weight (kg): 5800 Year & Manufacturer: 2000 – HURON

CNC Vertical Machining Center Manufacturer: HEAD Model: CUV-10 Year: 2001 Order: FANUC OMD Strokes: X 1,020 mm / Y 510 mm / Z 635 mm Spindle: up to 7,500 rpm 2-speed transmission Construction: shrouded machine, integrated coolant Condition: Used machine

- Including 15 bar cooling pump, cooling tank with chip conveyor and Mazak Die-Mold package (software) - Tools and fixtures are not included
