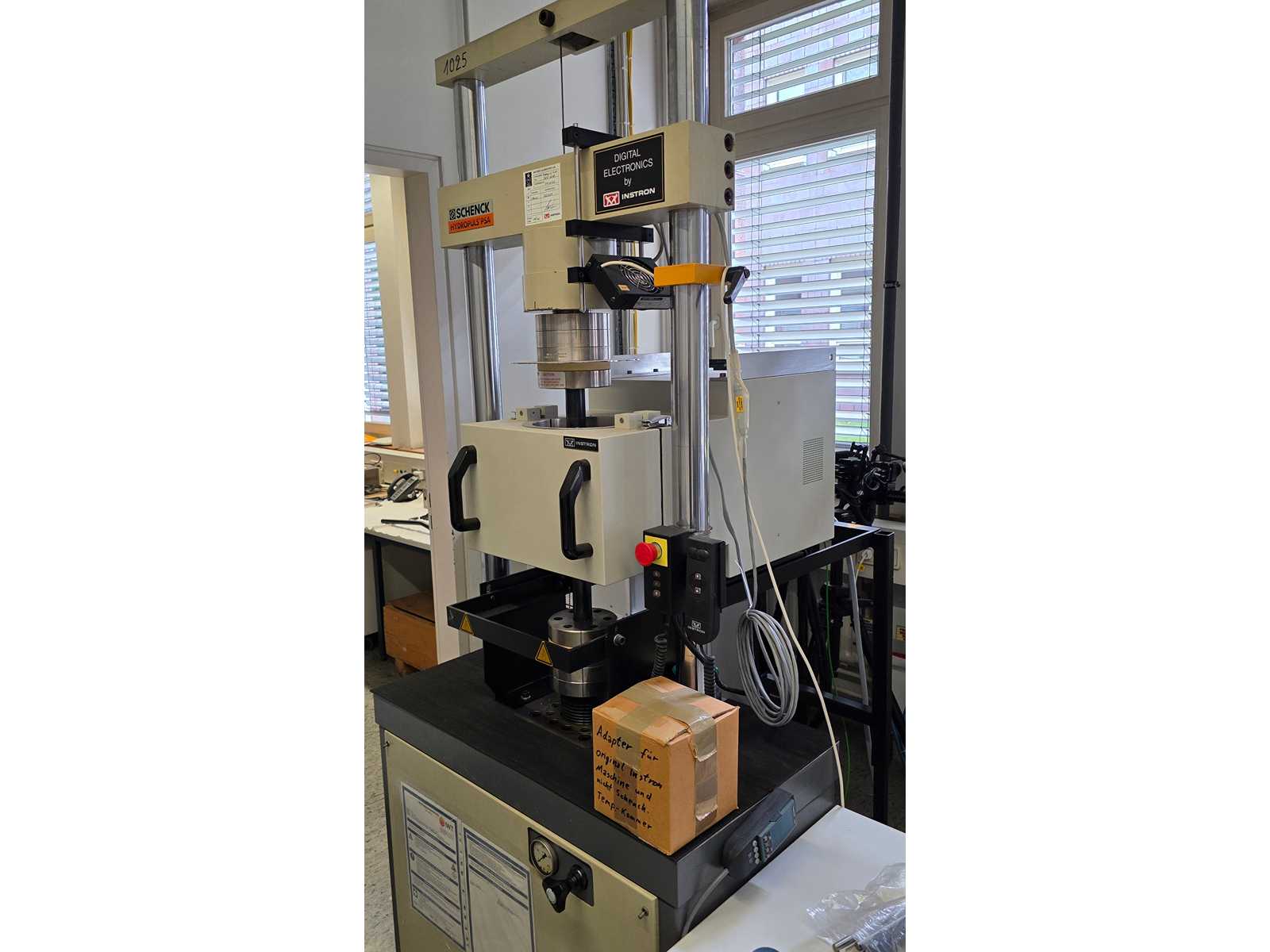

Servo-hydraulic testing machine from Schenck/Instron with control unit Instron Fast Track 8800 and oven option from Instron. Of course, the furnace control unit from Instron is also included. In addition, various data carriers from Instron come with the control software: CD1: RS Labsite V2.3; CD2: Instron 8800 Firmware V07.89.00 Upgrade Disk; CD3: RS Console V7.19). A PC does not come with it for data protection reasons. Also included is the breakout box for all the plug connections and the extensive documentation in several folders. The oven was retrofitted in 2009 and is still as good as new. - Servo-hydraulic testing machine, PPE - Machine for dynamic and static tensile / compression testing of materials and components - max. static tensile force: less than 80 kN, max. dynamic force: 80% of the nominal force, max. piston travel: 100mm, frequencies: 0 to 20 Hz possible - ZD_Kegel ...

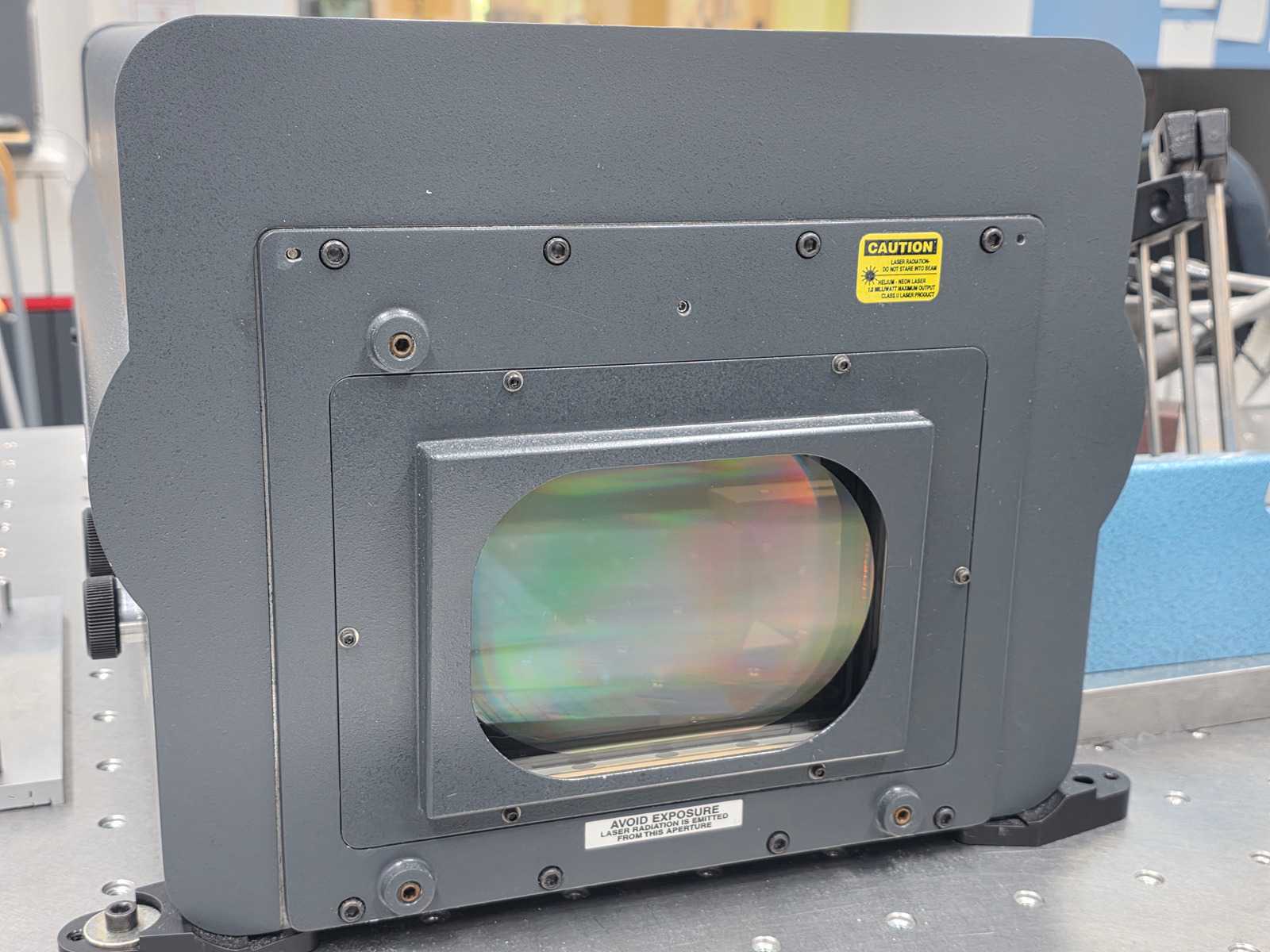

Flatness measurement for rough surfaces with waviness up to 150μm Technical data: Laser Source HeNe, Laser Class IIIa Wavelength: 633 nm Data points: 640 x 480 pixels Working distance ~ 54 mm Simulated wavelength ~ 12 μm Measuring range Vertical 150 μm Horizontal 100mm x 140mm Measurement resolution Vertical 2 nm Lateral 120μm (2x zoom); 240μm (1x zoom) Measurement result output 2D / 3D Topographies MetroPro Data formats: .dat, .sdf, ascii, jpg, bmp, tiff Hardware / Software: Device comes with computer and software Only the Zygo with the complete computer will come to the auction. All other objects visible in the background, as well as the clamping plate, are not part of the auction. Auction-ID: A1-51071-5

on pallet Auction-ID: A7-51083-19

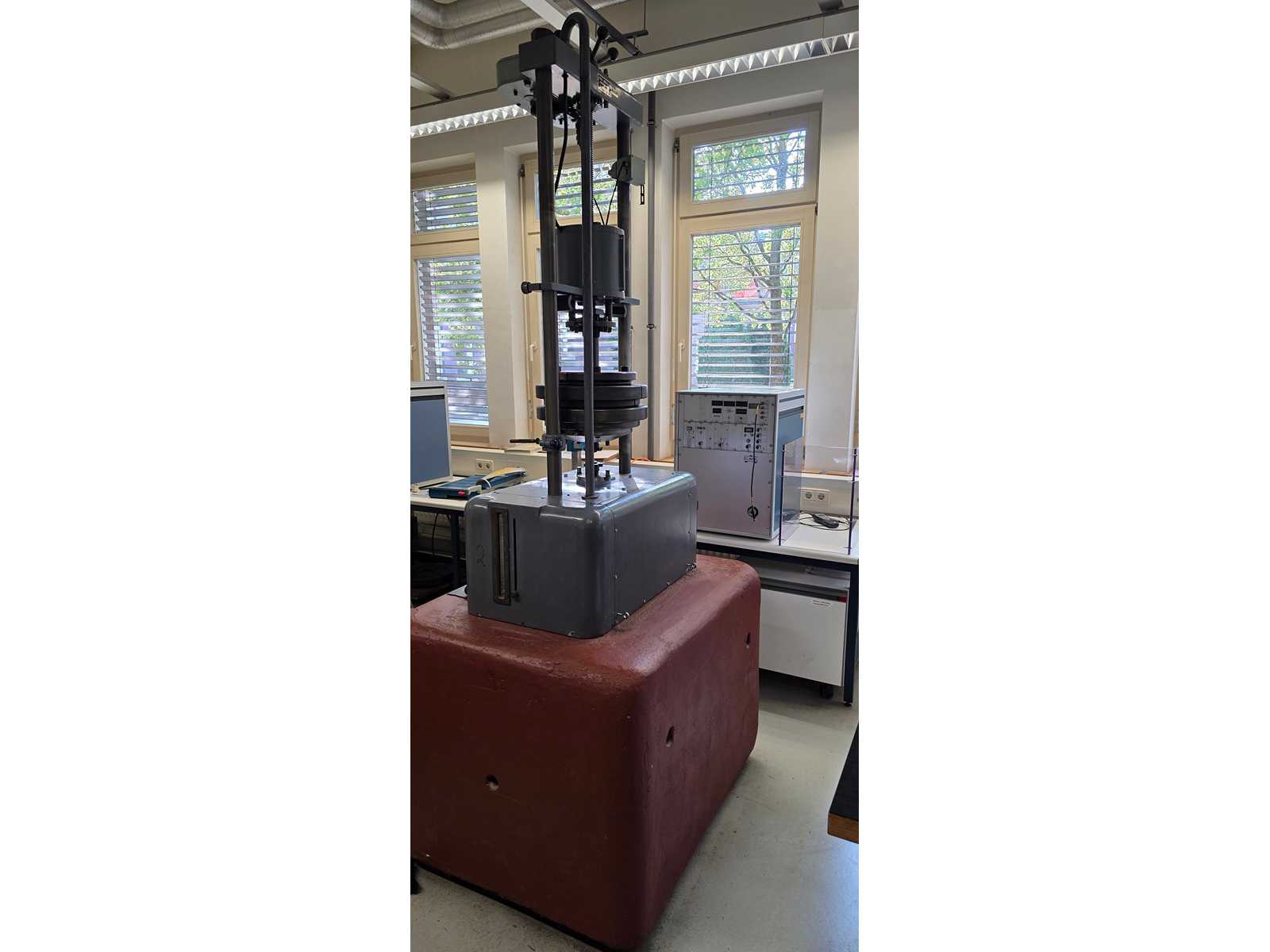

- Electromagnetic Resonance Testing Machine - High-frequency pulsator - Max. one-sided tensile compressive load: 20 kN Max. alternating load: ±10 kN, max. travel: ±1.2mm, frequency range: depending on the stiffness of the structure and the number of additional weights between 35 and 240 Hz - Round specimens with threaded heads, flat specimens, bending specimens - Static pre-force adjustable by hand The device stands on a concrete foundation cube, which weighs about 2t and is part of the auction scope. The device has a RUMUL control cabinet. This cannot be started. Auction-ID: A1-51071-11

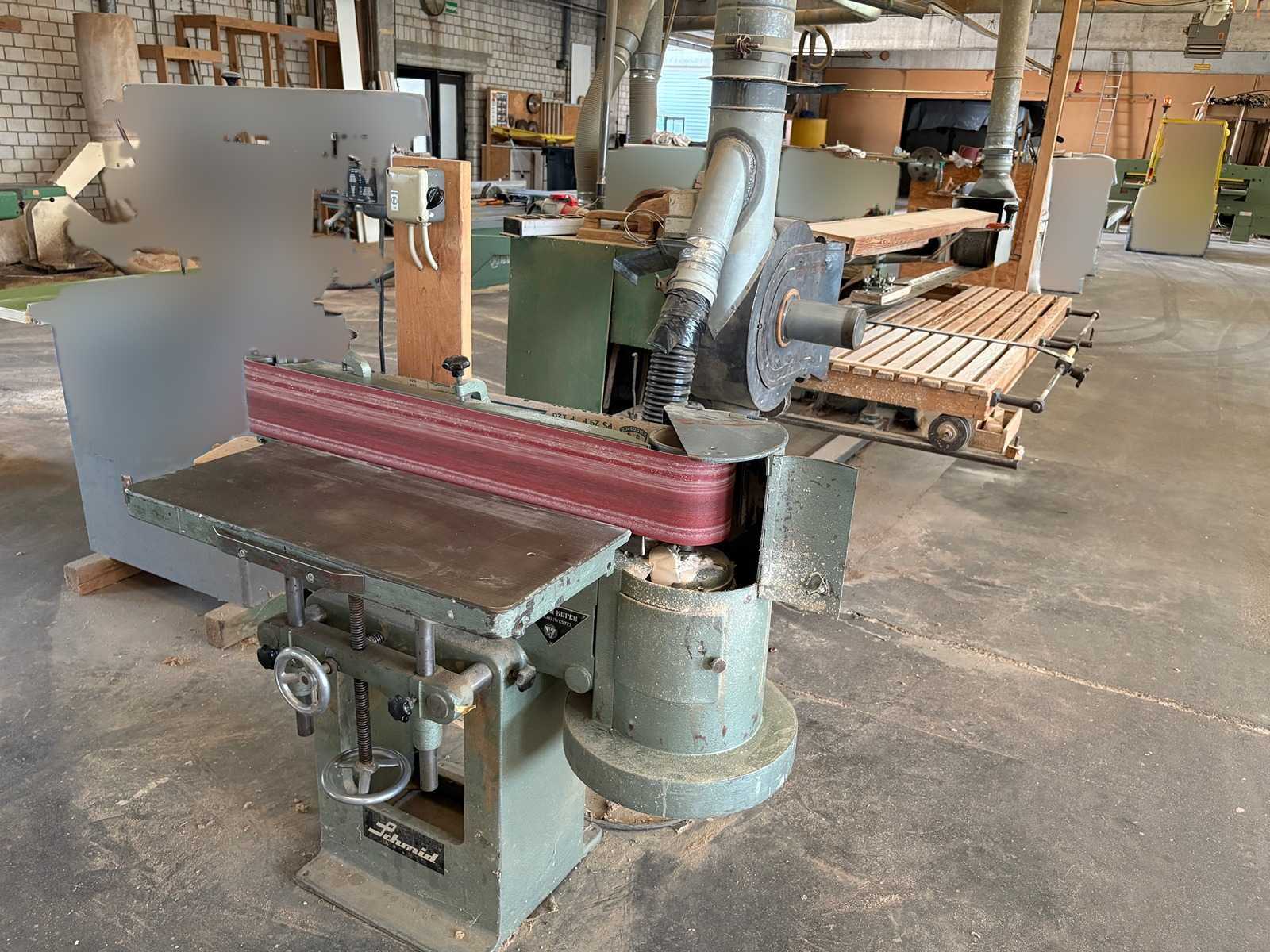

Sales unit: 2 woodworking machines MACHINE 1 – Long belt sander Machine type: Long belt/surface grinding machine Version: stationary Large workpiece/work table Longitudinally movable grinding area Mechanical table adjustment Sanding belt guide via deflection rollers Electric drive Extraction connection available Manufacturer: not clearly readable Type: not clearly readable Year of manufacture: not clearly legible MASCHINE 2 – Schmid KSB Brothers Manufacturer: Gebr. Schmid Maschinenfabrik, Freudenstadt Type: KSB Machine Type: Belt/Edge Grinding Machine Machine No.: 682294 Year of Make: 1972 Operating voltage: 380 V Frequency: 50 Hz Version: stationary Horizontal sanding belt guide Workpiece/work table available Mechanical table adjustment Mechanical Belt/Unit Adjustment Extraction connection available Auction-ID: A1-50373-80 ...

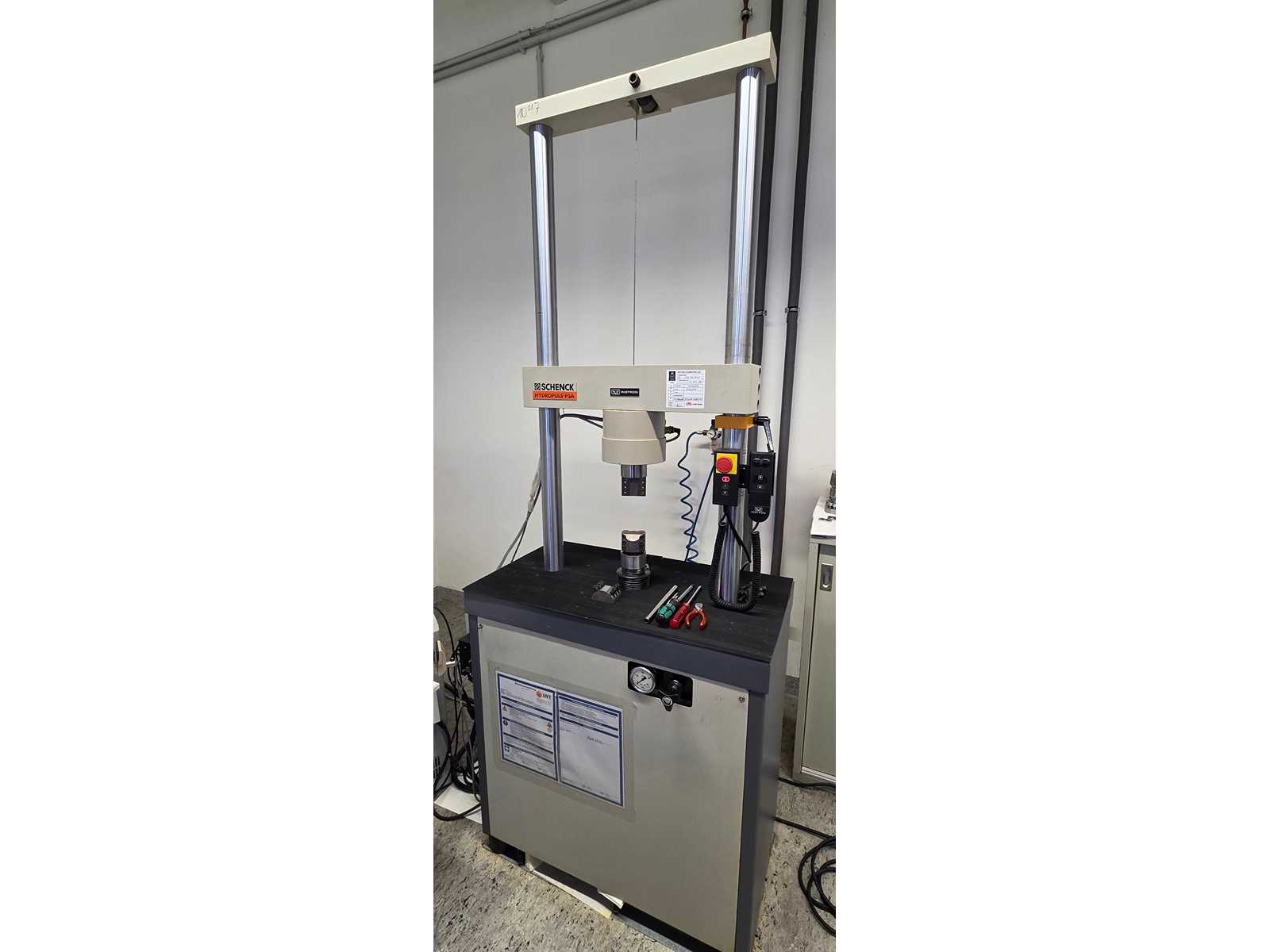

Servo-Hydraulic Testing Machine Machine for dynamic and static tensile / compressive testing of materials and components Max. static and dynamic swelling load: ±100 kN Max. dynamically changing load: ±80 kN, max. piston travel: 100mm, frequencies: 0 to 20 Hz possible ZD_Kegelkopf, ZD_Kegelkopf_kurz6, ZD_Kegelkopf_kurz8, 4PB_Balken Integrated hydraulic power unit Control: Instron Fast Track 8800 100kN version Instruction manual included Enclosed disks: Console 8, WaveMatrix, National Instruments NI-488.2 (GPIB driver) With defect, cannot be started. Auction-ID: A1-51071-9

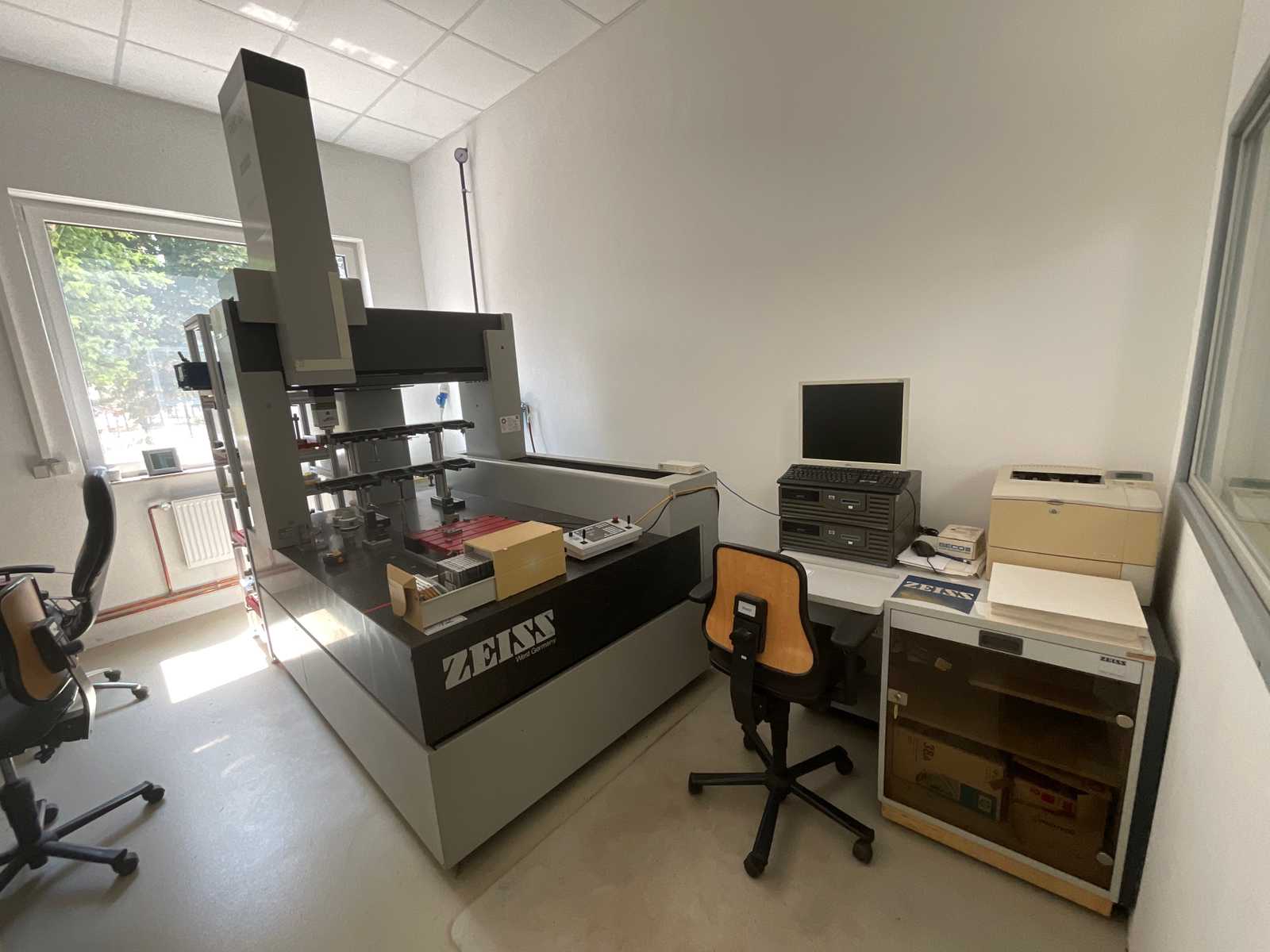

Incl. accessories consisting of: e.g. various buttons Clamping plate (red) Control panel Control cabinet, dimensions (LxWxH) approx: 800x800x850 mm 1 desk, dimensions (LxWxH) approx: 1120x800x850 mm 1 office swivel chair 2 computers HP workstation b2699 1 monitor FUJITSU 1 HP keyboard 1 HP printer Auction-ID: A1-50373-12

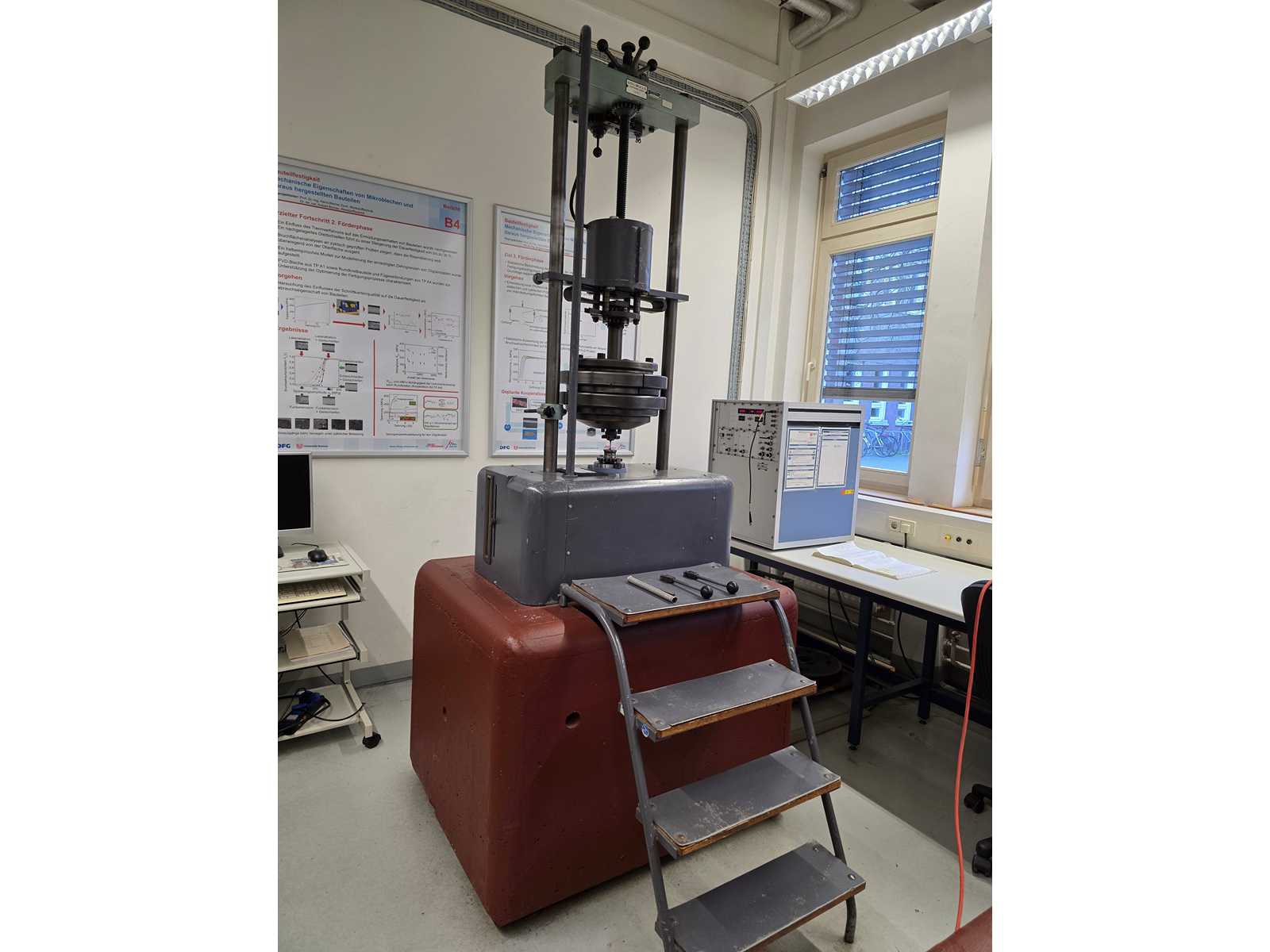

- Electromagnetic resonance testing machine, Amsler - High-frequency pulsator - Max. one-sided tensile compressive load: 20 kN Max. alternating load: ±10 kN, max. travel: ±1.2mm, frequency range: depending on the stiffness of the structure and the number of additional weights between 35 and 240 Hz - Round specimens with threaded heads, flat specimens, bending specimens - Static pre-force adjustable by hand. Device for 4-point bending in pull/compression direction available Electromagnetic resonance test bench from Amsler with control unit from RUMUL. Unfortunately, the control unit cannot be switched on. With concrete cube as building decoupling, weight 2t. The specified dimensions are device incl. foundation cube. Auction-ID: A1-51071-10
