Auction-ID: A7-46690-2

Servo motor with external ventilation, permanent magnet motor BAUMÜLLER VDOKFF 132 M46 ( VDOKFF132M46 ) 18,] 5 kW 1500 - 6000 rpm 305 - 416 V AC IP54 shaft: Ø 42 mm flange: 260 x 260 mm External fan: Motor ODF 56-2 0.08 kW 3000 rpm 200 - 265 / 345-460 V AC spare part for TRAUB TND300 ! used, tested ! Dimensions: 1120 x 305 x 340 mm

Auction-ID: A7-46690-5

Filter cartridge, filter cartridge set MANN FILTER HD 624 67 303 57 140 Filter cartridge set consists of 2 filter cartridges ! New !' Dimensions 265 x 130 x 65 mm

Servo motor with gearbox and brake, permanent magnet motor SIEMENS 1FK7060-5AF71-1EH0 3000 rpm IP64 254 V Gearbox:: NEUGART WPLE 120 i 5:1 shaft: Ø 24 mm flange: Ø 115 mm used, tested ! Dimensions: 400 x 290 x 160 mm

Coupling REXNORD 64516 06.99 ( 6451606.99 ) 64254 06.99 M0000.808.62.00 1-4412.0003 for shafts Ø 42 / 92 mm Dimensions: 160 x 160 x 110 mm

Throttle valve, proportional throttle valve block installation, pilot operated BOSCH 0811 402 642 ( 0811402642 ) FESXE50CA-1X/980LK0B1M 315 bar 24 V DC with built-in electronics (OBE) and inductive displacement transducer New ! Dimensions: 220 x 140 x 300 mm

Axial fan, axial fan,axial fan EBM PAPST DV 6224 blade diameter: 155 mm Installation dimensions: 119 x 119 x 38 mm 37 W 16 - 28 V DC used, tested ! Dimensions: 185 x 170 x 105 mm

Height measuring and scribing device digital, height ripper MITUTOYO up to 600 mm 192-614 445152 Dimensions: 805 x 180 x 120 mm

Tool Settler, Universal - Measuring Stand, Measuring Stand SOMET TYPE 685062 Projection: 35 - 135 mm Measuring height: 40 - 460 mm Measuring table: Ø 140 mm Accessories - see ME742 ! used, tested ! Dimensions: 700 x 400 x 1000 mm

Clamping Plate, Clamping Table PAGUS Working Area: 665 x 370 mm Thickness: 40 mm Groove Width: 15 / 24 mm Dimensions: 670 x 375 x 40 mm

Clamping Plate, Clamping Table, T-Slot Grid Plate PAGUS Working Area: 640 x 332 mm Working Height: 64 mm Groove Width: 14 / 24 mm Dimensions: 640 x 332 x 64 mm

Water-cooled

Number of tools 240 Tool holder BT 50 "BIG PLUS" Tool coding space-coded Tool breakage monitoring MOP Number of pallets 6 pallets Pallet size 630 x 630 mm X-travel 1000 mm Y-travel 900 mm Z-travel 1000 mm NC – round table division 0.001 ° Gear stages 2 R.P.M. 50 – 6000 Torque 606 Nm Rapid traverse 60 m/min Zero point determination Renishaw MP10 Zero point clamping system System 3R kW 30/22

Equipped with Rated Input Voltage: 1P AC380V ±15% 50/60Hz; Rated input strength: 14A; Rated input power: 9.2 KVA; Open-circuit voltage: 256V; Output current setting: 20-60A; Rated output voltage: 104V; Cyclic duty cycle: 60%; Efficiency: 70%; Insulation class: F; Protection class: IP21; Welding by contact (arc formation): Yes; Unused in box

Clamping angle, angle table PAGUS Clamping surface: 650 x 400 mm groove width: T 18 / 32 mm and 30 x 30 mm (central groove) bore Ø 30 mm used, tested ! Heavy version Dimensions: 650 x 400 x 410 mm

Capacitive Pressure Gauge MKS 628BX11TDE1B Range: 10 Torr Input 15 V DC Output 0 - 10 V DC Dimensions: 200 x 80 x 80 mm

Table surface 600 x 500 Swivel range 110 degrees Height 150mm good condition

Sanding diameter: 1000mm, Table tilted adjustable.

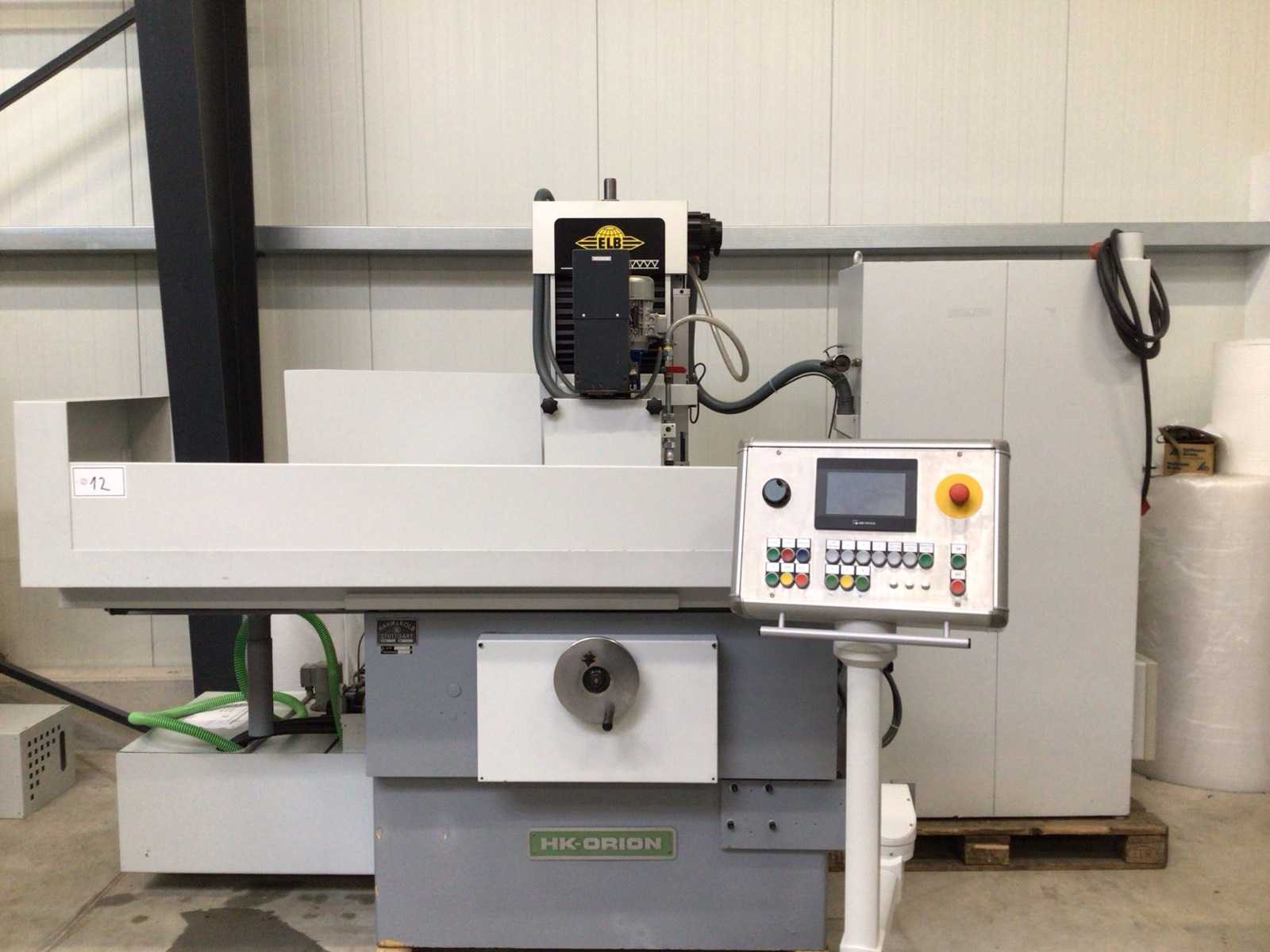

The machine was completely overhauled by ELB in 2019 and has not been used since. Original value approx. 45,000 € Technical data see pictures

SNR - Batch of precision bearings 60KG

Clamping Plate, Clamping Table, T-Slot Grid Plate PAGUS Working Area: 640 x 332 mm Field Size: 50 x 50 mm Working Height: 64 mm Groove Width: 14 / 24 mm Used, Tested ! Dimensions: 740 x 332 x 70 mm

Hydraulic Hose Press; Crimping range: 15-63mm, Max aperture: 75mm, Voltage: 380V, Wattage: 3000W, Pressure: 53.5 Mpa Packing size: 780x540x1350 Weight incl. packaging: 280 kg Unused.

Clamping plate, clamping table, machine table LID Working area: 600 x 430 mm for KF12 Panel thickness: 25 mm Groove width: 12 / 21 mm used ! Dimensions: 600 x 430 x 60 mm

Gerfa magnet. Fein machine.

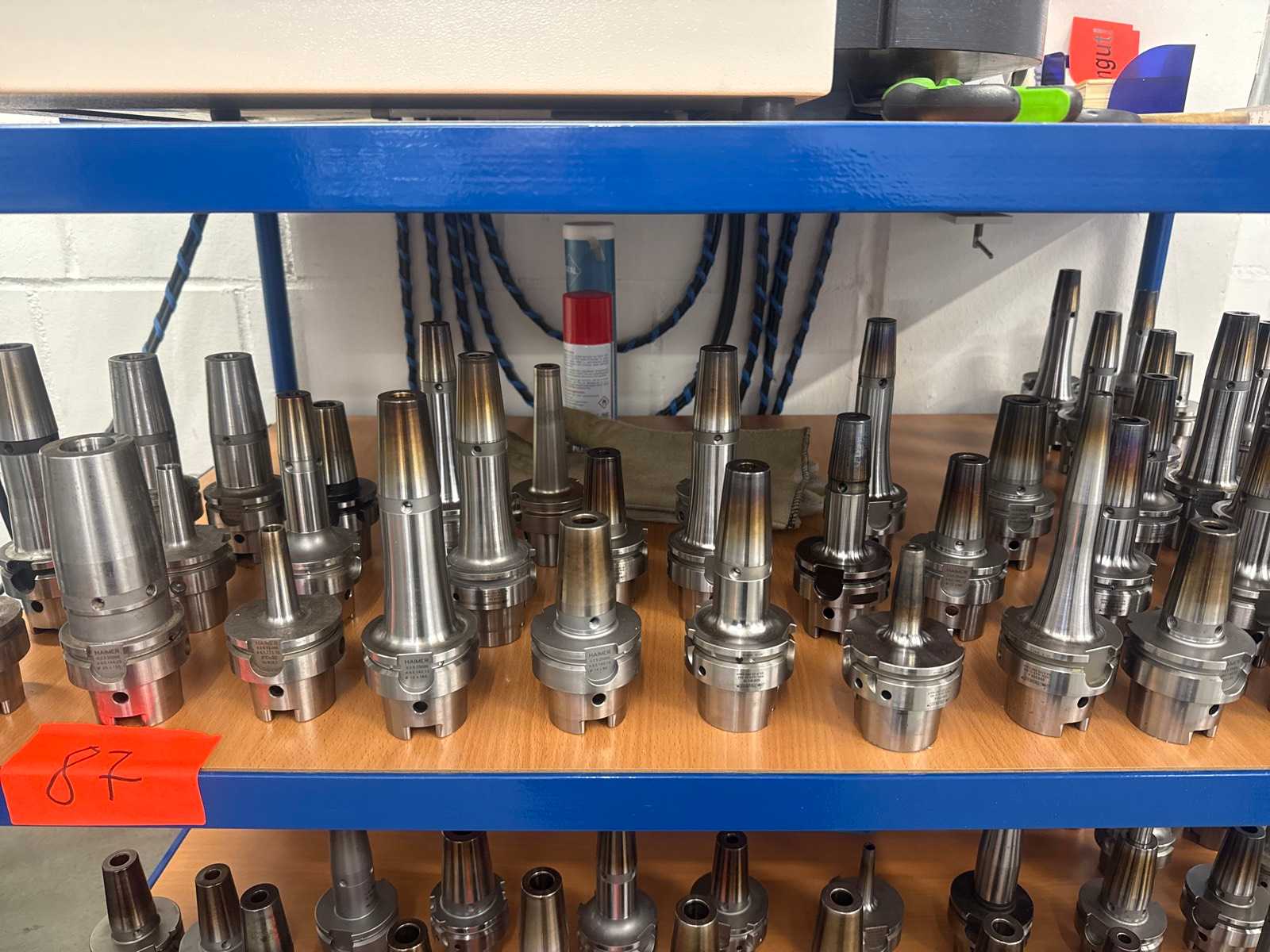

44x HSK-63A Shrink Holders

CNC VERTICAL MACHINING CENTRE Inv. No.13.164M1 Make DMG Model 63V Serial number 28850011162 Control Heidenhain TNC426M Year 2000 X-travel 630 mm Y-travel 500 mm Z-travel 500 mm Table size 500 x 800 mm Spindle taper SK 40 R.P.M. 8000 kW 13 Volts 400 Cycles 50 Including: Linear guide way Rear splash guard and chip tray. Automatic lubrication. Telescopic way covers. Chip conveyor ATC 24 positions

Lot of 3 industrial AC variable frequency drives from the 650 series. Mixed branding: SSD Drives and Eurotherm Drives. Input: 380–460 VAC, 3-phase, 50/60 Hz. Integrated operator keypad/display panels. Made in the UK.

Serial Number: 6041793846 Mobile

Unused black steel

Machine number: 754452 Operating voltage: 220 V Connection: 1900 W Rated current: 9.2 A Speed: 500 rpm

Pneumatic cylinder CYTEC FV-063/020/0615-03 stroke: 615 mm Rod diameter: Ø 20 mm New ! Dimensions: 940 x 75 x 80 mm

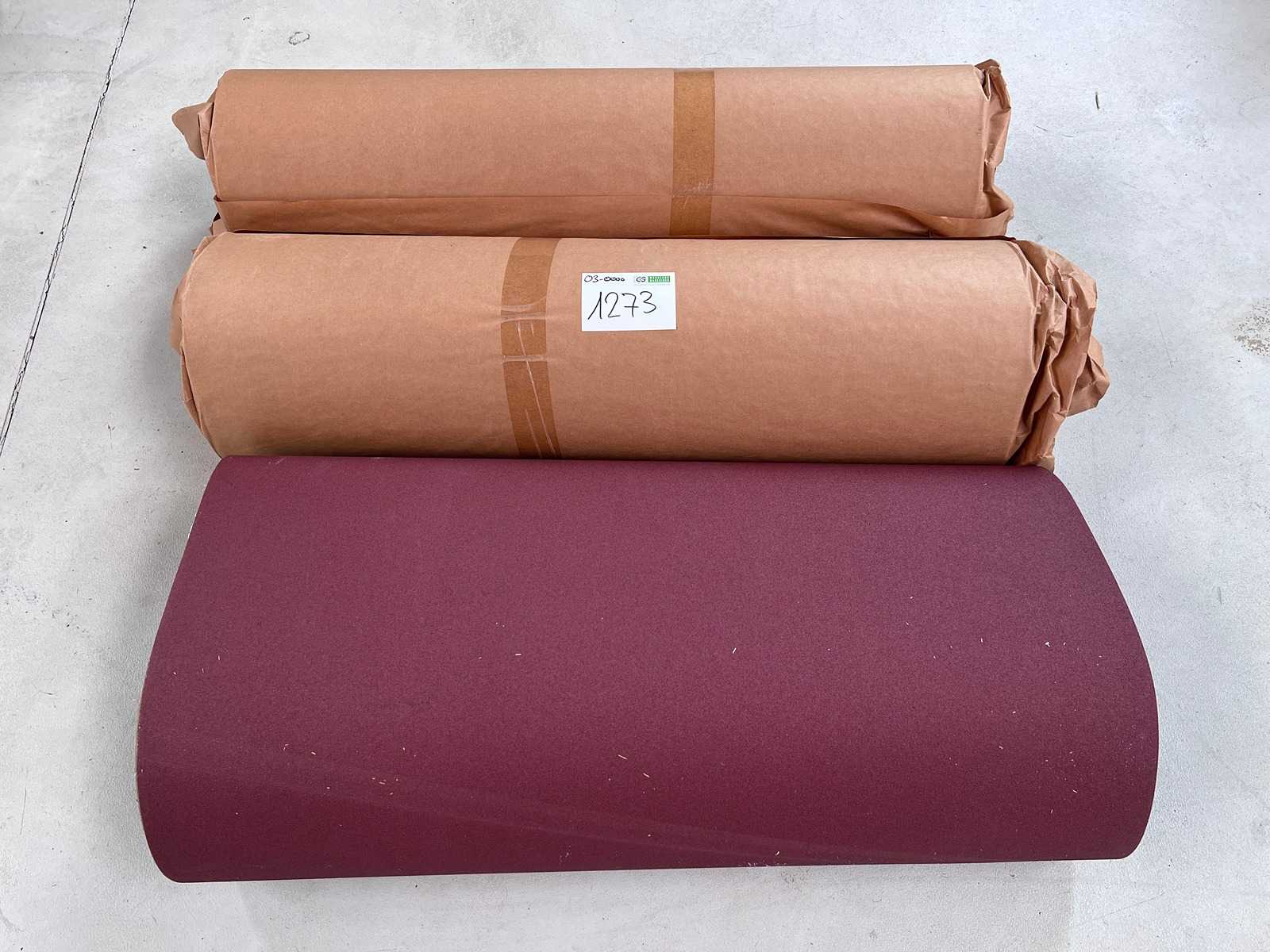

Lot of abrasive belts consisting of 9 pieces Transport dimensions: 1,200 x 800 x 600 mm, approx. 50 kg

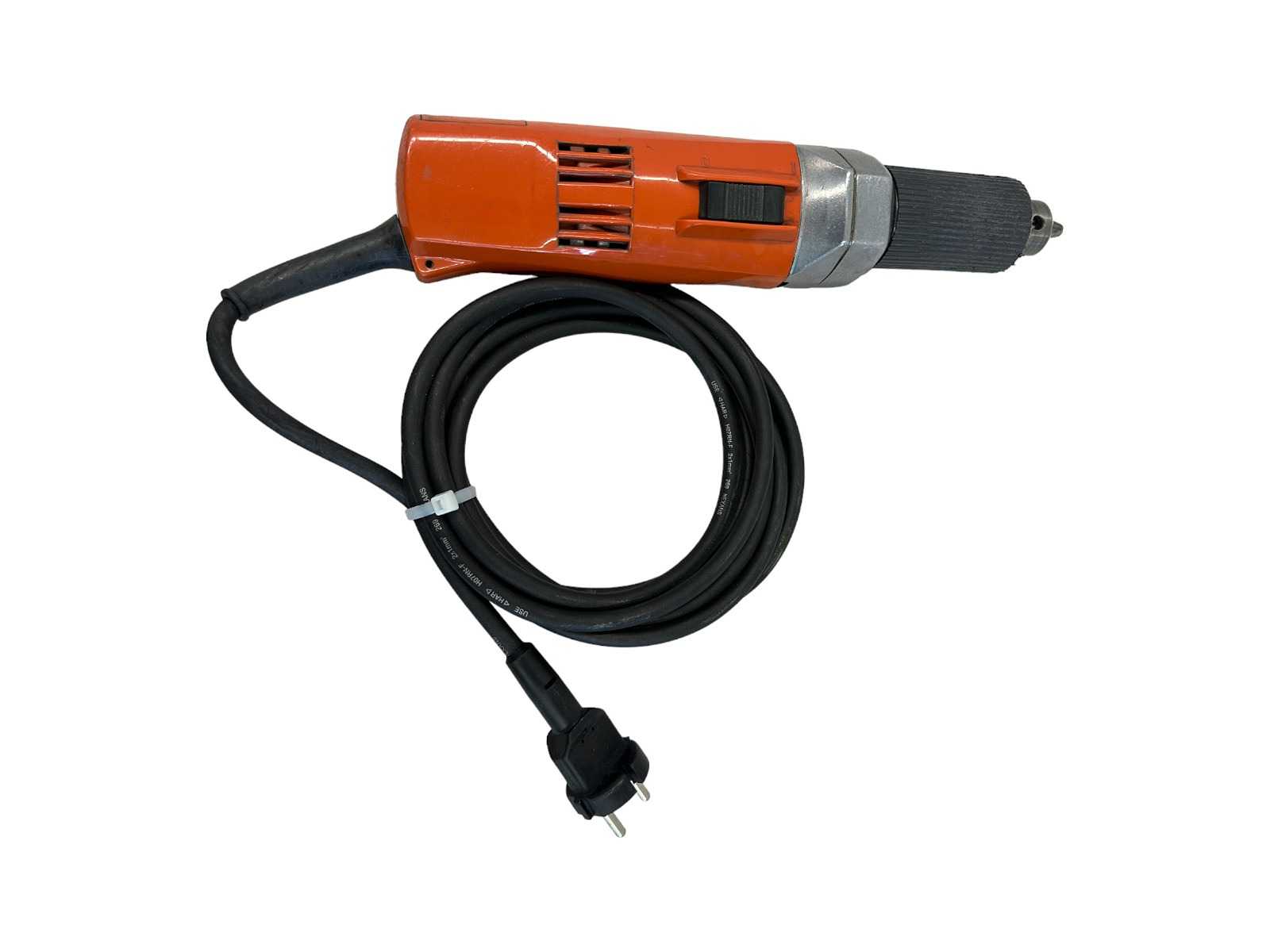

Model: Fine AH 636c (also called AHSI 636c) Type: Straight Grinder / Stick Grinder Power: 280 W Voltage: 220/230 V, 50/60 Hz No-load speed: approx. 5,500 rpm Tool holder: Gear ring drill chuck up to Ø 10 mm Max. abrasive media: Ø 50 mm Weight: approx. 1.7 kg Cable length: 3 m Use: Brushing, polishing, grinding, light drilling work Weight incl. packaging approx. 3kg

Pneumatic valve, throttle check valve CPP PREMA D876.632.000.234 Pmax.: 12 bar Connections: G 3/8 ( inches ) Installation length: 73 mm Mounting thread: M30 x 1.0, Length: 16 mm New ! Dimensions: 73 x 36 x 105 mm

Pneumatic cylinder PAGUS X 648 293 003 stroke 350 mm rod diameter Ø 35 mm Dimensions: 590 x 165 x 175 mm

Siemens SIMODRIVE 650 industrial drive/power module. Box label marked SIMODRIVE 650 6SC6506-4AA02”. Serial no. T3382715. Includes display/control keypad and internal capacitor bank.

Siemens MIDIMASTER Vector variable frequency drive, input 380–480V ±10% 3-phase 32A 47–63Hz, output 0-input V 3-phase 26A (30A VT), frequency range 0–650Hz, motor rating 11000W / 15kW VT, protection class IP20, made in EU

Pressure regulator manually adjustable, nitrogen suitable DRUVA EMD 675 A inlet pressure: max. 200 bar outlet pressure: 0.5 - 6 bar stainless steel ! used ! Dimensions: 150 x 150 x 180 mm

Element radiator ZEHNDER E2060/4 (Excelsior) 1540 x 145 x 650 mm element spacing approx. 27 mm New ! Dimensions: 1600 x 150 x 670 mm

Submersible pump, coolant pump, emulsion pump, BRINKMANN TA 600/360+001 immersion depth: 360 mm pump base: Ø 140 mm Pump flange: Ø 180 mm Q = 500 l/min H = 2 m motor: 1,1,00 mmbr /br /Q = 500 l/minbr /br /H = 2 mbr /br /motor: 1,180 mmbr /br /Q = 500 l/minbr /br /H = 2 mbr /br / 1 kW 220/380 V used, tested ! Dimension: 610 x 210 x 180 mm

Submersible Pump, Coolant Pump BRINKMANN SFL 650/450-MV+211 Immersion depth: 450 mm Pump base: Ø 200 mm Pump flange: Ø 250 mm Q = 400 l/min H = 8 m Motor: 2,2,00 mmbr /br /Q 2 kW 220 / 380 V with cutting device ! Dimension: 880 x 350 x 250 mm

Control solenoid, electromagnet BINDER MAGNET 41 624 - 06E 00 7.5 kp 24 V Gs Dimensions: 140 x 65 x 115 mm

Submersible pump, coolant pump BRINKMANN STA 607/670-Z+280 immersion depth: 670 mm Pump base: Ø 140 mm Pump flange: Ø 180 mm Q = 400 l/min H = 45 m Motor: 7,10 5 kW 500 V New !' Dimension: 1150 x 400 x 290 mm

Control Solenoid, Electromagnet EMZ, ELECTROMECHANICS ZITTAU 6831.003 6.5 / 18 kp stroke: 12 mm 220 V AC 50 Hz 120 circuits/h New ! Dimensions: 120 x 100 x 135 mm

SIME INDUSTRIE brake type 650 RM N° 27231 50 V Dimensions: 200 x 200 x 300 mm

Electrical press BOSCH 0 608 750 049 with transducer, junction boxes and cables 0 608 600 001 0 608 701 014 0 608 870 347 3 607 021 015 Dimensions: 600 x 400 x 250 mm

Ball screw STAR 1502-3-1085 610 mm AB10L 16 045 New ! Dimensions: 610 x 80 x 70 mm

Stainless Steel Control Box, Control Cabinet PAGUS 600 x 210 x 480 mm Dimensions: 600 x 210 x 510 mm
