max. workpiece diameter: 500 mm threading length: 5000 mm max. module: 10 min. module: 2 workpiece dia. over saddle: 250 mm center height over bed: 260 mm workpiece dia. over bed: 500 mm workpiece spindle bore: 102 mm thread pitch: 1 - 800 mm speed of workpiece (milling): 0,0034 - 2,65 U/min feeds - longitudinal: 0,256 - 195 mm/min feeds - rolls: 0,0256 - 5,17 mm/WU hob turning speeds: 45 - 900 U/min electrics - voltage/frequency: 380 / 50 V/Hz total power requirement: 8,5 kW weight of the machine ca.: 6,6 t dimensions of the machine ca.: 7,0 x 1,7 x 1,6 m Thread-, Worm-,gear shafts- and Spline Milling Machine with : equipped with: - Thread Milling Head ApGs - Counter Stay - 1 Bush Rest - 2 Steadies - Cabinet with change Gears The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 4-axis Starrag Heckert CWK500D was manufactured in 2002. It features an impressive X-axis travel of 750 mm, Y-axis travel of 750 mm, and Z-axis travel of 700 mm. The machine includes a robust pallet size of 500 × 500 mm and a maximum pallet load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert CWK500D horizontal machining centre we have for sale. Contact us for further details.

Heckert ZFWVG 250 x 2000 Thread Milling and Spline Hobbing Machine. Max. workpiece diameter 250 mm Workpiece diameter over bed 500 mm Center height over bed 260 mm Threading/hobbing length 2000 mm Min/Max. module 2/18 Workpiece spindle bore 102 mm Bore of the collets 100 mm Tailstock quill stroke 100 mm Speed 45 – 560 rpm Lead of leadscrew 1,2 '' links / left mm Workpiece turning speeds 0,0032-2,65 U/min Rolling feed 0,027-5,66 mm/WU Longitudinal hob feeds 0,3-198 mm/min Main drive 4 kW Feed motor 25 NM Coolant pump 0,09 kW Lubrication pump 0,37 kW Total power requirement 9,5 kW Dimensions 3700x2400x1600 mm Total weight 5200 kg Accessories; -heavy duty head -standard head -steady rest -flange -change gears full set

HECKERT ZFWVG 250 x 1250 Thread Milling and Spline Hobbing Machine Max. workpiece diameter 250 mm Workpiece diameter over bed 500 mm Center height over bed 260 mm Threading/hobbing length 1250 mm Min/Max. module 2/18 Workpiece spindle bore 102 mm Bore of the collets 100 mm Tailstock quill stroke 100 mm Speed 45 – 560 rpm Lead of leadscrew 1,2 '' links / left mm Workpiece turning speeds 0,0032-2,65 U/min Rolling feed 0,027-5,66 mm/WU Longitudinal hob feeds 0,3-198 mm/min Main drive 4 kW Feed motor 25 NM Coolant pump 0,09 kW Lubrication pump 0,37 kW Total power requirement 9,5 kW Weight of the machine ca. 3,40 t Accessories; -heavy duty head -standard head -steady rest -change gears set -centers and arbors -spindle spare -counter weight Will be re-paint in original brown colour.

BAZ Heckert CWK 800 BJ 1999

Universal milling head, milling holder, milling extension, angle milling head -Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V -Recording output: SK50 -Recording: Input gear -Milling head: fully pivotable -Stroke: 72 mm -Transport dimensions: 850/650/H520 mm -Weight: 277 kg

Universal milling head, milling adapter, milling extension, angle milling head -Spare part of a: WMW HECKERT milling machine -Number: 1 piece angle milling head -Recording output: SK50 -Recording: input gear -Milling head: completely swiveling -Rezes recording: mm -Pitch circle: mm -Transport dimensions: 750/600/H530 mm -Weight: 296 kg

Brush cylindrical grinder, external cylindrical grinder, internal cylindrical grinder, centering grinder, center grinding machine, hydraulic universal cylindrical grinder, polishing machine -Manufacturer: WMW Heckert, Hydraulic universal cylindrical grinding machine -Spindem lotor: VEB 0.8/1 kW / 1410/2840 rpm -Hydraulic drive: ADDA 0.75 kW -Centre height: 270 mm -Max. material diameter: Ø 320 mm when converted -Brush: max. Ø 250 mm -Center distance: 420 mm -Dimensions: see photos -Base cabinet: with extensive accessories incl. -Dimensions: 1720/920/H1230 mm -Weight: 790 kg

Bench drill, pillar drill, column drill, column drill -Manufacturer: WMW Heckert, bench drilling machine type BT 12/1 with base frame -Clamping table: 340 x 280 mm -Travel: 370 mm -Spindle holder: MK2 -Projection: 215 mm -Speeds: 224/450/900/1800 rpm -Column: diameter 92 mm -Spindle stroke: 100 mm / depth stop with fine adjustment -Motor: VEB 0.4/0.7 kW with brake -Voltage: 380 V -Dimensions: 620/480/H1710 mm -Total weight: approx. 182 kg

Bench drill, pillar drill, column drill, column drill -Manufacturer: WMW Heckert, bench drilling machine type BT 2 -Clamping table: 340 x 280 mm -Travel: 350 mm -Spindle holder: MK2 -Projection: 215 mm -Speeds: 355/710/1400/2800 rpm -Column: diameter 93 mm -Spindle stroke: 100 mm / depth stop with fine adjustment -Motor: VEM 0.8/1.0 kW with brake -Voltage: 380 V -Number: 2x drill available -Price: per piece -Dimensions: 550/480/H1270 mm -Weight:157 kg/piece

Various CNC and conventionally controlled milling machines, make Fritz Heckert, are available. 1) Fritz Heckert FU 315/E, weight: approx. 4000kg. 2) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 3) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 4) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 5) Fritz Heckert FU 315/E, weight: approx. 3200kg. 6) Fritz Heckert FW 400/E, weight: approx. 3700kg. 7) Fritz Heckert FU 315 x 12. 8) Fritz Heckert FU 315, weight: approx. 3100kg. An on-site inspection is possible.

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   .. among of them simultaneous CNC axes: 3   X-axis travel: 2200 mm   Y-axis travel: 1600 mm   Z-axis travel: 1850 mm   rotating range B-axis from: 0 °   rotating range B-axis up to: 360 ° TABLE   table surface (left-right): 1000 mm   table surface (front-back): 1250 mm   workpiece load (max): 5000 kg SPINDLE / HEAD   spindle revolutions (min): 20 /min   spindle revolutions (max): 10000 /min AXIS DRIVES   rapid traverse: 40000 mm/min TOOL MAGAZINE   number of positions: 60   tool diameter max.: 110 mm   - with free neighbour positions: 250 mm   tool length max.: 450 mm   tool weight max.: 35 kg AUTOMATIC WORKLOAD EQUIPMENT   number of store positions: 2 ELECTRICAL SPECIFICATIONS   mains power supply: 130 kVA   mains voltage: 4 ...

Speed: 355-1800/min, nominal voltage: 380V, 50Hz, 3 AC, control voltage: 220/24V, protection class: IP54, nominal current: 100A, control: Heidenhain TNC 355, weight: 2.95t, with handwheel, coolant system, hose nozzle, hydraulic/lubrication unit, pressure accumulator/ hydraulic accumulator, solenoid valves, Bosch components and ORSTA directional control valve. An on-site inspection is possible.

x-travel: 1450 mm y-travel: 1100 mm z-travel: 1300 mm control: Siemens 840D PL Main spindle:: power capacity - main spindel: 50 kW max. Torque: 1.500 Nm turning speed range - main spindle: 20 - 6.000 min/-1 spindle diameter: 110 mm tool taper: HSK A 100 Tool-Presetter:: Turmmagazin / Tool Tower : 180 pos. change-time chip to chip: 5,5 sec feed range: 1 - 65000 mm/min rapid traverse ( X / Y / Z ): 65 m/min pallet changer:: size of pallet: 1.000 x 800 mm max. palett load: 2000 kg max. workpiece height: 1.700 mm Number of pallettes: 2 pos. dimension of workpiece: 1400 x 1400 mm total power requirement: - kW weight of the machine ca.: 25 t dimensions of the machine ca.: 8100 x 5350 x 4150 m - Siemens 840D Powerline CNC control - 2-position pallet changer - 180-position tool changer (HSK A 100) - Milling head with 180° B-axis (0.001°) - C-axis table (0.001°) - 80 bar coolant system with  ...

This 4-axis Starrag Heckert HEC 400 D was manufactured in 2012. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 80 tools, allowing for efficient machining operations. The machine includes two workpiece pallets with a size of 400 × 500 mm. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert HEC 400 D horizontal machining centre we have for sale. Contact us for further details.

CONTROLS   conventional BASIC DESIGN   basic design: cross bed WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 3   X-axis travel: 1120 mm   Y-axis travel: 350 mm   Z-axis travel: 400 mm   distance spindle nose - table surface (max.): 420 mm TABLE   table surface (left-right): 1600 mm   table surface (front-back): 400 mm   workpiece load (max): 1500 kg SPINDLE / HEAD   spindle type: tilting head   - mode of operation: manual   - mode of operation: manual   spindle revolutions (max): 28 /min   number of gears: 1400   tool fixture: ISO SK 40 AXIS DRIVES   feed velocity (min): 16 mm/min   feed velocity (max): 800 mm/min ELECTRICAL SPECIFICATIONS   total power consumption: 14.5 kW DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 2350 mm   total height: 2150 mm   total w ...

These 4-axis Starrag Heckert HEC 500 H/V were manufactured in 2008 and 2009. They features a swivelling head configuration, with an X-axis travel of 800 mm, Y-axis travel of 800 mm, and Z-axis travel of 680 mm. The second machine features a swivelling head configuration, with an X-axis travel of 800 mm, Y-axis travel of 650 mm, and Z-axis travel of 680 mm. The machines include a pallet size of 500 x 500 mm and a maximum load per pallet of 1000 kg. If you are looking to get high-quality machining capabilities, consider these Starrag Heckert HEC 500 H/V horizontal machining centres we have for sale. Contact us for further details.

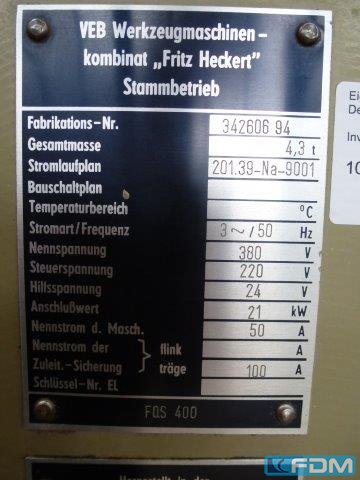

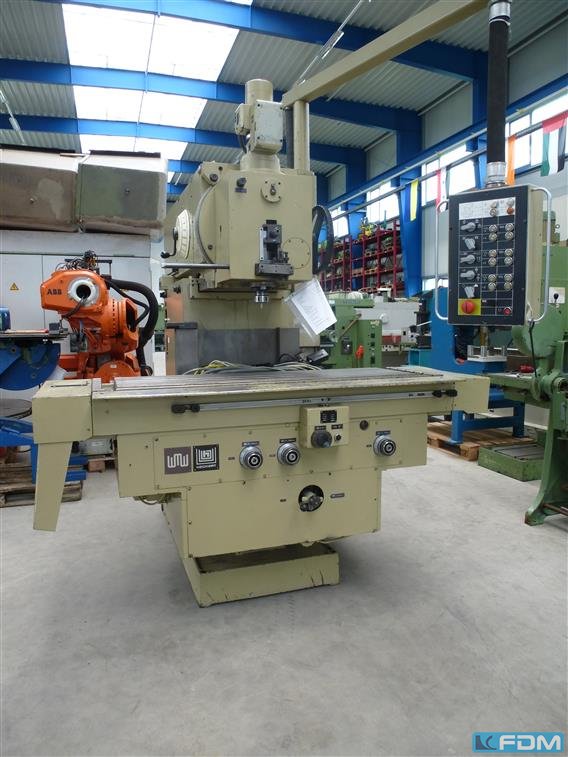

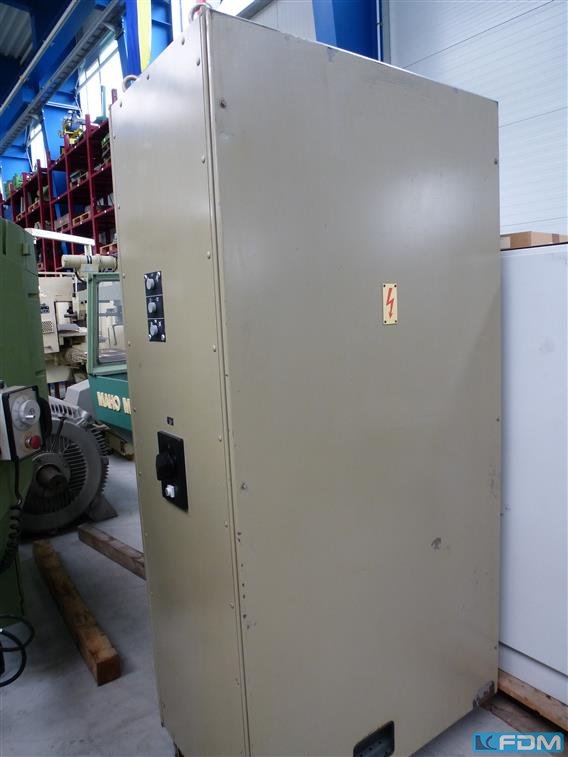

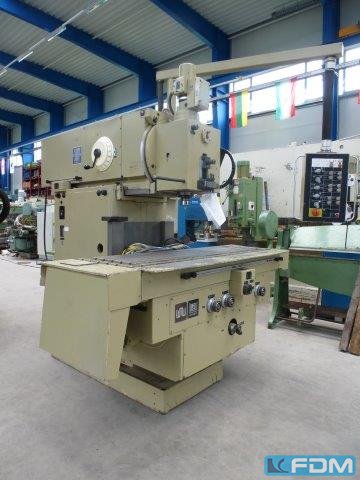

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

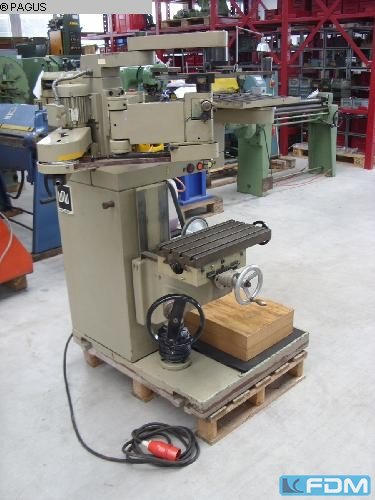

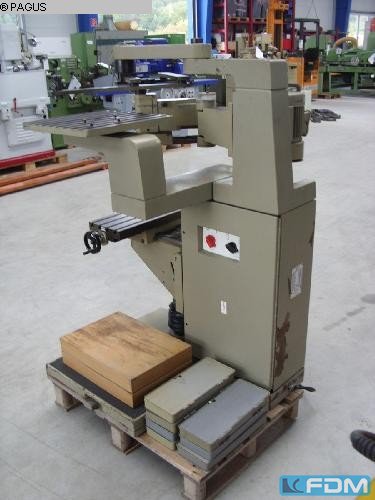

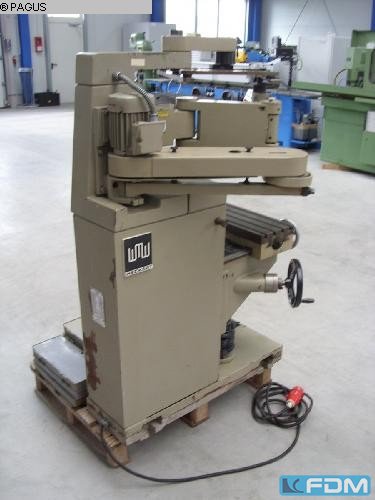

x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm

saw blade diameter:400 mm cutting diameter:400 mm material:Vollmaterial 20 - 130 mm material:Walzprofile 40 - 120 mm material diameter from - to::Rohr u. Profilfrohr bis 100 x 14 mm sawblade width:4 mm total power requirement:5,1 kW weight of the machine ca.:1850 kg dimensions of the machine ca.:3300 x 1630 x 1960 mm Documents:vorhanden
