Edge banding machine Hebrock F 4 with joints, corner cutting and two
scrapers.
Edge thickness roll approx. 0.4 - 2mm
Workpiece height approx. 10 - 40mm
Feed rate approx. 7m/min
Noise protection hood

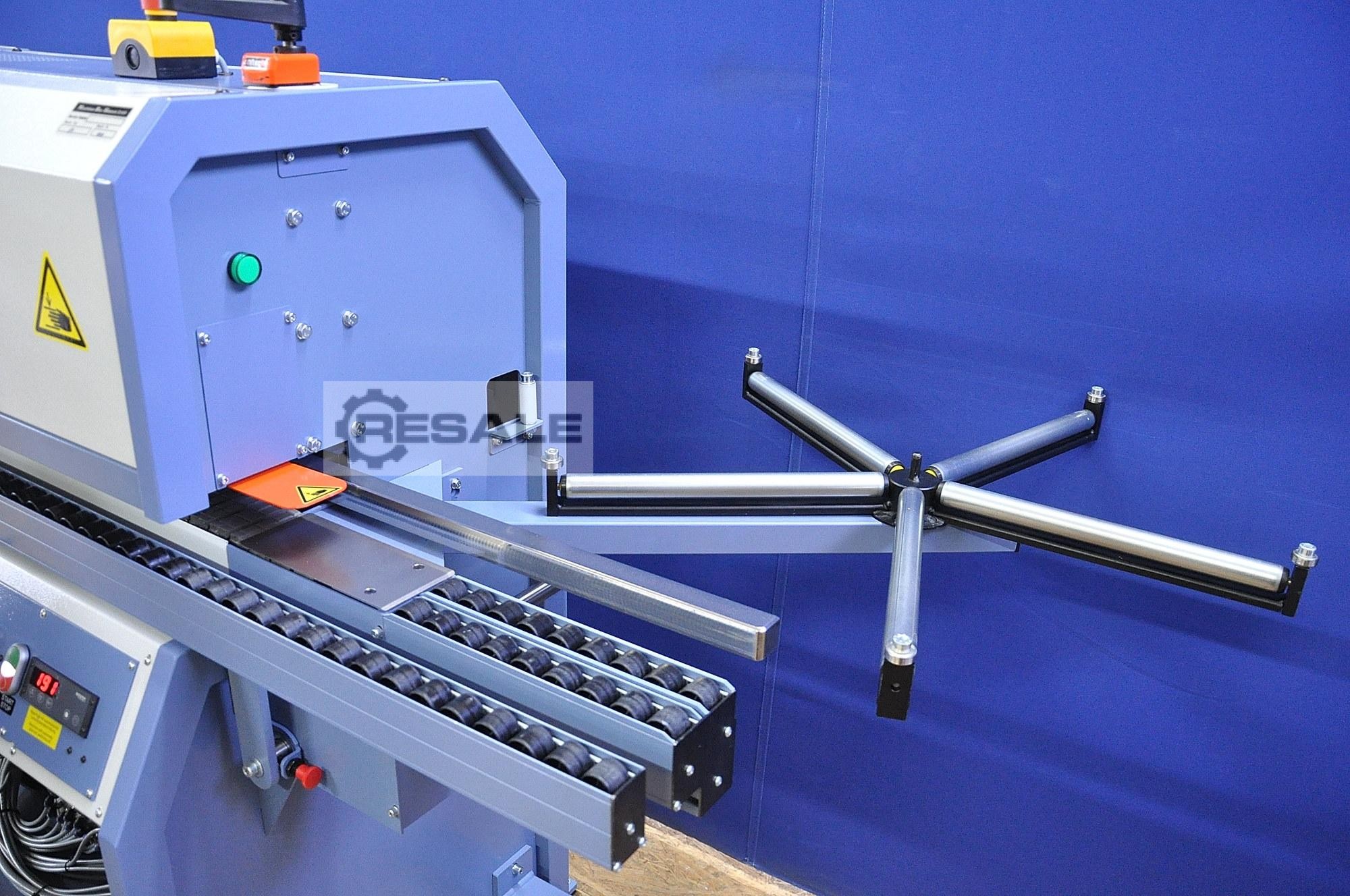

Pull-out workpiece support
Suction port 1 x 140mm
Aggregates:
Upper pressure manual adjustment with SIKO counter
Infeed ruler manual adjustment with SIKO counter
Manual adjustment with SIKO counter
Joint milling with slide milling cutters, milling cutters sharpened
Gluing part with automatic edge retraction for roll goods up to 2mm
Glue basin with adhesive changing device for fast colour change
Pressure zone with 3 rollers
Cross-cut saw
Combination milling unit, R2 with manual adjustment between thin and
thick edge
Radius scraper R2, pneumatically retractable
Corner milling machine R2, manually adjustable between thin and thick
edge
The shape milling machine can also be used with a shelf program, so
only the straight edge is rounded and not the corners
Glue joint scraper can be manually engaged
Hood lock
CE mark
Instruction manual
A video of the running machine can be sent on request.
All inserts of the milling units and the scrapers T51211082 have been
renewed or turned, saws have been sharpened. So the machine is ready
for use right away. The diafue milling cutters have also been
sharpened. Paint damage repaired.
Machine has approx. 468 Bh.
Machine is in very good condition, see original photos.
Dimensions of the machine approx. 4050 x 1100 x 1400mm (LxWxH)
Weight approx. 800kg.
The machine can be demonstrated on site by appointment. We only offer
machines that are ready for demonstration in our warehouse, see "other
offers of this supplier".
