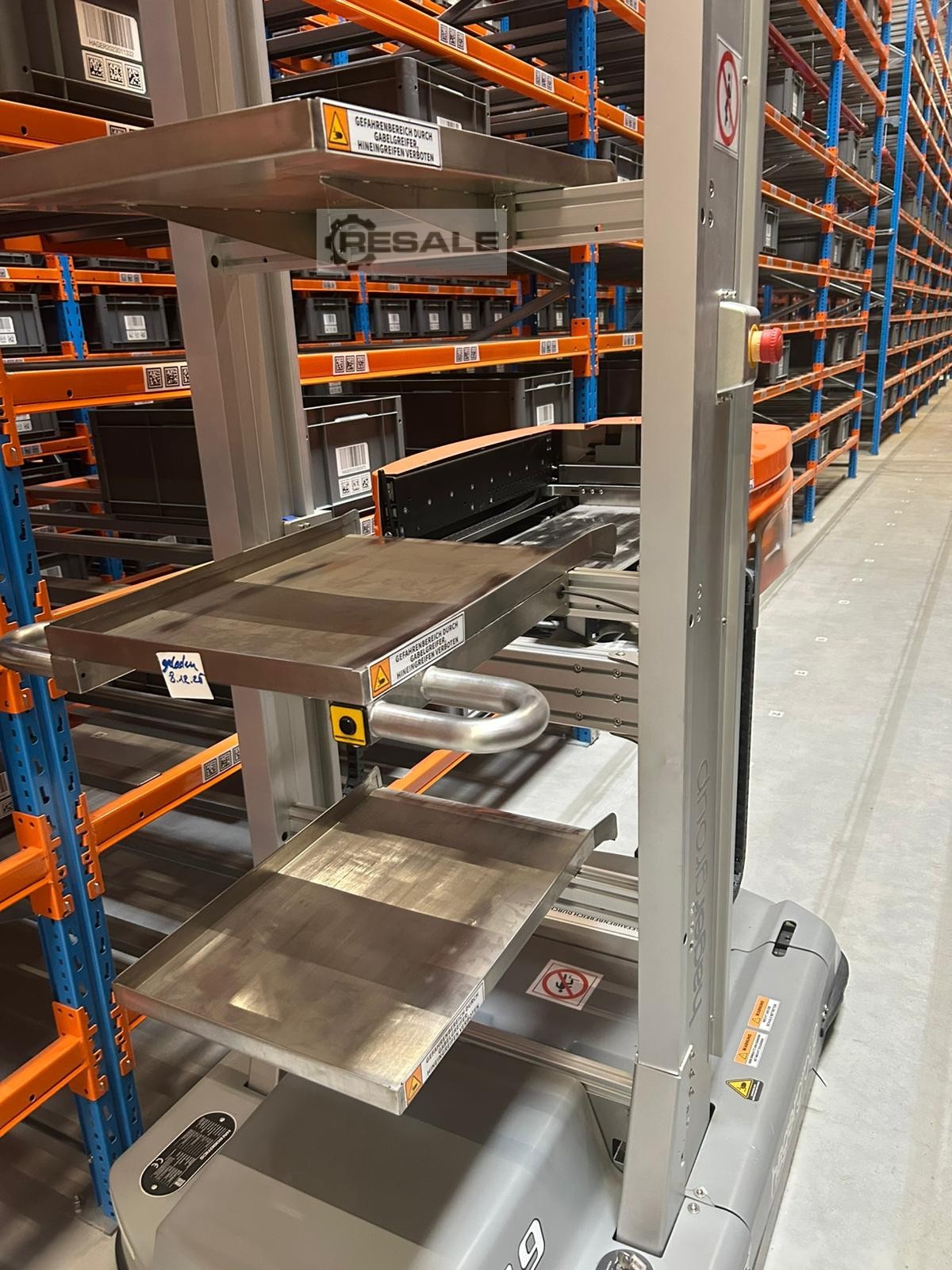

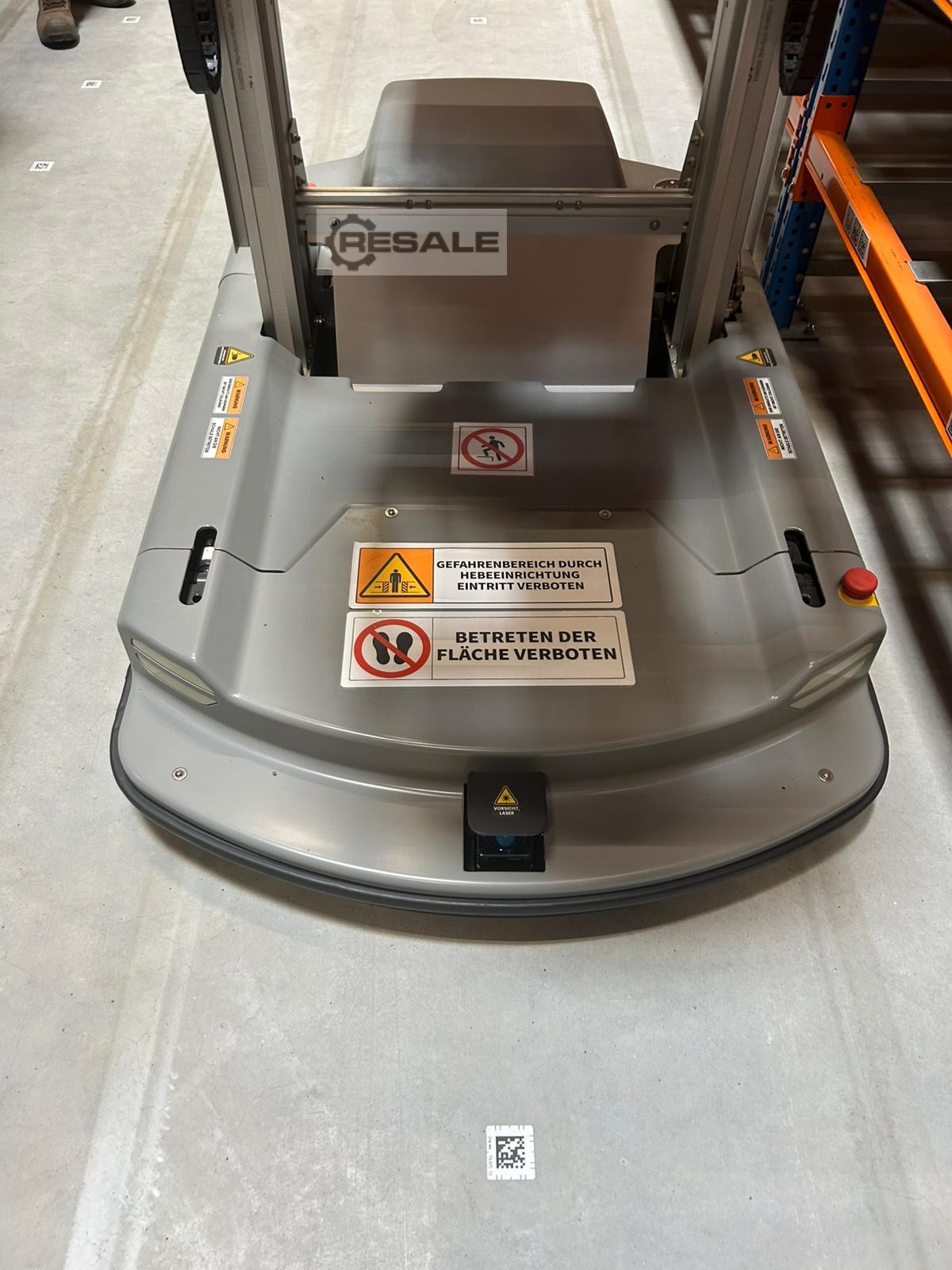

HAI Robotics HAIPick A42-G Warehouse Robot / Picking Robot with
Charging Station
Autonomous storage and picking robot for automated small parts
warehouses and shuttle storage solutions.
Manufacturer: HAI ROBOTICS CO., LTD.
Model: HAIPick A42-G
Product Type: Autonomous Warehouse Robot / Picking Robot
Year of Make: 2022
Maximum travel speed: 1.6 m/s
Maximum lifting height: 4,870 mm
Maximum payload: 50 kg
Nominal voltage: 48 V DC
Maximum charging voltage: 54.6 V DC
Dimensions: 1,600 x 1,000 x 5,300 mm
Net weight: 390 kg
Degree of protection: IP20
Application: Automated storage and retrieval of containers
Design: Multi-girder platform with lift mast
Charging Station: HAI Robotics Charging Station HRC-3000-V002
included
Charging station input voltage: 220 V AC
Charging station nominal power: 3,200 W
Charging station Output voltage: 55 V DC
Charging station Output current: max. 40 A
Available quantity: 33 robots with 33 charging stations
Condition: Used
Germany
