grinding 400mm used for sale

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

grinding diameter:300 mm grinding length:600 mm centre height:190 mm z-axis:865 mm x-axis:250 mm clamping length:1000 mm peripheral speed:45 m/sec grinding slide swivable +/-:8 ° grinding wheel width x diameter:80 x 508 mm work piece spindle speed:1 - 800 U/min weight of the machine ca.:5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device

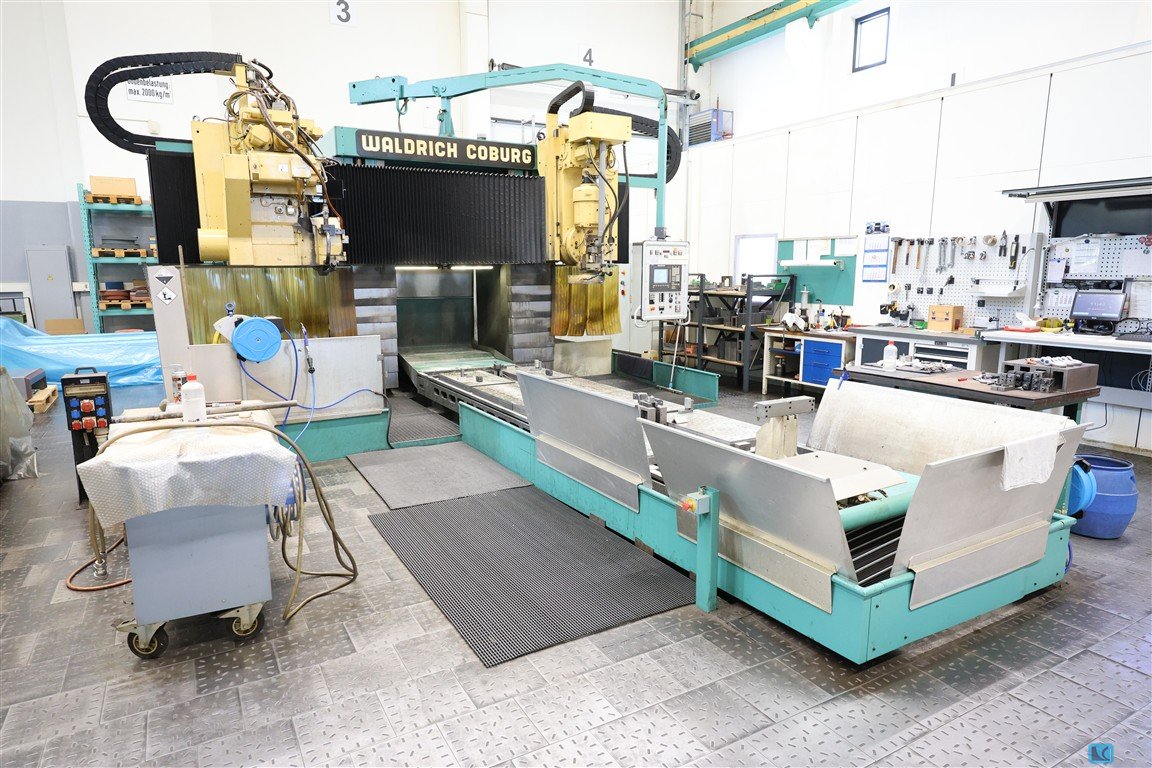

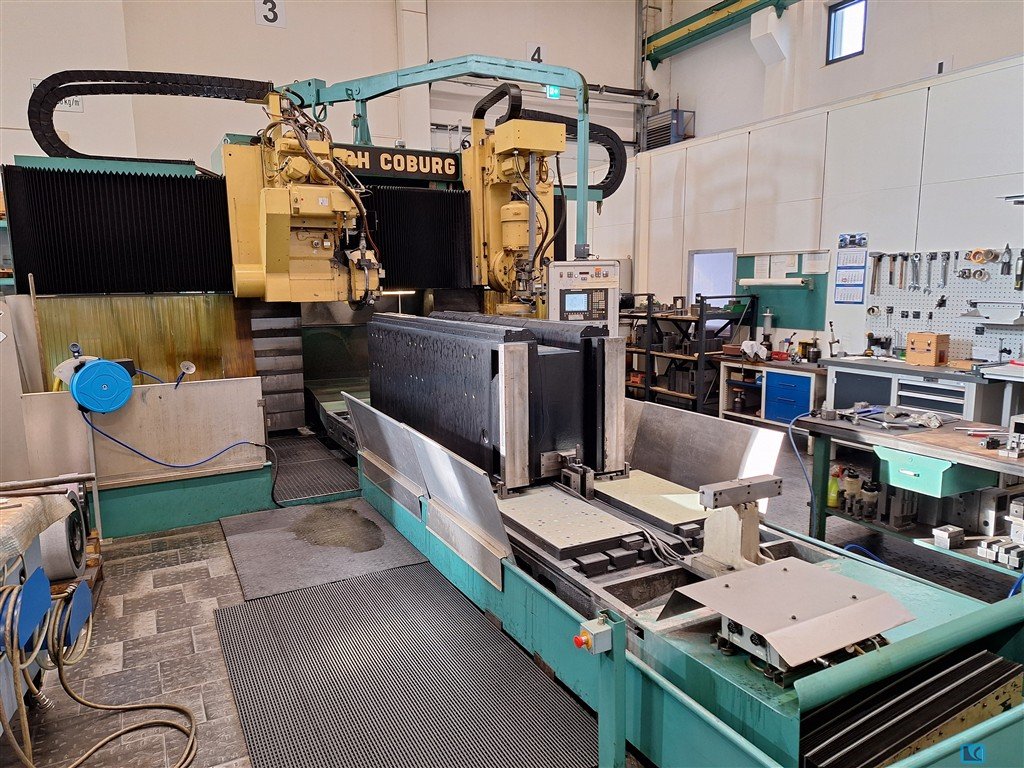

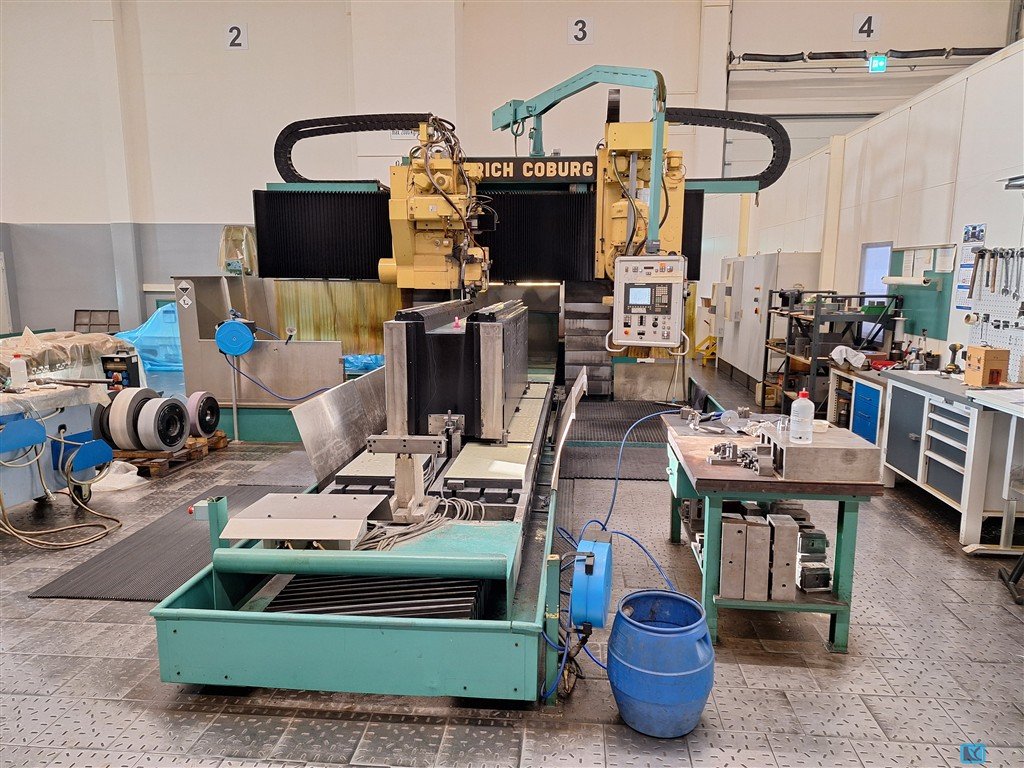

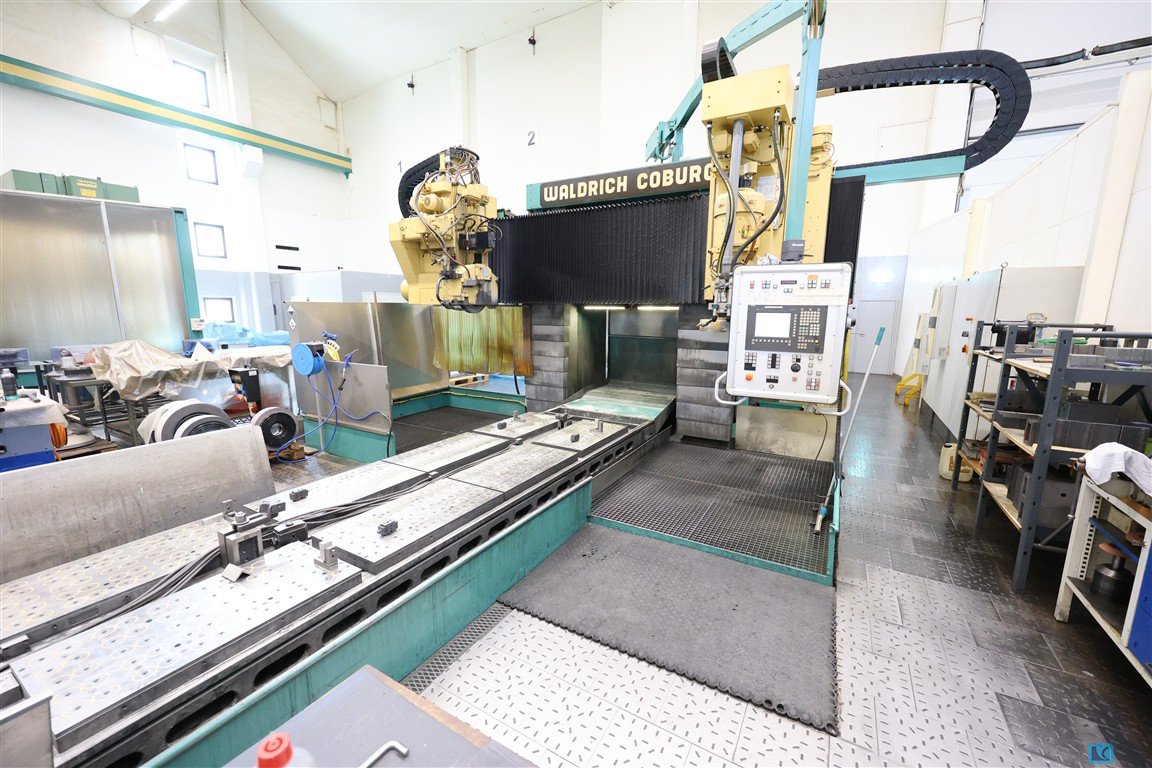

grinding length:4000 mm grinding width:1450 mm workpiece height:1250 mm total power requirement:40 kW dimensions of the machine ca.:12,3 x 6 x 4,8 m distance between columns:1460 mm table surface area:4000 x 1250 mm max. workpiece weight:11.000 kg cross rail adjustment:1250 mm table feed:1- 45 m/min .machine is in top condition for high precision work! with CNC SIEMENS 840 D 1 universal grinding head, 7,5 kW swivelling of the grinding spindle +/-110° grinding wheel dimension 500 x 60 mm vertical stroke 350 mm with dressing unit 1 surface grinding head, 22,5 kW grinding wheel dimension 600 x 100 mm vertical stroke 150 mm with dressing unit 6 magnetic plates on the table diverse grinding wheel flanges

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

Industrial Deburring Stations – Year 2019 SEW USOCOME engine – Pneumatic control – 15 units available - General Description: We offer for sale 15 industrial deburring stations in good condition, year of construction 2019, designed for deburring operations in industrial environments. Robust, compact and safe stations, ideal for mechanical, machining, sheet metal or industrial subcontractors. - Technical characteristics Equipment Type: Deburring Station Year: 2019 Engine : SEW USOCOME Engine type: DRN80M2/BE05/FI B3 Maximum speed: 2860 rpm Order Type: MCLTPB0015-5A3-4-00 Structure: Column station with reinforced base - Integrated equipment Pneumatic up/down Foot pedal control Adjustable protective screen Built-in light stand Complete electrical box with dimmer and protections - Benefits Recent Material (2019) Rugged industrial manufacturing Engine recognized for its reliability Q ...

Technical data Machine Type: Milling burin grinding machine Manufacturer: Friedrich Deckel Model: SO/70-12497 Manufacturer location: Munich Configuration Documentation: Original leaflet "Milling burin grinding machine SO" Application: Grinding of cylindrical, tapered and pointed milling cutters Setting options: Transverse movement (vernier), longitudinal movement, rotary movement (360° / 180°), horizontal and vertical swivelling Material table: Setting values (α, β, γ) for various materials such as steel, cast iron, brass, aluminum, wood and plastics

Brush grinding machine Brand: Ecoline Type: B Sand 5 New machine The B Sand 5 as a high-quality solution for your production. The individual equipment offers many possibilities. In addition to panels and profiled doors, sash surfaces can also be processed, for example. A perfect result for different types of materials and surfaces: - Solid wood, MDF, veneered parts... - impregnated, primed surfaces... Technical data: Workpiece dimensions: Min. length: 550 mm Min. thickness: 10mm Max. Width: 1550 mm Max. Thickness: 120 mm Power: 11 kW Air pressure: 6-8 bar Suction nozzle: 6 x Ø120mm unit - vertical swiveling brushes for grinding the edges. diameter 400mm per brush, 2 motors á 1,1 kW - Horizontal sanding lamellar roller diameter 420mm, length 1600mm, 3 kW motor - Cross brush for sanding the wood fibers diameter 40mm, 1,5 kW motor - 2 round b ...

Brushing machine Brand: Ecoline Type: Rustikmat 2-600 New machine - Upper feeding belt with grip, power 0,75 kW frequency controlled. - Controlled lift of feed belt via ball bearing guidances for precision and a long product life. - Manual height adjustment - Additional pneumatical and self-regulating pressure of brushes via lower pressure pistons to process as well slight convex / concave formed surfaces to get an even finish. - Additional verticale and independant adjustment of the bruhes up to 20 mm via regulator to have a similar wear and tear and to change the depth of the structuration (stronger / slighter). - Transmission of the motors via v-belt. That is the cause of the low weight, minimal maintenance work and in relation a high trasmission. Suctiong housing for each brush. - Additional rollers at infeed and outfeed for more supporting space. 2 Brushes More ...

EMAG WEISS W 11-CNC SL650Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 650 mm____________Description:In Generel:ear of construction:2020Control system:WEISS CNCCentre width:650 mmCentre height:200 mmGrinding wheel dimensions:400x60 mm + 500x60 mmWorkpiece headstock:Speed:10 -650 rpmWorkpiece weight max.:250 (100) kgSanding diameter max.:390 mmMounting:MK4Grinding headstock:Peripheral speed:20 - 50 m/sGrinding disc dimensions right:500 x 60 mmGrinding disc dimensions left:400 x 60 mmX-axis:380 mmZ-axis:700 mmB-axis:torque motor, infinitely variableTailstock:Pinole diameter:50 mmPionole stroke:45 mmMounting:MK 4Cylinder fine adjustment:+/- 0.04 mmEquipment:Positioning sensors:Direct scalesGrinding spindles:2x grinding spindle (left/right)GAP / Crash Controll:Structure-borne sound (Sensotronik)Balancing:MPM balancing deviceWorkpiece measurement:Marposs PF MEAutomat ...
