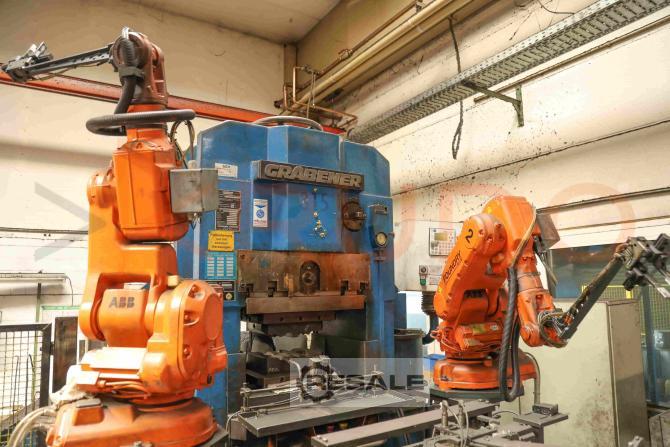

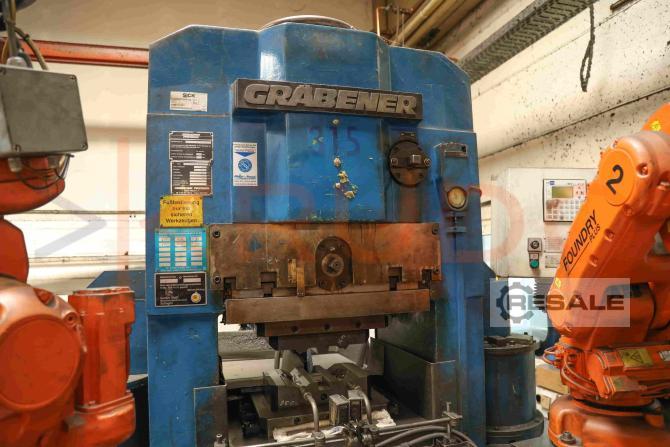

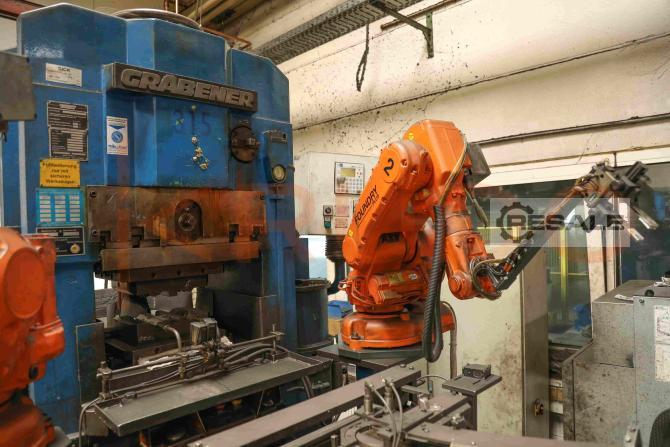

(1986) 600t Gräbener Knuckle-Joint Press
Fully Automated High-Precision Short-Stroke Forming
This knuckle-joint press delivers a nominal force of 600 metric tons,
designed for high-precision forming applications requiring controlled
force near bottom dead center.
Technical Details
Machine Type: Knuckle-Joint Press
Model: GK 600
Nominal Force: 600t
Year of Manufacture: 1986
Rated Force Travel (Pressing Path): 1.7 mm
Nominal Work Capacity: 10,200 Nm
Stroke: 100 mm
Stroke Rate: 45 strokes/min
Shut Height (Max. Die Space): 360 mm
Tool Holder Adjustment: 50 mm
Clearance Between Uprights: 580 mm
Table Area (Width x Depth): 550 mm x 430 mm
Tool Holder Shank Hole (Ø x Depth): 65 mm x 105 mm
Motor Output: 15 kW
Motor Speed: 1,500 rpm
Pneumatic Connection Pressure: 5.5 bar
Operating Voltage: 3x 380V / 220V, 50Hz
Total Weight: 13,500 kg
Machine Dimensions (WxDxH): 1,600 x 2,500 x 2,800 mm
Overrun Time (Stopping Time): 152 ms
Safety Distance: 243 mm
Germany
Solingen
