gleason lapping used for sale

table diameter: mm workpiece height: mm number of wheels: 2 total power requirement: 8 kW weight of the machine ca.: 4,2 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 1000 mm workpiece height: 25 mm number of wheels: 1 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Copper plate for lapping machine. Dia 600mm, NEW, make: Melchiorre, Mimu Machine Tools Gussago BS Italy, Lapping is a machining process in which two surfaces are rubbed together with an abrasive between them, by hand movement or using a machine., This can take two forms. The first type of lapping (traditionally called grinding), involves rubbing a brittle material such as glass against a surface such as iron or glass itself (also known as the lap or grinding tool) with an abrasive such as aluminum oxide, jewellers rouge, opticians rouge, emery, silicon carbide, diamond, etc., between them. This produces microscopic conchoidal fractures as the abrasive rolls about between the two surfaces and removes material from both., The other form of lapping involves a softer material such as pitch or a ceramic for the lap, which is charged with the abrasive. The lap is then used to cut a harder mate ...

CNC Ball Valve Grinding Machine Saporiti PV 500 Year of construction 2014 Siemens Sinumerik 840D Ball/sphere diameter: max. 500 mm Travels: X-axis 510 mm Z-axis 950 mm Y-axis +/- 1.5 mm Workpiece diameter x length: max. Ø 600 x 1,100 mm Workpiece weight: max. 1,000 kg Headstock speed: max. 200 rpm. Grinding wheels speed: max. 6,000 rpm. Water filter: 2,000 l Machine dimensions: L x W x H 3,300 x 2,500 x 3,000 mm Required footprint: L x W x H 7,700 x 6,000 x 3,100 mm Machine weight: approx. 15,000 kg Accessories: RENISHAW measuring system with Saporiti-specific software for easy centering of the tool to the ball A Saporiti PV-1000 from 2014 is also available. Condition: Is said to be excellent Offer number V-7140

CNC Ball Valve Grinding Machine Saporiti PV 1000 Year of construction 2014 Siemens Sinumerik 840D Ball/sphere diameter: max. 1,100 mm Travels: X-axis 1,150 mm Z-axis 1,350 mm Y Axis +/- 2 mm Workpiece diameter x length: max. Ø 700 x 1,100 mm Workpiece weight: : max. 6,000 kg Headstock speed: max. 200 rpm Grinding wheels speed: max. 1,200 rpm Water filter: 3,000 l Machine dimensions: L x W x H 8,000 x 4,100 x 3,500 mm Required footprint: L x W x H 9,100 x 8,200 x 3,600 mm Machine weight: approx. 36,000 kg Accessories: RENISHAW measuring system with Saporiti-specific software for easy centering of the tool to the ball Hydraulic system Coolant coolers Engine Radiator Coolant filter A Saporiti PV-500 from 2014 is also available. Condition: Is said to be excellent. Offer numb ...

workpiece diameter: 660 mm workpiece length: 8000 mm honing/re-bore length: 7600 mm internal diameter: 50,8 - 609,6 mm stroke length max.: 7600 mm spindle motor: 29,8 kW spindle turning speed range: 0 - 300 U/min Lifting capacity: 13,5 kW stroke speed: 0 - 30,5 m/min workpiece weight: 8000 kg control: Siemens Simatic total power requirement: - kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 18,7 x 1,5 x 1,5 m Universal horizontal. Honing Machine / Long Stroke Cross Grinding Machine with servo drive and electrical feed system - Siemens Simatic (Touch) - Coolant system with paper band filter - steady rest The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Peter Wolters AC 1000 F Double Sides Fine Grinding Machine The Peter Wolters AC 1000 F is a highly flexible double-sided batch processing machine with pneumatic loading system. Alternatively, the machine can be supplemented with a manual and fully automatic loading system. The swivel functionality enables optimal ergonomic access for the machine operator. Designed for high-precision series production of workpieces Optimum surface quality, flatness, thickness tolerance and plane parallelism with the tightest tolerances on the workpiece Broad portfolio of options to enable complex processes. Phone +49176 21 834 834

Lapmaster 24 dia 600mm 3 rings This machine can be inspected under power in our warehouse Mimu Machine Tools (Italy), Diameter: 600

MultiFlex superfinishing machine for machining cylindrical and wave-shaped workpieces with superfinishing belt. Machine type: Multiflex 722/2 Machine No.: 770041 Technical data Superfinish strip processing of handlebars Workpiece length: max. 1000 mm Workpiece diameter: max. 100 mm Ball screw diameter: max. 35 mm Condition: Technical – good / Optical – used (Pictures partly similar)

BaseFlex 1300 superfinishing machine for machining crankshafts and camshafts. Machine type: BaseFlex 1300/1 Machine No.: 770046 Technical data Superfinish strip machining of crankshafts and camshafts Center width: max. 1300 mm Stroke: max. 180 mm Loading height: max. 1000 m With pallet conveyor Condition: Technical – good / Optical – used (Pictures partly similar)

CenFlex 1 superfinishing machine for machining crankshafts, camshafts and cylindrical shafts. Machine type: CenFlex 1 Machine No.: 770054 Technical data Superfinish strip processing Strip processing Workpiece length: max. 1000 mm Stroke (KW): max. 100 mm Devices: 5 Condition: Technical – good / Optical – as good as new (Pictures partly similar)

Nano superfinishing machine for surface machining of gears, sealing components, injectors. Machine Type: Nano Machine No.: 770057 Technical data Superfinish plan machining Standard version with fire extinguishing system Workpiece length: max. 150 mm Workpiece diameter: max. 100 mm Processing diameter: max. 50 mm Meitec In-Process Measurement Condition: Technical – very good / Optical – as good as new (Pictures partly similar)

CenFlex 1 superfinishing machine for machining crankshafts, camshafts and cylindrical shafts. Machine type: CenFlex 1 Machine No.: 770054 Technical data Superfinish strip processing Workpiece length: max. 1000 mm Stroke (KW): max. 100 mm Devices: 5 Condition: Technical – good / Optical – as good as new (Pictures partly similar)

RaceFlex superfinishing machine for machining ball and roller bearings. Machine type: RaceFlex Machine No.: 780695 Technical data Superfinish Stone Processing Outer diameter: 20 – 200 mm Inner diameter: min. 10 mm Width: max. 130 mm Condition: Technical – very good / Optical – as good as new (Pictures partly similar)

RaceFlex superfinishing machine for machining ball and roller bearings. Machine type: RaceFlex 725-727/1 Machine No.: 770062 Technical data Superfinish Stone Processing Workpiece diameter: max. 200 – 650 mm Workpiece width: max. 100 – 250 mm Condition: Technical – very good / Optical – as good as new (Pictures partly similar)

Superfinishing machine RacePro 4000 machining of cylindrical and tapered roller bearings, inner and outer rings. Machine type: RacePro 4000 Machine No.: 780698 Technical data Superfinish Stone Processing Outer diameter: max. 4000 mm Inner diameter: min. 1200 mm Width: max. 400 mm Condition: Technical – very good / Optical – as good as new (Pictures partly similar)

Superfinish machining of cylindrical and tapered roller bearings, inner and outer rings. Machine type: RaceX Machine No.: 780700 Technical data Superfinish Stone Processing Outer diameter: max. 320 mm Inner diameter: min. 40 mm Width: max. 260 mm Condition: Technical – very good / Optical – as good as new (Pictures partly similar)

Fine Grinding Machine Spiro F7 Processing of various workpieces made of different materials with opposing flat surfaces that are to be ground on one or both sides, e.g. Wafers, valve covers. Machine type: Spiro F7 Machine No.: 360034 Technical data Superfinish Stone Processing External cylindrical machining in continuous use Workpiece outer duchm. Ø 5 – 220 mm Workpiece height 0.6 – 80 mm Condition: Technical – very good / Visually – very good (Pictures partly similar)

Fine Grinding Machine Spiro F7 Processing of various workpieces made of different materials with opposing flat surfaces that are to be ground on one or both sides, e.g. Wafers, valve covers. Machine type: Spiro F7 Machine No.: 360039 Technical data Workpiece outer duchm. Ø 5 – 220 mm Workpiece height 0.6 – 80 mm Condition: Technical – very good / Visually – very good (Pictures partly similar)

Fine Grinding Machine Spiro F7 Processing of various workpieces made of different materials with opposing flat surfaces that are to be ground on one or both sides, e.g. Wafers, valve covers. Machine type: Spiro F7 Machine No.: 360041 Technical data Workpiece outer duchm. Ø 5 – 220 mm Workpiece height 0.6 – 80 mm Condition: Factory New (Pictures partly similar)

honing length max.: 406 mm honing diameter: 1.5 - 165 mm spindle turning speed range: 200-2500 U/min weight of the machine ca.: 0.6 t dimensions of the machine ca.: 1.3 x 1.35 x 1.5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

honing length max.: 406 mm honing diameter: 1.5 - 165 mm spindle turning speed range: 200-2500 U/min weight of the machine ca.: 0.48 t dimensions of the machine ca.: 1.3 x 1.35 x 1.5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: Reishauer DS / zum läppen weight of the machine ca.: 200 kg : Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

RECOMATIC M2S ist eine Läppmaschine für präzise Bearbeitung, hohe Genauigkeit und Zuverlässigkeit. Kapazitäten: Polierscheibe Ø 250 mm; stufenlose Drehzahl 0–3000 t/min. Technische Daten: 50 Hz 3x 400 V, Leistung 1,5 kW, Gewicht ca. 100 kg, Maße L1450 x B725 x H1400 mm. Zubehör: Lampe, Poliertisch, Kugellagerstangen für Schlitten. Erreicht enge Toleranzen; typische Branchen: Automotive, Uhren, Werkzeugbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

STÄHLI FLM 400 ist eine Läppmaschine mit Präzision, hoher Genauigkeit und Zuverlässigkeit. Kapazitäten: Schleifscheibe Ø 400 mm, Bohrung 146 mm. Technische Daten: 2800 t/min; Maschinengewicht ca. 330 kg; Abmessungen L900×B800×H1800 mm. Erreicht enge Toleranzen; geeignet für Automotive, Uhrmacherei, Werkzeugbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

Lapmaster 36 dia 90mm 3 rings, Water chiller This machine can be inspected under power in our warehouse Mimu Machine Tools (Italy), Diameter: 900 mm

Auction-ID: A1-41279-392

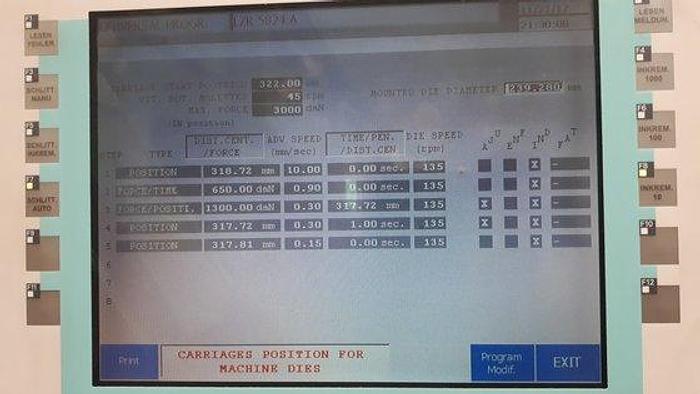

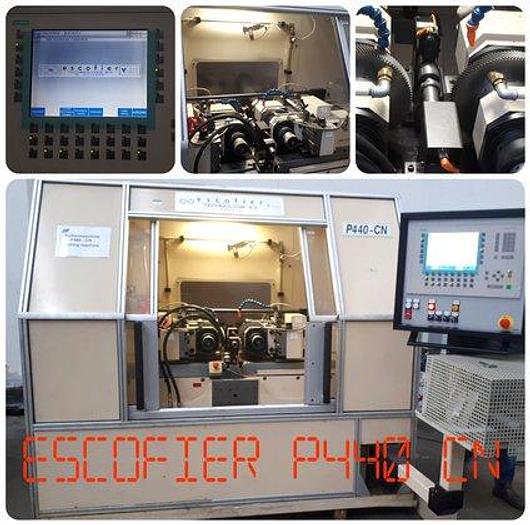

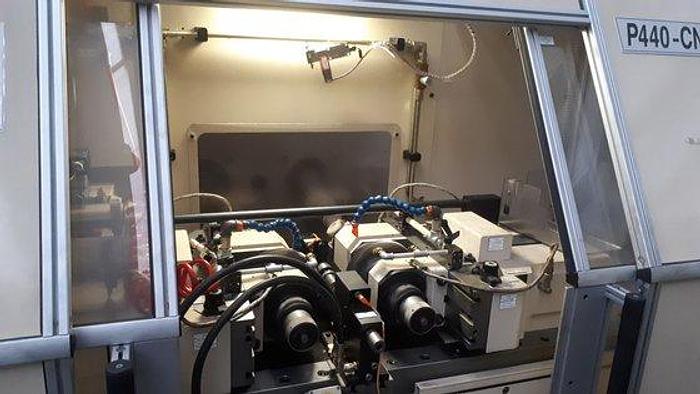

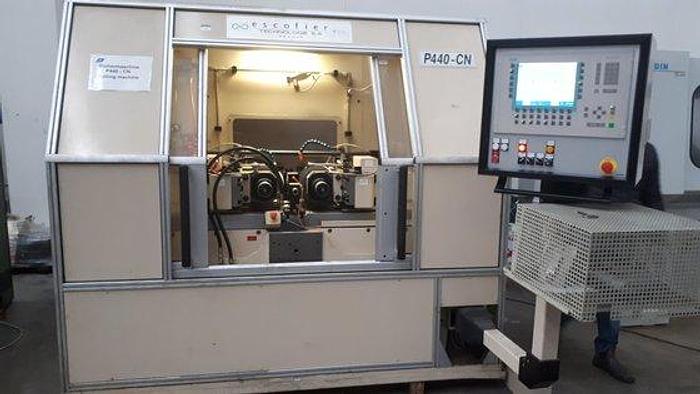

CNC Thread rolling and gear burnishing machine, ESCOFIER P440 CN, CNC Siemens, New 2004 - like new, 2-roll, 2 moving heads, 4000 daN rolling pressure, workpiece diameter: 100mm max., tool diameter: 180-245mm, Swivelling: +/-6°,, forward speed: 0.1-20mm/s, reverse speed: 0.1-30mm/s, motor power: 8.6kW, New: 2004, Condition: like new, under power in our warehouse, Mimu Machine Tools (Italy)
