General Description Heavy-duty vertical gear shaping machine manufactured by STANKOIMPORT / Komsomolets , model 5A140 . Designed for generating internal and external gear teeth using a reciprocating gear-shaped cutting tool. Suitable for spur gears and other toothed components in industrial gear and transmission production. Technical Details Manufacturer: STANKOIMPORT / Komsomolets Model: 5A140 Machine type: Vertical gear shaping machine Maximum gear diameter: 500 mm Maximum module: 8 mm Maximum gear rim width: 100 mm Spindle travel: 150 mm Maximum working spindle travel: 125 mm Table / work spindle flange diameter: 560 mm Table bore: 110 mm Double-stroke range: 55–560 strokes/min, 18 settings Peripheral feed: 6–590 mm/min Radial feed: 0.02–0.2 mm/stroke Maximum tool/table axis distance: 355 mm Rapid table travel: 1.5 m/min Rapid table rotation: 4.5 rpm Spindl ...
GROB C6-A – Cold Rolling Machine Technical Data: Gear Module: up to approx. 2.3 Gear Diameter: approx. 8–80 mm Max. Clamping Diameter: approx. 315 mm Power: 25 kW
Gas Turbine Load Gearboxes, Primary & secondary
Geared motor, electric motor, stop motor, drive motor, crane motor, bridge crane -Manufacturer: DEMAG, geared motor type 13/6 PF 8/2 -Power: 0.07/0.27 kW -Speed: 680/2900 rpm -Wave: see photos -Protection rating: IP54 -Dimensions: 270/210/H235 mm -Weight: 12.7 kg
Geared motor, electric motor, electric geared motor, spur geared motor -Manufacturer: Lenze, geared motor with brake -Transmission: Type 12.622.12.1 i= 20 -Speed: 70 rpm -Engine: Type B9LH4-911H 1,5 kW -Shaft: Ø 30 x 60 mm -Protection class: P55 -Brake: -Dimensions: 540/205/H255 mm -Weight: 33.6 kg
Geared motor, electric motor, three-phase motor, electric geared motor -Manufacturer of gearbox: Bonfiglioli type MVF 49/F -Speed: 50 rpm i= 28 -Manufacturer Motor elsto ES FC 80M4A-40 -Power: 0.55 kW -Hollow shaft: Ø 25 x 80 mm -Protection class: IP 54 -Dimensions: 375/200/H210 mm -Weight: 12.1 kg
Liebherr WSC 1200____________Description:In General:Year of manufacture:2009Control system:Siemens 840 DExternal gear diameter:1,200 mmInternal gear diameter:1,200 mmMaximum gear width:260 mmMaximum workpiece diameter:1,500 mmMachine base:Travel:600 mmLateral adjustment:+/- 60 mmCutting head:Spindle diameter:125 mmTool holder:SK 45Distance between spindle and table:0–820 mmStroke length:270 mmMax. module:16 mmMax. tool diameter:300 mmMax. spindle speed:25 rpmTable:Table diameter:900 mmTable bore:320 mmBore depth:520 mmMax. speed:12 rpmMax. table load:95 kNEquipment:Chip removal:2 magnetic belt conveyorsCoolant supply:Cutting oil system with filter and temperature controlSet-up operation:Electronic handwheel

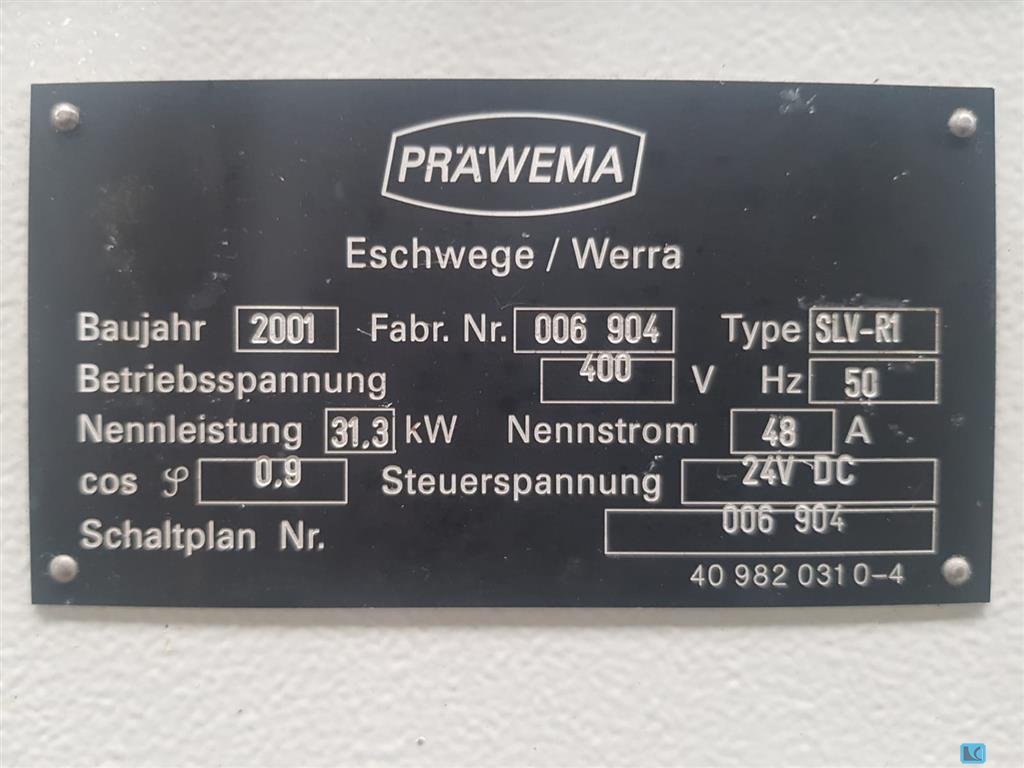

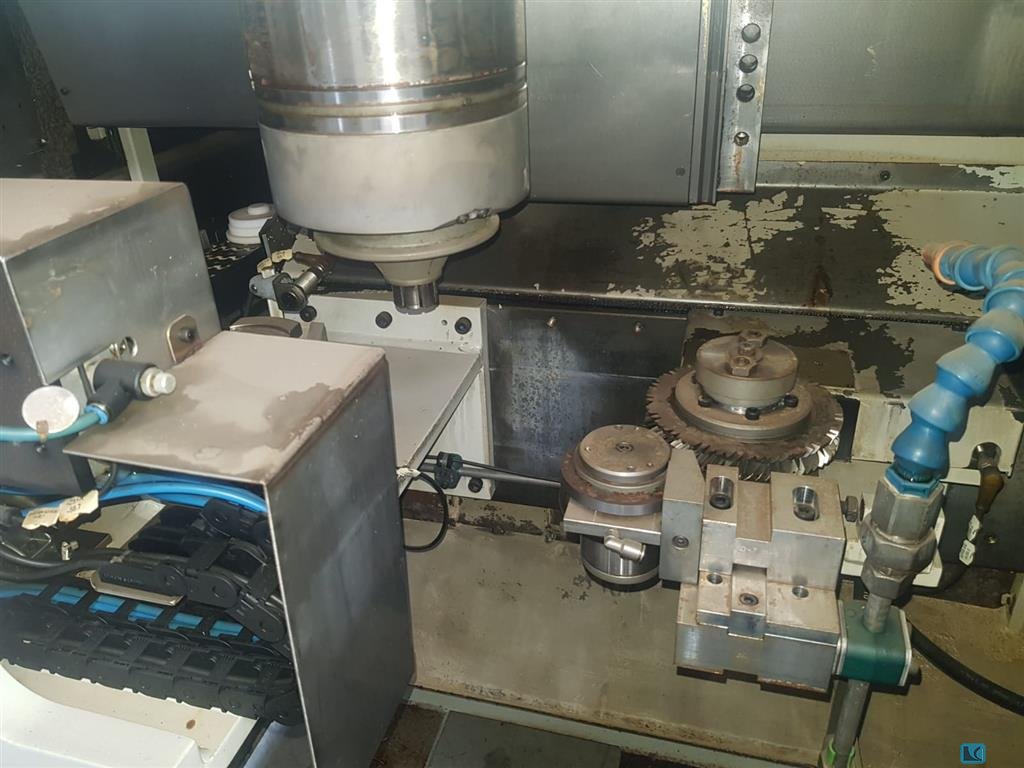

max. wheel diameter:40-200 mm total power requirement:31,3 kW weight of the machine ca.:4 t dimensions of the machine ca.:1,8 x 2,2 x 1,8 m
max. wheel diameter:150 mm gear width: mm max. module:3,5 min. module:1,25 total power requirement: kW weight of the machine ca.:6,5 t dimensions of the machine ca.:2,35 x 2,10 x 2,35 m Width of teeth:45 mm boring diameter:100 mm surface area:1300 x 300 mm
workpiece dia.: 40 mm max. module: 2 min. module: 0,1 workpiece length - max.: 665 mm weight: 4,5 t spindle bore diameter: 82,5 mm Control: Siemens total power requirement: 5,5 kW Technical data max. module 2 Pitch 0.5 - 25 mm Number of speeds multi-speed / multiple max. workpiece diameter40 mm max. workpiece length180 mm Milling cutter diameter max.80 mm max. milling cutter width12 mm Z-axis (milling length with counter point)90 mm Z-axis (milling length without counter point)113 mm Milling head swivelling angle30° / 30° Description Gear hobbing and thread cutting machine. LAMBERT - 124 CNC The machine is in a well-maintained condition. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter:280 mm max. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/min tool length:210 mm CBN
max. wheel diameter:300 mm gear width:110 mm max. module:6 weight of the machine ca.:10,5 t
Tall: 1300 mm, Weight: 200 kg, Width: 760 mm, Long: 1200 mm, Voltage: 220/380V, Total power: 1 CV, Diameter of the tooth: 150 mm, Serial number: 93095, Sharpening length: 600 mm, Ø max. of the workpiece: min/max = 2/26, Wheel speed: 3000 rpm, Specification: drill bits
Inv. Num. : 9278 Type: HSS-10 Producer: MAAG Generated: Parameters: Maximum grinding wheel diameter: 220 mm Max. workpiece weight: 6 kg
max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt
max. wheel diameter:600 mm max. module:6 weight of the machine ca.:0,9 t dimensions of the machine ca.:1,52 x 0,91 x 1,45 m
Gear diameter range: 10mm-330mm, gear width: 180mm, max. module: 7, min. module: 0.5mm, clamping length: 420mm, number of teeth range: 10-600, helix angle: +/-45°, speed: 1900rpm, grinding wheel diameter range: 280mm-350mm, grinding wheel width range: 84mm-104mm. Machine dimensions X/Y/Z: approx. 4500mm/6000mm/2300mm, weight: approx. 5100kg, control: Fanuc Series 160i-T. Documentation available. An on-site inspection is possible.
Gearbox, planetary gearbox for hydraulic motor, axle drive, geared axle drive, wheel drive, double planetary gearbox -Manufacturer: Chiaravalli, planetary gearbox type CHPL 7003 CPC PAM132 B5 -Translation: i: 53.8 -Hollow shaft: Ø 38 x 80 mm -Bolt circle: Ø 265 mm M12 -Number: 3x gearboxes available -Price: per piece -Dimensions: 630/300/H300 mm -Weight: 102 kg/pc.
max. wheel diameter:600 mm max. module:10 min. module:2 total power requirement:1,4 kW weight of the machine ca.:0,68 t dimensions of the machine ca.:1,6x0,75 m diameter of hob:15 mm gear width:140 mm
max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm
max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
Key data: 400 mm, 200 mm, 10
1-- 4-axis CNC-controlled gear grinding machine for cylindrical, straight-toothed involuted and special tooth systems. Make: Höfler Model: Promat 400 Year of Make: 2000 The grinding wheel is profiled with an integrated CNC dresser. Technical data: • Max. wheel diameter 240-400 mm • Max. grinding wheel width 30 mm • Nominal power grinding wheel 15 kW • Max. cutting speed 60 m/sec • Module: 0.5 - 10 • Max. tooth width 200 mm • Max. working stroke 210 mm • Workpiece carrier stroke speed 6,000 mm / min • Number of teeth freely selectable • Number of controlled axes: 4 (machine) + 2 (dresser) • Max. table load 100 kg • Total connected load 30 kVA • Weight of the machine approx.: 9 to.
Geared motor, electric motor, stop motor, drive motor, crane motor, bridge crane -Manufacturer: DEMAG, geared motor type 13/6 PKF 12/4 -Power: 0.05/0.17 kW -Speed: 450/1440 rpm -Shaft: Ø 14 mm -Protection rating: IP54 -Number: 2 geared motors available -Price: per piece -Dimensions: 270/210/H220 mm -Weight: 12.8 kg
max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden
SAMPUTENSILI (Hurth Modul GmbH)S 2502002Siemens SINUMERIK 840D250 mm8 mm (hob)130 mm300 mm225 - 1800 rpm5 - 420 rpm22 kWHSK-A80+/- 45 degrees195 mm600 mm240 mm0.1 - 5000 mm/min0.1 - 2500 mm/min55 kVA80 A24 V DCdiameter 170 mm, bore 100 H7400 V, 50 Hz, 3N~3150 x 2520 x 2750 mmapprox. 11,000 kg (approx. 13,000 kg with ring loader)
A Niles gear grinding machine is offered. Max. gear diameter: 630mm, gear width: 215mm, module range: 1-12, ram stroke rate range: 75-315 double strokes/min, stroke length: 225mm, number of teeth min./max.: 12/140, min. root diameter: 50mm, max. tip diameter: 630mm, table diameter: 500mm, workpiece dimensions X/Y/Z: 630mm/200mm/700mm, max. workpiece weight: 400kg, min./max. grinding wheel diameter: 250mm/350mm, grinding wheel bore: 127mm, grinding wheel width: 30mm, grinding wheel speed: 1690rpm, weight: approx. 6300kg. Including cabinet with change gears and counter support. Documentation available. Inspection by prior arrangement is possible.
A Niles gear grinding machine is offered. Module range: 2-14, table diameter: 630mm, workpiece dimensions X/Y/Z: 800mm/290mm/1500mm, min./max. generating grinding stroke: 20mm/280mm, ram stroke rate range: 20-280double strokes/min, min./max. number of teeth: 5/360, root diameter: 50mm, max. tip diameter: 800mm, min./max. grinding wheel diameter: 270mm/350mm, grinding wheel bore: 127mm, grinding wheel speed: 2450rpm, weight: approx. 10000kg. Including paper band filter, cabinet with change gears and oil mist extraction unit. Inspection possible by appointment.
A Höfler gear grinding machine is offered. Module range: 2-25, max. gear diameter: 1500mm, max. gear width: 720mm, min./max. generating grinding stroke: 60mm/750mm, ram stroke rate: 20-200double strokes/min, number of teeth: freely selectable, max. generating speed: 900mm/min, table diameter: 1000mm, distance between centers: 1250mm, min./max. grinding wheel diameter: 300mm/400mm, grinding wheel bore: 127mm, grinding wheel width: 45mm, weight: approx. 34t. Including paper band filter, counter support with steady rest and balancing unit. Documentation available. Inspection possible by prior arrangement.
2x Sew-Eurodrive FAF87 DRN100LS4 Gearmotors (2022) 1450rpm motor speed 68.4 gear ratio 990 Nm output torque 139kg weight Auction-ID: A1-48805-218
used

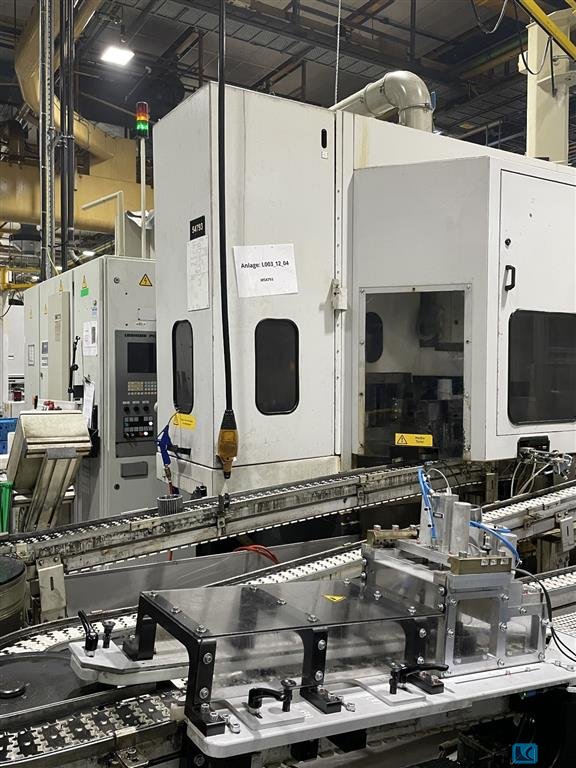

REISHAUER RZ 303 C AUTOMATIC GEAR GRINDING LINE Year: 2008 Complete high-precision CNC gear grinding line for serial production and grinding of hardened external gears for automotive and transmission industries. MAIN EQUIPMENT 1. Reishauer RZ 303 C CNC Gear Grinding Machine 2. Felsomat automatic loading and unloading system 3. Hoffmann filtration and cooling system TECHNICAL DATA Maximum workpiece diameter: 300 mm Module reach: approx. 0.5–5.5/6 mm Helix angle: −48° to +48° Maximum tooth width: 200 mm Maximum grinding spindle speed: 4770 rpm Maximum cutting speed: 75 m/s Grinding worm diameter: up to 300 mm Screw width: approx. 125 mm CNC control: Siemens Sinumerik
ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm spindle speeds (infinitely variable): 6000 U/min work piece spindle speed: 1200 U/min diameter of tools max.: 230 mm diameter of tools min: 69,85 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm b-axis: + 90,1 / - 1 ° work piece table - Ø: 212,71 mm Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2,Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

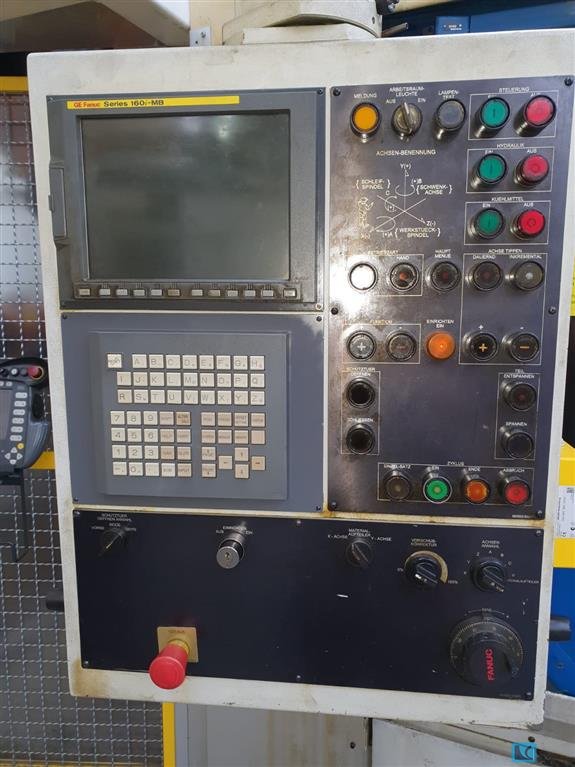

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm diameter of tools min: 69,85 mm tooth width max.: 58 mm diameter of tools max.: 230 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm work piece table - Ø: 212,71 mm b-axis: + 90,1 / - 1 ° Control: 160 i - MB FANUC total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m WAGURI With EWAB robot cell (KUKA robot) without coolant filter system Fire extinguishing system without CO2 bottles Cooling oil return with various pumps / collecting basins Threading device A1/B2 axes with measuring probe Clamping device for a pinion shaft External spindle oil cooler Extraction system pinion shaft The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm diameter of tools min: 69,85 mm diameter of tools max.: 230 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm work piece table - Ø: 212,71 mm b-axis: + 90,1 / - 1 ° Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m WAGURI with EWAB load cell built in 2012 (Linear loader) no coolant filter system available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. machining diameter: 3200 mm max. workpiecediameter: 3200 mm axial slide way: 2200 mm control: Siemens Sinumerik 840 D table diameter: 2500 mm boring diameter: 800 mm max. load: 40.000 kg table rotation speed: 2 U/min grinding head: grinding head - swivable: +45 / - 45 ° turning speed range - grinding wheel: 270 - 2700 U/min tip circle diameter: min. 1500 mm grinding spindel dia.: 100 mm Max. grinding wheel diameter: 450 mm Dressing diameter: min. 250 mm Planing width: min. 80 mm Fast feed speed: axial: 10 m/min Fast feed speed: radial: 3 m/min max. depth of profile: 100 mm tail stock: tailstock travel: 1410 mm total power requirement: 225 kVA weight of the machine ca.: 46 t dimensions of the machine ca.: 14,5 x 9,95 x 6,1 m Gear Profil-Grinding Machine - CNC Control Siemens 840D - Tailstock - Dressing Unit - Oil Mist suction - Coolant The data for this ad was created with Modul ...
max. wheel diameter: 3000 mm gear width: 500 mm max. module: 25 / 40 spindle turning speed range: 250 U/min feed speeds: max. 4000 mm/min faceplate diameter: 2000 mm table bore diameter: 700 mm table turning speeds: 51 U/min power capacity - milling spindle: 53 kW drive motor for milling spindle: - kW axial adjustment: 1200 mm milling head swivable ca.: +/- 45 ° control: Siemens 840D total power requirement: - kW weight of the machine ca.: 55 t - CNC Control Siemens 840D - Internal Hob Head IFK - External Hob Head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
