max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

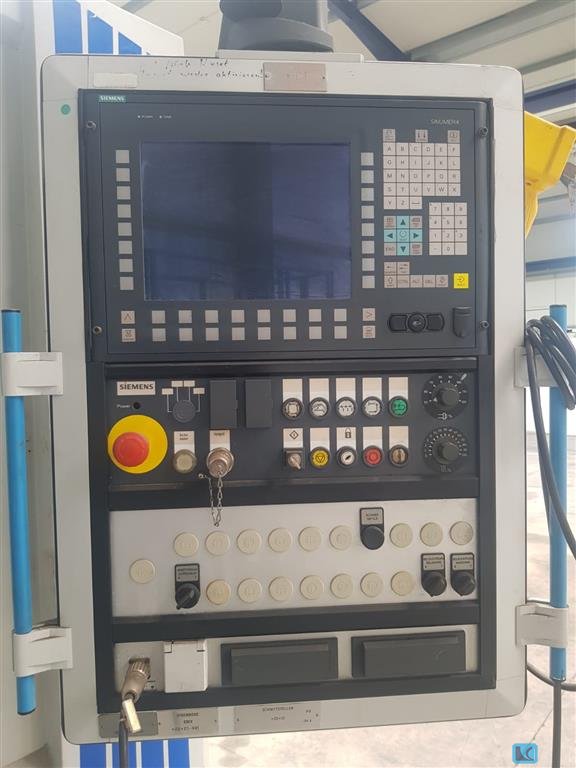

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden
max. wheel diameter: 630 mm gear width: 375 mm max. module: 10 clamping table: 550 mm table hole: 125 mm milling spindle speeds infinitely variable: 62 - 390 U/min taper: MORSE 5 axial-feeds: 0,40 - 6,80 mm/U radial feeds: 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle: 50 - 425 mm no. of teeth: min. 8 milling cutter dia. x width: 192 / 215 mm shifting: 200 mm main drive motor: 7,5 kW total power requirement: 21 kVa weight of the machine ca.: 8,2 t Main features: -Universal hob head with tangential movement -Automatic shifting -Automatic dwell attachment -Hydraulic clamping in table -Pressure reduce valve for outer steady -Magnetic swarf conveyor Accessory: 1 set of tools for operating and maintenance 1 set differential gears, module 1,75 1 set indexing change gears module 2,5 1 change gear cabinet The data for this ad was created with ModulMWS - the software solution of Lo ...
max. wheel diameter: 120 mm gear width: 130 mm max. module: 2 no. of teeth to be hobbed: 6-325 Z min/max. spiral pitch: 20-5000 mm hobbing length: 130 mm weight of the machine ca.: 860 kg Universal hobbing machine MIKRON 102.05 MPS > External surface gearing Technical Data Maximum millable workpiece diameter: 120 mm Maximum millable length: 130 mm Maximum number of modules: 2 Number of millable teeth: 6-399 (with gear ratio 80:5) Pitch of the spirals: 20 - 5000 mm Pitch angle of the spirals (left or right): 0 - 90° 14 milling cutter revolutions (50c/s): 140 - 1870 rpm 13 Axial feeds: 0.05 - 3.0 mm/w.p.rev. Main motor speed: 1500 rpm Main motor power: 1.1 kW Connected load: 3 x 380 VAC Frequency: 50 Hz Control unit: Omron CP1L Machine dimensions L/W/H: 1030/800/1520 mm Weight of the machine: 880 kg Colour of the machine: black The data for this ad was created with ModulMWS - the softwa ...
max. wheel diameter: 53 mm gear width: 25 mm max. module: 3 min. module: 0,1 total power requirement: 0,8 kW weight of the machine ca.: 0,21 t dimensions of the machine ca.: 600x460x1200 mm Resharpening machine MIKRON 121 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
CNC gear grinding machine/tooth flank grinding machine Höfler H4000 Built in 1990 CNC control is old + defective / needs to be replaced (needs retrofit) Wheel diameter - max. 4000 mm Wheel width 1560 mm Module - max. 32 Module - min. 3 Machine weight approx. 120 t Space requirements approx. m Year of Make: 1990 Wheel Ø max. 4,000 mm Module 3 - 32 Bevel angle max. 35 ° Wheel width with straight gearing 1,560 mm Stroke length approx. 1,600 mm Stroke rate 12 - 120 strokes/min. max. workpiece weight approx. 35,000 kg Max. number of teeth 12 - 768 Table size Ø x Bohrg. 1,900 x 750 mm Grinding wheel Ø approx. 500 mm Accessories / Special equipment: Hydrostatic guides in the grinding carriage, table and in all other Guideways Complete sanding chamber encapsulation with sliding doors automatic grinding sequence in several cycles as well as settings for ...
Key data: 360 mm
Reishauer Model RZ362A CNC Gear Grinder Maximum Wheel Diameter: 14.17” Maximum Module: 0.275” Minimum Module: 0.0039” Slide Stroke: 6.88” Maximum Helix Angle: ± 45° Maximum Number of Teeth: 600 Minimum Number of Teeth: 6 Maximum Workpiece Weight: 132 lbs. Grinding Wheel Width: 4.09” Grinding Wheel Diameter: 11.02” – 13.77” Speed of Grinding Worm when Grinding: 1100 – 2330 U/min Speed of Grinding Worm when Profiling: 50 – 95 U/min Feed per Revolution of Workpiece: 0 – 0.133” Grinding Worm Infeed Speed: Up to 99.9mm/min / 3.93 IPM Approximate Weight: 14,553 lbs. EQUIPPED WITH: Reishauer CNC Controls. Dittel MBA2000 Balancing Controller. Elbaron R12D Mist Collector. Kato Motor Generator. Freestanding Hydraulic Unit. Hydraulic Oil Pump-Sump System. Free Standing Electrical Control Cabinet. Tailstock. (2) Wheel Hubs. Manuals and Drawin ...
x-travel: 350 mm y-travel: 200 mm z-travel: 350 mm table surface area: 700 x 280 mm spindle taper: SK 40 : 150 - 1660 U/min feeds: 25 - 285 mm/min rapid traverse: 1 m/min quill stroke: 80 mm milling-head swivable +/-: 45 ° total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of machine L x W x H: 1,27 x 1,1 x 1,65 m Accessories: vertical head with quill retraction, solid table, univ. table, rotary table 250 mmø, dividing unit with 3-jaw chuck 135 mmø, counter bearing, various tool fixtures, drill chuck, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Max. Pitch circle diameter External gearing: 300 mm Max. Pitch circle diameter internal gearing: 300 mm Max. Outer diameter of workpiece (equipment): 450 mm max. module: 6 gear hobbing width -max.: 100 mm Max. Helix angle (with tool Ø 125 mm): +/- 45 ° strokes - infinitely variable: 130 - 1300 Hub/min workpiece weight: 1000 kg Minimum distance table top - tool spindle: -55 / +300 mm Maximum distance table top - tool spindle: 200 mm Maximum distance table top - tool spindle: 350 mm Manual Upright side shift: +/- 25 mm Manual swivelling angle of the tool spindle: +/- 0,5 ° Max. Tool speed: 15 UpM Max. Workpiece speed: 27 UpM Max. Tool diameter: 7 Zoll voltage: 400 V frequency: 50 Hz Max. Line power: 70 A total power requirement: 48 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 4,27 x 3,11 x 2,87 m control: Siemens Sinumerik 840 C table hole: 40 mm taper in main spind ...

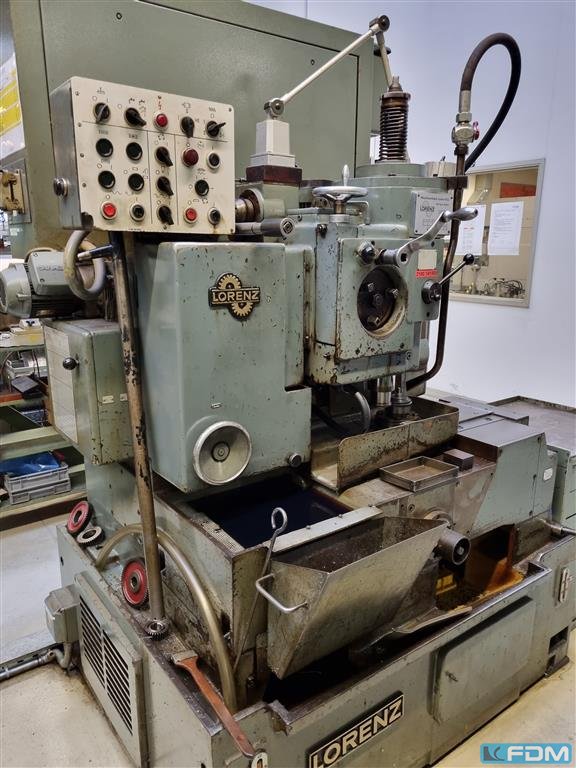

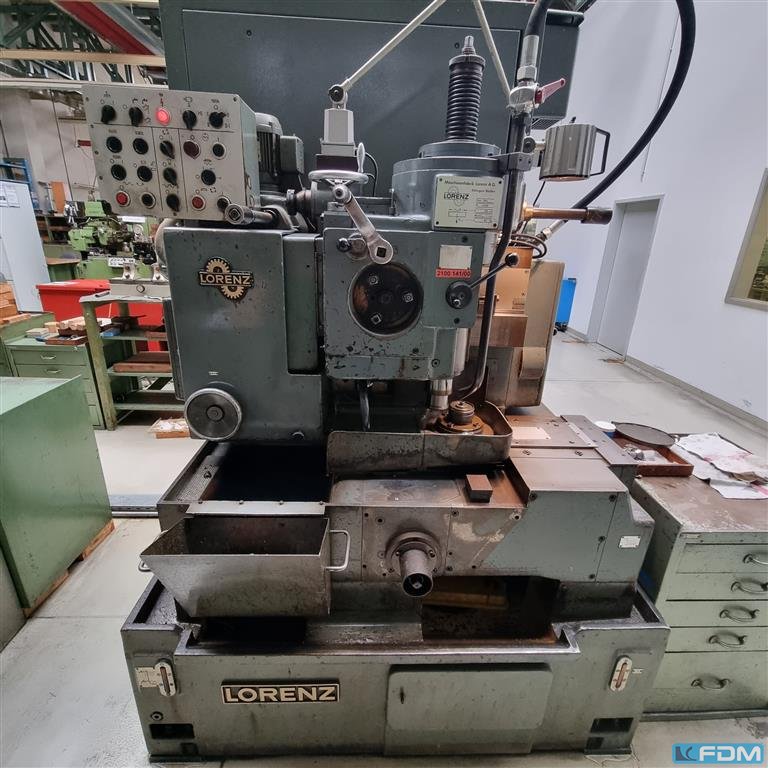

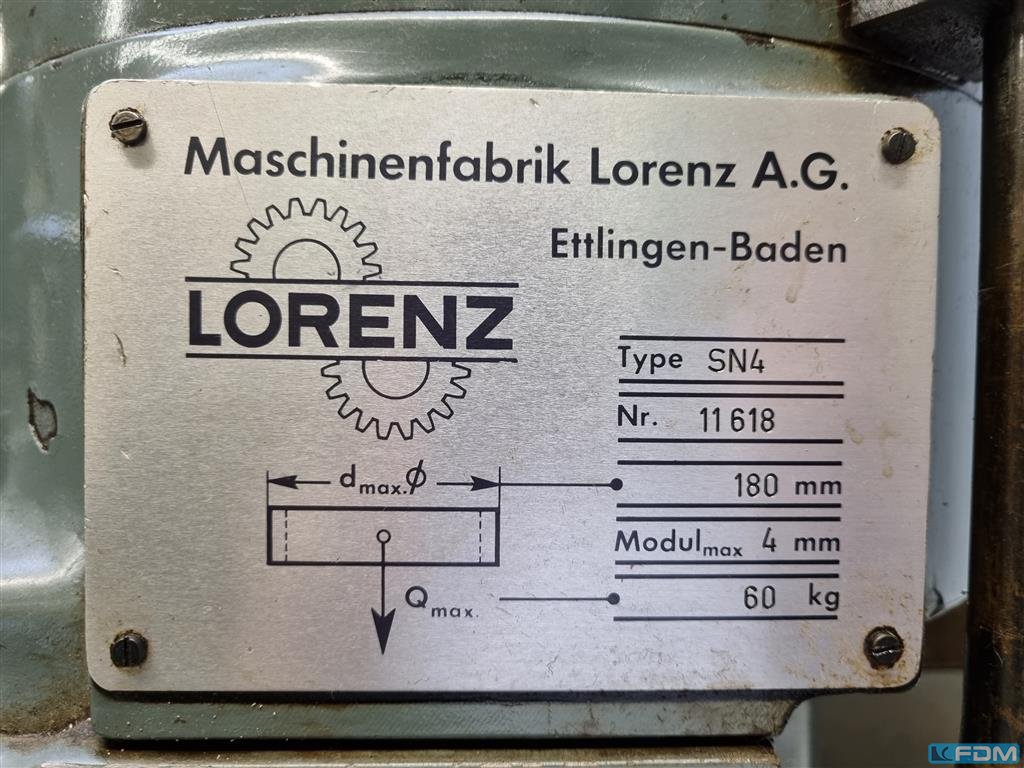

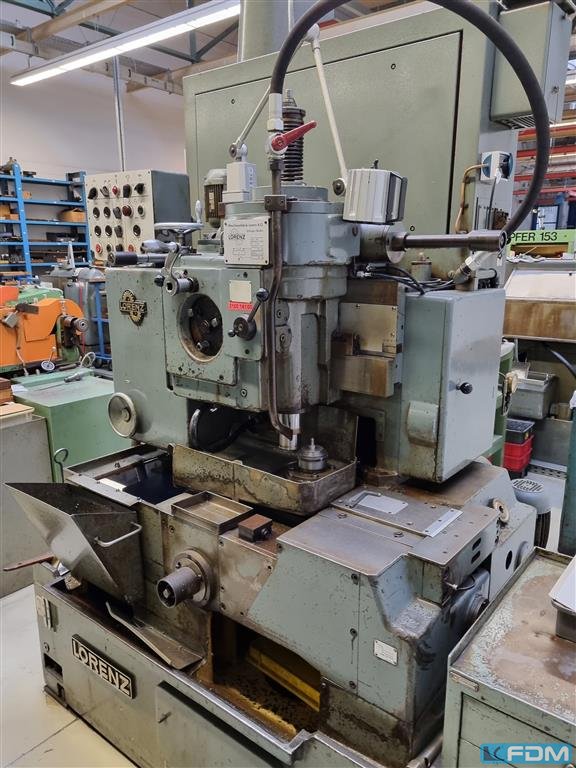

max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg
max. wheel diameter: 400 mm gear width: 275 mm max. module: 6 Overall size: 300x330x245 cm weight of the machine ca.: 5,5 t dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min Specification: Max wheel diameter: 400 mm Min module: 1 Max module: 6 Table diameter: 370 mm Max wheel diameter: -With counterstay: 340 mm -Without counterstay: 400 mm Max axial offset: 275 mm Max tangential adjustment: 100 mm Tooth helical angle: 45 degrees Max cutter diameter: 145 mm Max hobbing length: 170 mm Hob turning speeds capacity: 63-180 U/min Feeds infinitely variable axial: 0,2-10 mm/U Feeds infinitely variable tangential: 0,1-5 mm/U Radial for spur gears: 0,1-4 mm/U Radial for worm gears: 0,025-1 mm/U Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/U Radial for worm gears: 100 mm/U Motor power: 7.4 kW The data for t ...
MODUL ZFWZ 630 Gear hobbing machine Wheel diameter 630-710 mm Gear width 400 mm Module 1-10 Max. axial feeding travel 400 mm Max. tangential feeding travel (hob shift) 200 mm Max. helix angle 45 degrees Min. number of teeth hobbed 10 Min. number of teeth hobbed with indexing drive 5 Max. hob diameter 200 mm Max. hob length 250 mm Diameter of working table 580 mm Hole in working table 100-250 mm Depth of hole in working table 45-300 mm Distance center of hob to working table surface 175-575 mm Driving taper for hob arbor (step taper) 50 mm Hob speeds of universal hobbing head steeped 50-400 rpm Milling spindle speeds (infinitely variable) 40-400 rpm Power capacity 29 kW Machine dimensions 3380x2715x2250 mm Machine weight: 9200 kg
max. wheel diameter: 400 mm gear width: 275 mm gear width: 275 mm max. module: 6 weight of the machine ca.: 5,5 t shifting: 100 mm dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Reishauer RZ 362A Built in 1999 Accessories: 2x Fässler dressing device Diamond Wheels Whetstones Turbo separator
Gear Hobbing Machine Pfauter P 400 With interchangeable wheels
Thread milling and hobbing machine Wanderer 31 NU Machining length 3000 mm With accessories
Gear hobbing machine vertical Pfauter P251 With accessories
Gear hobbing machine horizontal Pfauter P160 With accessories
Klingelnberg ZW 301 Gear Measuring Machine Weight 750 kg
Max. cone distance: 230 mm Number of teeth: 5-150 Diameter of taper hole at large end: 100 mm Taper: 1:19,7 Depth of taper: 150 mm Diameter of hole through spindle: 78 mm Diameter of spindle nose: 140 mm Max. offset above center: 114 mm Max. offset below center: 114 mm Max. distance from machine center to nose of spindle: 343 mm Min. distance from machine center to nose of spindle: 63 mm Cutter speeds: 17-115 rpm Feed (sec/tooth): 9-80 sec Floor space: 1900x2900 mm Net weight: 10750 kg
max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg Year of construction: Approx. 1970 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 100 mm gear width: 26 mm max. module: 31 min. module: 0,1 Control: Siemens 840 D SL total power requirement: 45 kW weight of the machine ca.: 7 t dimensions of the machine ca.: 4x3x2,5 m Gleason 100S gear shaping machine for the production of internally and externally toothed cylindrical gears and other cylindrical workpiece circumference regularly occurring profiles and moulds as well as for the production of profiles using the single part process. Technical data: Nominal workpiece diameter 100 mm Largest circumferential diameter 150 mm Machine nominal module approx. 3 mm (Guide value depending on the respective machining task.) Shaping spindle stroke speed range 0 - 3,000 1/min Stroke position adjustment range (manual) 20 mm Largest toothing width 26 mm Smallest pitch height of the hydrostatic inclined guide 400 mm Smallest/largest distance between tool axis - 20/+ ...
A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.
max. wheel diameter: 160 - 1.600 mm gear width: 250 mm max. module: 20 min. module: 1,5 total power requirement: 1 kW weight of the machine ca.: 3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...
max. wheel diameter: 400 mm gear width: 280 mm max. module: 1 min. module: 4 total power requirement: 15 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 400 mm gear width: 75 mm max. module: 0,5 min. module: 6 total power requirement: 25 kW weight of the machine ca.: 7000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 400 mm gear width: NA mm max. module: 5 min. module: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Manual Two Flank Gear Tester The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 120 mm gear width: 160 mm max. module: 3 min. module: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Two Flank Gear Tester The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 80 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 ____________________________________________________________ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min. ...
max. wheel diameter: NA mm gear width: NA mm max. module: min. module: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Manually operated 2-Flank Gear Tester The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 0 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 330 mm gear width: 180 mm max. module: 7 min. module: 0,5 total power requirement: 12 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm gear width: 300 mm max. module: 4,5 min. module: total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 400 mm gear width: 75 mm max. module: 0,5 min. module: 60 total power requirement: 25 kW weight of the machine ca.: 7 t dimensions of the machine ca.: m L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 ______________________________________________________________________ ___________ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12 ...
max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
