gear hobbing used for sale

STRAUSAK HS 30 is a Abwälzfräsmaschine entwickelt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Leistungsdaten: Werkstück-Ø 0,2–35 mm; Modul max 1,00; Verzahnungs-Länge 22 mm; Zähne 2–390; Fräser-Ø 6–24 mm. Technische Daten: Fräserdrehzahl stufenlos 400–13.000 t/min; Anschluss 50 Hz 3×380 V; Gewicht ~600 kg; Abmessungen L800×B800×H1450 mm. Zubehör: SPS-Steuerung, Ladeeinrichtung, Teilefänger, Lampe, Kühlmitteleinrichtung. Erreicht enge Toleranzen; Einsatz in Automotive, Uhrmacherei, Werkzeugbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

LAMBERT WAHLI W 91 ist eine Abwälzfräsmaschine hoher Präzision, konzipiert für sehr genaue und zuverlässige Verzahnungsbearbeitungen. Leistungsdaten: Modul 0,05–1,5 mm, Spitzenweite 40 mm, Werkstück-Ø 50 mm, Verzahnungslänge 60 mm, Zähne 6–390, Schwenk ±5°, Fräser-Ø max 32 mm, Frästiefenweg 16 mm. Techn.: Fräserdrehzahl stufenlos bis 4500 min-¹, Werkstückspindel 500 min-¹, Netz 50 Hz 3×400 V, Gesamtleistung 4 kVA, Gewicht ~680 kg, Abmessungen 720×765×1445 mm. Erreicht enge Toleranzen; geeignet für Automotive, Uhrenbau, Werkzeugbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt

max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

max. wheel diameter: 180 mm table diameter: 145 mm max. module: 3-5 mm gear width: 250 mm table turning speeds: 800 U/min milling head vertical adjustable: 400 mm Milling axis swiveling range: + / - 45 ° max. milling cutter diameter: 90 mm hob turning speeds: 0 - 6000 U/min cutter length max.: 211 mm control: Siemens 840 D total power requirement: 23 kW weight of the machine ca.: ca. 10 t dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m The LC series is a machine system for the machining of spur and helical gears and cylindrical gear shafts and helical gears and cylindrical gear shafts, which is characterised by its special performance and versatility. Compared to other gear manufacturing processes, gear hobbing is characterised by its characterised by its high consistency of machining results over the entire tool life. Technical data of the machine: Basic specifications: --> Machining ...

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

Gear cutting data: --> max. millable module for hobbing: 2.5 mm --> max. millable module for high-performance milling: 2.0 mm --> Number of teeth: 1 - 999 teeth Workpiece data: --> max workpiece Ø automatic loading: 60 mm --> max workpiece Ø manual loading: 100 mm --> max workpiece length automatic loading: 200 mm --> max workpiece length manual loading: 300 mm

PFAUTER P630 Gear Hobbing Machine. Chip Conveyor Maximum Gear Diameter 630 mm Gear Width 425 mm Maximum Module 10 Table Diameter 550 mm Table Bore 125 mm Maximum Cutter Length 215 mm Minimum Number of Teeth 8 Maximum Workpiece Length 825 mm Distance Milling Spindle - Clamping Surface 50 - 425 degrees Milling Slide Swivel 240 degrees Spindle Speeds 62 - 390 RPM Tangential Adjustment 200 mm Axial Feeds 0.4 - 6.8 mm/rev Radial Feeds 0.1 - 1.7 mm/rev Maximum Cutter Diameter 192 mm Total Power Requirement 20 kW Change Gears Set / Chip Conveyor / Coolant Tank

external diameter: - mm bore diameter in mm: - mm width: - mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : M1 - M6, Set all sizes Additional: M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

max. wheel diameter: 120 mm gear width: 400 mm max. module: 10 min. module: 1 total power requirement: 40 kW weight of the machine ca.: 7 t dimensions of the machine ca.: 3,840 x 5,025 x 2,490 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1600 mm gear width: 560 mm max. module: 16 workpiece weight max.: 7000 kg table surface area: 1350 mm turning speed range: 16 - 80 U/min feeds - axial: 0,05 - 1,5 mm/min feeds - radial: 0,25 - 6 mm/min feeds - tangential: 0,13 - 4 mm/min electrics - voltage/frequency: 380/50 V/Hz total power requirement: 12 kW weight of the machine ca.: 18,5 t dimensions of the machine ca.: 4260 x 2555 x 3170 mm - universal Hob head - tangencial head (extra) - outer steady - change gears - 1 set big and 4x small clamping pods - arbors and approx 20 cutters (diffent Moduls) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

For sale is a used gear hobbing machine from the manufacturer Staehely. The machine is offered including the accessories and tool stock shown in the pictures. Manufacturer: Staehely Machine Type: Gear Hobbing Machine Condition: used Scope of delivery: Machine including accessories shown A viewing by prior appointment is possible. If you are interested or have any questions, please do not hesitate to contact us. Errors, changes and prior sale reserved.

WAHLI W 92 ist eine Abwälzfräsmaschine für hochpräzise Bearbeitungen, grosse Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Ø max 10 mm, Modul max 0,5; Werkstücklänge 35 mm; Zahnradbreite 15 mm; Zähne 6–180; Abstand Werkstück–Werkzeug 0–28 mm; Walzfräser Ø max 24 mm; Drehzahlen 6 Stufen 850–4500 t/min. Daten: 3×380 V 50 Hz, 0,32 CV; Gewicht ~350 kg; Maße L630×B530×H1350 mm. Zubehör: Lader Wahli W20, Lampe, Kühlung. Erreicht enge Toleranzen; geeignet für Uhrenbau, Feinmechanik und Werkzeugbau. Technische Daten ohne Gewähr

WAHLI W 90 ist eine Abwälzfräsmaschine für Präzision, hohe Genauigkeit und Zuverlässigkeit. Kapazität: Ø

WAHLI W 90 is a Abwälzfräsmaschine, für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Übersetzung 1:4, Ø max 36 mm, Modul max 1,00, Werkstücklänge 80 mm, Zähne 6–200, Abstand Werkstück–Werkzeug max 30 mm, Fräserhub 50 mm. Technische Daten: Fräser 8 Stufen 660–5300 t/min, 50 Hz 3x380 V, Leistung 0,60 CV, Gesamtbedarf 2 CV, Gewicht ~450 kg, Maße L780×B730×H1380 mm. Zubehör: automatische Ladevorrichtung W20, Lampe, Kühlmitteleinrichtung. Erreicht enge Toleranzen; Branchen: Automotive, Uhrenindustrie, Werkzeugbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

WAHLI W 90 ist eine Abwälzfräsmaschine für Bearbeitungen mit hoher Präzision, großer Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Übersetzungsverhältnis 1:4; Durchm. max. 36 mm; größtes Modul 1,00; Werkstücklänge max. 80 mm; Zähnezahl 6–200; Achsenabstand Werkstück–Werkzeug max 30 mm; Walzfräser Ø max 36 mm; Fräserverschiebung 50 mm; Fräserdrehzahlen 8 Stufen 660–5300 t/min. Technische Daten: Anschluss 50 Hz 3×380 V; Leistung 0,60 CV; Gesamtleistungsbedarf 2 CV; Gewicht ~450 kg; Abmessungen L780×B730×H1380 mm. Zubehör: Automatische Ladevorrichtung W20, Lampe, Kühlmitteleinrichtung. Erreicht enge Toleranzen; geeignet für Automotive, Uhrenbau, Maschinenbau, Luftfahrt und Medizintechnik Technische Daten ohne Gewähr

WAHLI W 90 ist eine Abwälzfräsmaschine für Präzision, hohe Genauigkeit und Zuverlässigkeit. Bereich: 1:4; ø max 36 mm; Modul 1,00; Werkstücklänge 80 mm; 6–200 Zähne; Achsenabstand max 30 mm; Fräserverschiebung 50 mm; 8 Stufen 660–5300 t/min. 50 Hz 3x380 V; 0,60 CV; Gesamt 2 CV; Gewicht ~450 kg; L780×B730×H1380 mm. Zubehör: Ladevorrichtung W31, Lampe, Kühlung. Erreicht enge Toleranzen; Einsatz: Automotive, Uhren, Maschinenbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

WAHLI W 92 is a Abwälzfräsmaschine, konzipiert für hohe Präzision, exakte Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Ø max 10 mm, Modul max 0,5, Werkstücklänge max 35 mm, Zahnradbreite max 15 mm, Zähne 6–180, Werkstück–Werkzeug min 0 max 28 mm. Walzfräser Ø max 24 mm; Fräserdrehzahlen 6 Stufen 850–4500 t/min. Anschluss 50 Hz 3x 380 V, Leistung 0,32 CV. Gewicht ca. 350 kg; Abmessungen L630×B530×H1350 mm. Zubehör: Lader Wahli W20, Lampe, Kühlmitteleinrichtung. Erreicht enge Toleranzen; typisch für Automotive, Uhrmacherei, Werkzeugbau, Luftfahrt, Medizin Technische Daten ohne Gewähr

Hermle 102.04 Gear Hobbing Machine Manufacturer: Hermle Model: 102.04 Machine type: Gear Hobbing Machine Industrial gear hobbing machine designed for the production of gears. Equipped with change gears for adjusting gear cutting operations. Suitable for gear manufacturing and mechanical engineering applications. Reported to be in good condition and currently under power. Technical specifications: Machining process: Gear hobbing Change gears: Included Operating status: Under power Additional equipment: Set of change gears Approx. dimensions (L × W × H): 1,800 × 1,200 × 1,800 mm Approx. weight: 1,200 kg Condition: Used, good condition. All descriptions, technical specifications, dimensions, weights and other information are indicative only. Auction-ID: A7-50842-6

Hermle 132 Gear Hobbing Machine Manufacturer: Hermle Model: 132 Machine type: Gear Hobbing Machine Industrial gear hobbing machine designed for the production of spur gears up to module 2 mm. Equipped with change gears for adjusting gear cutting operations. Suitable for precision gear manufacturing and mechanical engineering applications. Reported to be in good condition and currently under power. Technical specifications: Gear type: Spur gears Maximum gear module: 2 mm Change gears: Included Operating status: Under power Additional equipment: Set of change gears Approx. dimensions (L × W × H): 1,800 × 1,200 × 1,800 mm Approx. weight: 1,200 kg Condition: Used, good condition. All descriptions, technical specifications, dimensions, weights and other information are indicative only. Auction-ID: A7-50842-5

WAHLI W 92 ist eine Abwälzfräsmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Ø max 10 mm, größtes Modul 0,5, Werkstücklänge max 35 mm, Zahnradbreite max 15 mm, Zähnezahl 6–180, Abstand Werkstück-Werkzeug 0–28 mm. Technische Daten: Walzfräser Ø max 24 mm; Fräserdrehzahlen 6 Stufen 850–4500 t/min; Anschluss 50 Hz, 3x380 V; Leistung 0,32 CV; Gewicht ~350 kg; Abmessungen L630×B530×H1350 mm. Zubehör: Lader Wahli W20. Ermöglicht enge Toleranzen; geeignet für Uhrmacherei, Präzisionsmechanik, Automotive-Teile und Werkzeugbau. Technische Daten ohne Gewähr

max. wheel diameter: 6300 mm gear width: 1500 mm max. module: 40 min. module: cutter diameter max.: 400 x 500 mm table surface area: 4000 mm table turning speeds: 9 - 63 U/min max. angle of teeth: 45 Grad total power requirement: 47 kW - standard hob head, - tangential hob head - internal hob head - set of change gears - set of plots The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 80 mm

KASHIFUJI KN80 CNC Gear Hobbing Machine The Kashifuji KN80 is part of our exclusive inventory of gear hobbing machines, all owned and serviced by our company. As international CNC machinery specialists, we offer industry-leading guarantees and professional support. Specifications CNC Control: Fanuc 31i Model B CNC Controlled: Yes Maximum Gear Diameter: 3.14” (80 mm) Maximum Pitch: 4 Machine Configuration: Vertical Z-Axis Travel: 7.87” (200 mm) Hob Speed: 2,650 RPM Table Diameter: 6.69” (170 mm) Table Bore: 2.95” (75 mm) A-Axis Trunnion Tilt Range: ±45° Y-Axis Travel: 5.11” (130 mm) C-Axis Speed: 330 RPM Overall Dimensions (L × W × H): 61” × 102” × 98” Machine Weight: 14,000 lbs.

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

max. wheel diameter: 800 mm max. module: 20 Control: SINUMERIK 840 D table rotation speed: 50 U/min table load: 95 kN Size of table plate: 700 mm table bore diameter: 250 mm Axial travel: 1000 mm pivoting angle: +/- 35 Grad : 450 U/min tangential travel max.: 320 mm tool diameter: 315 mm total power requirement: 50,00 kW weight of the machine ca.: 16,00 t dimensions of the machine ca.: 6,30 x 5,00 x H3,80 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1600 mm gear width: 660 mm max. module: 16/18 min. module: number of milling spindle turning speeds: 18 number of feeds: 18 total power requirement: 12 kW weight of the machine ca.: 20 t dimensions of the machine ca.: m The machines electrical system was renewed. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

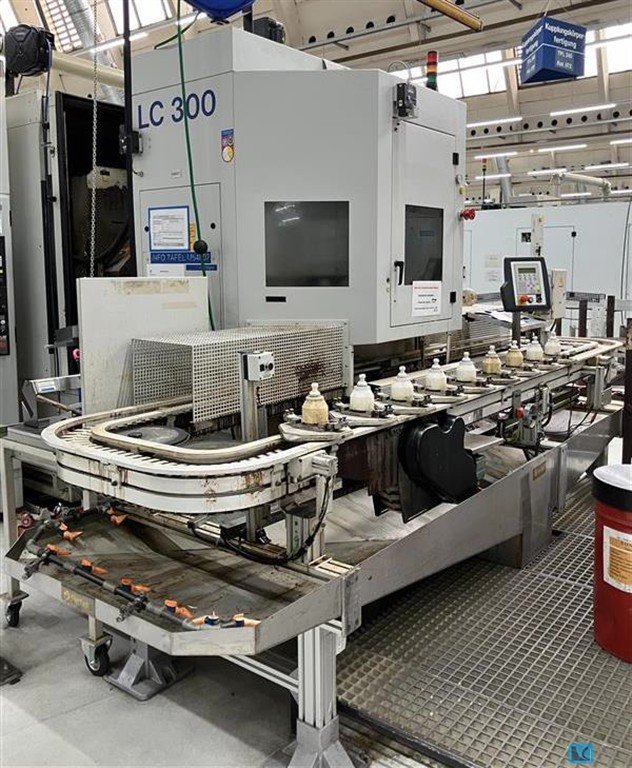

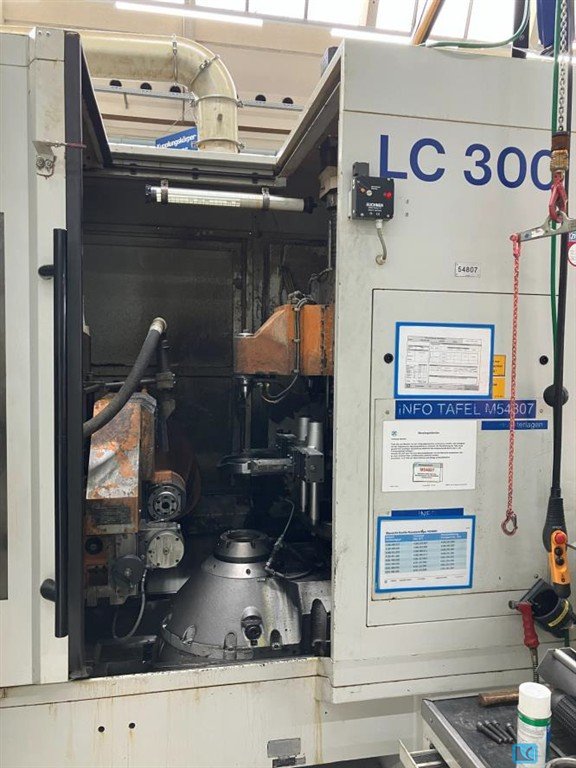

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

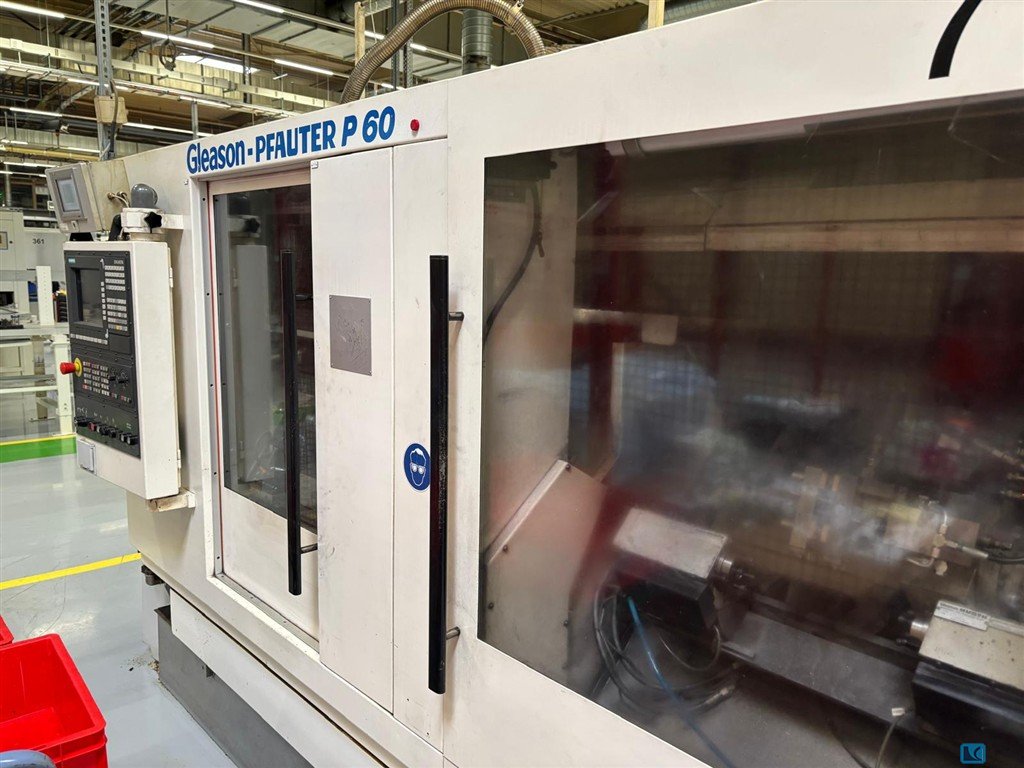

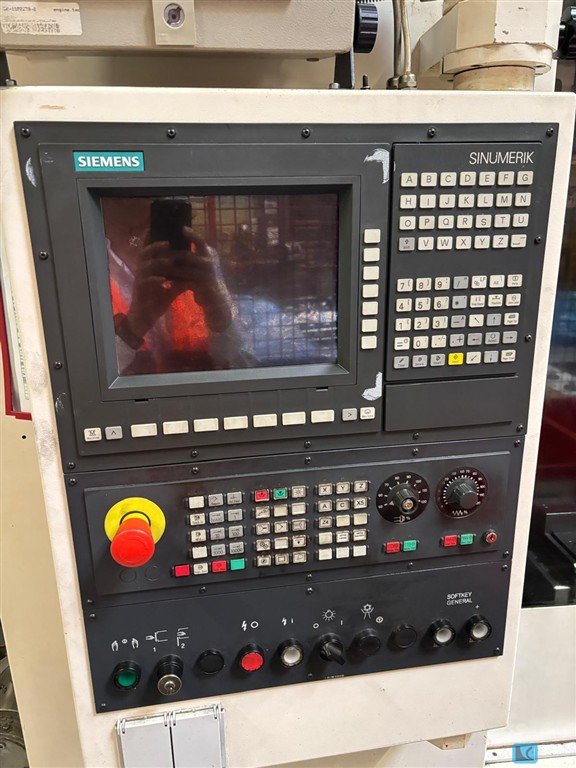

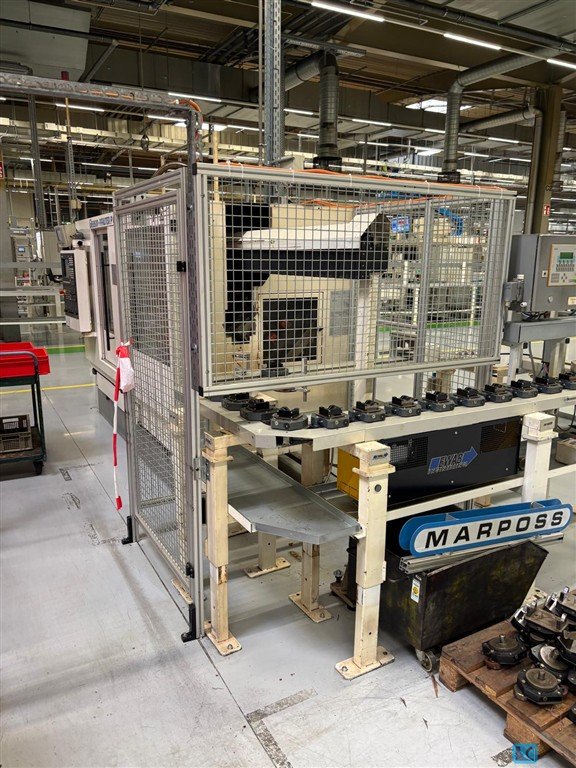

GLEASON PFAUTER P 60 Hobbing machine GENERAL Project No.: 906016 Quantity: 1 pcs. Manufacturer: GLEASON PFAUTER Type: P 60 Control: Siemens 840 D solutionline Year of Make: 2016 Condition: Used machine Approx. (hrs): 20725 Spindle Approx (Hrs): 14204 DESCRIPTION GEAR CUTTING Max. head circle diameter 80 mm Module 2.5 mm Swivel angle of the milling head -45/+115 degrees Max. diameter hob 118 mm Max. length hob 120 mm Max. speed milling spindle 5000 1/min Max. speed workpiece spindle 3000 1/min Tailstock OTHER EQUIPMENT Splash protection cladding with fully encapsulated working area Lighting in the work area Oil/Emulsion Mist Extraction System Magnetic chip conveyor Coolant Setup Parts Feed Conveyor Parts Discharge Belt Internal loading/unloading portal GENERAL TECHNICAL DATA Machine dimensions (LxWxH) approx. 2700x2180x2310 mm M ...

CATALOG NUMBER 6024 TECHNICAL DATA - 2.9kW main engine - 0.75kW spindle motor - 0.75kW trolley feed motor - 380V power supply - dimensions length / width / height 1600x1100x1200mm - weight 891 kg Machine equipped with: - 2 tables with dimensions of 300x340mm - pneumatic clamps - angularly adjustable tables in two planes - the possibility of making long and round tenons on the tables - table speed and spindle speed regulated mechanically - adjustable up / down tables - pin width adjustment Net price: PLN 16900 Net price: EUR 3885 Net price, calculated at the rate of 4.35 PLN / EUR (with larger exchange rate fluctuations the price may change)

For sale a milling head without counter bearing

For sale a used milling head of a Gleason Genesis 130 H

Div. Interchangeable wheels for the gearbox Speed...

module: Diameter: mm boring diameter: mm Sprocket cutter DIN3968 Parting 65 RO36 R1 EK 20° The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

From September 2022 immediately available newly overhauled Multigrind HT retrofit machine prepared for resharpening hobs / worm gear cutters / pushers and cutting rotor Control: Siemens 840 D X - axis 650 mm Y - axis 400 mm Z - axis 280 mm A - axis (dividing apparatus) 360 ° SK50 C - axis (rotary table) 270 ° X3 - axle with tailstock Grinding spindle: HSK50 Dressing unit Tool changer: 10-fold magazine plate Coolant system: Turbo Separator Suction: LTA Extinguishing system Other accessories: Available ex works Software: Customer-specific delivery Financing / hire purchase possible.

Hobbing machine Manufacturer: Liebherr Type S600

amount: 2 STK weight - pallet system: 11 kg dimensions: 540 x 2000 x 100 mm Hobbing cutter possibly Pfauter P 400 - 2 pcs. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Surface reference plates, roughness measures MASSI hobing TGL 4763 Rz 6.3 μm and Rz 20 μm in wooden box Dimensions: 240 x 120 x 30 mm

Surface reference plates, roughness measures MASSI hobbing hobs TGL 4763 Rz 6.3 μm - Rz 20 μm in wooden box Dimensions: 240 x 125 x 40 mm

Dimensions (L/W/H): 800x1000x1600 mm Weight: 350 kg Total power requirement: 0,6 kw The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amount: 1 STK Dimensions (HxWxD): 280 x 190 x 190 mm diameter: 60 mm -> Bestcut gear hobbing cutter with HSS cutting material - Chip angle < 8° -> Module 16 F.20° 1gg Lks -> BP IV D-Stg < 5°40 -> 5° 40 Sp Stg 00 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
