max. wheel diameter: 4400 mm gear width: 645 mm max. module: 35 Control: Siemens main drive motor: 37 kW table diameter: 2500 mm max.helical angle: +/- 30 ° workpiece weight: 40000 kg total power requirement: 142 kVA weight of the machine ca.: 75 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Gear hobbing machine PFAUTER 1200mm, modul 12, with change gears
MODUL ZFWZ 630 Gear hobbing machine Wheel diameter 630-710 mm Gear width 400 mm Module 1-10 Max. axial feeding travel 400 mm Max. tangential feeding travel (hob shift) 200 mm Max. helix angle 45 degrees Min. number of teeth hobbed 10 Min. number of teeth hobbed with indexing drive 5 Max. hob diameter 200 mm Max. hob length 250 mm Diameter of working table 580 mm Hole in working table 100-250 mm Depth of hole in working table 45-300 mm Distance center of hob to working table surface 175-575 mm Driving taper for hob arbor (step taper) 50 mm Hob speeds of universal hobbing head steeped 50-400 rpm Milling spindle speeds (infinitely variable) 40-400 rpm Power capacity 29 kW Machine dimensions 3380x2715x2250 mm Machine weight: 9200 kg
Gear hobbing machine vertical Pfauter P251 With accessories
max. wheel diameter: 400 mm gear width: 280 mm max. module: 1 min. module: 4 total power requirement: 15 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 0 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm gear width: 300 mm max. module: 4,5 min. module: total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 kg dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Inv. Num. : 8631 Type: OFA 16 A Producer: TOS Created: 1976 Parameters: Machine weight: 3550 kg
MODUL ZFWZ 1250x14I gear hober (can do 1580 mm) Max. Diameter: 1250 mm Cutting width: 600 mm Module 2-16 Maximum size of the hob: 240 x 280 mm Table diameter: 1020 mm Speeds: 28 – 200 rpm Axial feed rates: 0.28 – 8 mm/min Radial feed rates: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Stand tilt – left/right: +/- 45 Main motor power: 5 / 19.5 kW Power of the rapids motor: 12,5 kW Max. diameter of the part without tailstock: 1,250 mm Max. diameter of the part with tailstock: 800 mm Weight of the machine : 16 t Machine dimensions approx. 4.5 x 2.1 x h 3.3 m EQUIPMENT: Extended driven shaft for gear cutting up to Ø 1580 mm Capability to work with hob cutters Ø 235 mm and length 380 mm. Inverter control of the main electric motor. Expanded set of change gears
CHURCHILL PH3615 gear hobbing machine Max workpiece diameter 914 mm Max diametral/ pitch- 8 Module, 3 D.P. Horizontal centre distance:-63,5- 559 mm Max horizontal travel 469 mm Height hob centre to worktable: 127- 508 mm Max travel of vertical feed 381 mm Max height worktable to tailstock centre768 mm Table diameter 762 mm Table hole (diameter x depth) 89 x 381 mm Hob dia x length 178 x 203 mm Max travel of hob slide 127 mm Diameter of hob arbor 32 mm Hob spindle speeds, infinitely variable 50 – 200 rpm Vertical feeds 0.38 – 5 mm Main drive motor 10 HP Floor area 3960 x 2130 x 2300 mm Weight 11,500 kg Extended set of change gears Complete documentation Operational variable speed drives for main motor and feed drives
Inv. Num. : 8799 Type: FO-10 Producer: TOS Created: 1958 Parameters: Maximum gear diameter: 1000 mm Maximum module: 10 Machine dimensions: 3120 x 1870 x 2525 mm Machine weight: 9000 kg
max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg
A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

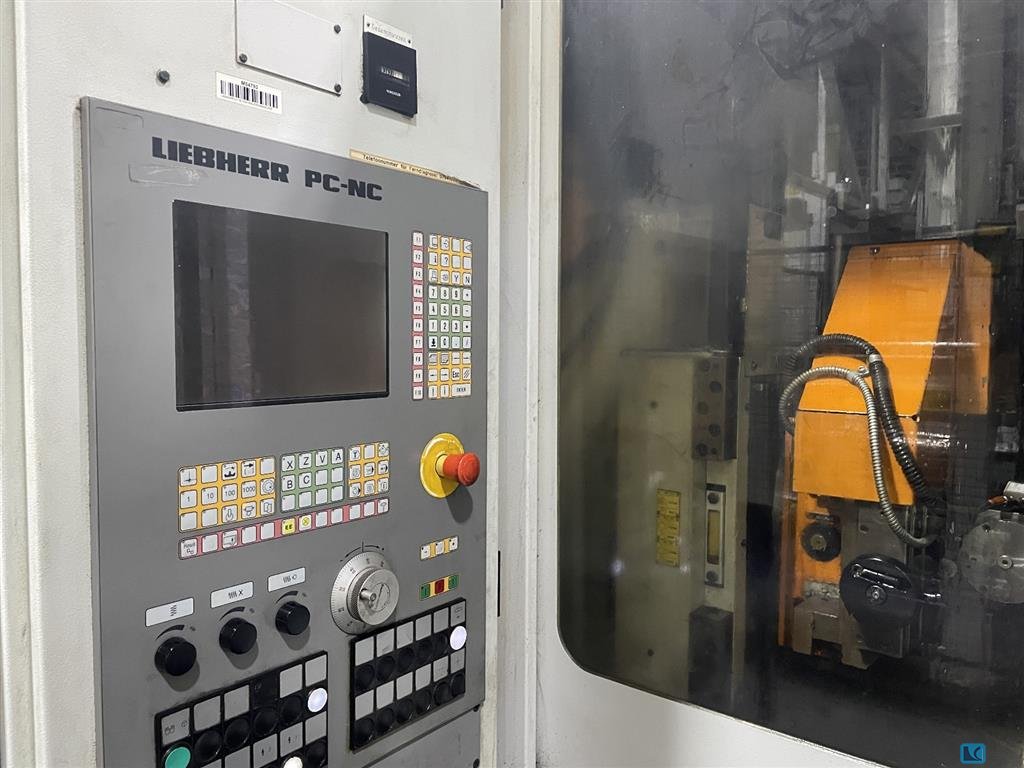

max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...
max. wheel diameter: 80 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 ____________________________________________________________ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min. ...
Liebherr / Lorenz S800 Gear - Hobbing Machine -Max. workpiece length with counter holder 600mm -Max. workpiece length with retracted counter holder 800mm -Max. travel of the milling carriage 360mm -Largest millable pitch for the largest workpiece 5 Pi / in the normal power range 8 Pi -Pick-up taper - milling spindle MK 5 -Mandrel 22/27/32/40mm -Max. cutter diameter 186mm -Max. cutter length 170mm -Max. cutter displacement 80mm -Milling cutter speeds 40-220 rpm -Feeds infinitely variable / horizontal -Feeds infinitely variable / vertical -Feeds infinitely variable / tangential -Clamping table without water rim 550mm -Clamping table hole 100mm -Mandrel taper MK5 Accessories: 1x pallet interchangeable wheels 1x pallet hob 1x pallet clamping mandrels Documentation Machine feet Dimensions: LxWxH 3.6x1.8x1.9 meters / weight 5000Kg
Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible.
Inv. Num. : 8974 Type: OFA 16 SC Producer: TOS Generated: Parameters: Machine weight: 5 t
max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Gear hobbing machine, milling machine, tool milling machine, vertical milling machine, roller milling machine, gear hobbing machine, gear hobbing machine, high-performance hobbing machine -Manufacturer: Liebherr, high-performance gear hobbing machine type SS 5- K/500 -Working area: Ø max. 500 mm -Max. cutter diameter: 186 mm -Accessories: including extensive accessories see photos -Machine dimensions: 2300/1460/H1870 mm -Dimensions accessories: pallets 1420/1300/H300 / 1200/800/300 mm -Weight: 5300 kg plus 535 kg accessories
Hydraulic tailstock, Ø max. gear: 250 with 3 cutter, Module: 5,5, Hobbing length: 70, Cutter module: 5,5, Outside ø max. acknowledged: 300 mm, Ø spindle: 85 mm, Ø hole table: 39 mm, Ø table: External centering Ø139,75, Power tool motor (b): 4 Cv, High: 1.800 mm, Long: 1.450 mm, Weight: 2.450 Kg, Width: 1.000 mm
Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : Set all sizes M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo
The conception of the basic machine is characterized by the following features: - horizontal position of the workpiece spindle; vertical position of the milling cutter spindle or of the milling head - The workpiece is picked up between the workpiece headstock (left) and the tailstock (right) - The radial slide is mounted on the base (X-axis) - The axial slide moves on the radial slide (Z-axis) - The shift milling head is equipped with automatic angle adjustment (A-axis); the shift slide (Y-axis) moves tagential to the Workpiece diameter - CNC controlled - IBH control - Charging device - a lot of accessories Technical data: - Largest millable module with hobs according to DIN 8002: 4.5 mm - Largest millable module for high-performance milling: 3.0 mm - Number of teeth: 2 - 999 - Max. workpiece nozzle for manual loading: 200 mm - Max. workpiece nozzle for autom ...
max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt
WMW MODUL ZFWZ 160/3 gear hobbing machine was built in 1971 in the GDR by VEB Werkzeugmaschinenkombinat 7. Oktober” Berlin. The machine is used in plants manufacturing extremely precise drive components for, among others, the automotive, aerospace and machinery industries. It enables the efficient machining of spur and worm gears with a maximum external diameter of 160 mm. The machining process is performed by means of a spindle with a cutter with a maximum diameter of 110 mm. The spindle of the MODUL ZFWZ 160X3 machine moves along the contour of the workpiece, cutting the material along its entire circumference. Using this method, it is possible to achieve the desired shapes and teeth finish with the highest accuracy. The WMW MODUL ZFWZ gear hobbing machine weighs 3000 kg. Technical specifications of the WMW MODUL ZFWZ 160/3 gear hobbing machine General data - maximum external di ...
max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm
control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden
Year of construction: approx. 1981 Accessories: - Universal milling head, tangential milling head, - Interchangeable wheels - 2 cutting equipment, - little used
Year of manufacture approx. 1980, wheel diameter: 406mm, wheel width 420mm, module min.-max.: 0.5-+4.3, milling cutter speeds 49-246 rpm Auction-ID: A1-47017-11
Year of construction: approx. 1981 Accessories: - Universal milling head, tangential milling head, - Interchangeable wheels - 2 cutting equipment, - little used Auction-ID: A1-47017-85
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed
