gear hobber machine used for sale

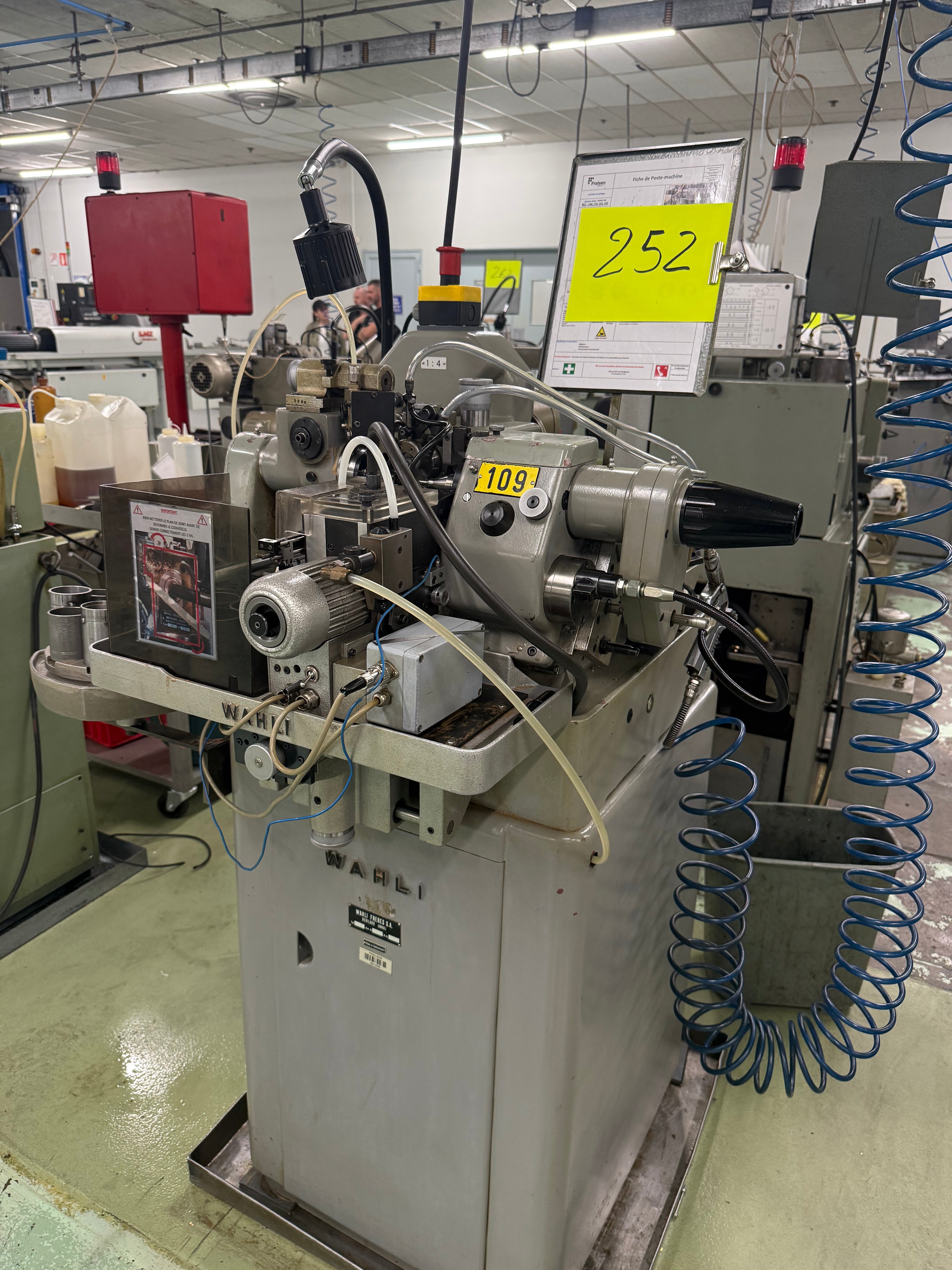

WAHLI W 90 ist eine Abwälzfräsmaschine für Präzision, hohe Genauigkeit und Zuverlässigkeit. Bereich: 1:4; ø max 36 mm; Modul 1,00; Werkstücklänge 80 mm; 6–200 Zähne; Achsenabstand max 30 mm; Fräserverschiebung 50 mm; 8 Stufen 660–5300 t/min. 50 Hz 3x380 V; 0,60 CV; Gesamt 2 CV; Gewicht ~450 kg; L780×B730×H1380 mm. Zubehör: Ladevorrichtung W31, Lampe, Kühlung. Erreicht enge Toleranzen; Einsatz: Automotive, Uhren, Maschinenbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

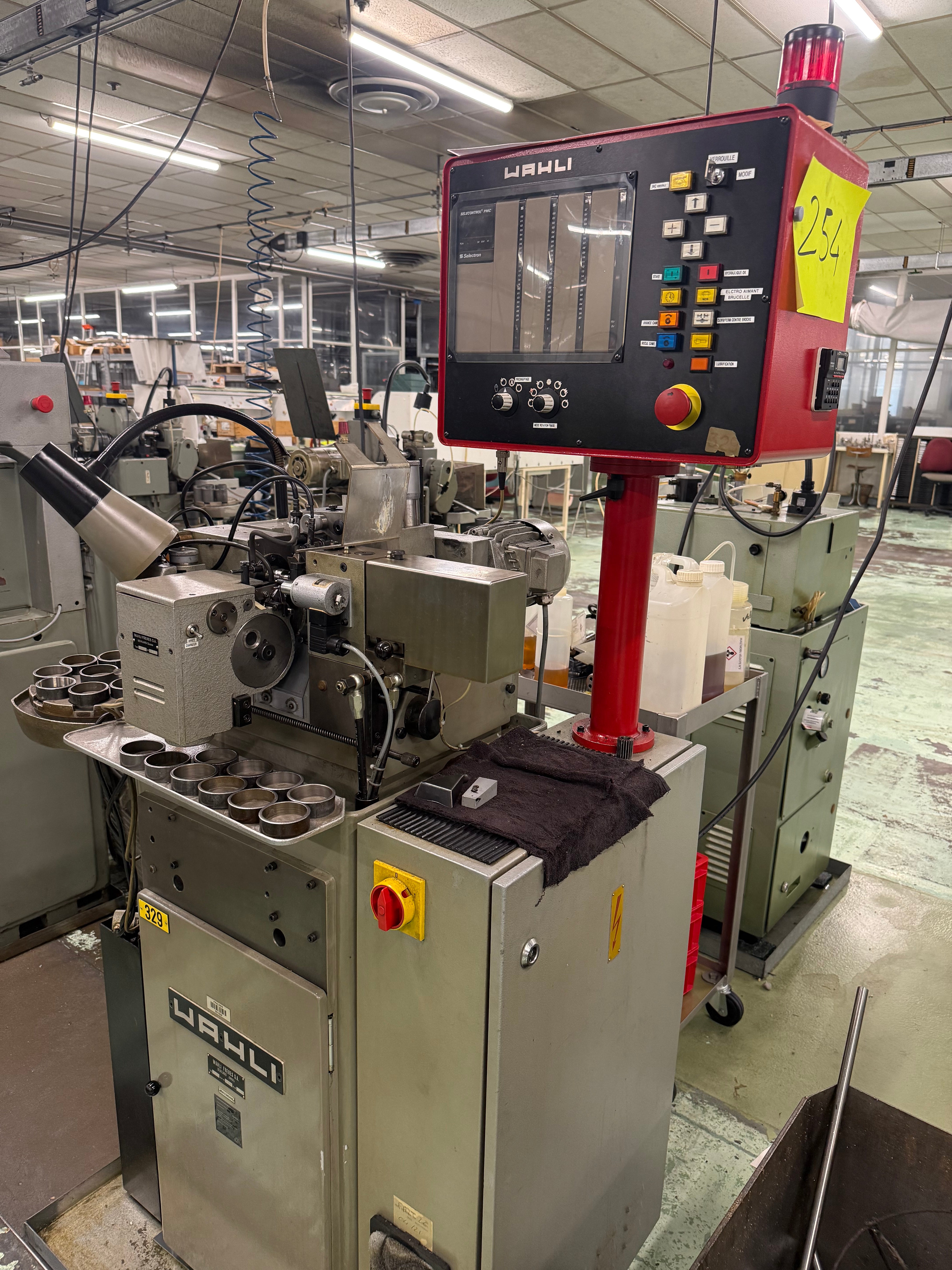

WAHLI W 92 is a Abwälzfräsmaschine, konzipiert für hohe Präzision, exakte Genauigkeit und Zuverlässigkeit. Arbeitsbereich: Ø max 10 mm, Modul max 0,5, Werkstücklänge max 35 mm, Zahnradbreite max 15 mm, Zähne 6–180, Werkstück–Werkzeug min 0 max 28 mm. Walzfräser Ø max 24 mm; Fräserdrehzahlen 6 Stufen 850–4500 t/min. Anschluss 50 Hz 3x 380 V, Leistung 0,32 CV. Gewicht ca. 350 kg; Abmessungen L630×B530×H1350 mm. Zubehör: Lader Wahli W20, Lampe, Kühlmitteleinrichtung. Erreicht enge Toleranzen; typisch für Automotive, Uhrmacherei, Werkzeugbau, Luftfahrt, Medizin Technische Daten ohne Gewähr

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

max. wheel diameter:150 mm gear width: mm max. module:3,5 min. module:1,25 total power requirement: kW weight of the machine ca.:6,5 t dimensions of the machine ca.:2,35 x 2,10 x 2,35 m Width of teeth:45 mm boring diameter:100 mm surface area:1300 x 300 mm

max. wheel diameter:50 mm gear width:20 mm max. module:4 mm min. module:0,1 mm total power requirement:12,5 kW weight of the machine ca.:4000 kg dimensions of the machine ca.:2,2 x 2,5 x 2,3 m workpiece length - max.:300 mm

max. wheel diameter:260 mm gear width:320 mm max. module:5 weight of the machine ca.:21 t dimensions of the machine ca.:8,71 x 5,97 x 3,49 m no. of teeth:1...999 max. helix angle:+45/-45 ° pitch min.:0,1 mm pitch max.:1000 mm X-axis:345 mm y-axis:250 mm Z-axis:320 mm b-axis:360 ° c-axis:360 ° Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

max. wheel diameter:200 mm gear width:50 mm max. module:6 table diameter:168,14 mm boring diameter:65,532 mm weight of the machine ca.:11 t table turning speeds:0-1.000 U/min length of stroke min./max.:0-70 mm no. of strokes:180-1.800 Stück This machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required.

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter

max. wheel diameter:780 mm gear width:130 mm max. module:10 weight of the machine ca.:8,5 t no. of strokes:30 Hub/min Hier fully functional machine, Little used There are some Tools and Change gears Liebherr WSC501 CNC gear shaping machine, used, ready for use Manufacturer: Liebherr Type: WSC 501 Mach.- No.: 4407/05 Year of manufacture: 1985 Details: Max. gear shaping module: 8mm (30°gears possible up to module 10°) Max. gear width: 130mm Diameter of the machine table: 500mm Maximum wheel diameter: 780mm Shut height ? table: 650mm Stroke rate min. 30DH/min Continuously adjustable max. 1500 DH/min. Operating voltage: 380V Frequency: 50Hz Control voltage: 110V Connected load: 36 kVA Rated current: 55A Weight: 8500kg Dimensions: approx. 4,85 x 3,655 x 3,78 (width x depth x height in m) The machine has seen only very limited use in our company. It remains fully operational and can be dem ...

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

max. wheel diameter:150 mm gear width:350 mm max. module:4 total power requirement:48 kW weight of the machine ca.:13 t dimensions of the machine ca.:4,88 x 4,40 x 3,56 m spindle turning speed range:100-1000 U/min Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.

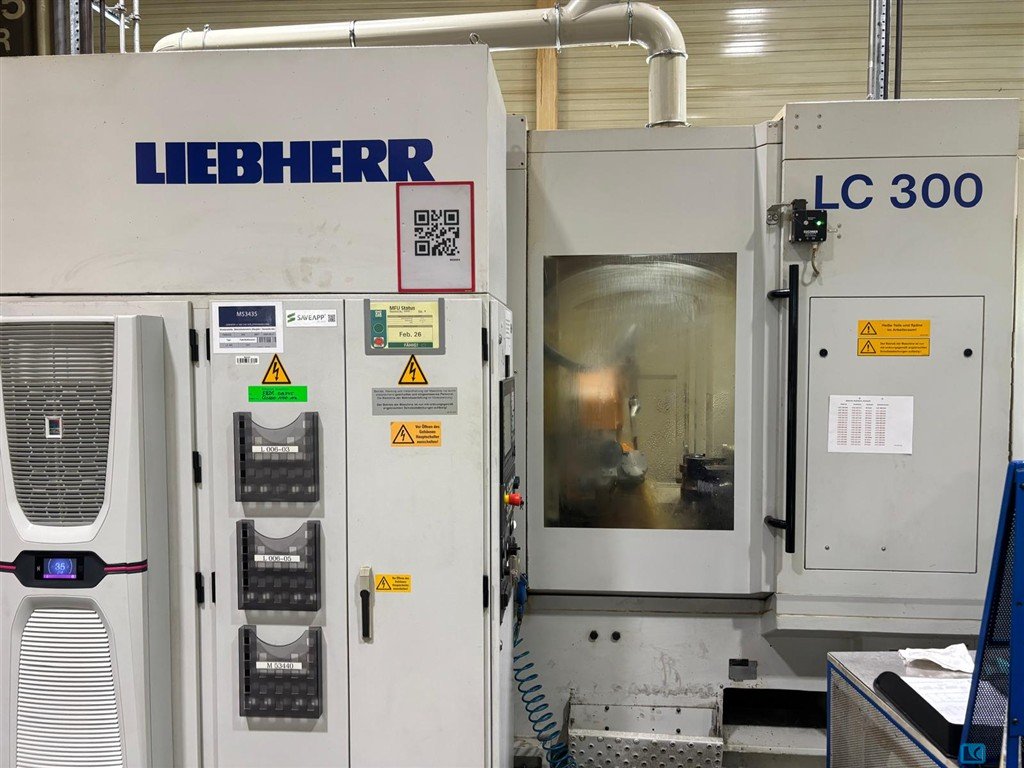

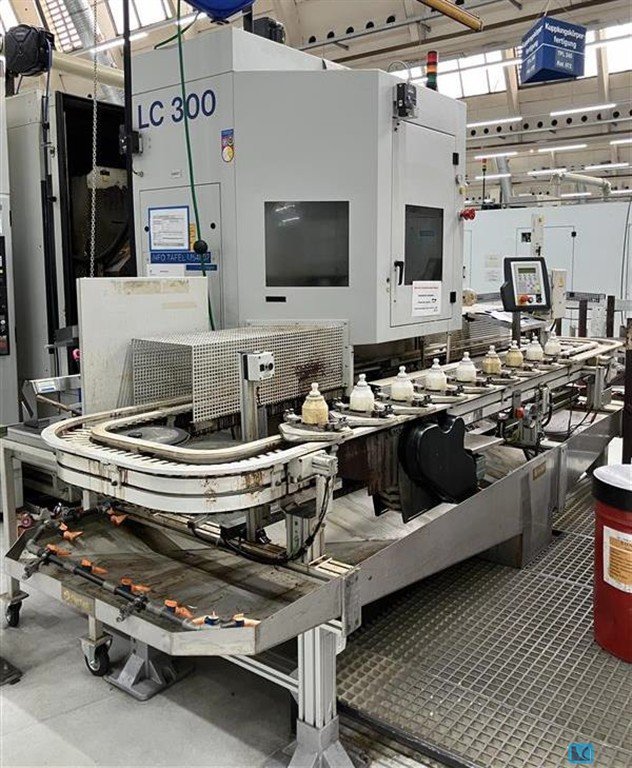

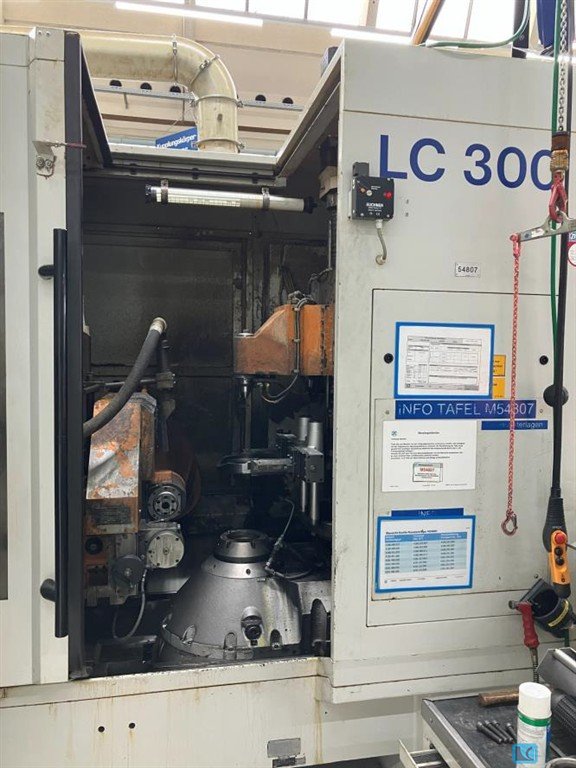

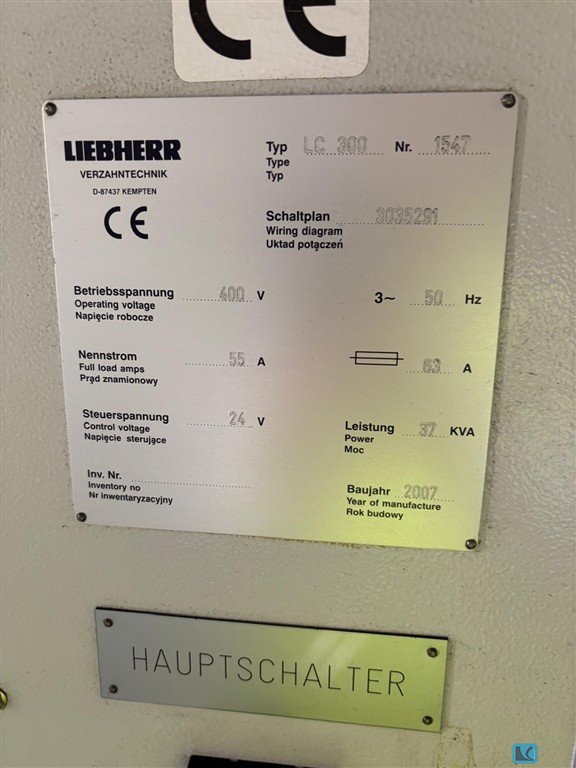

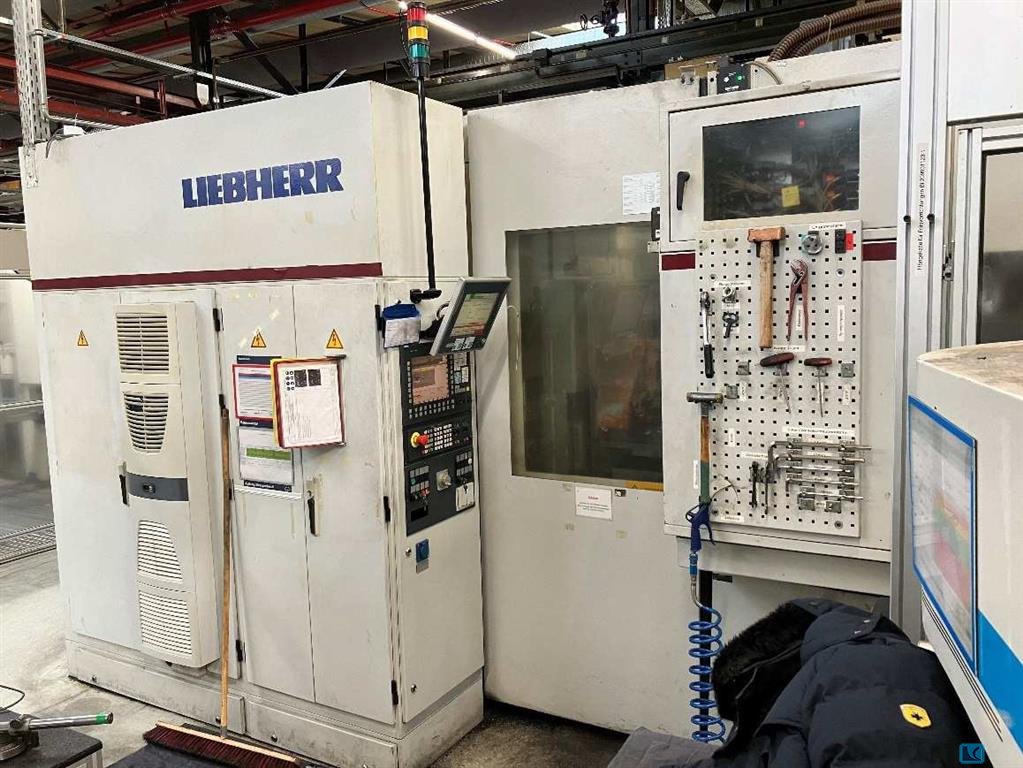

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg with Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories

max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility. Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

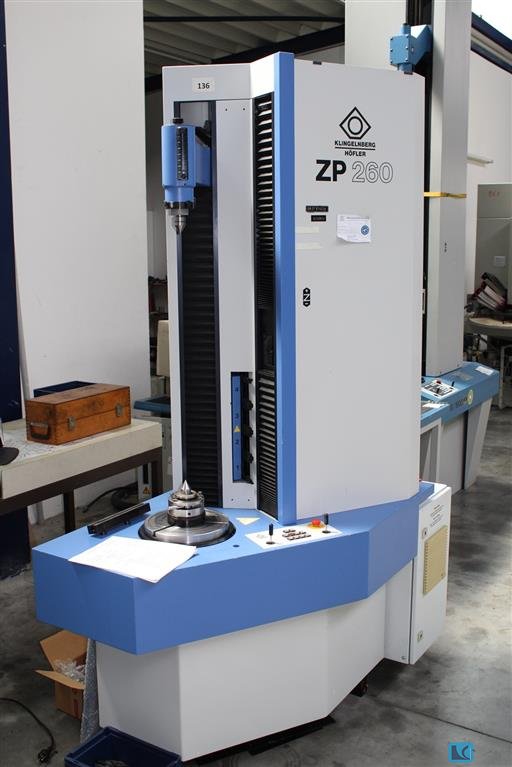

max. wheel diameter:5 - 260 mm gear width:400 mm max. module:15 min. module:0,5 gear hobbing diameter - internal:30 mm max. helix angle:> 85 ° Aussenverz. max. helix angle:> 45° Innenverz. Testing Range vertical:400 mm dist. between centers:5 - 600 mm table diameter:260 mm max. table load:100 kg speeds:30 1/min total power requirement:1,6 kVA weight of the machine ca.:900 kg dimensions of the machine ca.:200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

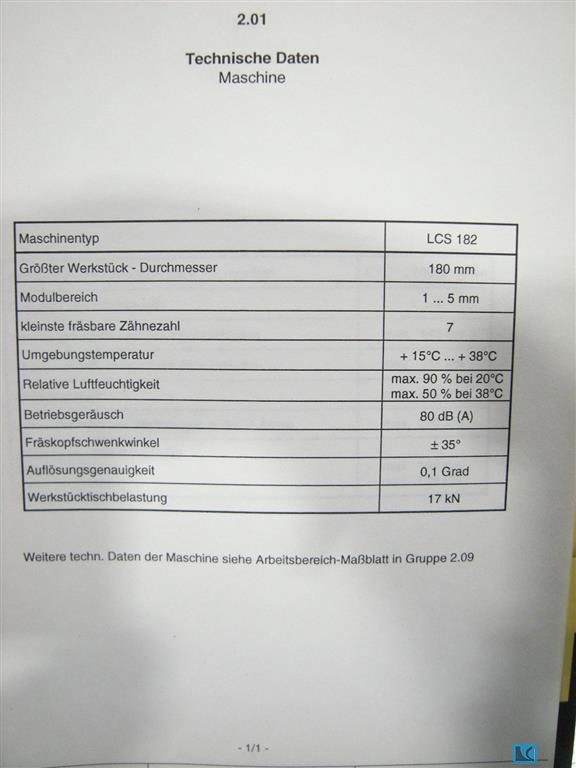

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

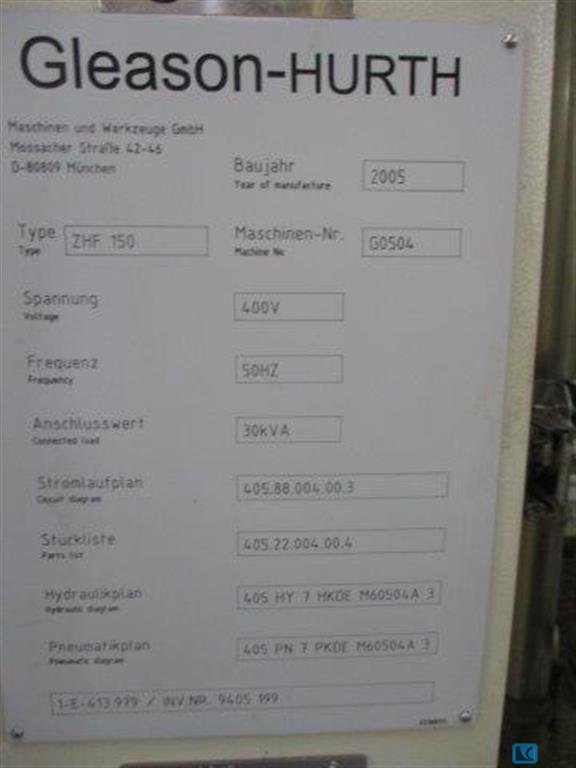

workpiece diameter:63,5 mm centre distance:350 mm honing length max.: mm total power requirement: kW weight of the machine ca.:6 t dimensions of the machine ca.:2,70x2,30x2,60 m Technical data G0504 working space Length of the clamping surface mm 1550 Number of T-slots mm 2 Width of the T-slots mm 18 Distance between T-slots mm 180 Center height (tailstocks) mm 350 Swivel range of the fine wheel head (U-axis) degrees + 30 / -30 Center distance - tailstock / fine wheel min./max. mm 120/225 Input resolution (all NC axes) mm / degrees 0.001 Delivery slide Movement range (= Z-axis travel) mm 105 Input resolution mm 0.001 tool Outside diameter min./max. mm 225/275 Hole diameter mm 160 Width mm 60 workpiece Outside diameter min./max. mm 40-150 Module min./max. mm 1.25-4.0 Tooth width max. Mm 45 weight Weight of the machine approx. Kg 5500 Operating fluid requirements Cooling lubricant recomme ...

RECON Part number: 1230 2144 Please note: we also have other various RECON parts of different manufaturers / types in stock. We are pleased to provide you with our current stock list. ---------------------------------------------------------------------- ----------- If you have any further questions do not hesitate to contact us

Unused gearboxes, angular gearboxes, partly without electric motors, partly with electric motors. Manufacturers e.g. PWH Plants + Systems GmbH These types and others pre-raetig: 1. PWH 90KW Type K2SZG250 n1=1500 rpm n2= 75 rpm i=20 P=90 KW Length over everything: 120cm Width over all approx. 55cm Height approx. 56cm Diameter of shaft rear (lies laengs) 45mm Transducer of the shaft front (lies transverse) outside 160mm Transducer of the shaft front (lies transversely) inside 140mm Weight-cooked 1,000kg 2. PWH 45KW Type KSZG200 n1=1470 rpm n2= 73.5 rpm i=20 P=45 KW All over: 94cm Pq7hwm Width over all approx. 45cm Height approx. 46cm Diameter of shaft rear (lies laengs) 50mm Transducer of the shaft front (lies transverse) outside 150mm Transducer of the shaft front (lies transverse) inside 120mm, passage 100mm Weight-cooked 600kg 3. PWH 37KW Type KSZG180 ...

gear motor, electric motor, servo gear motor -Manufacturer: SEW-Eurodrive, servo gear motor type RF27 CMP63M/KY/AKOH/SM1 -Gearbox:Type RF27 455 rpm i 6.59 -Motor: Type CMP63M/KY/AKOH/SM1 -Power: 3.30 Nm -Speed: 0 - 3000 rpm -Shaft: Ø 25 x 50 mm -Dimensions: 465/140/H170 mm -Weight: 10.5 kg

Auction-ID: A1-50275-179

Auction-ID: A1-50275-24

Parallel Gear Brake Motor Geared motor Manufacturer: DEMAG Type: KBA112 B12/4 / KBA112B12/4 Gear motor: Type: AUK60TL OEL: 5,0l Design: B14.2-65-0/178 More information can be found on the manufacturer's website, see pictures. Condition : New, may show traces of storage, comes from stock. Scope of delivery : see the pictures.

Serial No.: 430.54I O Auction-ID: A1-50529-546

5-color R23847/15 PROPHETEER flexographic printing machine 18" Model: 1800 Built: 1998 available: immediately 5- Colors for labels and other products e.g. for cups / cups 18 Corona Car register Stacker Video Scanner Flat-in diameter: 1016 mm Available: immediately

R25532/08W Cosmos Vega Folding Carton Gluing Machine Model: 145 Built: 2003 refurbished 2010 for corrugated board Available: immediately

Radial drilling machine, used radial drilling m/c, used Type: BR 56 x 1600 Manufacturer/ make: WMW Year built/ year of make: 1965 Extension/ length of arm: 300...1600 mm Ma. Drilling radius / max. drill. Radius: 1800 mm Drilling capacity at boring: 56 mm ( St 60 ) Drilling capacity at boring: 80 mm ( GGL 20 ) Thread cutting/ thread cutting: max. 65 mm ( St 36 ) 76 mm ( GGL 20 ) Drilling depth/ drilling depth: 400 mm Tool holder / taper in spindle: MK 5 Removal spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base plate/ base: 1700 x 1000 mm Speed range/ range of speeds: 14..1800 rpm Feed: 0.0315 .. 1.6 mm/U// mm per round Connection value: 7.13kW Weight: about 4.5 t

R26107/09 FISCHER & KRECKE Two-sewn flat bag machine Model: Perfect Built: 60s available: immediately Bag width: 80 - 200 mm Bag length: 160 - 480 mm 4-colour printing unit Available: immediately

Rolling milling machine Koepfer 153 A/CNC Manufacturer Jos. Koepfer & Söhne GmbH Type 153 A/CNC Built in 1988 Machine No. 153199 Technical data Largest Module 2 Distance workpiece tool axis max. 4- 87 mm max. workpiece diameter - without magazine 142 mm - with magazine 80 (100) mm max. milling length 150 mm max. length workpiece - without magazine 300 mm - with magazine 220 mm min. number of teeth 3 min. screw gait number 1 Main spindle through- 33 mm Hole Mounting hole for 50 mm Jig max. cutter diameter 70 mm max. cutter width - Universal milling head 63 mm - Shifting milling head 71 mm max. axial cutter shift - Universal milling head 40 mm - Shifting milling head 44 mm 35 Longitudinal feeds 0.1 -5.0 mm /WU 10 cutter speeds 210-1680 /min Control (2 axes) CNC Drive power 2.2 kW Weight approx. 2400 kg Available immediately Location  ...

4-color R23240/17 SHIKI label press Model: PC 45 M Built: 1992 Web width: 280 mm Availability: instantly 3 - coloured or 4 - coloured (optional) Printing width: 270 mm, min. 50 mm max. feed: 7, approx. 180 mm Accessories: Rolling unit for rollers up to 100 cm in diameter Winding unit for small rolls pneumatic remaline hole on both sides Speed: 7000 cycles/h max. Products: Hole edge adhesive labels, adhesive labels, hole edge cardboard labels, tickets with and without printing - can punch, print, embosse, number, perforate, punch Available: immediately

R25591/08V KECK Folding Carton Adhesive Machine Model: SF 80 Built: 1990 Availability: instantly Unused: 800 mm Fasson glue work from the cliché Longitudinal cross-gluing, selective - Striped glue for 1 x longitudinal bonding, cliché glue for cross-gluing Still in operation: Yes Available: immediately

refurp-up in 2007 Spare parts Still in operation: Yes Available: immediately

CAP.: 10 000 BTLS/H OF 1.5 L,

BOTTLES & JARS!

Machinery and equipment for the production of cement, All prices are from Station World and the dismantling and all follow-up costs are to be made by the buyer. VAT is not included in the prices. The contractual agreements for the individual offers must be agreed separately and only apply after the contract has been legally signed. Mistake reserved. All technical details; Measurements, etc., are approximate information and are non-binding for the provider. The technical data are manufacturer or operator information and therefore non-binding for us. Used material is sold to the exclusion of any warranty. We do not accept any liability for used material. Warranty exchange and return are excluded. Customer protection is agreed between the parties. The entire process of dismantling and loading as well as transport is carried out at the buyer's own expense and at the buyer's own e ...

Format: 700 x 1020 mm R26060/18 SAKURAI screen printing machine Model: SCA 102 Built: 1989 max. print size: 700 x 1020 mm Availability: instantly automatic screen printing line high speed cylinder Special version: min: 500 x 350 mm Sheet transfer station can be folded on one side optical front edge control mechanical double-arch control via friction rollers pneumatic squeegee pressure control and sieve clamping PERFECTION high-performance dryer 1120/4: Inlet width 1100mm, 2 warm and 2 cooling zones with UV dryer MIRUS forklift model SV Etc. Available: immediately

R26115/18 VITS Impregnation and painting system Model: IPA / S / II Built: 1996 Working width: 2200 mm for finish foil and edges Working width: min. 625 mm Heating: Thermal Oil 250 Dryer control: 80 - 220 Speed: 5 - 120 m/min Impregnation plant Painting works Takeup with thermal oil boiler for impregnating, painting of decorative and similar papers from 30 - 240 g/m2 Available: immediately

Machinery and equipment for the production of concrete blocks, All prices are from Station World and the dismantling and all follow-up costs are to be made by the buyer. VAT is not included in the prices. The contractual agreements for the individual offers must be agreed separately and only apply after the contract has been legally signed. Mistake reserved. All technical details; Measurements, etc., are approximate information and are non-binding for the provider. The technical data are manufacturer or operator information and therefore non-binding for us. Used material is sold to the exclusion of any warranty. We do not accept any liability for used material. Warranty exchange and return are excluded. Customer protection is agreed between the parties. The entire process of dismantling and loading as well as transport is carried out at the buyer's own expense and at the buye ...

Ladies and gentlemen, we offer: Machinery and equipment for stone production All prices are from Station World and the dismantling and all follow-up costs are to be made by the buyer. VAT is not included in the prices. The contractual agreements for the individual offers must be agreed separately and only apply after the contract has been legally signed. Mistake reserved. All technical details; Measurements, etc., are approximate information and are non-binding for the provider. The technical data are manufacturer or operator information and therefore non-binding for us. Used material is sold to the exclusion of any warranty. We do not accept any liability for used material. Warranty exchange and return are excluded. Customer protection is agreed between the parties. The entire process of dismantling and loading as well as transport is carried out at the buyer's own ex ...

8-color format: 70 x 100 cm<br><br><br><><<br>Verf Gbar: Instant
