max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 kg dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Inv. Num. : 8631 Type: OFA 16 A Producer: TOS Created: 1976 Parameters: Machine weight: 3550 kg
MODUL ZFWZ 1250x14I gear hober (can do 1580 mm) Max. Diameter: 1250 mm Cutting width: 600 mm Module 2-16 Maximum size of the hob: 240 x 280 mm Table diameter: 1020 mm Speeds: 28 – 200 rpm Axial feed rates: 0.28 – 8 mm/min Radial feed rates: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Stand tilt – left/right: +/- 45 Main motor power: 5 / 19.5 kW Power of the rapids motor: 12,5 kW Max. diameter of the part without tailstock: 1,250 mm Max. diameter of the part with tailstock: 800 mm Weight of the machine : 16 t Machine dimensions approx. 4.5 x 2.1 x h 3.3 m EQUIPMENT: Extended driven shaft for gear cutting up to Ø 1580 mm Capability to work with hob cutters Ø 235 mm and length 380 mm. Inverter control of the main electric motor. Expanded set of change gears
CHURCHILL PH3615 gear hobbing machine Max workpiece diameter 914 mm Max diametral/ pitch- 8 Module, 3 D.P. Horizontal centre distance:-63,5- 559 mm Max horizontal travel 469 mm Height hob centre to worktable: 127- 508 mm Max travel of vertical feed 381 mm Max height worktable to tailstock centre768 mm Table diameter 762 mm Table hole (diameter x depth) 89 x 381 mm Hob dia x length 178 x 203 mm Max travel of hob slide 127 mm Diameter of hob arbor 32 mm Hob spindle speeds, infinitely variable 50 – 200 rpm Vertical feeds 0.38 – 5 mm Main drive motor 10 HP Floor area 3960 x 2130 x 2300 mm Weight 11,500 kg Extended set of change gears Complete documentation Operational variable speed drives for main motor and feed drives
Inv. Num. : 8799 Type: FO-10 Producer: TOS Created: 1958 Parameters: Maximum gear diameter: 1000 mm Maximum module: 10 Machine dimensions: 3120 x 1870 x 2525 mm Machine weight: 9000 kg
max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg
A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.
max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...
max. wheel diameter: 80 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 ____________________________________________________________ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min. ...
Liebherr / Lorenz S800 Gear - Hobbing Machine -Max. workpiece length with counter holder 600mm -Max. workpiece length with retracted counter holder 800mm -Max. travel of the milling carriage 360mm -Largest millable pitch for the largest workpiece 5 Pi / in the normal power range 8 Pi -Pick-up taper - milling spindle MK 5 -Mandrel 22/27/32/40mm -Max. cutter diameter 186mm -Max. cutter length 170mm -Max. cutter displacement 80mm -Milling cutter speeds 40-220 rpm -Feeds infinitely variable / horizontal -Feeds infinitely variable / vertical -Feeds infinitely variable / tangential -Clamping table without water rim 550mm -Clamping table hole 100mm -Mandrel taper MK5 Accessories: 1x pallet interchangeable wheels 1x pallet hob 1x pallet clamping mandrels Documentation Machine feet Dimensions: LxWxH 3.6x1.8x1.9 meters / weight 5000Kg
Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible.
max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Inv. Num. : 8974 Type: OFA 16 SC Producer: TOS Generated: Parameters: Machine weight: 5 t
Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : Set all sizes M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo
PFAUTER RS 00 - Gear hobbing machine -Max. wheel diameter 250mm -Max. tooth width 160mm -Max. module 2.5 - 3mm -Approx. 65 change wheels + built-in change wheels in the machine - Table diameter approx. 200mm -Milling cutter speeds 200 - 1200 rpm -Digital display -Tangential milling device -Interchangeable wheels -Documentation -Machine enclosure Dimensions: LxWxH 1.6x1x1.7 meters / Weight 1800 kg
Gear hobbing machine, milling machine, tool milling machine, vertical milling machine, roller milling machine, gear hobbing machine, gear hobbing machine, high-performance hobbing machine -Manufacturer: Liebherr, high-performance gear hobbing machine type SS 5- K/500 -Working area: Ø max. 500 mm -Max. cutter diameter: 186 mm -Accessories: including extensive accessories see photos -Machine dimensions: 2300/1460/H1870 mm -Dimensions accessories: pallets 1420/1300/H300 / 1200/800/300 mm -Weight: 5300 kg plus 535 kg accessories
max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt
max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm
control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden
Hydraulic tailstock, Ø max. gear: 250 with 3 cutter, Module: 5,5, Hobbing length: 70, Cutter module: 5,5, Outside ø max. acknowledged: 300 mm, Ø spindle: 85 mm, Ø hole table: 39 mm, Ø table: External centering Ø139,75, Power tool motor (b): 4 Cv, High: 1.800 mm, Long: 1.450 mm, Weight: 2.450 Kg, Width: 1.000 mm
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine
max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed
max. wheel diameter: mm gear width: mm weight of the machine ca.:7000 kg dimensions of the machine ca.:9130 x 3895 x 3450 mm max. top circle diameter:80 mm max. length of teeth cutting:170 mm Total length:240 mm taper diameter:32 mm slide travel radial ( X-axis ):100 mm slide travel tangential ( Y-axis ):160 mm axial movement Z-axis:300 mm/min workpiece spindle - bore:45 mm electr. connected load:44 kVA
max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024
max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024
max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

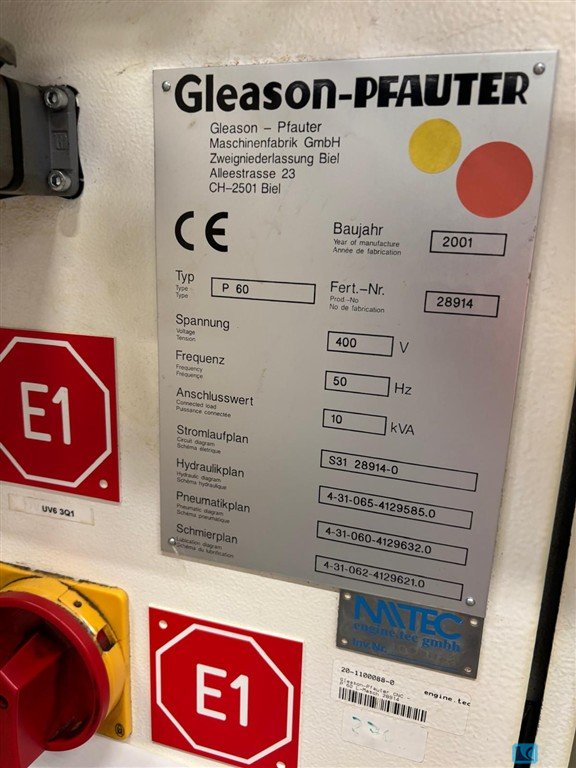

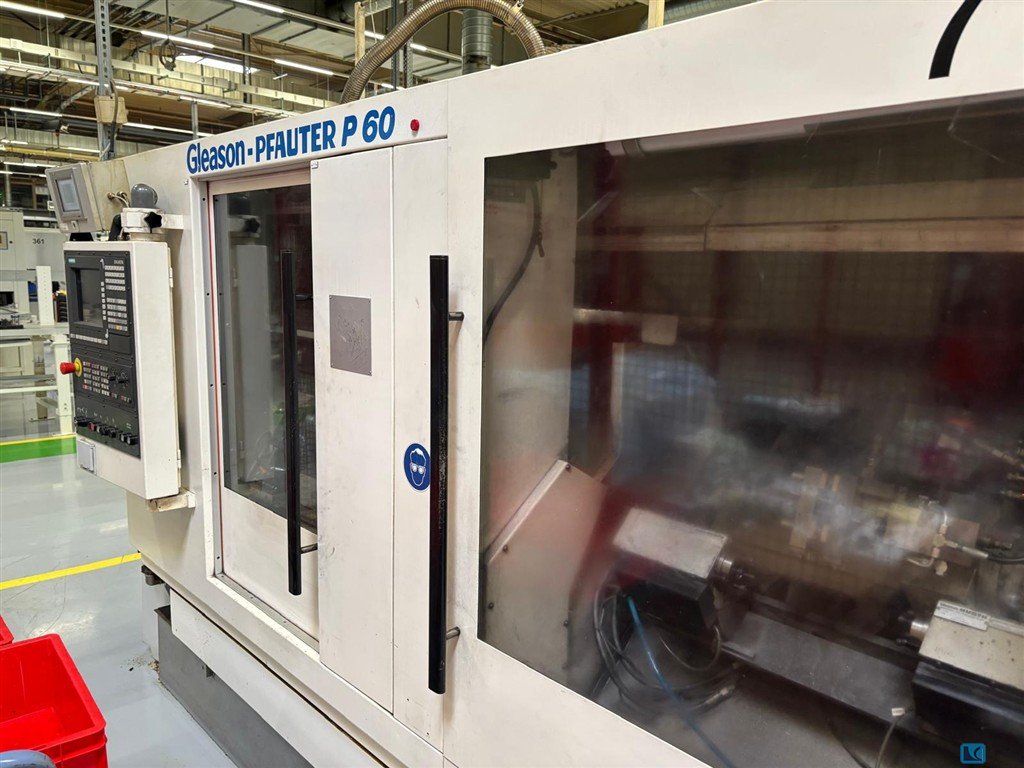

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

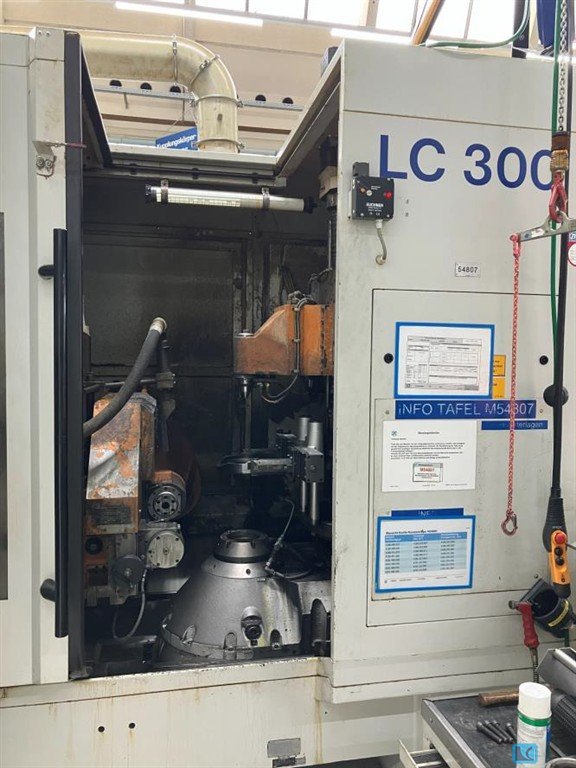

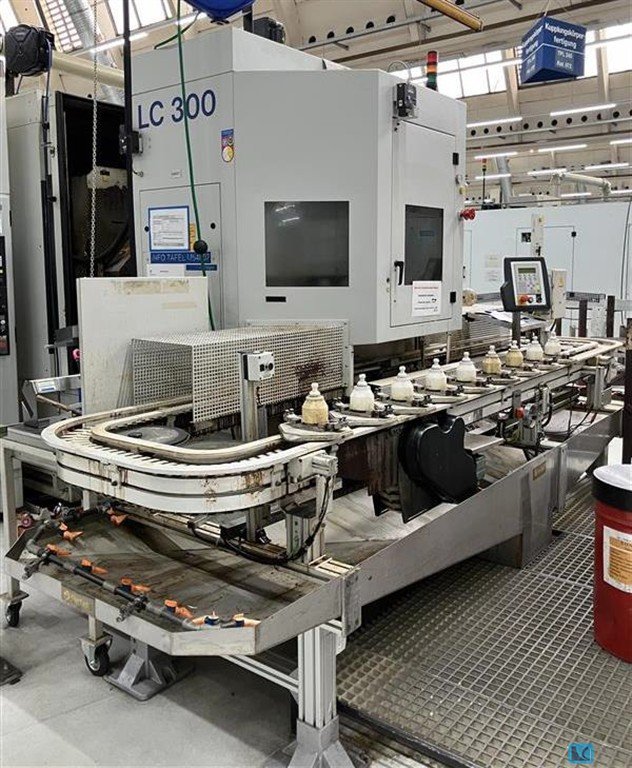

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion
Bevel helical gearboxes Manufacturer : Bonfiglioli Model : A 504 UH50 P90 LOE engine: Euromotori 1,1kw MS9016Year of construction 2008 NEW, unused from old stock for more information see pictures.
CATALOG NUMBER 6024 TECHNICAL DATA - 2.9kW main engine - 0.75kW spindle motor - 0.75kW trolley feed motor - 380V power supply - dimensions length / width / height 1600x1100x1200mm - weight 891 kg Machine equipped with: - 2 tables with dimensions of 300x340mm - pneumatic clamps - angularly adjustable tables in two planes - the possibility of making long and round tenons on the tables - table speed and spindle speed regulated mechanically - adjustable up / down tables - pin width adjustment Net price: PLN 16900 Net price: EUR 3885 Net price, calculated at the rate of 4.35 PLN / EUR (with larger exchange rate fluctuations the price may change)
For sale a used milling head of a Gleason Genesis 130 H
From September 2022 immediately available newly overhauled Multigrind HT retrofit machine prepared for resharpening hobs / worm gear cutters / pushers and cutting rotor Control: Siemens 840 D X - axis 650 mm Y - axis 400 mm Z - axis 280 mm A - axis (dividing apparatus) 360 ° SK50 C - axis (rotary table) 270 ° X3 - axle with tailstock Grinding spindle: HSK50 Dressing unit Tool changer: 10-fold magazine plate Coolant system: Turbo Separator Suction: LTA Extinguishing system Other accessories: Available ex works Software: Customer-specific delivery Financing / hire purchase possible.
Surface reference plates, roughness measures MASSI hobing TGL 4763 Rz 6.3 μm and Rz 20 μm in wooden box Dimensions: 240 x 120 x 30 mm
Surface reference plates, roughness measures MASSI hobbing hobs TGL 4763 Rz 6.3 μm - Rz 20 μm in wooden box Dimensions: 240 x 125 x 40 mm
Hobs PWS 26j6 x 30a11 x 6p6 7062-0260-02017 DIN 5462 bore Ø 27 mm New ! Dimensions: 63 x 63 x 46 mm
Hobs, tooth gear cutters for hobbing machine WMW / PWS Type G Module 3 ( Module3 ) HSS / Co TGL 29-8002 Bore Ø 40 mm New !' Dimensions: 110 x 100 x 100 mm
