gear grinding used for sale

Grinding wheel dimensions (od x id x width): Ø508 x Ø304.8 x 305 mm, Ø min/max to be rectified: 150 mm, Grinding wheel width: 305 mm, Maximum length to be rectified in plongeé: 305 mm, Drive wheel dimensions (OD x ID x W): Ø330 x Ø203 x 305 mm, Regulating wheel motor power: 4 Kw, Grinding wheel head motor power: 37 Kw, Total power: 45 Kw, Long: 3.500 mm, Width: 2.500 mm, Tall: 1.100 mm, Weight: 6.500 Kg

Key data: 1100 mm, 2 , 180 mm

Broadband KÜNDIG Made in SUISSE - 1100 mm grinding width, 180 mm height - 2nd strip with: three-roller units / 2nd grinding roller with shoe for fine sanding - Grinding table Fix Sodas can be sanded in a continuous flow ( KUNDIG patent) - Electronic control The machine is immediately available from stock The price is: 4.900,-€ net from stock. That's a great price! A demonstration is possible

grinding diameter max.:400 mm max. width of grinding wheel:180 mm grinding range:2-100 mm total power requirement:24 kW weight of the machine ca.:3,2 t Out of valve production

Code: 0260 Brand: DMC SCM GROUP Model: UNISAND 2000 - CE Standard Automatic wide belt sander with 2 longitudinal units and 1 transverse unit at the inlet for furniture, joinery, custom-made furnishings, panels, wooden doors, window frames, semi-finished products and various - CE Standard Technical data: Max working width 1350 mm Min working width 52 mm Min length 400 mm Min/max working height 4/170 mm Belt feed with variable speed motor Longitudinal abrasive belt length 1370 x 2620 mm Transverse abrasive belt length 150 x 6550 mm Lamellar belt length 140 x 6300 mm Automatic belt centring Automatic table positioning Digital display of working thickness Control panel with dustproof membrane keyboard Electronic system for belt oscillation Rubber-coated pressure rollers Automatic belt centring 1° Group: Transverse Sanding Pad with development 6550 mm and fit ...

A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible with power.

A thread and worm grinding machine Reishauer AG is available. Grinding length: 450mm, clamping length: 700mm, max. grinding diameter: 200mm, max. pitch: 80mm, max. workpiece weight: 100g, max. lead angle: +/-25°, grinding wheel diameter: 275mm/350mm, speed: 1850rpm. Machine dimensions X/Y/Z: approx. 2600mm/1800mm/1600mm, weight: approx. 3400kg. Including oil centrifuge, hood, oil mist extraction and various accessories. The splash curtain is slightly hardened. Documentation available. An on site inspection is possible.

grinding length:900 mm grinding width:400 mm workpiece height:450/530 mm table clamping surface LxW:1.320 x 300 mm magnetic plate size:880 mm x 280 mm mm Finimatic Creep speed Add-on for Diaform Rectifier system Coolant device Infinitely variable grinding clamping drive

centre height:500 mm centre distance:2000 mm control:CNC Grundig Numerik total power requirement:400 V, 50 Hz, 22,5 kW weight of the machine ca.:3300 kg dimensions of the machine ca.:2500 x 4000 x 2400 mm

Cylindrical grinder TOS BHU 50/1500

Inv. Num. : 8860 Type: BUAJ 30 CNC Producer: JUNKER Created: 2002 Parameters: Control System: FANUC Series 210i-T Maximum grinding diameter: 400 mm Max. sanding length: 630 mm Weight: 2800 kg

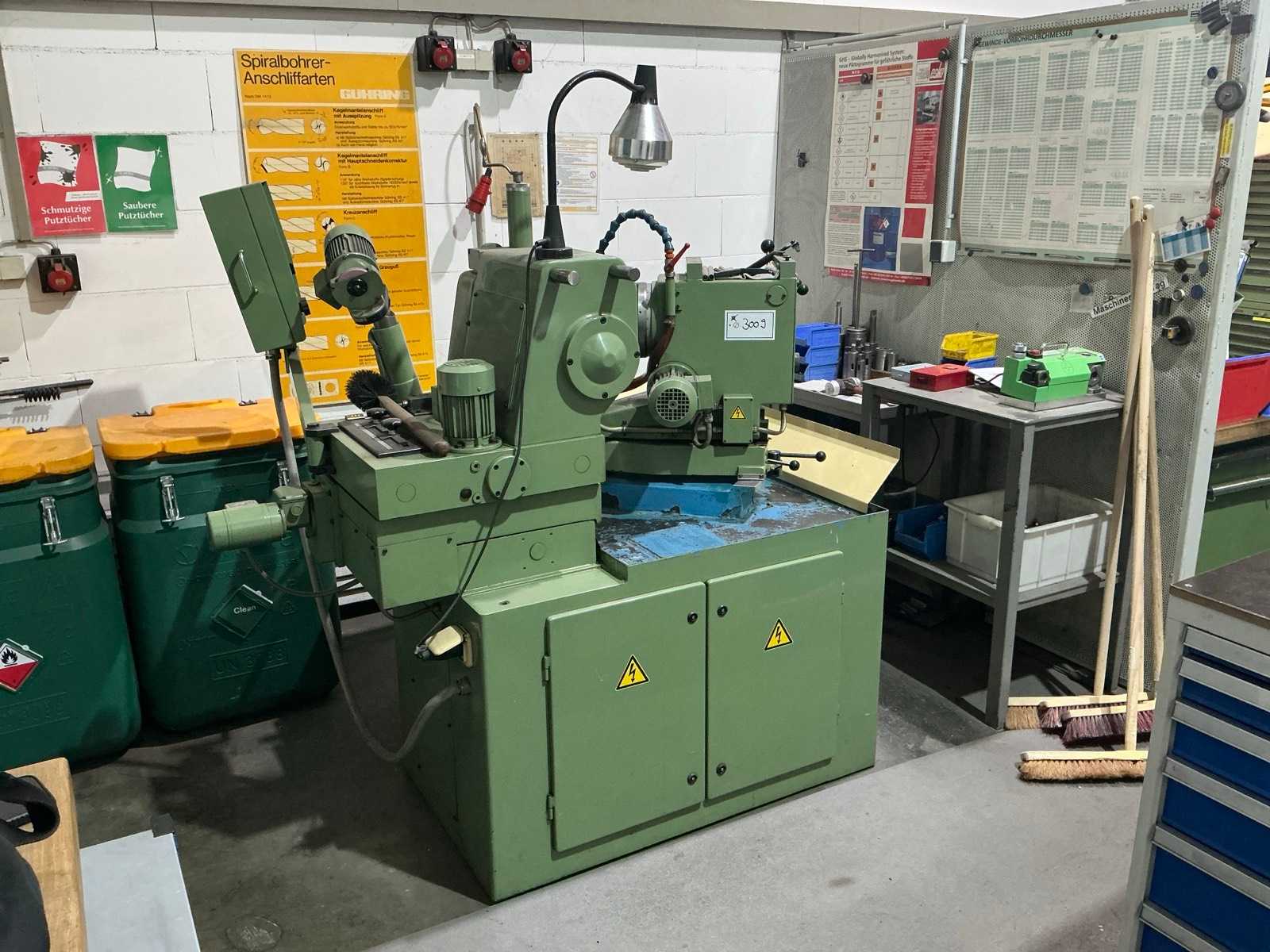

for twist drills: 3 - 50 mm Ø Acute angle: 90 - 140° Adjustable clearance angle Grinding motor: 2800 rpm, 0.25 kW Gear motor for swivel movement: 0.12 kW Grinding wheel dimensions: 175 x 32 x 20/90 x 20 mm Space requirement: 800 x 550 x 1140 mm

Dimensions (L/W/H): 1250x880x850 mm Weight: 180 kg Total power requirement: 1,5 kw The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pipe grinding machine - self-made - Pipe grinding machine with CE marking - Suitable for grinding or surface pretreatment of various pipes - was used for galvanized steel pipes as a surface pre-treatment before painting - could be converted for other materials (other abrasive belts + possibly adjustments in the feeding system) - Control: Mitsubishi - Automatic feeding and ejection from the machine - Several pipes can be fed and ground one after the other and temporarily stored during ejection - Pipes are picked up by gripper and guided through the machine to the ejection - Incl. RL125 field extraction system for extracting the grinding dust - Compressed air is required for the function - Machine is sold without safety device - Year of construction 2011 Specifications - Min. tube diameter: 76 mm - Max. pipe diameter: 200 mm - Min. tube length: 3600 mm - Max. tube le ...

Control: Xpress Cube Grinding width: 600 mm Grinding length: 1,500 mm Grinding height: 500 mm Grinding wheel diameter: 400 mm Table load: 1,200 / 625 kg Spindle drive: 10 – 52 kW Spindle cone: 60 / 75 mm Speed range: 1,450 – 3,500 rpm Accessories: Belt filter system Coolant Mist Extraction Type VMN-V12 Balancing system Magnetic disk

total power requirement:16,5 kW weight of the machine ca.:3,8 t

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

grinding diameter:4000 mm centre height:310 mm weight of the machine ca.:17 t dimensions of the machine ca.:10.5 x 3.6 x 1,9 m

Mould grinding machine OTT - KG Up to 150 mm wide with Stepless Transport Carpet Profile strip and semi-round mouldings

grinding diameter:3 - 150 mm grinding length:200 mm total power requirement:380V, 50Hz, 30 kW dimensions of the machine ca.:5 x 3 x 2,5 m

grinding diameter: 0,2 - 190 mm grinding length:400 mm centre height:100 mm weight of the machine ca.:1,6 t dimensions of the machine ca.:2 x 1,5 x 1,8 m

: 200 mm mechanical: ja weight: 1,5 t : ja The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer:STUDER Model: S33_1045 Year of Manufacture: 2022 Operating Hours : approx. 2500h Included Equipment: DGS filter system. Tip length : 400mm with 2 grinding wheels Find more here - / Contact us at -

KELLENBERGER 600U Universal Grinder Machine No. 721/441 Distance between centres 600 mm Centre height 125 mm Table orientation 11 degrees Grinding wheel for cylindrical grinding 400 x 50 x 127 mm Motor power 3 kW Spindle speed 1500 / 1700 / 2200 rpm Orientation of grinding wheel holder headstock 270degrees (3 x 90) Grinding wheel speeds 3600 rpm Boring for internal spindle 70 mm Workhead swivel 360 degrees Workhead speeds 20 - 400 rpm Wheelhead motor power : 3 kW Workhead head motor power : 0,9 kW Dimensions 2580 x 1680 x 1670 mm Weight 2200 kg

Combination with the Grieffe Intermac Glass100E Combi machine Brand Intermac Type CNC Grooving Machine Model Groove 1500 Serial number 80029 Year of construction 1998 Weight +/- 5 tons Assets 18 kW Air pressure 7-8 Bar Water pressure: 1.5 bar Length mm 5700 Width mm 2600 Height mm: 2300 Working height 84 cm Transport dimensions L x W x H 6.0 x 2.45 x 2.3 Min.-max. glass size 1760 x 3000 in mm State machine Disassembled in working order Type of control CNC Electrical connection 63A 3P+N+PE Photos/film available: Photos and video available Other incl. tools 02.4.020

Serial Number: 018.0174.90.034 Rotation diameter above the table: 450 mm Maximum internal grinding length: 200 mm Turret: Up to 4 grinding spindles (indoor/outdoor) Part spindle (C-axis): High precision for form grinding and threading Control System: Fanuc 16i-T / 21i-T

gebr. Long belt grinding machine JOHANNSEN T84 ST YOC 1990 Total connected load: 4.5 kW / 10.3 A Motor power: 3.8 / 4.5 kW 2 belt speeds (13.5 + 27 m/s) Table size: 270 x 80 cm electr. Table lift Belt dimensions: 150 x 7,100 mm Offset (both sides): 450x220 mm 2 sanding shoes Switch for clockwise/counterclockwise rotation Integrated lighting Extraction connection: 140 + 120 mm incl. various sandpapers Machine dimensions (approx. dimensions) W:400 cm D: 131 cm H: 141 cm Weight: approx. 700 kg The machine comes from a 1-man operation.

Grinding length: 600 mm Grinding width: 200 mm Clamping surface of the table: 600 x 200 mm Greatest distance between table and grinding spindle center: 500 mm Grinding wheel dimensions: 250 x 25 x 51 mm Table longitudinal feed hydraulically infinitely variable: 1 - 24 m/min Table transverse feed per hand rotation: 4 mm Grinding spindle speed infinitely variable via DC drive: 800 - 4200 rpm DC drive: 1.5 - 5.0 kW Net weight with control cabinet approx.: 2000 kg Approx. space requirement: 3100 x 1700 x 1900 mm

(1x) on console, various makes and models.

MAX DIAMETER 630 , MAX LENGTH 5000

Max. work-piece diameter: 254 mm Max. distance between centers: 1066 mm Max. length of grinding: 1041 mm Max. capacity of collet chuck: 38 mm Dimensions of standard grinding wheel: 408x25x205 mm Limits of grinding head turning: 45 degrees Centre tapers: Sea #4 Thread pitch: 0.42 – 305 mm Max. pitch correction: 0,1 mm on 100 mm of length Adjustable backing-off: 0-5mm Number of rotation speeds of grinding head: 20 Range of speeds of workpiece slide: 1/3 – 60 rpm Speeds on back-run: 25.4; 80 rpm or working speed Work-piece slide motor capacity: 0.75 HP Grinding head motor capacity: 3.5/1.25 HP Max. obliquity: 1:12 Width limits of grinding wheel: 9.5–75 mm Range of grinding wheel speeds: 850–1540 rpm Internal diameters processable: 19–228 mm Max. diameter of hobs: 178 mm Max. diameter of thread chasers: 254 mm Coolant tank capacity: 136 liters Dimensions: -L ...

Power: 1.71 Kw, Dimensions magnetic table: 300x150mm, Working area: approx. 350x300x150mm incl. assortment of grinding wheels See photos for more details

HYDRAULIC SURFACE GRINDER Inv. No. 13.303G1 Make ELB Model SWN6-NCK Serial number 196990586 Max. grinding length 600 mm Table dimensions 980 x 365 mm Magnetic chuck 600 x 350 mm Max. height 400 mm Grinding wheel diameter Ø 300 Grinding wheel thickness 50 mm Volts 380 Cycles 50 Including: Filtering attachment Coolant

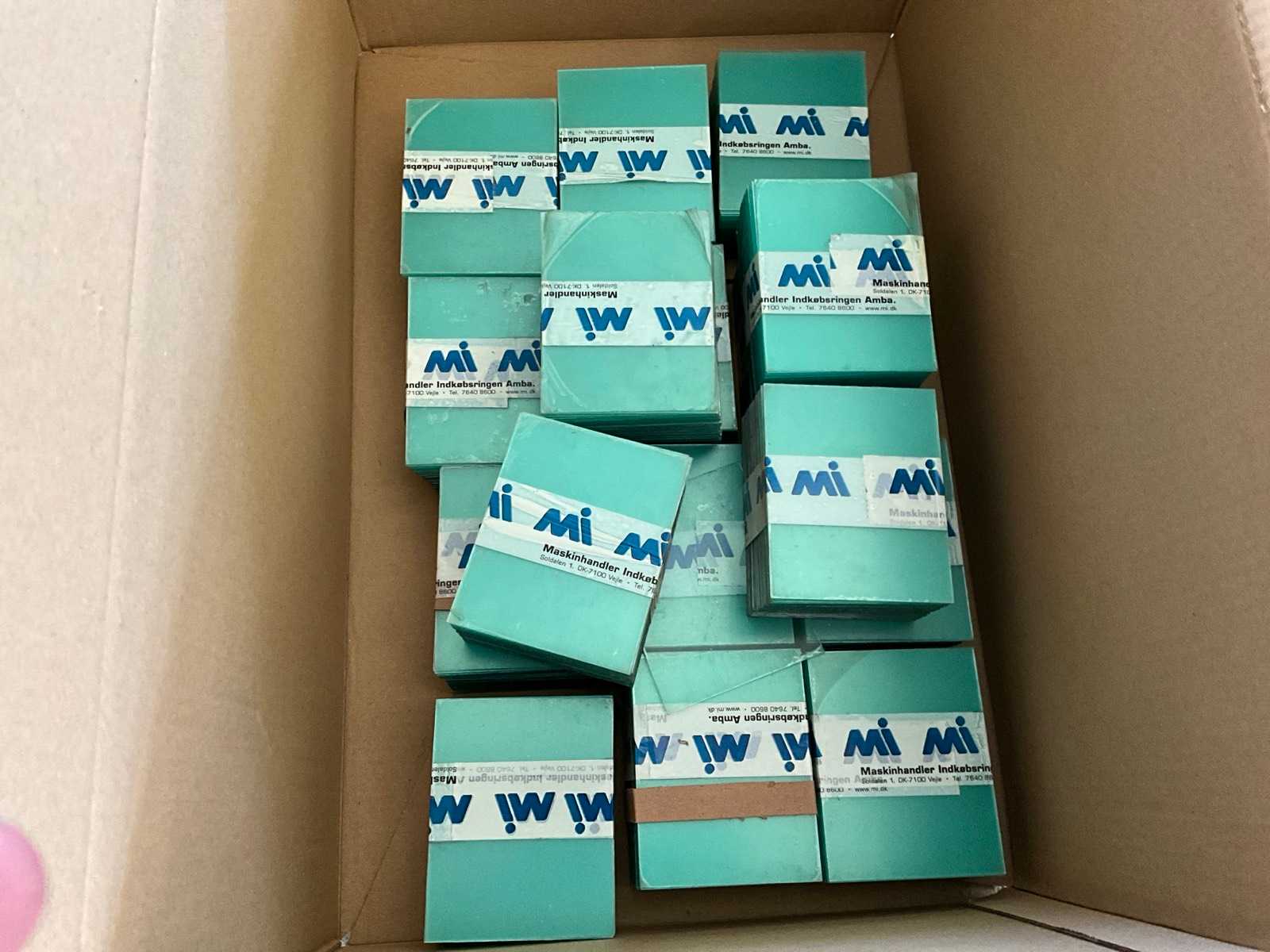

This concerns an unused product, 2 boxes, consisting of article number: WPHM2GYE2, Protective glass 118 x 94mm, quantity: 801, article number: WPHM2GYE5, Protective glass 89 x 42mm, quantity: 1076

Batch that is part of a combination of batches

Mass finishing machine complete with conveyor unit See pictures Tank outer diameter 1250 mm Container diameter/ container height 1000 / 350 mm Speed range 920 / 1415 rpm Operating voltage 380 V Volume 125 liters Drive power 1.9 kW Machine weight approx. 600 kg Dimensions L x W x H 1.4 x 0.9 x 1.5 m

Key data: 600 mm, 600 mm

Manufacturer: ELB-SCHLIFF Model: SWR 50 T Refurbished: 2008 Shipping time: immediately Grinding area: Ø 600 X 300 mm Grinding wheels: max. Ø 400 X 100 x 127 mm Spindle cone: 60 mm Dimensions set-up: approx. 2800 X 2800 X 2300 mm L/W/H Total weight: approx. 5000 kg Control: Siemens PLC

Studer S20 cylindrical grinding machine

Pipe grinding machine with 11 grinding rollers: 38 - 42 - 48 - 52 - 60 - 74 - 90 - 102 - 116 - 138 - 170 mm Tube clamping area 170mm Documentation (English) Belt width 200 mm Belt length 1600 mm Pipe diameter 38 - 170 mm Connection voltage 400 V Total power requirement 3.0 kW Machine weight approx. 0.25 t Space requirement approx. 1.4 x 0.8 x 1.35 m Condition: never used / new (5)

is sold incl. cabinet. The dimensions of the cabinet are: 715x555x1030 Condition: unchecked Item is sold as is Weight may be ggbfs. Deviate. Machine must be dismantled by the buyer and transported out of the hall area. It cannot be guaranteed that a forklift is on site.

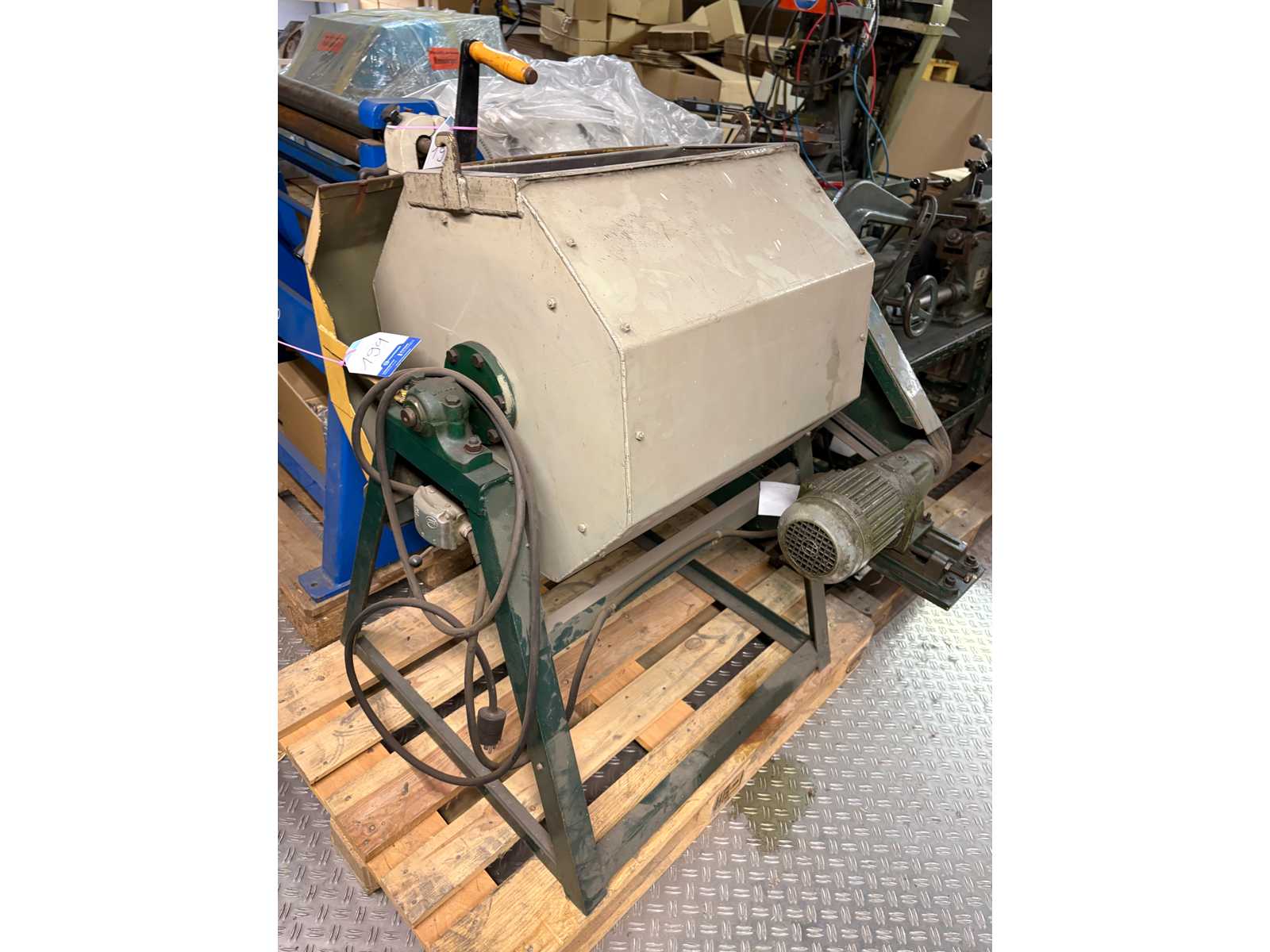

electrically driven drum volume: approx. 580 x 520 x 520 mm (estimated volume) drum with 8 sides distance from parallel sides to each other: approx. 560 mm

Working range 5-80 mm for tip grinding, tip angle infinitely adjustable from 50-180 °, tool speed 8-23 1/min, diameter of pointed disc 100 mm, speed of sharpening disc 2800 1/min, diameter of tip grinding wheel 300 mm, speed of tip grinding wheel 1420 1/min, grinding feed infinitely variable from 0.4-4 mm/min

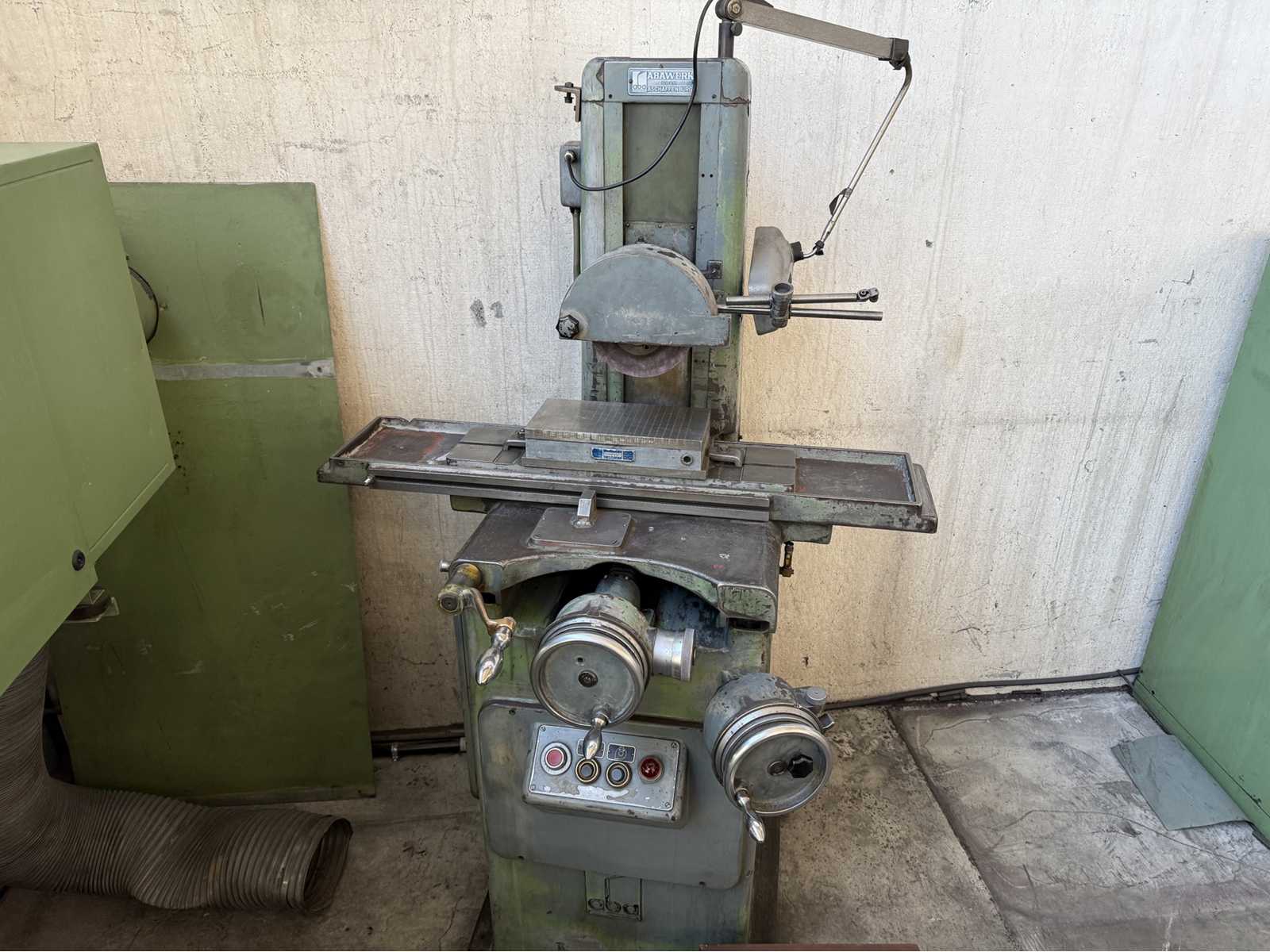

Surface Grinding Machine Aba FFK High-quality, hand-operated surface grinding machine Magnet size: 250 x 150 mm Dressing device on top of the spindle Maximum stroke in X direction: 390 mm Maximum stroke in Y-direction 180mm Height from magnet to spindle center: 395 mm Large Vernier Rings Includes 5 flanges with grinding wheels Dot diamond for magnet A dust extraction system is also available.

SURFACE GRINDER Inv. No. 12.949G1 Make COSIS Model MY7150 Serial number 476008060 Year of construction 2006 Max. grinding length 1000 mm Max. table movement 1100 mm Table dimensions 1000 x 320 mm Magnetic chuck 680 x 300 mm Max. height spindle center to table 575 mm Grinding wheel diameter Ø 350 x 40 x 127 mm RPM grinding wheel, max 1440 Volts 400 Cycles 50 Including: Coolant Emergency stop Magnetic chuck Automatics feeds

SeriesNo. 90-272 Working range X: 600mm Z: 200mm Pendulum range X: 600mm Table speed: 1-28 m/MIN Dimensions magnetic clamping plate: 500x200 mm Working Area Y : 290mm Accessories: Coolant system 85L to 500L Belt filter system, Max Grinding Wheels Size: 225x20x51 Incl. assortment (pallet with grinding wheels)
