gear cutting used for sale

max. wheel diameter:275 mm gear width: mm max. module: weight of the machine ca.:9,4 t dimensions of the machine ca.:3,7 x 3 x 2,82 m min. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mm max. gear width (internal machining):58 mm X-axis:325 mm y-axis:350 mm Z-axis:475 mm Bevel gear milling machine Gleason Pfauter including Promot Automation

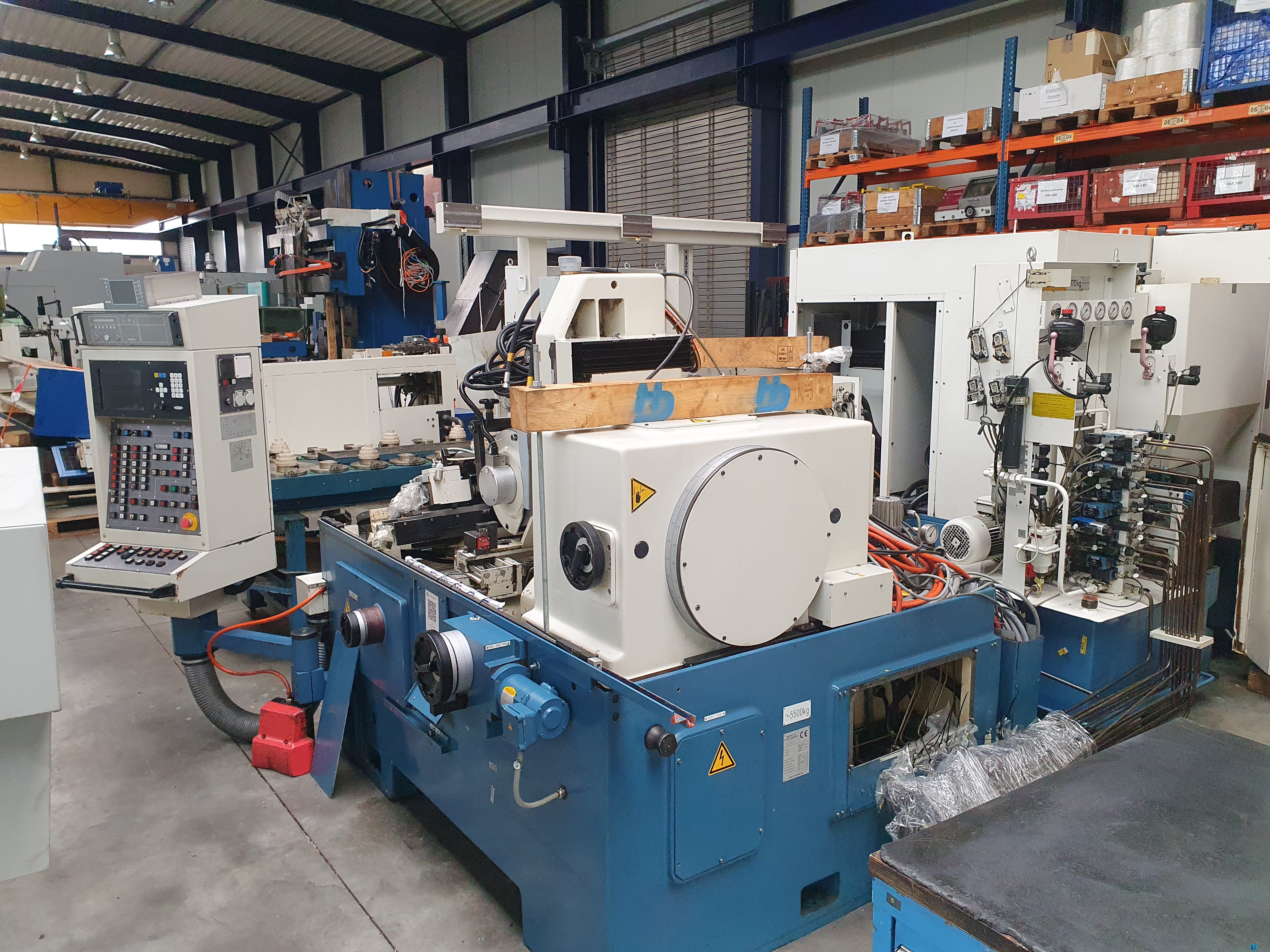

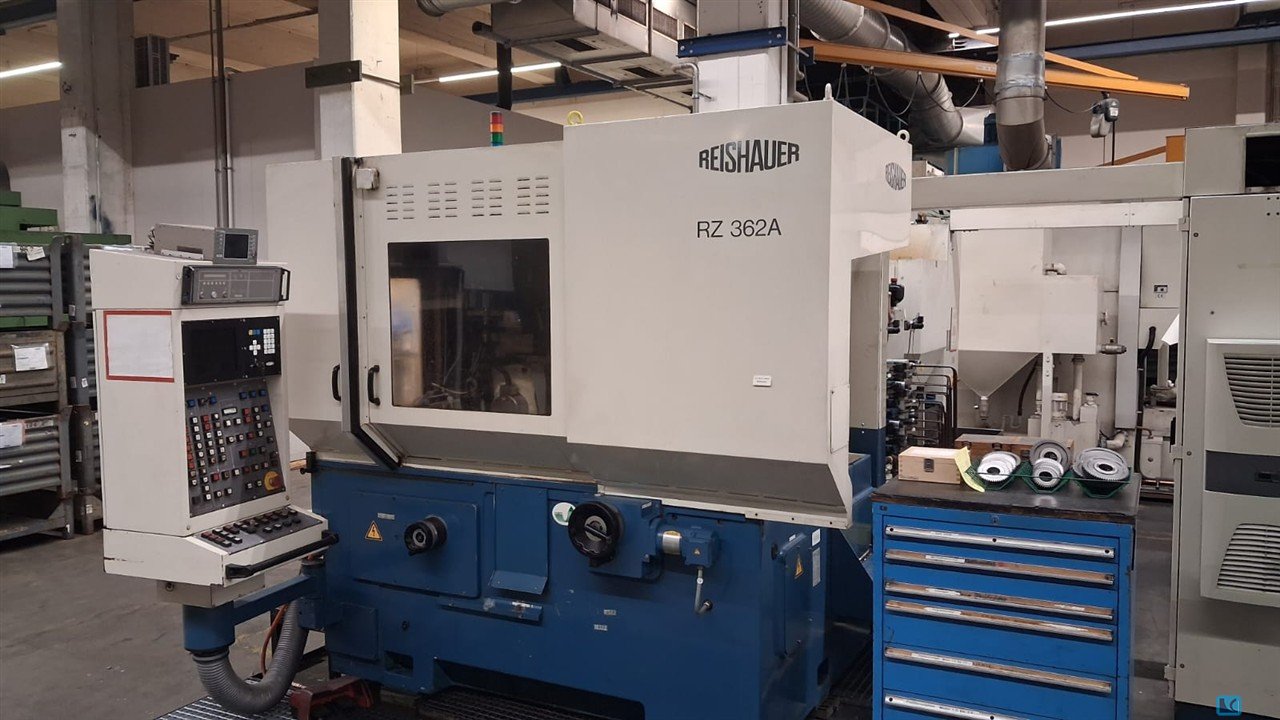

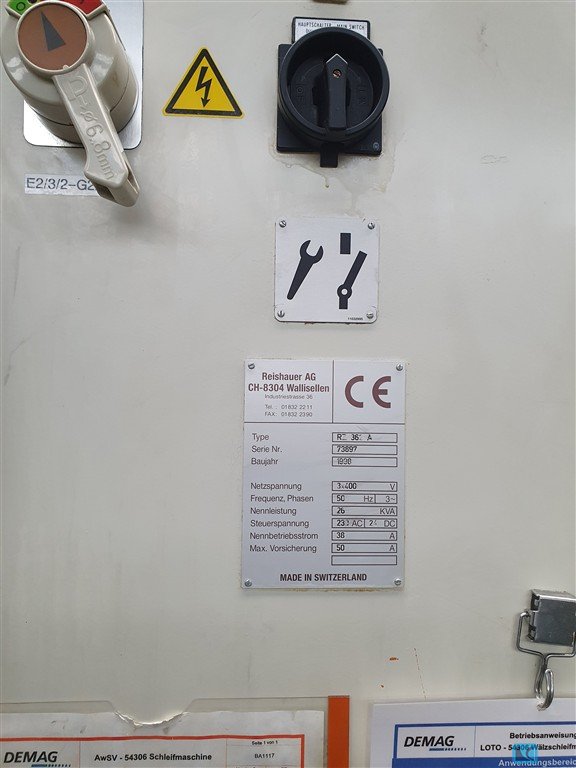

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter

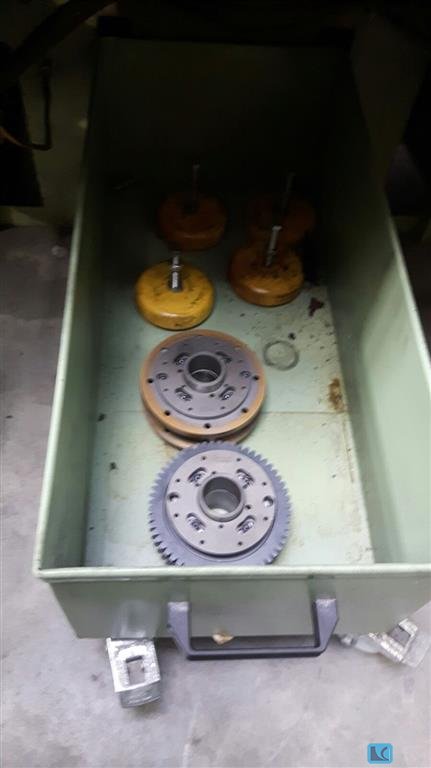

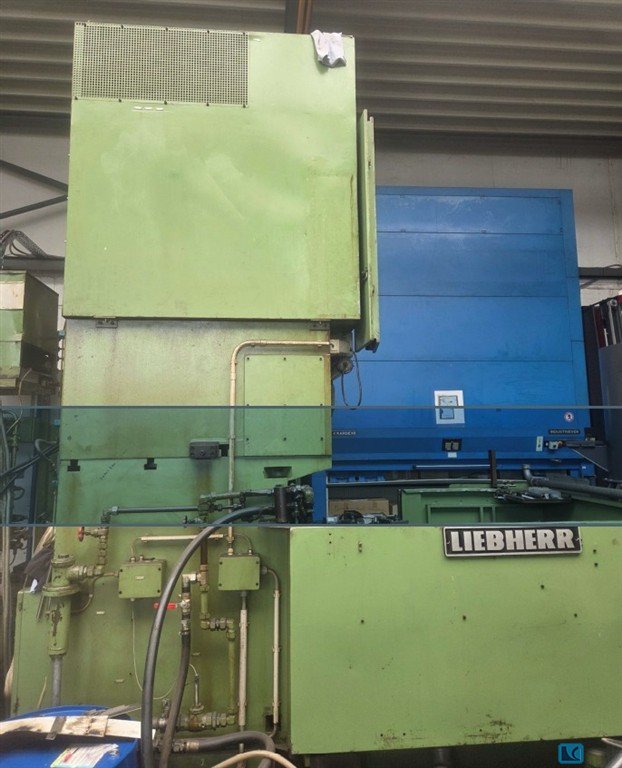

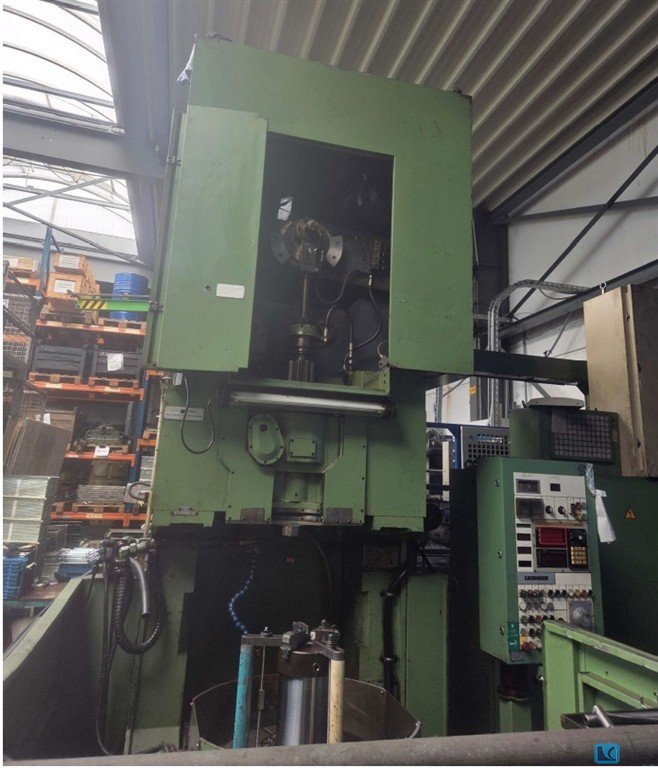

max. wheel diameter:780 mm gear width:130 mm max. module:10 weight of the machine ca.:8,5 t no. of strokes:30 Hub/min Hier fully functional machine, Little used There are some Tools and Change gears Liebherr WSC501 CNC gear shaping machine, used, ready for use Manufacturer: Liebherr Type: WSC 501 Mach.- No.: 4407/05 Year of manufacture: 1985 Details: Max. gear shaping module: 8mm (30°gears possible up to module 10°) Max. gear width: 130mm Diameter of the machine table: 500mm Maximum wheel diameter: 780mm Shut height ? table: 650mm Stroke rate min. 30DH/min Continuously adjustable max. 1500 DH/min. Operating voltage: 380V Frequency: 50Hz Control voltage: 110V Connected load: 36 kVA Rated current: 55A Weight: 8500kg Dimensions: approx. 4,85 x 3,655 x 3,78 (width x depth x height in m) The machine has seen only very limited use in our company. It remains fully operational and can be dem ...

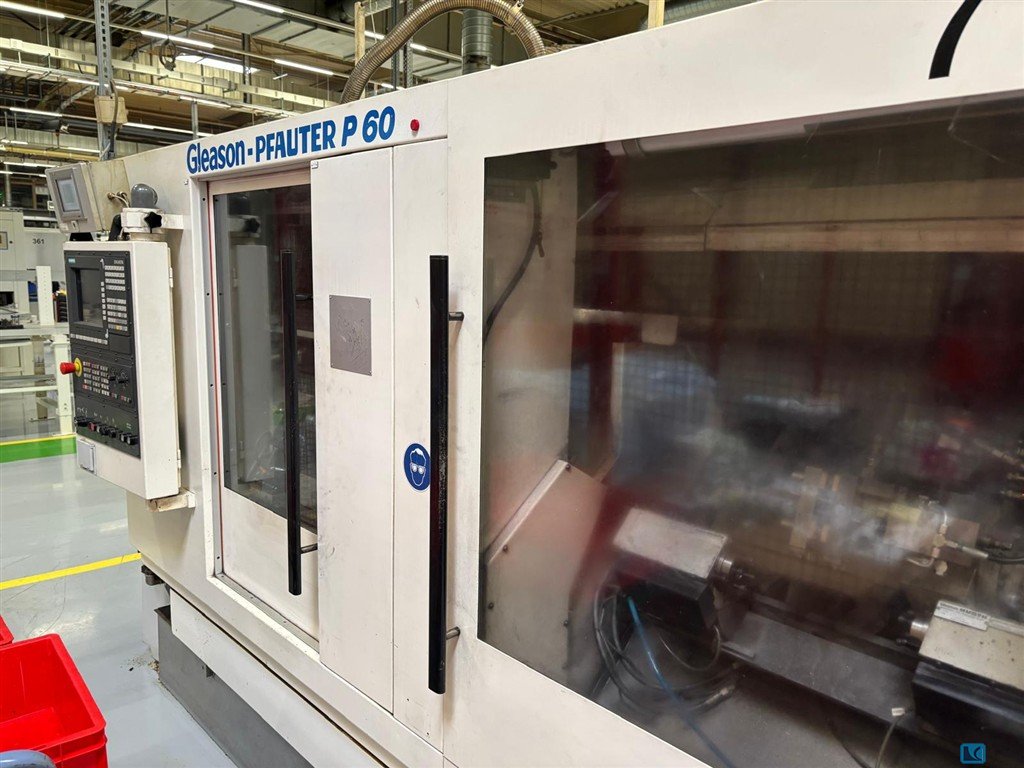

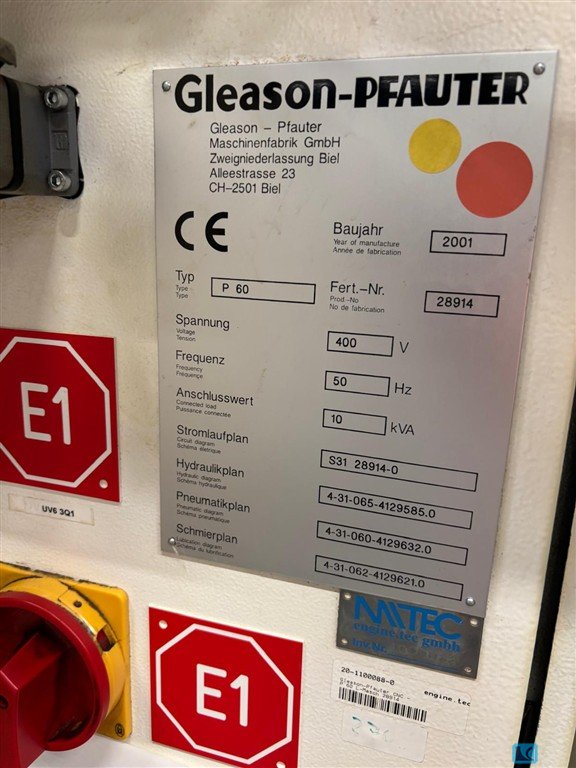

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

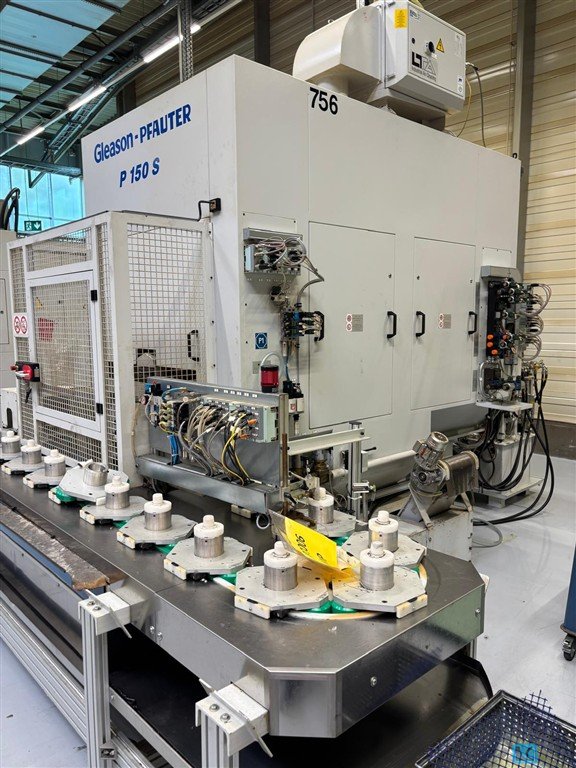

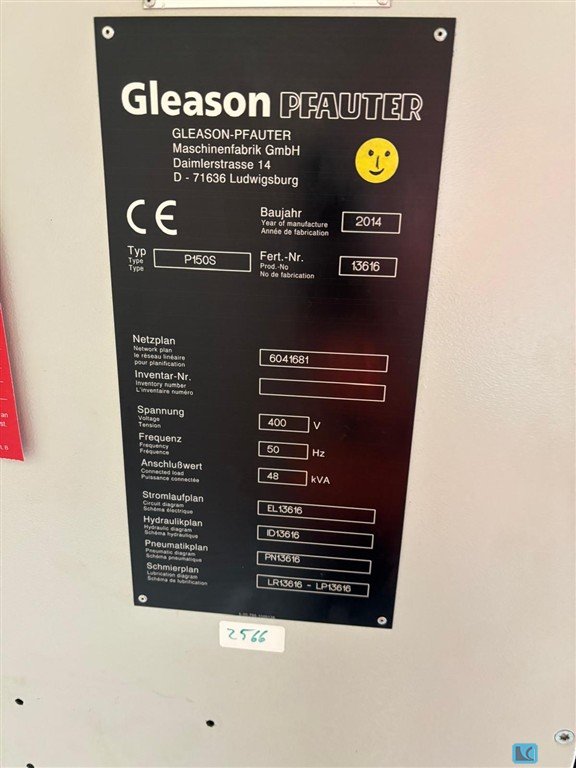

max. wheel diameter:150 mm gear width:350 mm max. module:4 total power requirement:48 kW weight of the machine ca.:13 t dimensions of the machine ca.:4,88 x 4,40 x 3,56 m spindle turning speed range:100-1000 U/min Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.

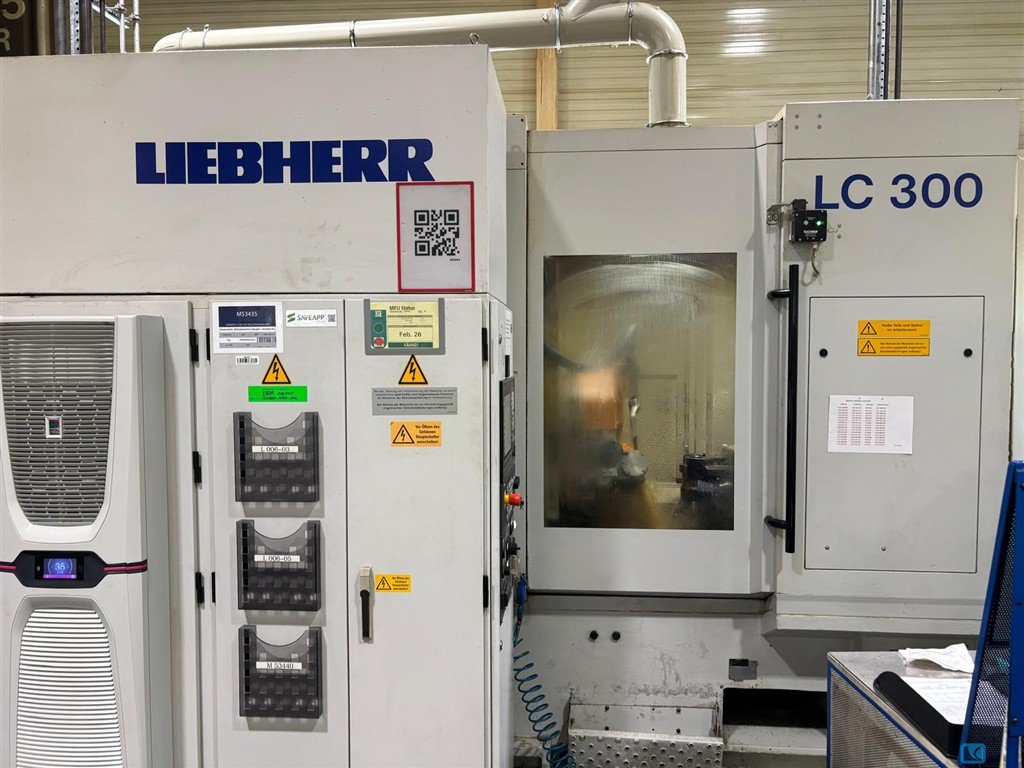

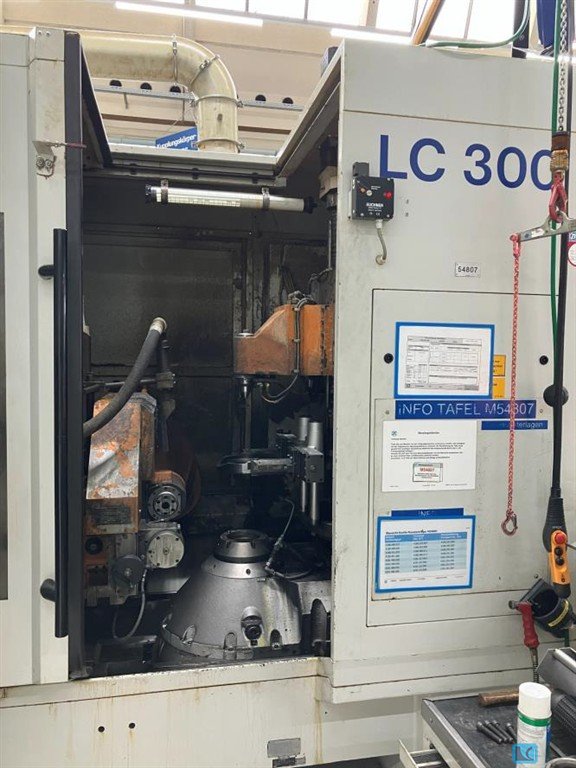

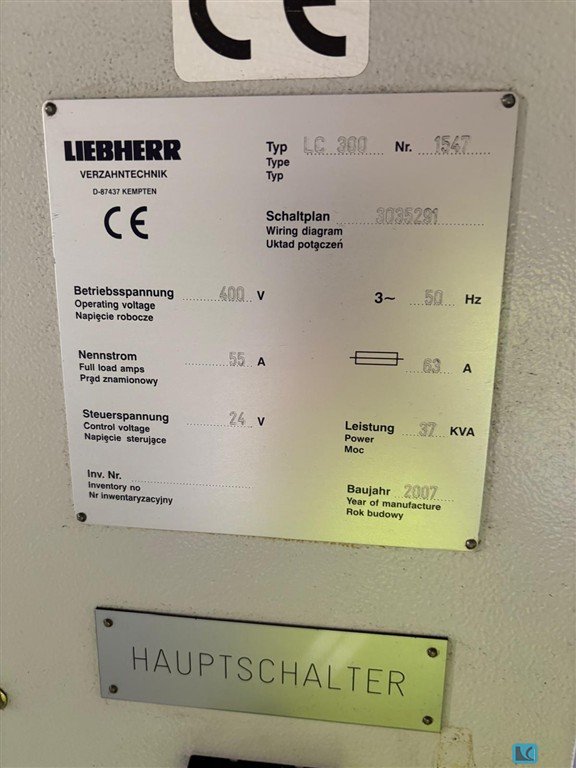

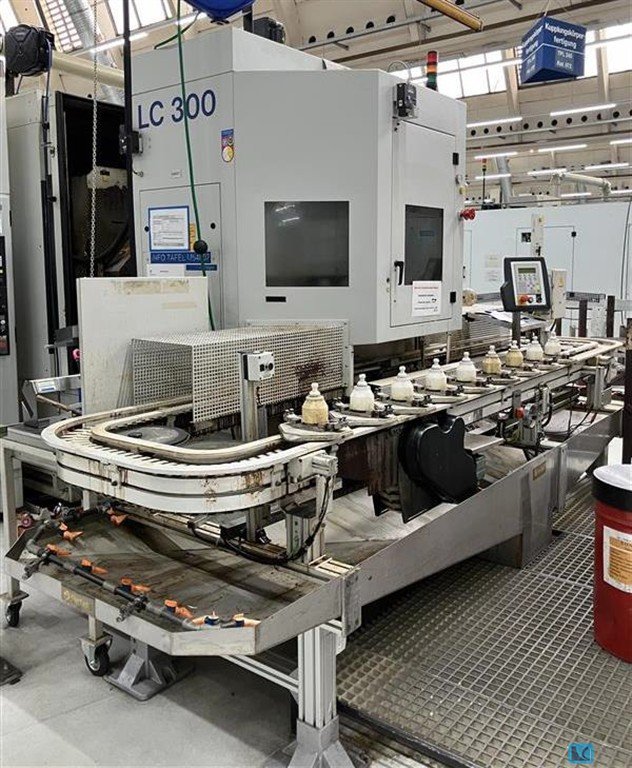

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil

max. module:7 total power requirement:26 kW weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg with Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories

max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility. Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

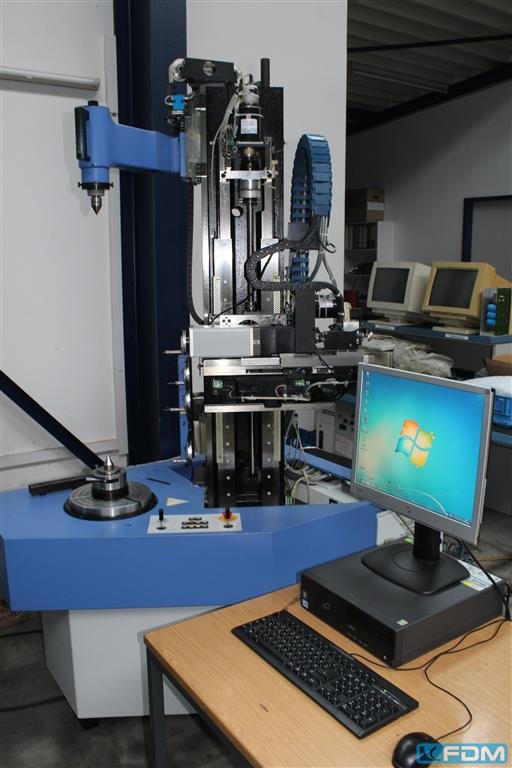

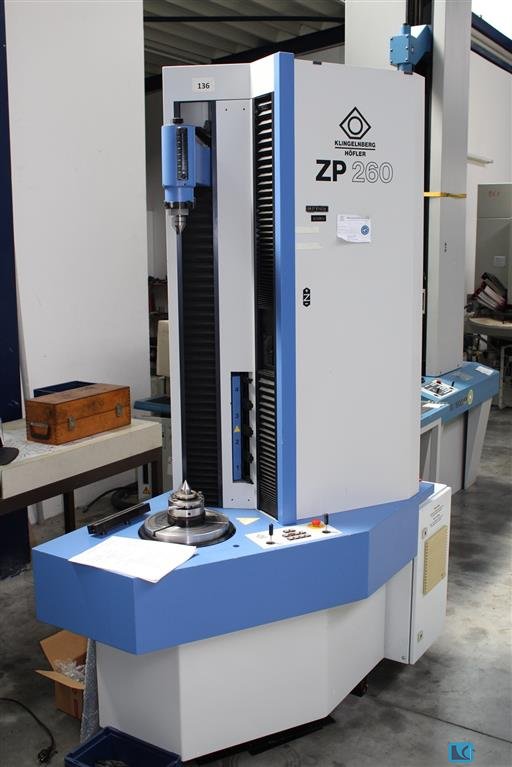

max. wheel diameter:5 - 260 mm gear width:400 mm max. module:15 min. module:0,5 gear hobbing diameter - internal:30 mm max. helix angle:> 85 ° Aussenverz. max. helix angle:> 45° Innenverz. Testing Range vertical:400 mm dist. between centers:5 - 600 mm table diameter:260 mm max. table load:100 kg speeds:30 1/min total power requirement:1,6 kVA weight of the machine ca.:900 kg dimensions of the machine ca.:200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

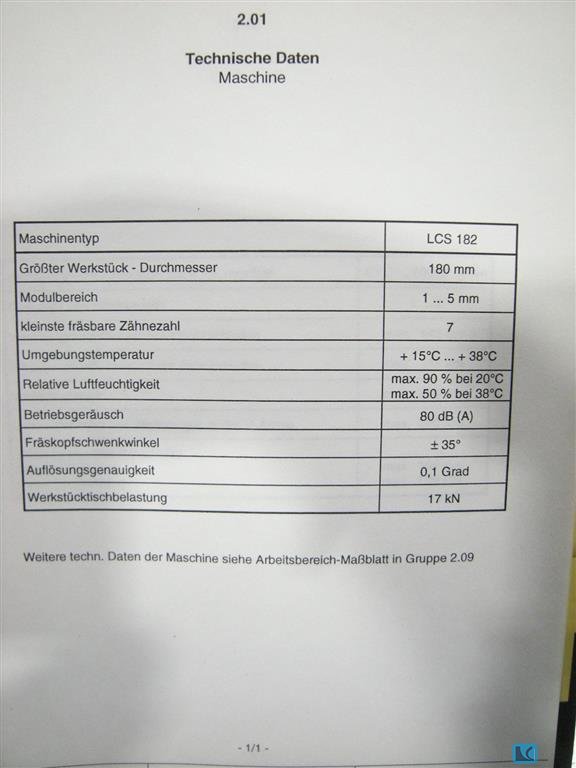

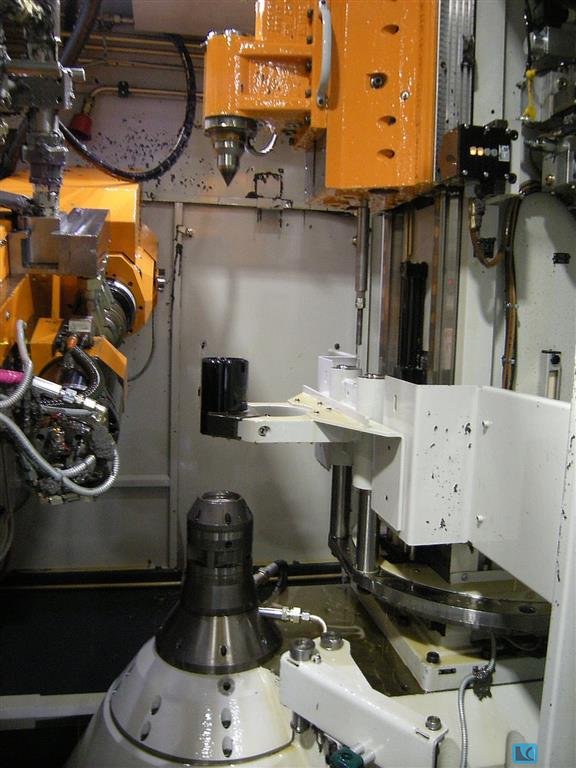

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

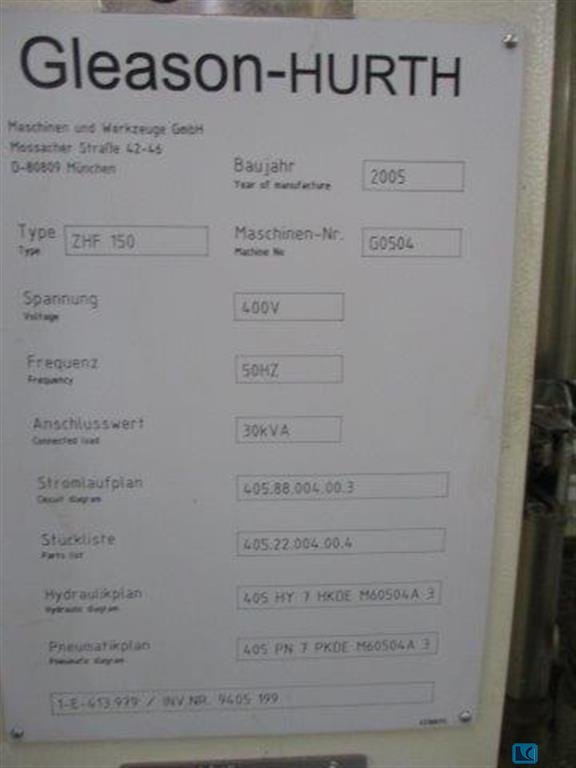

workpiece diameter:63,5 mm centre distance:350 mm honing length max.: mm total power requirement: kW weight of the machine ca.:6 t dimensions of the machine ca.:2,70x2,30x2,60 m Technical data G0504 working space Length of the clamping surface mm 1550 Number of T-slots mm 2 Width of the T-slots mm 18 Distance between T-slots mm 180 Center height (tailstocks) mm 350 Swivel range of the fine wheel head (U-axis) degrees + 30 / -30 Center distance - tailstock / fine wheel min./max. mm 120/225 Input resolution (all NC axes) mm / degrees 0.001 Delivery slide Movement range (= Z-axis travel) mm 105 Input resolution mm 0.001 tool Outside diameter min./max. mm 225/275 Hole diameter mm 160 Width mm 60 workpiece Outside diameter min./max. mm 40-150 Module min./max. mm 1.25-4.0 Tooth width max. Mm 45 weight Weight of the machine approx. Kg 5500 Operating fluid requirements Cooling lubricant recomme ...

The servoCUT 402 / 502 / 602 cutting machines is designed as a wet cutting grinding machine for cutting large / small / regularly / irregularly shaped workpieces made of metal ceramic or material compositions. Thanks to the modern joystick control, the separation process can start after just a few seconds: position the test piece clamping, the cutting disc with joystick in a hurry, press START and leave the machines (unmanned). Depending on the version available as a fully automatic version (X-Y-Z axes motorized) or manual axle delivery. The ideal equipment for all applications - enormously flexible, ergonomic operation with quick start, suitable for the smallest workpieces but also for long test pieces (driving cut) - the ideal solution for the professional (service provider in material testing, contract hardening, ...) and for difficult materials (pulse cutting, etc.) The SERV ...

Universal cutting machine with circular knife, d 250 mm

Kitchen slicer, crooked, type KSSM-V 1.4 D

Used machine CNC cutter/plotter cutting surface in X and Y: 3,500 x 2,100 mm Multifunctional CAM cutting system in CNC knife technology for the 2D cutting of leather, fabric, technical textiles, foam and other flat, semi-flexible or rigid, non-metallic materials. Equipment of the used machine: • 1 cutting bridge and 1 multifunction tool head The machine is sold with a driven round knife and a punching tool. Mu3Vqs • Multifunction tool head for holding 2 interchangeable tools • Powerful vacuum blower for fixing the material • Equipped with grey conveyor table (conveyor) as standard. Green-blue exchange conveyor possible (offers high contrast for dark materials) Other tools can be expanded (on request): • EOT electric oscillating knife • POT pneumatic oscillating knife • PRT driven round blade • UCT universal knife (drawing knife) • KCT Kiss-Cut Tool  ...

used to cut cabbage heads for sauerkraut production,, diameter of the cutting discs: 800 mm,

Plasma Cutting Machine MB - Welding Technology Type Plasmaprof 50Identical to CEBORA ash. No. 244311 Year of construction approx. 1992Power 50 Amp. = 35 % ED 30 Amp. = 100 % EDEsetting range 2 stagesHose package length approx. 6 metersCompressed air connection 4.7 barMains connection 400 Volt, 50 Hz, 32 Amp. PlugSpace required L x W x H 500 x 350 x 700 mmWeight approx. 80 kgGood condition; used

Plasma cutting machine CLOOS type CPS 40/80Year of construction 1990Power at 60 % ED 80 Amp.Power at 100 % ED 40 Amp.Adjustment range 40 and 80 Amperes (2 steps)Cutting capacity for steel max. 25 mmHose package length 5.5 metersMains connection 400 Volt with 32 Amp. Plug and hand torch CLOOndimension L x W x H 700 x 600 x 750 mmWeight 160 kgGood condition; used

CNC flame cutting machine BACH type ACW 2500Flame cutting machine with CNC control NBS 400Masch. No. 14 561-06 Year of manufacture 2006Cutting area 2500 x 6500 mmRaceway length 8000 mmTrack width 3345 mmHeight of the raceway 650 mm2x Machine cutting torchwith burning table; used

Plasma Cutting Machine, Plasma Cutting Machine MESSER GRIESSHEIM Type Plasmastar HA 95Fabr. No. 4040 Year of construction 1990Power 95 Amp. - 60% ED 45 Amp. - 70 % EDEsetting range 2 stepsCutting capacity 25 mm (clean cut)Separating cut max. 45 mmHand torch PHC 95/140Power connection 380 volts, 50 Hz, 32 Amp. Plug- Water-cooled- 8 meters hose package length- Operating instructionsSpace required L x W x H 900 x 480 x 850 mmWeight 160 kgvery good condition; used

Pipe cutting system with optical laser marking detection The FZH Vario Flex is a fully automated pipe cutting system. It is specially designed for the precise, process-reliable cutting of stainless steel pipes (e.g. for fuel, brake, air conditioning or hydraulic lines). The system has optical laser marking detection. The control panel can be used to choose whether the cut is triggered mechanically (e.g. on the back of a union nut) or fully automatically via the optical detection of a laser mark applied to the tube. Thanks to the integrated rotating 3-jaw cutting head and a micro spray unit (minimum quantity lubrication), machining is extremely gentle on the tool. The pipes remain almost completely dry and free of coarse dirt. The entire process from insertion to clamping, separating and depositing is highly automated in a material-friendly cycle process. Fully integrated ...

Filiz H2216K CNC Fabric Cutting Machine Automated CNC cutting system for flexible sheet and fabric materials, equipped with a large vacuum cutting table, travelling gantry, motorised cutting head and material roll support/unwinding system. Manufacturer: Filiz Makine San. ve Tic. A.Ş. Model: H2216K Configuration: Vacuum cutting table, travelling gantry, motorised cutting head, roll support/unwinding system and cable carriers Controls: PC-based operator station with nesting and cutting software Additional equipment: Pneumatic components and emergency stops Condition: Used Approximate dimensions: 6,500 × 3,000 × 1,800 mm Approximate weight: 2,500 kg All descriptions are indicative only. Auction-ID: A1-50546-48

Brand: MicroStep Model: MCCompact 3001.15P Type: CNC Plasma Cutting Machine Working area: approx. 3,000 × 1,500 mm — this dimension corresponds to the designation 3001.15P and the specifications of the machines in this series. Digital control: MicroStep iMSNC, visible on the screen 1 plasma cutting head/torch Sheet metal slats Motorized gantry crane with CNC travel Control panel with monitor, keyboard, mouse and emergency stop Visible fume extraction/extraction system Cabinet cooling Rittal TopTherm SK 3302100 The machine is equipped with a Kjellberg Finsterwalde PGV 2-161 unit, which is used for the management/supply of gases to the plasma system. Auction-ID: A3-46133-35231

Used veneer guillotine shear (veneer cutting machine) MONGUZZI, Italian made, ref. N0052/3454. Designed for cutting veneer sheets in a straight line with precision. Cutting length: 2600 mm. Hydraulically operated clamping beam that holds the veneer sheet during cutting. Motorised back gauge (guide) for fast and accurate adjustment. Condition: used, in working order. Auction-ID: A7-50988-121

Straightening and cutting machine rolling from Coil. used test line please ask us for your special offer.

Technical data: Machine stand, Type 539 Band saw roll diameter 1400 mm Band saw roll width 180 mm Saw blade width max. 200 mm Saw blade length max. 9300 mm Saw blade thickness 1.3 mm Saw blade speed approx. 42 m/sec. Drive power 45 kW, (1500rpm) Cutting feed requires. 22.5 m/min -Incl. electrical equipment, consisting of limit switches for saw blade voltage, path limitation for transverse movement -2 electromechanical width adjustment devices with precision spindle and two-stage special drive - designed for connecting a Fraba digitizer 2800 -2 hydro-pneumatic band saw roller brakes

Thread cutting power M 2 - M8 Speed: 700 rpm, luf requirement: 750 l/min, pressure 6 - 7 bar, working range extension: 300 - 1900 mm, Afbau parallel arm: stable arm structure made of hard aluminium profile (38x29) Weight: 23 kg, adapter holder: TCS 1 B - incl. 6 safety slip couplings according to your choice year: 2009

Material: Steel Engine: 15 kW Other data and price on inquiry. You can also get the entire system with all components.

Crosscut and miter saws with maximum cutting height of 200 mm stable grey cast iron construction precise ball bushing guide of the tool slide on hardened and ground steel shafts Manual saw feed fast up to 65 ° horizontal MITRE setting and 60 ° vertical for adjustable fixed stops lower blade guard to extractor can be connected Machine mounted on mobile machine base with 1,5 mtr. long rollers left and right left side with scale and stop position slider Technical data: Engine: 400 V / 5.0 kW Speed: 2800 RPM Cutting length: 420 mm (at 90 °) Cutting height: 200 mm (at 90 °) Miter range horizontal: 45°-90° - 20 ° Miter range vertical: 60° - 90°-30° Saw blade diameter: 520 mm Dust nozzle: 100 mm Weight: 490 kg

Thread cutting capacity: M 3 - M 12 Speed: 400 rpm Air demand: 750 l/min Pressure: 6 - 7 bar Extension: 950 mm Standard accessories: Parallel arm Air motor 6 pcs safety slip couplings of your choice guide column with mounting flange Radial boom Maintenance Pneumatic oil for initial filling

automatic CUTTING BORING and MOULDING machine BACCI TTF1 2TM . second hand machine working conditions : Excellent hydraulic drive of all the movements volt. 380/50 CE mark : YES Machine suitable for assembling part of chairs, tables, frames, furniture, wheelchair frames, etc. The BACCI TTF1 2TM performs the operations of cutting , milling and drilling at the end of the piece, either singularly or differently combined . the milling unit is composed of n.02 spindle moulders ( anti-splinter system ) machine composed by 3 working units : 1- Cutting unit : circular saw max.diam. mm.400 motor power Hp 3 2- Boring unit : boring head with 5 mandrins motor power Hp 3 3- Moulding unit . with automatic movement of the carriage on recirculating ball bearings n.02 spindle moulders (anti-splinter) motor power Hp 7,5 spindle diam. mm.35 hydraulic unit motor power Hp 2

Weight 1750 kg Length x Width x Height 1800 mm x 1350 mm x 3000 mm Machine data: rotor diameter - knife circle : 500 mm length rotor : 630 mm angular speed rotor : appr. 650 min-1 after-run duration : appr. 60 sec. motor power - depent of order: 37 kW / 1500 min-1 45 kW / 1500 min-1 idle power :appr. 30 - 40 % of nominal power. Very good condition, ready to work. You can also get the entire system with all components.

Cutting cutter Kjellberg-Eberle - used Type: SII20 Machine No.: 1331 - 220 V, 50 Hz, 2.5 kVA, IP 31 - on 04.02.1990 a new control system (NS 3003) was installed by Etek - Built in 1974 - 4 burners - Table dimensions: 6m x 2.50m - Total area: 6m x 5.5m x 2.4m In good condition!

; operational

Working width: 820 mm rotor flight circle: Ø 720 mm drive: 90 kW cutting system: 8 cutting blades equipment: mechanical adjustment of the cutting gap Machine weight: 3500 kg

AUTOMATIC CUTTING , BORING and MOULDING machine type PADE 1000 N Machine suitable for assembling part of chairs, tables, frames, small furniture, wheelchair frames, etc. The PADE 1000 N performs the operations of Cutting , milling and drilling at the end of the piece, either singularly or differently combined. All movements of the machine are controlled by pneumatic devices. composed by 3 working units : 1- Cutting unit circular saw diam. mm.350 motor power hp 3 2- Boring unit boring head with 5 / 7 mandrins motor power Hp 3 max. working stroke of boring unit mm. 130 3- Moulding unit vertical spindle for moulder motor power Hp 5,5 spindle diam. mm.30 pneumatic sliding carriage volt. 380/50

According to the description below

very well preserved, fully reconditioned MAZAK laser machines with 1500W Table format: 2500 x 1250 mm minimal footprint by 2, 6 m x 6, 5 m Small part conveyor completely encapsulated engine cover FE: up to 12mm VA: up to 6mm Plastic can incl. software including warranty incl. extraction incl. commissioning + training

Bread cutting machine Rösen & Robbert SPA 38 used sickle knife bread cutting machine with adjustable cutting width for breads up to 38cm long suitable for cutting and halving dark breads.Used bread cutting machine with cutting width adjustment of Rösen & Robbert type SPA 38.The machine runs with oiling, with sickle knife and digital steurung.Geignet to cut breads up to 38cm wide.Right compartment is inserted bread then the bread is inserted to the left. In the middle between left and right compartment, the knife rotates and cuts the bread in the desired thickness. The slices are pushed into the left compartment where they are just selected mid-disc holders. After cutting, mam can take out the slices and bag it on the tray. Easy operation and cleaning of the machine, little space requirement.Payment and shipping on request. Bread cutting machine R&R Type: SPA 38 for loaves up  ...

VESPA 30/60/18.5 VGA Cutting mill for plastics 18.5 KW, 200-300 kg/h. Insertion opening mm: 620×400 Rotor diameter mm: 300 Throughput kg/h: 200-300 Rotor blade quantity/mm: 6 x 300 Stator knife quantity/mm: 4 x 300 Engine KW: 18,5 Dimensions mm: 1210×1000×1925 Weight kg: 1500 options: Material conveying blower 4.0 kW and Big Bag filling station. Soundproofing can also be ordered at an additional cost. VESPA Granulators for Plastics – Soundproof insertion opening for minimal noise level and easy feeding with multiple alternative feed options – Horizontally or diagonally separated housing with robust welded steel construction – The cutting rotor rotates in an extremely robust self-aligning roller bearing, which is arranged in the bearing housing outside the cutting chamber. – Easy access to the knives. Knife made of high-quality tool steel with pre ...

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

VESPA 45/80/37 kWt VGA Cutting mill for plastics 37 KW, 400-700 kg. Model VESPA 45/80/37 kWt VGA Throughput Kg/h: 400-700 Rotor diameter мм: 450 Rotor knife quantity/dimensions piece x mm: 6×400 Stator Knife Quantity/Dimensions Piece x mm: 4×400 Engine kW: 37 Weight Kg: 2300 VESPA Granulators for Plastics – Soundproof insertion opening for minimal noise level and easy feeding with multiple alternative feed options – Horizontally or diagonally separated housing with robust welded steel construction – The cutting rotor rotates in an extremely robust self-aligning roller bearing, which is arranged in the bearing housing outside the cutting chamber. – Easy access to the knives. Knife made of high-quality tool steel with precision machining and surface finish – Good accessibility for cleaning and maintenance – Electrical equipment with SCHNEIDER ELEC ...

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Cutting mill for high demands in a compact class. The mill is ideal for grinding small quantities. In production, there are always surpluses, missing parts. These recyclable materials can flow back into production, so that manufacturing costs can be optimized and reduced. Cutting mill VESPA 18/32/5.5 kW VGA for plastics, cable 5.5 KW, 60-80 kg/h. Model: VESPA18/32/5.5 kW VGA Throughput Kg/h: 60-80 Rotor diameter мм: 180 Rotor knife quantity/dimensions piece x mm: 6×160 Stator Knife Quantity/Dimensions Piece x mm: 4×160 Motor kW: 5.5 Weight Kg: 400 options: With material conveying blower and Big Bag filling station Information on throughput quantities is indicative and depends on the type of material, shape, temperature, feed method, rotor configuration, blade sharpness, sieve size, etc. Dimensions (mm) A 860 B-620 C-1480 D 1250 E 325 F 220

Working width: 2000 mm rotor flight circle: Ø 1000 mm drive: up to 315 kW cutting system: 40 piece cutting bars facilities: counter knife traverse pivoting hydraulically Right-left operation Hydraulic hood opening Screen: hydraulically extendible

Cutting mill for high demands in a compact class. The mill is ideal for grinding small quantities. In production, there are always surpluses, missing parts. These recyclable materials can flow back into production, so that manufacturing costs can be optimized and reduced. 40/80/30 VGA granulator for plastics 30 KW, 350-600 kg/h. Model: VESPA 40/80/30 kWt VGA Throughput Kg/h: 350-600 Rotor diameter мм: 400 Rotor knife quantity/dimensions piece x mm: 6×400 Stator knife quantity/dimensions piece x mm: 4×400 Motor kW: 30 Weight Kg: 1960 options: With material conveying blower and Big Bag filling station Information on throughput quantities is indicative and depends on the type of material, shape, temperature, feed method, rotor configuration, blade sharpness, sieve size, etc. Dimensions (mm) A 1520 B-1430 C-2420 D 1910 E 820 F 500

Waterjet 2x3m demonstration plant about 50 hours with comfortable visualized CNC control, and comfortable CAD connection. Cutting table made of stainless steel. The plant is connection, etc. in mint, latest cutting software, AutoCAD Used pumps either Knam/H2O 40HP alternative KMT/Ingersollrand SL4 30hp completely overhauled. New surcharge KMT SL5 classic 50PS/37KW 90.000,00 Construction training & service directly from the manufacturer, including
