: neu : ca. 10 Wochen ab Auftrags : Spanien : 72800 € : 1375.92 € : 165 to : 610 mm : 5 : 40/30 bzw. 34/34 mm : 110 mm : 31 1/min : 750x20 / 400x30 mm : 205x205x18 mm : 60 mm : 16x58x110 mm : 15 kW : 2950 mm : 1600 mm : 2200 mm : 6300 kg 2 foot pedals for independent work at 2 stations hydr. drive flat bar shear angle bar shear with minimum deformation by diagonal moving of the blade round and square bar shear rectangular notching unit punching unit up to diam. 40 mm fast hydraulic, centring device oilfilling table at the punching station with gauge table at the notching unit with gauge table at the flat bar shear user manual in GERMAN and ENGLISH (sample photos) OPTION ",KIT", € 970,-- length stop 1000 mm with contact switch, for angle, flat or bar station magnetic machine lamp 10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm Furt ...

For particularly high PVC or aluminium profiles Milling cutter diameter 250 mm Milling width: 305 mm Milling depth: 200 mm Pneumatic workpiece clamps Manual feed weight: approx. 300 kg

Chiller - Eurochiller GCA9 / Very good technical condition Cooling capacity 13.3 kW Refrigerant R407C The device has: - Compressor - Separate container for medium - Circulating pump - Heat exchangers - Radiator - Fan x 1 The device after maintenance, fully functional 3-month operation warranty in Poland

Milling cutter diameter 250 mm Milling width: 305 mm Milling depth: 160 mm Pneumatic workpiece clamps Manual feed Weight: approx. 200 kg

Excellent condition - Fully operational - Loading / Transport possible! new drive boards (from 2020), 12-fold tool changer (driven), driven C-axis, VDI30, tailstock programmable, tool measuring arm T18, oil mist extraction, Chip Conveyor, high pressure pump, Turn Plus (graphic programming), control: HEIDENHAIN turning diameter: 570mm, turning diameter over bed slide: 420mm

Graule ZS 135 with roller conveyor and length stop

Graule ZS 170 with roller conveyor and length stop

Gericke PTA50 Pneumatic conveying system Stainless, Mobile pneumatic conveying and dosing system used in the food, chemical and pharma industries, working pressure 3.9Bar, volume 50L, with butterfly valve and actuator

Croissant machine POLIN, type: Gruppo Croissant 530 Avant "C" -In very good condition- - Calibration unit with belt - Longitudinal section - Cutting knife / guillotine - Winding unit - Belt of the croissant machine would have to be changed - Condition: Very good, little used - Videos can be sent Visits and test runs are possible by arrangement.

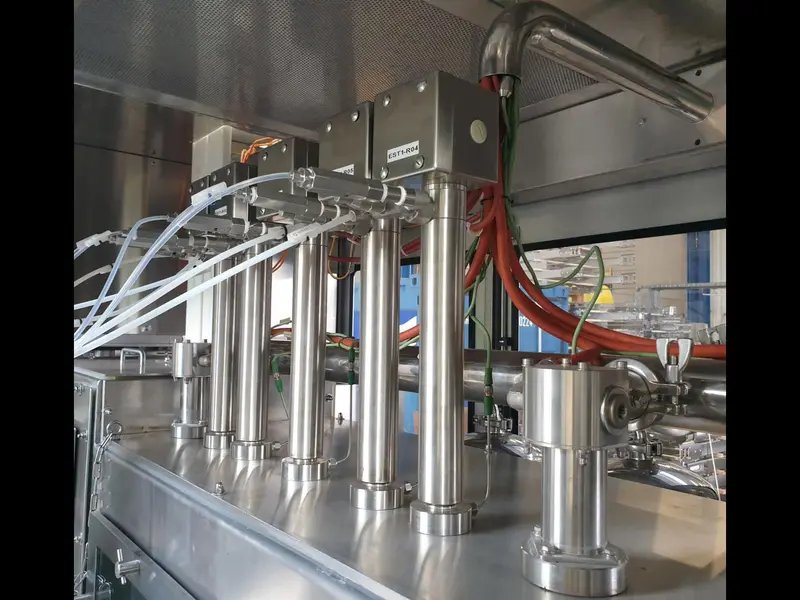

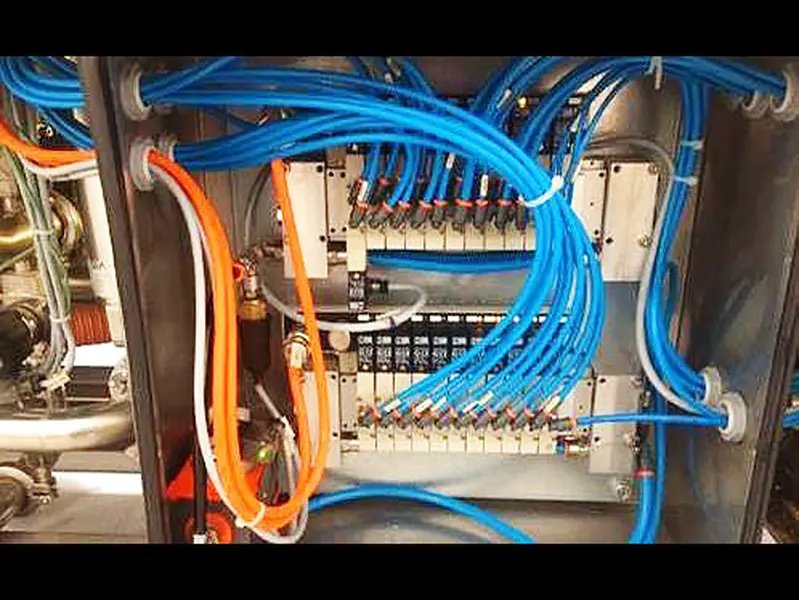

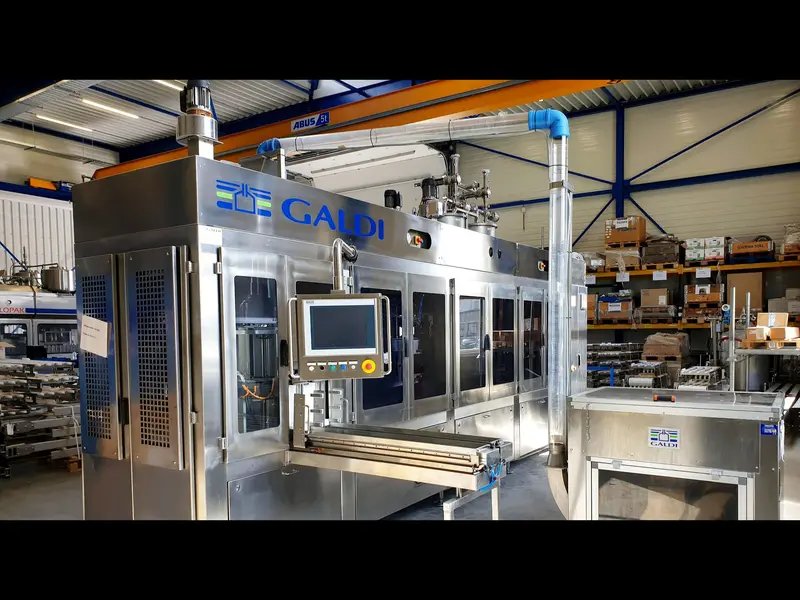

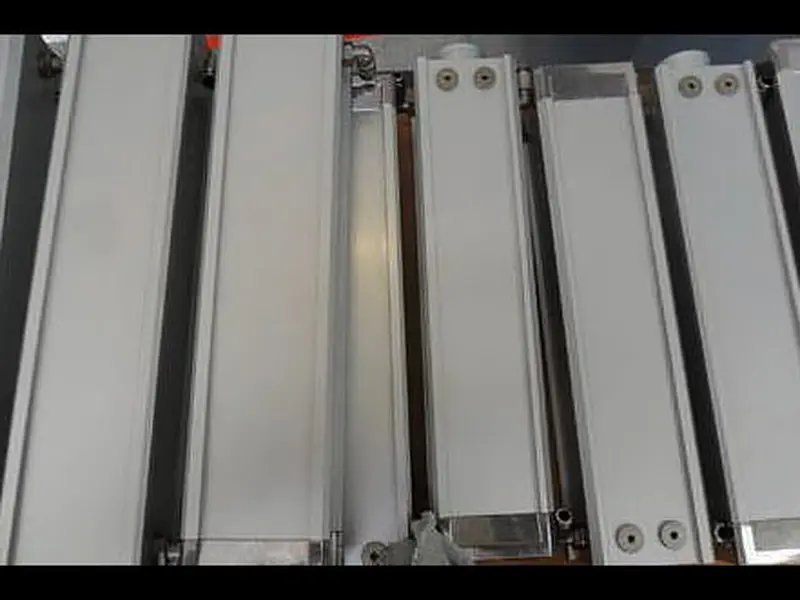

Used Filling Monoblock Galdi Up to 6000 BPH Introduction to Advanced Bottling Technology Initially, the Galdi RG260A, a high-performance filling monoblock from 2010, stands as a cornerstone of modern bottling operations. Having been recently overhauled, it showcases unmatched efficiency and reliability. Consequently, achieving speeds of up to 6,000 bottles per hour, this machine sets a benchmark in the industry. Specifically, it is engineered for Pure-Pak Daimond Standard Curve B-style T-Bottom containers. Moreover, it utilizes 36mm Elocap caps, demonstrating its versatility and adaptability to various packaging needs. Ensuring Uncompromised Product Safety of the Filling monoblock Galdi Importantly, one of the critical aspects of the Galdi RG260A is its disinfection killing rate. With up to LOG5, it guarantees the highest levels of product safety. This capability is especially crucial in ...

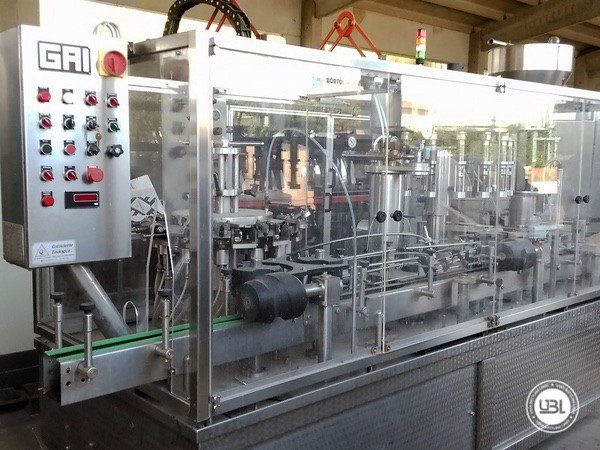

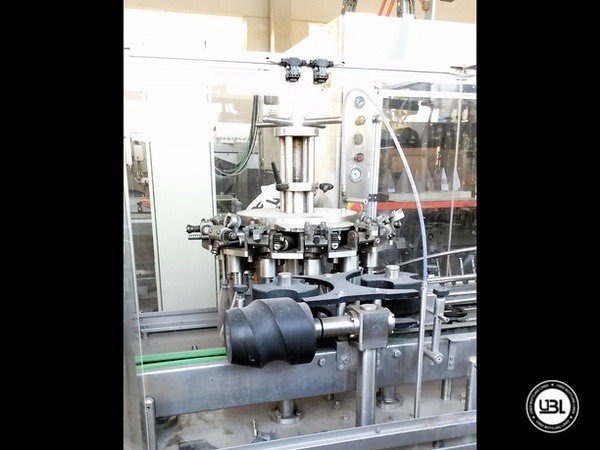

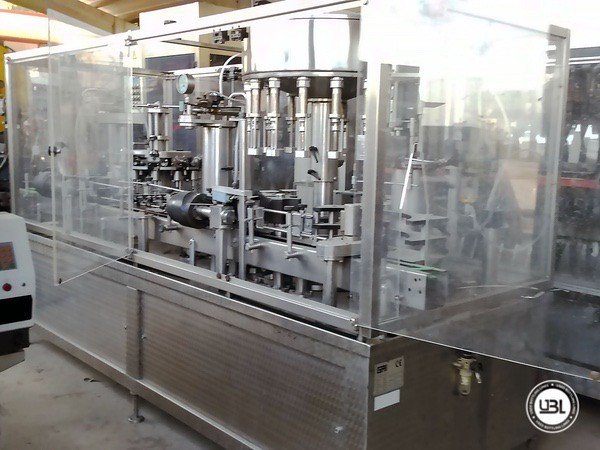

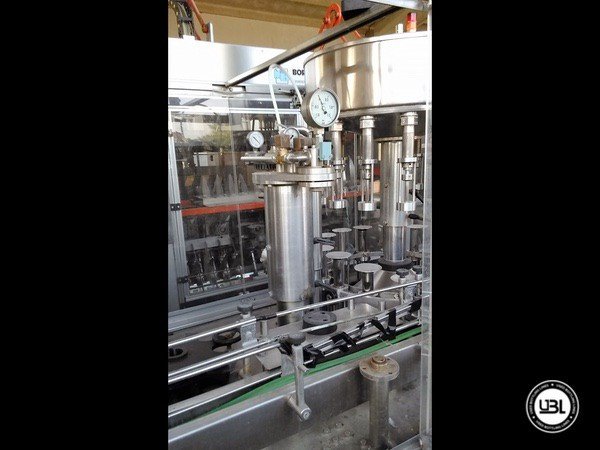

Used Filling Triblock GAI 12.1.16.1. 16 Valves 2500 Bph Rinsing machine with 12 grippers, applying a single treatment of air blown on the bottle mouth before straightening. Carousel grippers manually variable in height 1. 1-head station for vacuum and gas injection before the filling machine with variable head in height 2. Filling machine 16 light vacuum taps in bell Filling bell manually variable in height Mechanical spring bottle lifting pistons 1. capper 1 head straight cork Leveler before closing with gas injection In the used triblock there is the vacuum system before closing the bottle Head manually variable in height All frame made of stainless steel Fairing of stainless steel Safeguards on the whole perimeter Bottle from left side Year 1995 marked CE Production approximately 2.500 bph with the 0.75 Ml

Used SIG filling monoblock 6000 BPH - year 2012Technical Specifications & Performance DataThis automatic filling and capping monoblock is engineered for reliable, mid-range output in beverage production and industrial packaging environments for fresh milk. Manufactured by SIG in 2012, it combines filling and capping on a single compact frame to reduce footprint and streamline changeovers. Designed for second hand installations and upgrades of a used bottling line, it offers dependable performance with standardized utilities and CE conformity.Manufacturer: SIGModel: GTN-00Year: 2012Production speed: 6000 bphBottle formats: Compatible with 0.5L to 1.0L bottlesContainers: Designed for PET and Glass bottle handlingOperating hours: 10000+Electrical supply: 380 V, 3-phase, 50 HzFull load current: 120 ALargest motor load current: 5.4 AShort-circuit interrupting capacity: 5000 AConstruction: CE- ...

Technical Specifications & Performance Data The GAI 21116 is a second hand volumetric filler engineered for precise edible oil dosing in glass bottles. Built in 2009, this unit delivers consistent performance for small to medium-scale industrial packaging operations or as a dedicated module within a used bottling line. Manufacturer: GAI Model: 21116 Year of manufacture: 2009 Filling principle: Volumetric with self-levelling control Number of filling valves: 16 Machine configuration: Linear (non-rotary) Rated speed: up to 3000 bottles per hour (bph) Container types: Glass bottles Product application: Edible oil and similar viscosities Condition: READY FOR OPERATION Safety features: Integrated guards and interlocks Documentation: Manuals available Designed for accuracy and repeatability, the 16-head array ensures steady throughput with minimal giveaway. The linear frame simplifies access a ...

Used Filling Monoblock GALDI RG50 up to 3000 brick/hTechnical Specifications of the Used Monoblock GALDIThe Used Filling Monoblock GALDI RG50 up to 3000 bph offers high performance and reliability for producing fresh liquid products like milk, cream, and fruit juices. Consequently, it handles up to 3000 cartons per hour, making it ideal for medium-sized production plants that require fast and consistent output. Therefore, this machine stands out in terms of both speed and efficiency.Production Capacity and Carton SpecificationsGaldi developed the RG50 model to process up to 3000 cartons per hour. Moreover, the machine supports 0.25, 0.50, and 1-liter capacities, with cartons measuring 70 x 70 mm in B-style. Thus, these specifications ensure that Monoblock efficiently packages various formats while maintaining high operational efficiency. As a result, it offers versatility for different p ...

Used Filling Monoblock GAI 2405 1500 bph pre-owned monoblock filler / used bottle filling triblockThis Monoblock offers, therefore, a highly specialized solution for bottling still wine in glass containers, designed to meet the needs of technical precision and production continuity for industry operators. GAI manufactured this machine in 2005, and it achieves a filling speed of 1500 bottles per hour, which ensures, in turn, high efficiency for medium-capacity production lines. As a monoblock filling machine (often searched as a used bottle filling triblock integrating rinser, filler, and capper), this pre-owned solution is ideal for wineries seeking a compact, reliable monoblock filler within a single frame.Filling Specifications of the Used filling monoblock GAI The filling system of the GAI 2405 monoblock, meanwhile, delivers high precision in handling the product, maintaining consiste ...

Used Labeling Machine BRB GLOBUS 2800 bph The Used Labeling Machine BRB GLOBUS 2800 bph, model MEGA ADE 411 CW, reliably applies self-adhesive labels to glass and PET bottles. BRB GLOBUS manufactured this machine in 2016, ensuring it remains fully operational. Moreover, it operates with a clockwise rotation system, achieving a production capacity of 2800 bph. Structural and Functional Features of the Used Labeling Machine BRB GLOBUS The Used Labeling Machine BRB GLOBUS 2800 bph measures 2500 x 1400 x 2050 mm and weighs 1500 kg, making it compact and stable for seamless integration into existing bottling lines. Furthermore, its mechanical structure maximizes operational efficiency and includes a self-adhesive full wrap-around labeling station, which fully covers each container. Additionally, the machine’s movement system relies on mechanical cams, which precisely position containers ...

Labeling machine for sale with optical centering 6000 bphTechnical Specifications & Performance DataThis P.E. Labellers rotary adhesive labeler with optical centering is engineered for precision bottle decoration within a used bottling line or new installations. Built for consistent, high-quality labeling across beverage production environments, it balances speed with accuracy and repeatability.Manufacturer / Model: P.E. Labellers – 8T 4S 4E adhesive SL GlueYear of manufacture: 2007Production speed: up to 6,500 bottles per hour (bph)Stations / Plates: 4 adhesive stations; 8 motorized plates with dedicated photocellsOptical centering: Advanced system for precise label alignment on decorated, embossed, or irregular bottlesLabeling applications: Body, back, neck and optional L-/U-seal for caps (via dedicated adhesive unit on trolley)Container types: PET and glass bottles; adaptable for ...

Used Labeling Machine plus capsuling machine GAI 6206CH 001 1200 bph General machine features This Machine integrates efficiently into low and medium capacity bottling lines. GAI manufactured this unit in the year 2012 and configured it to operate at a nominal speed of 1200 bottles per hour. Therefore, this output makes the machine suitable for operations that require flexibility, reliability, and compatibility with various container formats. In addition, its design supports a wide range of production environments. Capsuling unit configuration The capsuling unit rotates in a clockwise direction and uses rotary motion to handle capsule application. Specifically, the machine includes two independent heads. One head applies heat shrink or poly capsules for still wine. The other head applies tin or polylaminate capsules for sparkling wine. As a result, this dual head configuration allows ope ...

Used Shrink Wrapper GIEMME VEGA 30 up to 1200 Bundles/Hour General Features This Used Shrink Wrapper is a highly efficient bottling machine. Manufactured by GIEMME in 2010, this model offers reliable performance for high-speed production lines. Moreover, it uses neutral film for packaging, ensuring a clean presentation of the final product. This system handles the minute bottle formats of 0.20 L and 0.50 L, thus providing flexibility for various production needs. Technical Specifications of Used Shrink Wrapper GIEMME VEGA 30 This machine operates fully automatically, optimizing production processes. Furthermore, the Shrink Wrapper GIEMME features a straight feed, allowing a continuous flow of products. Additionally, the availability of a tray enables efficient handling of multiple packages. The electrical specifications include operation at 240 V, power of 58 kW, and a frequency of 50 Hz ...

Used R&G 12 capsuling machine - 12000 BPHTechnical Specifications & Performance DataThis single-station R&G capsuling machine model Z 12 is engineered for high-speed capsule application in professional wine bottling environments. It combines PVC capsule heat-shrinking with sparkling wine hood folding/smoothing in an interchangeable turret configuration, delivering reliable performance for industrial packaging and beverage production.Production speed: up to 16,000 bph with PVC heat-shrinking; up to 12,000 bph for champagne/sparkling hood smoothingApplication technologies: PVC shrink capsules and sparkling wine capsule folding/smoothingNo. of heads: 12 heat-shrinking heads interchangeable with 12 pneumo-mechanical folding/smoothing headsRotation/infeed direction: left-to-right, clockwiseCapsule magazine capacity: approximately 10,000 piecesBottle handling: designed for glass bottles and st ...

Technical Specifications & Performance Data The Bertolaso S.GLORIA 500 is a second hand straight-cork capping machine engineered for reliable performance in beverage production environments. Purpose-built for still wine in glass bottles, this unit offers steady throughput and precise cork application suited to a used bottling line focused on industrial packaging efficiency. Manufacturer: Bertolaso Model: S.GLORIA 500 Year of manufacture: 1994 Category: Capping Machine (Straight Cork) Rated speed: up to 2,500 bottles per hour Container type: Glass Bottle formats: 0.06 L, 0.375 L, 0.75 L Number of capping heads: 1 Cap types: Straight natural cork and compatible synthetic corks (e.g., Nomacorc) Product types: Wine (Still) Rotation direction: Clockwise Condition: In storage Advanced Automation & Control Systems Designed for consistent, repeatable corking at industrial scale, the S.GLORIA 500 ...

Technical Specifications & Performance Data The Robino & Galandrino Vulcan 3000 L is a reliable second hand capsuling solution engineered for consistent application of PVC capsules on bottles within a professional used bottling line. Built for industrial packaging environments and beverage production, it delivers stable throughput and clean finish quality for premium presentation. Model: Vulcan 3000 L Manufacturer: Robino & Galandrino Year of manufacture: 2001 Category: Capsuling machine Nominal speed: 3002 bottles/hour No. of heads: 1 Capsule type: PVC (historically processed diameters approx. 31–34 mm) Formats capability: multiple formats (previously set for up to 3) Container compatibility: primarily glass bottles (wine and spirits); can be integrated alongside PET and other container materials within mixed-material lines where applicable Dimensions (W x L x H): 1940 x 1160 x 202 ...

Used Premix Procomac Starmix - 8000 BPHTechnical Specifications & Performance DataThe Procomac Premix Starmix 15000 is a robust premixing unit engineered for beverage production environments within a used bottling line or as part of a second hand industrial packaging setup. Designed to prepare still and carbonated beverages prior to filling, it delivers consistent mixing quality and stable carbonation control for water and soft drink applications. Built for reliability, this unit integrates seamlessly into modern bottling equipment and packaging machinery workflows.Manufacturer: ProcomacModel: Starmix 15000Year of manufacture: 1993Maximum output: 8000 (dependent on product and configuration)Containers: Designed for PET and Glass bottle handlingProcessed products: Still water, sparkling water, soft drinksWorking pressure: 6 barDimensions (L x W x H): 2400 x 4100 x 4000 mmWeight: 2000 kgEl ...

Used Sidel Aseptic filling line 48000 BPH - year 2020Technical Specifications & Performance DataThis used bottling line is a Sidel PET aseptic Blow–Fill–Cap combi configuration engineered for high-speed beverage production. Designed for dry aseptic applications, it delivers consistent performance for sensitive products while maintaining hygienic integrity throughout the process.Manufacturer: SidelLine type: PET aseptic Blow–Fill–Cap combiProduction speed: 48,000 bphCurrent product: PET bottled water, milkApplication: Dry aseptic; suitable for milk, juice and waterAvailable bottle volume: 230 ml (0.23 L)Main equipment year: 2020 (blowing, filling, bottle dryer, etc.)Blower model: Matrix XS P50 (SBO 22/28/26 Matrix XS P50)Filler/Combi model: FMa-COMBI CAPDIS-24kBottle dryer: 5 sets, includes conveyorSteam generator: Spirax Sarco, 200 kgAir compressor: AF L5S, 35 bar, 22 ...

Technical Specifications & Performance Data Line type: Used complete bottling line (second hand) configured for PET still water Manufacturers: Krones and Gebo Cermex Year of build: 2013 Nominal speed: up to 31,500 bottles/hour (0.35 L and 0.50 L) Bottle formats: 0.35 L, 0.50 L Container type: PET with 29/25 neck Product type: Still water (non-carbonated) Main modules: Krones Contifeed preform feeder, Krones Preform Check Inspector, Krones Contiform stretch blow molder, Krones ErgoBloc L 40-15 blow–fill–cap monoblock, Krones Checkmat cap inspector, Krones Contiroll roll-fed labeler, Gebo Cermex shrink wrapper, Gebo Cermex case packer Line condition: In production Documentation: OEM manuals available Safety: Safety features and guarding included Advanced Automation & Control Systems This used bottling line leverages Krones’ integrated line control for synchronized blow moldi ...

Used Bottle Rinser PROCOMAC Gripstar up to 6000 bph This Used Rinser not only delivers high efficiency but also ensures excellent performance for bottle rinsing. Procomac manufactured this system in 1999, and designed it to operate at a maximum speed of 6000 bottles per hour (BPH). As a result, this setup guarantees optimal performance in production lines. The rinser handles bottle formats ranging from 0.20 to 1.5 liters, providing versatility and adaptability in different production settings. Furthermore, its robust construction adds to its overall efficiency. Technical Features of the Rinsing Machine PROCOMAC Gripstar The Gripstar rinser features 32 grippers that operate in a clockwise rotation. Consequently, this design stabilizes the bottles during the rinsing process and reduces the risk of damage or malfunction. In addition, the system incorporates fixed nozzles, which simplify mai ...

Used bottling line GAI for still wine up to 1000 bph Bottling line structure of the Used GAI filling line for still wine The line operates as a fully automated system that bottles still wines at a rate of up to 1000 bottles per hour. Consequently, the system ensures a seamless process by including a GAI filling and corking monoblock, an MEB ADL10 S2 labeling and capsuling machine, and an integrated conveyor system that guarantees continuous operation. Furthermore, each component is designed for efficiency and reliability. GAI filling and corking monoblock This bottling line for still wine features a GAI monoblock that fills and corks bottles within a single unit. Specifically, the filling system uses eight filling valves that operate under vacuum to optimize efficiency and, as a result, reduce product oxidation. Moreover, the corking system includes a single head corker designed for stra ...

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:Sinumerik 840D sl MDynamics Operate turning speeds:10.000 1/min Spindle power:26/20 kW max. torque on the spindle:340/262 Nm tool taper:HSK-A 100 tool change unit:120 (2x60) Pos. Pallet changer 2x:630 x 630 mm table load capacity:800 kg weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don?t accumulate on pallet, they can fall free into the chip conveyor CNC controlled U-axis enables radial movement of tool for variable spindling diamenter. twin pallet changer 630 x 630 mm 6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis special hydraulic pump for fixture coolant through spindle  ...

x-travel:600 mm y-travel:770 mm z-travel:675 mm total power requirement:47 kW weight of the machine ca.:13 t Tool bore:HSK-A63 numbers of tools in magazin:40 including additional tool magazine ZM 182 1 spindle , 5 axes Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Single-Spindle Mechanical processing cylinder head VR6

spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

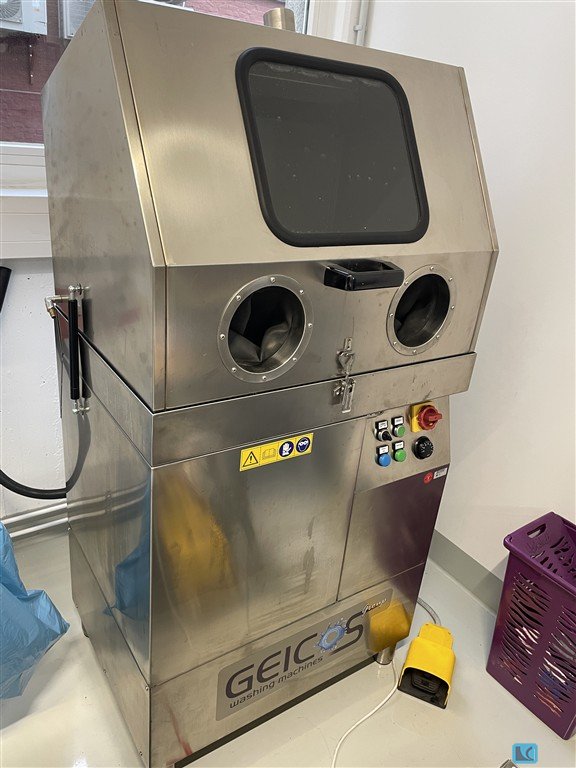

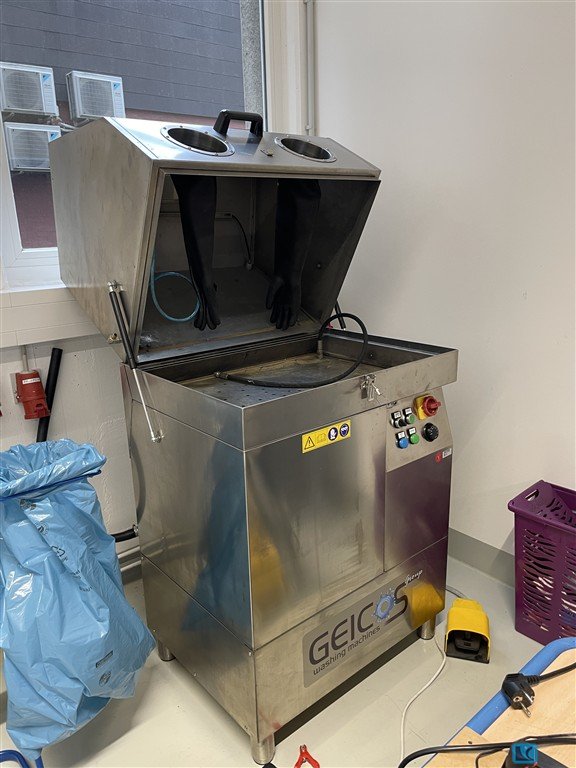

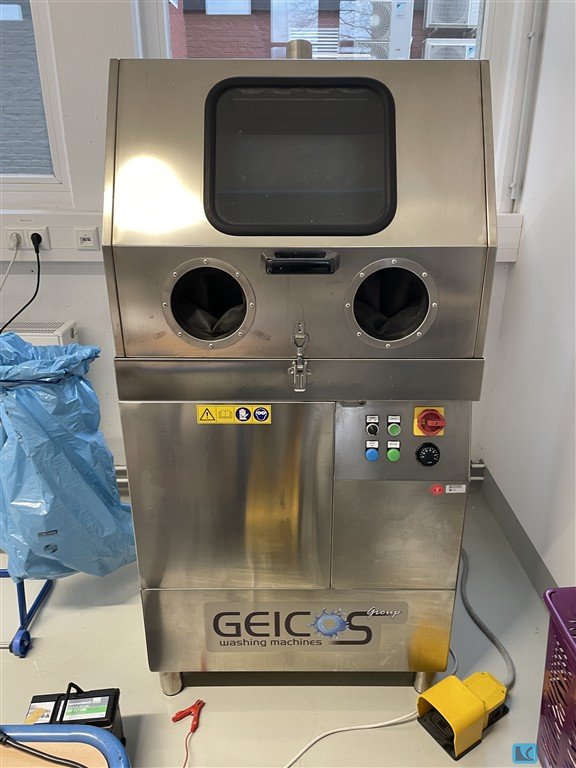

Max. basket weight:50 kg Temperature for washing water:0-60 °C Electrical heating power:2 kW Rated power supply:230 V Machine size LxWxH:600x800x1650 mm Machine weight:90 kg DIMENSIONS DxWxH 600x800x1650 mm POWER SUPPLY 230 V DETERGENT water PUMP POWER 1.2 kW TANK CAPACITY 100 l LOAD CAPACITY 50 kg HEATING ELEMENTS POWER 2 kW HEATING TEMPERATURE 0-60° WORKTOP DIMENSIONS 750x550 mm WEIGHT 90 kg

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5
