force control used for sale

X-axis 1250/420 mm Y-axis 510/315 mm Z-axis 480 mm B-axis 220° C-axis 360° Drive power 19 kW Max. spindle speed 12000 rpm Tool holder SK40 33 tool positions

Year of construction: 2011 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Heat compe ...

Controlled Axes 4 axes (X, Y, Z, and electrospindle continuous rotation A-axis) Axis Strokes X-axis (Longitudinal): 7,700 mm Y-axis (Cross): 270 mm Z-axis (Vertical): 420 mm A-Axis Travel 0° to 180° continuous rotation (allows machining on 3 sides directly, up to 5 sides with angular units) Working Modes Single-piece (up to 7.7 m), multi-piece, and pendular/dynamic pendular (two independent work zones) Electrospindle Power 7.0 kW (S1 continuous duty) Spindle Speed Up to 16,500 RPM Tool Holder / Cone HSK-50F Tool Magazine 8-slot automatic tool changer mounted directly on the X-axis carriage Tool Compatibility Accommodates milling bits, 1 angular unit, and saw/disc blades up to Ø 180 mm

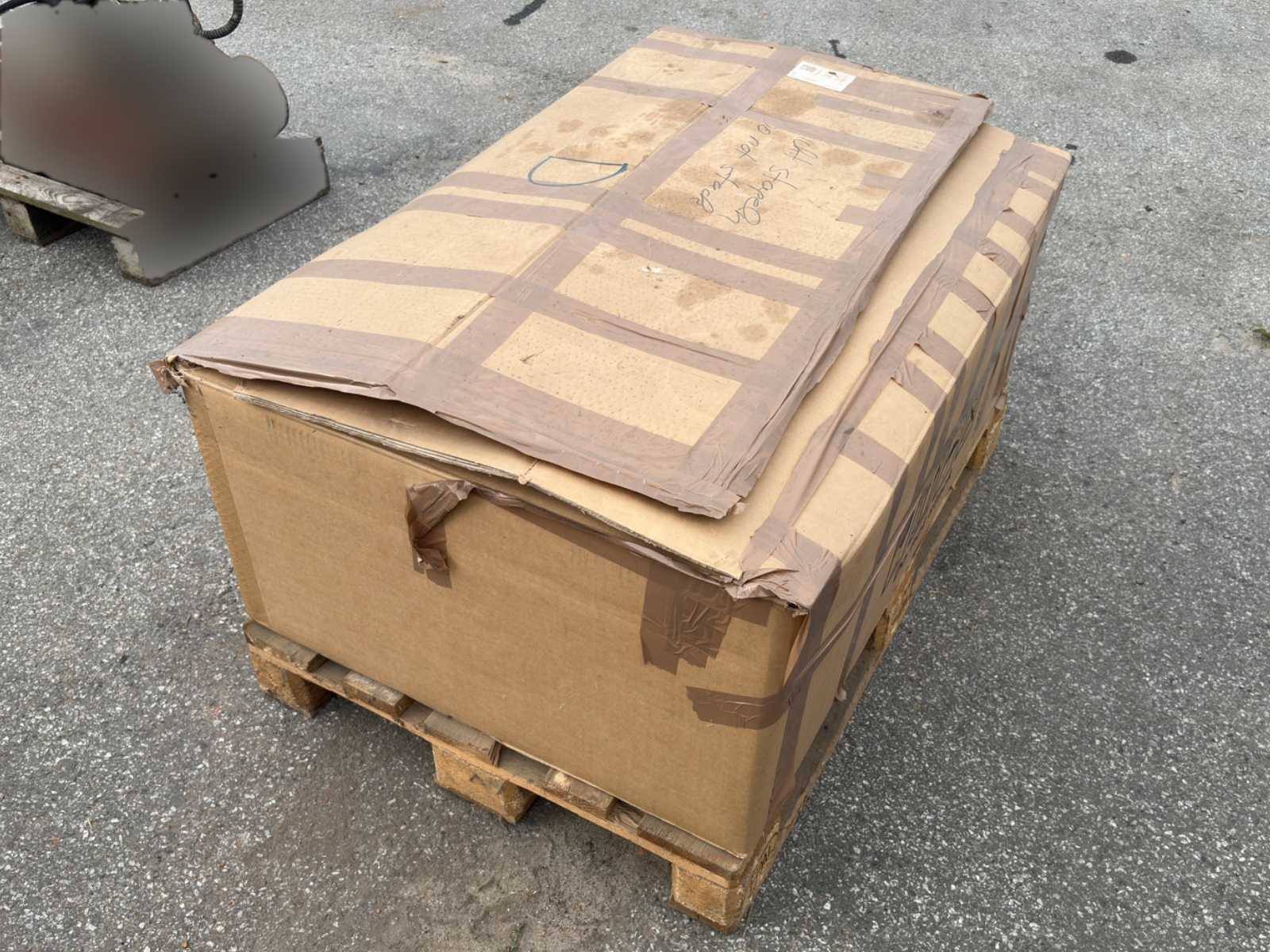

For sale is an original Doosan VCU K400 controller kit (kit) in original packaging. The scope of delivery includes the VCU K400 controller as well as the associated components such as wiring harnesses, hydraulic hoses, valves, electric steering actuator, adapters, switches, relays and mounting hardware according to the attached parts list. The set comes from stock and is sold as an unchecked complete set according to photos. Original Doosan Genuine Parts VCU K400 controller included Wiring harnesses and electrical components Hydraulic hoses and valves Electric Steering Actuator Mounting material and seals Original packaging Parts list available Auction-ID: A1-49587-8092

turning diameter:570 mm turning length:1000 mm dimensions of the machine ca.:3,25 x 2,03 x 1,95 m Tool disc turret for 8 tools with VDI 30. Not for power tools machine manual, technical documentation; Accessories: 3-jaw chuck, various tool holders Video is available

turning diameter:570 mm turning length:- mm control:- Diameter of rotation above the bed slide:360 mm Maximum width:2.000 mm revolutions per minute:max. 2500 U/min :11 kW max. longitudinal feed:7,5 m/min max. transverse feed:7,5 m/min rapid traverse longitudinal:12 m/min rapid traverse cross:15 m/min Pinole diameter:95 mm Pinolenhub:220 mm Pinolen intake: MK 5 weight of the machine ca.:2,97 t dimensions of the machine ca.:3,8m x 1,3m x 2m m Technical description: - Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc - Machine bed - made of perlite casting GG-26 - high stiffness due to strong ribbing - Bed slides - guideways hardened and ground - automatic lubrication of the bed rail - Reitstock - manual - Quick clamp - Operator station - two movable handwheels on the operator panel - a movable handwheel - Control - "Siemens 828 D" CNC control - Siemens "Comfort" (in ...

turning diameter:500 mm turning length:1500 mm Technical Specifications: ·Turning diameter over cross slide: 290 mm ·Spindle bore: 71 mm ·Speed range: 3?2,800 rpm ·Rapid traverse speed: 10 / 5 m/min ·Feed rate: 1?2,000 mm/min ·Total power requirement: 22 kW ·Machine weight: approx. 3.2 t ·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t

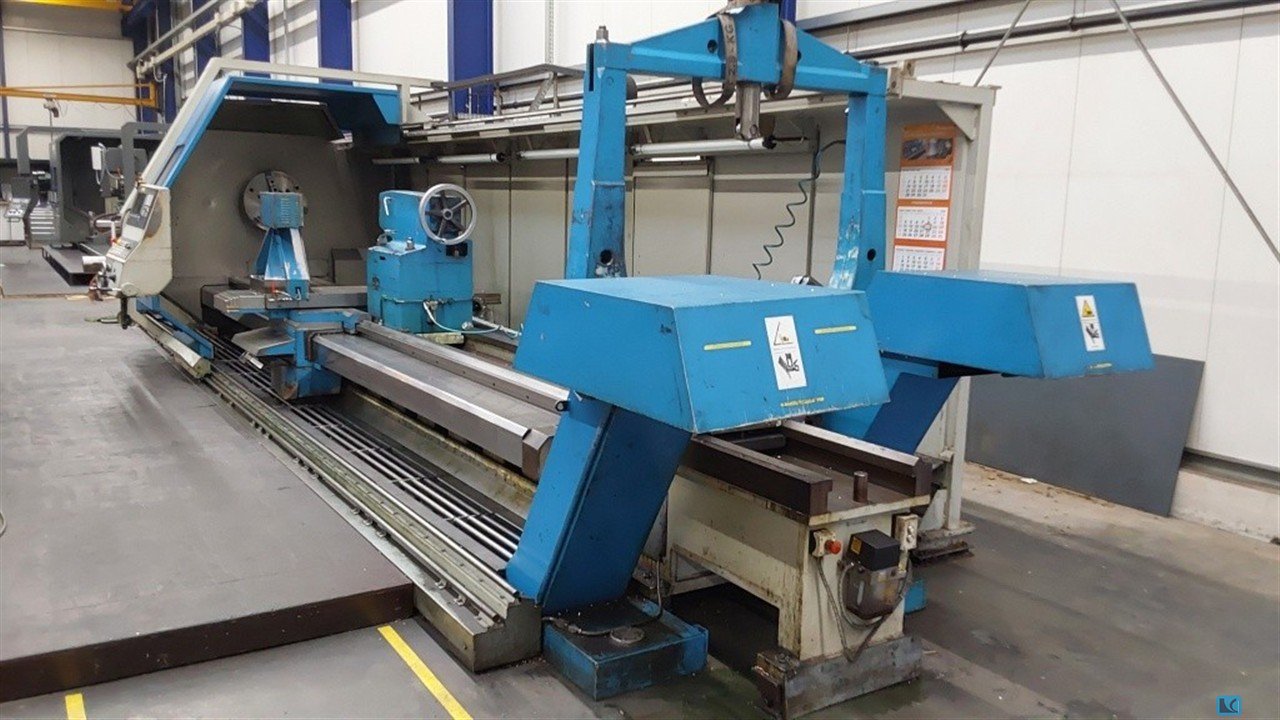

turning diameter:1600 mm turning length:6200 mm spindle bore:130 mm turning speed range:5 - 710 U/min turning diameter over bed slide:1250 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus, diameter 630 mm 3 x fixed liners (1200 / 570 / 400 mm) Coolant system and chip conveyor Miscellaneous accessories

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

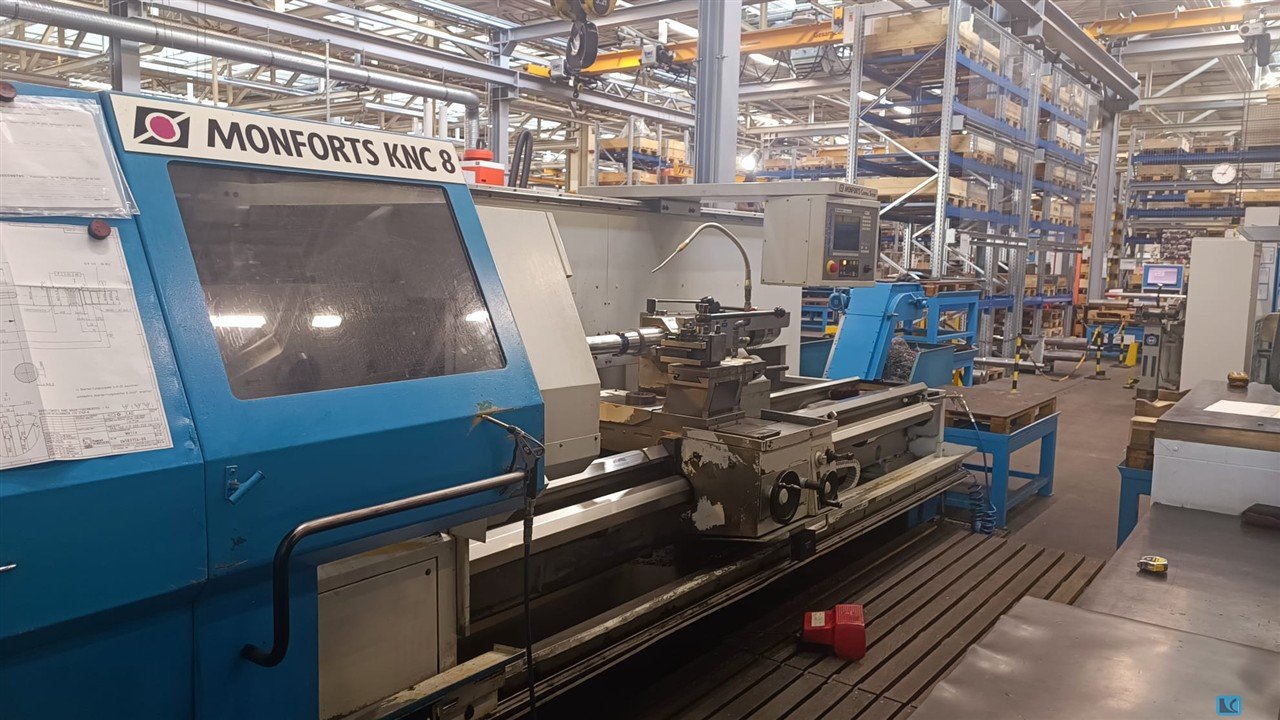

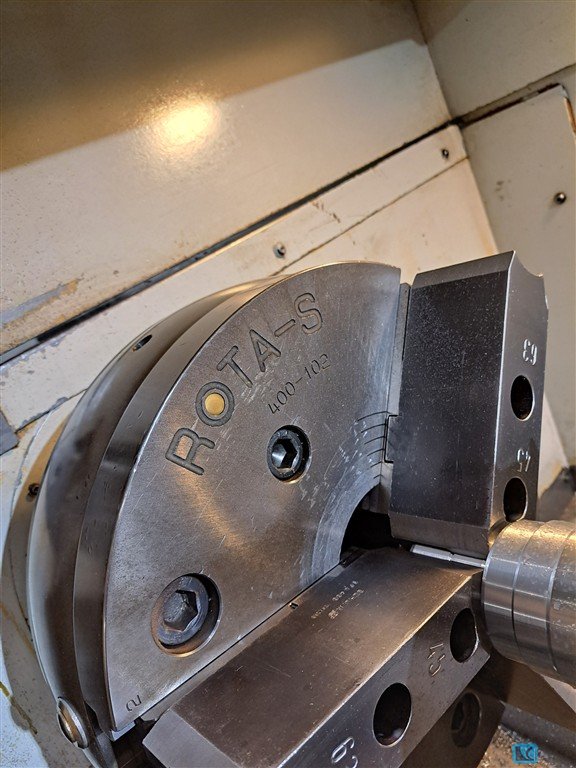

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor
