The Fogg Monoblock Filler is a type of packaging machine designed for
filling and capping bottles, typically used in industries like
beverages, pharmaceuticals, and cosmetics. Here’s a brief
description:, Features:, - Monoblock Design: Combines filling and
capping processes in a single machine, enhancing efficiency and
reducing the footprint on the production line., - Suitable for 38mm
Caps: Specifically designed to accommodate 38mm diameter caps, which
are commonly used in various bottle types., - Filling Mechanism:
Utilizes a volumetric or gravimetric filling system to ensure accurate
liquid filling, essential for maintaining product integrity and
compliance with regulatory standards., - Speed and Efficiency: Capable
of high-speed filling and capping, improving overall production
throughput., - Versatile: Can handle various liquid types, from water
to thicker, more viscous products depending on configuration.,
Applications:, - Commonly used in the beverage industry for filling
soft drinks, juices, and other liquids., - Suitable for pharmaceutical
products requiring strict filling standards., - Used in cosmetics for
lotions, shampoos, and other liquid products., Benefits:, -
Streamlined production process reduces handling and transfer times., -
Improved accuracy in filling minimizes spillage and product waste., -

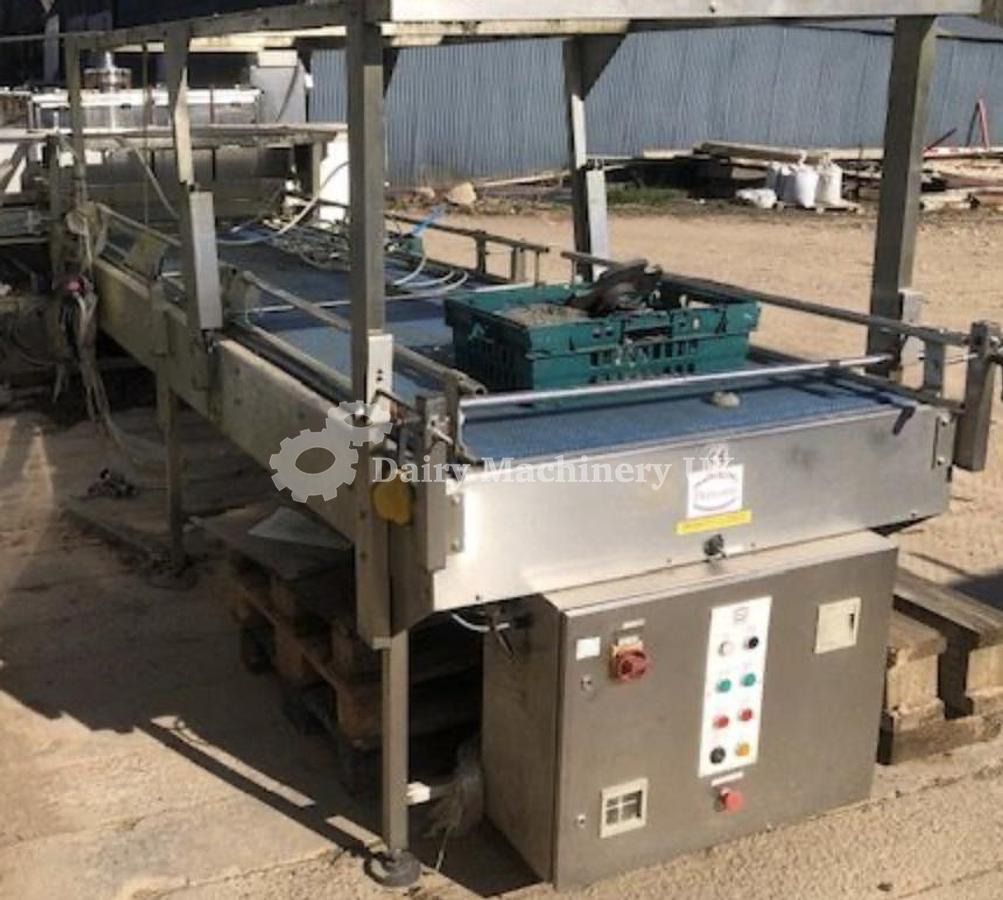

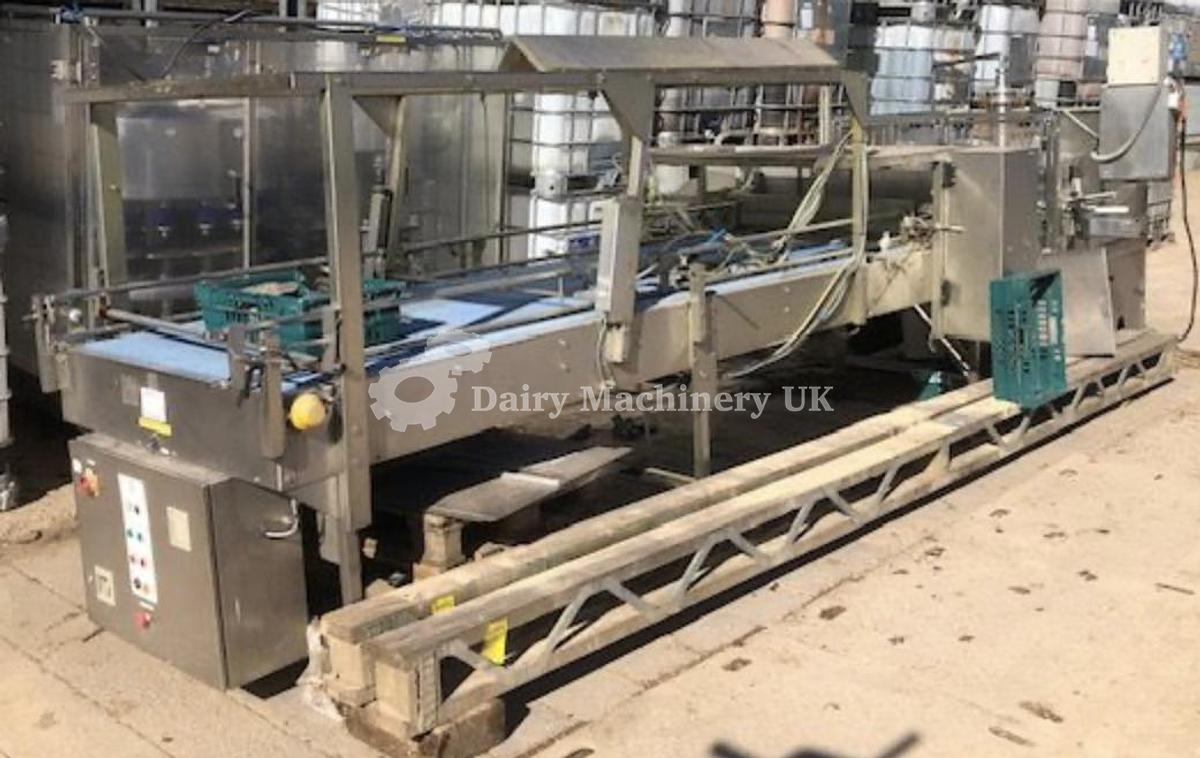

Enhanced product shelf life due to airtight sealing., Dawson Debagger,
which is suitable for, 250ml bottles. We used to use the NAMPAK type
(50mm x 50mm square), and 2, bags would fit width ways. A total of 6
bags could go on the bed at any one, time, meaning a capacity of
approximately 1500 bottles., We added a special air operated gate to
the end where the dogchain is,, which was for using PET bottles. As
the PET bottles were smooth, they tended, to stick together - so the
function of the gate was to separate the row of, bottles that was
about to be swept by the dogchain from the rest of the, bottles on the
bed,. It worked very well, so we also used it for the HDPE, bottles.,
The overall length is around 4.5m, and the width of the bed is I
think, 1200mm, with the widest part of the machine at about 1.8m. It
runs on single, phase power (16a, blue plug or hard wired) and has a
variable bed speed, setting., Speed: 0-8000 b/hr Depending on Volume ,
Type: Monoblock , CIP: Ring for connection , Cap Feeder: Included ,
Automation: Authentic Fogg controls , Filling Heads: 18, Capping
Chucks: 5, Cap Type: 38 mm, Bottle Type: square , Labeller: Graham
Labeller , Debagging Table: Dawson Included , Collection Table:
Included , Conveyors: 13 meters and bends , Bottle Rinser: Included,
Available: Immediately
