Pile installations FINNROSE ST-10-170 Electronic

Finnrose Plate Stacker
Type ST-10-170 Electronic

For automatic stacking
(e.g. on roller conveyor for further transport)
Of plate-shaped workpieces, doors, or woods
Was used to stack timber behind a four-sided planer

Workpiece size
Maximum 2500 mm x 800 mm
Minimum 400 mm x 250 mm
Weight maximum per workpiece 80 kg
Capacity 20 workpieces per minute,
depending on the workpiece size
Maximum stacking height above floor 1800 mm
Belt drive 0.18 kW
Roller drive 0.09 kW
Compressed air consumption per stroke 3.9 NL

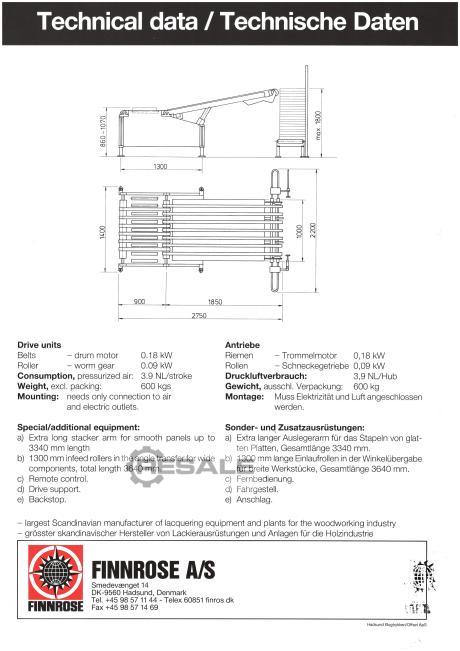

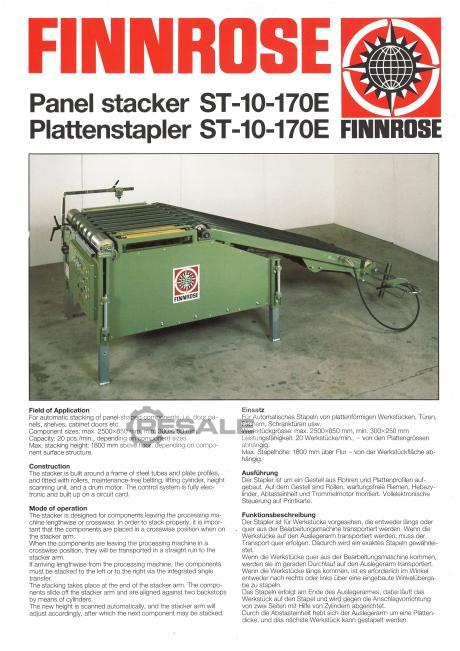

Instruction manual and circuit diagram available

Weight approx. 600 kg
Dimensions
2800 mm x 2200 mm x H 1100 mm (H max. 1800 mm)


seller offer No. resale 9490
