REX HOMS-410-K two-side high-performance planer and saw combination, year 2004. Exchangeable planer heads, centre-cut guide saw, lower and upper working shafts and special lower multi-blade circular saw. Maximum planing width 410 mm, planing height 280 mm, saw cutting height 90 mm, self-feeding workpieces from 900 mm. Electronic feed 8–48 m/min. Drives: 5.5, 15, 22 and 55 kW plus 7.5 kW feed. Machine dimensions approx. 4,500 x 1,700 x 2,215 mm; weight approx. 7,800 kg. 400 V, 50 Hz, three phase. Overhauled and serviced in 2024.

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis. Machine was running with oil, not coolant. A fire extinguisher system is installed.

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

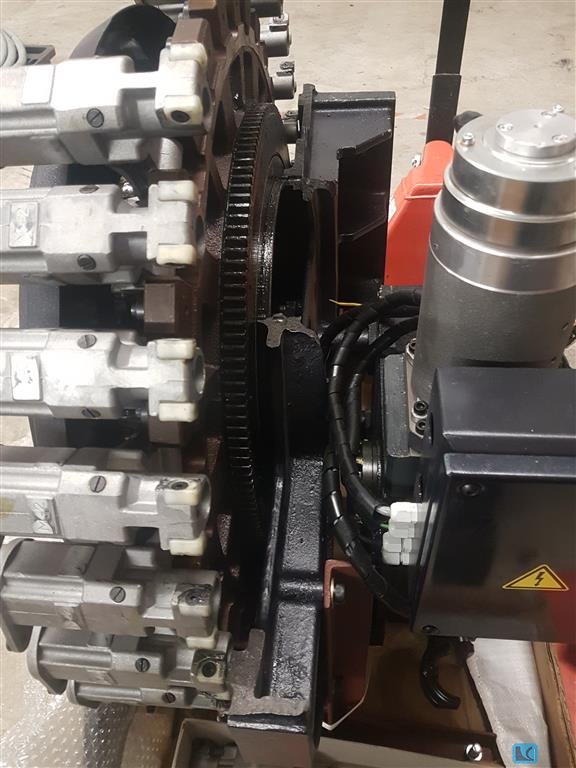

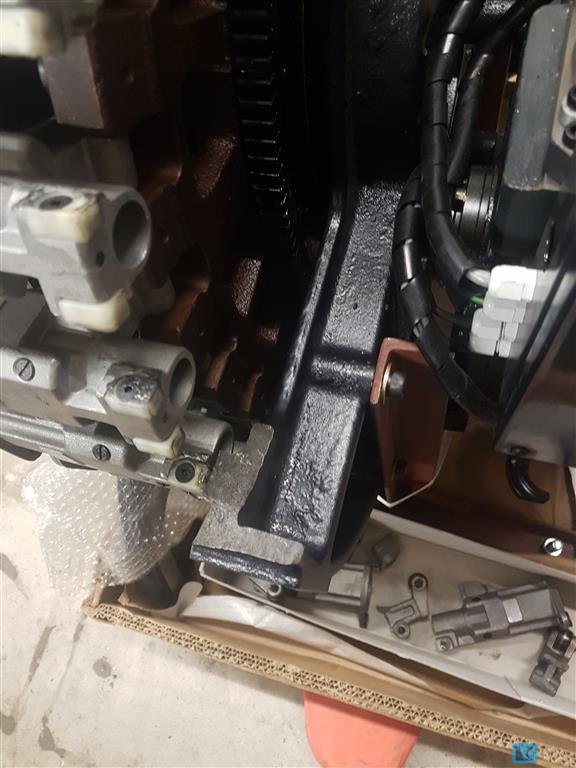

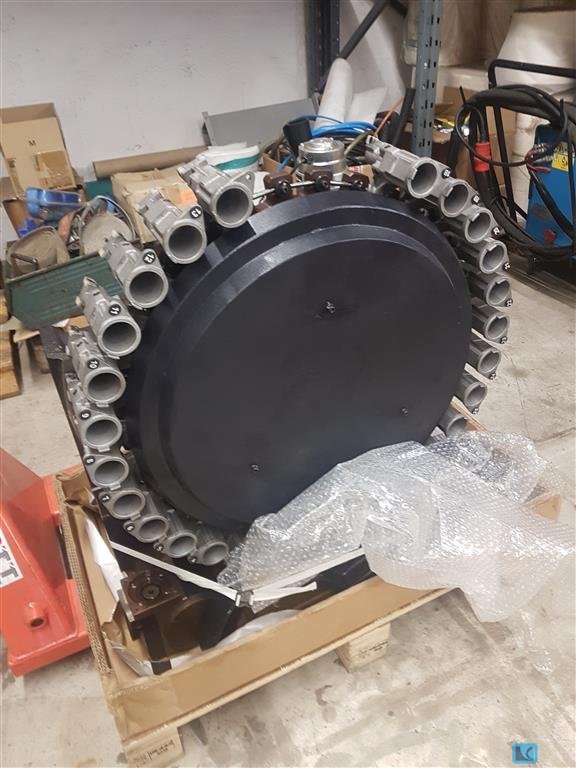

We are selling a new unused but defective tool magazine with tool changer for a Makino PS 95. The magazine body was broken in two parts with a crane hook during unloading of the machine from its transport box. Also some tool pots are damaged. Can be repaired or used as spare parts

max. workpiece diameter:29 mm min. workpiece diameter:26 mm workpiece length:66 mm the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm Total length will probably be almost 400 mm possible with a few conversions. Also dependent on tool lengths, machining lengths on the component, etc. Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3 Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing th ...

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

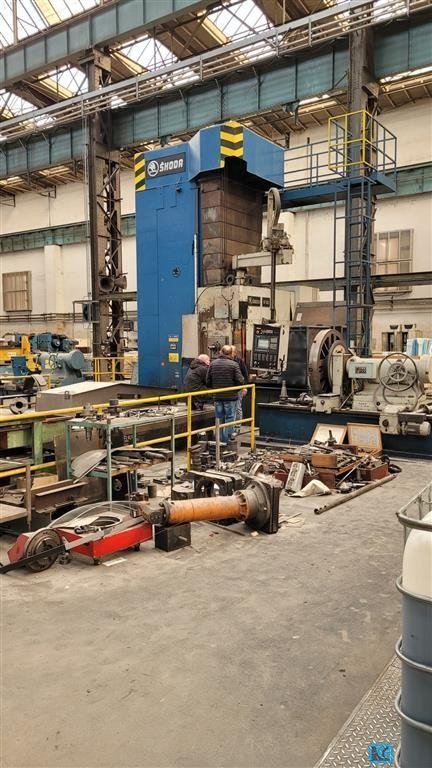

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW Machine Technical Data ·Machine weight: approx. 130 t including accessories ·Z travel (ram): 1250 mm ·W axis (spindle): 1000 mm ·Sleeve extension: 1250 mm ·Sleeve dimensions: 450 x 450 mm ·Boring spindle stroke: 1000 mm ·Boring spindle speed: 920 rpm Rotary Table: ·Motor driven rotary table ·IOS 40 ·CNC control ·2 axes B and V ·Rotary table size: 3000 x 3500 mm ·Rotary table CNC IOS 40 NC Indexing and Accuracy: ·Infinitely adjustable ·Diameter related ·Indexing: 4 x 90 degrees up to 360000 ·Angular resolution: 0.001 degrees Travel Ranges: ·Longitudinal cross travel: 1230 mm Load Capacity: ·Maximum rotary table load: 40 t Clamping Plate: ·Clamping plate: 3 x 8000 x 2000 mm

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

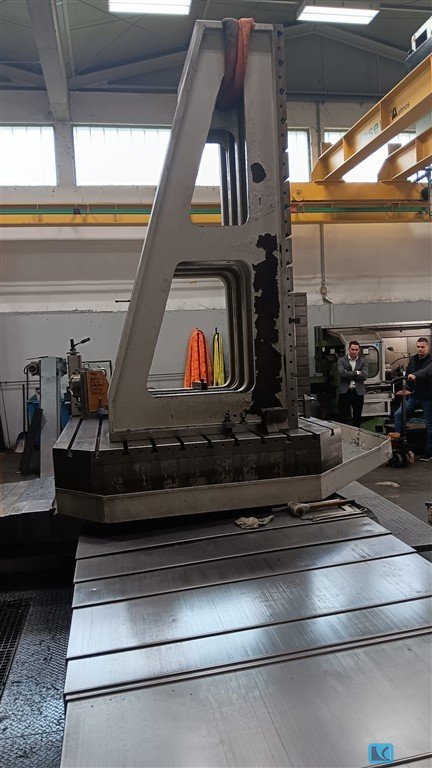

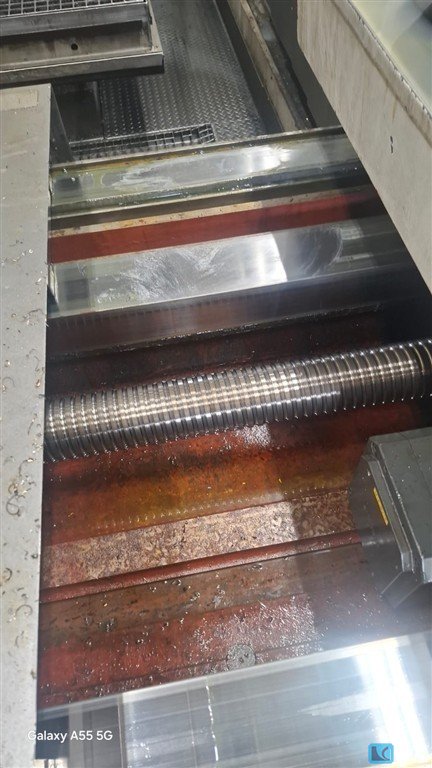

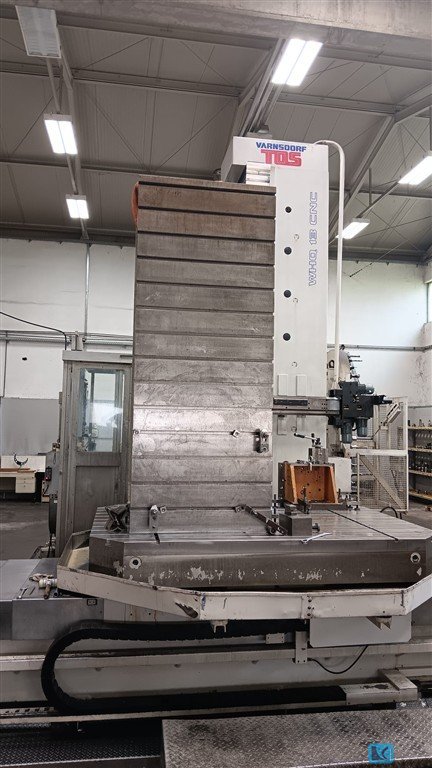

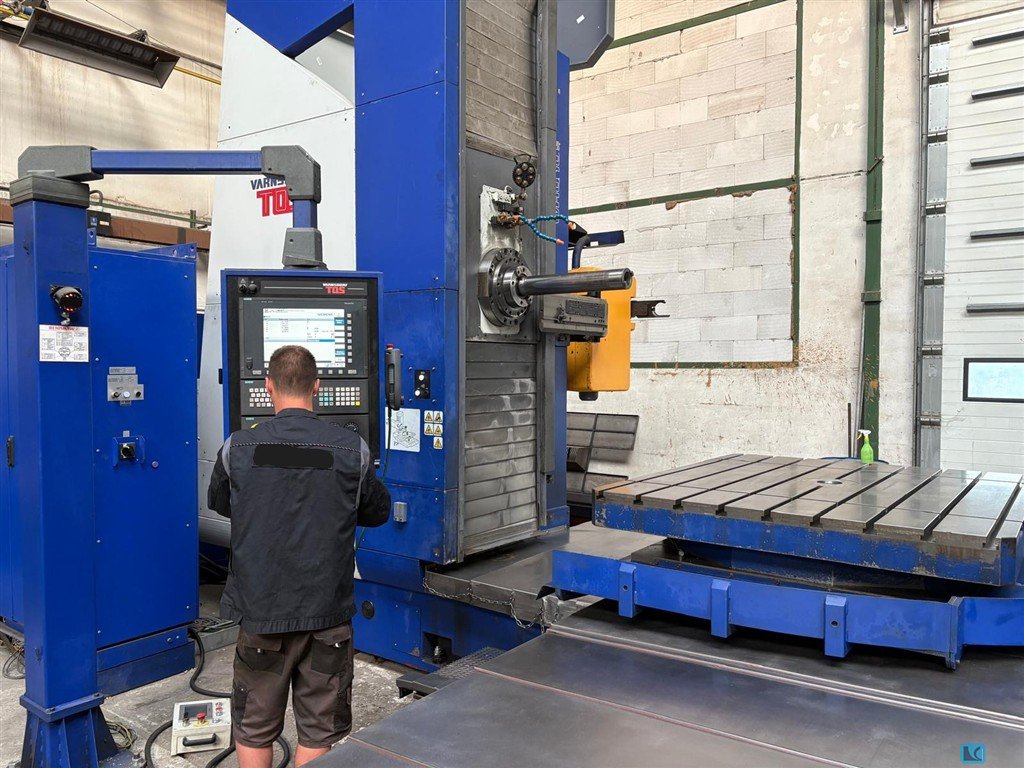

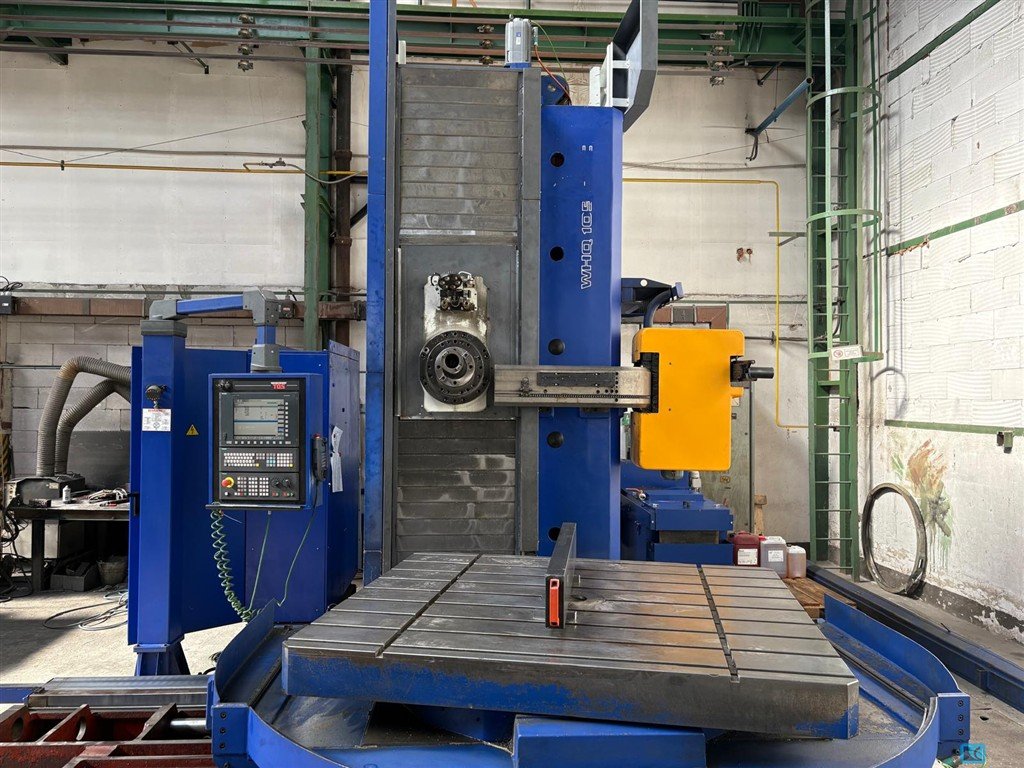

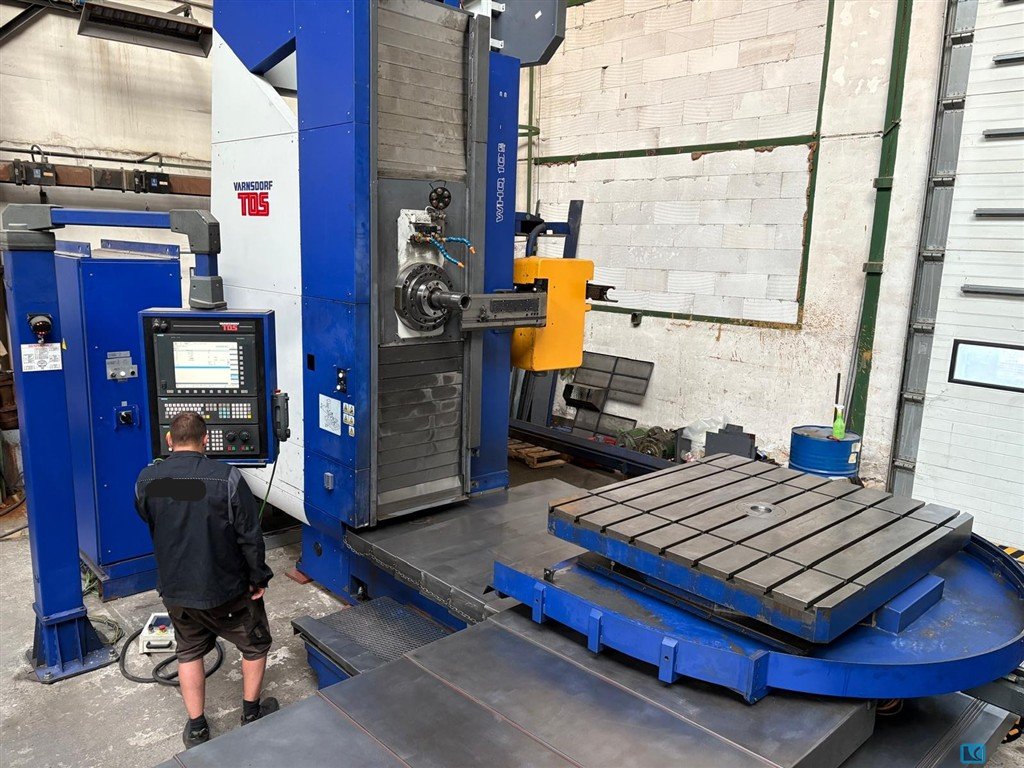

spindle diameter:130 mm x-travel:5000 mm y-travel:3000 mm z-travel:2000 mm The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries. With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes. The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various ma ...

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

throat:580 mm tool adaptor:drm. 130 weight of the machine ca.:0,1 t dimensions of the machine ca.:0,4 x 0,4 x 0,58 m used spindle support bearing for spindle diameter 130 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

This is a Product Pump with the Balance tank for viscous products ie. yoghurt, pastes, cream, etc. It is designed to transfer the product from A To B without overheating or beating the product. This is located on skid with an extra high speed volume pump for the CIP wash down of the system. Control panel is included in the line., Product Pump: For viscous Products , CIP: Special CIP Pump on the skid , Stainless steel: Yes , Electricals: 3 phase / 400v /50-60hz , Available: Immediately

A Takamatsu CNC twin-spindle turning and milling center is available. 1) Turning diameter: 190mm, turning length: 150mm, max. one-sided machining length: 440mm, max. bar diameter main spindle/counter spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2: 100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm, tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2: 500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control: Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity: 52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z: approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E 120-X-2-H filtration system, year of manufacture: 2022, filter stages: 2, extraction  ...

Max. volume flow rate: 1,260m³/h, possible number of filter stages: 1, 2, operating voltage: 3x 400V, PE, N, frequency: 50Hz, rated power: 1.8-2.9kVA, max. rated current: 2.7-6.6A, upstream fuse: 16A, mains connection three-phase AC: 400V, max. rated power: 2.9kVA, max. rated current: 6.6A, upstream fuse: 16A, control cabinet protection rating: IP54, max. differential pressure: 2,380Pa, compressed air quality: factory-supplied, oil-free, dry, max. inlet operating air pressure: 8bar, operating temperature: 5-40°C, weight: 165kg. On-site inspection is possible.

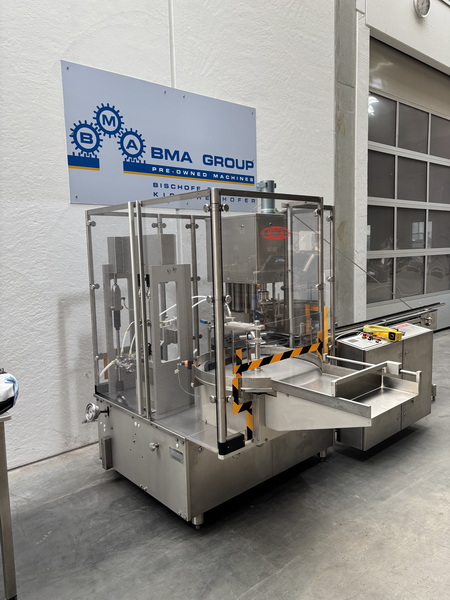

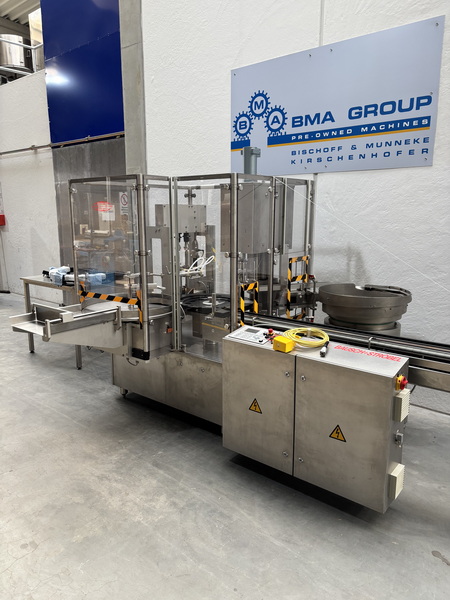

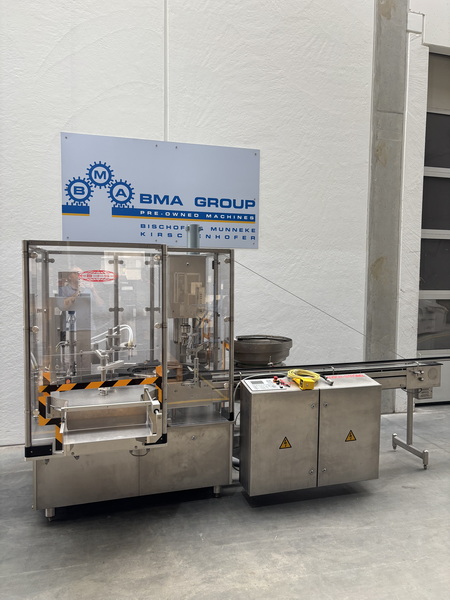

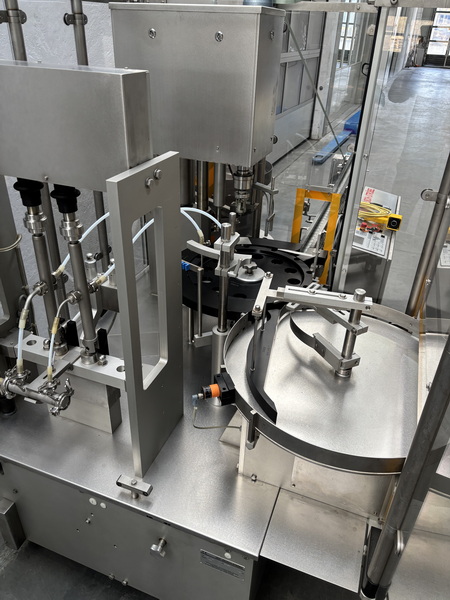

Machine for filling, inserting dropper inserts and sealing vials and bottles with screw caps (stable, stackable) • Maximum output 80 objects/min • 6 filling stations with 6 rotary vane pumps for filling range 20-100 ml, other filling ranges possible by purchasing new pumps • 1 new replacement pump for filling range 20-100 ml • Anti-drip protection through suction back • Bottle feed through infeed turntable • Bottle discharge through discharge turntable • Press-in station for dropper insert diam. 12.2 x 19 mm with sorting pot • Screw-on station with pre-screwing and post-screwing for screw cap diam. 20.5 x 32 mm with sorting pot • Vacuum pump • Available bottle formats (all information without guarantee, no guarantee of completeness): - diam. 24.2 x 63.3 mm (10 ml) - diam. 29 x 74.2 mm (20 ml) - diam. 32.2 x 83.8 mm (30 ml) - diam. 35.4 x 71.7 mm - diam. 37 x 91 m ...

• For plastic tubes (HDPL, LLDPL) • Hot air sealing • 9 tube holder stations • Output max. 40 tubes/min • For tube diam. 9-50 mm depending on tube holder format set • Tube height 60-240 mm • Dosing 20-220 ml depending on dosing pump • 1 rotary valve dosing pump 10-100 ml (1 additional as spare) • Tube feed magazine • Filling funnel with agitator, heatable with heating/cooling device • Print mark control (alignment of the tube to the print image) • Embossing 1 line • 2 tube holder format sets: tube diam. 25 mm, tube length 90 mm, tube diam. 35, tube length 165 mm • PLC Siemens S7-300 • Connection 400V/50Hz • Has worked in line with upstream tube labelling machine 05-0179

• s/s-style, adjusted for filling and closing of vials/bottles • 2 filling stations for steady objects, object-dia for round objects 16-100 mm, for flat objects 16x16 - 100x100 mm, h 35-310 mm, according to change parts • Output max. 3,000 objects/h according to product • Filling area 0.3-540 ml/bottle according to pumps, with 2 one after the other installed s/s-rotary piston pumps each 2 pumps each 8 - 50 ml • Single filling (max. 50 ml) and step filling (max. 100 ml) possible with existing pumps • Drip retraction • 1 Hand-over station for screw caps dia 22,0 x 20,5 mm with screwing tool and sorting bowl • Change parts for bottle-dia 24,2 x H 63,7 mm, dia 28,6 x H 71,5 mm, dia 37,7 x H 92 mm • 2 sets dosing needles, each 2 pcs, several dia • PLC Klöckner Möller PS4-201-MM1, touchscreen • Eectr. connection 220/380V/50Hz

Fully automatic system for filling nested disposable syringes and closing with plunger stoppers, consisting of 4 Bausch+Ströbel components: • TUM 9070 Tub unpacking machine for removing the cups from the bag using a sliding device • DVE 9070 Cover and protective film removal • SFM 5072 Filling and sealing machine • NTS 8140 Transport system • Output max. 36,000 disposable syringes/h, infinitely adjustable • For disposable syringes 0.5 - 10 ml depending on format set • For plunger stoppers diam. 5.00 - 21.00 mm, H 7.00 - 15.00 mm depending on format set • For 100 mm nest • For tub H max. 130 mm • Parts in contact with the product made of stainless steel AISI 316L • IQ/OQ qualification documentation in accordance with Annex D5 GAMP 5 and Annex 15 EU-GMP in English • Calibration (KAL) for all process-relevant measuring systems • Material specification • PLC Siem ...

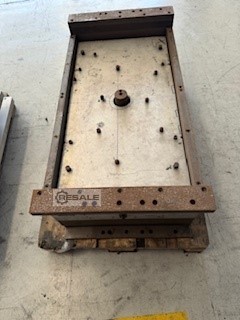

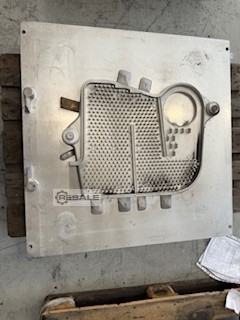

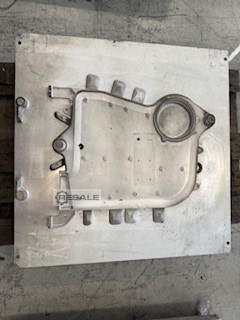

Object: COMPLETE FOUNDRY TOOLING FOR CAST-IRON BOILERS – ROKOR & ROGAS Two production-ready tooling sets for sale – €40,000 each, negotiable 2 sets of foundry tooling and core boxes, manufactured in 2019 and 2020, are available for the production of cast-iron heat exchangers for high-efficiency heating boilers. • ROKOR: Tooling for oil-fired boilers • ROGAS: Tooling for gas-fired boilers Key features • Almost-new condition, designed for industrial production • Proven Saint-Roch boiler technology • Robust grey cast-iron heat exchanger design • Boiler ranges covering 15–58 kW, with technical documentation specifying models up to 80 kW • Comprehensive technical documentation available, including drawings, specifications, BOMs, manuals and performance test results A turnkey industrial opportunity: Enables a foundry or heating equipment manufactur ...
